    Track ends to gears, anyone done it?

    My frame is the On-One Ti Inbred single speed version with no cable stops and track ends. For bikepacking, I got a need for gears.

    I know I've seen mention of these here before. Has any one had experience with them? It seems like the conversion can be done on my frame for the rear derailleur with some leftover geared parts I have, this DMR thing and some zipties.

    According to the On-one site, the frame should accomodate a triple chainring and front derailleur as that part of the frame is the same as their geared Inbred. I get lost trying to think of how to cable the front derailleur without a cable stop. Any ideas?

    Other than accomodating a qr hub, am I missing anything?

  2. #2
    Mtbr Forum Sponsor - Homebrewed Components
    Reputation:
    Join Date
    Jul 2006
    Posts
    2,419
    i made one for my old PUSS and it seemed to work ok, but i didnt use it very long. The DMZ one is pretty far offset, so it puts the rear deraileur out the thickness of your dropouts, plus the thinckness of that piece. I cannot comment on how that will work with your deraileur travel. I do not know if most RD's have that much limit adjustment. The one i made put the deraileur flush with the dropout. As for the cable stop, i'm sure you can buy one that clamps on, and if not, i can make one.

  3. #3
    mtbr member
    Reputation: boomn's Avatar
    Join Date
    Jul 2007
    Posts
    10,022
    Speedgoat carries the Problem Solvers clamp-on housing stop here.

  4. #4
    mtbr member
    Reputation: asphaltdude's Avatar
    Join Date
    Sep 2008
    Posts
    643
    I used that DMR hanger for my Monocog.
    Had to file some metal off to make it fit, but after that, it worked just fine.
    Ride more!

  5. #5
    mtbr member
    Reputation: scooter916's Avatar
    Join Date
    Jan 2006
    Posts
    1,265
    alfina hub?
    Quote Originally Posted by thefuzzbl
    aluminium has a tendency to fail when you need it most. i.e. you end up with a bad day.

  6. #6
    I'm attracted to Gravity!
    Reputation: campredcloudbikes's Avatar
    Join Date
    Feb 2008
    Posts
    598
    Yes. It can work.


    Jabberwocky Gear Plug for the back, Tektro bolt on cable stop for the front. Works great.

  7. #7
    Ovaries on the Outside
    Reputation: umarth's Avatar
    Join Date
    Dec 2007
    Posts
    4,366
    I bet you can find a way to make it work.

    But think of how awesome it would be to bikepack SS....

  8. #8
    mtbr member
    Reputation:
    Join Date
    Aug 2005
    Posts
    340
    Thanks for the info everyone. I may try those DMR tugs. I like That Jabberwocky plug, but my frame wouldn't accommodate the set screws. Too bad, that's a clean solution.

    The problem solvers cable stop/guide thing looks like the ticket for the FD. Campredcloudbikes, I'm not clear on your FD solution. I googled "Tektro bolt on cable stop" and just came up with cable hangers for rim brakes.

    Umarth, my bikepacking with a SS is more like taking my bike for a hike!

  9. #9
    Ovaries on the Outside
    Reputation: umarth's Avatar
    Join Date
    Dec 2007
    Posts
    4,366
    Yeah, I know. Though I have done one trip where I managed to pedal almost all of the distance.

  10. #10
    mtbr member
    Reputation: asphaltdude's Avatar
    Join Date
    Sep 2008
    Posts
    643


    Monocog + DMR hanger + XT mech + Bob QR + Bob Yak
    Ride more!

  11. #11
    mtbr member
    Reputation:
    Join Date
    Mar 2009
    Posts
    62
    I've hunted and emailed around. Sorry if I missed it somewhere, but has anybody had luck finding a chaintug with a derailleur hanger to fit the On-One Inbred track end? I've heard the DMR MAY work, but I'd rather be a bit more sure before I order something. I'm also concerned, as another member noted, that the chain tug hangs the derailleur pretty far outboard. Any other suggestions? I know, I know already thinking IGH. Thanks

  12. #12
    Drinking the Slick_Juice
    Reputation: nuck_chorris's Avatar
    Join Date
    Jun 2008
    Posts
    1,809
    like mentioned above (but overlooked) build a wheel with an internal gear hub, its probably more effective and maybe even cheaper.
    "If women don't find handsome , they should at least find you handy."-Red Green

  13. #13
    mtbr member
    Reputation:
    Join Date
    Mar 2009
    Posts
    62
    IGH = internally geared hub, already considering it. Gotta look at all the options.

  14. #14
    mtbr member
    Reputation:
    Join Date
    Aug 2005
    Posts
    340
    Well in my case, I've already got front and rear derailluers, both shifters, a geared wheel with cassette, and a triple crank. So if I'm not forgetting something, my only outlay would be for a means to hang the rear derailluer, a cable stop for the front derailluer, some zipties, and probably some fresh cables.

    As for the internal hub (Alfine?), has it been pronounced as kosher for off-road? I thought reviews were mixed. If so, not something I'd want to take into the Colorado back country for a multiple day trip.

    One-one used to have a chain tug with a hanger. I found an old document that described it as: It fits into your horizontal dropouts to allow Gimp (or Jack Flash, or whoever) users to run gears. It's even possible (heaven forbid) to run gears on an Inbred or Pompino with one of these! For Inbred or Pompino use, you need to trim 2mm (ish) off the thickness of the bit that sits in the dropout. Requires the use of a vice and hacksaw. And a file.

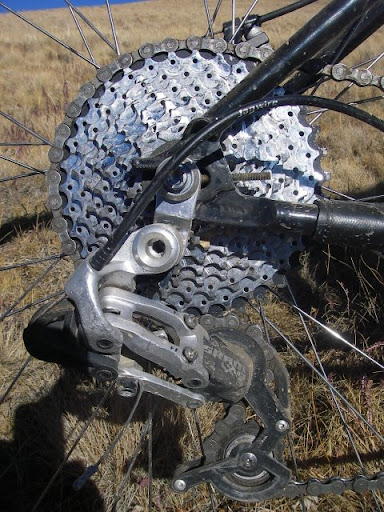

    A picture:

    It looks like it has the offset built into it.

    Using just a web search, I couldn't find this On-one tug offered for sale anywhere.

  15. #15
    mtbr member
    Reputation:
    Join Date
    Mar 2009
    Posts
    62
    Thanks. I thought there might be something like this, but OnOne was not very forthcoming.
