    HOW NOT TO: Winterize your cassette freehub body

    Well, it is this time of the year where outside is as cold as a witches titties. Where your freehub freezes, slips and won't engage.

    Frown no more my friend, we are gonna winterize them hubs!

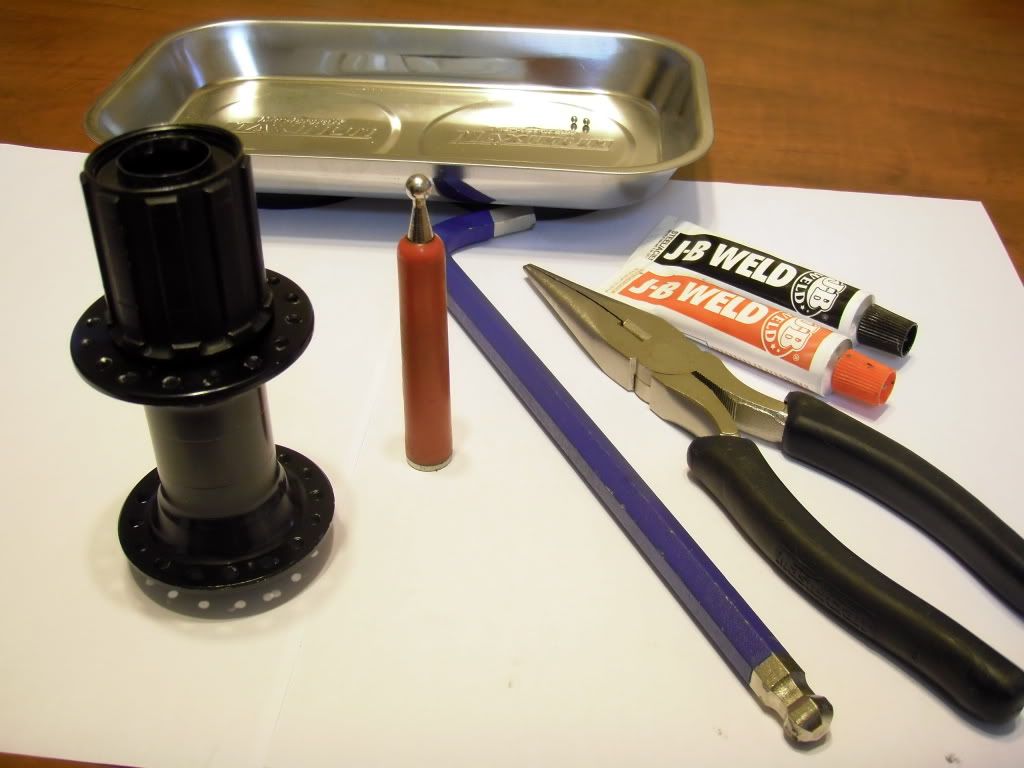

    Tools:

    Frozen casstte freehub (steel body is a must)
    Light grease (Snowmobile grease works perfect)
    Adustable spanner and 15mm cone wrench
    10mm Allen key
    Long-nosed pliers
    Magnetic tray
    Few nails (I'll explain later)
    and man's best friend next to dog, JB-Weld

    Procedure:

    1. Remove the axle from the hub from the non-drive side. Save them bearings.



    2. Remove the dust cap. It is not threaded, you just have to pry or pull it out.

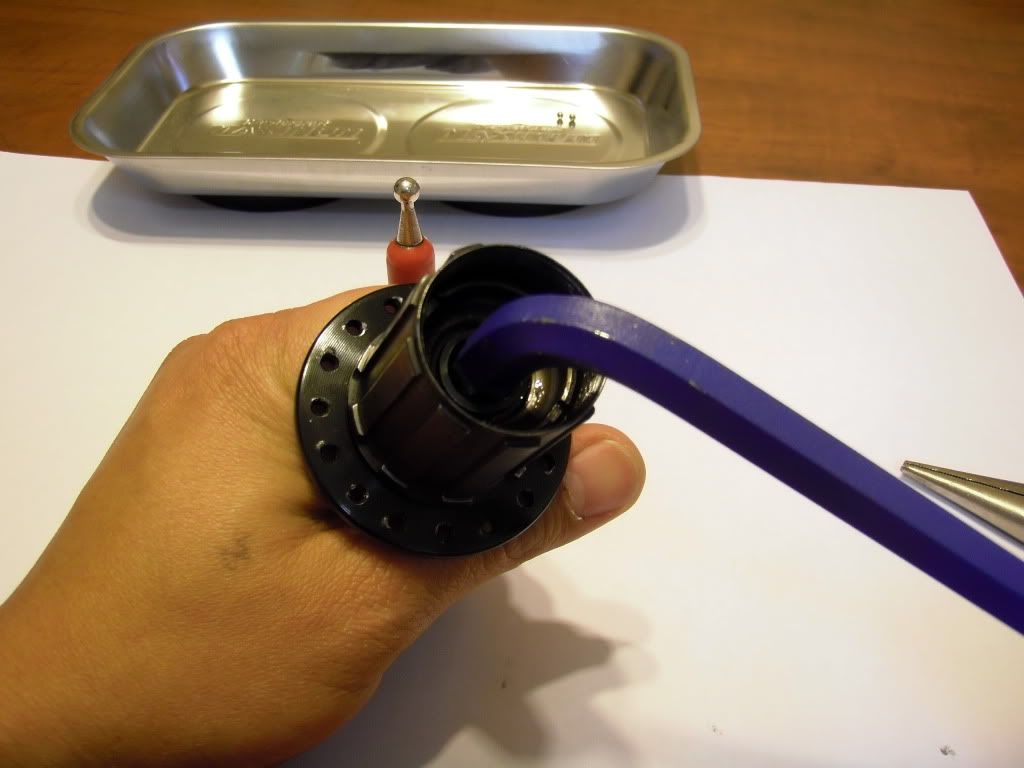

    3. Using a 10mm Allen key, unscrew the body from the hub. One turn is good, you don't need to remove the body yet completely.

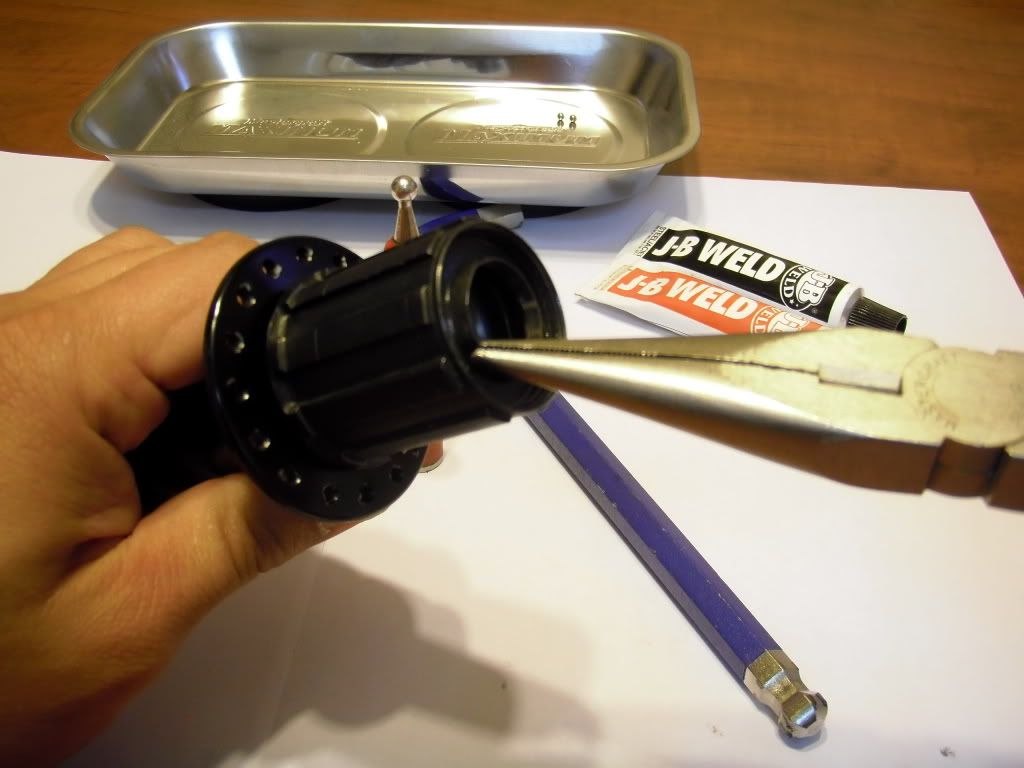

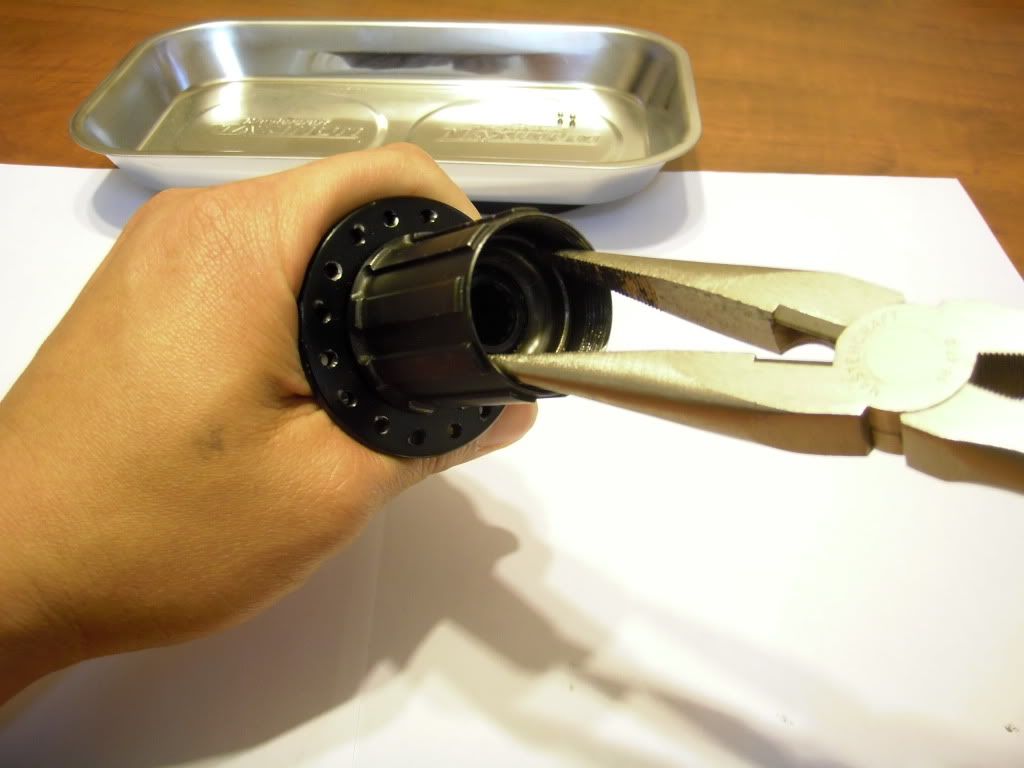

    4. Loosen the lockring with two notches that is holding the ratcheting mechanism together using your pliers. Turn clockwise.

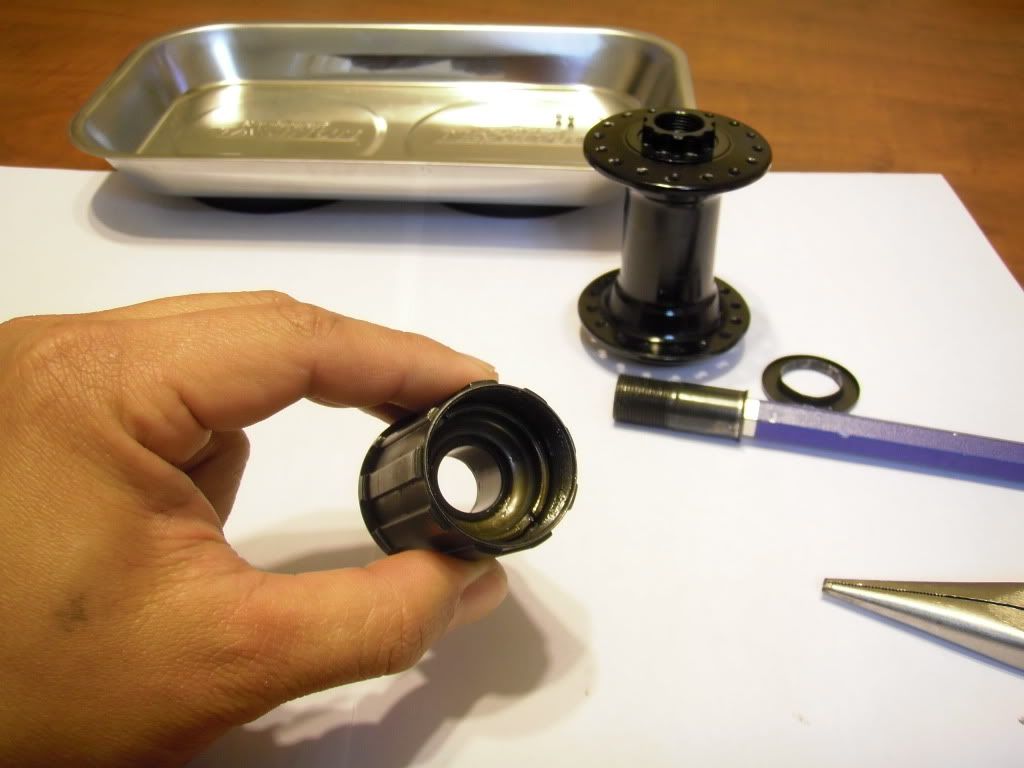

    5. Remove the body completely again with a 10mm key.

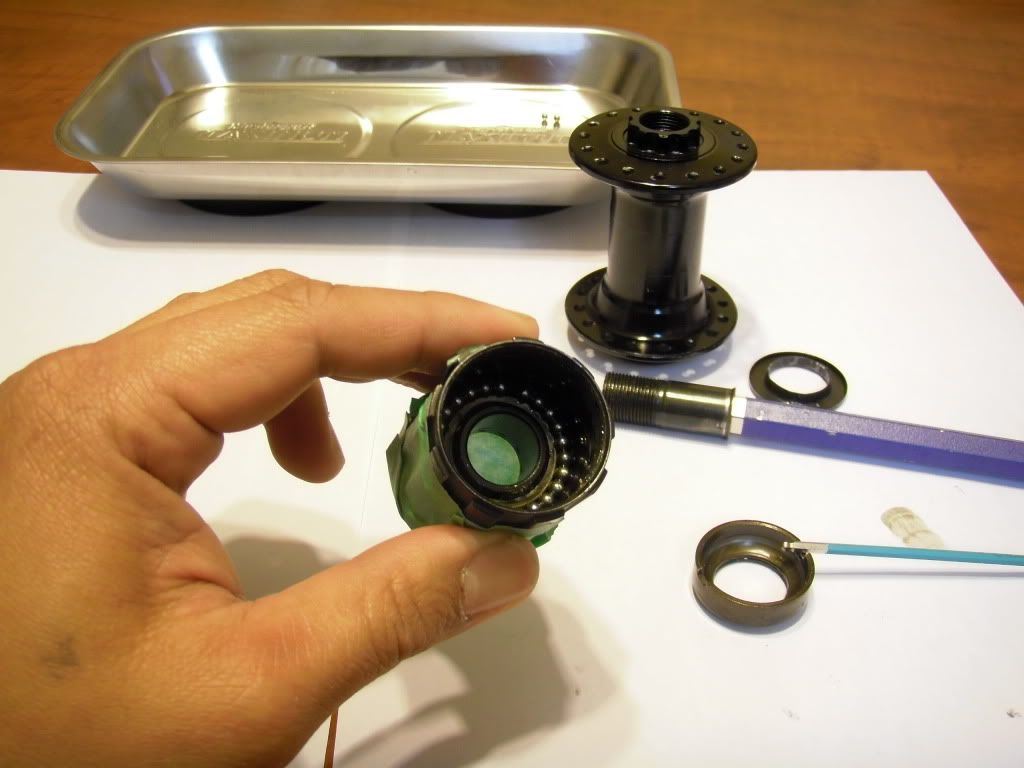

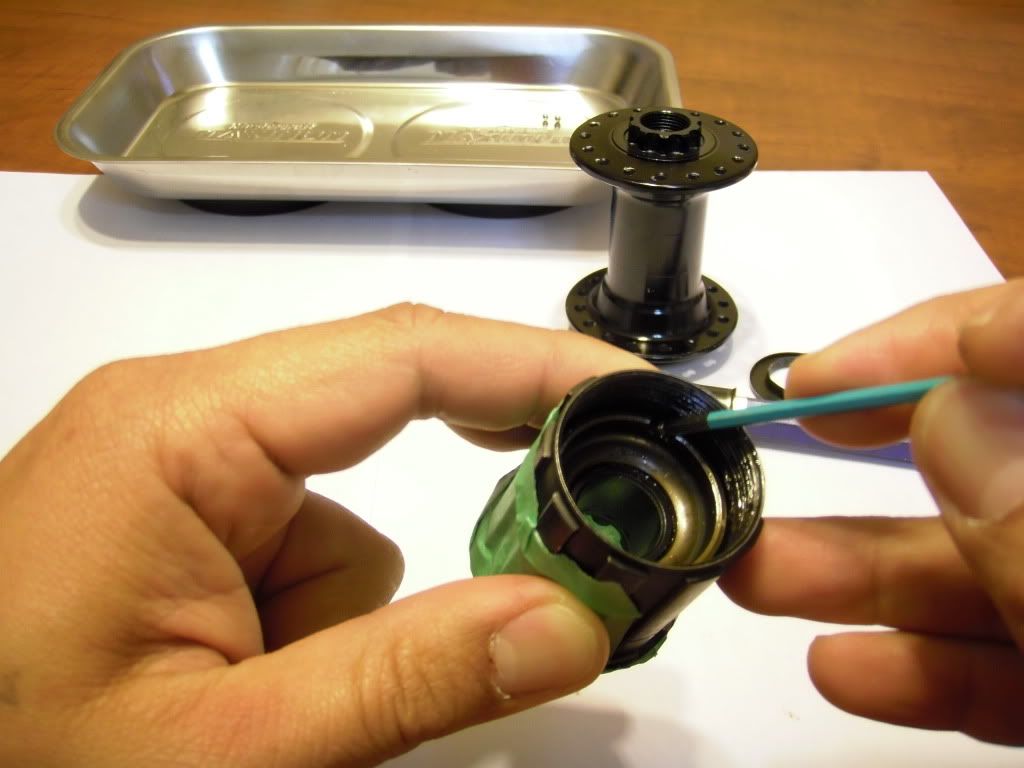

    6. Tape the bottom side of the body before fully removing the lockring. You can ignore this step if you like chasing for tiny bearings. Save them bearings.

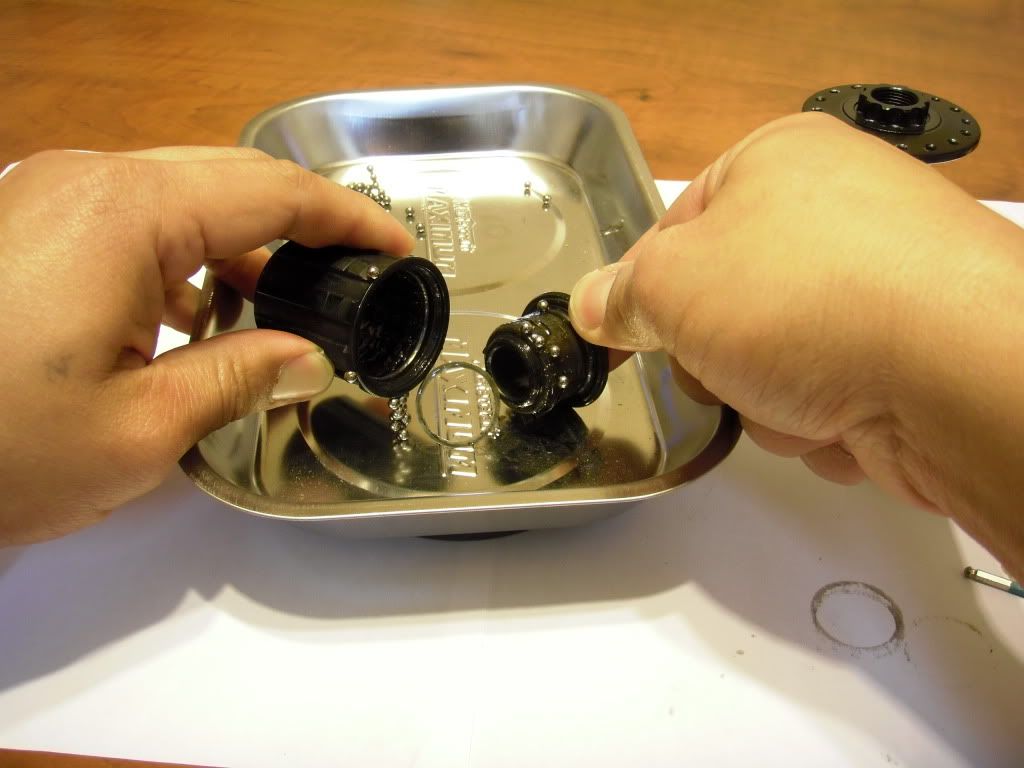

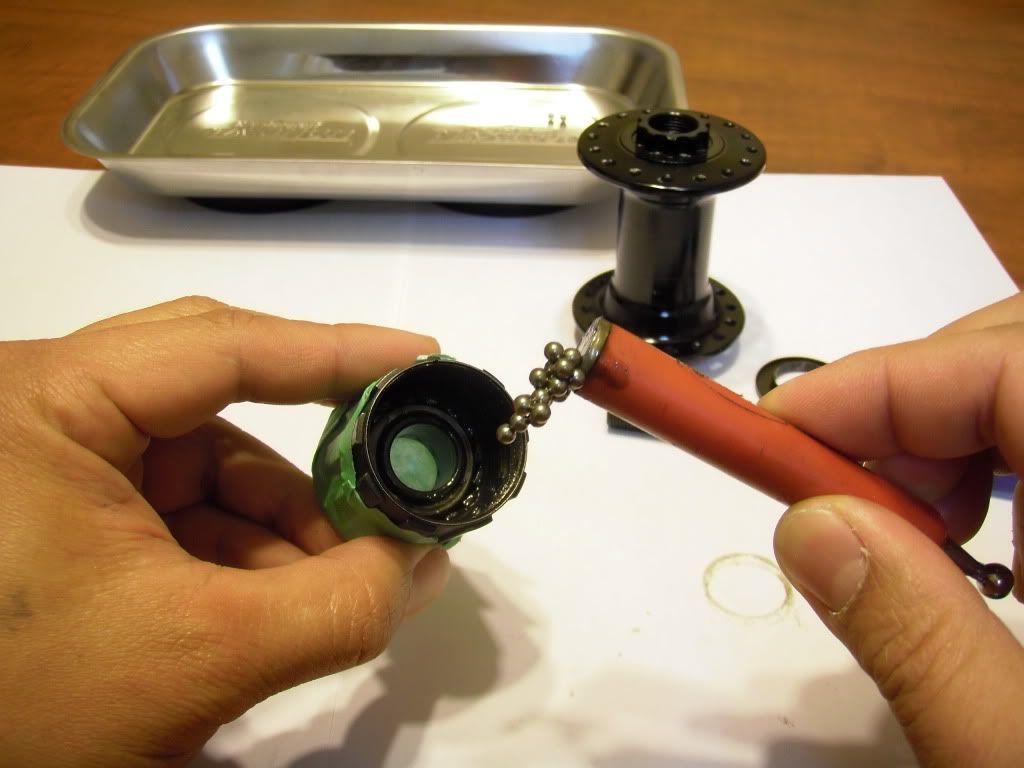

    7. Remove the tape and be ready to catch the bearings once you pull the mechanism out.

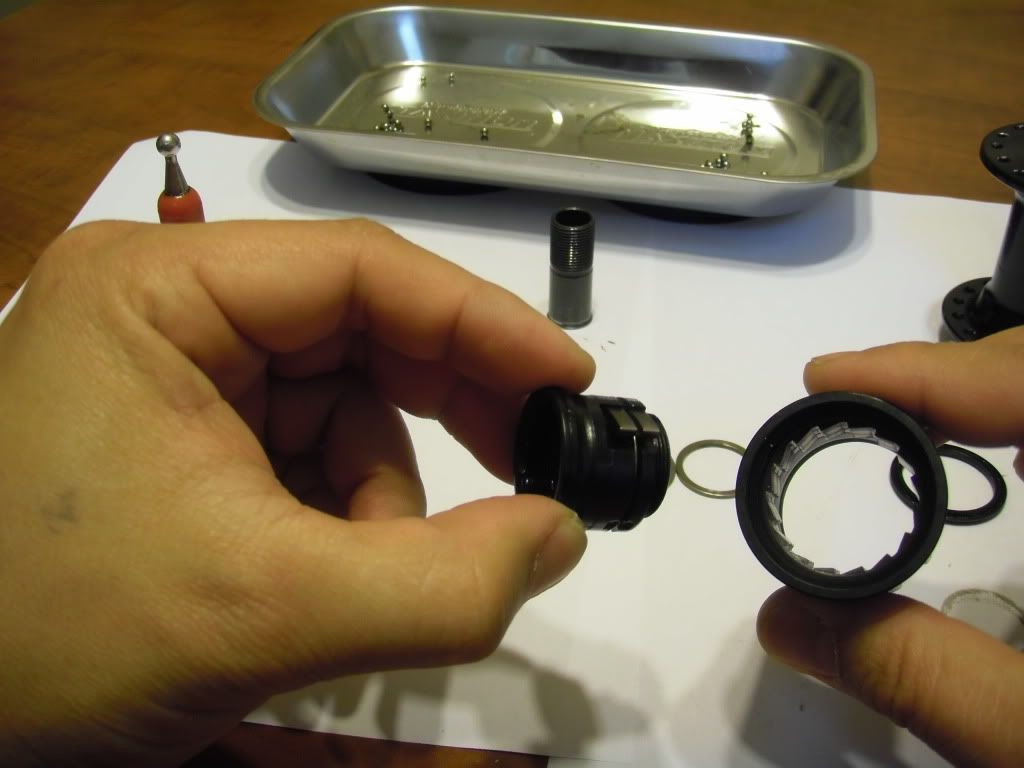

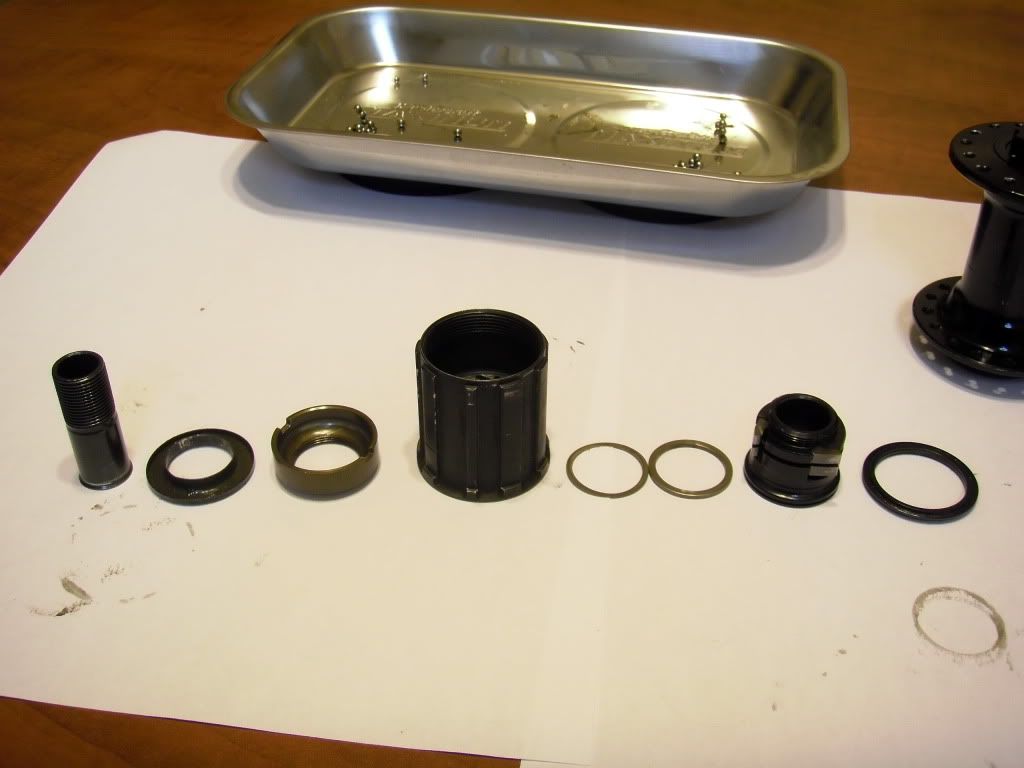

    8. Clean all the parts with a degreaser or dish washing soap and a brush.

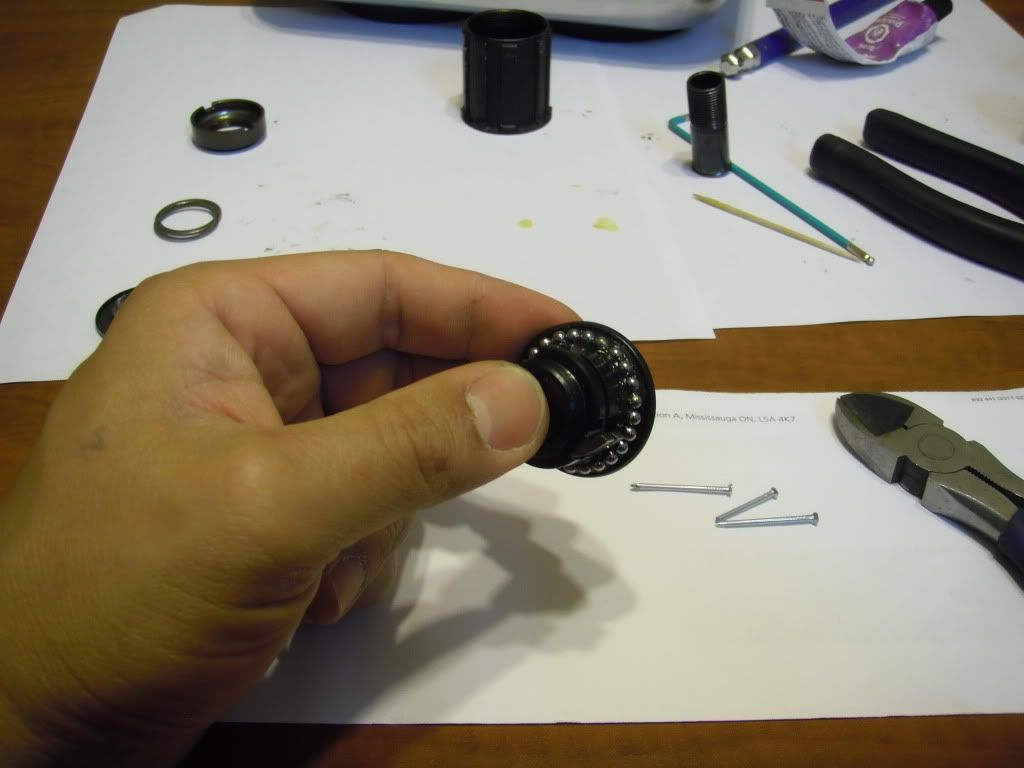

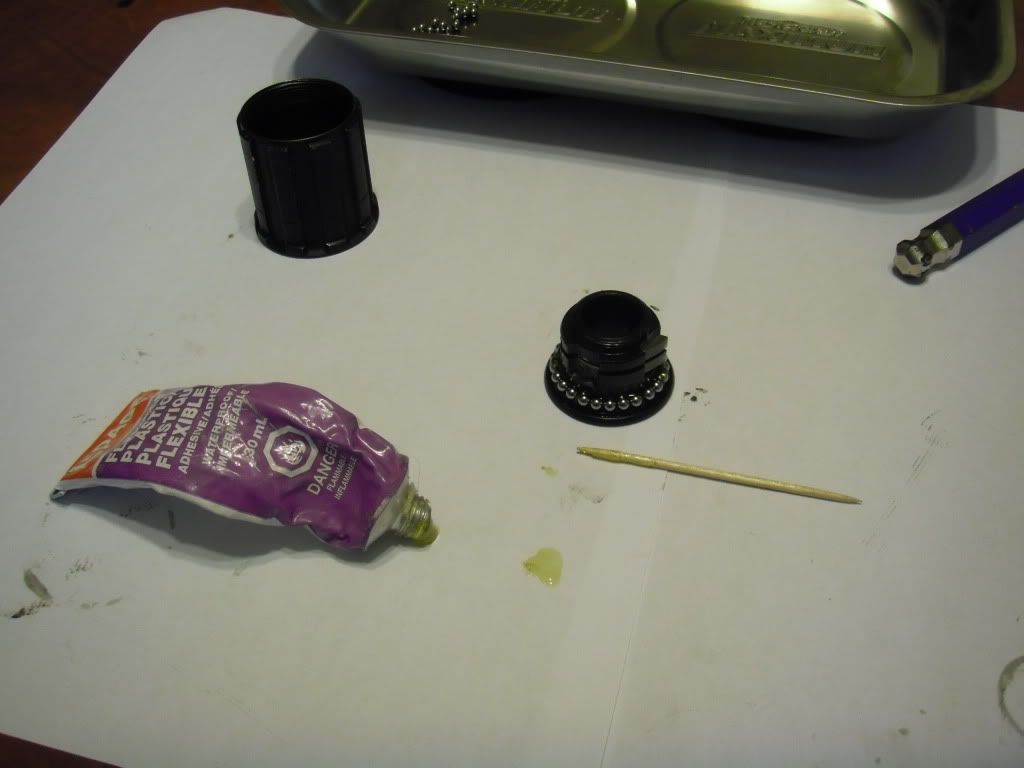

    9. Glue the bearings back, we don't need them to spin ever again.





    10. Put the freehub body back together with a touch of JB-Weld and jam the mechanism with cut down nails. The objective is to make that hub not to ratchet anymore. Use your imagination, my camera is dead.

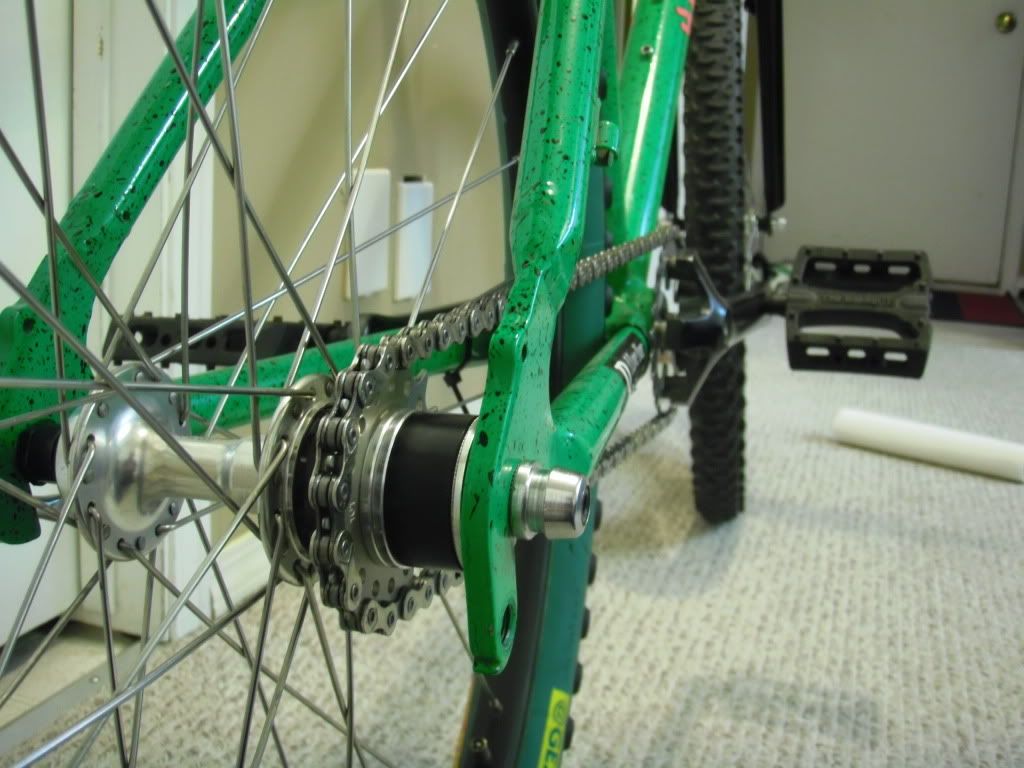

    11. Torque that cassette body back to the hub. You just made yourself a fixed gear hub that might last you a few days, months, or years depending on your quality of work and style of riding.



    12. Not for everyone. Brakes recommended.

    By the way, the snowmobile grease works perfect in sub-zero temperatures, it doesn't thicken or gunk up. If you plan on just winterizing your hub, just replace the JB-weld with this grease, just a light coat will do. I swear you will be the only one riding in winter with a crisp ratcheting buzz on freewheel.
    everything sucks but my vacuum cleaner.

  2. #2
    mtbr member
    Reputation: Shalom's Avatar
    Join Date
    Nov 2008
    Posts
    2,006
    Interesting. Top marks for creativity, but might pass. Our winters are not that bad. And we are coming into summer now anyway :P

  3. #3
    mtbr member
    Reputation:
    Join Date
    Nov 2008
    Posts
    423
    Nice post!

  4. #4
    M_S
    M_S is offline
    mtbr member
    Reputation:
    Join Date
    Nov 2007
    Posts
    1,409
    Ha!
    - Simon

  5. #5
    mtbr member
    Reputation: Sage of the Sage's Avatar
    Join Date
    Nov 2011
    Posts
    426
    Salsa Timberjack SS
    -Gears give me headaches

  6. #6
    mtbr member
    Reputation: unknown-rider's Avatar
    Join Date
    Feb 2010
    Posts
    249
    I'm gonna have to try this on a cheap craigslist bike. Great writeup!
    Buy a f-ing bike maybe you wouldn't be fat

  7. #7
    mtbr member
    Reputation:
    Join Date
    Aug 2011
    Posts
    203
    Quote Originally Posted by Sage of the Sage View Post
    Awwww, you can laugh buddy, it's okay.
