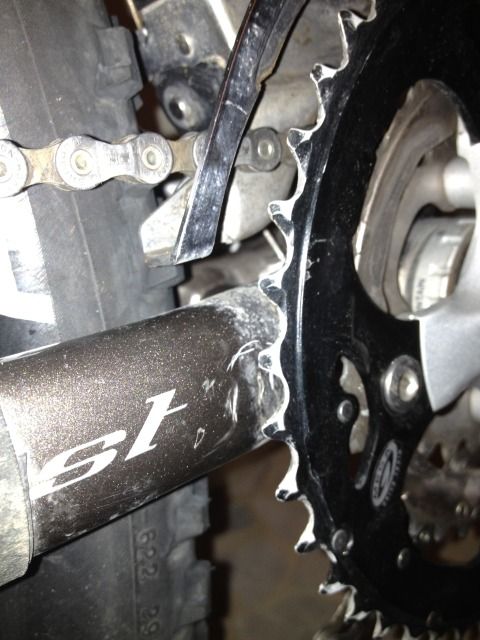

    Clearance of cog on EMD frame

    Let me know what you think, I'm on a Shimano BB using both spacers (one at each side)






  2. #2
    mtbr member
    Reputation:
    Join Date
    Dec 2010
    Posts
    156
    With a shimano 68mm bb you use 2 spacers on the drive side and 1 on the non drive side.

  3. #3
    mtbr member
    Reputation:
    Join Date
    May 2011
    Posts
    81
    That's too close for comfort.

    The 2011 EMD 9 has a 73mm BB so one spacer on the drive side and none on the other is the correct way.

    Taking out the spacer from the non-drive side should give you 2.5mm more clearance between the chainring and right side chainstay.

  4. #4
    mtbr member
    Reputation: kevocastro's Avatar
    Join Date
    Sep 2011
    Posts
    459
    Apparently I got one missing then, where's a good place to find one?

  5. #5
    mtbr member
    Reputation: kevocastro's Avatar
    Join Date
    Sep 2011
    Posts
    459
    Quote Originally Posted by tracke30m3 View Post
    That's too close for comfort.

    The 2011 EMD 9 has a 73mm BB so one spacer on the drive side and none on the other is the correct way.

    Taking out the spacer from the non-drive side should give you 2.5mm more clearance between the chainring and right side chainstay.


    Got it, will remove it then until it's too late.

    Thnx
