    Yo!

    I went for a ride with my new "daylight bringer".

    My camera can't cope temperatures below 0C - 32F.
    (Sorry, no beamshots, yet!)

    Well, the leds are now direct driven by the battery pack.
    I've measured about 2,65 ampere and ca. 6,9 volt on a fully charged pack.

    The body of the SSX2 is cold while riding with 25km/h - 15mph.
    Without moving the body of the SSX2 is not getting hot after 1-2min.
    (Led temperature is unknown, SSX2 body had about 37C - 45C)

    With better cooling modifications like copper emitter, copper fittings, heatsinks and maybe a heatpipe construction connected to the handlebar will make the SSX2 a killer bicycle light, DAYLIGHT BRINGER for sure!

    I'm stoked and it is maybe even too much!

    Well, we have really, really strong fog with a mix of snow here outside of our town,
    so I wouldn't recommand to use such strong light at such weather!

    You can blind yourself or I got problem with my eyes.
    I'm not sure maybe it's just the "white - cool white" tint by the leds.

    Happy modding guys!

    Last edited by Jimmy Kester; 12-04-2016 at 05:05 PM.

  2. #1202
    mtbr member
    Reputation: garrybunk's Avatar
    Join Date
    Feb 2014
    Posts
    1,858
    Quote Originally Posted by Jimmy Kester View Post
    Well, the leds are now direct driven by the battery . . .

    The body of the SSX2 is cold while riding with 25km/h - 15mph.
    Without moving the body of the SSX2 is not getting hot after 1-2min.
    (Led temperature is unknown)
    That body should definitely be getting hot after a couple of minutes, even at 2+ amps. "Body getting hot" is a sign that heat is transferring to the outside of the case.

    -Garry
    "My Bike Lights" Thread on BLF teardowns, measurements, and beamshots. Moving my photos, PM or post up if you can't see them.

  3. #1203
    banned
    Reputation:
    Join Date
    Nov 2016
    Posts
    88
    Nope!

    We have temperatures below 0C, which is friggin' cold!

    Sure, the leds could burn themself without moving at such temperature.

    Well, at room temperature the body gets much warmer with two strong pc cooling fans.

    Different ambient temperatures, different results!

    Try it!

  4. #1204
    mtbr member
    Reputation:
    Join Date
    Oct 2016
    Posts
    133
    Quote Originally Posted by Jimmy Kester View Post
    Yo!

    I went for a ride with my new "daylight bringer".

    My camera can't cope temperatures below 0C - 32F.
    (Sorry, no beamshots, yet!)

    Well, the leds are now direct driven by the battery pack.
    I've measured about 2,65 ampere and ca. 6,9 volt on a fully charged pack.

    The body of the SSX2 is cold while riding with 25km/h - 15mph.
    Without moving the body of the SSX2 is not getting hot after 1-2min.
    (Led temperature is unknown, SSX2 body had about 37C - 45C)

    With better cooling modifications like copper emitter, copper fittings, heatsinks and maybe a heatpipe construction connected to the handlebar will make the SSX2 a killer bicycle light, DAYLIGHT BRINGER for sure!

    I'm stoked and it is maybe even too much!

    Well, we have really, really strong fog with a mix of snow here outside of our town,
    so I wouldn't recommand to use such strong light at such weather!

    You can blind yourself or I got problem with my eyes.
    I'm not sure maybe it's just the "white - cold white" tint by the leds.

    Happy modding guys!


    I like how you have your light mounted. If you have a big enough o-ring you can take stem off and put o-ring around it to hold light over stem also.

  5. #1205
    banned
    Reputation:
    Join Date
    Nov 2016
    Posts
    88
    Hmm, you guys should think about...:

    "Why is the battery indicator led (still) not burned?!"

    Let's do some homework!

    Make sure to take my advice in cooling methods.
    (Once again, I'm a pc watercooling EXPERT. PERIOD.)

    Happy modding!

  6. #1206
    banned
    Reputation:
    Join Date
    Nov 2016
    Posts
    88
    Quote Originally Posted by Staypuft1652 View Post
    I like how you have your light mounted. If you have a big enough o-ring you can take stem off and put o-ring around it to hold light over stem also.
    I know...nice that you mentioned it!

    Rock Bros extension.

    ROCKBROS Fahrrad Verlängert Klammer Montieren Halter Lenker für Lampe CS243 | eBay


  7. #1207
    banned
    Reputation:
    Join Date
    Nov 2016
    Posts
    88
    Test drive with my "naked" SSX2.

    That BEAST has more than 1500 lumen.

    The Cateye HL-500 II-G is modded with a 12 Volt smd led; 0,1 ampere; ~110 lumen; nicely warm white.




  8. #1208
    mtbr member
    Reputation:
    Join Date
    Oct 2016
    Posts
    133
    Quote Originally Posted by Jimmy Kester View Post
    I know...nice that you mentioned it!

    Rock Bros extension.

    ROCKBROS Fahrrad Verlängert Klammer Montieren Halter Lenker für Lampe CS243 | eBay


    That one looks sturdier than most of the extensions I've seen, other than the dual ones but they are not compatible with my bars without alot of shims.

  9. #1209
    banned
    Reputation:
    Join Date
    Nov 2016
    Posts
    88
    Unfortunately yes! ;( Use your imagination what you desire...

    Tomorrow, I'm going to glue the heat sinks, copper fittings etc. and will see what is going to happen...

    Maybe, I'm going nuts and will do the "killer upgrade" with heatpipes and a copper plate 30x3cm or something like that...

    Heat transfer to the bicycle is the way to go!


  10. #1210
    mtbr member
    Reputation:
    Join Date
    Nov 2012
    Posts
    802
    As a PC WC expert you may know that you need quite flat mating surfaces, some thermal compound and a firm connection to transfer the heat effectively. There are a lot of connections on bikes that really do move when you are riding, e.g.: the end of the stem where is meets the handlebar, etc etc. The mating of the surfaces is really poor too. So consider these also ;-)

  11. #1211
    banned
    Reputation:
    Join Date
    Nov 2016
    Posts
    88
    That is basic knowledge!

    You know what!?

    Almost EVERY CPU, GPU water cooler IS NOT flat.

    They just claim it is laser cut and other stupid shit which they don't do.

    They just want your money, nothing more.

    Well, that's why we are going crazy in lapping the shit out of a CPU heatspreader, water cooler etc..

    Work in progress!
    (Grinding with a skateboard is fun, to grind those copper fittings is no fun and takes about 1-2 hour to get it in 17mm shape)

    Happy modding guys!


  12. #1212
    banned
    Reputation:
    Join Date
    Nov 2016
    Posts
    88
    Circa 1500 lumen.

    Have fun "kinder"!




  13. #1213
    mtbr member
    Reputation: MadBlackHatter's Avatar
    Join Date
    Mar 2012
    Posts
    95
    Just got Solarstorm x2 the other day but having a problem. When i connect the battery to the light the back leds light up and I can turn the light on but the light will only stay on for 30 seconds to a minute then shut down. Battery has to then be connected to the charger for a few min before it will power the light again. Green led on the charger at all times whether the battery is connected or not. Anyone deal with this before?

    Sent from my LG-H812 using Tapatalk

  14. #1214
    mtbr member
    Reputation: garrybunk's Avatar
    Join Date
    Feb 2014
    Posts
    1,858
    I'd say you have a short somewhere that is tripping the battery protection circuit. You'll need to unscrew the back plate of the lighthead and check the power lead connectors . Does it stay on until the light is moved around (i.e. bare wires might be moving & then touching each other) or does it shut off even if sitting still? If still I'd say it shouldn't be bare wires, but possibly component related. Maybe open it up, get a good closeup picture and post it.

    -Garry
    "My Bike Lights" Thread on BLF teardowns, measurements, and beamshots. Moving my photos, PM or post up if you can't see them.

  15. #1215
    mtbr member
    Reputation:
    Join Date
    Nov 2012
    Posts
    802
    Try what Garry says and you may try to power the light from a DC power source with enough power (volts and amps). IF the light behaves the same way as it did on the battery then you have a problem with the light. If not, then battery is the problem.

    Quote Originally Posted by MadBlackHatter View Post
    Just got Solarstorm x2 the other day but having a problem. When i connect the battery to the light the back leds light up and I can turn the light on but the light will only stay on for 30 seconds to a minute then shut down. Battery has to then be connected to the charger for a few min before it will power the light again. Green led on the charger at all times whether the battery is connected or not. Anyone deal with this before?

    Sent from my LG-H812 using Tapatalk

  16. #1216
    mtbr member
    Reputation: MadBlackHatter's Avatar
    Join Date
    Mar 2012
    Posts
    95
    It will turn off even when completely still. I'll post some pics tonight when i get home. It ran good the first time for about 2 hours switching from midium and high but now it's doing this reset issue. Really hoping it's just the charger

    Sent from my LG-H812 using Tapatalk

  17. #1217
    mtbr member
    Reputation:
    Join Date
    Nov 2012
    Posts
    802
    If you have a cheap battery pack, then it might be out of balance and protection trips in. You can rule this out when you power the light with a DC power source.

  18. #1218
    mtbr member
    Reputation:
    Join Date
    Apr 2012
    Posts
    1,870
    Tipical cheapo battery problem I would say. Measurments of battery and charger voltages would tell it for shure. I would say one set of cells are fully charged while the other is are about fully discharged. This is situation where protection circuit won't let to charge the pack (one set full charged) and when connected to the light it cuts off cause another set of cells has voltage to low.

    MadBlackHatter, do you have any chance to measure voltages with any voltmeter (DMM)? Charger should give out about 8.40V unloaded. I can predict battery pack comes somewhere 5-7V after disconecting off the charger. If so, buy quality battery pack and you'll be good for another 5 years.

  19. #1219
    mtbr member
    Reputation:
    Join Date
    Jul 2006
    Posts
    672
    Possibly the charger is bad as well. Maybe find a different charger and see if that works. I mention the charger b/c the light worked the first time and now has an issue after needing to charge the battery. Just a thought.

    MB

  20. #1220
    mtbr member
    Reputation: MadBlackHatter's Avatar
    Join Date
    Mar 2012
    Posts
    95
    Only have the one charger supplied with the light but it looks good putting out 8.4v. The battery on the other hand is only doing 6.2v so I'm guessing this is the unbalanced issue mentioned earlier. Is it possible too fix or should I not waste my time and just get a new battery pack?

    Sent from my LG-H812 using Tapatalk

  21. #1221
    mtbr member
    Reputation: garrybunk's Avatar
    Join Date
    Feb 2014
    Posts
    1,858
    You can rebalance them, but you need to crack open the battery pack and have a li-ion 4.2v charger. I posted pics in a thread somewhere where I used a piece of dowel to adapt to the charger bay slot. Maybe I can find the pic.

    -Garry
    "My Bike Lights" Thread on BLF teardowns, measurements, and beamshots. Moving my photos, PM or post up if you can't see them.

  22. #1222
    mtbr member
    Reputation: garrybunk's Avatar
    Join Date
    Feb 2014
    Posts
    1,858

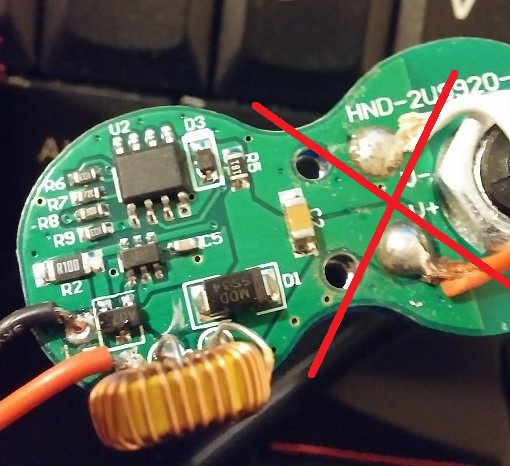

    Here's the pic:
    SolarStorm/FandyFire X2-20141216_202330_zpsa89afabe.jpg

    -Garry
    "My Bike Lights" Thread on BLF teardowns, measurements, and beamshots. Moving my photos, PM or post up if you can't see them.

  23. #1223
    mtbr member
    Reputation: MadBlackHatter's Avatar
    Join Date
    Mar 2012
    Posts
    95
    Thanks garry! Unfortunately I don't have a charger to do this with, or at least to my limited electrical knowledge lol. I think I'll bite the bullet and just get a new battery pack. What's a good replacement battery that can still use the charger, or even a 4xAA pack that would have the right plug for the light?

    Sent from my LG-H812 using Tapatalk

  24. #1224
    mtbr member
    Reputation:
    Join Date
    Apr 2012
    Posts
    1,870
    If you had looked for it you would found:
    http://forums.mtbr.com/lights-night-...nd-997165.html

    Best price performance, but you have to wait quite some time for it:
    http://forums.mtbr.com/lights-night-...ce-995303.html
    Last edited by ledoman; 12-08-2016 at 01:12 AM.

  25. #1225
    mtbr member
    Reputation:
    Join Date
    Nov 2012
    Posts
    802
    ^ +1. I'd get a proper pack of panasonic cells. You can get them balanced, but the problem is the different capacity of each cell. They easily unbalance again.

  26. #1226
    banned
    Reputation:
    Join Date
    Nov 2016
    Posts
    88
    Yep, and it is also good to refresh the batteries in a good battery charger.


    My copper fitting idea works pretty well.
    Everything fits perfect and is going to be great.

    The new genuine CREE XM-L2 T6 on copper plate fits very good in the 18-16mm copper fitting.

    I'll get it done tomorrow. Yihaa!

  27. #1227
    banned
    Reputation:
    Join Date
    Nov 2016
    Posts
    88
    Here is another idea.

    It is possible to connect two SSX2 bodies with a copper fitting like that (20-18mm fitting):


    Then throw some Cree MK-R (max. 1500lumen) in it, heatsinks on top and side....

    Voil...this will be a killer light for sure.

  28. #1228
    banned
    Reputation:
    Join Date
    Nov 2016
    Posts
    88
    Yo, I'm almost done!

    Things you need:

    - a lot of time
    - copper fittings (20-18mm + 18mm)
    - a file to grind that 18mm copper fitting down to ca. 17mm
    - boring machine
    - hacksaw
    - thermal paste

    Happy modding!



    Last edited by Jimmy Kester; 12-13-2016 at 06:33 AM.

  29. #1229
    banned
    Reputation:
    Join Date
    Nov 2016
    Posts
    88
    Quote Originally Posted by eldee View Post
    aaand then I fried my circuit board
    Accidentally make open circuit when measuring led current so be careful when doing that!
    Don't know if better driver boards have protection for that.


    Well, you have fried your LEDs.

    Did the same mistake (on the blue pcb w/o + - markings) and have fried my "Lattice Bright" leds, yesterday.
    I just wanted to know which cable is plus,minus.
    (Didn't need them anyway...)

    Actually, you can measure the voltage for very short time (less than a second).

    I STRONGLY RECOMMAND TO USE A 6V BULB FOR TESTING!!!

    If this happens, don't be sad!
    You can easily make you own "direct driven" bicycle light.
    (Only with a better cooling!!!)

    Just use a thin cable to reduce the ampere and voltage.
    (I've used a cable from a pc cooling fan)


    Now I'm discharging my battery pack to 90% and will start again with a pair of genuie Cree xml2.

    btw...it's so much fun to test different cable lengths. ^^

    Shit happens, lesson learned.

    Maybe, I'm going to update some pictures with different results (cable lengths).

  30. #1230
    banned
    Reputation:
    Join Date
    Nov 2016
    Posts
    88
    Boy, oh boy!

    I finally got it!

    https://www.youtube.com/watch?v=xOfFYOYQ4rg
    Very interesting...

    The ampere do not raise so heat transfer works well, I guess.
    Tonight, I'm FINALLY going to see that leds in action.
    (Cree xml2 4000-4300k)

    Is there anybody with longtime experience regarding DD (direct drive) of leds?
    (I have measured ca. 6,6volts, due voltage drop, battery pack was half empty)

    Last edited by Jimmy Kester; 12-11-2016 at 02:49 AM.

  31. #1231
    mtbr member
    Reputation:
    Join Date
    May 2005
    Posts
    3,876
    I have some DD experience in a simple bench testing environment. I don't use it on anything for real use though as I prefer to have adjustable brightness on my lights and constant output during the runtime.

    Essentially you are striking a balance between the ability of the power source (battery) to supply power, the resistance of the circuit between the power source and the LEDs, and the LED's voltage/current curve. As with anything that works while the balance is close enough, change one of the items and the balance is disturbed enough, something quits working.

    The change with the most potential to disrupt the operation of a DD system is the power supply. If you get your system working with a typical low cost Chinese 2S2P battery pack and later switch to a different 2S2P pack made with higher discharge rate cells your light will burn out. Same thing happens if you go to a 2S3 or 4P pack in an attempt to get longer runtimes. The additional cells in parallel give the pack more current capacity. The voltage drop is less and the power capability of the LEDs is exceeded.

    A resistor in series with the LEDs can minimize or eliminate the risk of burning them up if you change your power source. The power cord between the battery and the light and the connectors used create resistance in the circuit. Using a 24AWG cable creates a noticeable voltage drop when trying supply 3A. The excess energy is converted to heat in either scenario so efficiency is quite low.

    DD systems have varying light output during the runtime. Very bright at first and quickly dropping down to a "plateau" where they run for a while. Then starting to dim as the battery's ability to supply power drops. Other than dimming, there is no warning that the light is about to go out when the low voltage battery protection circuit activates.
    Last edited by Vancbiker; 12-10-2016 at 12:39 PM. Reason: fix spelling
    GoPro adapters for bike lights http://www.pacifier.com/~kevinb/index.html

  32. #1232
    banned
    Reputation:
    Join Date
    Nov 2016
    Posts
    88
    THANK YOU VERY MUCH!!!

    Man, I'm exhausted...

    The last 4 days feels like one week without sleep.

    Maybe, I'm going to try to decrease the voltage with a bigger cable.

    I could puke now. but this will be my bike light FOREVER....hope so... ;( !!!

  33. #1233
    banned
    Reputation:
    Join Date
    Nov 2016
    Posts
    88
    Well, I'm finally done and everything works.

    - Heat transfer is much better now
    - Running time is about one hour
    (that unknown leds had the same running time and performed pretty good!!!)

    Thanks a bunch to everyone who helped me to get it done...

    Especially: Vancbiker and led-tech.de !!!

    Cheers!

    Genuine Cree XML2 T6 4000-4300k, modded SSX2, ca. 1,5 - 1,8 ampere)

    Last edited by Jimmy Kester; 12-14-2016 at 01:51 AM.

  34. #1234
    banned
    Reputation:
    Join Date
    Nov 2016
    Posts
    88

  35. #1235
    banned
    Reputation:
    Join Date
    Nov 2016
    Posts
    88
    "Quick 'n' dirty cooling solution"

    ]

  36. #1236
    RAKC
    Reputation: tigris99's Avatar
    Join Date
    Aug 2012
    Posts
    7,550
    If it was me I would have left the valley clear for air flow. No need for a thermal transfer point there anyway. Instead of direct to air you added another medium to slow the transfer of heat away from the emitters before reaching open air. The thermal paste (I'm actually guessing you used epoxy) is plenty for transfer to that monster heat sink. Great idea there if your cranking this things output way up. Keep that driver from burning out easily.

    I think I missed it, what did you crank the emitters up to?

    Sent from my XT1565 using Tapatalk

  37. #1237
    mtbr member
    Reputation:
    Join Date
    Apr 2012
    Posts
    1,870
    It's not going to win beauty contest, but actualy should be much better than stock solution. It may stand direct drive without big issues, at least when moving.

  38. #1238
    banned
    Reputation:
    Join Date
    Nov 2016
    Posts
    88
    Quote Originally Posted by tigris99 View Post
    If it was me I would have left the valley clear for air flow. No need for a thermal transfer point there anyway. Instead of direct to air you added another medium to slow the transfer of heat away from the emitters before reaching open air. The thermal paste (I'm actually guessing you used epoxy) is plenty for transfer to that monster heat sink. Great idea there if your cranking this things output way up. Keep that driver from burning out easily.
    Quote Originally Posted by tigris99 View Post

    I think I missed it, what did you crank the emitters up to?

    Sent from my XT1565 using Tapatalk
    lmao...You know nothing about heat transfer.

    Why is my Wallie much cooler with this HEAT SINK on top?

    1+1=3 ?

    I've NEVER read such comment in more than 10 years!

    With a fully charged pack they get ca. 2,5A.

    This works just great and is much cooler now! lol

    Ofc, I've didn't used epoxid.
    Some people mix it with thermal paste.

    Quote Originally Posted by ledoman View Post
    It's not going to win beauty contest, but actualy should be much better than stock solution. It may stand direct drive without big issues, at least when moving.
    Quote Originally Posted by ledoman View Post


    Hey, hey, hey, hey don't **** with my little girl^^
    She is growing and growing and will become a real star!

    The copper fittings are still unlapped and I've used not the very best thermal paste.

    With Arctic MX 4 and lapped copper fittings plus extended HEAT SINKS , will be COOL as **** even without moving.


    It's all about heat transfer and thermalpaste.

    Well, I will buy another cheap chinese battery pack and be done with it.
    In total, I payed less than 50.

    Last edited by Jimmy Kester; 12-13-2016 at 02:26 PM.

  39. #1239
    mtbr member
    Reputation:
    Join Date
    May 2005
    Posts
    3,876
    Is the silicone being used to hold the heatsink to the body, or is your thermal paste an adhesive too?

    It is a lot of extra work to just run 2.5A. Since the XML can handle more, you could try a battery pack with a higher discharge rating to really pump out some light. I run XMLs and XPLs at 3.5A with no issues.
    GoPro adapters for bike lights http://www.pacifier.com/~kevinb/index.html

  40. #1240
    banned
    Reputation:
    Join Date
    Nov 2016
    Posts
    88
    Quote Originally Posted by Vancbiker View Post
    Is the silicone being used to hold the heatsink to the body, or is your thermal paste an adhesive too?
    Well, it is just a quick 'n' dirty solution.
    The better option would be Arctic MX 4 and the heat sink (screwed) on top.

    I just applied silicone around the heat sink and thermal paste on the lapped side.
    It is by far not the best heat transfer and I don't know if it's tight, pressure and so on.

    Quote Originally Posted by Vancbiker View Post
    It is a lot of extra work to just run 2.5A. Since the XML can handle more, you could try a battery pack with a higher discharge rating to really pump out some light. I run XMLs and XPLs at 3.5A with no issues.
    Wow, that sounds nice^^.

    I'm unsure if I'm going to get steady ampere output or not.

    So far, I just did 2 and one drunken/sleep test drive^^.

    I guess another cheap battery pack would be more than enough.

    Two hours on a race bike are more than enough for me...

  41. #1241
    RAKC
    Reputation: tigris99's Avatar
    Join Date
    Aug 2012
    Posts
    7,550
    Quote Originally Posted by Jimmy Kester View Post

    lmao...You know nothing about heat transfer.

    Why is my Wallie much cooler with this HEAT SINK on top?

    1+1=3 ?

    I've NEVER read such comment in more than 10 years!

    With a fully charged pack they get ca. 2,5A.

    This works just great and is much cooler now! lol

    Ofc, I've didn't used epoxid.
    Some people mix it with thermal paste.



    Hey, hey, hey, hey don't **** with my little girl^^
    She is growing and growing and will become a real star!

    The copper fittings are still unlapped and I've used not the very best thermal paste.

    With Arctic MX 4 and lapped copper fittings plus extended HEAT SINKS , will be COOL as **** even without moving.


    It's all about heat transfer and thermalpaste.

    Well, I will buy another cheap chinese battery pack and be done with it.
    In total, I payed less than 50.

    Not to start a debate but I do actually, quite a lot. I was just saying "if it was me I would have skipped that part". Not degrading your work, simply saying you put in extra effort you didn't have to right now. But attacking me like that when you mixed thermal paste into standard epoxy instead of using thermal epoxy....... Anything helps draw heat but let's please just not go there.

    Ya I had a learning curve a long while ago but I have put countless hours into learning from others here, cpf and blf (not counting just standard research). That and I just played with crap for giggles to see if something small had an real effect (which it didn't but looked cool).

    Standard silicone though thermally conductive is less than that of thermal compound and insulates due to its lower thermal transfer. The idea with bike lights is to get the heat from the LEDs to the outside air as fast as possible. Minimal resistance from led to outer housing.

    Anyway, all that work you've done, crank that baby up. A yinding runs at 2.5A, you can crank that light up well further, 3.5A with that set up you have going. Make sure one insanely bright little light!

    Sent from my XT1565 using Tapatalk

  42. #1242
    banned
    Reputation:
    Join Date
    Nov 2016
    Posts
    88
    For sure man.

    Ahh..you know just nothing about heat transfer. PERIOD.

    I already told you that I'm a MAD water cooling freak (EXPERT).

    ...

    Stay tuned guys and happy modding!

    btw. this will be cool as ****.... = MAXIMUM lumen efficiency...

    Have fun with your bicycle lights!




  43. #1243
    banned
    Reputation:
    Join Date
    Nov 2016
    Posts
    88

  44. #1244
    RAKC
    Reputation: tigris99's Avatar
    Join Date
    Aug 2012
    Posts
    7,550
    Nvm just realized this I think is the same person who picks fights under different user names in different subs as soon as you try to help or do anything constructive on the matter at hand. Seems I can't even be active over here now without this guy attacking me for no reason.

    Sent from my XT1565 using Tapatalk

  45. #1245
    banned
    Reputation:
    Join Date
    Nov 2016
    Posts
    88
    LOL


  46. #1246
    RAKC
    Reputation: tigris99's Avatar
    Join Date
    Aug 2012
    Posts
    7,550
    Thanks for confirming that, much appreciated.

    Sent from my XT1565 using Tapatalk

  47. #1247
    banned
    Reputation:
    Join Date
    Nov 2016
    Posts
    88
    No problemo.
    I'll tell you later how that heat sink works at 3A.

  48. #1248
    RAKC
    Reputation: tigris99's Avatar
    Join Date
    Aug 2012
    Posts
    7,550
    I am rather curious what your beef is with me. Seem to stalk me literally anywhere I post (under your various user names). Kind of childish isn't it? Especially being the fact others say the same thing I do and don't recieve the same response...

    Sent from my XT1565 using Tapatalk

  49. #1249
    mtbr member
    Reputation:
    Join Date
    May 2005
    Posts
    3,876
    Quote Originally Posted by Jimmy Kester View Post
    ......
    How do you solder the pieces together with water in there? Seems that the water will boil long before the metal is hot enough to solder. If you were able to get it hot enough to solder before all the water boiled out, the steam pressure would keep blowing solder out of the joint. I'm pretty sure that's not how heat pipes are made.

    You've added more than enough heatsinking to that SSX2 for bike use. A couple square inches of surface are per Watt of power is all that is needed to keep a light cool at low speed. One square inch per Watt works if you keep up ~6-8 mph. Of course ambient temps affect those numbers greatly, but I've found them to work well with the 40-65 degree F temps of most of my night riding.
    GoPro adapters for bike lights http://www.pacifier.com/~kevinb/index.html

  50. #1250
    RAKC
    Reputation: tigris99's Avatar
    Join Date
    Aug 2012
    Posts
    7,550
    Wow.... Lol

    Sent from my XT1565 using Tapatalk

  51. #1251
    banned
    Reputation:
    Join Date
    Nov 2016
    Posts
    88
    As a teacher...I'm telling you...DO YOUR HOMEWORK...tzzz

    You're playing with your smartphone while I'm doing creative science...

    NOOB.

  52. #1252
    mtbr member
    Reputation:
    Join Date
    Nov 2012
    Posts
    802
    Quote Originally Posted by Jimmy Kester View Post
    As a teacher...I'm telling you...DO YOUR HOMEWORK...tzzz

    You're playing with your smartphone while I'm doing creative science...

    NOOB.
    I think we are getting a bit off topic now, with Jimmy being quite rude. We all appreciate your expertise in water cooling. If you explain to us why what you have done is better than what Tig says would be a better educative reading instead of attacking someone. Tig is famous over here - see his reputation. While yours is quite low if I were you I'd be more polite. My interest in reading this thread is slowly disappearing and others may have the same feeling.

  53. #1253
    banned
    Reputation:
    Join Date
    Nov 2016
    Posts
    88
    Quote Originally Posted by MK96 View Post
    I think we are getting a bit off topic now, with Jimmy being quite rude. We all appreciate your expertise in water cooling. If you explain to us why what you have done is better than what Tig says would be a better educative reading instead of attacking someone. Tig is famous over here - see his reputation. While yours is quite low if I were you I'd be more polite. My interest in reading this thread is slowly disappearing and others may have the same feeling.
    To be honest, me too.
    That's why I'm in no forums anymore.

    People come to me tell me that an extended HEAT SINK won't work.

    Sure, 1+1= 3

    No comment anymore.
    I just don't get it....How can somebody that ..... .

    Btw. I've seen many people with 30000 comments and so on, who just talking ********.

    I'm out.

  54. #1254
    mtbr member
    Reputation:
    Join Date
    Nov 2012
    Posts
    802
    Quote Originally Posted by Jimmy Kester View Post
    To be honest, me too.
    That's why I'm in no forums anymore.
    ...
    And again if I were you I'd really think about what you've wrote. A cube can have sides with different colors.

  55. #1255
    banned
    Reputation:
    Join Date
    Nov 2016
    Posts
    88
    To be honest again...you're intelligence hurts a lot.

    If you want hot leds and low efficiency...blablabla

    This was my last comment. PERIOD.


  56. #1256
    RAKC
    Reputation: tigris99's Avatar
    Join Date
    Aug 2012
    Posts
    7,550
    Just FYI, read my previous posts, nowhere did I say anything about anything "not working".

    Sent from my XT1565 using Tapatalk

  57. #1257
    banned
    Reputation:
    Join Date
    Nov 2016
    Posts
    88
    I'm pity you.

    Quote Originally Posted by tigris99 View Post
    Just FYI, read my previous posts, nowhere
    did I say anything about anything "not working".
    Quote Originally Posted by tigris99 View Post
    If it was me I would have left the valley clear for air flow. No need for a thermal transfer point there anyway. Instead of direct to air you added another medium to slow the transfer of heat away from the emitters before reaching open air. The thermal paste (I'm actually guessing you used epoxy) is plenty for transfer to that monster heat sink. Great idea there if your cranking this things output way up. Keep that driver from burning out easily.

    I think I missed it, what did you crank the emitters up to?
    Quote Originally Posted by tigris99 View Post
    But attacking me like that when you mixed thermal paste into standard epoxy instead of using thermal epoxy....... Anything helps draw heat but let's please just not go there.
    I'm sure you know just nothing about thermal paste, heat transfer and THE ALREADY WORKING SSX2.

    You're the only one who is asking such "stupid" questions.

    Do you know how a heat sink works? Difference with a lapped one?
    Do you ever have any thermal paste (long time) results?
    How much pc hardware did you overclocked?


    I'm a nice, chilled guy, mostly...
    and there are NO stupid questions.

    Next time, think twice before asking for already responded questions.

  58. #1258
    banned
    Reputation:
    Join Date
    Nov 2016
    Posts
    88
    Oh, I got "rude warning" msg for responding to stupid questions.

    I'm in a wrong forum AGAIN.

    pff...NOOBS

  59. #1259
    \_(ツ)_/ SuperModerator
    Reputation: Klurejr's Avatar
    Join Date
    Oct 2006
    Posts
    7,443
    Thank you for the reports. Jimmy has been warned, if he keeps insulting and personally attacking users please report it again.
    Ride Bikes, Drink Craft Beer, Repeat.

    Know these before you post:
    MTBR Posting Guidelines

  60. #1260
    mtbr member
    Reputation:
    Join Date
    Nov 2012
    Posts
    802
    Could some posts here get deleted to keep it informative and educational and not personal? ;-)

  61. #1261
    mtbr member
    Reputation:
    Join Date
    Apr 2012
    Posts
    1,870
    Select those posts and ask moderators. They should be able to clear them, at least.

    Should we also start new thread about SSX2? This one is pretty loooong.

  62. #1262
    mtbr member
    Reputation:
    Join Date
    Mar 2016
    Posts
    63
    Today I got my SolarStorm X2.
    I want to give it higher power.
    Which components do I need?
    What can be max power to me the Led does not burn off?
    Genuine SolarStorm X2 from Kaidomain.
    Is that the original driver or a reproduction?

    SolarStorm/FandyFire X2-img_20170303_120246.jpg
    SolarStorm/FandyFire X2-img_20170303_120301.jpgSolarStorm/FandyFire X2-img_20170303_120325.jpgSolarStorm/FandyFire X2-img_20170303_120332.jpgSolarStorm/FandyFire X2-img_20170303_120411.jpgSolarStorm/FandyFire X2-img_20170303_120505.jpgSolarStorm/FandyFire X2-img_20170303_154203.jpgSolarStorm/FandyFire X2-img_20170303_154211.jpgSolarStorm/FandyFire X2-img_20170304_220633.jpg


    The 2 silver pills have a thickness of 21.5cm and a height of 14.5cm.
    On the Leds are Insulation Gaskets for XML Leds.

    Furthermore, I would like to change the optics, but do not know if it makes sense. I thought of the Leddna synonymous for the Yinding fit?
    Are there perhaps comparative photos with original optics and the lenses Leddna with different degrees?
    I already take care of the heat transfer with copper sleeves and Copper Backplates.
    And new heat transfer paste MX4.
    Thanks
    Last edited by gecco; 03-04-2017 at 03:13 PM.

  63. #1263
    mtbr member
    Reputation: garrybunk's Avatar
    Join Date
    Feb 2014
    Posts
    1,858
    Looks like R8 and R9 are your sense resistors, but I don't know what the sense voltage is (do you see an LEDA chip?). I also don't see an FET; is it under the coil? Someone with more electronics expertise is going to have to chime in on what current-limiting components are on that driver. How many amps does it draw off a full charged pack right now? I have no idea if it's an "original driver" - doubt it though.

    Do LEDDNA optics fit the X2? I don't remember anyone putting them in one. I think most people like the throwy beam pattern the stock reflectors give.

    Also, it looks like there is no solid wall behind the emitters (I believe that is the back of the aluminum pcb we see in that last pic. I wouldn't push these LEDs hard without trying to get a better thermal path. Try pressing in some copper pipe caps -see this BLF thread showing that very mod. EDIT - you updated your post after I posted this.

    -Garry
    "My Bike Lights" Thread on BLF teardowns, measurements, and beamshots. Moving my photos, PM or post up if you can't see them.

  64. #1264
    mtbr member
    Reputation:
    Join Date
    Apr 2012
    Posts
    1,870
    As I can see there are two sense resistors R250 and R350 which in parallel acts as one 0.146 Ohm. LEDA chips has tipicaly 0.25V feedback voltage so:

    0.25 / 0.146 = 1.71A to the leds

    Can't recall if leds are connected in seriesor in parallel, but I would say in series.
    Adding R500 would raise the curent to 2.21A, R400 to 2.34A or R330 to 2.47A. I would not go to more than 2.3A beacuse of rather poor thermal transfer and relative small housing. Adding thermal compound on leds PCB is mandatory. Better yet what Garry suggested, adding some copper behind the led pcb.

    Diode SS34 and fet A09T should be sufficient, AFAIK.

    Once I've managed to replace reflectors with LED-DNA optics, but it was 2 years ago and I don't know which iteration of SSX2 I've got at that time. It was pure luck I think.
    If you have optics at hand you should try it out.

  65. #1265
    mtbr member
    Reputation: garrybunk's Avatar
    Join Date
    Feb 2014
    Posts
    1,858
    I see gecco added pics showing underneath of coil.

    Ledoman - it's an R250 and R300, so 0.136 ohms so 0.25/0.136 = 1.84A to the leds. Adding an R500 would give 2.33A, an R400 gives 2.46A, an R330 gives 2.59A.

    -Garry
    "My Bike Lights" Thread on BLF teardowns, measurements, and beamshots. Moving my photos, PM or post up if you can't see them.

  66. #1266
    mtbr member
    Reputation:
    Join Date
    Apr 2012
    Posts
    1,870
    Opps, thanks Garry, Don't know how I missed it. So R500 is the one I would use in this case.

  67. #1267
    mtbr member
    Reputation:
    Join Date
    Feb 2011
    Posts
    5
    Hi, I have some problem with my x2. It's exactly the same type like on the Geccco's photos. Been using it for a couple of months. Yesterday I recharged batts, plugged in, green diodes shined really low and after few second turned off. Now it's dead.
    Batteries are fully charged, wires are ok. I think some resistor burned, but it's just an idea and I can't figure it out. Any ideas?

  68. #1268
    mtbr member
    Reputation: garrybunk's Avatar
    Join Date
    Feb 2014
    Posts
    1,858
    Quote Originally Posted by BLACK1E View Post
    Hi, I have some problem with my x2. It's exactly the same type like on the Geccco's photos. Been using it for a couple of months. Yesterday I recharged batts, plugged in, green diodes shined really low and after few second turned off. Now it's dead.
    Batteries are fully charged, wires are ok. I think some resistor burned, but it's just an idea and I can't figure it out. Any ideas?
    Any chance you can post some close-up pics of yours (like above)? Does sound like the something burned up.

    Honestly, you might be better off buying a new one, though quality varies so greatly on these and most of the X2's now are really poor quality. Perhaps an "upgrade" to a KD BL2S is in order? Upgrades to neutral white (there is a cool white version too). IIRC it doesn't have great heatsinking, but it's an "ok" light. (ledoman can chime in.) At the very least it's a pretty consistent light and not the Chinese lottery of X2's out there now.

    OH - I almost forgot! KD does sell a "genuine" X2 which I believe ledoman has experience with too. I think it's on par with the BL2S in that it's an "ok" build.

    I'm assuming you don't need a new battery pack. I guess it wouldn't hurt for you to check your battery pack that it's at or near 8.4v when the charger turns green. (Be careful not to cause a short while measuring!) It could be that the pack is way out of balance.

    -Garry
    "My Bike Lights" Thread on BLF teardowns, measurements, and beamshots. Moving my photos, PM or post up if you can't see them.

  69. #1269
    mtbr member
    Reputation:
    Join Date
    Apr 2012
    Posts
    1,870
    Using DMM to measure voltages would help to start. First check the battery then voltage at driver input.

  70. #1270
    mtbr member
    Reputation:
    Join Date
    Feb 2011
    Posts
    5
    Thanks for the helpful information. Nothing looks burned up, but I will take a photo eventually while measuring. Actually it's not a bad idea to buy something from KD. I tried to register yesterday, but no activation mail arrived yet.

    I have 2x 4.2V battery packs and only one 8.4V. So what do you think about the single diode BL108B? I don't race at night, just want some reliable light for 2-4h ride in winter.

    Now I don't have a DMM with me, so I will try measure the batty pack and x2 later.

  71. #1271
    mtbr member
    Reputation: garrybunk's Avatar
    Join Date
    Feb 2014
    Posts
    1,858
    It's more expensive than a new X2. I would stay away from 4.2v lights. Very difficult to pull power from a 4.2v pack thought the thin power cables.

    -Garry

  72. #1272
    mtbr member
    Reputation:
    Join Date
    Feb 2011
    Posts
    5
    Quote Originally Posted by ledoman View Post
    Using DMM to measure voltages would help to start. First check the battery then voltage at driver input.
    SO I finally measured. When batteries are plugged in there is 8.25V at driver input, but green diodes don't light. In the few seconds I did the measure, the area aroud U2 got quite hot.

    SolarStorm/FandyFire X2-027.jpg

    Blackie

  73. #1273
    mtbr member
    Reputation:
    Join Date
    Apr 2012
    Posts
    1,870
    Hmmm, R2 looks very strange. Can you check voltage over it at different modes even it does not look you have any modes.
    Could be just soldered on oposite side. I would desloder it and check if still has some resistance about 0.10 - 0.25 Ohm. The other side should be marked somehow. If OK solder it back with markings up.

    Can't see any markings on 6pin chip right to the R2, but very likely it is LEDA (QX9920).

    Next thing to check are D1 and D3. If you found out U2 area is hot then D3 is suspicious. Can you get some markings out of it? Don't know what diode should be there, but I would look for pictures (you might find it here) of similar designed drivers to find out. I'm not EE

    Hope it helps somewhat.

    PS. D3 might be Zener diode marked W8 like -> those .
    Last edited by ledoman; 12-21-2017 at 04:02 AM.

  74. #1274
    mtbr member
    Reputation:
    Join Date
    Jan 2018
    Posts
    3
    Could someone tell me how to finally got my solar storm modded with ease steps,thx in advance

  75. #1275
    RAKC Industries
    Reputation:
    Join Date
    Jan 2017
    Posts
    3,265
    Its not something easy, requires skills with soldering and proper tools to do it. Plus there is a lot of different mods, youll need to be more clear on what exactly you want to do.

    Sent from my SM-G950U using Tapatalk
    Life on a bike doesn't begin till the sun goes down.


  76. #1276
    mtbr member
    Reputation:
    Join Date
    Jan 2018
    Posts
    3
    I need a way by get it extreme widely power light and better cooling rate
    Also mine doesn't last 1 hour at all on low grade
    So, video or clearily steps so that could mod it
    Thanks for your reply😀

  77. #1277
    RAKC Industries
    Reputation:
    Join Date
    Jan 2017
    Posts
    3,265
    Your run time is a battery problem.

    Trying to crank it up a lot and keep it cool, not such a good idea. Need to get a bigger light. Your in egypt, the mods we do we dont deal with that kind of heat. You need a bigger light to work with like ss x3

    Sent from my SM-G950U using Tapatalk
    Life on a bike doesn't begin till the sun goes down.


  78. #1278
    mtbr member
    Reputation:
    Join Date
    Jan 2018
    Posts
    3
    Quote Originally Posted by RAKC Ind View Post
    Your run time is a battery problem.

    Trying to crank it up a lot and keep it cool, not such a good idea. Need to get a bigger light. Your in egypt, the mods we do we dont deal with that kind of heat. You need a bigger light to work with like ss x3

    Sent from my SM-G950U using Tapatalk
    What crank it up mean?,sorry
    Also I'm from Egypt but had bought it from eBay 4years ago and original battery was damaged after 6 months and imported a new package but this time got 8 cells 19600 mah don't remember exactly, first few years was running perfectly about 5 hours on low grade but this days running out off quickly so I search google to any suggestions as so I can mod it

    Sent from my Infinix X509 using Tapatalk

  79. #1279
    RAKC Industries
    Reputation:
    Join Date
    Jan 2017
    Posts
    3,265
    Cant mod a battery pack. And they dont last forever. As well as there is no way an 8 cell battery pack has more than half the capacity it says it does. Not even possible. And getting a few years is pretty good.

    Simply time to replace it is all.

    Crank it up was referring to what I understand as you want to increase its output

    Sent from my SM-G950U using Tapatalk
    Life on a bike doesn't begin till the sun goes down.


  80. #1280
    mtbr member
    Reputation:
    Join Date
    Nov 2019
    Posts
    3
    Hi
    Im looking for some info about the solarstorm with x2 LEDs, this seems to be the right place for answers!

    Im working on a project where i want to use some old bike front lights, but change the internal to modern LEDs.
    Since i want two separate lights but on the same batterypack the Solarstorm seemed to be a good lamp to use for an easy remake.

    But, I can see that some of the lamps have two separate LEDs, like this one.
    SolarStorm/FandyFire X2-2013-08-24_15-50-04_921.jpg
    and some have just one unit with both LEDs on it like this.
    SolarStorm/FandyFire X2-img_20160120_195054-768x1368.jpg

    To make this as easy as possible I want the first one with separate units. Then I can just extend the cord and keep everything else as it is.

    So, please help.
    How do I make sure to get the right one?

  81. #1281
    mtbr member
    Reputation:
    Join Date
    Apr 2012
    Posts
    1,870
    Actually I don't understand what are you saying. OK I'm not native English....

    Very likely all SS X2 leds are conected in series, it is just the way how it's done. Either with 4 wires or led MPCPB (connection between leds on board instead 2 wires). So you always have red wire(+) - led - "black to red" - led - black(-) or "black to red" is done on PCB.

    Maybe is just Y power chord what are you looking for. Something like this: https://www.ebay.com/itm/DC-Power-1-...V/111842213310

  82. #1282
    mtbr member
    Reputation:
    Join Date
    Nov 2019
    Posts
    3
    Quote Originally Posted by ledoman View Post
    Actually I don't understand what are you saying. OK I'm not native English....

    Very likely all SS X2 leds are conected in series, it is just the way how it's done. Either with 4 wires or led MPCPB (connection between leds on board instead 2 wires). So you always have red wire(+) - led - "black to red" - led - black(-) or "black to red" is done on PCB.

    Maybe is just Y power chord what are you looking for. Something like this: https://www.ebay.com/itm/DC-Power-1-...V/111842213310
    Ok, =)
    My english isnt the best, and I get that my post might be a bit confusing.

    The difference between these two examples is that one is connected with a board, and the other with cords.
    The later is much more easy for me. Since i can just cut the cords and extend them. Thats why i want to buy that one.

    The cord you are linking on Ebay could work but then i need 2 lamps.
    the space in the old lamp hood is very tiny, thats why i only want the LED and the reflector inside the hood. And keep the rest in a separate box.

    better explained =/?

  83. #1283
    mtbr member
    Reputation:
    Join Date
    Apr 2012
    Posts
    1,870
    OK. I see, you don't own the light yet.

    Back to your question: "How do I make sure to get the right one?"

    You can't be shure. All I can tell is that lights with separate leds were on first batches we could buy, and newer were all in one piece. Very likely you'll get later. There is so much clones out there you never know what you'll get. I've seen at least 8 different drivers (electronics) for those lights.

    The solution might be if you buy leds on stars (PCB) and driver separtely. Then you can place things wherever you want.

    It might help if you explain and make photo where you want to place all this stuff. It is also possible to buy reflectors of different sizes, so it depends what setup you need to make.

  84. #1284
    mtbr member
    Reputation:
    Join Date
    Nov 2019
    Posts
    3
    No, I dont have the light yet.

    It just seemed easy to take a finished product and put it inside the hood from the vintage lamp.

    Since this is a commuter bike i dont really care that much how bright the light is. I just want 2 lights that you can charge. This is more for the looks then for seeing good =)

  85. #1285
    mtbr member
    Reputation:
    Join Date
    Apr 2012
    Posts
    1,870
    Well, you can always replace led PCB with separate ones. There is a lot of them to buy with diferent sizes and can better suit your needs. I'm just giving example of XM-L2 led: https://www.aliexpress.com/af/cree-x...ml2+led+on+pcb

    So you basicaly connect driver from SS X2 to those leds in series. Depending on setup (two or one lamps) you need 4 or 2 wires from driver.

    We can help you more when you'll actualy have lamps. Don't forget on cooling leds with some fins or at least thermal transfer to metal housing. Don't use plastic!

Page 7 of 7 FirstFirst ... 34567

Members who have read this thread: 8

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •

THE SITE

ABOUT MTBR

VISIT US AT

© Copyright 2020 VerticalScope Inc. All rights reserved.
