    Simple 'Achesalot' housing

    Patiently waiting for 3x XM-L T6 's from Santa. Meanwhile, I cobbled-up this ridiculously easy 'Achesalot' style housing, using nothing fancier than a 7/8" holesaw and a drill-press! In fact it's so simple I feel a bit embarassed showing it on this forum.

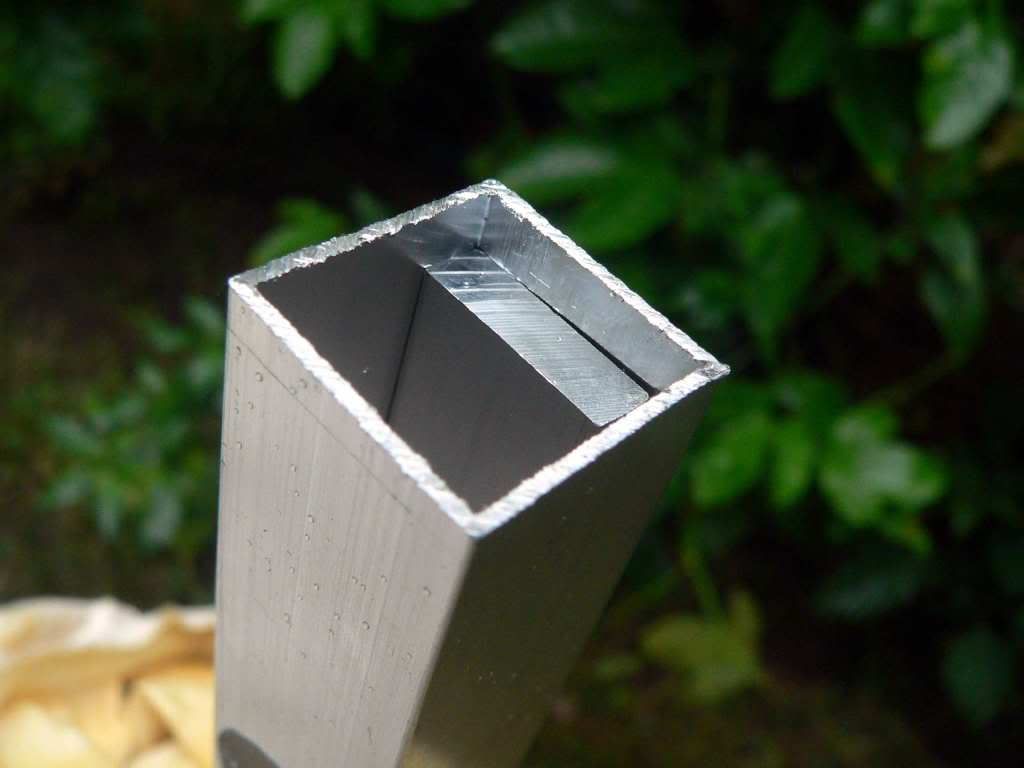

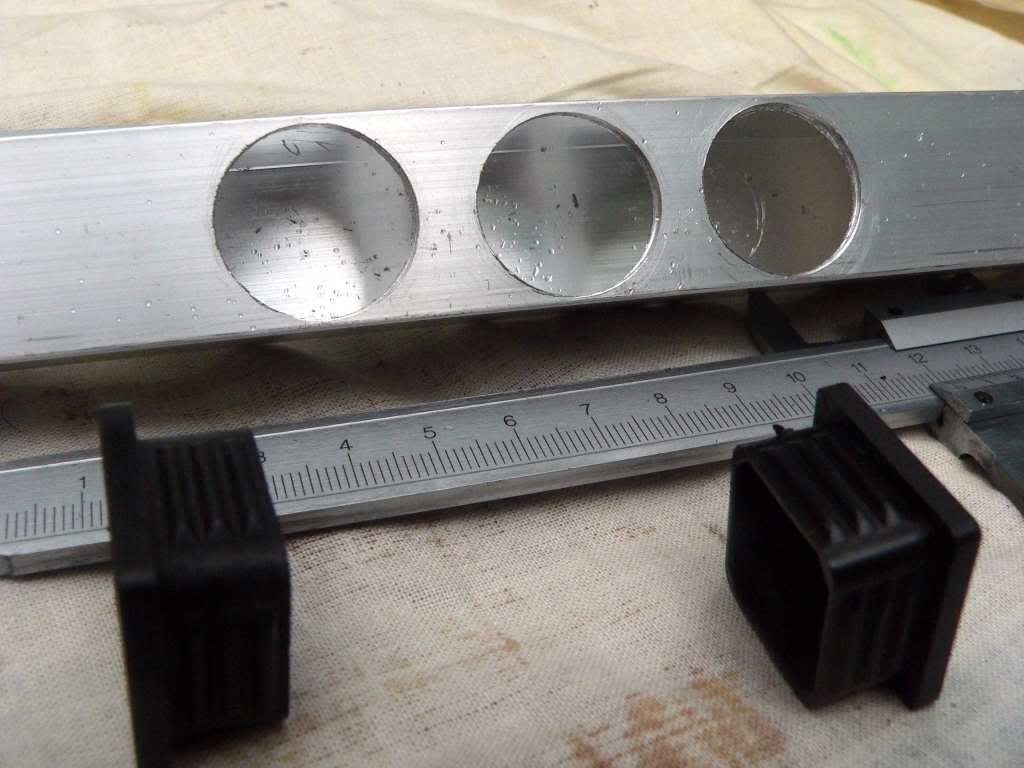

    This light is intended for the bars, so I used a 200mm length of thin-walled 25.4mm square-tubing, which is very lightweight, while offering ample surface-area for cooling. The idea is I can easily trim it smaller, once the dust settles. Here's the front panel, showing 3x 22mm holes, behind which a thin sheet of lexan (or CD-cover) will get laminated.

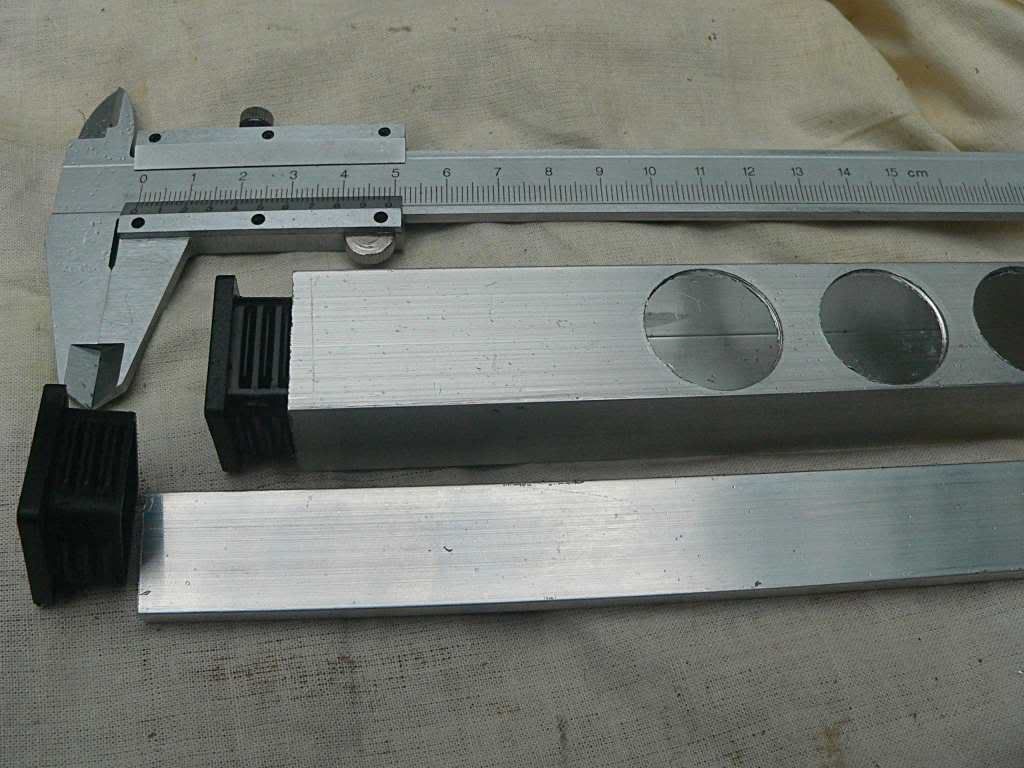

    Here's a mock-up of the heatsink. The idea is to bond 3x XM-L's (on 20mm stars) onto this bar using arctic alumina. The bar fits snugly against the back panel, and will bond to the back panel via thermal grease and metric-bolts.


    Finally, here's some readymade plastic endcaps, from my aluminium merchant. They're a perfect fit in the tube, but I'll probably silicone them in just to be safe...


    Now all I need is some goodies!

    [edit] typo
    Last edited by hootsmon; 12-26-2010 at 02:26 PM.
    Brisbane, AU

  2. #2
    mtbr member
    Reputation: troutie-mtb's Avatar
    Join Date
    Sep 2007
    Posts
    3,062
    Wotcha gonna use for optics and driver Hoots

  3. #3
    mtbr member
    Reputation: hootsmon's Avatar
    Join Date
    Feb 2008
    Posts
    762

    Hey Chris...

    Quote Originally Posted by troutie-mtb
    Wotcha gonna use for optics and driver Hoots
    Hee hee, I'm kinda making it up as I go along, 'cos I find it's more fun that way.
    However I have 3x Reginas in the mail, which I'm expecting may require minor mods to fit inside the housing. However if you reckon Laura (or some other optic) looks good then I'll probably give that a bash too.

    Driver-wise, I have access to a badass regulated power-supply that should be ideal for bench-testing. But beyond that, I'm still tossing-up between HipCC or perhaps even a homebrew driver built around the LT3604 chip.

    Summing up, I have absolutely NFI, so suggestions welcome!
    Brisbane, AU

  4. #4
    mtbr member
    Reputation:
    Join Date
    May 2010
    Posts
    333
    Quote Originally Posted by hootsmon
    This light is intended for the bars, so I used a 200m length of thin-walled 25.4mm square-tubing, which is very lightweight, while offering ample surface-area for cooling.
    I suspect you'd have good surface area with 200 metres of tubing hanging off the bars ;-)

  5. #5
    discombobulated SuperModerator
    Reputation:
    Join Date
    Jun 2005
    Posts
    3,223
    Quote Originally Posted by MrLee
    I suspect you'd have good surface area with 200 metres of tubing hanging off the bars ;-)
    But he'll be limited to riding on runways only!

  6. #6
    mtbr member
    Reputation:
    Join Date
    Jul 2009
    Posts
    281
    Quote Originally Posted by MrLee
    I suspect you'd have good surface area with 200 metres of tubing hanging off the bars ;-)
    This made me giggle

  7. #7
    mtbr member
    Reputation: hootsmon's Avatar
    Join Date
    Feb 2008
    Posts
    762
    No good for singletrack, that's for sure!
    Brisbane, AU

  8. #8
    mtbr member
    Reputation:
    Join Date
    Oct 2009
    Posts
    179
    Quote Originally Posted by hootsmon
    No good for singletrack, that's for sure!
    OK for racing though. Nobody's coming past !

  9. #9
    mtbr member
    Reputation:
    Join Date
    Nov 2005
    Posts
    500
    Can't help but look when I see my name mentioned :-)
    Aside from the square aluminum tubing, it looks quite different from my builds. Good luck to you and enjoy the DIY bikelighting experience!

  10. #10
    mtbr member
    Reputation: znomit's Avatar
    Join Date
    Dec 2007
    Posts
    1,980
    Quote Originally Posted by achesalot
    Aside from the square aluminum tubing, it looks quite different from my builds. Good luck to you and enjoy the DIY bikelighting experience!
    Cough

    cough



  11. #11
    mtbr member
    Reputation: hootsmon's Avatar
    Join Date
    Feb 2008
    Posts
    762

    Sorry mate!

    Hey Znomit, very sorry about wrong attribution, hee, hee! Yep, I knew this rectangular-tubing design looked familiar, just couldn't recall who pioneered it first.

    Ah well, good news is my XM-Ls and optics just arrived.
    Brisbane, AU

  12. #12
    mtbr member
    Reputation:
    Join Date
    Jun 2007
    Posts
    2,310
    I got some xml's and regina's today too. Did you get in on the group buy at cpf or is it just a coincidence that we got 'em the same day?

  13. #13
    mtbr member
    Reputation: hootsmon's Avatar
    Join Date
    Feb 2008
    Posts
    762
    Wasn't really aware of the CPF deal, plus I'm in Oz so I simply ordered bits from Cutter.
    So I think the timing is probably just coincidental.
    Brisbane, AU

  14. #14
    mtbr member
    Reputation: hootsmon's Avatar
    Join Date
    Feb 2008
    Posts
    762

    Pics

    The 'znomit' light got shelved for bit, due to flooding, and other events. Seems to have shrunk a bit, but anyhow here she is...



    Brisbane, AU

  15. #15
    M8 M12 M15 deez nuts
    Reputation: Leopold Porkstacker's Avatar
    Join Date
    Apr 2010
    Posts
    8,502
    You Aussies are tough! My condolences go out to you and your mates in regard to the flooding. Yank that I am, I was there (Toowoomba, Brisbane, Noosa, etc.) back in 1990 on holiday, got to see historical evidence of previous flooding from decades past in those areas at a rest stop along one of the highways (waterline marked in permanent ink). Keep up the lumens and keep your eyes peeled for those crocs!!!
    Donít frail and blow if youíre going to Braille and Flow.

  16. #16
    mtbr member
    Reputation: hootsmon's Avatar
    Join Date
    Feb 2008
    Posts
    762

    Beamshots

    The dual XM-L + Regina headlight has been lighting up my commute most evening for several weeks now, and I'm more than happy with its performance. It certainly puts my old MC-E light to shame. Here's some pics...




    Dunno what to make of these beamshots, except there's not a lot of throw.
    Exposure 4 seconds @f4 ISO 80


    FWIW, I measured 18m to that big tree, and ~60m to the distant trees.
    Also, my perception is that scene appeared a bit brighter in real life than the pics.
    Brisbane, AU

  17. #17
    mtbr member
    Reputation: hootsmon's Avatar
    Join Date
    Feb 2008
    Posts
    762

    1200 lumens + beer = ?

    You've heard of light beer...
    Well here's the beer-light ;-)

    Brisbane, AU

  18. #18
    A waste of time it is is
    Reputation: emu26's Avatar
    Join Date
    Jun 2008
    Posts
    3,456
    and a fine aussie drop at that, but i have to ask what's a Queenslander doing drinking real beer and not that week as pi$$ yellow can shite?
