    Semi / Budget Trek 220 Build

    Started my build with this Trek MT 220. Picked it up on ebay along with a Diamondback Octane 24 for $27.

    Bike started out at 27.1 lbs hoping to get it down to 23 lbs for around $400.





    I'm calling this a semi/budget build as there are a few areas I'm spending a few $$.




  2. #2
    mtbr member
    Reputation:
    Join Date
    Mar 2009
    Posts
    31
    Here goes nothing............................

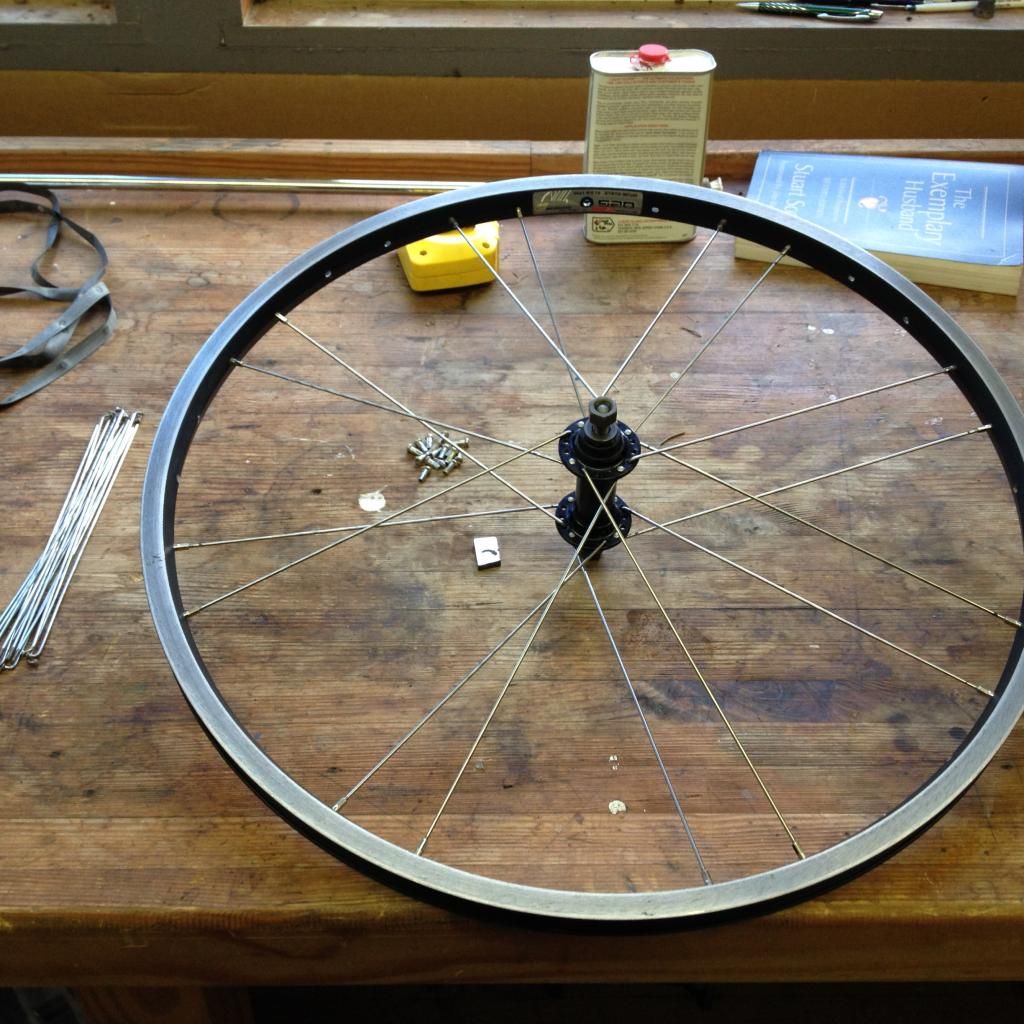

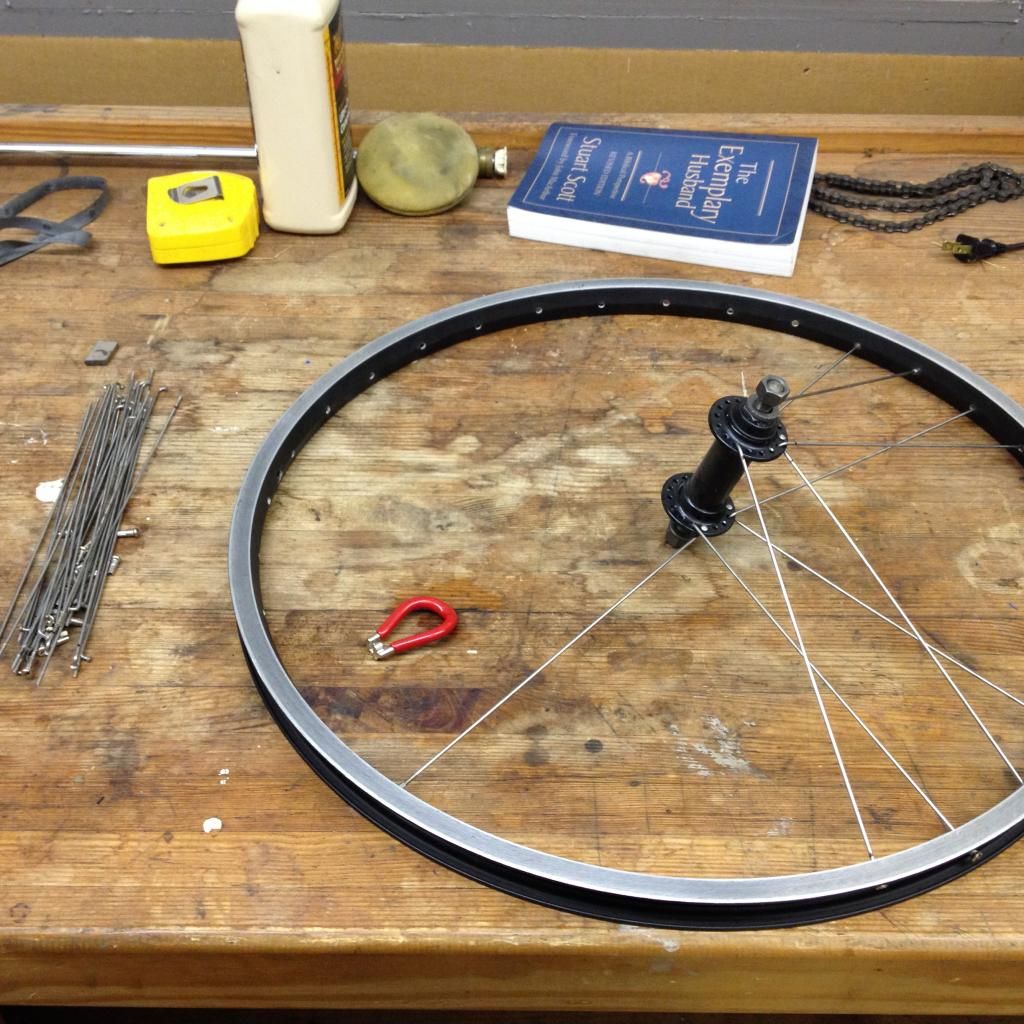

    Thanks GrayJay for the link and to TigWorld for the excellent writeup on 16 spoke lacing



    Re-lacing went well. I'm waiting on blue spoke nipples for some bling then will have the bike shop true up.

  3. #3
    mtbr member
    Reputation:
    Join Date
    May 2011
    Posts
    1,079
    Nice start, the MT220 frame is a good choice for an upgrade project bike, the frame itself is really much better quality that rest of the components that it comes with. Bare frame weight on my daughters MT220 was 1420gr. One thing to watch for is that the effective top tube length is fairly long at around 51cm so for fitting to a small rider, swapping to a really short stem is necessary. More details of the 20 pound MT220 I built are at;
    http://forums.mtbr.com/families-ridi...ld-894279.html

  4. #4
    mtbr member
    Reputation:
    Join Date
    Mar 2009
    Posts
    31
    Using stock hub up front and using a generic rear free hub I had laying around.
    Anyone have any advice on running a 2x7 drivetrain?
    I'll be running a 12-32 cassette and want to use 22/32 rings up front. Will I need to run a bash guard to keep from dropping chains?

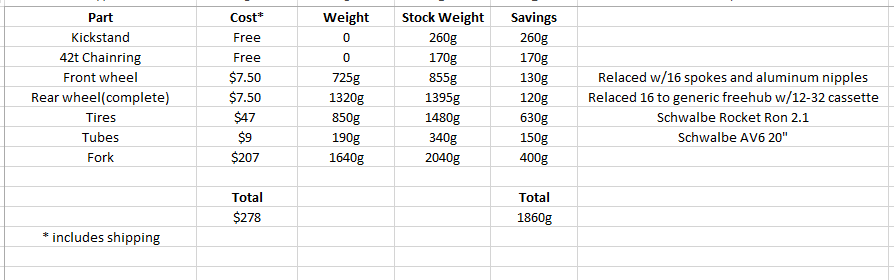

    Got wheels,tires and fork mocked up and am at 23.3 lbs

  5. #5
    mtbr member
    Reputation:
    Join Date
    May 2011
    Posts
    1,079
    Nice example of creating a bike that is nearly the weight/performance of a trailcraft or hotrock XC pro for about 1/4 the cost.

    Adding a bashguard in place of the outer chainring is a good idea. Not strictly needed if you keep the front derailleur but if nothing else, it keeps the largest exposed chainring from ever cutting their legs. If you do use a bashguard, one option is to just delete the front derailleur, shifter and cable. You can stop and manually move the chain from the small and middle chainring for them depending on what sort of riding and terrain they are doing.

    Check the stock crankset with a magnet, some of the trek dialed cranks are solid steel, super heavy. Also look for extra weight that can easily be upgraded in the stock bottom bracket, stem, bars, seatpost, saddle.

    Even with re-using your stock hub, it is pretty easy to swap out the solid axle and nuts for a hollow axle and QR skewer from another used hub. Most likely, the cones from your current hub will thread onto the hollow axle, really makes front wheel removal for repairs/maintenance/transport much easier than searching for a cumbersome wrench every time you need to remove the wheel.

  6. #6
    mtbr member
    Reputation:
    Join Date
    Mar 2009
    Posts
    31
    Quote Originally Posted by GrayJay View Post
    Adding a bashguard in place of the outer chainring is a good idea. Not strictly needed if you keep the front derailleur but if nothing else, it keeps the largest exposed chainring from ever cutting their legs. If you do use a bashguard, one option is to just delete the front derailleur, shifter and cable. You can stop and manually move the chain from the small and middle chainring for them depending on what sort of riding and terrain they are doing.
    I can't lose the front derailleur as we have climbs and some open trail on our local singletrack. Wish i could go 1x10 or even 1x9 but that would blow the budget.

    Quote Originally Posted by GrayJay View Post
    Check the stock crankset with a magnet, some of the trek dialed cranks are solid steel, super heavy. Also look for extra weight that can easily be upgraded in the stock bottom bracket, stem, bars, seatpost, saddle.
    Surprisingly the bike is spec'd pretty nicely with alu cranks and X-3 components.

    Quote Originally Posted by GrayJay View Post
    Even with re-using your stock hub, it is pretty easy to swap out the solid axle and nuts for a hollow axle and QR skewer from another used hub. Most likely, the cones from your current hub will thread onto the hollow axle, really makes front wheel removal for repairs/maintenance/transport much easier than searching for a cumbersome wrench every time you need to remove the wheel.
    QR will be happening sometime in the future but the weight savings vs cost wasn't very good.

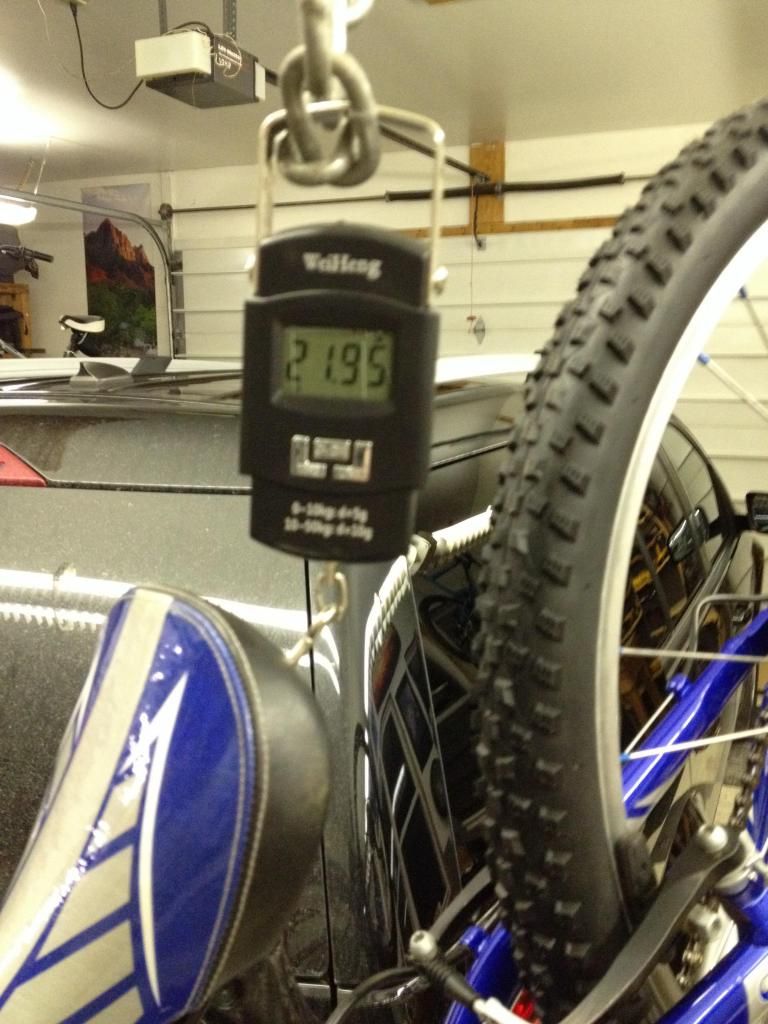

    As it sits now its dead on 23lbs.Still have about $100 remaining of my $400 budget that will be put toward pedals,bar, and seatpost. Should easily be able to shave another 1/2lb off the bike when those are replaced.

  7. #7
    mtbr member
    Reputation:
    Join Date
    Mar 2009
    Posts
    31

    Semi / Budget Trek 220 Build

    Semi / Budget Trek 220 Build-imageuploadedbytapatalk1420845610.246989.jpg
    Need to get these wheels to the bike shop to be trued.
    Pleased with how they look with the blue nipples.

  8. #8
    mtbr member
    Reputation:
    Join Date
    Mar 2009
    Posts
    31

    Semi / Budget Trek 220 Build

    Got the last few pieces for my build.

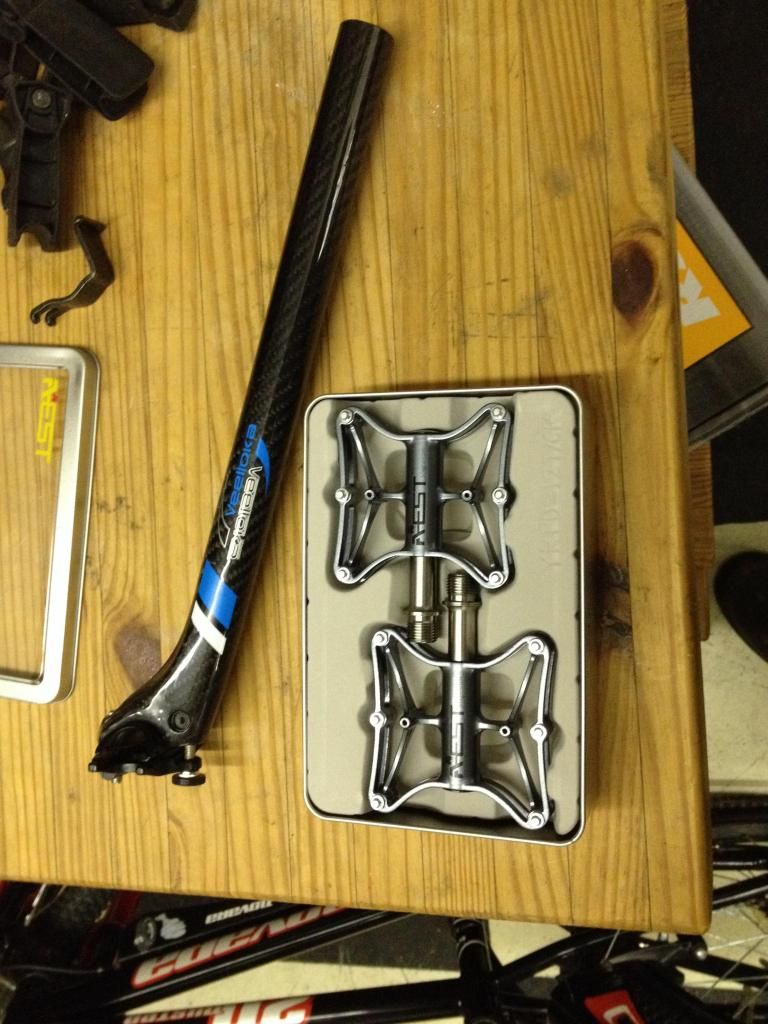

    AEST pedals and eBay carbon seatpost.


    Got the pedals, seatpost and Monkeylite SL bar I bought used on eBay installed.



    What options are out there for a bash guard? Are there universal bash guards available or will I need to get one specific to the bolt pattern on the 32t ring?
    Edit: just measured it and it is a 104 bcd.
    Last edited by ToSloTrk; 01-21-2015 at 05:59 AM.

  9. #9
    mtbr member
    Reputation:
    Join Date
    May 2011
    Posts
    1,079
    Cheapskate approach- use a worn out aluminum 42t
    chainring, cut/grind/file the teeth off and turn it into a bashguard.

    If the crank is a standard 104mm BCD, should not be difficult to find a pre-made bashguard.

  10. #10
    mtbr member
    Reputation:
    Join Date
    Aug 2010
    Posts
    599
    A pet peeve of mine: What is the reach like on those brake levers?

    Your kid's fingers should wrap very easily around the lever. I used kid-sized bmx brake levers to accomplish this. Otherwise, they have to do weird tricks to hold the bar and brake, which kind of defeats the purpose.

  11. #11
    mtbr member
    Reputation:
    Join Date
    Mar 2009
    Posts
    31

    Semi / Budget Trek 220 Build

    Quote Originally Posted by asphalt_jesus View Post
    A pet peeve of mine: What is the reach like on those brake levers?

    Your kid's fingers should wrap very easily around the lever. I used kid-sized bmx brake levers to accomplish this. Otherwise, they have to do weird tricks to hold the bar and brake, which kind of defeats the purpose.

    You're right the reach does seem long. I only have this Trek and a Haro Flightline 24 to compare. Semi / Budget Trek 220 Build-imageuploadedbytapatalk1421978655.393288.jpg
    Trek Mt 220

    Semi / Budget Trek 220 Build-imageuploadedbytapatalk1421978761.650575.jpg
    Haro Flightline 24

    They both would have some adjustment available to shorten reach. What else would be available that has shorter reach?

  12. #12
    mtbr member
    Reputation:
    Join Date
    Jun 2011
    Posts
    416
    The brake levers have a reach adjustment screw you. It's opposite the pivot point of the lever. You can see it on the trek picture above.

  13. #13
    mtbr member
    Reputation:
    Join Date
    May 2009
    Posts
    17

    Spoke selection

    Quote Originally Posted by ToSloTrk View Post
    Need to get these wheels to the bike shop to be trued.
    Pleased with how they look with the blue nipples.
    Very cool. I have one of these bikes and really like the idea of using the stock hubs with 16 spokes. How did you figure the spoke lengths and what did you end up using? Also, how does decide which spokes/nipples to buy?

  14. #14
    mtbr member
    Reputation:
    Join Date
    May 2011
    Posts
    1,079
    Quote Originally Posted by jblockers View Post
    Very cool. I have one of these bikes and really like the idea of using the stock hubs with 16 spokes. How did you figure the spoke lengths and what did you end up using? Also, how does decide which spokes/nipples to buy?
    Read thread; http://forums.mtbr.com/families-ridi...lp-891768.html

  15. #15
    mtbr member
    Reputation:
    Join Date
    Mar 2009
    Posts
    31
    Quote Originally Posted by jblockers View Post
    Very cool. I have one of these bikes and really like the idea of using the stock hubs with 16 spokes. How did you figure the spoke lengths and what did you end up using? Also, how does decide which spokes/nipples to buy?
    I was able to reuse the stock spokes. I did use slightly longer nipples but don't think I would have needed to.

  16. #16
    mtbr member
    Reputation:
    Join Date
    Sep 2014
    Posts
    125
    Did you keep the stock crankset?

  17. #17
    mtbr member
    Reputation:
    Join Date
    Mar 2009
    Posts
    31
    Quote Originally Posted by Red Rock View Post
    Did you keep the stock crankset?
    Yup, I kept the stock crankset but replaced the large ring for a bashguard.

  18. #18
    mtbr member
    Reputation:
    Join Date
    Sep 2014
    Posts
    125
    Which bashguard did you end up using and how did you mount it? I just got a Trek triple crankset for my sons bike and was considering doing the same, since he doesn't use the big ring anyway. Plus the big ring is steel and the stock bashguard looks clunky.

  19. #19
    mtbr member
    Reputation:
    Join Date
    Mar 2009
    Posts
    31
    I just bought a generic resin bashguard on Ebay for a 32t 104bcd chainring

  20. #20
    mtbr member
    Reputation:
    Join Date
    Sep 2014
    Posts
    125
    Thanks ToSloTrk!

  21. #21
    mtbr member
    Reputation:
    Join Date
    Mar 2009
    Posts
    31

    Semi / Budget Trek 220 Build

    Semi / Budget Trek 220 Build-imageuploadedbytapatalk1429927153.989277.jpg
    All finished, got a resin bash guard and AEST titanium quick releases. Haven't weighed it after putting the bash guard on but it probably close to 22lbs again.
