    Taking apart my bike

    I was wondering what tools I will need to remove the crank and bottom bracket. I have a 2007 Specialized Stumpjumper and I'm not certain what tools I will need to dismantle those parts.

    I was looking around and found these--
    Amazon.com: Park Tool Crank Puller - CCP-22: Sports & Outdoors

    Amazon.com: Park Tool Bottom Bracket Tool - BBT-9C: Sports & Outdoors

    So I was wondering if those will do the trick, or if I'll need other tools.

  2. #2
    Texan
    Reputation: Gary H's Avatar
    Join Date
    Dec 2006
    Posts
    1,345
    Tools are easy, knowing what your doing takes a lot of time and dedication. Google Sheldon Brown and Park Tools, and buy the book Zen and the art of bicycle maintenance.

  3. #3
    mtbr member
    Reputation:
    Join Date
    Mar 2007
    Posts
    388
    What kind of cranks do you have?

    Those are two different tool - each one is for a different crank style.

    park tools website has good tutorials. Its pretty easy to take off a crank, you have
    to be careful to not over or under tighten when installing.

    Remember, no right tight lefty loosey on cranks or pedals. If you have your tool at a 12 o clock position it always loosens towards the rear of the bike.

    You also need grease and a way to clean out the threads.

  4. #4
    mtbr member
    Reputation:
    Join Date
    Oct 2008
    Posts
    440
    I'm being lazy and not researching your cranks...you can do that. Plus, I wouldn't know if your current cranks/bb are stock or not... they could have switched out to something else.

    Your crank/bb type will determine the tools that are needed.

    For a 2007, it could be one of 3 different types...square taper bb, isis/octalink, or external bb.

    I'm gonna guess it's square taper.

    For each type, different tools will be required to a) remove the crank and b) remove the bb.

    As mentioned, the cups will not be threaded typical lefty loosey, righty tighty...one will, but the other will be opposite...I'm sick and forget at the moment which is which. Same thing with removing the pedals.

    So, determine which crank/bb type you have and get the right tools. A good way to also learn is to take it to a shop where they can show you what you have, explain the differences between the 3 major types and then show you the appropriate tool that you can buy from them. Everyone wins.
    Last edited by will-lee wonka; 12-31-2011 at 02:18 PM.

  5. #5
    Bunny Hoppin Gators
    Reputation: drivengsxr1000's Avatar
    Join Date
    May 2011
    Posts
    177
    we would be able to help you out alot better if you could give us a picture of the non drive side crank arm

  6. #6
    mtbr member
    Reputation:
    Join Date
    Jan 2012
    Posts
    9
    Hi guys/gals, I'm "new" to this forum and have to find my way around. VERY SIMILAR though to the metal detecting forum that I'm used to so there is a plus there. Anyways, didn't know how else to post/new thread because it says I need at least 5. In either case, this is the perfect start as I have similar questions about the BB/spindle and all. I just bought a '11 GT Avalanche 3.0 (black) and am new to MT'bking. I know it's "cheap" bottom of the barrel bike. I've done my fair share of road biking in the past when I was MUCH YOUNGER, but have "grown" out of it and was NEVER able to get back into it. So I decided to finally buy a MT bike. A very VERY DIFFERENT feeling when it comes to steering compared to a road bike. Anyways, this is the perfect thread to start reading/posting. Sorry to the "OP" for "hijacking" the thread in introducing myself. This is NOT my intentions. Like I said, "I have questions myself..." on the subject at hand. Anyhow, nice to "meet" all of you.

  7. #7
    mtbr member
    Reputation: drblauston's Avatar
    Join Date
    Aug 2011
    Posts
    123
    First off, welcome back to biking and to the forum EatingDirt! The GT is actually a great start in the addictive world that is mountain baking.. definitely a lot different than road biking and MTBR is an awesome community in which to ask questions and share your experiences. Don't hesitate to ask a related question here until you can create your own thread!

    zero_cooljr, I second will-lee wonka's suggestion.. If you can't get to a LBS do as driven instructed and post a picture - makes it much easier to help diagnose.

  8. #8
    mtbr member
    Reputation:
    Join Date
    Jan 2012
    Posts
    9
    thank you drblauston for the welcome. My question relates to this thread in that I was wondering what "size" BB I have. I will go back to the LBS "Performance" and ask, but I kinda already did. I asked him that I wanted to know if it was a 68x110 or ? Was I right about this question? I mean, I barely knew 170 or 175 for the crank size? Anyways, I won't go off subject too much. I had also asked if I could have the "build" sheets or bike parts list that the bike came with (they put the bike together for me) and he basically said, "the bike comes with so many different options that there really is no parts list..." Finally, what I meant by parts list is this:
    1x front derailuer
    2x washers
    6x bolts

    if you get what I mean. For example, (hopefully a better example) what kind of a BB did my bike come with? Is it a UN54 and what size? Was it a 68x110 or a 68x113 etc (without taking the thing apart and especially now, since it is brand new)? I also asked, are the cranks JIS or ISO? I know, from reading this forum that there is a fairly big difference between the two and don't want to mix and match. How do I find out what I have is basically the question that I have? I have MANY questions to ask. I am by NO means a "hard core" MT'bker. I don't plan on jumping off of 10ft roofs or "bunny hopping" from one rock to the next on the edge of a 100+ foot drop off. HOWEVER, I do miss the days of being able to go "off road" if I want to and just, OBVIOUSLY, was never able to do that with the road bikes. I think that was one thing that got me back into the "dirt". As far as I'm concerned, too old to do a "superman" over the bars nowadays. Anyways, I plan on going back to the LBS sometime this week and asking the same and/or similar question. ALSO, when I stand on my bike, is it supposed to basically... well... without getting too graphical, is it supposed to basically "touch" the croch area, but yet be able to stand "flat footed"? That is how it is with mine. I know for a road bike that there is supposed to be a "little bit of space" when standing over the "top tube". Is it somewhat different when being fitted for a MT bike? I mean, he did "fit" me, but it just seems a bit weird and/or I'm just NOT used to it because it IS a MT bike and they are pretty different in MANY ways compared to a road bike. Sorry if it is somewhat off subject, but again as you can see, I have some questions. I eventually hope to pass on my experiences to the next person after I read and learn some more off of this forum and my riding experiences. Again, thank you for the welcome!!!

  9. #9
    mtbr member
    Reputation:
    Join Date
    Oct 2011
    Posts
    50
    EatingDirt, the recommended stand over height is 2 to 4 inches. My bike gives me 1.5 inches.

    Here is one way to check. Stand over the bike, pull it up by the top bar and seat until it is against your body and also level (both wheels the same distance off the ground or floor). Do you have about 2 inches, or more, under the tires? Aggressive riding styles require the generous stand over height.

    --------------------

    zero_cooljr, Gary H gave you good advice. The book "Zen and the Art of Bicycle Maintenance" is about $17.00 at amazon and is money well spent for anyone that owns a mountain bike.

  10. #10
    Bezerker
    Reputation:
    Join Date
    Dec 2011
    Posts
    9
    Quote Originally Posted by drblauston View Post
    The GT is actually a great start in the addictive world that is mountain baking..
    Lulz.

  11. #11
    mtbr member
    Reputation:
    Join Date
    Jan 2012
    Posts
    9
    Quote Originally Posted by Jim Holloman View Post
    EatingDirt, the recommended stand over height is 2 to 4 inches. My bike gives me 1.5 inches.

    Here is one way to check. Stand over the bike, pull it up by the top bar and seat until it is against your body and also level (both wheels the same distance off the ground or floor). Do you have about 2 inches, or more, under the tires? Aggressive riding styles require the generous stand over height.

    --------------------

    zero_cooljr, Gary H gave you good advice. The book "Zen and the Art of Bicycle Maintenance" is about $17.00 at amazon and is money well spent for anyone that owns a mountain bike.
    Jim Holloman, do I "compress" the front shock all the way and then lock it out? Then try the "stand over"? I can see that the front fork w/ shock would make the bike "taller" than normal. Again, compared to a road bike, MT bikes are different in certain aspects. Thank you for the book title as well. Will be looking for this book as well.

  12. #12
    Picture Unrelated
    Reputation: zebrahum's Avatar
    Join Date
    Jun 2005
    Posts
    5,123
    Quote Originally Posted by zero_cooljr View Post
    So I was wondering if those will do the trick, or if I'll need other tools.
    I don't know what BB is on that bike as you didn't specify what model level it is. You're probably running a Hollowtech or ISIS style splined crank instead of an external BB system so I would suggest this tool:
    https://www.amazon.com/Pedros-Univer...5690996&sr=1-1
    It has adapters so it can pull square taper or round cranks and it has the 8mm wrench needed to pull most crank fixing bolts.

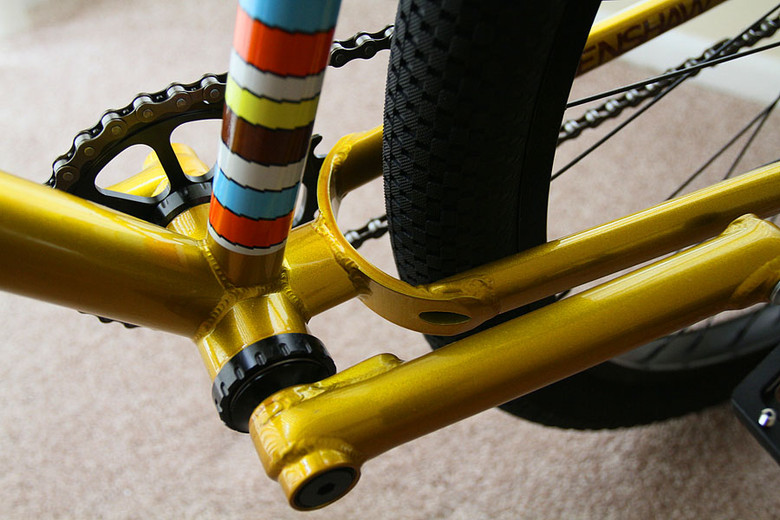

    If your BB is external then it looks something like this:

    Where your frame (yellow) is surrounded on both sides by large cups (black) with notches evenly spaced around the edges for removal. That will require the BBT-9C for removal.

    As for the BB, you'll need something like this:
    Amazon.com: Pedro's Bottom Bracket Socket - ISIS Compatible: Sports & Outdoors
    ISIS compatible means that it should worth with most internally splined BBs that you will come across.
    Don't you hate it when a sentence doesn't end the way you think it octopus?

  13. #13
    mtbr member
    Reputation:
    Join Date
    Oct 2008
    Posts
    440
    Quote Originally Posted by EatingDirt View Post
    Jim Holloman, do I "compress" the front shock all the way and then lock it out? Then try the "stand over"? I can see that the front fork w/ shock would make the bike "taller" than normal. Again, compared to a road bike, MT bikes are different in certain aspects. Thank you for the book title as well. Will be looking for this book as well.
    No, don't compress the shock to get your stand over.

    Now, your boys may touch the top tube, depending on how you hang ;-)...but the clearance is really to your crotch. I.E.--stand over the bike and lift it off the ground to where you can't lift anymore...right up against your groin (not to the point of pain, of course)...lifting the bike evenly, the tires should come off the ground a few inches (equally since bike is level). Jim Holloman described the same technique.

    The size of the BB is important, but less so than the type.

    The shop doesn't sound like they are being much help, to be honest. A new/stock Avalanche 3.0 is going to come equipped the same whether you buy it from Performance in Alaska or Bob's Bike Shop in Florida.

    I'm assuming you have the disc version?
    2011 GT Avalanche 3.0 Disc Mountain Bike - Mountain Bikes

    There's a link under Specs for the parts listing, although it's not the best listing.

    From googling the crankset, it appears it comes with a square taper bottom bracket.

    Good luck and have fun riding!

  14. #14
    Fat-tired Roadie
    Reputation: AndrwSwitch's Avatar
    Join Date
    Nov 2007
    Posts
    18,453
    This thread is making my head hurt a little bit.

    Part of the problem is that there are several different standards and sizes involved.

    I don't want to restate too much of #17, because he covers the types pretty well. Don't worry about ISO vs. JIS. ISO is some European road cranks and bottom brackets, and you'd have to go out of your way to get one. As zebrahum suggests, you probably don't even have square taper anyway. As others have suggested, you're usually best off just pulling off one of the crank arms to figure out what you've got, and removing the bottom bracket to figure out its spindle length.

    The bicycle itself almost certainly has a 68mm English-threaded bottom bracket shell. That means that you need a bottom bracket for a 68mm shell. The crank determines the required spindle length. Unless you have a specific reason to change, just getting a one-for-one replacement is the way to go if you've killed your bottom bracket. It's about a $30 part, your shop most likely has it in stock, and getting it swapped costs about the same as the tool. For a while, mountain bikes were pretty consistent about having either this type of shell or a similar but slightly wider one. Now there are a couple of standards out there, so you can't just buy a bottom bracket and expect it to work - you need to know what you're replacing, or understand what your particular crank and shell need.

    So what's the goal here? Personally, I wouldn't bother buying tools for this task unless I expected to use them again, and if you're changing to a different style of bottom bracket, that's at least one set you won't be reusing.
    "Don't buy upgrades; ride up grades." -Eddy Merckx

  15. #15
    mtbr member
    Reputation: laffeaux's Avatar
    Join Date
    Jan 2004
    Posts
    5,981
    Quote Originally Posted by EatingDirt View Post
    For example, (hopefully a better example) what kind of a BB did my bike come with? Is it a UN54 and what size? Was it a 68x110 or a 68x113 etc (without taking the thing apart and especially now, since it is brand new)? I also asked, are the cranks JIS or ISO? I know, from reading this forum that there is a fairly big difference between the two and don't want to mix and match. How do I find out what I have is basically the question that I have?
    The best place to get a "parts list" for your bike is the manufacturer's web site. For your bike, here is the spec list:
    http://www.gtbicycles.com/2012/bikes...-avalanche-3-0

    For all intents and purposes, unless something breaks, you don't need to know a lot of the specific details. For your example of BBs, who cares what size it is unless you need to replace it. When it wears out, then worry about it.
    Each bicycle owned exponentially increases the probability that none is working correctly.

  16. #16
    mtbr member
    Reputation:
    Join Date
    Jan 2012
    Posts
    9
    laffeaux, AndrwSwitch, and the rest... thank you. Sorry that I'm such a new guy at this. Point is well taken as far as, "until the part breaks..." Let me just share a quick background about me, I build my own computers (i.e. buy the motherboard, mem, HDD, etc etc etc) because back in the day I was sold a computer by a salesman that told me ALL kinds of things I could do with it... LONG STORY SHORT, I found out that you couldn't do squat with it, thus, over 25yrs later (i.e. present day) I've tried to do things myself as much as possible. Hence the reason I joined this forum, so I can learn. I don't mean to bother with dumb questions... just trying to learn what I've read and my own past experiences with road bikes. MT bikes are, I'm sorry, a "whole new world"... at least to me!!! Of course, there ARE similarities, BUT... well, I'll just leave it at that... so THAT is a basic background of me. Thank you for sharing your thoughts and experiences and I... eventually... plan on passing it along to the next person. I do have ONE last question however, please humble me for this one... how DO YOU KNOW and/or why are the BB's vary? 68x110... 68x113 etc? Is it because of the "chain line" and some frames are just "wider" in the back than others? 3mm is THAT crucial??? Just asking. Again, thank you guys. Onto the next thread to read and learn after this one.

  17. #17
    Fat-tired Roadie
    Reputation: AndrwSwitch's Avatar
    Join Date
    Nov 2007
    Posts
    18,453
    Usually the crankset specifies the bottom bracket spindle length for a given shell width. And, it's arbitrary. Just how the designer decided to put the taper in the crank arms.

    One might choose to use a spindle length other than the one recommended. Tuning chainline would be the most common reason.

    The vast majority of mountain bikes have 135mm spacing in the back, and the distance from center for the cassette is standard. There are exceptions, of course. Unlike computers, which were developed by engineers (who thought the other engineers were idiots and developed competing standards...) bicycles evolved. There are competing standards that are the result of parallel development processes, intellectual property stuff, and sometimes just one company deciding they have a better idea.

    Think of the frame of the bike as being a lot like a CPU housing/power supply set. It dictates what motherboards are compatible, at least without modification, what drive form factors are compatible, how much power is available without modification, etc. In this metaphor, the crank is kind of like the motherboard. While you get some choice as to which chain rings and bottom brackets you can use, they have to be compatible with both the frame and the crank arms.

    Check out sheldonbrown.com for a lot of historical information. His site is a brilliant resource if you want to get a little deeper into the why.

    And like I said earlier - how I'd know what bottom bracket I had/needed would be to either pull it out and look at it, pull the crank arms off and measure the spindle, or look it up in the manual or specification for the crank, depending on the circumstances.

    3mm can be pretty important, but it's not necessarily. Some frames have very tight clearance around the chain rings, especially if you're using larger chain rings than what the designer had in mind. So, 1.5mm can be the difference between clearing the chainstay and taking little chunks out of it when you get out of the saddle and hammer.

    Aside from suspension components, really a mountain bike is mechanically near-identical to a road bike. Some things are sized or shaped differently, but it's got all the same parts and many of them are cross-compatible.
    "Don't buy upgrades; ride up grades." -Eddy Merckx

  18. #18
    mtbr member
    Reputation:
    Join Date
    Oct 2008
    Posts
    440
    A. Don't be sorry for asking questions, that's what the forum is for. Sometimes you'll get good answers...sometimes you wont. Hopefully, the law of averages will work in your favor. ;-)

    2. How do you know what size the BB is? You pull it out of the frame. That's the only way to be sure about what is in there. The size will be stated on the BB itself. And if it's been worn off or doesn't say, it can be measured. Now, how do you know what's SUPPOSED to be in there? You might have to scrounge up some specs online or if the bike is new and stock then you'll know when you pull the old one out.

    D. Switching sizes of BB can affect the drivetrain. It can throw off the intended chainline, as meant by the frame designers (as Andrw stated...including the reason for the different lengths). And if you get a BB length that is shorter than intended, you may have rubbing of the chainrings on the frame, which as you can imagine would be bad (Andrw covered that too ;-)).

    However, note that newer external BB/cranks spindles come in one size so you don't have the ability to choose your spindle length like with traditional cartidge BBs. So, that can maybe put your mind at ease some about choosing the exact correct BB size. Don't stress too much about the size. Get the correct shell size and try to match the spindle length to what you have or maybe get it close...and if you get a newer external bb/crankset, then you don't have to think about it at all as it's one size fits all (for better or worse).

  19. #19
    Picture Unrelated
    Reputation: zebrahum's Avatar
    Join Date
    Jun 2005
    Posts
    5,123
    Quote Originally Posted by will-lee wonka View Post
    2. How do you know what size the BB is?
    Just to add on to this post, you can also measure it in the frame. Measure the width of the BB shell (where the BB threads in to) and if you pull the cranks you can put a pair of calipers on the BB spindle as well. Measurements are in millimeters.
    Don't you hate it when a sentence doesn't end the way you think it octopus?

  20. #20
    mtbr member
    Reputation:
    Join Date
    Jan 2012
    Posts
    9
    I LOVE this PLACE!!! The people here are "down to earth". I was afraid at first to even sign up because in my past experiences with road biking... well, let me just say that people nowadays "act" like they're wearing "the yellow jersey". I'm sorry, but I just can't personally get into that kinda "mindset" thinking that I'm better than the next guy. As far as I'm concerned, you bleed just as bad as I do and I do NOT have something to prove to myself or others THAT BAD!!! That only says that you have some sort of self confidence issue and I HAD to get away from that. Anyways, IMHO, a bunch of "pricks" are out on the road these days. Just relax and ride... life is tooo short to "pass" by. BTW, did I say that I NJOY this place. Thank you all for the welcome and advice. It is well taken on my end. Now onto the next post/thread to learn about my "new" enjoyment/hobby!!! You guys rock

  21. #21
    Fat-tired Roadie
    Reputation: AndrwSwitch's Avatar
    Join Date
    Nov 2007
    Posts
    18,453
    You rode road with the wrong people.

    I was intimidated by the idea of joining a team for a while. Turns out that teammates are awesome. It takes the emphasis away from "look at how cool our bikes are and how well our pro team kits match them" and puts it back on "let's ride bikes. Whatever they happen to be."
    "Don't buy upgrades; ride up grades." -Eddy Merckx

  22. #22
    mtbr member
    Reputation: laffeaux's Avatar
    Join Date
    Jan 2004
    Posts
    5,981
    Eating Dirt, the various different spindle lengths is becoming a relic of the past. It was a big deal in the 1990s and earlier but unless you work on older bikes is quickly becoming a non issue.

    BB Types and History...

    Starting in the late 1960s (?) and until the late 90s the most common BB type was a "square taper." The end of the BB where the cranks mount was square and the cranks were held on by friction along this tapered square. Many companies (a lot more than today) made components back then, and although there were standards for the shape of the square taper, there was no standard on the interface at the crank in order to achieve a given chain line. Company A may require a 118mm spindle for their crank, while Company B may have required a 138mm spindle to get the chain line. In some cases companies required a specific spindle length that was offset to the drive-side by 5mm. Every crankset had a specific BB spindle width that it needed to achieve a proper chain line. And in addition, if a user decided to remove the inner ring a triple crankset, a narrower spindle was needed to adjust the chain line inward.

    Also, up until about 1990, all bikes came with a 68mm BB shell. Starting in about 1990 some companies began using a 73mm shell on mountain bikes. When buying a BB not only did you need to know spindle width, but you also needed to know the shell width. As a result there were many many different BB sizes available.

    Start in about 1997 the square tapered BB began to be replaced by splined BBs. Square tapers continued, but were much less common particularly on higher-end cranks. The notable exception was Campy which stayed which continued using square tapers until the mid '00s.

    Splined BBs have a star-shaped interface that the crank slides on to. One of their advantages over it's predecessor is that when the crank was installed the chain line was identical every time (with square-tapered BBs the chain line can vary by several millimeters each time you install the crank). Shimano introduced the splined interface and had two different versions that were not interchangeable. Several companies adopted the Shimano spline (called "Octalink"), and others decided to create their own spline (called "ISIS"). So there are are at least three splined BB standards none of which are compatible. When buying a new BB for these cranks you need to know what standard your crank uses. Fortunately, the splined interfaces reduced the number of BB options. Shimano offered three sizes: road double, road triple, and mountain triple. Having fewer choices meant that adjusting chain lines was a bit harder, but also ensured that it was much easier to find a BB that would work.

    Also, (at least for Shimano) the same splined BB was compatible with both 68mm and 73mm frames. All of the mountain triples BBs were made for 73mm shells. If your bike had a 68mm shell you installed 2.5mm spacers on either side of the shell and everything worked. If your bike had a 68mm shell you also had the option of using either of Shimano's road BBs (neither of which work on 73mm shells).

    And then things changed....

    In the late 1970s and early 1980s several companies independently developed the "two-piece" crank. Instead of a BB and two crank arms, the two-piece crank had the BB spindle permanently attached to one of the arms. The BB bearings were installed into the frame, and the BB spindle attached to a crank arm passed though the frame and bolted to the other crank. Bullseye held the patent on this, but Grove, Tioga, Magic Motorcycle, and Sweet Parts all offered versions of this style crank. Most had internal bearings, but some had bearings external to the frame. All of these (I think) had their own spindle diameter which meant that in order to use a Bullseye crank you needed a Bullseey BB.

    In the early 2000s Bulleye's patent on the two-piece crank expired. Shimano was the first to introduce two-piece cranks after the patent expiration, and everyone else followed suit. There are multiple different methods to make these work, but they all reply on installing BB bearings into the frame first. There are two standards for these bearings; the spindle diameter needed for each is different. I'm not sure who uses which standard. Shimano and Race Face use the same for sure. FSA uses the others. I'm not sure about anyone else.

    With the new(er) external BB cranksets, all you need to know is which BB type you you (Shimano or FSA types) and order the correct one. 68mm versus 73mm does not matter as they are accounted for with spacers (just like with splined BBs). There is a lot more interchangeability than past "standards," and it's the number of options is greatly reduced. However, if you want to do something "different" it's no longer possible. Cranks come with a given chain line and you use it regardless of what woudl actually work best. It can be limiting for frame builders.

    What's next...

    There are several new "standards" being developed: BB30, BB80, 100mm BB shells, press-in BBs (these were popular in the 1980s and are available again). When looking for a higher-end bike you may run into any of these new BBs which aren't compatible with anything written above.

    So.... that's likely more than you wanted to know. There are many options out there, and most are compatible with most frames - i.e. if you have a 68 or 73mm English threaded BB on your frame you can install a square taper, splined, or external BB on the frame. Which one you use is completely dependent on the crank you use, not the frame itself. The newest standards require a specific frame, so you'll not get to chose from them.

    Hope that helps....
    Each bicycle owned exponentially increases the probability that none is working correctly.

  23. #23
    mtbr member
    Reputation:
    Join Date
    Oct 2008
    Posts
    440
    HOLY SMOKES!!! ^^^^^^^^^

    That's some knowledge being laid down, right there.

    Thanks for the expanded background and explanation. The why is so much more interesting than the how...at least to me it is.

  24. #24
    mtbr member
    Reputation:
    Join Date
    Jan 2012
    Posts
    9
    Thank you MUCH laffeaux!!! AndrwSwitch and everyone thus far!!! I'm glad I joined this forum because this is the knowledge I'm looking for and the friendliness of it all. Thank you all!!!

  25. #25
    mtbr member
    Reputation:
    Join Date
    Jan 2012
    Posts
    9
    Quote Originally Posted by Gary H View Post
    Tools are easy, knowing what your doing takes a lot of time and dedication. Google Sheldon Brown and Park Tools, and buy the book Zen and the art of bicycle maintenance.
    If this is to "old" of a thread, I apologize, but just wanted to let other people know that another good book is by Park Tools and it's called the "Big Blue Book 2". I bought this because as stated before that it's been quite some time for me since I've biked and am now just getting back into it only now it's a MT bike. Anyways, this book costs around $25 and TRUST ME... it's a VERY NICE book for beginners and I would think a nice reference book even for the more experienced. It's kind written similar to those "Hayes Mechanic" type books for cars, which I've personally used both Hayes and Chiltons. One last thing, it has torque spec values at the back of the book and conversions from in-lbs to ft-lbs to N-m and the values to do your own conversions if you want to figure it out yourself for a torque spec that's possibly not in the back of the book. Anyways, just wanted to let people know about it just in case it has never been mentioned... if it has, again, I apologize. Happy riding people.
