    Aftermarket thru axle for 2017 dropouts

    I'm looking to get a bolt on thru axle rather then the DT RWS that my Spitfire shipped with.

    Has anyone tried any yet? Any recommendations?

    What is the thread pitch, what standard does the new Banshee 2017 dropouts adhere to?

    Thanks,
    Kent

  2. #2
    mtbr member
    Reputation:
    Join Date
    Nov 2012
    Posts
    25
    Dt swiss rws 12x142 should be E-THRU standard, so the thread should be M12x1.5

    Shift Up and Carbon Ti offer light bolt on E-THRU axles. (take care to order e-thru, since they also offer maxle and x-scott versions)

  3. #3
    mtbr member
    Reputation:
    Join Date
    Apr 2007
    Posts
    1,278
    If it is the same as the 2016 frames and you have a 12x142 (not boost), PM me if you want to unload the DT RWS, I'd be interested.

  4. #4
    mtbr member
    Reputation:
    Join Date
    Nov 2012
    Posts
    25
    As far as I know 2016 frames were Maxle standard (M12x1. 75) = not compatible

  5. #5
    mtbr member
    Reputation:
    Join Date
    Dec 2010
    Posts
    33
    @builttoride would you care to help us clarify what axle is needed?

    Thanks,
    Kent

  6. #6
    mtbr member
    Reputation: JustMtnB44's Avatar
    Join Date
    Nov 2004
    Posts
    708
    What don't you like about the RWS axle? Seems like a nice upgrade over the standard bolt on axle on my 2013 frame.

  7. #7
    mtbr member
    Reputation:
    Join Date
    Dec 2010
    Posts
    33
    Quote Originally Posted by JustMtnB44 View Post
    What don't you like about the RWS axle? Seems like a nice upgrade over the standard bolt on axle on my 2013 frame.
    Yeah it's nice upgrade but I just prefer the look of a bolt on. Same with my RS Pike I put a Maxle Stealth on that to get rid of the handle.

  8. #8
    mtbr member
    Reputation:
    Join Date
    Jan 2007
    Posts
    2,242
    The dropouts are maxle standard, so M12x1.75mm thread. There are a lot of options out there, but the length of the axle is critical. 178-182mm total axle length including threads.
    Banshee Bikes Designer
    www.bansheebikes.com
    Banshee Blog

  9. #9
    mtbr member
    Reputation:
    Join Date
    Sep 2005
    Posts
    29
    I can't find any bolt on axle except the ones from CarbonTi. But they are either too short at 174mm or too long at 192mm. Any recommendations, pls? TIA

  10. #10
    mtbr member
    Reputation: geoya's Avatar
    Join Date
    Jun 2014
    Posts
    41
    Just in case anyone wonders:

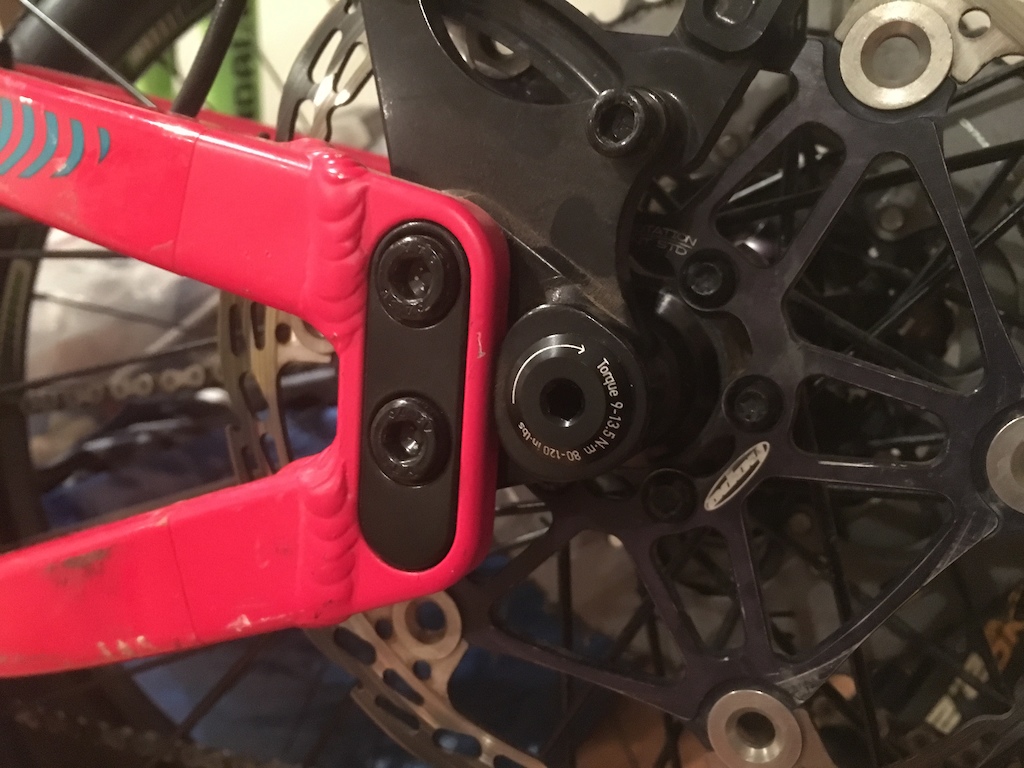

    I've had great success with on my 2017 Boosted Phantom with this axle

    Maxle Stealth Rear Thru Axle: 12x148, 180mm Length, Boost

    really great fit, it's really flat and sits below the surface of the stays.


    Original DT swiss RWS lever got snapped pretty fast and it was PITA to get it removed without the lever.

  11. #11
    mtbr member
    Reputation:
    Join Date
    Dec 2010
    Posts
    33

    Cool-blue Rhythm

    Quote Originally Posted by geoya View Post
    Just in case anyone wonders:
    I've had great success with on my 2017 Boosted Phantom with this axle

    Maxle Stealth Rear Thru Axle: 12x148, 180mm Length, Boost
    I bought this one as well, SRAM parts number 00.4318.005.028, works an absolute treat. Thanks for the tip @geoya ! (45 grams vs the 61 grams for the original DT axle and lever but who's counting? )

    Kent

  12. #12
    mtbr member
    Reputation: dirtrider76's Avatar
    Join Date
    Sep 2012
    Posts
    2,060
    I've been running Hardlite axles in my bikes anymore.
    I like to fart when I'm in front of you on a climb:skep:
