    ASR-7 Build Thread

    Okay, I guess I'll start. Post your Seven builds.

    XO rear der., and Twist Shifters, XT cranks, e-13 DRS
    Juicy 7 brakes, Gravity Dropper seat post,
    Hope Pro II with ZTR Flow

    For suspension, I have different XC and DH configurations.
    For DH I use a Vivid 5.1 and a Totem Solo Air.
    For XC I use a Monarch 4.1 and a Lyrik Solo Air (modified for 176 mm travel)
    With the Kenda tires I'm using the XC build comes in at 28.9 lbs. I haven't weighed the DH config.



  2. #2
    Nightriding rules SuperModerator
    Reputation: crisillo's Avatar
    Join Date
    Jul 2004
    Posts
    20,799
    wow...28.9 is a great weight.

    Awesome build(s)!

  3. #3
    mtbr member
    Reputation:
    Join Date
    Mar 2006
    Posts
    155
    Nice ride!!!! ..
    Mine will be the same color, hope to have it ready before October 15th, I will post the pics when ready.

  4. #4
    mtbr member
    Reputation:
    Join Date
    Aug 2007
    Posts
    156
    <table style="width:auto;"><tr><td><a href="http://picasaweb.google.com/lh/photo/dBcx3vz_hcB0VoznVsIQqA?feat=embedwebsite"><img src="http://lh6.ggpht.com/_4DINsKSctj8/Soj9qGzNaMI/AAAAAAAAAlc/sQRd5mQUwgk/s800/photoImage.jpg" /></a></td></tr><tr><td style="font-family:arial,sans-serif; font-size:11px; text-align:right">From <a href="http://picasaweb.google.com/wembleycycles/Bikes?feat=embedwebsite">Bikes</a></td></tr></table>

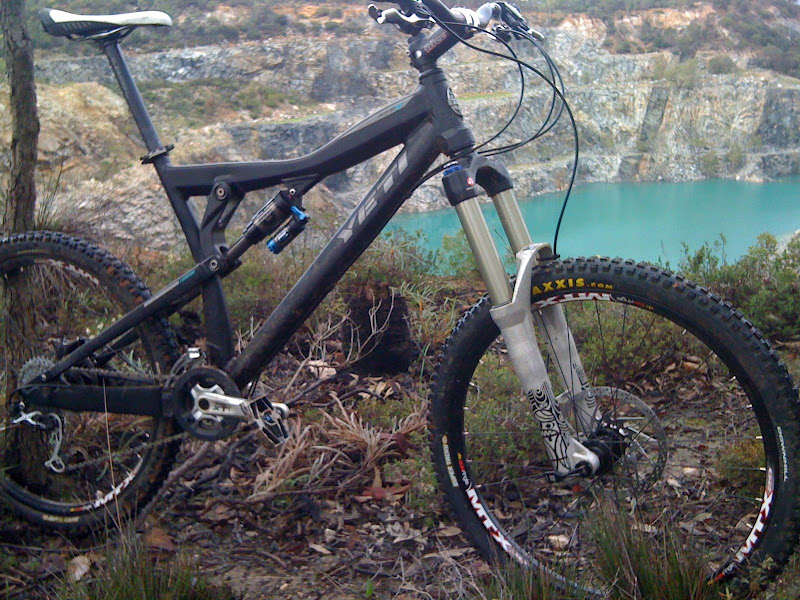

    Large size Black Ano. Totem Air, XT cranks, brakes and mechs, XTR shifters, Sun MTX 29s on Hope Pro 2 hubs.

    I've also fitted a Joplin and Fizik Tundra saddle ( because my beloved Gobi interferes with the Joplin mechanism.)
    http://wembleycycles.com/ Yeti Cycles Dealer for Western Australia.

  5. #5
    Pin it to win it
    Reputation:
    Join Date
    Aug 2008
    Posts
    486
    For suspension, I have different XC and DH configurations.
    For DH I use a Vivid 5.1 and a Totem Solo Air.
    For XC I use a Monarch 4.1 and a Lyrik Solo Air (modified for 176 mm travel)
    With the Kenda tires I'm using the XC build comes in at 28.9 lbs. I haven't weighed the DH config.
    How do you modify a fork to get almost 20mm more travel then intended??

    That's a sweet build though... insanely light for 7'' travel.
    Speed has never killed anybody. Suddenly becoming stationary... that's what gets you.

    www.danwalkerphotovideo.com

  6. #6
    mtbr member
    Reputation:
    Join Date
    Feb 2004
    Posts
    338
    Quote Originally Posted by Monk_Knight
    How do you modify a fork to get almost 20mm more travel then intended??

    That's a sweet build though... insanely light for 7'' travel.
    I actually tried to get more travel initially, but didn't think about the too-short rebound damper rod. I posted the mods on the Shocks and Suspension forum. There are still some questions about durability, but I'm pretty optimistic at this point.

    BTW, the weight I posted was with a Thompson seat post. I think the GD adds about half a pound.

  7. #7
    mtbr member
    Reputation:
    Join Date
    Jan 2005
    Posts
    240
    Medium ASR7



    ~34lbs
    Fox 36 Talas
    Chris King Headset
    Stock Easton Monkeylight Bars
    Yeti Odi Lockon grips
    Thomson Stem 90mm
    Hope M4 Disc Brakes - 203mm\180mm
    Sram X0 Shifters
    Sram X9 rear derailleur
    Sram PG-990 Cassette
    Sram PC -991 Chain
    Hammerschmidt Cranks w/bb
    Mavic 819 UST with Chris King ISO Hubs (20mm\12mm)
    Conti Rubber Queen UST Sneakers (2.4\2.2)
    Joplin Seatpost with remote
    SDG Ti Fly Seat
    Time Atac Carbon Pedals

  8. #8
    mtbr member
    Reputation:
    Join Date
    Feb 2004
    Posts
    338
    Nice build! I want your brakes... Any issues installing the cranks?

  9. #9
    Executive User - UK
    Reputation:
    Join Date
    Nov 2008
    Posts
    799
    Very nice builds. Hmmmmm mojo HD or asr7? Decisions, decisions!

  10. #10
    mtbr member
    Reputation:
    Join Date
    Jan 2005
    Posts
    240
    Quote Originally Posted by belljeffw
    Nice build! I want your brakes... Any issues installing the cranks?

    Best brakes I've ever had. I ran than for 6 months on my 575 and put 'em on the 7.

    No issues installing the Hammerschmidt. I called Yeti and asked them about it---while they wouldn't come out and say anything officially they alluded that you could just bolt on the Hammerschmidt and avoid any of the cutting the hammerschmidt manual talks about. The BB and ISCG tabs are already faced and aligned. I did need to use the spacers that came with the kit but not biggie.

    The shifting is unreal. Can't wait to test it on some real stuff.

  11. #11
    mtbr member
    Reputation: GreenBonty's Avatar
    Join Date
    Feb 2004
    Posts
    1,771
    Wow, these 7s look so serious. I'd love to know how they perform with the RP23.
    I am not a weight winnie but in summer time I like my bikes light. It's getting so dusty and hot (and I'm not getting younger eighther) here that it's just not that fun to peddal up hill. After retreating to my HT during the summer, I find my 575.............................heavy?.

  12. #12
    mtbr member
    Reputation:
    Join Date
    Feb 2004
    Posts
    338
    Quote Originally Posted by GreenBonty
    Wow, these 7s look so serious. I'd love to know how they perform with the RP23.
    I am not a weight winnie but in summer time I like my bikes light. It's getting so dusty and hot (and I'm not getting younger eighther) here that it's just not that fun to peddal up hill. After retreating to my HT during the summer, I find my 575.............................heavy?.
    I was pretty unhappy with the RP23, since it seemed to bottom out very easily, even when I used less sag than recommended. I switched to the Vivid which I liked very much, but caught the weight weenie bug and switched again to a Monarch. The Monarch is "okay", but it still bottoms out pretty easy - not as easy as the RP23, though.

    I started thinking I might pickup another RP23 (I had already sold mine) and get it Pushed. I sent them an email asking what they could do for me, and here is the response:

    The biggest problem with running the air shocks on the longer travel bikes is the fact that Fox only offers those shocks with the high volume air sleeves. These air sleeves are the source of your problems causing the need to run excessive air pressure and they bottom out too easily. I would hang on to the Monarch because we will be tuning those shortly and offering air volume reducer kits at the same time. We do not have any ETA right now but it will be soon as we are riding the prototype Monarchs currently and as soon as it is available it will be up on our web site.
    So now I check the Push site at least once a day...

  13. #13
    mtbr member
    Reputation:
    Join Date
    Jul 2009
    Posts
    1,124
    why don't you just run a coil?

  14. #14
    mtbr member
    Reputation:
    Join Date
    Mar 2006
    Posts
    155
    Quote Originally Posted by belljeffw
    I was pretty unhappy with the RP23, since it seemed to bottom out very easily, even when I used less sag than recommended. I switched to the Vivid which I liked very much, but caught the weight weenie bug and switched again to a Monarch. The Monarch is "okay", but it still bottoms out pretty easy - not as easy as the RP23, though.

    I started thinking I might pickup another RP23 (I had already sold mine) and get it Pushed. I sent them an email asking what they could do for me, and here is the response:



    So now I check the Push site at least once a day...
    Your RP23 was the 2010 with boost valve?....

  15. #15
    mtbr member
    Reputation:
    Join Date
    Feb 2004
    Posts
    338
    Quote Originally Posted by fabricio fracchia
    Your RP23 was the 2010 with boost valve?....
    Yes, even the early 7's had the 2010 shock. Admittedly I didn't give it much of a chance. I rode it around the house and hopped off a few curbs. When it bottomed out I added more air and repeated. It still bottomed out. Since I had a Vivid available I swapped them and sold the RP23.

  16. #16
    mtbr member
    Reputation:
    Join Date
    Mar 2006
    Posts
    155
    well mine its done... here are the specs:

    siza M Turquoise
    TALAS 36RC2 FIT
    Gravity Dropper Turbo
    Avid Elixir CR, Tungsten lever with Goodridge lines and 203 XTR rotor F 160 XTR rotor R
    X.9 Shifters and rear D
    Goodridge cables white
    Sunline V One 754 lowrise
    E13 DRS with 2009 bashring white

    Last edited by fabricio fracchia; 10-15-2009 at 07:45 PM.

  17. #17
    mtbr member
    Reputation:
    Join Date
    Feb 2004
    Posts
    338
    pics, pics!

  18. #18
    mtbr member
    Reputation: kondi's Avatar
    Join Date
    Dec 2007
    Posts
    106
    Quote Originally Posted by fabricio fracchia
    well mine its done... here are the specs:

    siza M Turquoise
    Great bike

    Fabricio - what it's your height and your standover ?

    I also would like buy this bike, but I think I'm to small. My height is 176cm and my standover is 74cm (29in)

  19. #19
    mtbr member
    Reputation: flipnidaho's Avatar
    Join Date
    Aug 2004
    Posts
    6,612
    Quote Originally Posted by belljeffw
    For XC I use a Monarch 4.1 and a Lyrik Solo Air (modified for 176 mm travel)
    How did you accomplish the 176mm mod on the Lyrik?

  20. #20
    mtbr member
    Reputation:
    Join Date
    Mar 2006
    Posts
    155
    Im 174 cm and it fit perfect to me... looks big but when you sit on it and ride... its totally different, the cockpit is close and very fast handly....

  21. #21
    mtbr member
    Reputation:
    Join Date
    Feb 2004
    Posts
    338
    Quote Originally Posted by flipnidaho
    How did you accomplish the 176mm mod on the Lyrik?
    I posted it here. Basically, I made a shorter base plate for the air side of the fork. I tried to get the full 7" (178mm), but the rebound damper shaft was too short and made a horrible racket when the fork topped out.

  22. #22
    mtbr member
    Reputation:
    Join Date
    Mar 2007
    Posts
    78
    Any photo with spring ....Fox or CCdb???

  23. #23
    mtbr member
    Reputation:
    Join Date
    Feb 2004
    Posts
    338
    I have one with the Vivid...

    Last edited by belljeffw; 11-06-2009 at 10:33 AM.

  24. #24
    mtbr member
    Reputation:
    Join Date
    Mar 2007
    Posts
    78
    Thanks for the pic..!!
    You use it with air shock??
    You could comment sensations air vs coil???
    That weight ?
    Thanks again.

  25. #25
    mtbr member
    Reputation:
    Join Date
    Feb 2004
    Posts
    338
    I use the air for XC and coil for FR and DH. I should really just stick with the coil shock. It is so much smoother, and never bottoms out. I think tiggs got his Vivid Pushed, and liked it even more. I was thinking about doing the same, but someone at Push replied to my email saying they were almost ready to Push the Monarch and I should wait. That was several months ago, though.

    I bottom out the Monarch regularly on XC trails. It's way stiffer than the RP23, though, and more than a pound lighter than the Vivid. It handles small bumps pretty well considering I keep the sag at about 10%. It has a certain range, say, when riding down stairs, that will shake your fillings out if you take it at speed.

    Except for the weight there's nothing about the Vivid I don't like. I swapped the DHX coil for a Vivid on my ASX and liked it so much I started with the Vivid when I got the 7. The RP23 lasted just long enough for a test ride around the house.

  26. #26
    mtbr member
    Reputation: ryan_daugherty's Avatar
    Join Date
    Oct 2006
    Posts
    1,775
    Dude the ASR-7 is one tall frame.. dang i'd like to see someone next to it. Dang.

  27. #27
    mtbr member
    Reputation:
    Join Date
    Mar 2007
    Posts
    78
    mistake.

  28. #28
    mtbr member
    Reputation:
    Join Date
    Mar 2007
    Posts
    78
    Quote Originally Posted by belljeffw
    I use the air for XC and coil for FR and DH. I should really just stick with the coil shock. It is so much smoother, and never bottoms out. I think tiggs got his Vivid Pushed, and liked it even more. I was thinking about doing the same, but someone at Push replied to my email saying they were almost ready to Push the Monarch and I should wait. That was several months ago, though.

    I bottom out the Monarch regularly on XC trails. It's way stiffer than the RP23, though, and more than a pound lighter than the Vivid. It handles small bumps pretty well considering I keep the sag at about 10%. It has a certain range, say, when riding down stairs, that will shake your fillings out if you take it at speed.

    Except for the weight there's nothing about the Vivid I don't like. I swapped the DHX coil for a Vivid on my ASX and liked it so much I started with the Vivid when I got the 7. The RP23 lasted just long enough for a test ride around the house.

    About the shock, they offer a Fox RP23 BV or DHX RC4....Interesting ..??
    We ask for the total weight of the bike ....
    I see 67 saddle tube is a position very near to DH.No seems little comfortable to pedaling on AM use.Make routes of 20-25 miles without pain in the kidneys.
    I change my Nomad (71 in saddle tube) and I will not commit great mistake...
    I understand that the geometry is different but if the Seven moto is capable vs the Nomad 2007 for All Mountain use.
    Thank you.

  29. #29
    mtbr member
    Reputation:
    Join Date
    Feb 2004
    Posts
    338
    Quote Originally Posted by ryan_daugherty
    Dude the ASR-7 is one tall frame.. dang i'd like to see someone next to it. Dang.
    My bike and camera were in different cities today. I'll try to get one next week.

  30. #30
    mtbr member
    Reputation:
    Join Date
    Feb 2004
    Posts
    338
    Quote Originally Posted by *RAY*
    About the shock, they offer a Fox RP23 BV or DHX RC4....Interesting ..??
    We ask for the total weight of the bike ....
    I see 67 saddle tube is a position very near to DH.No seems little comfortable to pedaling on AM use.Make routes of 20-25 miles without pain in the kidneys.
    I change my Nomad (71 in saddle tube) and I will not commit great mistake...
    I understand that the geometry is different but if the Seven moto is capable vs the Nomad 2007 for All Mountain use.
    Thank you.
    I didn't like the RP23 BV at all. I haven't tried the DHX RC4, but I've heard it's a nice shock.

    With the Monarch and light tires the bike sits at about 29lbs. I think the Vivid is a little more than a pound extra. I usually run 2.5 or 2.7 DH tires, though, when I run the Vivid, which adds 3-5 lbs.

    I haven't ridden the Nomad except for a few parking lot test rides. I can't compare them. I do go on 20+ mile rides with guys on hard tails and XC FS bikes. No one has to wait for me.

  31. #31
    mtbr member
    Reputation:
    Join Date
    Aug 2007
    Posts
    156
    After another awesome ride on my seven, I can report that it is very stable in the air.

    <a href="http://www.flickr.com/photos/44118341@N06/4087966696/" title="serve_image.pl by Dan M O'Kane, on Flickr"><img src="http://farm3.static.flickr.com/2560/4087966696_c589564a9f.jpg" width="332" height="500" alt="serve_image.pl" /></a>
    http://wembleycycles.com/ Yeti Cycles Dealer for Western Australia.

  32. #32
    mtbr member
    Reputation:
    Join Date
    Mar 2006
    Posts
    155
    finally done,
    the pics of mine ..finished goodridge lines, XTR rotors on Avid Elixir CR, GD Turbo, Sunline V-One, E13 DRS, TALAS 36RC2 FIT.




  33. #33
    mtbr member
    Reputation:
    Join Date
    Apr 2006
    Posts
    354
    what size and how tall are you guys? i am 6ft rode an 05 575 w/80mm stem for a while, thought it was slightly short(23.4 eff) but a large seems really long. Yeti's fit guidelines say Large for me.

  34. #34
    k2x
    k2x is offline
    mtbr member
    Reputation:
    Join Date
    Apr 2004
    Posts
    67

    ASR-7 brake line length

    Can anyone tell me what the brake line length needs to be on the 7?

  35. #35
    mtbr member
    Reputation:
    Join Date
    Mar 2006
    Posts
    155
    well I jus used the rear Goodridge brake line and cut it to the XT size from the stock brakes, the line doesn't need to be too long, it go very tight to the frame, I'm out of my country now, when I arrive I can send you a mail with the two sizes if you doesn't have the information yet.

    rgds

  36. #36
    mtbr member
    Reputation:
    Join Date
    Feb 2004
    Posts
    761
    that's sick!

  37. #37
    mtbr member
    Reputation:
    Join Date
    Oct 2008
    Posts
    102
    nice riding tiggs! how tall are you if you went from a M to a S, standover doesn't change does it?

  38. #38
    mtbr member
    Reputation: GreenBonty's Avatar
    Join Date
    Feb 2004
    Posts
    1,771
    Quote Originally Posted by slcpunk
    that's sick!
    Yeah, I could'nt find the "trail" there myself.
    I get the impression that lately the ABQ riders have left the tough PHX group behind (hopefully we will get some videos and shots from AZ now )

  39. #39
    mtbr member
    Reputation:
    Join Date
    Oct 2008
    Posts
    102
    My new 7...

    Built with ROCK SHOX Lyrik, HOPE stuff, Shimano XT...

    Hope you like it, nearly tempted by an offer of blue rims but thought that might have been too much...






  40. #40
    mtbr member
    Reputation:
    Join Date
    Mar 2007
    Posts
    78
    Bonita..!!!
    ... Where he got the stickers....???

    You've got very good combination
    Last edited by *RAY*; 12-08-2009 at 01:28 PM.

  41. #41
    I'll do it next time!
    Reputation: Tim Arnold's Avatar
    Join Date
    Nov 2006
    Posts
    119
    RACEPACE how did you get that Hope seatpost?

    I have wanted one of them for ages but got something elso instead. It looks awesome as does the rest of the bike.

  42. #42
    mtbr member
    Reputation:
    Join Date
    Oct 2008
    Posts
    102
    Ray, I made the stickers, I'm not a fan of the overly simplistic style of the 7 graphics so I added a bit too them, they are overlaminated with a texture to look like the ano frame aswell.

    Tim, HOPE seat pin is a test item, they made a few to run them for a few months before production starts, this is one that was on the EUROBIKE stand, I have to ride it for a bit and give real world feedback. I can tell you that the wait - which has been an ETERNITY! - will be worth it as the seat post is really good and really light & tough too. The tube is made of a special alloy with various other elements to give it strength.

    Thanks for the feedback on my ride so far...

  43. #43
    mtbr member
    Reputation:
    Join Date
    Nov 2007
    Posts
    118
    RACEPACE, that's the nicest AS7 I've seen to date. Nice updates to the graphics and I love the black/blue/white color scheme.

  44. #44
    mtbr member
    Reputation:
    Join Date
    May 2007
    Posts
    217
    awersome

  45. #45
    mtbr member
    Reputation:
    Join Date
    Mar 2007
    Posts
    78
    Markchang:Check your food and pressure
    Salu2

  46. #46
    mtbr member
    Reputation:
    Join Date
    May 2007
    Posts
    217
    ;-)

    saludos

    markchang

  47. #47
    banned
    Reputation: eyescream's Avatar
    Join Date
    Feb 2009
    Posts
    484
    Quote Originally Posted by RACEPACE
    My new 7...

    Built with ROCK SHOX Lyrik, HOPE stuff, Shimano XT...

    Hope you like it, nearly tempted by an offer of blue rims but thought that might have been too much...





    Any chance of getting those Yeti resi-covers for the hope brakes as seen in pic #2?

  48. #48
    mtbr member
    Reputation:
    Join Date
    Oct 2008
    Posts
    102
    as far as I know HOPE only made 2 sets of top caps, it was something that they looked at doing not just for YETIs but for other brands but no one seemed to be bothered about them so it never took off.

    The runs of these need to be in the hundreds to make it worth while stopping what they need to be making to keep up with orders they have already, so you can see why they are reluctant...

  49. #49
    mtbr member
    Reputation: dvo1's Avatar
    Join Date
    May 2006
    Posts
    753
    Quote Originally Posted by RACEPACE
    My new 7...

    Built with ROCK SHOX Lyrik, HOPE stuff, Shimano XT...

    Hope you like it, nearly tempted by an offer of blue rims but thought that might have been too much...

    I would like to see the match makers better if possible.

  50. #50
    mtbr member
    Reputation: giap's Avatar
    Join Date
    Feb 2008
    Posts
    40
    Quote Originally Posted by RACEPACE
    My new 7...
    Hope you like it
    Absolutely

Page 1 of 11 12345 ... LastLast

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
