    light wheelset on a budget

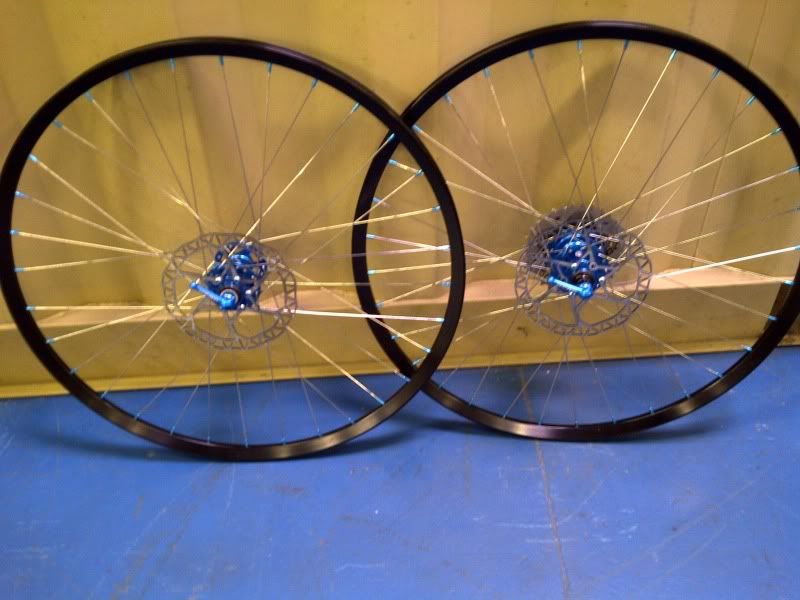

    I just built up this wheelset from various ebay deals I have come across.
    Stans ZTR Alpine rims, Rotaz 32 spoke hubset, DT revolution spokes and nipples.
    1300 grams, and $312.
    I also got the pair of KCNC rotors and skewers, and ti rotor bolts all from another ebay vendor. Finished them off with an 11-32 XTR cassette. They turned out pretty sweet. Can't wait to try them out! I don't know how long the hubs will last, but they were such a good bargain, I didn't mind being the guinea pig tester.


  2. #2
    mtbr member
    Reputation:
    Join Date
    Sep 2011
    Posts
    1,760
    Nice looking for sure
    15 Yeti ASR-c
    14 Yeti ARC
    16 Bianchi Specialissima
    15 Echo Big Deal
    15 Roubaix S-Works

  3. #3
    mtbr member
    Reputation:
    Join Date
    May 2007
    Posts
    233
    whule looking for thses hubs found this SPECIAL: SuperLight Mountain Bike Disc Hubset - Front & Rear - 32/32 - 444 grams - Red
    Too cheap to be good quality.

  4. #4
    mtbr member
    Reputation:
    Join Date
    Feb 2010
    Posts
    1,756
    Quote Originally Posted by turbogrover View Post
    ... I didn't mind being the guinea pig tester...
    There have been other "guinea pigs".



    1300g is a nice weight for the $$$ spent. As a limited use wheelset/race day type of affair I reckon you'll be happy, particularly if you spin rather than mash the pedals.

    My rear hub started to develop noticeable wear after around 5000km. I've put on another 2000km while waiting for the parts for a new wheelset and its still hanging in there. Another guy destroyed his in 600 miles so YMMV.

    The alloy axle is a little flexy on the bigger hits and contact can occur between the hub shell and engagement gear because of this:


  5. #5
    pedal pusher
    Reputation: f3rg's Avatar
    Join Date
    Aug 2007
    Posts
    2,713
    Nice looking wheels. Very similar to a set I'm building, except I'm using Crest rims and Super Comp spokes and brass nipples. Weight should be around 1,400g, but I suspect they'll be a little stronger overall, despite 28 spokes, since I chose not to go with Revolutions and alloy nipples.

  6. #6
    mtbr member
    Reputation:
    Join Date
    Feb 2010
    Posts
    1,756
    Why 28h? Unless you're really light, when building using lightweight non-eyeleted rims, I reckon 32h is the go. Crests, Alpines, Podium MMX etc have the spoke hole as their weak point. Less spokes = more stress per spoke hole. As you lower the spoke count you need to up the strength of the rim to get the same overall wheel strength and life. cf. 24 spoke XTR rims where the spoke nipple is oversize and plenty of meat is left in the rim around the spoke hole. Take a look at how thick (thin!) the Crest rim is around the nipple seats.

    IMHO you'd be better off going 32h and using alu nipples. Weight will be the same but that will produce a stronger (less prone to breakage) and stiffer (less flex) wheel. The extra 4 spokes are really worth it for lightweight non-eyeleted rims.

  7. #7
    Rock and/or Roll
    Reputation: turbogrover's Avatar
    Join Date
    Dec 2005
    Posts
    485
    Quote Originally Posted by f3rg View Post
    Nice looking wheels. Very similar to a set I'm building, except I'm using Crest rims and Super Comp spokes and brass nipples. Weight should be around 1,400g, but I suspect they'll be a little stronger overall, despite 28 spokes, since I chose not to go with Revolutions and alloy nipples.
    I'm at165 lbs, and a pretty strong rider. This will be my 4th set of wheels built with the revolution spokes/alloy nipples, and the spokes have always held up great.

    ( you can't tell from the pics, but I hand polished the spokes to get them extra shiny. I love the look of shiny spokes. )

  8. #8
    mtbr member
    Reputation:
    Join Date
    Feb 2010
    Posts
    1,756
    Quote Originally Posted by turbogrover View Post
    ...
    ( you can't tell from the pics, but I hand polished the spokes to get them extra shiny. I love the look of shiny spokes. )
    Now that you mention it, those spokes do look sweet.

  9. #9
    mtbr member
    Reputation:
    Join Date
    Oct 2011
    Posts
    27
    Nice looking wheels. You've motivated me to try building a set! Do you know if these are the newer (as I understand it) Rotaz Revolution hubs? They are supposed to be a different pawl and ratchet design (6 double-tooth pawls with 27 teeth, 54 POE). Nice increase in POE over the old 3-pawl design, and I'm hoping it could improve the durability issues shown above.

  10. #10
    Rock and/or Roll
    Reputation: turbogrover's Avatar
    Join Date
    Dec 2005
    Posts
    485
    It looks like the hub has been redesigned, but whether it has been made stronger, I can't tell.
    It still uses the alloy axle, but the pawl design is certainly different.
    New hub:



    Old hub:


    My hub with 9 spd titanium cassette.
    Last edited by turbogrover; 12-11-2011 at 08:27 PM.

  11. #11
    mtbr member
    Reputation:
    Join Date
    Oct 2011
    Posts
    27
    I'm drooling! Good luck with it. Give an update after you have some miles on them.

  12. #12
    Rock and/or Roll
    Reputation: turbogrover's Avatar
    Join Date
    Dec 2005
    Posts
    485
    Got 'em mounted up, but it's raining and 38 degrees outside. These wheels are sooo much lighter than my other Sun/Ringle wheelset. Gonna keep these for race day only, but I'll put some miles on them to see how the rear hub is going to hold up.

  13. #13
    mtbr member
    Reputation:
    Join Date
    Feb 2010
    Posts
    1,756
    I just built up a replacement wheelset (1245g Tune/A2Z/Podium MMX concoction) because of my hub issues and have had a chance to look at the rear hub now with a little over 7500km on it. I must say it doesn't seem any worse than at 5000km. The pawls are wearing the freehub engagement gear on an angle but if I replaced the freehub with a new one - maybe use the Rotaz updated pawls I could probably get another 5000km out of it.

    As a race day only wheelset they will probably last forever. The same hubs are used in the BWW Pure XCR wheels and guys claim they are fine (but they don't say how many km's they've done).

    The real beauty about those hubs is they are very light for the price. Nothing comes close. 240s and Tune Kong seem like good alternatives, but I think the 240s might be slightly heavier. The Tune Kong is lighter, but who knows how long one of those will last (I'll let you know ). Both of those hubs alone are around the same price as what you spent to build a complete set of great wheels!

  14. #14
    pedal pusher
    Reputation: f3rg's Avatar
    Join Date
    Aug 2007
    Posts
    2,713
    Got mine built today, and total weight for wheels alone is 1,371 (623f, 748r). Veloplugs will add 8g.

  15. #15
    Rock and/or Roll
    Reputation: turbogrover's Avatar
    Join Date
    Dec 2005
    Posts
    485
    Quote Originally Posted by f3rg View Post
    Got mine built today, and total weight for wheels alone is 1,371 (623f, 748r). Veloplugs will add 8g.
    Cool, let's see pics of 'em.

  16. #16
    sbd
    sbd is offline
    mtbr member
    Reputation:
    Join Date
    Sep 2011
    Posts
    292
    Do you think if I built these with a Stans Arch they could withstand 220 pounds of Clyde? I am a smooth rider. I have an 08 Stumpy Comp 29er and I am still riding the stock wheel set with many many miles and its still straight as an arrow but really heavy. My HT weighs 28.5 pounds!

  17. #17
    mtbr member
    Reputation: thickfog's Avatar
    Join Date
    Oct 2010
    Posts
    1,267
    I ride with people in the 265-280 range and they have no issues with their arches.
    CRAMBA Chairman

  18. #18
    mtbr member
    Reputation:
    Join Date
    Oct 2011
    Posts
    27
    I'm in the same weight range and planning to go with Arches and dt Swiss super comps.

  19. #19
    sbd
    sbd is offline
    mtbr member
    Reputation:
    Join Date
    Sep 2011
    Posts
    292
    I have heard similar tales re Arches, I was wondering more about the hubs.

  20. #20
    Rock and/or Roll
    Reputation: turbogrover's Avatar
    Join Date
    Dec 2005
    Posts
    485
    I took the wheels out for their 1st ride today. Rode for two hours in below-freezing temps. They are noticeably lighter, and accelerate quicker than my other wheelset. The hubs worked fine, but the freewheel sound is very quiet, and that worries me. I won't know how well they hold up for a few more months. I do like how light these wheels are very much, so I hope they last a while.

  21. #21
    pedal pusher
    Reputation: f3rg's Avatar
    Join Date
    Aug 2007
    Posts
    2,713
    Here they are on my bike. I got a 6mi test ride in yesterday, but now the cold rain and wintery mix b.s. is coming down, so more riding will have to wait.

    The freehub is pretty quiet, but the sound it does make isn't as pleasant as my old Rolf's. I'm sure I'll get use to it. Rims are a b**ch to mount tires to with the Veloplugs in, but it's worth the weight savings.


  22. #22
    mtbr member
    Reputation: mike29erss's Avatar
    Join Date
    Jun 2011
    Posts
    29
    Quote Originally Posted by turbogrover View Post
    Got 'em mounted up, but it's raining and 38 degrees outside. These wheels are sooo much lighter than my other Sun/Ringle wheelset. Gonna keep these for race day only, but I'll put some miles on them to see how the rear hub is going to hold up.
    sweet looking bike, what kind is it? whats the weight? is it all carbon? it looks like you have a niner fork i cant tell , its nice

  23. #23
    mtbr member
    Reputation: bikerboyj17's Avatar
    Join Date
    Dec 2007
    Posts
    454
    Quote Originally Posted by turbogrover View Post
    I just built up this wheelset from various ebay deals I have come across.
    Stans ZTR Alpine rims, Rotaz 32 spoke hubset, DT revolution spokes and nipples.
    OP, what was the weight of your Alpine rims?

  24. #24
    Rock and/or Roll
    Reputation: turbogrover's Avatar
    Join Date
    Dec 2005
    Posts
    485
    Quote Originally Posted by bikerboyj17 View Post
    OP, what was the weight of your Alpine rims?
    I didn't weigh the individual components. I knew that the alpine rims were the lightest Stan's I could get. I don't have a scale at home, so I built the wheels and brought them into work to weigh them. I also removed all the stickers from the rims.
    They've been working pretty good, btw. I have put in 7, 2hr. rides on these wheels in sometimes sloppy and frozen conditions, and they have been holding up just fine. I am using a Lucky Nino 11-32 ti cassette on them, and it shifts as well as any cassette. It has shift ramps machined into the cogs. I plan to put the training wheelset back on, and take the rear hub apart to check for wear.
    Last edited by turbogrover; 12-31-2011 at 07:09 AM.

  25. #25
    Rock and/or Roll
    Reputation: turbogrover's Avatar
    Join Date
    Dec 2005
    Posts
    485
    Quote Originally Posted by mike29erss View Post
    sweet looking bike, what kind is it? whats the weight? is it all carbon? it looks like you have a niner fork i cant tell , its nice
    Thanks, it's been a great bike! Here's a link to the thread when I got the frameset. It wieghs right at 17lbs. Actually it's less than 17 with this wheelset on it.
    Carbonal Composite Tech SL frameset

  26. #26
    Rock and/or Roll
    Reputation: turbogrover's Avatar
    Join Date
    Dec 2005
    Posts
    485
    Hey, it's time to resurrect this thread again!
    I've put a season on this wheelset, and I couldn't be happier! I've given them a re-truing in late July, but since then, these wheels have been abused and ridden hard with no issues. (Well one issue...the 16t and 18t titanium cogs are worn or bent, and I occasionally get a ghost shift from them when doing a standup climb on a steeper section.)
    I've disassembled the hubs to check for wear or damage, and was very happy to see them looking good as new inside. I'd say there is around 1500 off-road only miles on these so far. They still spin, and look, as good as the day I got them.

  27. #27
    mtbr member
    Reputation:
    Join Date
    Dec 2009
    Posts
    14
    I am not familiar with the Rotaz 32 spoke hub. Worth looking into? I need a rear hub.

  28. #28
    Custom Wheelbuilder
    Reputation: Zen Cyclery's Avatar
    Join Date
    Mar 2009
    Posts
    533
    Awesome setup OP. Really clean looking rig. Good call on the Nokon!
    Check out www.zencyclery.com for fully customizable, handbuilt wheels.

    www.facebook.com/zencyclerywheels

  29. #29
    mtbr member
    Reputation:
    Join Date
    Sep 2008
    Posts
    404
    Hey turbogrover just curious why you ditched the rigid carbon fork? I have a chinesium carbon hardtale on order and I will likely go with a Trigon carbon fork. I love your wheelset and am contemplating building a set but the Alpine rims don't seem to be discounted anywhere. Can I ask what you paid for them on Ebay?

  30. #30
    Rock and/or Roll
    Reputation: turbogrover's Avatar
    Join Date
    Dec 2005
    Posts
    485
    I took off the rigid fork, because I found that I was faster with the Fox fork. The bike is still plenty light, though.
    I don't recall the exact price of the rims, but they weren't from a dealer. It was a private seller that bought them for his own wheel build, but then sold them to build up a 29er, so I got them for an awesome price. (about $100)
    Last edited by turbogrover; 10-24-2012 at 07:52 PM.

  31. #31
    Rock and/or Roll
    Reputation: turbogrover's Avatar
    Join Date
    Dec 2005
    Posts
    485
    just checking ebay, there aren't too many of these hubsets left. And the price went up a little since I bought them.

  32. #32
    mtbr member
    Reputation: solitone's Avatar
    Join Date
    Apr 2011
    Posts
    558
    Besides on eBay, you clan find Rotaz hubs here:
    bikehubstore.com

    Has anyone used them on 29" wheels? I ask as somebody maintains 29er wheels put more strain on hubs, and so weak hubs might break.

    Are these too lightweight for 29ers?

    I plan build a wheel set with them, 32 DT rev spokes, and either crest rims (if I want a really lightweight set) or DT xr 400 29.

    Any thoughts?

  33. #33
    mtbr member
    Reputation: solitone's Avatar
    Join Date
    Apr 2011
    Posts
    558
    Quote Originally Posted by turbogrover View Post
    It looks like the hub has been redesigned, but whether it has been made stronger, I can't tell.
    It still uses the alloy axle, but the pawl design is certainly different.

    New hub:



    Old hub:
    So the difference is the pawls now having two teeth?

    On the other hand, that pawls are still on the aluminum hub body--not on the free hub.

    I wonder how are my current much more more expensive AmClassic.. On the weak alloy hub body, or on a steel ring on the free hub?

  34. #34
    Rock and/or Roll
    Reputation: turbogrover's Avatar
    Join Date
    Dec 2005
    Posts
    485
    Quote Originally Posted by solitone View Post
    So the difference is the pawls now having two teeth?
    No that isn't the only difference. The actual design has been modified. The placement and actuation are different. It also has 54 P.O.E.

    How would a 29er wheel cause more stress on the hub? Is it from additional side-load force from a larger diameter wheel? I would think that small amount would be absorbed by the spokes, rims, and tires, before it would translate into more stress on the hub.

    Frame flex would cause more wear and damage I would think. If I were a heavier rider, or used these wheels for anything other than XC riding, I would choose stronger wheels.

  35. #35
    mtbr member
    Reputation: solitone's Avatar
    Join Date
    Apr 2011
    Posts
    558
    Thanks for your comment.

    Regarding 29ers, I'm just betting. I'd imagine larger diameter wheels would put more strain on hub flanges (especially on the rear ones?) because of their higher momentum.

  36. #36
    Rock and/or Roll
    Reputation: turbogrover's Avatar
    Join Date
    Dec 2005
    Posts
    485
    These wheels and hubs continue to perform perfectly, but I treat them carefully like a lightweight XC wheelset. I can ride hard and fast on them, but I don't take large jumps or dropoffs with them. I have another set of strong wheels that I use for training.

    I still don't see the difference a 29er wheel could make on the durability of the rear hub. It depends more, on how the owner uses the hubs, not so much the diameter of the wheels. The difference in the radius from hub center to the rim isn't that much different.
    The bigger difference would be between a heavy or light rider. Or an agressive all-mountain rider, vs a XC rider.

  37. #37
    mtbr member
    Reputation: solitone's Avatar
    Join Date
    Apr 2011
    Posts
    558
    I was thinking that braking a 29" wheel would result in higher forces between flange and axle.

    But I have no idea whether this is really relevant and might indeed result in broken flanges/axles. I'm just guessing.

    I've read somewhere about this possible issue with 29ers, and I thought they'd require stronger hubs..

  38. #38
    mtbr member
    Reputation: andrepsz's Avatar
    Join Date
    Jan 2013
    Posts
    710
    Nice!

  39. #39
    mtbr member
    Reputation:
    Join Date
    Nov 2013
    Posts
    9
    I picked up these hubs, now closeout at Bikehubstore. Mine are the newer. I'm wondering how the hubs held up beyond your last update, and how many miles total you got out of them, or are they still going?

    And related - did the new design work, and prevent the problems and short life of the older model?

    light wheelset on a budget-img_20160407_103109781_hdr.jpg My thought was using these as gravel/road/cyclocross, which I would expect would not put the hub through the same stresses as MTB. Agree??

    Quote Originally Posted by solitone View Post
    So the difference is the pawls now having two teeth?

    On the other hand, that pawls are still on the aluminum hub body--not on the free hub.

    I wonder how are my current much more more expensive AmClassic.. On the weak alloy hub body, or on a steel ring on the free hub?

  40. #40
    mtbr member
    Reputation: solitone's Avatar
    Join Date
    Apr 2011
    Posts
    558
    They're still helding up well. Apart from that small issue with the pawl springs that I simply needed to change. I did many miles on them, don't know exactly how many, but many!

  41. #41
    mtbr member
    Reputation:
    Join Date
    Nov 2013
    Posts
    9

    Quote Originally Posted by solitone View Post
    They're still helding up well. Apart from that small issue with the pawl springs that I simply needed to change. I did many miles on them, don't know exactly how many, but many!

  42. #42
    mtbr member
    Reputation:
    Join Date
    Nov 2013
    Posts
    9

    New question here. feeback from turbogrover, or others?

    I recently acquired and built these hubs, the Rotaz Revolution, the newer design. Are you still running these? Miles? I am wondering if the new design has proven to be a success.

    Are you still around, turbogrover?
    Last edited by oleritter; 05-23-2016 at 02:01 PM. Reason: forum idiot

Similar Threads

  1. Budget Wheelset
    By TicTac in forum Wheels and Tires
    Replies: 10
    Last Post: 01-25-2011, 01:02 PM
  2. looking for wheelset on a budget
    By jwcart10 in forum Singlespeed
    Replies: 7
    Last Post: 12-08-2009, 04:34 PM
  3. First inspection of budget light xtr non-disc wheelset
    By Duckman in forum Weight Weenies
    Replies: 3
    Last Post: 11-01-2004, 10:22 AM
  4. budget wheelset
    By Kelvin in forum Australia, New Zealand
    Replies: 3
    Last Post: 09-20-2004, 06:01 AM
  5. Budget light fork for very light rider?
    By tmaybee in forum Weight Weenies
    Replies: 10
    Last Post: 08-12-2004, 12:56 PM

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
