    A Vintage Parts Fab

    If you can no longer buy it, you end up making it.




  2. #2
    VRC Hound
    Reputation: bushpig's Avatar
    Join Date
    Nov 2005
    Posts
    4,270
    That is so nicely made. I will PM you my small parts order.

  3. #3
    mtbr member
    Reputation: crconsulting's Avatar
    Join Date
    Apr 2004
    Posts
    1,564
    Very nice,

    That's an expensive little part there in machine time eh? 3 hours or so......
    Makes it about a $300 - $400 part

  4. #4
    mtbr member
    Reputation: DoubleCentury's Avatar
    Join Date
    Nov 2005
    Posts
    1,945
    1.5 hours. But yes, an expensive little part, especially when you consider the investment in machines.

  5. #5
    mtbr member
    Reputation: crconsulting's Avatar
    Join Date
    Apr 2004
    Posts
    1,564
    [QUOTE=DoubleCentury]1.5 hours. But yes, an expensive little part, especially when you consider the investment in machines.[/QUOTE}

    You young guys work quick.

    hope you made a fixture so you can make 100 of them

  6. #6
    Not a regular
    Reputation:
    Join Date
    Jan 2004
    Posts
    4,085
    Let's see it in action!

    So, are you going to anodize it 3DV?

  7. #7
    mtbr member
    Reputation: DoubleCentury's Avatar
    Join Date
    Nov 2005
    Posts
    1,945
    ssmike, if you owned a few GT's you'd know what this was for. ;-)

  8. #8
    Illuminati
    Reputation: scant's Avatar
    Join Date
    Jan 2004
    Posts
    1,684
    is there much demand for brand new replacements for older parts?

  9. #9
    mtbr member
    Reputation: gm1230126's Avatar
    Join Date
    Nov 2005
    Posts
    2,975
    Looks like the top of a flip flop stem? If so, I never would have gone to the trouble. There are people that have them in NOS for $9.95-$11.95 maybe not the right length though?
    Needed: 26.8mm XTR seatpost, blue GT/Grundig Jersey.

  10. #10
    mtbr member
    Reputation: DoubleCentury's Avatar
    Join Date
    Nov 2005
    Posts
    1,945
    Actually, I don't own any GT's either, thus the ";-)". But I suppose it would work on a GT.

    Where is such a part available NOS?

  11. #11
    mtbr member
    Reputation: DoubleCentury's Avatar
    Join Date
    Nov 2005
    Posts
    1,945

    The Whole Enchilada


  12. #12
    mtbr member
    Reputation: Fillet-brazed's Avatar
    Join Date
    Jan 2004
    Posts
    7,696
    Quote Originally Posted by DoubleCentury

    For a Ritchey or maybe a Potts? It just dawned on me that I havent worked on any old bikes in a long while. Looks like you used an existing quill?

  13. #13
    mtbr member
    Reputation: DoubleCentury's Avatar
    Join Date
    Nov 2005
    Posts
    1,945
    "It just dawned on me that I havent worked on any old bikes in a long while. Looks like you used an existing quill?"

    What do you mean...I stamped the "MAX 22mm" line myself and ribbed the bottom expander. This is serious reproduction work. ;-)

    Working on too many carbon bikes and disk brakes?

  14. #14
    mtbr member
    Reputation: DoubleCentury's Avatar
    Join Date
    Nov 2005
    Posts
    1,945

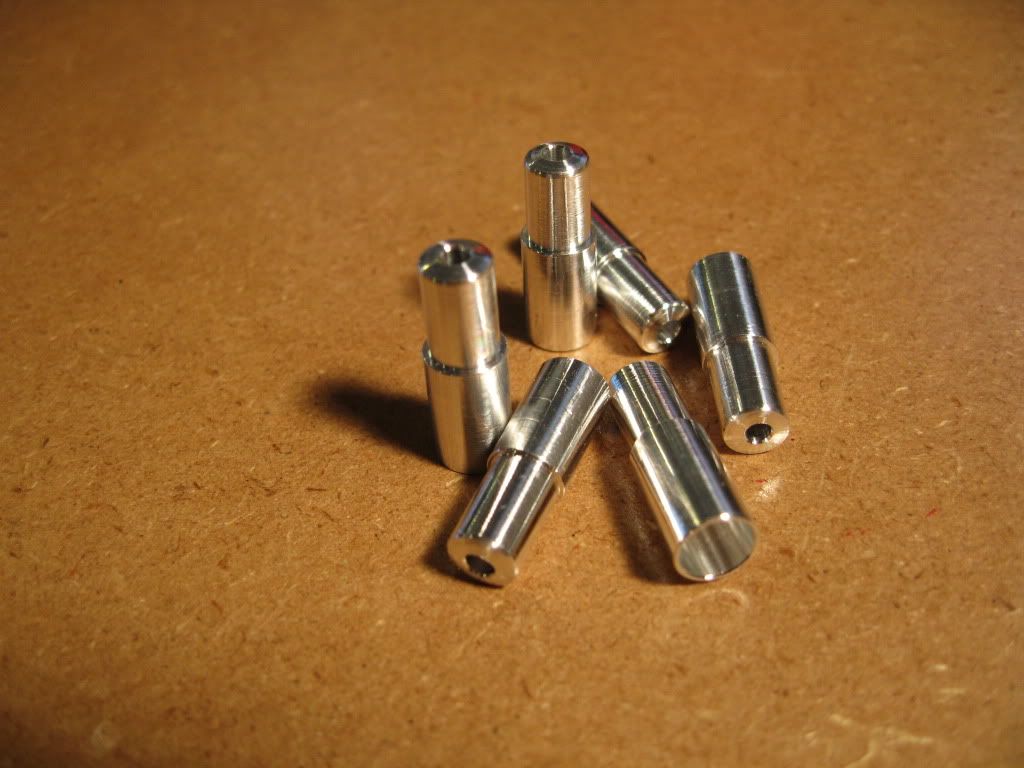

    More parts fab, this time 6mm ferrules. Seems like every bike I build these days needs a few.
