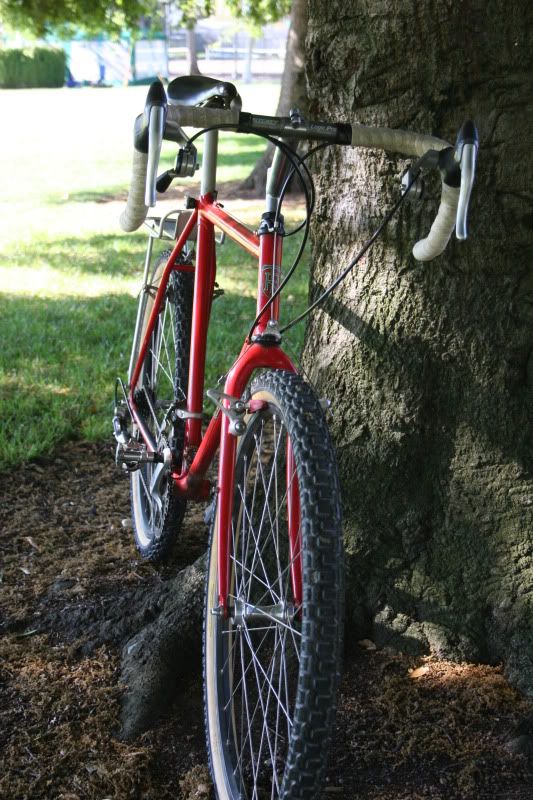

    Ritchey Ascent Comp Drop Bar (finished, images page 3)

    Started a drop bar project I have been thinking on for a while...





    then some changes...





    Almost there... just waiting on a NOS set bar end shifters...









    Last edited by digilux; 06-07-2012 at 01:22 PM.
    No points to garage queens!

    "Mum it's not a bike - it's a Yeti" (my daughter explaining things)

  2. #2
    more beers, less gears
    Reputation:
    Join Date
    Mar 2010
    Posts
    219
    pretty nice to look at. but i have my doubts, that it'll be that nice as well on the trails.

  3. #3
    mtbr member
    Reputation: digilux's Avatar
    Join Date
    Mar 2007
    Posts
    178
    Quote Originally Posted by rigidftw View Post
    pretty nice to look at. but i have my doubts, that it'll be that nice as well on the trails.
    Why the doubts?
    No points to garage queens!

    "Mum it's not a bike - it's a Yeti" (my daughter explaining things)

  4. #4
    Certified Bike Junkie
    Reputation: muddybuddy's Avatar
    Join Date
    Jan 2007
    Posts
    1,746
    Take a look at the bar position of most of the bikes in the drop bar thread and compare to where you are at. Also Dirt Drop bars are very different from road bars as far as hand positioning goes.
    Last edited by muddybuddy; 05-31-2012 at 01:10 PM.
    Need: McMahon brake for roller cam mounts, Mountain Goat fork.

  5. #5
    mtbr member
    Reputation: digilux's Avatar
    Join Date
    Mar 2007
    Posts
    178
    yes I know the bars them self should have been curved more outward and the stem should be shorter and with a higher rise, but this was the bars and stem I had in hand. This is my first attempt on a drop bar MTB... so lets see how it turns out.

    BTW... JT managed to race with road bars...




    No points to garage queens!

    "Mum it's not a bike - it's a Yeti" (my daughter explaining things)

  6. #6
    mtbr member
    Reputation:
    Join Date
    Oct 2011
    Posts
    109
    I'm no expert, but I have to agree with the above. I tried regular drop bars and realized within a couple of rides that the bike would be relegated to fire road type trails. It was extremely difficult to lift the front end over obstacles since I was stretched out and low. I changed to Woodchippers, raised the drops to the seat level and shortened the stem. The bike became totally different to handle over rough stuff.

  7. #7
    mtbr member
    Reputation: digilux's Avatar
    Join Date
    Mar 2007
    Posts
    178
    Quote Originally Posted by blilrat View Post
    I'm no expert, but I have to agree with the above. I tried regular drop bars and realized within a couple of rides that the bike would be relegated to fire road type trails. It was extremely difficult to lift the front end over obstacles since I was stretched out and low. I changed to Woodchippers, raised the drops to the seat level and shortened the stem. The bike became totally different to handle over rough stuff.
    JT managed to throw some air with with his road drop bars... then again JT is JT

    No points to garage queens!

    "Mum it's not a bike - it's a Yeti" (my daughter explaining things)

  8. #8
    velocipede technician
    Reputation: hollister's Avatar
    Join Date
    Sep 2005
    Posts
    8,857
    everyone else is wrong, you got it right













    we really need a sarcasm font here
    looking for 20-21" P team

  9. #9
    mtbr member
    Reputation: digilux's Avatar
    Join Date
    Mar 2007
    Posts
    178
    Quote Originally Posted by hollister View Post
    everyone else is wrong, you got it right

    we really need a sarcasm font here
    That one did I not understand...
    No points to garage queens!

    "Mum it's not a bike - it's a Yeti" (my daughter explaining things)

  10. #10
    more beers, less gears
    Reputation:
    Join Date
    Mar 2010
    Posts
    219
    try it. you don't need shifters to see if that setup fits you.
    going up a hill, or fast on a straight might seem good, but try going round tight corners and down a hill, with your hands in the drops.
    i'd be surprised if it doesn't feel too bulky.

    i have my doubts cause i've been where you are now

  11. #11
    the new Gilbert Grape
    Reputation: laffeaux's Avatar
    Join Date
    Jan 2004
    Posts
    5,844
    I don't think that the shape of the bars is an issue. Many riders use road bars on CX bikes on trails and they work fine. When you're in the drops you may find that the bar hits you in the wrists when you rock the bike hard back and forth - not a deal breaker, but it can be irritating (speaking form first hand experience).

    The only potential issue I see is the length of the stem. You may be pretty stretched out with your set up - but then again you may have monster long arms. Give it a try and see how it rides, but you'll likely need a shorter (but same rise) stem.

    Otherwise it looks great!
    Each bicycle owned exponentially increases the probability that none is working correctly.

  12. #12
    mtbr member
    Reputation: digilux's Avatar
    Join Date
    Mar 2007
    Posts
    178
    Thanks all folks for your enthusiasm for my drop bar project. I have done this once many years ago with a Cannondale M2000 frame. On this project I have measured the stem height and length with my elbow in front of the seat and I manage to get to-three fingers between my fingertips and handlebar. That is the old school road bike measure for stem length, not sure if tha goes for CX/drop bar MTB though...

    Seat height is still a bit low for me since this Ritchey in general is a bit to small for me. My pref size is 19-19.5". Some of you have probably seen my Yetis...

    I also don't think the road drop bar is a issue only the general size of the bike. But so far test ride without shifters proved promising I think. Just cant wait to test it on the properly with shifters.
    No points to garage queens!

    "Mum it's not a bike - it's a Yeti" (my daughter explaining things)

  13. #13
    more beers, less gears
    Reputation:
    Join Date
    Mar 2010
    Posts
    219
    ah, you're right. your yetis are taller. so the length might fit you. if you're comfortable on the bike, ok.
    with the bars so low i'd just be scared with my face being so close to the rocks, roots and other abrasive material

  14. #14
    VRC Illuminati
    Reputation: Rumpfy's Avatar
    Join Date
    Dec 2003
    Posts
    17,598
    You can't base it off of JT's race set up. He ran it that way so it would more similarly mimic his road bike as he was racing both road and dirt at the time. Once he committed to dirt full time, flat bars came back.

    You'll be able to ride bike...but that set up is very low and very stretched out. This is not how correct drop bar bikes are set up. I'd wager a guess you won't care for how the bike behaves.
    -eric-

    http://www.rumpfy.com
    Wanted: NDS Suntour XC Pro Microdrive 175mm Crank Arm.

  15. #15
    mtbr member
    Reputation:
    Join Date
    Feb 2011
    Posts
    331
    Quote Originally Posted by digilux View Post
    Thanks all folks for your enthusiasm for my drop bar project. I have done this once many years ago with a Cannondale M2000 frame. On this project I have measured the stem height and length with my elbow in front of the seat and I manage to get to-three fingers between my fingertips and handlebar. That is the old school road bike measure for stem length, not sure if tha goes for CX/drop bar MTB though...

    Seat height is still a bit low for me since this Ritchey in general is a bit to small for me. My pref size is 19-19.5". Some of you have probably seen my Yetis...

    I also don't think the road drop bar is a issue only the general size of the bike. But so far test ride without shifters proved promising I think. Just cant wait to test it on the properly with shifters.
    This set up is like running a 25 cm stem on a 50 cm top tube and it can't be right. it is going to handle like a shopping cart

  16. #16
    mtbr member
    Reputation: tductape's Avatar
    Join Date
    Mar 2008
    Posts
    2,387
    My back hurts.....
    Seek: Koski Trailmaster. Breezer Series 2 or 3. Cunningham Racer.

  17. #17
    mtbr member
    Reputation: digilux's Avatar
    Join Date
    Mar 2007
    Posts
    178
    Well arnt some of you talking like Oracles one better than the other... you havent seen me or know anything about my proportions

    Anyway I am glad for those of you who contribute and for those of you Oracles ...

    <iframe width="640" height="480" src="http://www.youtube.com/embed/ml6KT5MArC8" frameborder="0" allowfullscreen></iframe>
    No points to garage queens!

    "Mum it's not a bike - it's a Yeti" (my daughter explaining things)

  18. #18
    VRC Illuminati
    Reputation: Rumpfy's Avatar
    Join Date
    Dec 2003
    Posts
    17,598
    Quote Originally Posted by digilux View Post
    Well arnt some of you talking like Oracles one better than the other... you havent seen me or know anything about my proportions

    Yep, our bad. I should have read post #8.
    -eric-

    http://www.rumpfy.com
    Wanted: NDS Suntour XC Pro Microdrive 175mm Crank Arm.

  19. #19
    mtbr member
    Reputation: digilux's Avatar
    Join Date
    Mar 2007
    Posts
    178
    Well ok where did i put my sorry feet wrong here? Why are some of you almost acting unfriendly here?

    And whats about thread no 8 - I still dont get it... feed me With a spoon please
    No points to garage queens!

    "Mum it's not a bike - it's a Yeti" (my daughter explaining things)

  20. #20
    mtbr member
    Reputation:
    Join Date
    Feb 2011
    Posts
    331
    Quote Originally Posted by digilux View Post
    Well arnt some of you talking like Oracles one better than the other... you havent seen me or know anything about my proportions

    Anyway I am glad for those of you who contribute and for those of you Oracles ...
    it is not only about body proportions, it is about weight distribution.

  21. #21
    mtbr member
    Reputation: digilux's Avatar
    Join Date
    Mar 2007
    Posts
    178
    Quote Originally Posted by Machianera View Post
    it is not only about body proportions, it is about weight distribution.
    One of the better contributions in this thread so fare. I agree on the w&b and cg issue. But like i have stated in the start of the thread this is the stem and bar i have for the moment. I will test this setup befor i swap anything.
    No points to garage queens!

    "Mum it's not a bike - it's a Yeti" (my daughter explaining things)

  22. #22
    velocipede technician
    Reputation: hollister's Avatar
    Join Date
    Sep 2005
    Posts
    8,857
    Quote Originally Posted by digilux View Post
    Well ok where did i put my sorry feet wrong here? Why are some of you almost acting unfriendly here?

    And whats about thread no 8 - I still dont get it... feed me With a spoon please
    the amount collective knowledge here is amazing, take advantage of it. there's lots of good advice from multiple sources

    I've tried the drop bar ritchey thing with too low a stem, I didn't enjoy it. the handling was not to my liking



    post #8 was friendlier way of saying this


    you're hell bent on setting it up the way you have it. have a blast, I hope it works out well for you.
    looking for 20-21" P team

  23. #23
    VRC Illuminati
    Reputation: Rumpfy's Avatar
    Join Date
    Dec 2003
    Posts
    17,598
    Quote Originally Posted by digilux View Post
    Well ok where did i put my sorry feet wrong here? Why are some of you almost acting unfriendly here?

    And whats about thread no 8 - I still dont get it... feed me With a spoon please

    We're nicely trying to tell you that your set up is bad. Its not being done to put you down or criticize you, its being done to save you wasted time and heartache. Everyone commenting have drop bar bikes, so we're sharing our collective knowledge and experience.

    Our thoughts and suggestions seem to be annoying you. And thats ok too, but its also when the vultures start to circle....thats the unfriendly you're feeling.
    -eric-

    http://www.rumpfy.com
    Wanted: NDS Suntour XC Pro Microdrive 175mm Crank Arm.

  24. #24
    All Lefty's, all the time Moderator
    Reputation: MendonCycleSmith's Avatar
    Join Date
    Feb 2005
    Posts
    15,286
    Agreed. There's some initial surliness to some folks responses, but they are simply being themselves, and trying to help you out. Don't react to the vibe, and you'll be fine.

    Their experiences may help you more quickly figure out why it is it really doesn't feel that great when the rubber hits the trail.

    Like any internet excursion, a thick skin, and willingness to ask why, is better than a thin skin, and holding fast to the fervent belief that it will work as you think.

    Have fun with it.

    See? You now know why JT did what he did. And why he swapped over after a while.

    Try to get that info from your local 16 year old at Bike R Us.....

    This is a Pugs not some carbon wannabee pretzel wagon!!

    - FrostyStruthers



    www.mendoncyclesmith.com

  25. #25
    mtbr member
    Reputation: digilux's Avatar
    Join Date
    Mar 2007
    Posts
    178
    1. Relax i just didnt see the sarcasm
    2. I never said I was using JTs setup as a template
    3. It's the bar and stem I have for the moment
    4. it's most likely a language barrier - three years in flight school I the south states probably didn't improve my English
    5. I really appreciate your input but please leave out the inner circle codes and sarcasme

    I'm juping the hey with the wifey - race weekend tomorrow and I need a massage ;-)
    No points to garage queens!

    "Mum it's not a bike - it's a Yeti" (my daughter explaining things)

  26. #26
    mtbr member
    Reputation: yo-Nate-y's Avatar
    Join Date
    Mar 2009
    Posts
    2,732
    Quote Originally Posted by Rumpfy View Post
    Yep, our bad. I should have read post #8.
    Still.

    One way to think about this--and everyone's attempt to offer you advice on positioning--is to imagine where a flat bar would be instead. That is already a pretty long stem you have-- if you had a flat bar where your hands need to be for that drop bar (that is to say, on the hoods or in the drops) then the "imaginary" stem to make it work would be like 350mm.

    = a stem that is crazy long and for handling: wrong.

    You want your drops high enough and close enough that your main hand positions (on the hoods and in the drops) aren't so far off from where they would be with a regular stem/flat bar set up. Hence---short and tall stems you see for most offroad drop setups....that Ritchey doesn't have a very tall head tube, so the stem needs to do some work to get your bars in the right place.

    As it stands (unless you plan to ride exclusively on the tops), your best hand positions are nearly over the front axle. Exhibit A:
    Attached Thumbnails Attached Thumbnails Ritchey Ascent Comp Drop Bar (project)-screen-shot-2012-06-01-3.06.43-pm.jpg

    Somec is like the digital Zunow
    And this: http://www.youtube.com/watch?v=JD5h3y0a9AU

  27. #27
    All Lefty's, all the time Moderator
    Reputation: MendonCycleSmith's Avatar
    Join Date
    Feb 2005
    Posts
    15,286
    Quote Originally Posted by digilux View Post
    5. I really appreciate your input but please leave out the inner circle codes and sarcasme
    All good.

    Just remember, you can't go into a local bar for a drink without being exposed to the "locals"....


    Wish I was "juping my wifey".


    This is a Pugs not some carbon wannabee pretzel wagon!!

    - FrostyStruthers



    www.mendoncyclesmith.com

  28. #28
    bonked
    Reputation: IF52's Avatar
    Join Date
    Jan 2004
    Posts
    2,129
    Not to pile on, but...

    I tried the 'it's what I have on hand' route about 16 years ago, which resulted in a bike setup like what you posted and I was so put off by the really horrible setup that I didn't try drops offroad again until maybe 5 years ago. And it was all thanks to the friendly folks on this forum that I got the setup right this time.

    Nate's picture is excellent reference

    And look for the single consolidated drop bar thread and read through it.
    Quote Originally Posted by banks
    That is one big f'n dude!
    Yes I am!

  29. #29
    mtbr member
    Reputation: mainlyfats's Avatar
    Join Date
    Oct 2005
    Posts
    1,104
    You could always do this with it: F. Moser Motard

  30. #30
    mtbr member
    Reputation: digilux's Avatar
    Join Date
    Mar 2007
    Posts
    178
    Quote Originally Posted by mainlyfats View Post
    You could always do this with it: F. Moser Motard
    Thanks for a realy nice inspiring F. Moser drop bar MTB. Love the build and couloirs :-)

    Last edited by digilux; 06-02-2012 at 11:25 AM.
    No points to garage queens!

    "Mum it's not a bike - it's a Yeti" (my daughter explaining things)

  31. #31
    VRC Hound
    Reputation: bushpig's Avatar
    Join Date
    Nov 2005
    Posts
    4,270
    I just checked out this thread after the other one. I don't see people being too spicy. I have to agree with the rowdies about the stem but am with you and Laffeux on the bar. I don't really like dirt drops so much but like drops on the dirt.

    Consider a Nitto DD stem.

  32. #32
    25-yr old Retrogrouch
    Reputation:
    Join Date
    Oct 2007
    Posts
    565
    I once swapped drops onto a hybrid and didn't think about how much further over the front axle I would end up. I rode it for about, oh, 5 minutes before going back to the shop and getting a shorter stem with rise...much better.
    Keep the Rubber Side Down!

    Wanted: Judy FSX decals

  33. #33
    mtbr member
    Reputation: digilux's Avatar
    Join Date
    Mar 2007
    Posts
    178
    Dear fellow bicycle enthusiasts :-)

    Then I'm back (oh No!!! some of you might bark out loud...) Its been a fantastic race weekend here in Norway. We held the first ever Birken road race today, with a small twist of Paris-Roubaix in it. Although we dont have cobblestone roads here in the land of vikings - we have great gravel roads. So this ca 150km course have a short ca 1km gravel section to kinda split the peleton a bit. We had 1500 paid starters but only 990 of them set out from start this morning at 0830 due to rain strong wind and 4C or 39f.



    Then back to the seeds of (my) misery... the Ritchey "please drop dead" bar project...

    If (some of you) had read what I did write about the Ritchey beeing to small for me compared to my other bikes you could have seen why I am being so stubborn about the stem length. But since I had it with your spoon - I'll give it to you with mine...

    Here are my other regular horses measured from seat tip to handlebar center and hand positions.
    And before you start barking about my other bikes being different kinds of bikes etc etc etc... riding positions do change from bike to bike frame style to frame style, angles are different etc etc etc we agree on - yes? - so please do not bark ;-)


    I probably got "it" all wrong this time also - but I dare
    No points to garage queens!

    "Mum it's not a bike - it's a Yeti" (my daughter explaining things)

  34. #34
    All Lefty's, all the time Moderator
    Reputation: MendonCycleSmith's Avatar
    Join Date
    Feb 2005
    Posts
    15,286
    Quote Originally Posted by digilux View Post
    Dear fellow bicycle enthusiasts :-)
    "Dear fellow self promoting band of brothers"

    Original opening line.

    I'm a nice guy, mean no harm to anyone, but my headscratchometer is starting to fire up here.

    You're welcome to play with the locals, but don't get your knickers in a twist when they play back....

    Have fun.

    Nice stable BTW.
    This is a Pugs not some carbon wannabee pretzel wagon!!

    - FrostyStruthers



    www.mendoncyclesmith.com

  35. #35
    velocipede technician
    Reputation: hollister's Avatar
    Join Date
    Sep 2005
    Posts
    8,857
    I called it back on page 1.

    do your thing yetiman, have a blast
    looking for 20-21" P team

  36. #36
    mtbr member
    Reputation: digilux's Avatar
    Join Date
    Mar 2007
    Posts
    178
    Quote Originally Posted by MendonCycleSmith View Post
    ...Nice stable BTW.

    Thanks!... (stable ... Stable - Wikipedia, the free encyclopedia) hope all this was just a language barrier :-)
    No points to garage queens!

    "Mum it's not a bike - it's a Yeti" (my daughter explaining things)

  37. #37
    All Lefty's, all the time Moderator
    Reputation: MendonCycleSmith's Avatar
    Join Date
    Feb 2005
    Posts
    15,286
    Quote Originally Posted by digilux View Post
    Thanks!... (stable ... Stable - Wikipedia, the free encyclopedia) hope all this was just a language barrier :-)
    Think that falls closer to "crib" using "hip hop vernacular"....

    Stable, as in collection of horses, turned into a collection of bikes using "biker vernacular".

    Yetiman Hollister? Remind me, I love a good trainwreck. Was thinking of Kyle when all this began.
    This is a Pugs not some carbon wannabee pretzel wagon!!

    - FrostyStruthers



    www.mendoncyclesmith.com

  38. #38
    mtbr member
    Reputation: mainlyfats's Avatar
    Join Date
    Oct 2005
    Posts
    1,104
    Back in the days of super long stems I had two particularly crazy ones that I used to try and make bikes that didn't fit theoretically fit. One was a 180mm Everest stem (the custom RoMo brand) and the other - and this one still makes me chuckle when I think about it - was a slammed negative rise 150mm Salsa (25.4mm for a mountain bike). Trust me that the Salsa looked cool.

    Unfortunately, the Salsa was also completely unrideable. The 180mm Everest put so much weight on my front wheel that I washed out on every downhill corner.

    I bring up the Salsa because another stem that they made, in addition to really wide bars, might just be your answer. You don't have to go really long if you go wide (said the bishop to the actress).

    Last edited by mainlyfats; 06-03-2012 at 06:35 PM.

  39. #39
    mtbr member
    Reputation: mainlyfats's Avatar
    Join Date
    Oct 2005
    Posts
    1,104
    P.S. Set back seatpost will gain you some space too.

  40. #40
    Master of the Face Plant
    Reputation:
    Join Date
    Feb 2004
    Posts
    2,902
    Here is my old Ritchey with a Salsa stem. I was going to drop bar this one but it was a 17 inch frame so it was a bit small for me so I sold it. Still kinda wish I kept it because it had the Suntour Browning auto shift system which actually worked.

    Last edited by sandmangts; 06-03-2012 at 05:16 PM.
    http://www.nbbikes.com/
    ^^^Best Bike Shop of MTBR 2008^^^

  41. #41
    mtbr member
    Reputation:
    Join Date
    Jan 2009
    Posts
    689
    Quote Originally Posted by yo-Nate-y View Post
    Exhibit A:
    Reminds me of this one from eastcoaststeve's collection:

    --------------

    [WTB] 1987 Cannondale SM800, 20", Pink with airbrushed graphics.

  42. #42
    mtbr member
    Reputation: yo-Nate-y's Avatar
    Join Date
    Mar 2009
    Posts
    2,732
    The white stem/white fork might look pretty cool. And maybe you could rejigger those mystery mounts for a stem-mounted disc brake.
    Somec is like the digital Zunow
    And this: http://www.youtube.com/watch?v=JD5h3y0a9AU

  43. #43
    Relax. I'm a pro.
    Reputation:
    Join Date
    Feb 2004
    Posts
    1,456
    That FRO with disc brakes is so fvcking sweet. Details, please.
    Instagram: @antoine1000
    http://tfwo.tumblr.com

  44. #44
    mtbr member
    Reputation: yo-Nate-y's Avatar
    Join Date
    Mar 2009
    Posts
    2,732
    There is a whole thread on it on RBUK.....and agreed---I think it is a really nicely done restomod.
    Somec is like the digital Zunow
    And this: http://www.youtube.com/watch?v=JD5h3y0a9AU

  45. #45
    the new Gilbert Grape
    Reputation: laffeaux's Avatar
    Join Date
    Jan 2004
    Posts
    5,844
    Ride it. If you like it, it's a good fit.
    Each bicycle owned exponentially increases the probability that none is working correctly.

  46. #46
    Relax. I'm a pro.
    Reputation:
    Join Date
    Feb 2004
    Posts
    1,456
    Quote Originally Posted by yo-Nate-y View Post
    There is a whole thread on it on RBUK.....and agreed---I think it is a really nicely done restomod.
    Thanks for the heads up. I'm reading the thread now, and--bloody hell--there are quite a few geeks there who were worried about the frame's retail value. I thought this is about cool bikes, not a 401K.
    Instagram: @antoine1000
    http://tfwo.tumblr.com

  47. #47
    mtbr member
    Reputation:
    Join Date
    Feb 2011
    Posts
    331
    Quote Originally Posted by digilux View Post
    Dear fellow bicycle enthusiasts :-)



    Then back to the seeds of (my) misery... the Ritchey "please drop dead" bar project...

    If (some of you) had read what I did write about the Ritchey beeing to small for me compared to my other bikes you could have seen why I am being so stubborn about the stem length. But since I had it with your spoon - I'll give it to you with mine...

    Here are my other regular horses measured from seat tip to handlebar center and hand positions.
    [I]And before you start barking about my other bikes being different kinds of bikes etc etc etc... riding positions do change from bike to bike frame style to frame style, angles are different etc etc etc we agree on - yes? - so please do not bark ;-)
    I probably got "it" all wrong this time also - but I dare

    you forgot to measure the distance between the wheels.

    Just think:
    "The stem+handlebar are way too big for the frame"

    You will feel ON the bike, rather than riding it.

    and you may want to try the drop on a different bike since the ritchey has such a small head tube.

  48. #48
    mtbr member
    Reputation: digilux's Avatar
    Join Date
    Mar 2007
    Posts
    178
    Quote Originally Posted by Machianera View Post
    you forgot to measure the distance between the wheels.
    Measurements Seattube/headtube/wheelbase (st/ht/wb):
    Ritchey 17" / 22" / 42"
    Ross 19.5" / 23" / 43.5"
    Yeti Pro FRO 19" / 23" / 42"
    Yeti RP 21" / 22" / 38.75"
    Yeti ASR SL 17" / 21.5" / 41"

    Quote Originally Posted by Machianera View Post
    Just think:
    "The stem+handlebar are way too big for the frame"

    You will feel ON the bike, rather than riding it.
    Please read thread #5. The stem could have been shorter and the handlebars are from one of my road racers from when I was 15-16 years old it is actually a bit small/narrow for my bulging viking body and broad shoulders ;-)

    Quote Originally Posted by Machianera View Post
    and you may want to try the drop on a different bike since the ritchey has such a small head tube.
    Yes I have have decided for a handlebar swap if this setup does fail - it have been the plan all time - this is still a build in its testing phase.
    No points to garage queens!

    "Mum it's not a bike - it's a Yeti" (my daughter explaining things)

  49. #49
    mtbr member
    Reputation:
    Join Date
    Feb 2011
    Posts
    331
    just commenting on what you have on the bike now. it is def more fun to learn from own experience than been told what to do.

  50. #50
    mtbr member
    Reputation: digilux's Avatar
    Join Date
    Mar 2007
    Posts
    178
    Pleas, this is no critic of you sandmangts, but where is the screaming choir regarding stem/handlebar/bike correctness. And again this is no critic or attempts at humiliating you or your bike sandmangts! - I just wonder where the old dogs went?

    No points to garage queens!

    "Mum it's not a bike - it's a Yeti" (my daughter explaining things)

  51. #51
    Phobia of petting zoos.
    Reputation:
    Join Date
    Oct 2005
    Posts
    835
    Quote Originally Posted by digilux View Post
    Taking a measurement of the wheel and tyre, which is about 26" in diameter, and transferring that to the measurement off the screen and onto a piece of paper, then transferring that measurement that you say is 23", I see it as way longer than 23" and in fact, over 26".

    Not picking a fight, just stating a fact.

    For what it's worth, I don't care either way. Try it. If it works for you then great. If it doesn't, then you've had the fun of the learning process.

    Your collection too, like seriously drool worthy nice Yetis.

    Grumps

  52. #52
    mtbr member
    Reputation:
    Join Date
    Jul 2006
    Posts
    2,650
    Quote Originally Posted by Uncle Grumpy View Post
    Taking a measurement of the wheel and tyre, which is about 26" in diameter, and transferring that to the measurement off the screen and onto a piece of paper, then transferring that measurement that you say is 23", I see it as way longer than 23" and in fact, over 26".
    Grumps
    Good eye, Grumps.
    I've used similar methods to estimate frame measurements in craigslist postings. It works nice as long as you have a straight side-view of the bike.

    digilux, not that there's anything necessarily wrong with riding with that setup, it's just odd that that's the measurement that seems to be so far off.

    You also need to consider bar width when determining reach and handling characteristics. With narrower bars, you would generally want a longer stem to both slow the steering a little and to get your reach right . But with drop bars, you need to realize that the forward extension of the bars themselves act to slow the steering, so adding a really long stem to drops might be going too far. It may get you the right fit for your body, but not the right steering characteristics. And then you need to take frame geometry and fork into account and . . .

    So this can get complicated and you should experiment to find what works for you. But don't be so quick to dismiss comments from those with experience with drop bars on mtn bikes.

    Nice collection of bikes. I can't say I've ever seen that much bling on a full suspension bike before though.
    Warning: may contain sarcasm and/or crap made up in an attempt to feel important.

  53. #53
    mtbr member
    Reputation: digilux's Avatar
    Join Date
    Mar 2007
    Posts
    178
    "Warning: may contain sarcasm and/or crap made up in an attempt to feel important."

    You guys are so different than my locals (europeans) on retrobike.co.uk or is it just the general MTBR jargong that makes you?

    Thanks for the advice's... the measurements are done with a Hultafors Folding Ruler G61 and by the same measure technic I have been using for the last 30 years...

    My new profile signature: "I am not a newbie - please dont even tyr to tell me what goes or not - I know everything but realy dont know why I am posting"
    No points to garage queens!

    "Mum it's not a bike - it's a Yeti" (my daughter explaining things)

  54. #54
    mtbr member
    Reputation:
    Join Date
    Jul 2006
    Posts
    2,650
    Quote Originally Posted by digilux View Post
    You guys are so different than my locals (europeans) on retrobike.co.uk
    Complement accepted
    Warning: may contain sarcasm and/or crap made up in an attempt to feel important.

  55. #55
    mtbr member
    Reputation:
    Join Date
    Feb 2011
    Posts
    331
    i don't know what you are waiting for? the bike can be ridden as it is, go ahead!!!

  56. #56
    ...
    Reputation: ameybrook's Avatar
    Join Date
    Sep 2006
    Posts
    1,505
    T - In between the sarcastic comments, there's some real genuine feedback that will likely benefit you in the long run. Thus is life in MTBR VRC.

    If you want useless attaboys, stick with Retrobike.


    Why would you own 100 Yugos when you could own 1 Porsche? - Rumpfy



  57. #57
    Certified Bike Junkie
    Reputation: muddybuddy's Avatar
    Join Date
    Jan 2007
    Posts
    1,746
    Quote Originally Posted by digilux View Post
    the measurements are done with a Hultafors Folding Ruler G61
    Have you had it recently calibrated by the Department of Weights and Measures? It may not be dead on balls accurate, its a technical term.
    Need: McMahon brake for roller cam mounts, Mountain Goat fork.

  58. #58
    Master of the Face Plant
    Reputation:
    Join Date
    Feb 2004
    Posts
    2,902
    Quote Originally Posted by digilux View Post
    Pleas, this is no critic of you sandmangts, but where is the screaming choir regarding stem/handlebar/bike correctness. And again this is no critic or attempts at humiliating you or your bike sandmangts! - I just wonder where the old dogs went?

    Well, I can tell you if you look up the original thread I posted about that bike you will see several comments with regards to the stem. One particular forum member told me I did not deserve the bike. Believe me, I have taken my lumps from this crowd but I just don't care enough to get upset about it.Keep in mind that is how the bike was when I bought it, its not how I set it up although I did ride it like that and it was actually pretty nice for just commuting. http://forums.mtbr.com/ritchey-desig...ft-513204.html
    http://www.nbbikes.com/
    ^^^Best Bike Shop of MTBR 2008^^^

  59. #59
    mtbr member
    Reputation: digilux's Avatar
    Join Date
    Mar 2007
    Posts
    178
    Quote Originally Posted by Machianera View Post
    i don't know what you are waiting for? the bike can be ridden as it is, go ahead!!!
    Yes Sir I will... just waiting on the bar end shifters - then I will be out on the gravel pacing.
    No points to garage queens!

    "Mum it's not a bike - it's a Yeti" (my daughter explaining things)

  60. #60
    mtbr member
    Reputation: digilux's Avatar
    Join Date
    Mar 2007
    Posts
    178
    I guess if running drop bars by the book like this ...


    ... mandatory PPE will be
    No points to garage queens!

    "Mum it's not a bike - it's a Yeti" (my daughter explaining things)

  61. #61
    mtbr member
    Reputation:
    Join Date
    Feb 2011
    Posts
    331
    Quote Originally Posted by digilux View Post
    Yes Sir I will... just waiting on the bar end shifters - then I will be out on the gravel pacing.
    you don't need the shifters! and no gravel roads. those are for road bikes.
    go single speed.
    find a trail with some roots, rocks and possibly a steep downhill.
    wear helmet

  62. #62
    artistic...
    Reputation: colker1's Avatar
    Join Date
    Jan 2004
    Posts
    7,122
    Quote Originally Posted by digilux View Post
    I guess if running drop bars by the book like this ...


    ... mandatory PPE will be
    Actually that stem is too long and too low for the trails i ride. swapped for a nitto which has shorter reach.
    Didn't get your joke, have no idea on the blue thing you posted.
    I think you should try your set up on your local technical downhill.. asap. don't be shy.. go full speed ahead.
    WTB: Bomber Z2 1 1/8 steerer, in good to excellent shape OR bomber rebuild kit.

  63. #63
    mtbr member
    Reputation: digilux's Avatar
    Join Date
    Mar 2007
    Posts
    178
    moved
    No points to garage queens!

    "Mum it's not a bike - it's a Yeti" (my daughter explaining things)

  64. #64
    mtbr member
    Reputation: digilux's Avatar
    Join Date
    Mar 2007
    Posts
    178
    Quote Originally Posted by colker1 View Post
    Actually that stem is too long and too low for the trails i ride. swapped for a nitto which has shorter reach.
    Didn't get your joke, have no idea on the blue thing you posted.
    I think you should try your set up on your local technical downhill.. asap. don't be shy.. go full speed ahead.
    PPE = Personal Protective Equipment and "that thing" is a dental/mouth guard

    As soon as the bar end shifters arrive I'll be out riding - head first
    No points to garage queens!

    "Mum it's not a bike - it's a Yeti" (my daughter explaining things)

  65. #65
    artistic...
    Reputation: colker1's Avatar
    Join Date
    Jan 2004
    Posts
    7,122
    Quote Originally Posted by digilux View Post
    PPE = Personal Protective Equipment and "that thing" is a dental/mouth guard

    As soon as the bar end shifters arrive I'll be out riding - head first
    with all due respect to your bike fleet and services as a mechanic... you have no idea on riding drops on mountain trails.
    WTB: Bomber Z2 1 1/8 steerer, in good to excellent shape OR bomber rebuild kit.

  66. #66
    more beers, less gears
    Reputation:
    Join Date
    Mar 2010
    Posts
    219
    Quote Originally Posted by digilux View Post
    As soon as the bar end shifters arrive I'll be out riding - head first
    well, whenever you try it first down some steep choppy stuff, make sure you're not alone in the woods.

  67. #67
    mtbr member
    Reputation: digilux's Avatar
    Join Date
    Mar 2007
    Posts
    178
    Quote Originally Posted by rigidftw View Post
    well, whenever you try it first down some steep choppy stuff, make sure you're not alone in the woods.
    Now your are talking about something all different - your are now moving in to the topic of skills
    No points to garage queens!

    "Mum it's not a bike - it's a Yeti" (my daughter explaining things)

  68. #68
    Stokeless Asshat
    Reputation: jeff's Avatar
    Join Date
    Jan 2004
    Posts
    3,348
    Your bike needs Sandman's stem. Simple. You know this though.
    Zip ties? Not on my bike!

    Want:
    650B rims or wheel set. 80's vintage 32 or 36 x 135mm

  69. #69
    Phobia of petting zoos.
    Reputation:
    Join Date
    Oct 2005
    Posts
    835
    Quote Originally Posted by digilux View Post
    I knew it was a mouth guard, because here in Australia we're pretty tough and we play rugby leagure, and the only protection we wear is a mouthguard. Not like that funny American football with it's body armour and helmets, pah!

    But at first glance, it looks like it could be a blue anodised brake booster. And you know, there's a bit part of me wanted it to be a brake booster, because it looks like it could be a really sexy brake booster.

    Grumps

  70. #70
    mtbr member
    Reputation:
    Join Date
    Jul 2006
    Posts
    10
    Looks great to me. I've been thinking of adding drop bars to my Rocky Mountain Hammer Race.

  71. #71
    mtbr member
    Reputation: digilux's Avatar
    Join Date
    Mar 2007
    Posts
    178
    I got the bar end shifters today and just had to finish (preliminary build though!). Did a test run with the kids and the initial feeling was pretty good. Still need some tweaking and adjustment but I am as you probably know pretty satisfied so fare. I am very impressed with the shifting performance of the Ultegra bar end shifters. First the front shifter (left) has a good Suntour micro index shift feel to it, and the rear shifter (right) has a precise and chrisp 8 speed index shift - all in all better than the XTII thumb shifters. Still have to take it out in the woods for a proper test before the full final verdict.

    I changed the Shimano XT cantilevers for a Campa Record OR set. The Campa is far better both braking performance but also service and adjustment. Yes I know I have not wrapped the bar tape around the shifter cables.









    No points to garage queens!

    "Mum it's not a bike - it's a Yeti" (my daughter explaining things)

  72. #72
    the new Gilbert Grape
    Reputation: laffeaux's Avatar
    Join Date
    Jan 2004
    Posts
    5,844
    That might be the best looking Ascent I've seen. Hopefully the trail ride report is positive too.
    Each bicycle owned exponentially increases the probability that none is working correctly.

  73. #73
    artistic...
    Reputation: colker1's Avatar
    Join Date
    Jan 2004
    Posts
    7,122
    bike is 2 sizes too small.
    WTB: Bomber Z2 1 1/8 steerer, in good to excellent shape OR bomber rebuild kit.

  74. #74
    mtbr member
    Reputation: digilux's Avatar
    Join Date
    Mar 2007
    Posts
    178
    Quote Originally Posted by colker1 View Post
    bike is 2 sizes too small.
    Hi there dear bike friend - you are right but also quoting what I have stated many posts earlier ;-)

    The sad reality for me is that frames like this do not exist in viking land - it was this Ritchey or no Ritchey for me...
    No points to garage queens!

    "Mum it's not a bike - it's a Yeti" (my daughter explaining things)

  75. #75
    mtbr member
    Reputation: digilux's Avatar
    Join Date
    Mar 2007
    Posts
    178
    Quote Originally Posted by laffeaux View Post
    That might be the best looking Ascent I've seen. Hopefully the trail ride report is positive too.
    Thanks for kind words. The frame could need a new decal set... or not?
    No points to garage queens!

    "Mum it's not a bike - it's a Yeti" (my daughter explaining things)

  76. #76
    the new Gilbert Grape
    Reputation: laffeaux's Avatar
    Join Date
    Jan 2004
    Posts
    5,844
    Quote Originally Posted by digilux View Post
    Thanks for kind words. The frame could need a new decal set... or not?
    The head tube decal might be a little "loud" but the remaining ones look good to me. They're certainly not original, but the blue decal (on the down tube) against the red looks nice to me. Unless you want to capture more of the original "feel" I'd stick with what you've got.
    Each bicycle owned exponentially increases the probability that none is working correctly.

  77. #77
    mtbr member
    Reputation: digilux's Avatar
    Join Date
    Mar 2007
    Posts
    178
    Hello fellow VRC friends :-)

    Today I had my first long test ride with my drop bar Ritchey. The over all initial verdict was that this was a success. And the longer in to the test ride I came the better the feeling became. On the single tracks and special the more technical croxes I feelt a bit uncomfortable in relation to how I ride the same trail with my other bikes. The Yeti ASR SL just float over and through in a straight line. The Ritchey is more back to the roots. But on the grave roads I was realy hammering and realy feelt lige hamering on my road bikes. A great feeling. Regarding the long and whineing road about my project, I can realy understand the JT setup seeing it from a road bike point of wiew. The Cunningham setup requires a hole different frame design and geometry. The Cunningham bikes with drop bars have a sloping toptube etc giving the rider a totaly different riding position. I cant see that any of these styles is the one and only right drop bar style. I like the JT style, and will build a cunningham replika to tyr that style also.

    Edit: BTW I swapped the low quality Shimano XTII rear derailleur with the best derailleur ever - the Mavic 845.





    Last edited by digilux; 06-10-2012 at 02:50 PM.
    No points to garage queens!

    "Mum it's not a bike - it's a Yeti" (my daughter explaining things)

  78. #78
    mtbr member
    Reputation:
    Join Date
    Jan 2006
    Posts
    107
    Hey, if you like riding her, who cares what anyone else thinks! Congrats on a unique build. I'm actually thinking of doing something similar to my Ritchey.

  79. #79
    Neo-Retro Forever
    Reputation:
    Join Date
    Oct 2004
    Posts
    1,572
    Where's that IRD post go? You should sell it to me.

    I can't say whether or not your bike is right - just that it's wrong for me. Looks like the front end will not like the loose cornering at all.

Members who have read this thread: 2

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
