  1. #1
    www.swampclub.org
    Reputation: anthonyi's Avatar
    Join Date
    Nov 2008
    Posts
    439

    Custom GoPro mounts

    After almost losing (and / or destroying) my GoPro Wide and breaking my only seat-post mount, I decided to build a rock-solid seat-post mount and a new handlebar mount. I should be able to test them out this weekend and post a video.
    Anyway, here are my two new mounts - made with a few dollars worth of hardware store PVC parts, SS clamps and 5-minute epoxy....


    P.S.
    I am always interested in seeing new mounts, so please post your photos. I know that Lee and others have posted some cool ones in other forums.
    "Wish not so much to live long, as to live well." - Benjamin Franklin

  2. #2
    mtbr member
    Reputation: smoothmove's Avatar
    Join Date
    Feb 2008
    Posts
    30
    It seems that Gopro has missed the mark on quick release mounts. With both the handle bar mount and the helmet mount you have to unscrew the bolt and change around the little articulating arms.....not easy/quick to do after a few hours of riding. Having the camera mount directly to the foot mount is the way to go. One question, what glue did you use?

  3. #3
    mtbr member
    Reputation: Carraig042's Avatar
    Join Date
    Nov 2009
    Posts
    888
    Looks nice and simple. I plan on building a mount or two once my GoPro arrives. I do not trust the plastic mounts for such a rugged sport.

    -Brett
    Visit my Youtube channel for lots of DH and XC videos!
    2014 Devinci Troy Carbon
    2011 Spec Demo 8
    GoPro HD Hero

  4. #4
    www.swampclub.org
    Reputation: anthonyi's Avatar
    Join Date
    Nov 2008
    Posts
    439
    Quote Originally Posted by smoothmove
    One question, what glue did you use?
    I used 5 minute epoxy. Very solid for this use and slightly flexible so it won't crack due to vibrations.
    "Wish not so much to live long, as to live well." - Benjamin Franklin

  5. #5
    mtbr member
    Reputation:
    Join Date
    Nov 2010
    Posts
    28
    Did you rough up the plastic with sandpaper prior to gluing? I have had epoxy break free from PVC that has a smooth surface. Thanks for the picks, I could use some new mounts.

  6. #6
    mtbr member
    Reputation: Carraig042's Avatar
    Join Date
    Nov 2009
    Posts
    888
    Roughing up the plastic would be a very good idea. Gives the plastic cement a good bonding surface. Also, when choosing the plastic cement (epoxy) looks at their strength in psi and make sure it is compatible with the type of plastic you are using.

    -Brett
    Visit my Youtube channel for lots of DH and XC videos!
    2014 Devinci Troy Carbon
    2011 Spec Demo 8
    GoPro HD Hero

  7. #7
    www.swampclub.org
    Reputation: anthonyi's Avatar
    Join Date
    Nov 2008
    Posts
    439
    Quote Originally Posted by acefaser
    Did you rough up the plastic with sandpaper prior to gluing? I have had epoxy break free from PVC that has a smooth surface. Thanks for the picks, I could use some new mounts.
    I used a very rough wood file. It helps quite a bit to put deep ridges in the plastic.
    "Wish not so much to live long, as to live well." - Benjamin Franklin

  8. #8
    mtbr member
    Reputation:
    Join Date
    Dec 2009
    Posts
    67
    Anthonyi thats a nice DIY mount and a good idea as a thread.
    (You should crop you pictures as they are huge)

    Here's one I did
    http://www.youtube.com/watch?v=M5xo9EOwqv4

  9. #9
    mtbr member
    Reputation: Fullsailbiker's Avatar
    Join Date
    Dec 2009
    Posts
    131
    Quote Originally Posted by luap
    Anthonyi thats a nice DIY mount and a good idea as a thread.
    (You should crop you pictures as they are huge)

    Here's one I did
    http://www.youtube.com/watch?v=M5xo9EOwqv4
    That looks like a fine solution for my Yeti seat mast issue.

  10. #10
    mtbr member
    Reputation:
    Join Date
    Jan 2007
    Posts
    195

    Go Pro helmet custom mount

    Simple piece of CF and some plastic ties

    http://www.flickr.com/photos/56613764@N04/5226924213/

    Videos Here:
    Last edited by chronohunter; 12-02-2010 at 08:10 PM.

  11. #11
    www.swampclub.org
    Reputation: anthonyi's Avatar
    Join Date
    Nov 2008
    Posts
    439
    Quote Originally Posted by luap
    Anthonyi thats a nice DIY mount and a good idea as a thread.
    (You should crop you pictures as they are huge)
    Here's one I did
    http://www.youtube.com/watch?v=M5xo9EOwqv4
    Thanks. It is incredibly stable. Imperative for our rooty trails here.
    Yea. I usually reduce but I forgot this time.
    Nice job with yours also.
    Here is my latest video with the new mount.
    "Wish not so much to live long, as to live well." - Benjamin Franklin

  12. #12
    www.swampclub.org
    Reputation: anthonyi's Avatar
    Join Date
    Nov 2008
    Posts
    439
    Quote Originally Posted by Fullsailbiker
    That looks like a fine solution for my Yeti seat mast issue.
    Nice!
    If I go full face, I will borrow that idea for sure.
    "Wish not so much to live long, as to live well." - Benjamin Franklin

  13. #13
    www.swampclub.org
    Reputation: anthonyi's Avatar
    Join Date
    Nov 2008
    Posts
    439
    I have finally modified my mounts from the original post. They are much lighter and still as sturdy.

    Last edited by anthonyi; 12-24-2010 at 10:27 AM.
    "Wish not so much to live long, as to live well." - Benjamin Franklin

  14. #14
    mtbr member
    Reputation:
    Join Date
    Feb 2010
    Posts
    14
    What kind of epoxy are you using? I know you said 5 minute but what brand/kind? Have you tried using an epoxy putty? Thoughts? I am doing something similar but going to mount it on my stem. HAve you tried or thought about that. Thanks for your help.

  15. #15
    www.swampclub.org
    Reputation: anthonyi's Avatar
    Join Date
    Nov 2008
    Posts
    439
    Quote Originally Posted by dsamsonite
    What kind of epoxy are you using? I know you said 5 minute but what brand/kind? Have you tried using an epoxy putty? Thoughts? I am doing something similar but going to mount it on my stem. HAve you tried or thought about that. Thanks for your help.
    Sorry for the delay in responding.
    It is 5 minute 2-part liquid from Loctite. Better than putty because it runs and flows into tight spots.
    I have not tried a stem mount as it will probably show too much of my brake cables, but that may be an interesting view. Post some shots.
    Last edited by anthonyi; 01-15-2011 at 09:50 AM.
    "Wish not so much to live long, as to live well." - Benjamin Franklin

  16. #16
    www.swampclub.org
    Reputation: anthonyi's Avatar
    Join Date
    Nov 2008
    Posts
    439
    I have decided to get rid of my handlebar mount and modify the seat post mount to create one universal mount for both handlebar or seatpost. A Dremel has been used to remove all excess epoxy to lighten up the mount.
    Here are the new photos. It has been spray painted black to match my bike, but the unpainted photos show the design better.

    "Wish not so much to live long, as to live well." - Benjamin Franklin

  17. #17
    www.swampclub.org
    Reputation: anthonyi's Avatar
    Join Date
    Nov 2008
    Posts
    439
    Quote Originally Posted by anthonyi
    Nice!
    If I go full face, I will borrow that idea for sure.
    Oops. quoted the wrong post. Meant to quote...

    Quote Originally Posted by chronohunter
    "Wish not so much to live long, as to live well." - Benjamin Franklin

  18. #18
    mtbr member
    Reputation: CactusJackSlade's Avatar
    Join Date
    Apr 2006
    Posts
    1,455
    For a seatpost cam you can use the helmet mount on the rear seat rails.

    Just cross the straps in back, pull tight and "buckle" each strap on the opposite side (criss-cross). I then zip tie an X on each side.

    Don't forget to use the "UPd" setting so your image is right side up! A real drag in editing if your forget... depending on your software.

    ANTHONTI: Nice work on the mounts by the way.... mounting is kinda an art form!
    Last edited by CactusJackSlade; 01-16-2011 at 09:53 PM.
    Largest NorCal XC Race Series
    http://www.bicyclingevents.com
    Best in the West!

  19. #19
    mtbr member
    Reputation: Carraig042's Avatar
    Join Date
    Nov 2009
    Posts
    888
    I might as well contribute my mounts thus far.

    Here is my handlebar mount, It has worked out great so far.




    And an mount for a fork level and doubles as one for the rear shock.





    I also made a chesty mount, but do not have any pictures of it yet. If anyone wants to see it I can take a couple of it,

    -Brett
    Visit my Youtube channel for lots of DH and XC videos!
    2014 Devinci Troy Carbon
    2011 Spec Demo 8
    GoPro HD Hero

  20. #20
    www.swampclub.org
    Reputation: anthonyi's Avatar
    Join Date
    Nov 2008
    Posts
    439
    Quote Originally Posted by Carraig042
    I might as well contribute my mounts thus far.

    Here is my handlebar mount, It has worked out great so far.

    I also made a chesty mount, but do not have any pictures of it yet. If anyone wants to see it I can take a couple of it,

    -Brett
    Pretty cool.
    Yea. Post them.
    "Wish not so much to live long, as to live well." - Benjamin Franklin

  21. #21
    mtbr member
    Reputation: Fullsailbiker's Avatar
    Join Date
    Dec 2009
    Posts
    131

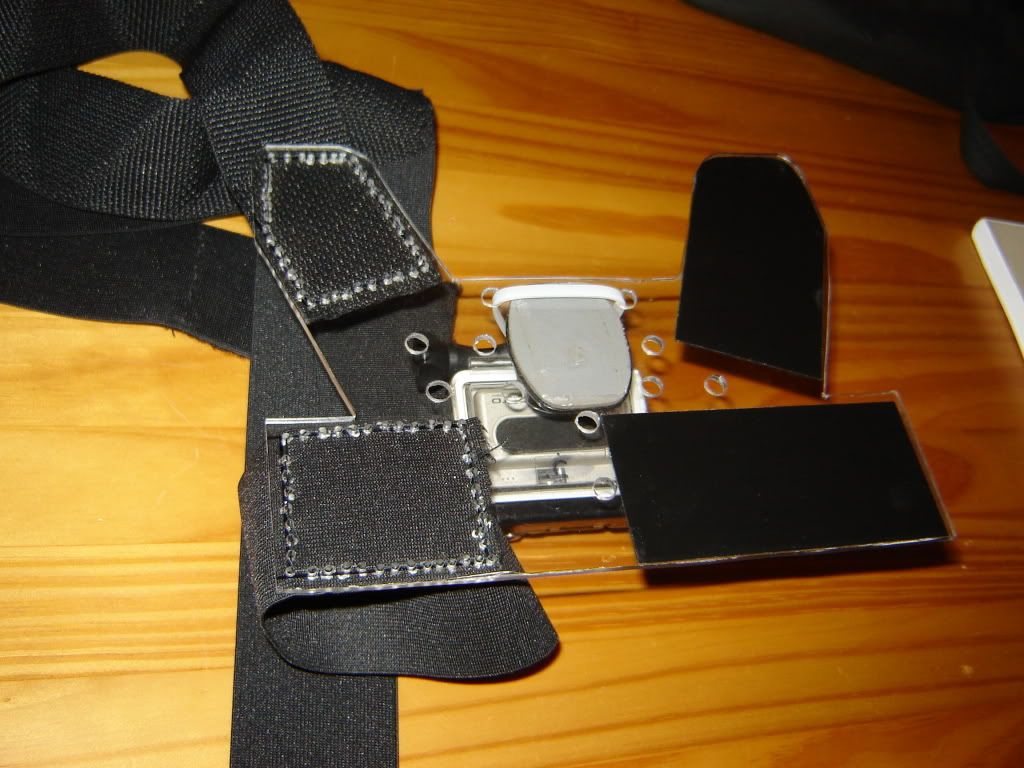

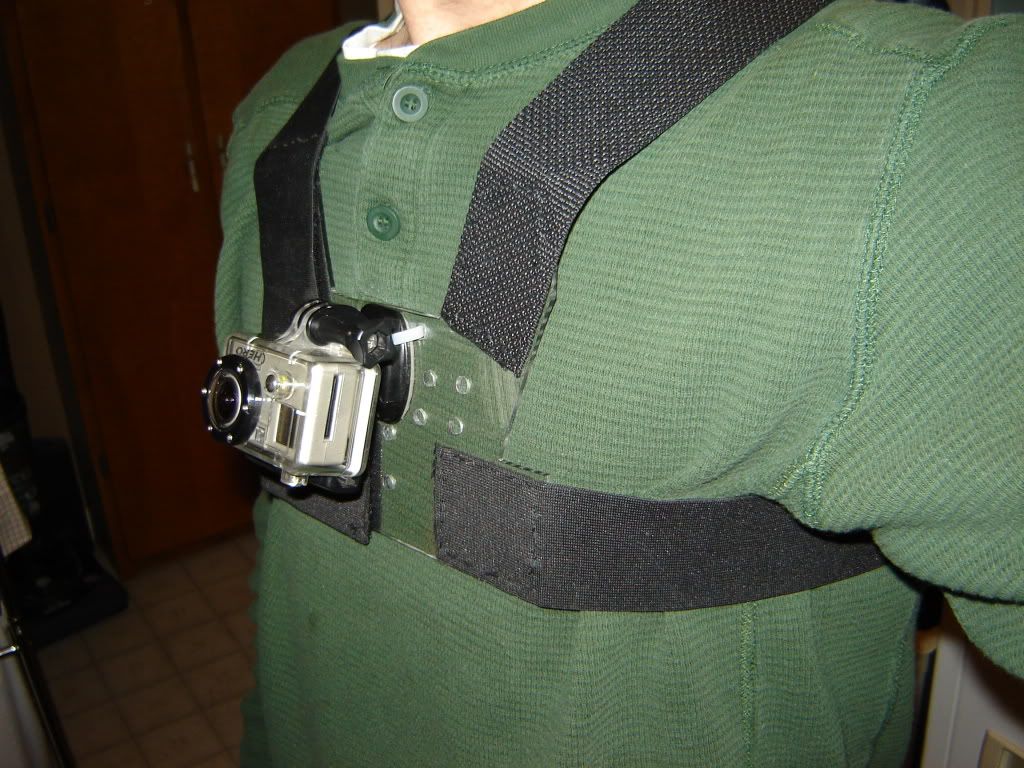

    Here is my contribution. I made this chest mount with some clear polycarbonate that I found somewhere in Home Depot, some elastic strapping from a craft store and some industrial velcro. I made a cardboard template first so that it would fit my chest and then hand sewed the straps on one side and at the attachment in the back. The thing that makes this better than the stock Go Pro chesty is that it is braced taller to stop vertical shaking. I also made it to fit me perfectly and sit very high, just out of reach of my chin. I drilled holes for ventilation and plan to attach some ribbing to elevate it from my chest for just a little more air flow. I also mount my camera up side down and attempt to always aim it so that the handlebars fill just the bottom 1/4 of the screen.


    The fall shots (with bright yellow leaves) were shot using this mount.
    http://www.youtube.com/watch?v=iSIuwl1WXpw

  22. #22
    www.swampclub.org
    Reputation: anthonyi's Avatar
    Join Date
    Nov 2008
    Posts
    439
    Here's my final product. I have drilled holes to lighten the mount.
    Since my new GoPro 960 came with a new "curved base" mount, I have decided to change the position of the mount. I can easily move the mount to the seat post, or simply switch camera positions for front, rear and side views from the handlebars. I'll try the new side-view tomorrow.
    My latest front / rear view video is here:




    "Wish not so much to live long, as to live well." - Benjamin Franklin

  23. #23
    The Mountain Bike Life
    Reputation: mudpuppy's Avatar
    Join Date
    Feb 2004
    Posts
    1,337
    Quote Originally Posted by Fullsailbiker
    Here is my contribution. I made this chest mount with some clear polycarbonate that I found somewhere in Home Depot, some elastic strapping from a craft store and some industrial velcro. I made a cardboard template first so that it would fit my chest and then hand sewed the straps on one side and at the attachment in the back. The thing that makes this better than the stock Go Pro chesty is that it is braced taller to stop vertical shaking. I also made it to fit me perfectly and sit very high, just out of reach of my chin. I drilled holes for ventilation and plan to attach some ribbing to elevate it from my chest for just a little more air flow. I also mount my camera up side down and attempt to always aim it so that the handlebars fill just the bottom 1/4 of the screen.


    The fall shots (with bright yellow leaves) were shot using this mount.
    http://www.youtube.com/watch?v=iSIuwl1WXpw
    I really like that....can you provide some more shots of it so I can see how you got it all together?

  24. #24
    www.swampclub.org
    Reputation: anthonyi's Avatar
    Join Date
    Nov 2008
    Posts
    439
    Quote Originally Posted by mudpuppy
    I really like that....can you provide some more shots of it so I can see how you got it all together?
    That is a good one.
    If you are interested in building a chest mount, here are other examples that may help you as well...
    http://climbsmart.com/public/gopro-harness/
    http://www.leelau.net/Misc/GoPro/feedthehabit/
    http://pirochu.pinkbike.com/album/Gear/
    "Wish not so much to live long, as to live well." - Benjamin Franklin

  25. #25
    mtbr member
    Reputation: Fullsailbiker's Avatar
    Join Date
    Dec 2009
    Posts
    131
    Quote Originally Posted by mudpuppy
    I really like that....can you provide some more shots of it so I can see how you got it all together?

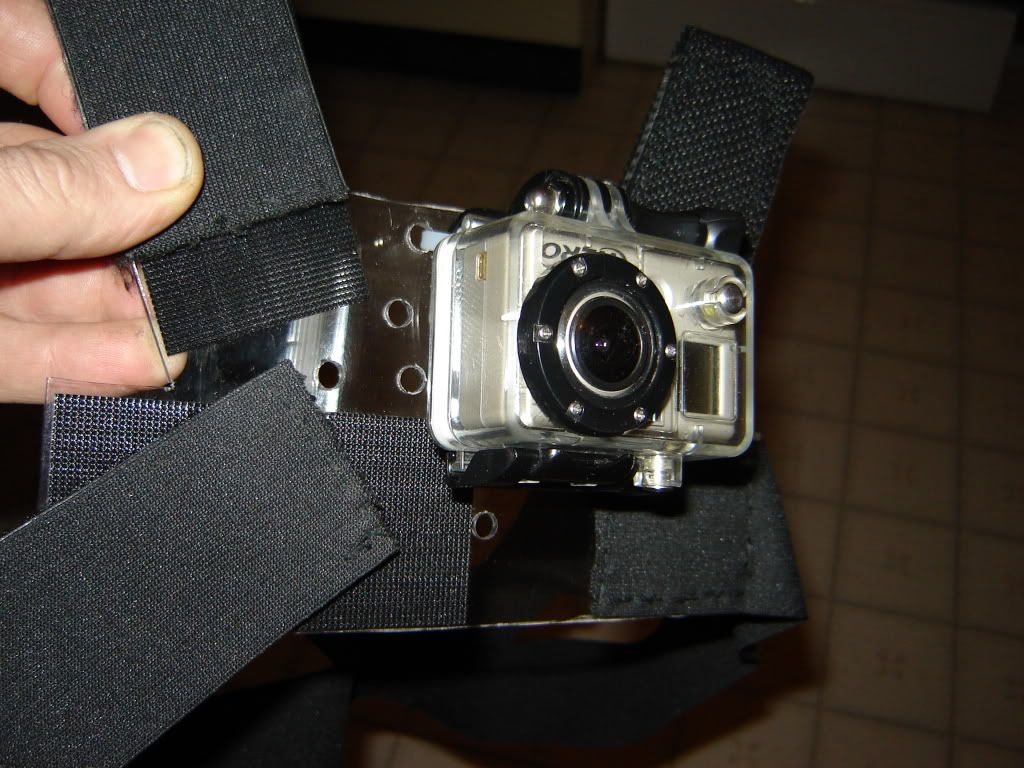

    Sure. My sewing is not exactly artful but it gets the job done. The zip tie is there because I broke the tabs off of my "J-hook" quick release. I never take it off to put it on my handlebar mount so it doesn't make much difference to me and it never rattles or shakes where it mounts to the quick release. Presently scheming a way to get a Go Pro HD, I think this mount will work well for the added heft over that of the SD model.




  26. #26
    mtbr member
    Reputation:
    Join Date
    Sep 2008
    Posts
    89
    I havent made any custom mounts for my go-pro yet. However, many of my friends have the contour and I had some request to make an adapter that would allow the coutour to be used with the go-pro mounts. So I made this using a 3d printer:






  27. #27
    www.swampclub.org
    Reputation: anthonyi's Avatar
    Join Date
    Nov 2008
    Posts
    439
    You might want to try a heavy duty book stapler for the straps. Much easier then sewing.
    "Wish not so much to live long, as to live well." - Benjamin Franklin

  28. #28
    www.swampclub.org
    Reputation: anthonyi's Avatar
    Join Date
    Nov 2008
    Posts
    439
    Here's a video using almost all of my new mount's angles
    "Wish not so much to live long, as to live well." - Benjamin Franklin

  29. #29
    mtbr member
    Reputation:
    Join Date
    Jan 2004
    Posts
    665
    Quote Originally Posted by anthonyi
    You might want to try a heavy duty book stapler for the straps. Much easier then sewing.
    Or get a Speedy Stitcher.

  30. #30
    VP/ Terrain Designer
    Reputation: NastyNick's Avatar
    Join Date
    Mar 2008
    Posts
    631
    After cruising through this thread; I figured I'd better upload some pics and vids of my homemade mounts.
    First mount is just a short boom i made from some aluminum shower channel, a chunk of old handle bar, and a recycled lock on grip.




    Next is a chest mount. I used a 3M GoPro mount on the front of my 661 Coresaver. I was concerned about 3M mount coming off; but has put up with alot of use with no issues so far.


    <object width='500' height='375'><param name='allowFullScreen' value='true' /><param name='allowScriptAccess' value='always' /><param name='movie' value='http://www.pinkbike.com/v/185314/l/' /><embed src='http://www.pinkbike.com/v/185314/l/' type='application/x-shockwave-flash' width='500' height='375' allowFullScreen='true' allowScriptAccess='always'></embed></object><p><a href="http://www.pinkbike.com/video/185314/">Chest Mount GoPro</a> on <a href="http://www.pinkbike.com">pinkbike.com</a></p>

    Last is what I call the unicorn or narwhal helmet mount.





    <object width='500' height='375'><param name='allowFullScreen' value='true' /><param name='allowScriptAccess' value='always' /><param name='movie' value='http://www.pinkbike.com/v/186908/l/' /><embed src='http://www.pinkbike.com/v/186908/l/' type='application/x-shockwave-flash' width='500' height='375' allowFullScreen='true' allowScriptAccess='always'></embed></object><p><a href="http://www.pinkbike.com/video/186908/">GoPro, Unicorn Helmet Mount</a> on <a href="http://www.pinkbike.com">pinkbike.com</a></p>
    Braun Enterprises LLC, Building Cool Stuff

  31. #31
    www.swampclub.org
    Reputation: anthonyi's Avatar
    Join Date
    Nov 2008
    Posts
    439
    Quote Originally Posted by NastyNick
    After cruising through this thread; I figured I'd better upload some pics and vids of my homemade mounts.
    Nice job!
    That's the kind of stuff I like to see - something I can learn from.
    Thanks.
    "Wish not so much to live long, as to live well." - Benjamin Franklin

  32. #32
    mtbr member
    Reputation:
    Join Date
    Oct 2010
    Posts
    160
    Sweet thread!

  33. #33
    www.swampclub.org
    Reputation: anthonyi's Avatar
    Join Date
    Nov 2008
    Posts
    439
    Quote Originally Posted by o0adam0o
    Sweet thread!
    "Wish not so much to live long, as to live well." - Benjamin Franklin

  34. #34
    mtbr member
    Reputation:
    Join Date
    Mar 2006
    Posts
    131
    just wondering...how do you post a photo? I have a contraption I made but am not sure how to put the picture on the forum.

    I know, it's probably something simple but I can't seem to figure it out.

  35. #35
    www.swampclub.org
    Reputation: anthonyi's Avatar
    Join Date
    Nov 2008
    Posts
    439
    Quote Originally Posted by davidrhorn
    just wondering...how do you post a photo? I have a contraption I made but am not sure how to put the picture on the forum.

    I know, it's probably something simple but I can't seem to figure it out.
    It has to be a link to photo that is already on the web. Upload the photo to Facebook, etc., and find the URL of the photo. Post that here.
    "Wish not so much to live long, as to live well." - Benjamin Franklin

  36. #36
    mtbr member
    Reputation:
    Join Date
    Mar 2006
    Posts
    131
    got it, thanks!

  37. #37
    mtbr member
    Reputation:
    Join Date
    Mar 2006
    Posts
    131
    http://www.flickr.com/photos/36295592@N05/5666058695/

    http://www.flickr.com/photos/36295592@N05/5666626300/

    After about 2 times switching and then readjusting the angle of the gopro on the helmet I decided to mount a gopro mount onto the top of a gorillapod. Makes it soooo much easier to quickly take a gorillapod shot and then right back to the helmet.

  38. #38
    mtbr member
    Reputation:
    Join Date
    Mar 2006
    Posts
    131

  39. #39
    mtbr member
    Reputation:
    Join Date
    Mar 2006
    Posts
    131
    man, I am having trouble with the photo linking stuff.

  40. #40
    mtbr member
    Reputation: Mr. Lynch's Avatar
    Join Date
    Jun 2010
    Posts
    3,130
    I didn't want to spend $40 on a chesty mount so I took the headband mount and turned it into a chesty mount. I opened the part that wraps around your head most the way, then I spilt the over the head strap down the middle. It ends up fitting just like a Chesty mount and has 4 points of support like it and is nice and steady. It does help that I'm only around 160lbs, because if I was much bigger it wouldn't work.

  41. #41
    www.swampclub.org
    Reputation: anthonyi's Avatar
    Join Date
    Nov 2008
    Posts
    439
    Quote Originally Posted by davidrhorn
    man, I am having trouble with the photo linking stuff.
    The link to your first photo is:
    http://farm6.static.flickr.com/5223/...32dd7b6dd1.jpg
    Take this, click the photo button and add the URLs. They can be found by right-clicking on a photo and go to properties. Copy and paste the URL.
    "Wish not so much to live long, as to live well." - Benjamin Franklin

  42. #42
    www.swampclub.org
    Reputation: anthonyi's Avatar
    Join Date
    Nov 2008
    Posts
    439
    Last year I had created my own GoPro "Chesty" chest harness for my GoPro Wide as well. My first attempt at this used only the straps and mounts that were included with the GoPro. Since my first attempt, I have upgraded to padded straps as shown, but this is not necessary.
    NOTE:
    I did not come up with this design, but I tried to improve upon what I have seen on this forum.
    Thanks to "LeeL" for posting his design on this forum for me to try to copy.
    The rest of the pictures of my design, and some descriptions of the design, can be found here:
    http://climbsmart.com/public/gopro-harness/
    "Wish not so much to live long, as to live well." - Benjamin Franklin

  43. #43
    mtbr member
    Reputation:
    Join Date
    Mar 2006
    Posts
    131
    anthony, thanks. I have a mac and there is no right or left. I may be the only person with a Mac who hates it! I can fly on a PC. I will try your advice tomorrow from work on my PC. thanks again.

  44. #44
    D2R
    D2R is offline
    mtbr member
    Reputation:
    Join Date
    Feb 2010
    Posts
    26
    Quote Originally Posted by davidrhorn
    anthony, thanks. I have a mac and there is no right or left. I may be the only person with a Mac who hates it! I can fly on a PC. I will try your advice tomorrow from work on my PC. thanks again.
    Not to Hijack the thread but if you hold down Ctrl & then click it is the same as right clicking. You can also configure your mouse and or trackpad to right click as well.
    Mac Right Click

  45. #45
    mtbr member
    Reputation:
    Join Date
    Mar 2006
    Posts
    131

  46. #46
    VP/ Terrain Designer
    Reputation: NastyNick's Avatar
    Join Date
    Mar 2008
    Posts
    631
    So here is prototype #1, of my R/C zipline dolly. It uses a brushless motor and LiPo battery system. as it sits, it can reach about 35mph.








    Braun Enterprises LLC, Building Cool Stuff

  47. #47
    mtbr member
    Reputation:
    Join Date
    Mar 2006
    Posts
    131
    I'm buying this for my Gopro once it hits the market. The ability to change directions and angles quickly and mount and dismount quickly is fantastic.


    Click for video

  48. #48
    mtbr member
    Reputation:
    Join Date
    Mar 2006
    Posts
    131
    you can skip ahead to about 2:00 to see the bike application.

  49. #49
    www.swampclub.org
    Reputation: anthonyi's Avatar
    Join Date
    Nov 2008
    Posts
    439
    [QUOTE=davidrhorn]I'm buying this for my Gopro once it hits the market. The ability to change directions and angles quickly and mount and dismount quickly is fantastic.

    Pretty cool, but I bet the price on this will be in the $500+ range.
    Last edited by anthonyi; 05-08-2011 at 12:26 PM.
    "Wish not so much to live long, as to live well." - Benjamin Franklin

  50. #50
    mtbr member
    Reputation:
    Join Date
    Aug 2008
    Posts
    247
    Quote Originally Posted by NastyNick
    So here is prototype #1, of my R/C zipline dolly. It uses a brushless motor and LiPo battery system. as it sits, it can reach about 35mph.
    I am jealous That gadget makes me wish I had a little more know-how with electronics.

    A little detail on the system please

Page 1 of 5 12345 LastLast

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
