    ? Teeter-Totter Plans/BluePrints ?

    Does anybody have a link, or know where I can find some plans for a bike Teeter-Totter? I am trying to build a teeter-totter for my trail. I could probably come up with a design myself, but would feel a lot better having something to guide me. Thanks for your help.

  2. #2
    E86
    E86 is offline
    mtbr member
    Reputation:
    Join Date
    Jun 2006
    Posts
    135
    Follow this link. It is quite easy actually. http://www.singletracks.com/php/blog...entry.php?id=7
    Best Regards,
    Eric C.
    Morewood Bikes USA, 661, SDG, Sunline, SPY Optics, TLD

  3. #3
    mtbr member
    Reputation:
    Join Date
    Jan 2005
    Posts
    583
    Ive made 3 different "See Saws" as we call em here in Australia. The one illustrated on singletracks was very complicated, you can make much simpler ones, ive got a couple of home ones that are always fun to play on.
    I'll post pics in a few days!

  4. #4
    mtbr member
    Reputation: Evil Patrick's Avatar
    Join Date
    Sep 2004
    Posts
    2,610
    I've built 2.

    This is Mr. T.



    "Ah pity da foo!"

    No, wait...

    This is Mr. T.

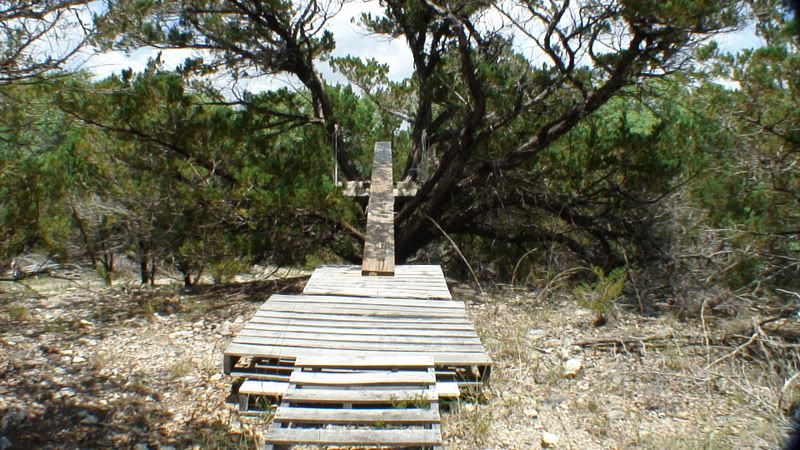

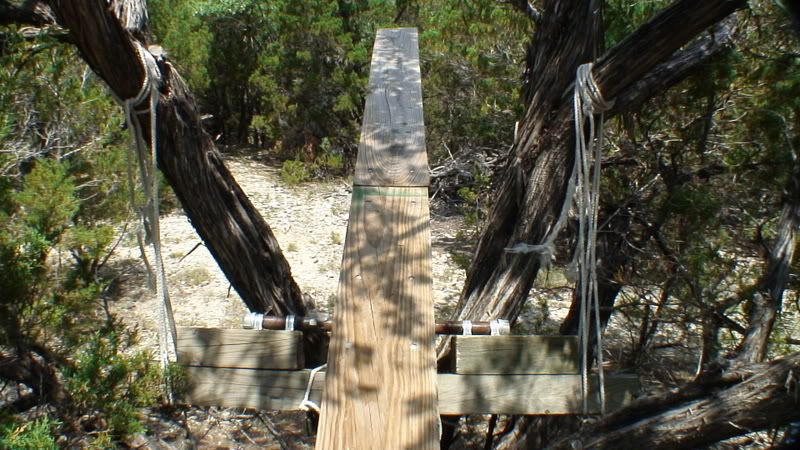

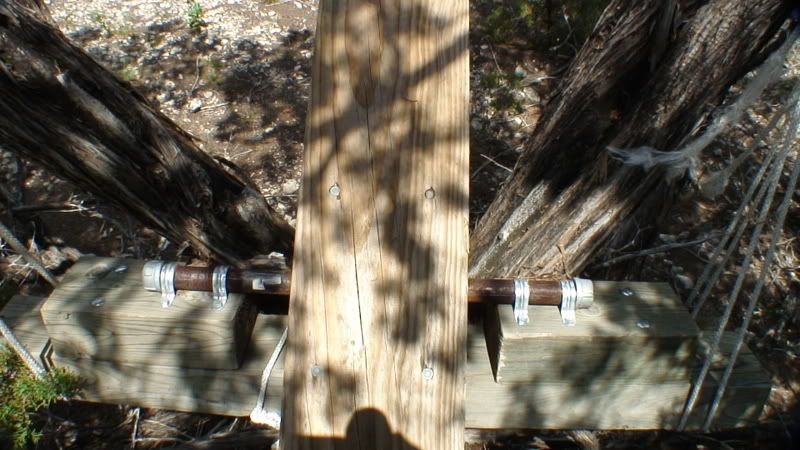

    Mr. T. uses a galvanized, 3/4" pipe, held by conduit "U" straps.

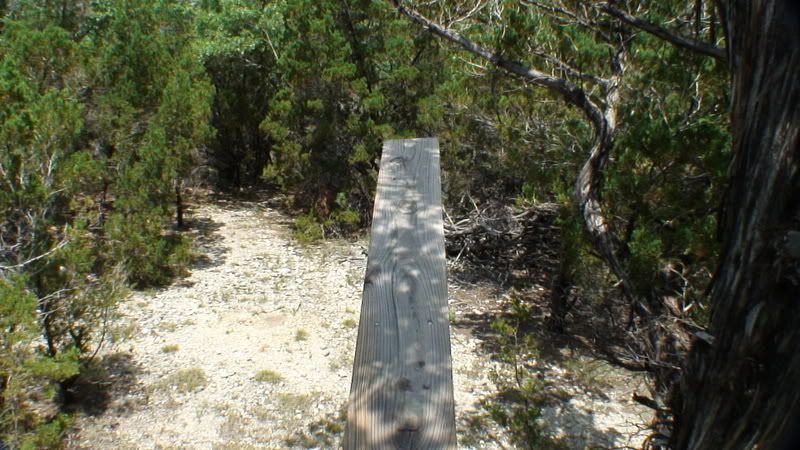

    The gangplank is treated 2 by 10, sectioned and sandwiched in doubled-up, 8 foot segments
    for a total of about 16 foot in length. The pivot support is three pieces of 4 by 6, treated beam -
    with one piece about 4 foot wide and two, smaller 12" lengths sandwiched on top of the 4
    footer, with a 16" gap that allows the gangplank interference-free movement as the teeter tots.

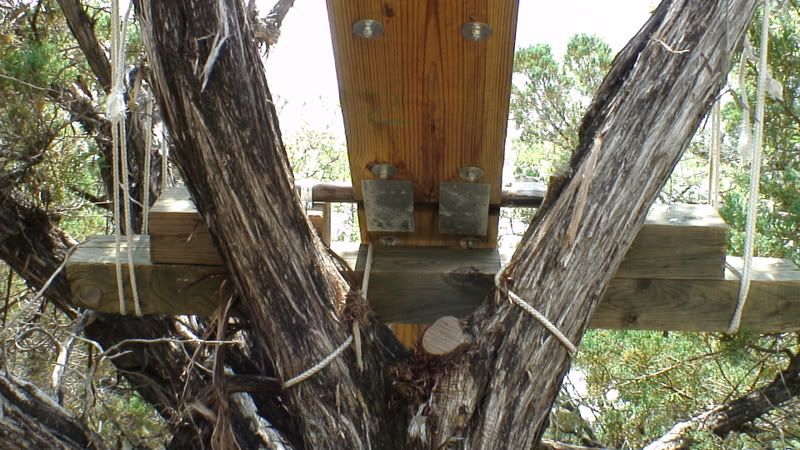

    Near the middle, but slightly offset to one end, there is an intentional gap in the sandwiched
    sections. This gap cradles the galvanized pivot pipe. The galvanized pivot pipe is captured by two
    galvanized framing plates.

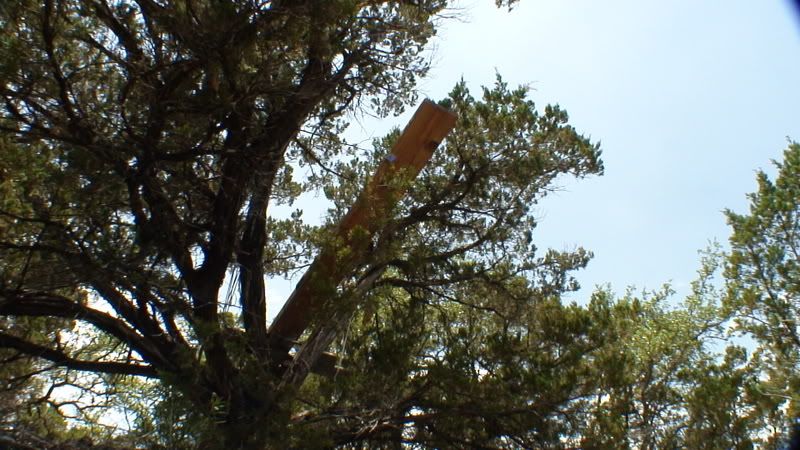

    The whole shebang is tied up into the fork of a juniper tree that is on the edge of a contour
    line in the yard.

    The high end is over 8 foot tall. Oh, yeah. There are two videos of this in my "Don't Click This!"
    sig (that leads you to my YouTube page) where the high end was only about 6 foot tall, but I
    have since shortened the rope and pulled the high end up to 8 feet.




    Evil Tracey wanted a smaller teeter totter.

    This is Urkle:



    "Did I do that?"

    No, wait...

    This is Urkle:

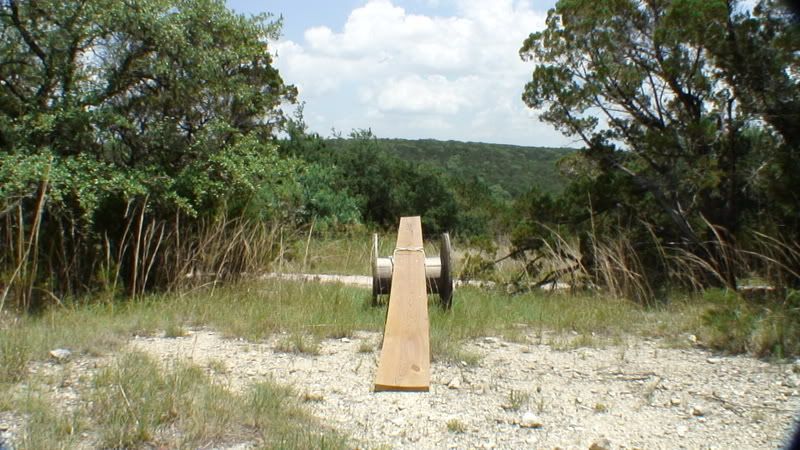

    Ahhh, simplicity. Once again, I've used treated lumber, this time 2 by 12s sandwiched

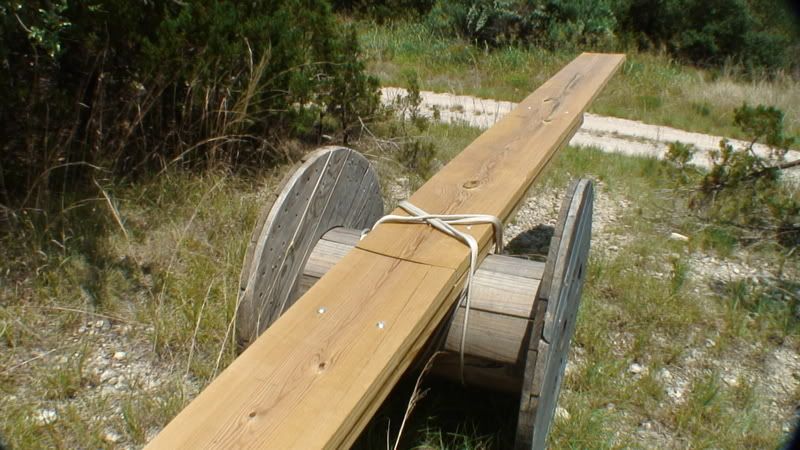

    together for strength. The pivot is created by simply tying the gangplank to a wire spool
    with -- you guessed it -- nylon rope.



    To keep the spool from rolling down the contour line, I simply jammed a piece of treated
    1 by 6 into a gap in the spool center and wedged it into the dirt. There are also a couple
    of rocks jamming the "wheels" of the spool.

    Last edited by Evil Patrick; 05-25-2008 at 04:48 PM.
    -- Evil Patrick

    My Music

    My Videos

    Ride everything! Remember, Elvis died pushing.

  5. #5
    mtbr member
    Reputation:
    Join Date
    Jan 2005
    Posts
    583
    Cool post Evil Patrick, ive used some similar techniques as you, like the pipe and U straps and the spool. My spool has a flat side on it that ive put two planks on, my whole spool rotates as you ride over it and it gives a weird sensation like you cant pedal at a certain point.
    Im gonna use the pipe and strap idea again in the future, just wack a bit of grease in there and Bobs your uncle.
    Will post some pics when i have the chance.
