    My old-school '99 Specialized FSR DH (MAX Backbone) Build...(long)

    Thought i'd start up a little build thread for the '99 FSR DH frame I recently acquired from a fellow MTBR member (Thanks RodH!). Maybe it's nostalgia, maybe it's my old-age showing through (i'm 36), but I have an affinity for some of the older bikes (not that I wouldn't LOVE to have a 2010 SX Trail II ).

    Anyway, this all starts back in '98 when I went in to my LBS back in Baltimore, MD. Went in looking to upgrade to a full-suspension bike (rode hardtails and even rigid forks since high school, later upgrading to the first Rock Shox fork - the RS-1) and came outta there with a '98 FSR Comp (with the China-built welded frameset). I REALLY wanted the red FSR Elite that sat next to it (with the USA-built Extruded aluminum MAX Backbone frameset) but I just couldn't afford it at the time. Anyway, I rode the piss outta that FSR Comp back then, did some slight upgrades and then over time stopped riding due to my increasing levels of responsibility. Fast forward to this past year...just a few months ago, when I finally dusted off the bike and decided to go riding again with some co-workers. Here's what the old FSR Comp looked like after dusting her off:


    The Comp was pretty much bone stock except for me stripping and polishing the frame, a Chris King Headset, some Syncros riser bars, Oury grips, and a set of Race Face Turbine cranks...all of which were done before I stopped riding back in '98-'99. After that first ride though, while I realized how much I missed MTBing...I also realized that my equipment just wasn't really up to snuff anymore. The old Judy XLC fork was shot...leaking oil and bottoming out on even smallish bumps, etc, as was the old Rock Shox Deluxe rear shock. I thought about buying a new bike, but didn't want to go out and blow $3K on a new bike. My pregnant wife would slaughter me if I came back with a new bike in this economy. LOL. So, I set out to upgrade my old FSR...on a budget. Wanted some beefier, longer travel forks and a new rear shock for sure, and it all kinda snowballed from there. Ended up with a freshly rebuilt '04 Marzocchi Junior T (Super T internals) w/ direct mount stem, a Fox Vanilla R shock, Race Face Evolve DH handlebars (needed to upgrade to an oversize bar because of the forks) and a set of Race Face Diabolus cranks. I got great deals on most of the stuff since it was bought off of eBay with the exception of the cranks. For the cranks, I did a direct swap with a coworker for my older Race Face Turbines. I wanted beefier cranks and he wanted a lighter crankset so it worked out perfectly. I rode it like that for a bit before tacoing the front wheel in a crash, after which I ended up buying a Mavic Deetrax wheelset on clearance and upgrading the rear suspension with a Risse Racing Hex Link. Here's what she looked like after the upgrades and new wheels (with wire-bead Stick-E 2.35 Kenda Nevegals mounted):



    At that point, I thought I was done with upgrades on the bike, but after the Risse Hex Link I wanted more out of the rear suspension. I wanted a longer rear shock to better match the 170mm travel of my front fork. I was running a NOS 6.5" i2i Vanilla R that I got a smoking deal on, but I figured I should be able to run a 7.5" i2i shock with the Risse Hex Link. So, I started scouring eBay for shocks again and came up on a used 7.5x2.0 '05 Fox DHX 5.0 that I got for a great price. Wasn't sure if the large reservoir on the 5.0 would fit on my frame (I figured it might if I reverse-mounted it), but I bought it anyway...the price was just too good to pass up. Of course, it didn't fit the space in the FSR Comp frame AT ALL because of the reservoir. Doh! But then I remembered seeing pics of the MAX Backbone frames with reservoir shocks like the Fox Vanilla RC mounted and figured the DHX 5.0 would probably fit on that frame as well. Besides, the MAX Backbone FSR was the bike I really wanted back in the day anyway, and the extruded aluminum MAX frame is probably better suited to the AM/light DH/FR riding i'm doing these days so it was a perfect idea. And so began the search for a MAX Backbone frame.

    Luckily, that search didn't take too long. A couple of posts and PM's here on MTBR and I had a line on a couple of MAX frames for sale. I settled on a '99 FSR DH frame because of the added gusseting Specialized added to the head tube for the '99 DH. I figured the added gusseting would definitely be needed with the taller fork I was going to run this frame with. Here's a pic of the frame as it was when I got it from a fellow MTBR member:



    After driving about 85+ miles roundtrip to go pick the frame up, I got to work stripping the paint right away. Felt kinda bad because the frame had been recently re-painted (hadn't even been built or ridden since the repaint), but oh well...wasn't really a fan of the paint scheme. Anyway, looks as thought the red/black paint scheme was spray canned over the factory powder coat. Using my usual brands of paint stripper, the red/black spray paint came off easy. The powder coat...not so much. Had to step it up to something more caustic to get through the resilient powder coat. Ended up with some Tal Strip II Aircraft stripper. Brushed it on THICK, let it sit for 30-40 minutes, waited for the powder coat to bubble, then scraped off with a plastic scraper and rinsed with water. Repeated this process till it was all gone (kind of a messy PITA!) then gave the complete frame a good rubdown with some Scotchbrite pads. Here's what I ended up with:



    Just for fitment purposes, I mounted up the rear triangle and test fitted the Fox DHX to the frame (with the stock link since the Hex Link is still on my FSR Comp for now):


    The DHX fits perfectly and should be even better with the Risse Hex Link. Next, I need to drill out all of the cable stops (I want to run full cable housings for the brakes and shifters), and figure out what I want to do about color for the frame. I was considering polishing this frame like I did with the Comp, but now i'm leaning more towards painting it a matte gunmetal color with black/white outline "FSR" and "Specialized" decals. After that's settled, it'll be time to swap over all the components from the Comp to the new MAX DH frame and upgrade to a rear disc brake as well (the new frame came with an A2Z rear disc adapter). Anyway, stay tuned. I'll update this thread as the work progresses...

    Alvin Caragay
    Hermosa Beach, CA
    Last edited by atchipmunk; 11-09-2009 at 04:58 PM.

  2. #2
    mtbr member
    Reputation:
    Join Date
    Oct 2007
    Posts
    1,541
    Alvin, a couple of ?? Is that a second upper mounting point for the shock?
    What did you use for the mounting hardware for the Dhx? I hope that makes sense.
    Oldest daughter doesn't ride.

  3. #3
    mtbr member
    Reputation:
    Join Date
    Aug 2009
    Posts
    338
    Skip...Yes, there are 2 sets of mounting holes on this frame. Not sure if that was just a function of the '99 DH frames, or if a previous owner added a set of holes, but when I got the frame from RodH it had 2 sets of holes. For the DHX, I have to use the upper holes because of the size of the spring, etc. The spring perch will foul on the frame otherwise.
    As for mounting hardware for the DHX, I used the same hardware that came with the frame and the Manitou shock that was on it. The bushings from the Manitou shock fit the DHX and it simply bolted in place with the smae hardware. When I actually swap parts from my FSR Comp, i'll have to use the rear shock bushings from the Vanilla R because they are sized right to fit with the Risse Hex Link (I cut the bushings that came with the shock originally to fit). Hope that answers your questions. If you have any more, let me know...

    Alvin

  4. #4
    mtbr member
    Reputation:
    Join Date
    Oct 2007
    Posts
    1,541
    My frame is exactly like your's accept I don't have the extra mounting holes. Like you said maybe the previous owner drilled them. Seriously considering a Fox shock, a Van or Dhx, maybe that could be my christmas gift from my darling wife. Thanx Alvin, I'm sure I'll have a question or 2 come to mind as I go along here.
    Oldest daughter doesn't ride.

  5. #5
    mtbr member
    Reputation:
    Join Date
    Aug 2009
    Posts
    338
    Quote Originally Posted by skip canfield
    My frame is exactly like your's accept I don't have the extra mounting holes. Like you said maybe the previous owner drilled them. Seriously considering a Fox shock, a Van or Dhx, maybe that could be my christmas gift from my darling wife. Thanx Alvin, I'm sure I'll have a question or 2 come to mind as I go along here.
    Skip...what year is your frame again? I just wasn't sure if maybe the '99's had these extra holes in them since I haven't been able to find too many people with '99's and I know they made some changes for the '99 DH frames like the added upper gusseting at the head tube. On your frame, which holes are the only ones you have? The upper or lower set? If they were drilled by a previous owner they must have been done with a drill press because I tested both sets of holes and they are both straight and in perfect alignment so they definitely weren't done by hand. Hopefully, I can get this bike together soon and can share my thoughts on the DHX on this frame with the Risse Link. That way, you can make a more educated decision if you want to go the DHX route...

    BTW...what spring rate are you running on the rear of your bike (this is also an open question to any other MAX Backbone frame owners out there)? Wondering what setup others are using so I know general ballpark if one of the springs my DHX came with will work. It came with a 550#, a 600# and a 650# spring and i'm about 195lbs...

  6. #6
    mtbr member
    Reputation:
    Join Date
    Oct 2007
    Posts
    1,541
    I believe it's a 99, looks just like yours w/o the extra holes. I have the lower set of holes and gussets top & bottom. You know though, I can't be 100% certain it's a 99 because I was givien this frame as a gift, Fathers Day "07". My family purchased it from Kevin Risse.
    I talked to him about it later and he said "99". As far as spring rate, I am running one of Risse's air shocks, the Astro-5.
    I think if it was me,I would start with the 600# spring and go from there. Hope this helps.
    Oldest daughter doesn't ride.

  7. #7
    mtbr member
    Reputation:
    Join Date
    Aug 2009
    Posts
    338
    Quote Originally Posted by skip canfield
    I believe it's a 99, looks just like yours w/o the extra holes. I have the lower set of holes and gussets top & bottom. You know though, I can't be 100% certain it's a 99 because I was givien this frame as a gift, Fathers Day "07". My family purchased it from Kevin Risse.
    I talked to him about it later and he said "99". As far as spring rate, I am running one of Risse's air shocks, the Astro-5.
    I think if it was me,I would start with the 600# spring and go from there. Hope this helps.
    Ah, yes...forgot you were running A Risse air shock. That was exactly my thinking...I have the 600# on there for now. Figure i'll test it with that spring once I get it all together and can change it from there as needed.
    My stock FSR Comp came with a 700# spring on it and it felt somewhat soft, but I believe the leverage ratio on the welded, non-MAX frames is a bit higher. Just thought i'd ask for some input from people running this frame.

    As for your frame, from what I gather only the '99's had the additional gusseting so yours must be a '99 as well. Yours is Cosmic in color, right? Anyway, Thanks again.

    Alvin

  8. #8
    mtbr member
    Reputation:
    Join Date
    Oct 2007
    Posts
    1,541
    I was hoping it was a "99", as far as color, I think Risse had it powdercoated and they were calling it "city lights", whole lotta metal flake in it and it also changes color in sun light. 3 distinctive colors, rootbeer, cool green, deep purple. It looks black when it's in the house. Anytime and Thank you.
    Oldest daughter doesn't ride.

  9. #9
    mtbr member
    Reputation: SurfSailRide's Avatar
    Join Date
    Dec 2008
    Posts
    919
    Quote Originally Posted by skip canfield
    I believe it's a 99, looks just like yours w/o the extra holes. I have the lower set of holes and gussets top & bottom. You know though, I can't be 100% certain it's a 99 because I was givien this frame as a gift, Fathers Day "07". My family purchased it from Kevin Risse.
    I talked to him about it later and he said "99". As far as spring rate, I am running one of Risse's air shocks, the Astro-5.
    I think if it was me,I would start with the 600# spring and go from there. Hope this helps.
    Bikepedia.com doesn't even list the "'99 Specialized FSR DH," but the '99 Stumperjumper appears to be the same frame with the extra hole:

    http://www.bikepedia.com/QuickBike/B...0524&Type=bike

    The straight-up FSR does not appear to have them:

    http://www.bikepedia.com/QuickBike/B...4879&Type=bike

    Regardless, I think your project is quite cool!

  10. #10
    mtbr member
    Reputation:
    Join Date
    Oct 2007
    Posts
    1,541
    Quote Originally Posted by SurfSailRide
    Bikepedia.com doesn't even list the "'99 Specialized FSR DH," but the '99 Stumperjumper appears to be the same frame with the extra hole:

    http://www.bikepedia.com/QuickBike/B...0524&Type=bike

    The straight-up FSR does not appear to have them:

    http://www.bikepedia.com/QuickBike/B...4879&Type=bike

    Regardless, I think your project is quite cool!
    Neither of those frames are of the Max Backbone flavor.
    Oldest daughter doesn't ride.

  11. #11
    mtbr member
    Reputation:
    Join Date
    Aug 2009
    Posts
    338
    Quote Originally Posted by SurfSailRide
    Bikepedia.com doesn't even list the "'99 Specialized FSR DH," but the '99 Stumperjumper appears to be the same frame with the extra hole:

    http://www.bikepedia.com/QuickBike/B...0524&Type=bike

    The straight-up FSR does not appear to have them:

    http://www.bikepedia.com/QuickBike/B...4879&Type=bike

    Regardless, I think your project is quite cool!
    Thanks SurfSailRide...but as Skip already pointed out, neither of those bikes utilize the MAX backbone frame. The second link you posted is actually my current bike...the Ground Control FSR Comp pictured earlier in this thread. The main difference between that frame an d the MAX frame is that the MAX frame was made in the USA featuring extruded aluminum for the frame where the other frame is China made using regular welded aluminum tubing. The Extruded MAX frame is supposed to be stronger and beefier than the China made Comp frame, hence the reason for this whole little "build".

    I looked on bikepedia as well before and didn't find the FSR DH listed either. In fact, I've found very little even when scouring the internet about the FSR DH aside from a couple of small, grainy pics, etc. Not too much seems to have been documented about these frames...or the info just isn't available anymore.

    So anyway...for updates...

    I decided to just spray paint the frame for now and settled on going with a gunmetal color. I'd really like to get it powdercoated for a more durable finish, but I don't want to spend the $$ right now for it and am kinda anxious to get the bike together so i can ride it.

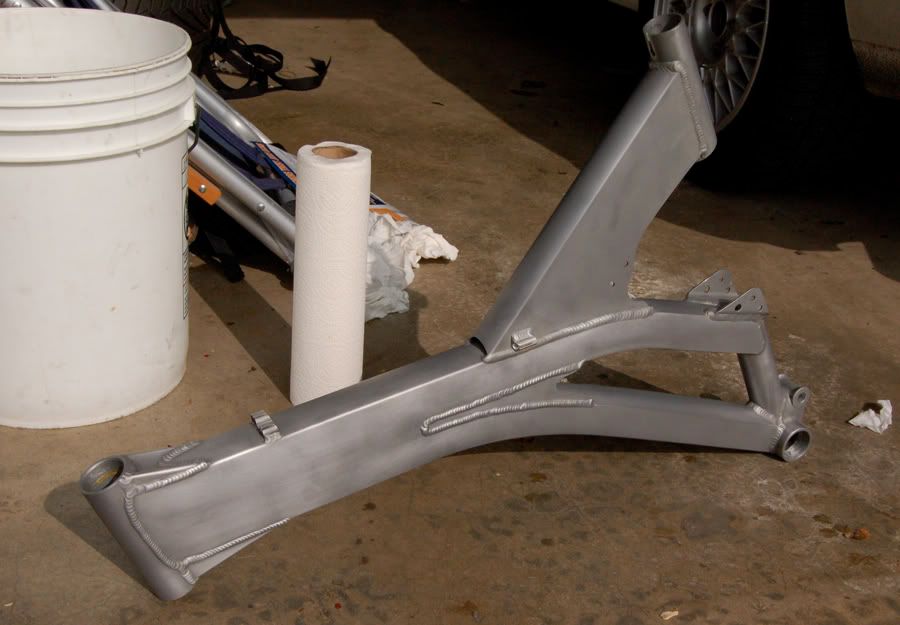

    Before getting to paint, etc though, I drilled out all of the cable guides since I am going to run full cable housings on all of the cables. After that it was time for paint.

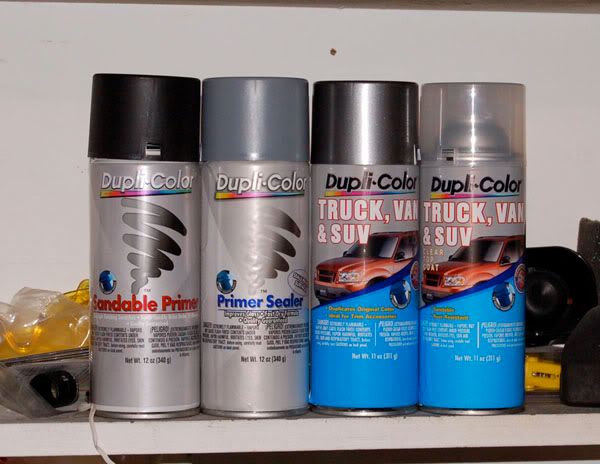

    Here's the cans of primer and paints I used:

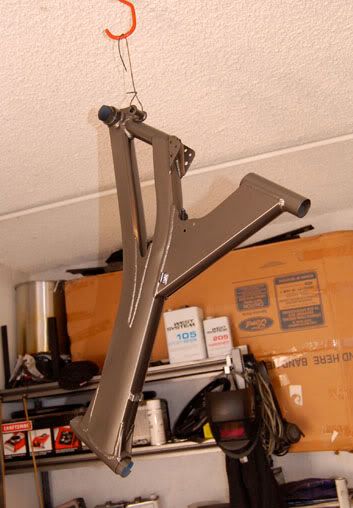

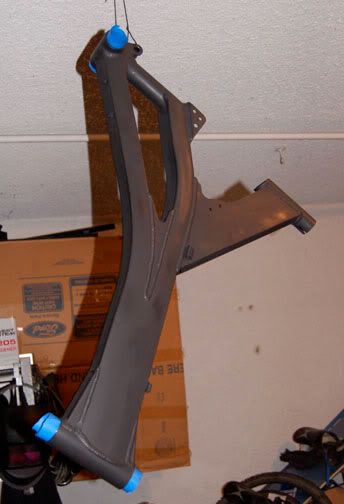

    I cleaned up the frame first, blew off any dust, etc and sprayed a few coats of sandable primer:

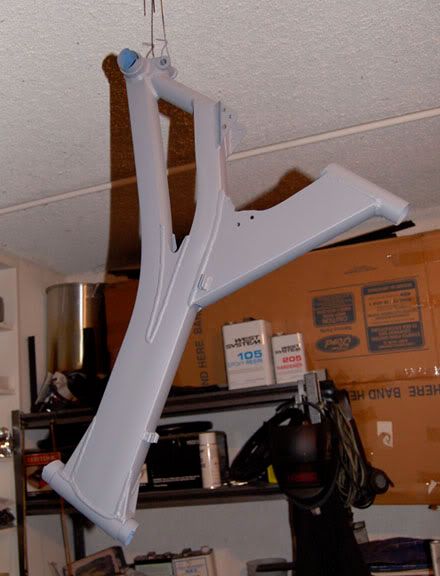

    After the primer coats were done and dried, I wet sanded any rough spots or imperfections then laid down some primer sealer:


    After the primer sealer was dried, I again wet sanded any imperfections and laid down the color coat. Here's the frame after I sprayed the 3rd coat of color:

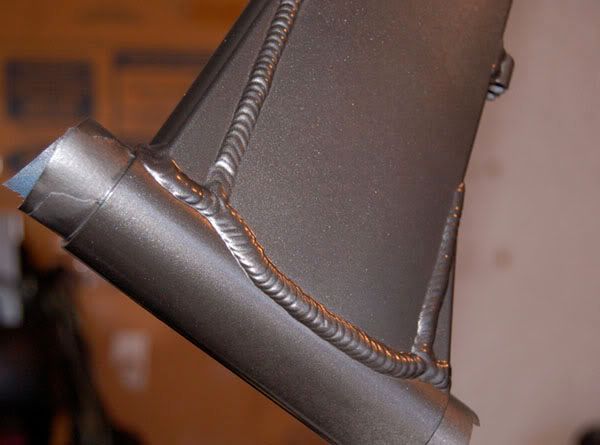

    And a closeup of the color itself:


    Next up is some clear coat to add a bit of protection for the paint, but I want a satin or matte finish. Still trying to find a spray can matte or satin clear, but if I can't find one i'm thinking about spraying a regular gloss clear then sanding that with 2000 grit wet/dry sandpaper to achieve the matte look. Anyway, that's all for now. Will update more as work progresses...

  12. #12
    mtbr member
    Reputation:
    Join Date
    Oct 2007
    Posts
    1,541
    Lookin good Alvin. You puttin stickers/decals on it? I'm curious to see it finished.
    Oldest daughter doesn't ride.

  13. #13
    mtbr member
    Reputation:
    Join Date
    Aug 2009
    Posts
    338
    Thanks Skip. Yeah, definitely want to put decals on it. Thinking about putting "Specialized" Stickers on the side of the main tube in black w/ white or silver outline and "FSR" stickers on the sides of the seat tube section in the same color scheme (Black w/ white or silver outline). Just want to kinda replicate the stock stickers but in a different color scheme. Just need to find someone that has a vinyl cutter that can make me some vinyl cut stickers in the colors I need. Also want to test and see if I can clear coat over the stickers as well without them pulling up, etc.
    Anyone know and good decal/sign people or places that might already have the Specialized and FSR logos on file? I know I can go to any of the local sign and graphics shops and have them make them, and i'm willing to do that. The problem is the logos themselves. The Specialized logo is no big deal...can get them all over the internet, but I'm having a hard time finding a clean shot of the actual "FSR" logo...

  14. #14
    mtbr member
    Reputation:
    Join Date
    Oct 2007
    Posts
    1,541
    Hey Alvin, you could really go custom and find someone GOOD with an airbrush and have "Specialized" and "FSR" painted on in the colors you wanted. Then you could spray some clear over that.
    Oldest daughter doesn't ride.

  15. #15
    mtbr member
    Reputation:
    Join Date
    Aug 2009
    Posts
    338
    Yeah, I considered actually painting the logos on as well, but I figured i'd have to have some stencils cut of the logos and apply the colors using the stencils. I determined that it was a little more work than I wanted to spend on the logos and I think I can achieve a similar result with clearing over vinyl. I've "heard" you can do it...just never tried it myself. Never thought about having it airbrushed though. Hmm...
    Too bad I don't still live back East...have an old friend back there that is really good with an airbrush and has a vinyl cutter, etc for making stencils. He actually custom airbushes helmets for racers (car and motorcycle mostly) and i'm sure he'd cut me a really good deal...

    Anyway, I just found some satin and flat clear coat. Gonna do some test panels with the two to see how different they are and decide which one i'm gonna go with for the frame...

  16. #16
    mtbr member
    Reputation:
    Join Date
    Mar 2008
    Posts
    193
    Great, detailed write up, and nice work on the frame.

    So, at this point, are you money ahead or money behind? How about ride time?

  17. #17
    mtbr member
    Reputation:
    Join Date
    Aug 2009
    Posts
    338
    Quote Originally Posted by Val Garou
    Great, detailed write up, and nice work on the frame.

    So, at this point, are you money ahead or money behind? How about ride time?
    Thanks Val. Money ahead or money behind? Not sure what you mean. Please explain...

    Alvin

  18. #18
    mtbr member
    Reputation:
    Join Date
    Oct 2007
    Posts
    1,541
    What's the word? Build coming along ok? How bout your stencile/decal quest? Kinda curious to see it all done. CHEERS!
    Oldest daughter doesn't ride.

  19. #19
    mtbr member
    Reputation:
    Join Date
    Aug 2009
    Posts
    338
    Quote Originally Posted by skip canfield
    What's the word? Build coming along ok? How bout your stencile/decal quest? Kinda curious to see it all done. CHEERS!
    Well, I found someone to make the decals. I'm just trying to replicate the FSR logo in Adobe Illustrator so I can get them made. Also, the paints I'm using for the frame are acrylic which unfortunately takes a LONG time to dry completely. It dries to the touch pretty quickly but takes a long time to fully harden. Trust me, no one wants to see it finished more than I do. LOL. I'll definitely update this thread as things progress...

  20. #20
    mtbr member
    Reputation:
    Join Date
    Jul 2009
    Posts
    370
    Alvin, Looks good. Glad you sent me the link on my text, I didn't even know you were doing this thread.

    II must say, that FOX shock looks BAD A!!!!! So let me get this straight, you have the Fox DHx, Fox vanilla, blown RS Deluxe and the Manitou? Geez, that is crazy. I wonder how the Manitou performs compared to the Dhx or Vanilla (as you know, I never got to rid it).

    My bike now is set up with the Vanilla Rx 5.625 travel mode (with the BETD link) middle setting and I use a 950# spring and I weigh 185-190. Hope that helps.

    I know this may sound stupid, but I think this FSR frame and the old Intense frames are the most attractive FS frames ever made. And I really don't think the newer designs are any better performing. I am totally (re)digging my FSR and new frames don't tempt me one bit. The technology that was put into that MAX frame is so much better than a typical pipe welded frame, if I went with one of the new frames I honestly think I would be going backwards when considering construction techniques and technology.

  21. #21
    mtbr member
    Reputation:
    Join Date
    Oct 2007
    Posts
    1,541
    I think the FSR Max frames are the shizzle. I'm not changing anytime soon.
    Oldest daughter doesn't ride.

  22. #22
    mtbr member
    Reputation:
    Join Date
    Jul 2009
    Posts
    370
    Skip, if you look at the serial number under the BB, it will give you a series of numbers, the first 2 numbers are the model year.

    Quote Originally Posted by skip canfield
    I believe it's a 99, looks just like yours w/o the extra holes. I have the lower set of holes and gussets top & bottom. You know though, I can't be 100% certain it's a 99 because I was givien this frame as a gift, Fathers Day "07". My family purchased it from Kevin Risse.
    I talked to him about it later and he said "99". As far as spring rate, I am running one of Risse's air shocks, the Astro-5.
    I think if it was me,I would start with the 600# spring and go from there. Hope this helps.

  23. #23
    mtbr member
    Reputation:
    Join Date
    Oct 2007
    Posts
    1,541
    Quote Originally Posted by rodH
    Skip, if you look at the serial number under the BB, it will give you a series of numbers, the first 2 numbers are the model year.
    Hey rod, because of the powdercoating I can't see the numbers.But my frame looks just like that one Alvin got from you..
    Oldest daughter doesn't ride.

  24. #24
    mtbr member
    Reputation:
    Join Date
    Aug 2009
    Posts
    338
    Heh. Yup...got the DHX, the Manitou, The Vanilla R, and the old blown RS Deluxe. The Vanilla R is currently on the FSR Comp and will probably stay there. Perhaps sometime down the road, i'll scrounge enough components together to put that frame to use as a spare or a second, more XC oriented bike. I dunno...we'll see...
    I do definitely plan on trying out the Max frame with both the Manitou and the DHX shocks though...just for comparison sake. Curious how different they'll feel.

    As for updates, I finished up the vector graphics for the "FSR" and "DH" logos today with some work in Adobe Illustrator and found suitable vector images of the "Specialized" and "S" logos. I've been trading emails with a couple of possible sources to have the decals I need made so hopefully soon i'll be able to get them onto the frame and can lay down the clear. I'm really itching to get this frame finished so I can get the bike together and ride it...

    And yes...I definitely agree with both of you. These frames were ahead of their time. I love the look and build quality of these frames and look forward to riding this thing for some time...
    Would I take a new SX Trail or Demo 8? Of course I would! But it wouldn't replace this bike, nor would I ever get rid of this thing. I Love it!

  25. #25
    mtbr member
    Reputation:
    Join Date
    Aug 2009
    Posts
    338
    The guy i'm working with for the custom decals (a fellow member here on MTBR ) sent me the proofs for the final artwork for the decals today. Here's how they should look:

    Unfortunately, it's gonna take 7-10 days before the decals are done so it'll be a little bit before the frame is done. Dammit. I just wanna get this thing done already!

    Alvin

  26. #26
    mtbr member
    Reputation:
    Join Date
    Jul 2009
    Posts
    370
    Quote Originally Posted by atchipmunk
    The guy i'm working with for the custom decals (a fellow member here on MTBR ) sent me the proofs for the final artwork for the decals today. Here's how they should look:

    Unfortunately, it's gonna take 7-10 days before the decals are done so it'll be a little bit before the frame is done. Dammit. I just wanna get this thing done already!

    Alvin
    Awesome. I would actually build up the bike then put decals so you don't build it up and risk scratching it.

    The proofs look pretty good the only flaw I see is that the "R" on the FSR the front line/leg is a little short. Just slightly. No one would probably know though.

  27. #27
    mtbr member
    Reputation:
    Join Date
    Aug 2009
    Posts
    338
    Hmm...didn't even notice that. I did the actual text for the FSR in Illustrator by tracing a picture of the FSR logo with the pen tool. Not sure how it ended up off a bit. Oh well. Think it might be a bit too late now...
    As for building it before installing the decals, can't really do that since i'm going to clear over the decals. Gonna spray a couple of coats of regular clear once the decals go down, will wet-sand it smooth, then spray a layer of flat clear for the flat look to the frame.

  28. #28
    mtbr member
    Reputation:
    Join Date
    Jul 2009
    Posts
    370
    FYI-not that it matters much, but that blue linkage is powdercoated. But I think you plan on using a different link right?

  29. #29
    mtbr member
    Reputation:
    Join Date
    Jul 2009
    Posts
    370
    double post

  30. #30
    mtbr member
    Reputation:
    Join Date
    Jul 2009
    Posts
    370
    triple post

  31. #31
    mtbr member
    Reputation:
    Join Date
    May 2008
    Posts
    59
    If its the downhill version of the 1999 max backbone, its a FSR Elite Big Hit http://www.bikepedia.com/QuickBike/B...9113&Type=bike
    otherwise its a 1999 fsr pro, which is what i have and love it still http://www.bikepedia.com/QuickBike/B...8863&Type=bike

  32. #32
    mtbr member
    Reputation:
    Join Date
    Jul 2009
    Posts
    370
    Quote Originally Posted by felix5150
    If its the downhill version of the 1999 max backbone, its a FSR Elite Big Hit http://www.bikepedia.com/QuickBike/B...9113&Type=bike
    otherwise its a 1999 fsr pro, which is what i have and love it still http://www.bikepedia.com/QuickBike/B...8863&Type=bike
    This frame is a bit of a mystery, as is my frame that is a DH version from 1997. I worked at a shop at the time, mine was a C3 (the carbon fiber FSR recall) replacement and after pulling some serious strings, I got them to replace it with a DH version of the FSR (which, at the time ONLY meant that it had a longer rear shock on it that was supposed to produce 5.25" or so travel-claimed, but ended up being less than that). I also remember the frame and fork kit (boxxer?) available as just a frame and fork kit in the catalogs at the time. My understanding that as Specialized started to go more and more with OE Manitou stuff, they came out with the frame Alvin has in 1999 with the manitou coil over rear shock (instead of the fox, like mine did). There supposedly were available or were produced in very small numbers. Another interesting point about Alvins particular frame, the rear swingarm is actually a model year 1998 and the mainframe is a 1999. I didn't realize this until I tried to order a needle bearing kit for it and those 2 use different part (specialized changed the pivot in 1999 for one year only). Another oddity is the hole placement on the mainframe, they are totally different than the other MAX frames, not just one that was added, but both are in different locations. I compared it to my frame very closely. This might be one of those deals were they only did this configuration on the few DH frames they made in 1999?

    Then they came out with the FSR TEAM Dh, which was a different version of a MAX frame with more travel, and much siffer and heavier rear end.
    Last edited by rodH; 11-24-2009 at 10:03 PM.

  33. #33
    mtbr member
    Reputation:
    Join Date
    Aug 2009
    Posts
    338
    That's some great insight Rod and answers a lot of the questions I had regarding this frame. Thanks for that. Right after getting the frame from you I started scouring the net for info on the FSR DH and pretty much came up with nothing other than a few old, poor quality pictures. Couldn't find any info as far as specs, etc. and Bikepedia definitely didn't list anything. But then again, bikepedia doesn't list the Palmer special edition of the FSR either so there's definitely stuff out there that hasn't made it into bikepedia.
    Regarding the shock mounting holes, wasn't really sure what the deal was with that because I haven't seen any other max frames that had multiple mounting holes for the shock. It also appeared to me (from pics at least) that the holes were in a slightly different position than those on other max frames. Since I don't have another max frame to compare it to directly, I just chalked it up to perhaps an optical illusion from the pictures, but I guess I was right after all.

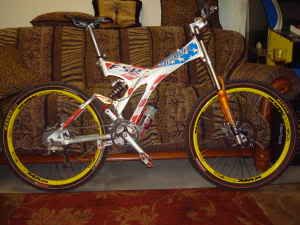

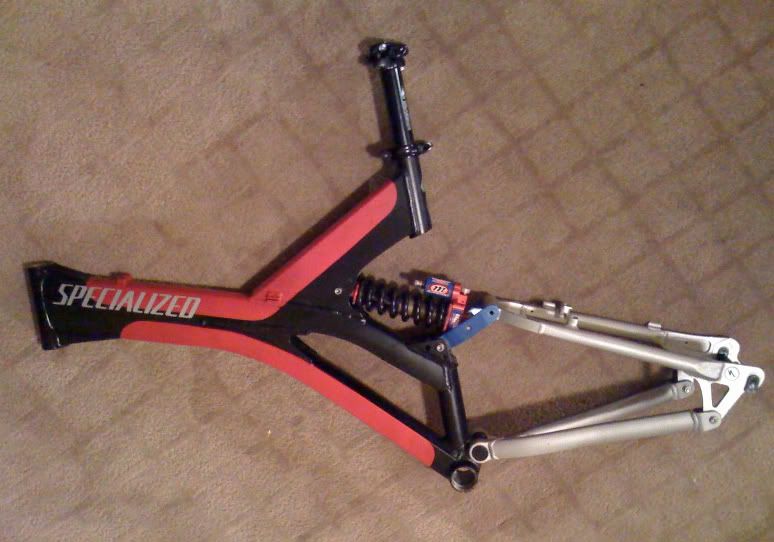

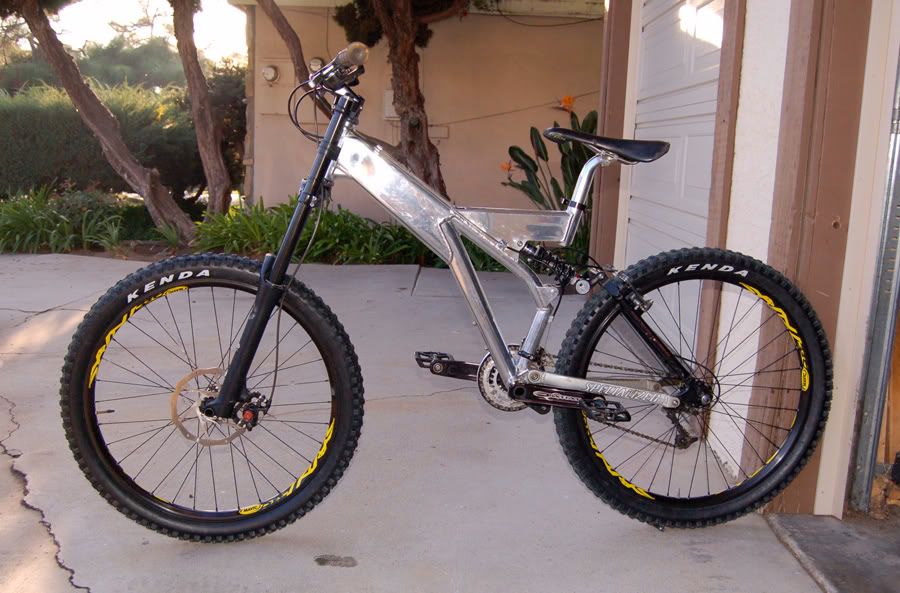

    Anyway, here's the few pics I could find on the web:


    Those 3 are the only ones I could find of an FSR DH. The last pic is what I used to base the artwork for the "DH" decals i'm going to put on my frame.

    Here's a couple of other pics I found interesting as well:




    The first 2 are of the limited edition Palmer bike. One just of the bike, and the other in use by what looks to be a Specialized team rider (based on him being dressed head to toe in Specialized gear) if it's not Palmer himself. The last pic is just one I found, but have no idea what model it is. Never seen one with those decals on it. Anyone know what it is? Looks like it might be a DH since the few pics i've seen of the DH and the Palmer bikes came with that same chain tensioner/bashguard setup. Anyway, thanks again Rod for the added insight. Just trying to find out as much as I can about these bikes so if you have any more info please feel free to share it!

    Oh, and just for comparison sake, here's a pic of the FSR Team DH bike:

    Would love to have one of those, but I don't have much need for an all-out DH bike. I need something I can ride up as well as down on...
    Last edited by atchipmunk; 11-25-2009 at 09:19 AM.

  34. #34
    mtbr member
    Reputation:
    Join Date
    Jul 2009
    Posts
    370
    That american flag bike, IIRC was a bike that Palmer rode at the worlds that year. You can usually tell it is one of his bikes, because his independent sponsers were Manitou (so you never see him on a Boxxer outside his eary years) and also Magura, with the bright yellow calipers.

    Does that Manitou rear shock look familiar

    The DH bikes were only available as frame sets, and cost around $1999, which was almost as much as the Elite or Pro FSR at the time. This is one of the reasons I don't think many people bought them. Plus nobody outside of DH guys or freaks like myself wanted a "DH" bike with a crazy 5"+ travel back then.

    Nice job on the "DH" logo, you hit it, you probably had to search hard for that one.

  35. #35
    mtbr member
    Reputation:
    Join Date
    Aug 2009
    Posts
    338
    Quote Originally Posted by rodH
    That american flag bike, IIRC was a bike that Palmer rode at the worlds that year. You can usually tell it is one of his bikes, because his independent sponsers were Manitou (so you never see him on a Boxxer outside his eary years) and also Magura, with the bright yellow calipers.

    Does that Manitou rear shock look familiar

    The DH bikes were only available as frame sets, and cost around $1999, which was almost as much as the Elite or Pro FSR at the time. This is one of the reasons I don't think many people bought them. Plus nobody outside of DH guys or freaks like myself wanted a "DH" bike with a crazy 5"+ travel back then.

    Nice job on the "DH" logo, you hit it, you probably had to search hard for that one.
    Ah, that explains the mango colored Manitou front fork and neon yellow calipers on the "Palmer" FSR too. Interesting.
    When I first saw that pic of the rear link on the DH, first thing I noticed was the rear manitou shock. Same as the one that came with my DH frame.
    Also, the fact that the DH was only available as a frameset explains why there isn't much info out there on them. It's funny though...back in the day the DH bikes had 5+" of travel. By todays standards, that barely counts as AM. Anyway, thanks again Rod for the added insight into these frames...

  36. #36
    mtbr member
    Reputation:
    Join Date
    Oct 2007
    Posts
    1,541
    Quote Originally Posted by atchipmunk
    That's some great insight Rod and answers a lot of the questions I had regarding this frame. Thanks for that. Right after getting the frame from you I started scouring the net for info on the FSR DH and pretty much came up with nothing other than a few old, poor quality pictures. Couldn't find any info as far as specs, etc. and Bikepedia definitely didn't list anything. But then again, bikepedia doesn't list the Palmer special edition of the FSR either so there's definitely stuff out there that hasn't made it into bikepedia.
    Regarding the shock mounting holes, wasn't really sure what the deal was with that because I haven't seen any other max frames that had multiple mounting holes for the shock. It also appeared to me (from pics at least) that the holes were in a slightly different position than those on other max frames. Since I don't have another max frame to compare it to directly, I just chalked it up to perhaps an optical illusion from the pictures, but I guess I was right after all.

    Anyway, here's the few pics I could find on the web:


    Those 3 are the only ones I could find of an FSR DH. The last pic is what I used to base the artwork for the "DH" decals i'm going to put on my frame.

    Here's a couple of other pics I found interesting as well:




    The first 2 are of the limited edition Palmer bike. One just of the bike, and the other in use by what looks to be a Specialized team rider (based on him being dressed head to toe in Specialized gear) if it's not Palmer himself. The last pic is just one I found, but have no idea what model it is. Never seen one with those decals on it. Anyone know what it is? Looks like it might be a DH since the few pics i've seen of the DH and the Palmer bikes came with that same chain tensioner/bashguard setup. Anyway, thanks again Rod for the added insight. Just trying to find out as much as I can about these bikes so if you have any more info please feel free to share it!

    Oh, and just for comparison sake, here's a pic of the FSR Team DH bike:

    Would love to have one of those, but I don't have much need for an all-out DH bike. I need something I can ride up as well as down on...
    Alvin & rod, that 3rd pic you show tells me alot. Only 1 set of shock mount holes and my frame is def. a DH frame. My frame looks identical to that pic. I wonder if a guy could talk directly to Mike Sinyard of Spec. and get the real story about these bikes/frames?
    Happy Thanksgiving!
    Oldest daughter doesn't ride.

  37. #37
    mtbr member
    Reputation:
    Join Date
    Aug 2009
    Posts
    338
    Quote Originally Posted by skip canfield
    Alvin & rod, that 3rd pic you show tells me alot. Only 1 set of shock mount holes and my frame is def. a DH frame. My frame looks identical to that pic. I wonder if a guy could talk directly to Mike Sinyard of Spec. and get the real story about these bikes/frames?
    Happy Thanksgiving!
    Happy Turkey Day! I've been thinking the same thing lately...wondering if there is someone at Specialized that can give us the skinny on these frames. Was thinking about writing down the serial number from my frame and shooting an email to specialized to see if they can identify it and tell me anything more about it and the production of these frames? It's worth a shot I guess...

    For updates on the build, still waiting for the decals before I can do much else. I did pick up a new, black, Chris King Headset for the MAX frame though. I have one on the Comp (pewter color) but wanted a black one to better match the color scheme i'm going for with the "new" frame. Been also wondering if a Specialized Command Post would work with this frame. The length wouldn't work with the Comp frame because the seat tube is too short and the Command Post needs at least 100mm of insertion depth. I think there's just enough insertion depth in the Max frame's seat tube, i'm just not sure if the height will be right for my inseam length, etc. Gotta get the bike together and take some measurements before i'll know for sure. It suuuure would be convenient though to not have to stop to change seat height before and after a decent, etc....

  38. #38
    mtbr member
    Reputation:
    Join Date
    Oct 2007
    Posts
    1,541
    Quote Originally Posted by atchipmunk
    Happy Turkey Day! I've been thinking the same thing lately...wondering if there is someone at Specialized that can give us the skinny on these frames. Was thinking about writing down the serial number from my frame and shooting an email to specialized to see if they can identify it and tell me anything more about it and the production of these frames? It's worth a shot I guess...

    For updates on the build, still waiting for the decals before I can do much else. I did pick up a new, black, Chris King Headset for the MAX frame though. I have one on the Comp (pewter color) but wanted a black one to better match the color scheme i'm going for with the "new" frame. Been also wondering if a Specialized Command Post would work with this frame. The length wouldn't work with the Comp frame because the seat tube is too short and the Command Post needs at least 100mm of insertion depth. I think there's just enough insertion depth in the Max frame's seat tube, i'm just not sure if the height will be right for my inseam length, etc. Gotta get the bike together and take some measurements before i'll know for sure. It suuuure would be convenient though to not have to stop to change seat height before and after a decent, etc....
    I have run a telescoping seat post from time to time and realized that I didn't adjust it very often, so I went back to my standard post and found the "sweet spot" cut the post at that length and now I ride everything with it there. If we do go and ride some really tech stuff, then I will put the "scoping" post in for that day so that I can lower it in case I need to.
    At 6'2", with a 34" inseam my seat is kinda high.
    Oldest daughter doesn't ride.

  39. #39
    mtbr member
    Reputation:
    Join Date
    Jul 2009
    Posts
    370
    Quote Originally Posted by skip canfield
    Alvin & rod, that 3rd pic you show tells me alot. Only 1 set of shock mount holes and my frame is def. a DH frame. My frame looks identical to that pic. I wonder if a guy could talk directly to Mike Sinyard of Spec. and get the real story about these bikes/frames?
    Happy Thanksgiving!
    It might depend on the year? Mine is a 1997 and it doesn't have the 2 holes either.

  40. #40
    mtbr member
    Reputation:
    Join Date
    Oct 2007
    Posts
    1,541
    Quote Originally Posted by rodH
    It might depend on the year? Mine is a 1997 and it doesn't have the 2 holes either.
    I went to my LBS today and talked to a guy who has been in the bike industry for a long time. He had a catolog from 1999, he keeps alot of stuff around, and it does not show/tell anything about an FSR DH.Please correct me if I'm wrong, but I think the MAX frame was only available in the Elite or Pro. I have sent Spec. an e-mail asking if I can get any info on these bikes/frames. I'm really interested in this now. But you know, it really doesn't matter, I love the way this bike rides and with the gussets top & bottom I believe it is very strong and will withstand anything I can throw at it. Thanx rod.
    Oldest daughter doesn't ride.

  41. #41
    mtbr member
    Reputation:
    Join Date
    Jul 2009
    Posts
    370
    Quote Originally Posted by skip canfield
    I went to my LBS today and talked to a guy who has been in the bike industry for a long time. He had a catolog from 1999, he keeps alot of stuff around, and it does not show/tell anything about an FSR DH.Please correct me if I'm wrong, but I think the MAX frame was only available in the Elite or Pro. I have sent Spec. an e-mail asking if I can get any info on these bikes/frames. I'm really interested in this now. But you know, it really doesn't matter, I love the way this bike rides and with the gussets top & bottom I believe it is very strong and will withstand anything I can throw at it. Thanx rod.
    I had a copy that I threw away only a couple years ago of the specialized catalog from 1997. It shows all the bikes of course and then it shows the DH frameset. It was red with a big SPECIALIZED logo on it, it looked different than the normal red FSR frame in that the normal FSR frame used much smaller lettering for the specialized and it had the weird circle ground control logo on it (which the DH version didn't).

  42. #42
    mtbr member
    Reputation:
    Join Date
    Oct 2007
    Posts
    1,541
    Quote Originally Posted by rodH
    I had a copy that I threw away only a couple years ago of the specialized catalog from 1997. It shows all the bikes of course and then it shows the DH frameset. It was red with a big SPECIALIZED logo on it, it looked different than the normal red FSR frame in that the normal FSR frame used much smaller lettering for the specialized and it had the weird circle ground control logo on it (which the DH version didn't).
    I'll ask and see if he has the "97" cat. You have seen the pix that Alvin posted, yes?
    The 3rd pic, small one, that bike has the DH logo on it, is that what you were talking about?
    Oldest daughter doesn't ride.

  43. #43
    mtbr member
    Reputation:
    Join Date
    Jul 2009
    Posts
    370
    Another interesting thing I found. Look at this link: They call it is an FSR DHO. I totally remember that it stood for "down hill only"


    http://74.125.95.132/search?q=cache:...ient=firefox-a

  44. #44
    mtbr member
    Reputation:
    Join Date
    Oct 2007
    Posts
    1,541
    Quote Originally Posted by rodH
    Another interesting thing I found. Look at this link: They call it is an FSR DHO. I totally remember that it stood for "down hill only"


    http://74.125.95.132/search?q=cache:...ient=firefox-a
    Hey rod want to hear something ironic? That 2nd pic of the blue bike showing the rear shock, that was my old fsr comp before I obtained this Max frame.
    Oldest daughter doesn't ride.

  45. #45
    mtbr member
    Reputation:
    Join Date
    Jul 2009
    Posts
    370
    Quote Originally Posted by skip canfield
    I'll ask and see if he has the "97" cat. You have seen the pix that Alvin posted, yes?
    The 3rd pic, small one, that bike has the DH logo on it, is that what you were talking about?
    No, those pics that alvin posted are from the newer frames (99 ish). You can tell based on the sticker kits. I do remember seeing that FSR DH, but here is the deal. When I worked at a shop the normal course of events went something like this. Before the actual official catalogs would come out, the dealer would get a dealer notebook that showed all the upcoming models with a lot of specs adn stats. We would usually get this at Interbike, IIRC. I went to interbike for the intro to the 1999 bikes, BUT I left the industry before those bikes really started to hit the shop. I left the state and my shop for grad school, so I am not sure if that "DH" logo actually made it on an actual production bike. Sometimes the dealer notebooks included bikes that never made it to production but I totally remember that "DH" logo. Thats why when I saw Alvins sticker proofs, I knew immediately that he had it right.

  46. #46
    mtbr member
    Reputation:
    Join Date
    Oct 2007
    Posts
    1,541
    Quote Originally Posted by rodH
    No, those pics that alvin posted are from the newer frames (99 ish). You can tell based on the sticker kits. I do remember seeing that FSR DH, but here is the deal. When I worked at a shop the normal course of events went something like this. Before the actual official catalogs would come out, the dealer would get a dealer notebook that showed all the upcoming models with a lot of specs adn stats. We would usually get this at Interbike, IIRC. I went to interbike for the intro to the 1999 bikes, BUT I left the industry before those bikes really started to hit the shop. I left the state and my shop for grad school, so I am not sure if that "DH" logo actually made it on an actual production bike. Sometimes the dealer notebooks included bikes that never made it to production but I totally remember that "DH" logo. Thats why when I saw Alvins sticker proofs, I knew immediately that he had it right.
    Right on rod, Thanx. I hope you don't think I'm trying to be a "know it all" or anything , just trying to learn more about this frame/bike. Either way I'm gonna ride the pizz out of this thing just because it does it so well. Keep the info coming, I appreciate it.
    Oldest daughter doesn't ride.

  47. #47
    mtbr member
    Reputation:
    Join Date
    Jul 2009
    Posts
    370
    Quote Originally Posted by skip canfield
    Right on rod, Thanx. I hope you don't think I'm trying to be a "know it all" or anything , just trying to learn more about this frame/bike. Either way I'm gonna ride the pizz out of this thing just because it does it so well. Keep the info coming, I appreciate it.
    No, I dont think that at all. It is hard to find the info on these bikes, esp since they are so old and the internet wasn't nearly as big back then.

    It would be interesting to see what Specialized official word would be on the subject.

  48. #48
    mtbr member
    Reputation:
    Join Date
    Oct 2007
    Posts
    1,541
    Quote Originally Posted by rodH
    No, I dont think that at all. It is hard to find the info on these bikes, esp since they are so old and the internet wasn't nearly as big back then.

    It would be interesting to see what Specialized official word would be on the subject.
    If I get any info, I will post it up here and let you guys know. Have a great weekend.
    Oldest daughter doesn't ride.

  49. #49
    mtbr member
    Reputation:
    Join Date
    Aug 2009
    Posts
    338
    More great info guys...keep it coming! I'd like to try to talk to one of the local Specialized dealers or LBS people to see if they remember any of the stuff from the MAX Backbone era. Unfortunately, there aren't really any good bike shops in my area. No enthusiast bike shops at least.
    One of the old shops I used to go to back on the east coast in high school would probably remember that stuff. It was a small shop, but they had all the high end MTB stuff at the time and the staff was cool and down to earth. I bought my original Rock Shox RS-1 from them for my old ass Trek 9000. Next time I visit my parents, I should swing by and see if they're still around...

    I did find mention of the DHO online but couldn't find any pics. Also, there's some reviews here on MTBR for the FSR DH, but no pics . Skip, if Specialized emails you back, definitely let us know. Like Rod, i'm insanely curious to find out what Specialized's official word will be...

    On a side note...while surfing around, I came across another swingarm/chainstay that was made for these bikes. The Szember swingarm. Dirtworld did a little writeup on it back in 2000: http://www.dirtworld.com/PRODUCTREVI...ory.asp?id=235
    Last edited by atchipmunk; 11-28-2009 at 05:46 AM.

  50. #50
    mtbr member
    Reputation:
    Join Date
    Oct 2007
    Posts
    1,541
    Quote Originally Posted by atchipmunk
    More great info guys...keep it coming! I'd like to try to talk to one of the local Specialized dealers or LBS people to see if they remember any of the stuff from the MAX Backbone era. Unfortunately, there aren't really any good bike shops in my area. No enthusiast bike shops at least.
    One of the old shops I used to go to back on the east coast in high school would probably remember that stuff. It was a small shop, but they had all the high end MTB stuff at the time and the staff was cool and down to earth. I bought my original Rock Shox RS-1 from them for my old ass Trek 9000. Next time I visit my parents, I should swing by and see if they're still around...

    I did find mention of the DHO online but couldn't find any pics. Also, there's some reviews here on MTBR for the FSR DH, but no pics . Skip, if Specialized emails you back, definitely let us know. Like Rod, i'm insanely curious to find out what Specialized's official word will be...

    On a side note...while surfing around, I came across another swingarm/chainstay that was made for these bikes. The Szember swingarm. Dirtworld did a little writeup on it back in 2000: http://www.dirtworld.com/PRODUCTREVI...ory.asp?id=235
    Hey Alvin, keep up the good work at finding info on these FSR's, you da man. I will keep you guys posted as I find out more from Spec.
    Another question for you guys. What does FSR stand for?
    Oldest daughter doesn't ride.

Page 1 of 12 1234511 ... LastLast

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
