    Cheap and dirty fixie convert

    i have a 8speed uniglide freehub,and im trying to make it into a fixie without spending more money if i can avoid it. i know there is an adapter, i think i could weld it. is there any other ways?

    oh and the suicide hub isnt quite suitable, i want the be able to brake

    cheap and nasty is the game

    thanks
    Last edited by bonzaii; 04-12-2013 at 11:51 AM.

  2. #2
    Bro
    Bro is offline
    Where I do my thinking
    Reputation: Bro's Avatar
    Join Date
    Dec 2010
    Posts
    4,060
    Surly makes an adapter that screws onto the hub where the freehub would normally thread onto the hub so that you can use a fixed cog and ride fixed gear. I'm not sure about cost, but it seems to be the safest option without actually buying a fixed hub.

    Edit: Here it is. Looks like you can only use it if you have a Shimano hub with 10x1 axle threading. Fixxer | Parts | Surly BikesFixxer | Parts | Surly Bikes
    I've made some bad decisions like taking the gears off my bike. So here's the warning: Do not as I say, nor as I do.

  3. #3
    mtbr member
    Reputation: mack_turtle's Avatar
    Join Date
    Jan 2009
    Posts
    2,672
    are you planning to weld the freehub to the hub shell?

    does this hub have axle nuts or a quick-release?

    how do you plan to tension the chain?

    there are a lot of ghetto fixie conversions possible, but most of them are sketchy at best and deadly at worst. the last thing you want is to have one of those fail of you while riding through traffic or down a hill.
    https://www.google.com/url?sa=t&rct=...45175338,d.eWU
    Fixed Gear on the Cheap

  4. #4
    mtbr member
    Reputation: vaultbrad's Avatar
    Join Date
    Oct 2007
    Posts
    751

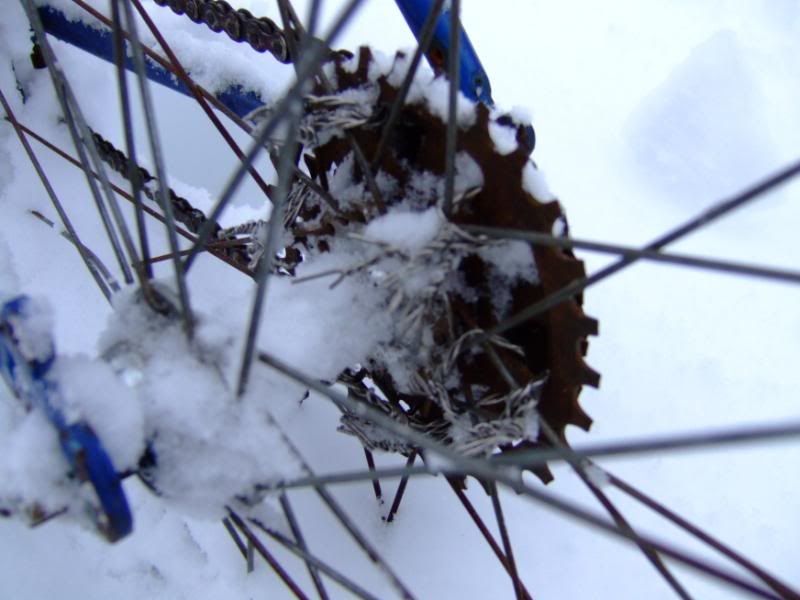

    How ghetto do feel like being? This is a technique which has been confirmed to last several winters of use and counting. Not pretty, but probably not deadly either.

  5. #5
    mtbr member
    Reputation:
    Join Date
    Apr 2012
    Posts
    1,570
    If your freehub body has a seal on the back, you can remove it and braze the body to the cone, effectively immobilizing the freehub, while being out nothing but a roll of brass wire.

    As posted, a Surly Fixxer is a possibility, but does not fit every hub (and is no longer being produced).

  6. #6
    one chain loop
    Reputation: fishcreek's Avatar
    Join Date
    Apr 2007
    Posts
    2,284
    ...
    Last edited by fishcreek; 04-14-2013 at 08:14 PM.
    everything sucks but my vacuum cleaner.

  7. #7
    mtbr member
    Reputation:
    Join Date
    Jan 2013
    Posts
    19
    brass seems possible, its a quick release and chain tension done with the dropouts

  8. #8
    mtbr member
    Reputation: mack_turtle's Avatar
    Join Date
    Jan 2009
    Posts
    2,672
    i would recommend getting a nutted axle on there instead of a QR. riding fixed will put a LOT of pressure on the axle and a QR might not hold up.

  9. #9
    mtbr member
    Reputation:
    Join Date
    Jan 2008
    Posts
    151
    Problem Solvers and Origin 8 both sell fixed cogs that mount to 6 bolt disc mounts, and I think they're both under $20. I'm not sure if Problem Solvers has theirs out yet or not, though.
