    How to: Fix your stuckdown 07/08/09 Marzocchi 55/66/888 ATA fork: Pics

    Hi all

    Well here is my little how to that shows you how to teardown a ATA cartridge and give it a bit of TLC. If your ATA Cartridge is stuckdown, this guide will show you how to remedy the problem. MODS, sticky this if you wish

    ================================================== ===============
    WARNING: Im not responsible for any damage you cause to your fork, persona or surrounds. This repair is simple if you have some mechanical inclination and common sense. Care must be taken as these Carts can contain air at VERY high PSI's, undo something the wrong way and you'll have yourself a pretty dangerous speargun.

    Righto now the legal Bull$hit is outta the way, onto business!
    ================================================== ===============

    First what is a stuckdown ATA cart?
    Your cartridge is stuckdown if it does not return to full extension despite:
    1- Winding the ATA knob to max extension
    2- Pumping ridiculous amounts of air in the ATA chamber

    Also, another potential give away is if your ATA chamber appears to be losing pressure and the fork keeps creeping down in its travel.

    Well first off, here is the likely cause of your stuckdown problem (shown with my awesome paint skills )

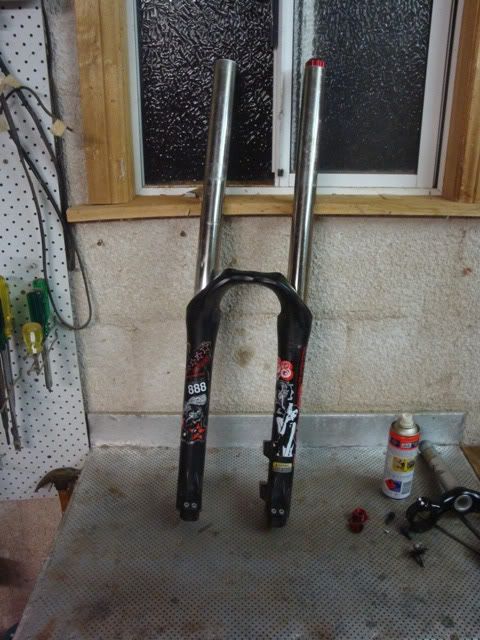

    Now I performed this fix on a 888 ATA WC, but I dont see any reason why it wouldnt work for 08/09 55/66/888 ATA forks, and also for 07 66 forks, the only difference would be the cart size.

    Only tools needed for this job is a 12mm socket (for the 888), shifter, o-ring pick, and fork oil, also handy to have some drip pans and rags...

    Right, time to get back full travel

    ================================================== ===============

    STEP 1:

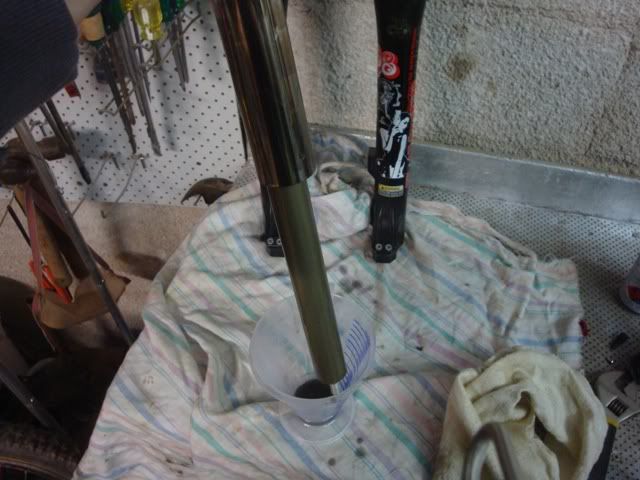

    First, deflate all the air from both the ATA chamber and PAR assembly, remove your fork from your bike and pull out the ATA adjuster knob (dont forget to set it to max), if you dont know how to do this i suggest you put the tools down now, also, in the case of the 888, its best to remove you crowns aswell.



    STEP 2:

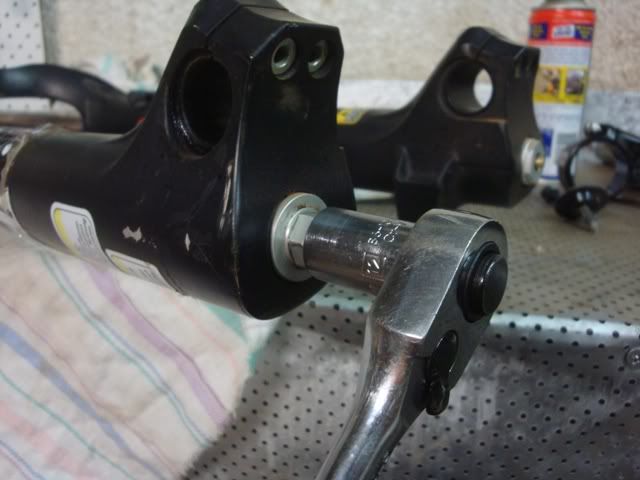

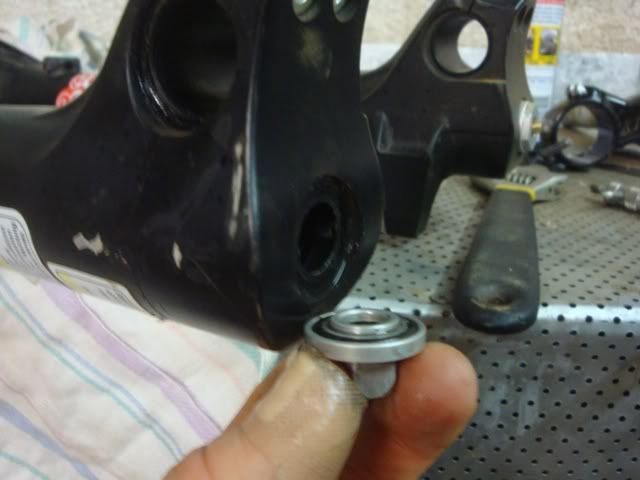

    Next lay the fork down flat, then using a 12mm socket (in the case of the 888), undo the ATA footnut. Now when the nut disengages the threads there will probably be a loud clank and the cart will fire up into the lowers, dont panic, this is normal on a stuckdown fork. Some oil will also probably spill out, be sure to wipe it up, then pour the remaining oil into a drip pan.





    STEP 3:

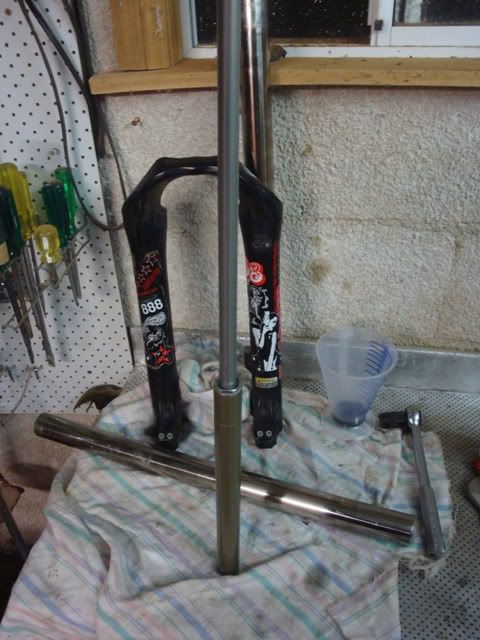

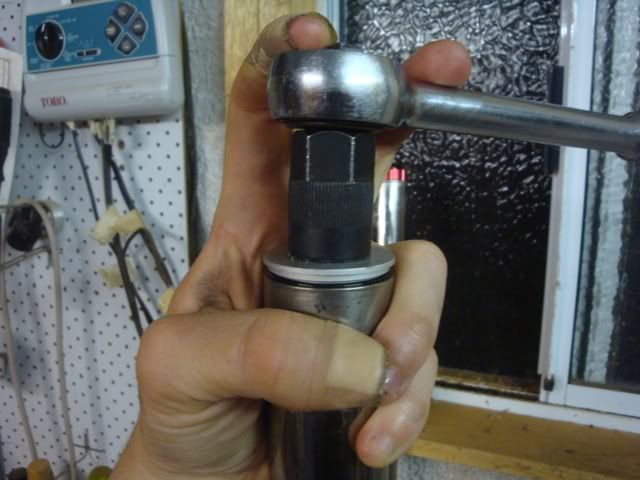

    Next, using a cassette lockring tool, undo the ATA top cap and lift out the entire ATA cart




    STEP 4:

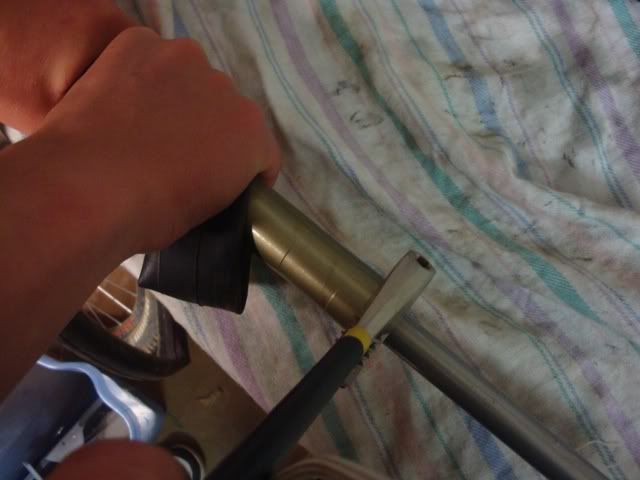

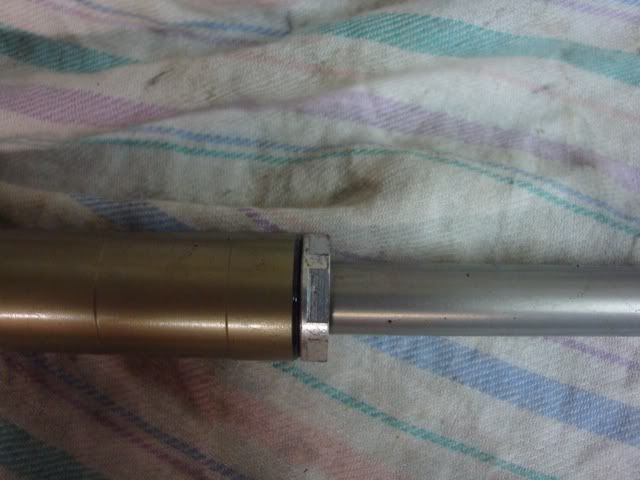

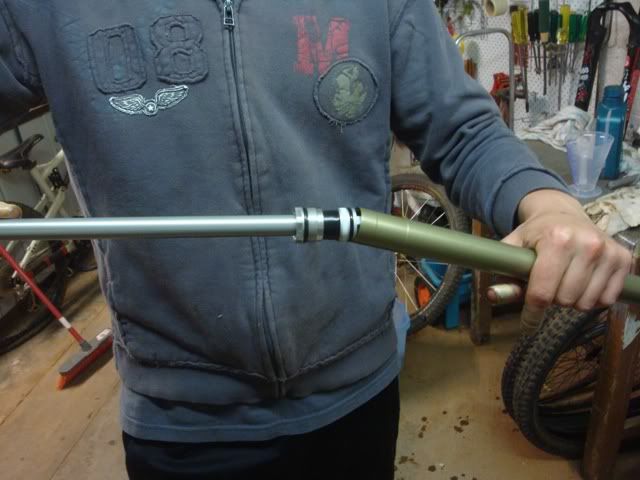

    Have a friend firmly but gently grip the cartridge body with an old tube, then using a spanner or shifter, SLOWLY (and I do mean SLOWLY) start to undo the ATA cart. THIS BIT IS CRITICAL, IF YOU DONT DO THIS BIT CORRECTLY, YOU'LL HAVE A CARTRIDGE BODY/SHAFT FLYING ACROSS THE ROOM. Undo the cartridge VERY SLOWLY until you start to hear air seeping out, when you hear this, STOP UNDOING THE CART. This is where all that air you were mysteriously losing has gone, and when you tryed to pump the cart back up, you added to it. Wait until the air stops coming out, then undo and remove the cart. If you hear air being sucked into the cart when you are pulling it from the body, this is a dead give away that your o-ring was undersized, it is bleeding into the vacuum within the cart. When you pull the piston out, you may suck up the PAR assembly, this is normal.





    STEP 5:

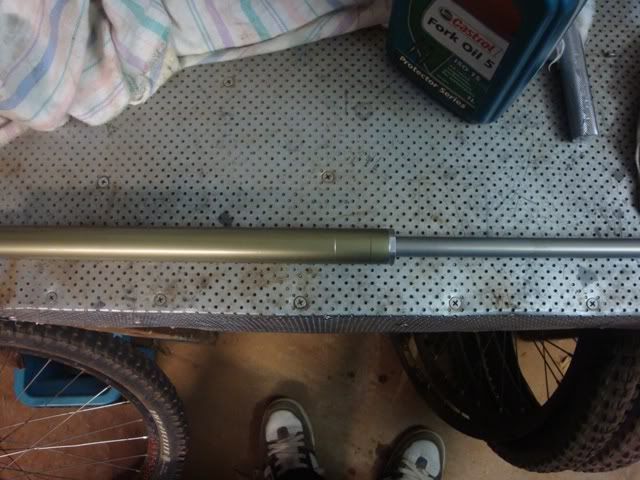

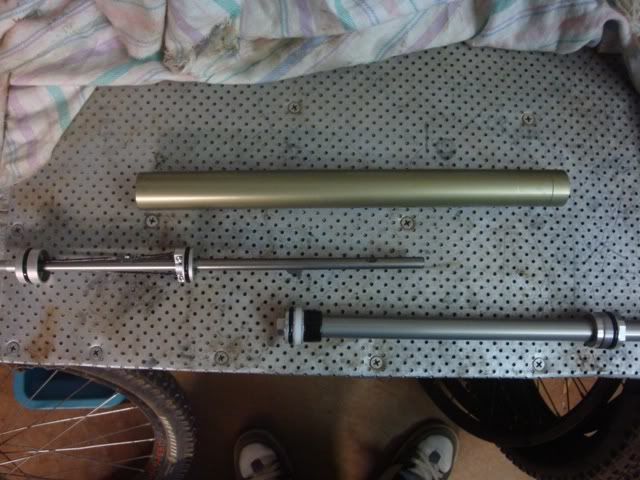

    You have now taken apart the ATA Cartridge, lay all the parts on the table and give them a good wipe. Should you wish to perform Renegades PAR removal mod, now would be the time.



    STEP 6:

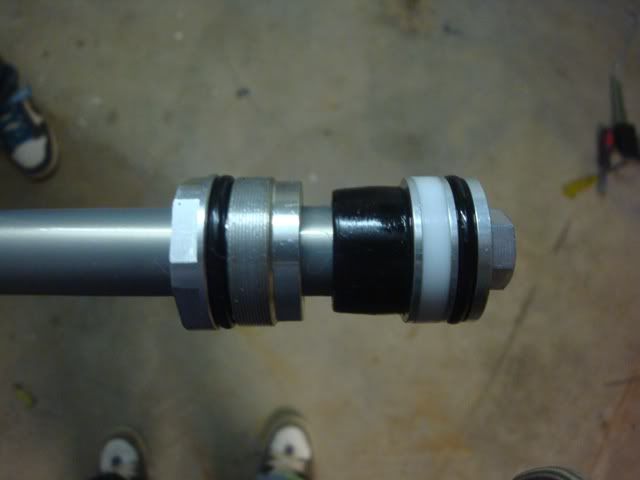

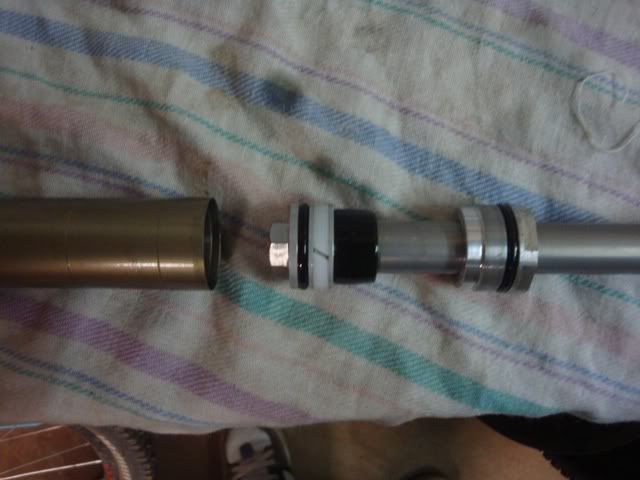

    Now the undersized (or frayed/damaged) o-ring that is causing your problems is the one on the right. To fix this, go down to a local o-ring supplier and get a few o-rings that are slightly larger. You may also wish to replace the other visible o-rings, take them aswell and have them sized, its also best if you buy a couple of each, always good to have spares!



    STEP 7:

    Once you have replaced your o-rings, drop the PAR assembly back into the cart (dont worry if it dosent fully seat at the bottom, it will when you pump it back up. I like to pour about a cap full of 5wt oil into the cart to keep everything slippery smooth, also lube up the piston and o-rings, then reinsert it back into the cart. Use your spanner and tube and tighten her up, dont get heavy handed on the torque, the threads are made of Aluminium.




    STEP 8:

    Congrats, you have service your ATA cart. Now reinstall it back into the fork and check the marz website for your forks oil volume in the ATA leg, fill the oil and pump her back up, and if you have done everything correct, welcome back to full travel!

    Now make sure you dont go hucking the 40 foot gaps just yet, take the first few rides easy to make sure that all the internals are properly lubed and bedded in.

    I performed this fix on my mates 888 ATA WC about 5 months ago, and it has worked flawlessly ever since (5 months of DH/FR) so the fix works.

    SUCCESS = BEER

  2. #2
    mtbr member
    Reputation:
    Join Date
    Jun 2008
    Posts
    435
    Excellent! Thanks for sharing.
    Presently rocking the 888 ata wc on the Yeti. It's the '09 model. I only have two rides on the fork so far.

    Positively going to print this out and save to file.


    Thanks again.
    ~Rudster~

  3. #3
    mtbr member
    Reputation: boogenman's Avatar
    Join Date
    Sep 2006
    Posts
    1,748
    I don't ride Zokes but nice work!

  4. #4
    mtbr member
    Reputation: cort's Avatar
    Join Date
    Mar 2004
    Posts
    892
    Nice job Nick!

  5. #5
    mtbr member
    Reputation:
    Join Date
    Jul 2007
    Posts
    773
    You are a lifesaver, thanks for the easy to follow instructions! Now to crack open that 55 again

  6. #6
    mtbr member
    Reputation: Nick_M2R's Avatar
    Join Date
    Oct 2008
    Posts
    1,610
    Cheers for the props guys!
    Have fun fix'en your forks!

  7. #7
    Equal opportunity meanie
    Reputation: DHidiot's Avatar
    Join Date
    Aug 2004
    Posts
    2,781
    The one most critical step of this is: thread the seal head back into the ATA body with the piston TOPPED OUT. If you don't, the wind down will continue right where it left off, or close to it.

    Additional warning: MAKE SURE THE CARTRIDGE IS DEFLATED BEFORE YOU OPEN THE SEAL HEAD. CHECK TWICE. Otherwise you will have a Marzocchi projectile inserting itself in the wall on the other side of the room, or in you, whichever happens to come first. Not really, but it will still shoot the cartridge apart once you unthread it with air pressure in the cart.

    Also: it's easiest to break the top cap loose from the stanchion while it is in the crown. Those things come WAY too tight from the factory, and undoing it by hand with a tube sucks.

    When re-assembling, you can keep the cartridge from spinning by pressing down on the top-cap to tighten the footnut.

    You also only need about 4-5ml of lubricating oil below the main piston, and 1-2ml above.

    Give the inner walls, and ALL sliding surfaces of the cartridge a really thorough cleaning and lubricating.
    805

  8. #8
    mtbr member
    Reputation:
    Join Date
    Jul 2007
    Posts
    773
    Quote Originally Posted by DHidiot
    When re-assembling, you can keep the cartridge from spinning by pressing down on the top-cap to tighten the footnut.
    Thanks for that tip, that was one of my biggest concerns, was just watching that spin and spin with no way to tighten it

  9. #9
    mtbr member
    Reputation: Nick_M2R's Avatar
    Join Date
    Oct 2008
    Posts
    1,610
    Cheers for those ad ons DH, good call on the technique to tighten the footnut, I didn't give it a thought because my footnut tighten up without the cart spinning

  10. #10
    Equal opportunity meanie
    Reputation: DHidiot's Avatar
    Join Date
    Aug 2004
    Posts
    2,781
    Yeah it just depends how clean the threads are. Once the o-ring is contacting you're usually ok.
    805

  11. #11
    Nightmare on Lyrik st. VI
    Reputation: amrgb's Avatar
    Join Date
    May 2007
    Posts
    818
    I don't have a Marzocchi and I don't even plan to own one. But damn, I still read the whole thread. I love your How To's. Keep them coming.
    Quote Originally Posted by TNC to whining spammer
    Don't let the nose of your saddle hit you in the @#!#X on the way out.

  12. #12
    pedal it drink it, repeat
    Reputation: axlissel's Avatar
    Join Date
    Jul 2008
    Posts
    46

    thank you

    very helpfull, really you simplifyed my life,
    I got an 2009 66 ata new with this problem an now I know how to fix it. Never used it yet.

    thanks again

  13. #13
    mtbr member
    Reputation:
    Join Date
    Dec 2006
    Posts
    604
    Nice how to guide. Also if you replace that top out bumper (in the neg air side) with the updated o-ring you will have a larger neg volumn and a suppler intitial stroke. I see yours is 08 so not sure why its not there but maybe yours is really early. If yours is really early there is another o-ring that is actually inside the threaded aluminum part of the ata system and that o-ring got replaced with one of a thicker wall to prevent air from escaping and going into the stanchion, so not sure what you have in there either.

  14. #14
    mtbr member
    Reputation: citizenlee's Avatar
    Join Date
    Oct 2009
    Posts
    76
    Very nice guide, easy to understand even for a noob like myself.

    I was going to send my sticky 07 66 ATAs off for service but with your guide I think I might just give it a bash myself

    Only thing is I will need to find a local o-ring supplier but that shouldn't be too much of a problem.

    Now to see what Renegades PAR removal mod is all about

  15. #15
    Sup?
    Reputation: honemastert's Avatar
    Join Date
    Jun 2007
    Posts
    639

    Perfect timing!



    My 55 ATA just bit the big one last sunday.. checking with Marz to see if they will do it, since it was just done in April of this year.. and has not really been ridden that hard this year.. maybe 2 rides per month at most.

    If not I'll be diving in with the wrenches! This doesnt look that hard

  16. #16
    mtbr member
    Reputation:
    Join Date
    Feb 2009
    Posts
    82
    I tried the fix last night, but couldn't get the cartridge apart. I will machine myself a clamp and try again tonight.
    The problem I have is different to what you list. I have a 0766SL ATA and a 08 55ATA, and both of them are losing pressure from the cartridge, and it's leaking into the fork leg, so when you undo the top cap it releases the pressure. I assume that this fix will address this issue too?

  17. #17
    mtbr member
    Reputation: Nick_M2R's Avatar
    Join Date
    Oct 2008
    Posts
    1,610
    Hi mate
    Yes it should fix the problem, id reckon the leak is coming from the threaded end cap on the ATA chamber (the chamber top cap) Just do a replacement of all the seals and you should be ready to roll again

  18. #18
    mtbr member
    Reputation:
    Join Date
    Feb 2009
    Posts
    82
    Quote Originally Posted by Nick_M2R
    Hi mate
    Yes it should fix the problem, id reckon the leak is coming from the threaded end cap on the ATA chamber (the chamber top cap) Just do a replacement of all the seals and you should be ready to roll again
    I took it apart tonight, as far as I can tell, the o-ring inside the top cap is the offender, when I took it out, it has a seam on the inside, so I will find a new o-ring tomorrow and let you know.

    Edit: I took it apart, and the offending o-ring was the internal o-ring on the top cap of the main cart. body. (the one that the cartridge piston slides through.) It's held pressure over night and through a bunch of cycling, but I need to get out and ride it to test the fix. The offending o-ring had a nasty seam on the inside of it, which is why I believe it wasn't holding air.
    Next, I tackle the fix on my 55.
    Last edited by Biggles604; 01-29-2010 at 01:26 PM.

  19. #19
    mtbr member
    Reputation:
    Join Date
    Nov 2008
    Posts
    13
    thanks a million for this guide!

    I tore down mine a while back and got about to the point of potential springing across the room and stopped because of hearing the air and feeling the cartridge having some spring in it and then gave up for fear of causing irreparable damage, and i needed the bushings done anyway so just sent it off.

    Great to have a full guide to doing it myself!

  20. #20
    mtbr member
    Reputation:
    Join Date
    Nov 2005
    Posts
    12
    What size o-ring do you think it fits best? I think originally it has 18.72x2.62, 19x3 is too big 18x3 is too small, 19x2.5 leaks, what do you guys use?

  21. #21
    mtbr member
    Reputation:
    Join Date
    Feb 2009
    Posts
    82
    Quote Originally Posted by Mosquito
    What size o-ring do you think it fits best? I think originally it has 18.72x2.62, 19x3 is too big 18x3 is too small, 19x2.5 leaks, what do you guys use?
    The main o-ring for the stuckdown problem is a size 116, if you are losing air around the shaft, then the internal o-ring for that is 114.
    The 100 series o-rings are all 3/32" thick. if you wanted to go for a slightly oversized o-ring, then you need to go thicker, not a larger diameter. The closest o-rings are:

    # ID OD w
    114 5/8 13/16 3/32
    207 9/16 13/16 1/8
    208 5/8 7/8 1/8

    116 3/4 15/16 3/32
    210 3/4 1 1/8
    209 11/16 15/16 1/8

    For the 114 you want to maintain the same OD, so the 207 is the better choice. For 116 you want the same ID, so 210. With the thicker o-ring, the fit will be really tight, and may be stickier and require a softer o-ring.

    For the fix, I looked at this option, then thought about it carefully and decided to go with stock o-ring sizes. I've now repaired a number of forks, and realised that most of the time, it's contamination of some kind that causes the failure, be it a bit of dirt, a hair, metal shaving. When you re-build, inspect the o-rings carefully, chances are fairly good that you won't have to replace them, just clean then, clean the assembly and carefully reassemble taking great care to maintain cleanliness and you should be good.

  22. #22
    mtbr member
    Reputation:
    Join Date
    Apr 2010
    Posts
    3
    Im having problems with getting the ata lock nut at the bottom of the fork off. I tried to loosen the top of the ata side first via the cassete tool but it seems like that cartridge is just spinning in there. Ive done this before when my ata wasnt blown, now its sittin with an inch of travel and cant be extended, and just made sure to put pressure extending the fork to get the nut off. Any tips to remove that lock nut?

  23. #23
    mtbr member
    Reputation: Nick_M2R's Avatar
    Join Date
    Oct 2008
    Posts
    1,610
    Quote Originally Posted by billyzane
    Im having problems with getting the ata lock nut at the bottom of the fork off. I tried to loosen the top of the ata side first via the cassete tool but it seems like that cartridge is just spinning in there. Ive done this before when my ata wasnt blown, now its sittin with an inch of travel and cant be extended, and just made sure to put pressure extending the fork to get the nut off. Any tips to remove that lock nut?
    Hmm.. that is strange, seeing as putting pressure in the cart to extended it normally jams the nut enough so that it loosens.

    Perhaps try having a friend help you with this method
    Have him/her invert the fork and hol it with the steerer touching the ground, have them push down on the crown assembly will pulling the lowers up via the arch, grip it round the bases of the arch as theres more meat there.

    Failing this, try again after heating the footnut gently (AND I DO MEAN GENTLY, just till its hot to touch...) with a propane torch, then try and get the bugger off

    let us know how it goes!

  24. #24
    mtbr member
    Reputation:
    Join Date
    Apr 2010
    Posts
    3
    I tried to pump up the cart back to what i ride it at 100/80 and tried what you mentioned above and its still free turning. I know this shouldnt be this hard to do !

    Do you think an impact wrench will have enough torque to grip the threads of the bolt and take it off? Or is this going to f up more stuff then i would want?

  25. #25
    mtbr member
    Reputation:
    Join Date
    Apr 2010
    Posts
    3
    Alright was able to get the nut off the bottom by compressing the fork and using an impact wrench to torque off the nut. Rebuilt the cartridge and feels great, full travel back! Thanks for the write up.

    I did notice I can adjust the travel though, the knob doesnt want to turn in any direction. Did I forget the first step in turning the travel adjustment to max before doing the rebuild? Dont really want to monkey with it now because it works great, ill fix the adjustment problem if it is the case of me screwing up step #1

  26. #26
    mtbr member
    Reputation: Nick_M2R's Avatar
    Join Date
    Oct 2008
    Posts
    1,610
    Yep, next time just make sure you wind the adjuster to min
    Glad to hear the guide worked out for ya!

  27. #27
    mtbr member
    Reputation:
    Join Date
    May 2009
    Posts
    6
    I am having issues with my 2008 55 ATA. On the top of the rebound it seems to have play and clunking when bombing downhill. I also had this issue with my 2008 66 RC3. Is there a fix for this or an adjustment? is this common?

  28. #28
    mtbr member
    Reputation:
    Join Date
    Feb 2009
    Posts
    82
    That sounds a lot like either the ATA is bleeding into the fork leg, or your TST micro cartridge is gone. The quick check: On the ATA side, undo the top cap with a cassette removal tool, if there is a lot of hissing then the ATA needs a rebuild, follow this guide. If there is no escaping air, then the TST cart is blown. It's easy to service, the short of it, keep the cart upside down after removing it, undo the bushing nut and top up the oil. There are tutorials online, but it's not too hard.

  29. #29
    mtbr member
    Reputation:
    Join Date
    May 2009
    Posts
    6
    Quote Originally Posted by Biggles604
    That sounds a lot like either the ATA is bleeding into the fork leg, or your TST micro cartridge is gone. The quick check: On the ATA side, undo the top cap with a cassette removal tool, if there is a lot of hissing then the ATA needs a rebuild, follow this guide. If there is no escaping air, then the TST cart is blown. It's easy to service, the short of it, keep the cart upside down after removing it, undo the bushing nut and top up the oil. There are tutorials online, but it's not too hard.
    Thanks. I'll try that this week.

  30. #30
    mtbr member
    Reputation: patriot-sey's Avatar
    Join Date
    May 2009
    Posts
    1
    I'm reassembling my ATA cartridge -is there any trick to putting the ATA piston back in?
    When I put the piston back in and tighten the top cap, the atmospheric air that is held between the PAR piston and the ATA piston seems to prevent full travel -even when I lean on braced against the floor.
    If this is with no air pressure, when I add air to it surely it will have less travel. I took the fork apart becasue I was only getting 145mm out of 170mm travel.

    Is this normal?

  31. #31
    mtbr member
    Reputation:
    Join Date
    Feb 2009
    Posts
    82
    Has anyone who has worked on their cartridge managed a succesful way of stopping the ATA winding threads from knocking when the fork is in anything but full up or down travel?
    I've tried aheavy grease on the threads, which did help, but eventually the oill broke it down and I then had sludge for lube in the fork leg.
    What about other non oil based greases like Silicone? Anyone?

    patriot-sey, I found that adding in too much oil to lubricate the inner workings of the ATA would decrease the air chamber size and cause it to feel like you can't bottom out.

  32. #32
    mtbr member
    Reputation:
    Join Date
    Aug 2010
    Posts
    1
    unscrew the upper cap; you will find two small allen nuts which hold in place a spring loaded ball bearing. Try tightening these a bit- enough to hear a click when adjust the travel.
    Anybody know how to remove the lower end cap on the cartridge?

  33. #33
    mtbr member
    Reputation: So3oL4Nu's Avatar
    Join Date
    Aug 2010
    Posts
    3
    Hi ppl,

    Great thread, just send nick a PM, hope he can help me out .

    I own a Zocchi 66 ATA 2008, i only get full travel if i run about 15-20 psi in ATA cartridge. With 15-20 psi it's imposible to ride, just when you stay on the bike you're like 5 inches in travel.

    My setup is:

    0 psi in preload
    50 psi in ATA
    75-80 psi in PAR

    What does PAR doing ? When i pumped air in the PAR cartridge i heard oil coming up...

    Cheers,
    Dan.

  34. #34
    mtbr member
    Reputation: Pelagic's Avatar
    Join Date
    Oct 2010
    Posts
    166
    I have an xc600 ata2 that's collapsed all the way and won't extend. Is this the same "ata" cartridge (I only have an air valve on the bottom of the fork) and will this fix work for me do you think? Thanks much!

  35. #35
    mtbr member
    Reputation: Pelagic's Avatar
    Join Date
    Oct 2010
    Posts
    166
    OK, I'm answering my own question and hope it helps someone! YES, it's the same cartridge, and the whole deal took less than 15 minutes start to finish. I didn't have a spare oring, so I just disassembled, cleaned, reassembled and it's better than it ever was. Perhaps temporary, and I'll replace the oring asap with oversize. Thanks Nick, you are the man!

  36. #36
    mtbr member
    Reputation: Nick_M2R's Avatar
    Join Date
    Oct 2008
    Posts
    1,610
    Quote Originally Posted by Pelagic
    OK, I'm answering my own question and hope it helps someone! YES, it's the same cartridge, and the whole deal took less than 15 minutes start to finish. I didn't have a spare oring, so I just disassembled, cleaned, reassembled and it's better than it ever was. Perhaps temporary, and I'll replace the oring asap with oversize. Thanks Nick, you are the man!
    Glad to hear it worked mate!

    If it does it again, as you said, just replace it with a larger o-ring

  37. #37
    mtbr member
    Reputation:
    Join Date
    Mar 2011
    Posts
    2
    Hi,

    nice work, it' really easy for a noob like me to did it

    But i've a question, is it normal if i've oil in my ATA cartridge?

    And when I'll add my oil, I'll put it in my ATA cartridge or in the lower?

    Thx

  38. #38
    Go back to school
    Reputation: Bikesair's Avatar
    Join Date
    Feb 2006
    Posts
    648
    Quote Originally Posted by xiloti
    Hi,

    nice work, it' really easy for a noob like me to did it

    But i've a question, is it normal if i've oil in my ATA cartridge?

    And when I'll add my oil, I'll put it in my ATA cartridge or in the lower?

    Thx
    It's appropriate to have a very small about of oil (~5ml) of oil in the ATA chambers. It's there to keep the seals from drying out and sticking.
    Die to ride, ride to die

  39. #39
    mtbr member
    Reputation:
    Join Date
    Mar 2011
    Posts
    2
    Ok,

    Thx m8

  40. #40
    mtbr member
    Reputation:
    Join Date
    Nov 2004
    Posts
    83
    I've tried this method to fix my 09 55 ATA micro but failed! The air still leaks out from the ATA chamber after 1 hour riding and the initial travel becomes very soft!

  41. #41
    mtbr member
    Reputation:
    Join Date
    Apr 2009
    Posts
    3
    This is a great procedure you put together, just did my 09 55 ATA TST2 and directions were perfect. Can't wait to actually go ride it with the proper travel again. I do have a few pointers for the next guy. This is for the ATA without PAR anyway, maybe the same though. Leave about 50 psi in the main chamber to remove the bottom nut so it doesn't spin the whole cartridge. Once the cartridge is removed release all of the air. There are a lot of threads on the cartridge top cap so just loosen until you start hearing air coming out and let it sit until you can't hear anymore then loosen a little more and you will probably hear air again then stop and wait, repeat these steps until all air is gone, then you can remove the top cap safely. When putting the cartridge back in make sure the piston is topped out like stated in an earlier post then I put about 50 psi in the Cartridge to keep it in that position as well as to be able to put the bottom nut on easily.

    Also I have a question, a previous post states that the actual size of the oring in question is 116, 3/4 15/16 3/32. Forgot to write this down when I went to purchase mine. Just eyeballing at the store mine seemed to look like 19mm by 2.5 The 3/4 by 3/32 seem a little bigger. Anyway just wondering are we dealing with metric or standard to begin with?

    Thanks for the help

  42. #42
    mtbr member
    Reputation:
    Join Date
    May 2011
    Posts
    1
    Deleted post
    Last edited by DanCunliffe; 05-28-2011 at 03:59 AM. Reason: delete

  43. #43
    mtbr member
    Reputation:
    Join Date
    Feb 2007
    Posts
    59
    Does anyone know if this will work on a 2008 55 ata2 that has been leaking air? Are the internals relatively the same (Besides not having PAR)?

  44. #44
    Does your dog bite?
    Reputation: vova's Avatar
    Join Date
    Dec 2006
    Posts
    142
    Anyone know how much oil to add in my 2007 66 at a after the service? Can find it on line.
    Jesus loves you, everyone else thinks you're an a-hole.

  45. #45
    mtbr member
    Reputation:
    Join Date
    Jan 2012
    Posts
    2
    Alright guys. I just got a 2009 888 ATA WC and noticed it only had about 150mm at max setting. Googled it to find this thread. Awesome and very glad to hear there's help. I went through the tutorial and reassembled my fork. Think I did something wrong... Pumped up the PAR side to 130psi. Hooked up to the ATA side and to my surprise, it too was sitting there with 130psi. With the gauge still hooked to the ATA side, I released pressure in the PAR side and the ATA side also fell to zero. Does anybody have any ideas about this? A couple things: I replaced the seals/wipers also (probably not related) and the fork is not in the crowns (maybe related)... I replaced all the o-rings I could find. I want to get this baby runnin! Thanks for any help.

  46. #46
    Does your dog bite?
    Reputation: vova's Avatar
    Join Date
    Dec 2006
    Posts
    142
    Quote Originally Posted by vova View Post
    Anyone know how much oil to add in my 2007 66 ata after the service? Can find it on line.
    Found my ansewer;
    RC2-200-210cc
    ATA-40cc
    Jesus loves you, everyone else thinks you're an a-hole.

  47. #47
    mtbr member
    Reputation:
    Join Date
    Jan 2012
    Posts
    13
    great info!

  48. #48
    mtbr member
    Reputation:
    Join Date
    Jan 2012
    Posts
    2
    Quote Originally Posted by megahurts View Post
    Alright guys. I just got a 2009 888 ATA WC and noticed it only had about 150mm at max setting. Googled it to find this thread. Awesome and very glad to hear there's help. I went through the tutorial and reassembled my fork. Think I did something wrong... Pumped up the PAR side to 130psi. Hooked up to the ATA side and to my surprise, it too was sitting there with 130psi. With the gauge still hooked to the ATA side, I released pressure in the PAR side and the ATA side also fell to zero. Does anybody have any ideas about this? A couple things: I replaced the seals/wipers also (probably not related) and the fork is not in the crowns (maybe related)... I replaced all the o-rings I could find. I want to get this baby runnin! Thanks for any help.
    OK... Did some more investigating here. I looks like the tether attached to the PAR piston was broke and the piston slid way up the PAR shaft. This put the piston on the wrong side of a couple holes near the top of the shaft. So whatever side I was pumping ended up in the same spot.

    I bought some 80# test fishing line and braided it to have 6 strands per side. 12 strands total to equal close to 1000# tensile strength. This will be my new PAR tether. Hopefully it works. If not, I will try out the PAR removal mod. Here goes nothing!

  49. #49
    mtbr member
    Reputation:
    Join Date
    Mar 2010
    Posts
    3
    Hi.
    My story:
    I have a 08 Zocchi 888 ATA WC. I bought it with my bike, no warranty any more. It leaked air and i didn't got full travel. I decided to take it to the country's official Marzocchi Distributor, they have serviced it, new oil, and new O-rings. After I finished building up my bike, took it to the city for a test ride. It seemed good, but 2 days later the fork lost all the air in 2-3 seconds, and i lost 20cm of travel....
    Then I could pumped it and it seemed good. It was 2 months ago. Now it leaked air again, i don't used it, so i don't know why. I released all the air from both chambers, then i started to pump it up, i pumped up then when i pushed down the fork, it stucked at the bottom out position. So it stuck down, it doesn't move up or down. And the joke is that it isn't pumped up, the pressure is zero in both of the chambers.

    Now there will be a Bike Expo in my country in March, i will contact with this distributor, and if they can't do anything, i try to service at home with the larger o-ring option, because i think at the service they used the original undersized o-rings......

    And i saw the option for converting it to spring, but is quite expensive i think

    Sorry for long post, if someone has the same problem, or could help me, it would be my pleasure
    Cheers
    Andrew

  50. #50
    mtbr member
    Reputation: Midle Age Warrior's Avatar
    Join Date
    Nov 2006
    Posts
    267

    Quad-ring instead of an o-ring

    Somebody have tried use a Quad-ring instead of a O-ring as Fox use in their rear shocks? I think the quads have better contact surface, but Parkers (the makers of them) suggest the use of nylon washers each side seal (a la Fox) to prevent twisting
    I gave a try once on a rock shock fork and is holding fine so far.
    What do you think??
    In my workshop, dirty hands is a state of mind

  51. #51
    mtbr member
    Reputation:
    Join Date
    Dec 2009
    Posts
    1
    Great info here, thanks to all especially Nick. I had the stuckdown problem on my 2009 44 ATA Micros. Windwave wanted £50 to replace the air cart with a coil cart, neither which I was happy with so thought I'd have a go at fixing them myself. Initally I stripped mine down, cleaned them and reassembled them but it lost travel straight away. On closer examination the original O-ring has a very slight ridge around the outer circumference, which I doubt makes a good seal against the inner wall of the cartridge.

    I got a bit confused with O-ring sizing so measured mine which were 2.5mm x 19mm and ordered some the same and some the next size up.

    Found this guy online which is great

    simplybearings.co.uk

    I ended up using the 2.62mm x 18.72mm. Once stretched on, it measures very slightly larger than the original.

    I went for the more expensive Viton type which according to my engineer bro-in-law is the mutts nuts for oil resistance. Now been for a proper test ride and the travel hasn't lost 1mm.


  52. #52
    mtbr member
    Reputation:
    Join Date
    Mar 2008
    Posts
    106
    I have a 55 ata and I have pulled it apart as per above, looking inside the tube is a rod that is the air valve rod. Do I pull this out and clean and replace any o rings and put, or do I just pull it up and clean it or just replace the o rings on the ata sfaft and put correct amount of oil in there. thanks ahead of time.

  53. #53
    mtbr member
    Reputation: Pelagic's Avatar
    Join Date
    Oct 2010
    Posts
    166
    I'd try your first option, and if that doesn't hold, try the second... And if that doesn't work, send it to Marzocchi for their free retrofit kit (at least if you're in the USA).
    I live in my head...

    Just having fun... Sorry to piss you off...

  54. #54
    mtbr member
    Reputation:
    Join Date
    Mar 2008
    Posts
    106

    08 55 ata spring kit

    Marz. will not rebuild these forks, but will install a spring kit in them. The spring kit removes the travel adjustment and rebound, has anybody done this on there own or had Marz. do it for them? Im rebuilding mine the way that nick printed out above, Im just trying to learn how to do all this myself to be able to work on my own stuff and maybe make it better.

  55. #55
    mtbr member
    Reputation: Pelagic's Avatar
    Join Date
    Oct 2010
    Posts
    166
    Yes, the spring kit is the kit I was referring to. In my case it retained the travel adjustment and the rebound adjustment... Super easy to install but Marz will only do it due to liability. When returned it was much, much, much better performing.
    I live in my head...

    Just having fun... Sorry to piss you off...

  56. #56
    mtbr member
    Reputation:
    Join Date
    Mar 2008
    Posts
    106
    Thank you, if the rebuild does not work ( I just ordered o rings) I will send it in. There is no way to get a hold of the springs kit and do it yourself though huh?

  57. #57
    mtbr member
    Reputation:
    Join Date
    Mar 2008
    Posts
    106
    Thank you man, I guess that is what I will do, I was hoping to find the spring kit and do it my self.But everything comes down to liability and making or saving a buck. Thanks again for the heads up.

  58. #58
    mtbr member
    Reputation: Pelagic's Avatar
    Join Date
    Oct 2010
    Posts
    166
    I whined and complained about sending them in since I'd disassembled/reassembled them probably 10x and knew exactly what was up (they're super-simple, no jesus-clips or surprises fyi) and they just wouldn't do it due to "liability" issues. However, turn-around was less than 10 business days. Before that, I'd get mine to hold for several rides and be stoked thinking I'd fixed it and... WHAM! when you least expect it, there goes your travel. Gruffly-grumble-grumble...
    I live in my head...

    Just having fun... Sorry to piss you off...

  59. #59
    mtbr member
    Reputation:
    Join Date
    May 2012
    Posts
    3
    Fixed my partial stuck down '08 888 ATA WC today. Found the orings needed at Lowes. Had trouble at first since they weren't numbered the same way as someone had said on the first page. If anyone is looking, they are #12 and #14, I got a pack of 10 each size for a whopping total of $4.

  60. #60
    mtbr member
    Reputation: Pelagic's Avatar
    Join Date
    Oct 2010
    Posts
    166
    Cool, hope it holds for you. They aren't a bad for when they're working and you get some confidence back after having them crash down! Nice sense of accomplishment too huh?
    I live in my head...

    Just having fun... Sorry to piss you off...

  61. #61
    mtbr member
    Reputation:
    Join Date
    May 2012
    Posts
    3
    I just like knowing that I 'stuck it to the man'. I'll be at mountain creek on Sunday so we will see how well the lowes motorsports orings hold up!

    My next issue is with the bushings on the ATA side. They are loose as hell, I see they sell a bushing kit but when I called zoke's they said you had to replace the whole lowers with bushings already installed for a mere $200. This seems excessive and wasteful. I know there is a specific tool and I have seen backwoods tools made that work as well, just wondering if anyone has any experience.

  62. #62
    mtbr member
    Reputation:
    Join Date
    Apr 2010
    Posts
    10
    Quote Originally Posted by Biggles604 View Post
    The main o-ring for the stuckdown problem is a size 116, if you are losing air around the shaft, then the internal o-ring for that is 114.
    The 100 series o-rings are all 3/32" thick. if you wanted to go for a slightly oversized o-ring, then you need to go thicker, not a larger diameter. The closest o-rings are:

    # ID OD w
    114 5/8 13/16 3/32
    207 9/16 13/16 1/8
    208 5/8 7/8 1/8

    116 3/4 15/16 3/32
    210 3/4 1 1/8
    209 11/16 15/16 1/8

    For the 114 you want to maintain the same OD, so the 207 is the better choice. For 116 you want the same ID, so 210. With the thicker o-ring, the fit will be really tight, and may be stickier and require a softer o-ring.

    For the fix, I looked at this option, then thought about it carefully and decided to go with stock o-ring sizes. I've now repaired a number of forks, and realised that most of the time, it's contamination of some kind that causes the failure, be it a bit of dirt, a hair, metal shaving. When you re-build, inspect the o-rings carefully, chances are fairly good that you won't have to replace them, just clean then, clean the assembly and carefully reassemble taking great care to maintain cleanliness and you should be good.
    Does anyone have the O-Ring sizes for a 2012 888 RC3 Evo V.2?

  63. #63
    mtbr member
    Reputation:
    Join Date
    May 2012
    Posts
    3
    Marz is pretty tight lipped about that stuff. Your prob best off to tear it down and measure with some calipers.

  64. #64
    mtbr member
    Reputation:
    Join Date
    Dec 2009
    Posts
    109
    One more data point on this thread. I had Marz Canada install the coil conversion kit. Love the feel. I still have travel adjustability. Great fork. ('08 ATA 55)

  65. #65
    mtbr member
    Reputation: KMKAR's Avatar
    Join Date
    Feb 2012
    Posts
    8
    What a great topic/post!! Cheers to Nick_M2R!!
    Hope that this works on a 44 ata from 2009. We'll see... ;-)

  66. #66
    Lets RIDE!
    Reputation: Jim Z in VT's Avatar
    Join Date
    Sep 2007
    Posts
    1,548
    I tore down my '09 44 ata tst2 tonight in preparation to try this fix. One question....are the foot nuts captive in the lowers? when I undid the nuts they stayed on the lowers. There must be an o-ring sealing them. Should I just leave them alone and reassemble as is, or should they be pried out to clean &/or replace the seal?

    Bravo to Nick for posting this how-to, and everyone else who contributed tricks and tips here! One trick I discovered: when trying to open the ATA top cap, those rubber-dipped gardening gloves gave me the grip to do the job solo.
    It's not about speed, it's about lack of control.

  67. #67
    Lets RIDE!
    Reputation: Jim Z in VT's Avatar
    Join Date
    Sep 2007
    Posts
    1,548
    Another successful ATA rebuild here! It cost me $2.50 worth of o-rings and a hour of my time....I'm sure a few cents less than Marz would have charged me not to mention several weeks without my bike. I didn't get out the microscope and inspect them, but the one that had obvious damage was the outer ATA cap seal. While it was open I figured I'd replace all the easily accessible rings....the ATA piston ring, inner and outer ATA cap rings, and both stanchion cap rings. I just took the old o-rings down to the local hardware store and matched them up visually with replacements. I've got 40 - 50 miles on it since the rebuild and it's holding air pressure and height, and it rides like new. I think I got it right!

    (I decided not to try and replace the foot-nut seals I asked about above...they weren't leaking and I didn't want to risk effing something up by forcing them out. But I'm still curious....if anyone knows how they're held in / how they're sealed? )

    Now I'm thinking about digging into the TST side and trying the shim stack conversion.
    It's not about speed, it's about lack of control.

  68. #68
    mtbr member
    Reputation:
    Join Date
    Dec 2011
    Posts
    26
    Great info, this is what was wrong with my 07 66 SL1.
    Shame the par valve snapped off upon re-installation. The foot nut was only finger tight as well.

    I managed to bodge it up and use it without the par chamber.

  69. #69
    Tire Geek O_o
    Reputation: cesalec's Avatar
    Join Date
    Aug 2008
    Posts
    1,025
    Quote Originally Posted by Pelagic View Post
    OK, I'm answering my own question and hope it helps someone! YES, it's the same cartridge, and the whole deal took less than 15 minutes start to finish. I didn't have a spare oring, so I just disassembled, cleaned, reassembled and it's better than it ever was. Perhaps temporary, and I'll replace the oring asap with oversize. Thanks Nick, you are the man!
    I have the same problem with my ATA2 it got stuck down, and no matter what, I cant make it extend. I might give it another try change all O-Rings, but I think my Cartridge is kapputt, gone, finito.

    I havent been able to find much useful information, nor a replacemente cartridge, and since im broken cant affor another fork =/ (which would perhaps be the optimal)...
    http://32spokesmtb.com - Promoting MTB & cycling from Mexico to the World!

  70. #70
    mtbr member
    Reputation: Pelagic's Avatar
    Join Date
    Oct 2010
    Posts
    166
    Call Marzocchi, they will make good. You will have to ship it to them though. Good luck!
    I live in my head...

    Just having fun... Sorry to piss you off...

  71. #71
    Tire Geek O_o
    Reputation: cesalec's Avatar
    Join Date
    Aug 2008
    Posts
    1,025
    Quote Originally Posted by obiwan23 View Post
    Great info here, thanks to all especially Nick. I had the stuckdown problem on my 2009 44 ATA Micros. Windwave wanted £50 to replace the air cart with a coil cart, neither which I was happy with so thought I'd have a go at fixing them myself. Initally I stripped mine down, cleaned them and reassembled them but it lost travel straight away. On closer examination the original O-ring has a very slight ridge around the outer circumference, which I doubt makes a good seal against the inner wall of the cartridge.

    I got a bit confused with O-ring sizing so measured mine which were 2.5mm x 19mm and ordered some the same and some the next size up.

    Found this guy online which is great

    simplybearings.co.uk

    I ended up using the 2.62mm x 18.72mm. Once stretched on, it measures very slightly larger than the original.

    I went for the more expensive Viton type which according to my engineer bro-in-law is the mutts nuts for oil resistance. Now been for a proper test ride and the travel hasn't lost 1mm.

    I just rebuilt my XC 600 ATA2 which had this problem, and it worked! BUT .... since it was friday night I jusg found some orings in home depot, ER110 said the package, I havent had time to check about o ring sizings, but the 2 from this package I installed were a bit to "thick" so I was a bit hard to reinstall the cartridge, it works fine now with a bit stinction, that I hope will be better once the orings break in, although I have no idead about oring´s materials, and cannot comment right now on how durable will this be... but at least I can use the fork now.

    If anyone has rebuilt a XC 600 ATA2 can you tell me which are the correct sizes and which materials are the best, are there any websites to order them in the usa?

    Thanks in advance,
    http://32spokesmtb.com - Promoting MTB & cycling from Mexico to the World!

  72. #72
    mtbr member
    Reputation:
    Join Date
    Oct 2006
    Posts
    18
    I recently had my 2009 Marzocchi 888 ATA WC diagnosed with a blown cartridge. The shop's tech says because the fork is no longer produced by Marzocchi that a replacement part or rebuild is impossible.

    What happened was I hung my bike up on wall hook in my garage and noticed the next day that oil had leaked out of the top of the right fork. Oddly this happened sometime after I took my bike to my local bike shop to get the oil replaced as I had not done any real servicing to the fork since I bought in 2010.

    So would your ATA rebuild fix the problem? I do not know very much about the internal workings of my fork's cartridge and I am wondering if its a blown ATA or the TST is blown, or both?

    -CF-

  73. #73
    mtbr member
    Reputation: Pelagic's Avatar
    Join Date
    Oct 2010
    Posts
    166
    If the fork is stuck down (or won't stay extended), it's the ATA side. That's the side that supports the bike so to speak. On my model, the other side (TST) is not pressurized, just has oil and a damping rod/stack and I don't believe "blown" or "cartridge" would be mentioned. Hope that helps!
    I live in my head...

    Just having fun... Sorry to piss you off...

  74. #74
    Tire Geek O_o
    Reputation: cesalec's Avatar
    Join Date
    Aug 2008
    Posts
    1,025
    Quote Originally Posted by Charlie Fandango View Post
    I recently had my 2009 Marzocchi 888 ATA WC diagnosed with a blown cartridge. The shop's tech says because the fork is no longer produced by Marzocchi that a replacement part or rebuild is impossible.

    What happened was I hung my bike up on wall hook in my garage and noticed the next day that oil had leaked out of the top of the right fork. Oddly this happened sometime after I took my bike to my local bike shop to get the oil replaced as I had not done any real servicing to the fork since I bought in 2010.

    So would your ATA rebuild fix the problem? I do not know very much about the internal workings of my fork's cartridge and I am wondering if its a blown ATA or the TST is blown, or both?

    -CF-

    What are the symptoms? I mean is it stuck down? or what?
    http://32spokesmtb.com - Promoting MTB & cycling from Mexico to the World!

  75. #75
    mtbr member
    Reputation:
    Join Date
    Oct 2006
    Posts
    18
    Quote Originally Posted by cesalec View Post
    What are the symptoms? I mean is it stuck down? or what?
    Yes I guess it would be considered stuck down. I can though pressurize both the PAR and the ATA but after a couple of cycles through the forks travel it does not spring back up to its original fork length.

    So I guess it is the ATA's o-ring seals that need replacing.

    -CF-

  76. #76
    Tire Geek O_o
    Reputation: cesalec's Avatar
    Join Date
    Aug 2008
    Posts
    1,025
    Quote Originally Posted by Charlie Fandango View Post
    Yes I guess it would be considered stuck down. I can though pressurize both the PAR and the ATA but after a couple of cycles through the forks travel it does not spring back up to its original fork length.

    So I guess it is the ATA's o-ring seals that need replacing.

    -CF-
    Yes, it is either the O-ring in the air valve part, or the O-ring within the cartridge most surely. I have tried on mine with several o-ring thicknesses, but so far I havent really gotten it to work...

    Someone mentioned they used the sizes either 115 or 116 (which are both about 2.62mm thick), somebody also mentioned the size 210 (but that one is about 3.1mm thick which seems too much). Perhaps if you can find milimetric o-rings and find something with 2.7 or 2.8mm thickness that would be the best bet. the 115, 116 both keep leaking air...
    http://32spokesmtb.com - Promoting MTB & cycling from Mexico to the World!

  77. #77
    Tire Geek O_o
    Reputation: cesalec's Avatar
    Join Date
    Aug 2008
    Posts
    1,025
    Quote Originally Posted by obiwan23 View Post
    Great info here, thanks to all especially Nick. I had the stuckdown problem on my 2009 44 ATA Micros. Windwave wanted £50 to replace the air cart with a coil cart, neither which I was happy with so thought I'd have a go at fixing them myself. Initally I stripped mine down, cleaned them and reassembled them but it lost travel straight away. On closer examination the original O-ring has a very slight ridge around the outer circumference, which I doubt makes a good seal against the inner wall of the cartridge.

    I got a bit confused with O-ring sizing so measured mine which were 2.5mm x 19mm and ordered some the same and some the next size up.

    Found this guy online which is great

    simplybearings.co.uk

    I ended up using the 2.62mm x 18.72mm. Once stretched on, it measures very slightly larger than the original.

    I went for the more expensive Viton type which according to my engineer bro-in-law is the mutts nuts for oil resistance. Now been for a proper test ride and the travel hasn't lost 1mm.

    I have tried several (114, 115, 116, 117) orings which all have a 2.62mm width, also tried the 210, 209, 208, and 207 (3mm width) and I came to the conclusion I need something with a width of perhaps 2.7 or 2.8mm.

    3mm seems to be too big, and 2,62.... keeps leaking. I measured the originals and their width is also 2.62ish mm.

    I was looking at the oring size you mentioned but I am having problems finding the sizes...

    Perhaps if I try a 3mm (width) oring with a smaller internal diameter, I mean if it gets a bit more streched, could it perhaps be better than the stock 114/116 withoug being too big as a 210 (3mm) ?
    Last edited by cesalec; 02-05-2013 at 01:10 PM.
    http://32spokesmtb.com - Promoting MTB & cycling from Mexico to the World!

  78. #78
    Tire Geek O_o
    Reputation: cesalec's Avatar
    Join Date
    Aug 2008
    Posts
    1,025
    Quote Originally Posted by cesalec View Post
    I have tried several (114, 115, 116, 117) orings which all have a 2.62mm width, also tried the 210, 209, 208, and 207 (3mm width) and I came to the conclusion I need something with a width of perhaps 2.7 or 2.8mm.

    3mm seems to be too big, and 2,62.... keeps leaking. I measured the originals and their width is also 2.62ish mm.

    I was looking at the oring size you mentioned but I am having problems finding the sizes...

    Perhaps if I try a 3mm (width) oring with a smaller internal diameter, I mean if it gets a bit more streched, could it perhaps be better than the stock 114/116 withoug being too big as a 210 (3mm) ?

    Well I finally fixed it, and I found 2 perfect options for the leaky orings that fit exactly and... dont leak air any more:

    1 option is to use a #205 Standard O-ring the inside diameter is small, but once stretched it fits perfectly and better than any other standard sizing (114, 115, 116, 208, 209, 210)...

    the second option which is the one I am testing first for durability, is to use milimetric O-Ring: a 18 or 17mm (I.D.) with a cross section of 3mm fits the same as the #205.

    And thats it problem solved!

    Now I need to hijack the thread a bit, and ask for help, my TST2 controls on my 2008 XC 600 got damaged in the process, my wrench slipped a bit and I damaged the upper part of the TST2 assembly, as well as the lockout lever. I am searching on the web to find where I can buy just these piece (it is a single piece), or if anyone is willing to send me this part of the fork, shoot me a PM!

    Thanks!
    http://32spokesmtb.com - Promoting MTB & cycling from Mexico to the World!

  79. #79
    mtbr member
    Reputation:
    Join Date
    Feb 2013
    Posts
    1
    Quote Originally Posted by cesalec View Post
    1 option is to use a #205 Standard O-ring the inside diameter is small, but once stretched it fits perfectly and better than any other standard sizing (114, 115, 116, 208, 209, 210)...

    the second option which is the one I am testing first for durability, is to use milimetric O-Ring: a 18 or 17mm (I.D.) with a cross section of 3mm fits the same as the #205.
    thanks for the two solutions
    so which option works better for you?

  80. #80
    mtbr member
    Reputation: two-one's Avatar
    Join Date
    Aug 2008
    Posts
    608
    Does anyone have one of these marz55 ATA cartridges lying around? I'm looking for one

  81. #81
    mtbr member
    Reputation:
    Join Date
    Oct 2006
    Posts
    18
    Quote Originally Posted by cesalec View Post
    Well I finally fixed it, and I found 2 perfect options for the leaky orings that fit exactly and... dont leak air any more:

    1 option is to use a #205 Standard O-ring the inside diameter is small, but once stretched it fits perfectly and better than any other standard sizing (114, 115, 116, 208, 209, 210)...

    the second option which is the one I am testing first for durability, is to use milimetric O-Ring: a 18 or 17mm (I.D.) with a cross section of 3mm fits the same as the #205.

    And thats it problem solved!

    :

    So following the quoted specs above i found that the 117mm with a 3mm cross section works well.

    BUT I had some technical issues that I am not sure how to sort out.

    1.
    I replaced all the o-rings with standard 117mm/3mm o-rings but found I could not get the primary ATA piston and shaft to fit all the way into the ATA cartridge. It would just get stuck about 1" deep into the top of the ATA cartridge. I tried to wiggle it down into place but it would not budge. Not sure if its the inner cartridge threads that are preventing it from sliding down or if its how the ATA cartridge has a slight inset to its housing just below the inside threads.

    2.
    So I kept the original o-ring on the ATA piston but used the 117mm/3mm o-rings on the PAR system and the ATA cap. Before I sealed it all up I cleaned and lubed everything up nice and wet.

    3.
    After this I reinserted the cartridge back into the larger stanchion and tightened everything into place and pressurized the PAR system.

    4.
    Here's where it gets weird. Once the PAR system was filled I attempted to pressurize the ATA but noticed that it already had a PSI reading that was identical to the PAR. I deflated the ATA and then looked to see if this affected the PAR pressure which it did. So it appears that the PAR and ATA are now sharing the same air pressure for whatever reason.

    Thinking back to when I reassembled the ATA cartridge. I think that the PAR shaft slid inside the ATA shaft as I slid it down after the ATA cap was screwed into place.

    Is this incorrect?

    5.
    So oddly enough the fork now holds its pressure although I cannot get 8 inches of travel, just 7.5 inches. Have ridden my bike in my driveway a few times doing aggressive bunny hops and so far the fork's pressure holds fine and rebounds back to its current 7.5" of travel length.

    6.
    Questions.

    A.
    What might be the pressure issue in regards to how the ATA and PAR appear to be sharing one pressure setting?

    B.
    What might be preventing the ATA piston and shaft to fully slide inside the ATA cartridge when using the 117mm/3mm o-ring?


    Hope my write up here is not too confusing?

    -CF-

  82. #82
    mtbr member
    Reputation:
    Join Date
    Aug 2012
    Posts
    574
    This thread is hella old, but curious if this same procedure/steps/process is useful for a 2012 55 micro switch TA. Thoughts?

  83. #83
    Mountainbiker
    Reputation:
    Join Date
    Jan 2013
    Posts
    10
    In 2010 Marzocchi completely dropped the ATA travel adjust.

  84. #84
    mtbr member
    Reputation:
    Join Date
    Apr 2017
    Posts
    1
    For several months last year I was struggling to properly fix my XC600 ATA2 140mm forks. The ATA2 cartridge was leaking air and oil was entering the cylinder from the top.

    The information in this thread was really useful but a little vague or fragmented across different posts. So I thought I would post a labelled photo and details of alternative metric o-rings I calculated would fit.

    How to: Fix your stuckdown 07/08/09 Marzocchi 55/66/888 ATA fork: Pics-ata2_cart_photo_labelled.jpg

    ATA2 Piston Seal

    If this seal fails it results in air leaking into the negative chamber and causing 'stuck down' issue.

    • Original BS116: 18.70 x 23.96 x 2.62 <-- I fitted X-ring in this size
    • Closest Metric: 18.40 x 23.70 x 2.70
    • Alt Metric: 16 x 22 x 3

    For the Piston seal I actually found a source for X-rings (quad-rings). Difficult to say if any better than an O-ring but it has been working perfectly for me.


    ATA2 Piston Rod Seal

    When this seal fails it can result in air from negative chamber leaking into the stanchion and also stanchion oil leaking back into the piston chamber. One indication of this is significant oil leaking from the air valve.

    • Original BS616: 15.08 x 20.32 x 2.62
    • Closest Metric: 14.5 x 20.5 x 3 <-- I fitted this size
    • Alt Metric: 15 x 21 x 3
    • Alt Imp BS114: 15.54 x 20.78 x 2.62


    I live in the UK and found SEALFORCE to be a great o-ring stockist who also are based just down the road from me so I could pop in and get a selection of individual o-rings very cheaply but they also have a ebay page with reasonable prices.

    Another question that pops up is what type of rubber and nitrile seems just fine in this application. You can use viton but it is more expensive and only really applicable for high-pressure/temperature usage.

    Finally when putting the piston back into the cylinder remember to set the negative chamber. The recommended depth is ~50mm down from top of cylinder to top of piston.

    Also the left hand ATA2 stanchion leg for my XC600 requires 50cc of oil.

Members who have read this thread: 10

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
