  1. #51
    moaaar shimz
    Reputation: tacubaya's Avatar
    Join Date
    Jan 2006
    Posts
    9,097
    As Steve says, you have to consider the net force of an air spring. The positive pressure chamber will generate a resultant force on the air shaft (going downwards) equal to the instantaneous pressure times the piston area and the negative pressure will generate another force but pointing upwards (unless the instantaneous pressure is negative, in that case it goes downwards). Net force is the difference.

    There are SO many parameters one can change on an air spring. Positive and negative pressure, piston diameter, non-compressed volume, initial negative chamber volume etc.

    Here is a 210mm tall air chamber with 150mm of travel, 1.5 cubic inches negative volume, with 65 psi in the positive chamber and 70 psi in the negative chamber, 1.1 inch piston diameter, adiabatic compression of air:



    And after adding 10 cc of oil in the air chamber:



    People doing the air shaft cutting mod were doing the reverse process.

  2. #52
    Save Jesus
    Reputation: beanbag's Avatar
    Join Date
    Nov 2005
    Posts
    2,731
    yeah, but how linear can you get it?

  3. #53
    mtbr member
    Reputation:
    Join Date
    Sep 2011
    Posts
    265
    Quote Originally Posted by Jayem View Post
    Not sure what you are disagreeing with, hydrolock can still occur with a shim-stack setup. Ports aren't big enough, etc...
    True, but it's a small problem compared with orifice dampers. Your descriptions just didn't seem to make the distinction between the two is all.

  4. #54
    BC
    BC is offline
    mtbr member
    Reputation: BC's Avatar
    Join Date
    Jan 2006
    Posts
    867
    Quote Originally Posted by bog View Post
    Just curious, has anyone here actually looked at the air spring assembly of any of the longer travel Fox forks? The negative coil spring is drastically different than older Fox forks. I have pictures of a 2013 Fox 36 Float RLC Factory if anyone wants to see the guts. It is quite interesting that Fox went to so much expense to create a more linear spring rate,
    I saw FOX posted the 2013 air spring curve on their website using a longer negative coil spring. Sounds like a good improvement over the older float models. I would like to try one. looks like the weight went up a little as a result of the longer negative spring.

  5. #55
    moaaar shimz
    Reputation: tacubaya's Avatar
    Join Date
    Jan 2006
    Posts
    9,097
    Quote Originally Posted by beanbag View Post
    yeah, but how linear can you get it?
    Very linear.

  6. #56
    Vorsprung Suspension
    Reputation: Steve VS's Avatar
    Join Date
    Oct 2012
    Posts
    88
    Quote Originally Posted by bog View Post
    Then maybe you can explain how. Just denying it with no explanation does nothing add credibility to your argument. The guys at Fox and SRAM are no dummies you know.
    Manipulation of the compression/expansion ratios of the positive and negative chambers alone is all that need to be done, as tacubaya has demonstrated. How that is achieved mechanically is up to the creativity of the designer.
    VorsprungSuspension.com - fully engineered suspension retuning & servicing in Whistler, BC.

  7. #57
    Save Jesus
    Reputation: beanbag's Avatar
    Join Date
    Nov 2005
    Posts
    2,731
    Quote Originally Posted by Steve VS View Post
    Manipulation of the compression/expansion ratios of the positive and negative chambers alone is all that need to be done, as tacubaya has demonstrated. .
    His demonstration was not very linear at all.

  8. #58
    moaaar shimz
    Reputation: tacubaya's Avatar
    Join Date
    Jan 2006
    Posts
    9,097
    Quote Originally Posted by beanbag View Post
    His demonstration was not very linear at all.
    Here is the same air spring system, but with a little bit smaller initial negative chamber volume and larger positive air chamber.



    I'd say it is pretty linear, don't you think?

  9. #59
    Save Jesus
    Reputation: beanbag's Avatar
    Join Date
    Nov 2005
    Posts
    2,731
    Did you use PV=const, or P(V^1.4)=Const?
    Plot the derivative (spring rate), and we'll see.

  10. #60
    mtbr member
    Reputation: ColinL's Avatar
    Join Date
    Feb 2012
    Posts
    2,944
    Plot the two original series on one chart.

  11. #61
    moaaar shimz
    Reputation: tacubaya's Avatar
    Join Date
    Jan 2006
    Posts
    9,097
    Quote Originally Posted by beanbag View Post
    Did you use PV=const, or P(V^1.4)=Const?
    Plot the derivative (spring rate), and we'll see.



  12. #62
    Vorsprung Suspension
    Reputation: Steve VS's Avatar
    Join Date
    Oct 2012
    Posts
    88
    To back that up, see below, using adiabatic compression and expansion assumptions. The fitted trendline is linear, through the origin, with an R^2 fit value of over 0.999 - in other words, it's pretty damn accurate.

    Most coil sprung shocks (exception being the CCDB with its tiny shaft) have a comparable variation from dead linear based purely on the gas charge effect on the shaft, and the difference between a 300lbs/in and a 350lbs/in spring is about 17%, vs the ~10% maximum differences in rate in the curve shown below (more playing around with the geometry and the variation in rate could quite literally be reduced to <1%, but that geometry is getting less realistic from a design point of view). The point with that comparison being that people select the nearest coil rate possible, so even with the most appropriate spring possible being chosen, the rider is potentially compromising on his ideal rate by as much or more than an air spring rate can be made to vary throughout its stroke, which then implies that the required variation tolerance for a given spring rate allows for more variation than an air spring can be made to provide.

    On top of that, there is no reason to assume that any particular mathematical convenience (such as a completely linear spring rate) is inherently "ideal". Anything that is being ridden hard tends to work best with some degree of spring rate progression - how much progression is required is the real question. I think air spring development will render coils completely obsolete sooner or later. FOX and SRAM may be no dummies, but they aren't there yet either.

    Edit: I should also mention these curves are achieved using only a single positive/negative chamber, no DRCV trickery or coil negative springs or whatever. Using more complex systems can allow for even closer to linear rates within certain design constraints (size and operating pressure are the big ones).
    Attached Thumbnails Attached Thumbnails Explain &quot;too linear&quot; 2013 Fox forks to me.-lin_rate01.jpg

    VorsprungSuspension.com - fully engineered suspension retuning & servicing in Whistler, BC.

  13. #63
    Save Jesus
    Reputation: beanbag's Avatar
    Join Date
    Nov 2005
    Posts
    2,731
    Quote Originally Posted by tacubaya View Post

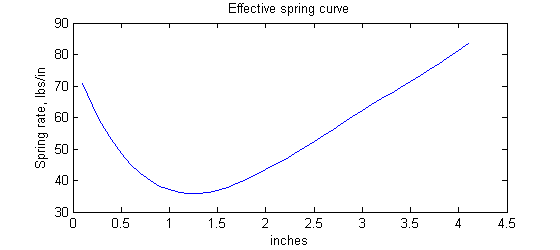

    You have an interesting way of taking the derivative where a force can increase 50 lbs in .8 inches, yet the rate is less than 50. And where the force takes 2 inches to make 50 lbs yet the rate is above 25.

    Steve: That is totally cheating LOL where you are taking only the small portion of a ridiculously large air chamber that won't fit in a fork. At least Tacubaya is using realistic volumes and still getting >2x variation in spring rate.

  14. #64
    Vorsprung Suspension
    Reputation: Steve VS's Avatar
    Join Date
    Oct 2012
    Posts
    88
    Quote Originally Posted by beanbag View Post
    Steve: That is totally cheating LOL where you are taking only the small portion of a ridiculously large air chamber that won't fit in a fork. At least Tacubaya is using realistic volumes and still getting >2x variation in spring rate.
    Not at all. It has nothing to do with absolute size and everything to do with ratios. Play around with it for yourself, the point has been proven. Guaranteed, the characteristic shown in my graph could be generated by a fork.

    As I've also pointed out, arguing about this is irrelevant unless you actually want a completely linear spring rate - which in my opinion, is less than optimal unless you have a linkage (ie it's on a rear shock) to manipulate the wheel rate to become progressive.

    When people start asking "what kind of spring characteristic should we be looking for" rather than "how do I make my spring rate match a simple but irrelevant mathematical formula" these discussions will become a lot more relevant and useful.
    Last edited by Steve VS; 11-07-2012 at 11:22 PM.
    VorsprungSuspension.com - fully engineered suspension retuning & servicing in Whistler, BC.

  15. #65
    Save Jesus
    Reputation: beanbag's Avatar
    Join Date
    Nov 2005
    Posts
    2,731
    Quote Originally Posted by Steve VS View Post
    Not at all. It has nothing to do with absolute size and everything to do with ratios. Play around with it for yourself, the point has been proven. Guaranteed, the characteristic shown in my graph could be generated by a fork.
    .
    why don't you share the numbers you used to make those graphs?

  16. #66
    Vorsprung Suspension
    Reputation: Steve VS's Avatar
    Join Date
    Oct 2012
    Posts
    88
    Quote Originally Posted by beanbag View Post
    why don't you share the numbers you used to make those graphs?
    Sorry, but if you're not able to perform the calculations yourself then I'm not about to publish it for free - this stuff is my actual job, and this discussion is not actually producing anything worth knowing. As I have said several times, there are far more useful characteristics you should be concerned with.
    VorsprungSuspension.com - fully engineered suspension retuning & servicing in Whistler, BC.

  17. #67
    Save Jesus
    Reputation: beanbag's Avatar
    Join Date
    Nov 2005
    Posts
    2,731
    Well if you aren't going to share the numbers then mr bog and myself will remain skeptical that you can do much better than a 2x variation in spring rate like tacubaya has shown. And by sharing numbers, I just means air volumes and etc. I can do the very basic algebra to come up with the curve, thanks.

    As far as I can tell, if you want to make the fork's displacement a small ratio of the total (limited) air volume, you have to use a really small piston, and to get the right forces, you have to use really high pressures. Unless there is some other trick I am missing. But it looks like you don't want to say.

  18. #68
    Vorsprung Suspension
    Reputation: Steve VS's Avatar
    Join Date
    Oct 2012
    Posts
    88
    You are correct that to increase linearity given design constraints of a fork, the operating pressure needs to increase. Once that pressure hits the ceiling of what you are willing to work with, you have hit the limit of how linear you can make a conventional pos/neg air spring. I'm not trying to hide stuff here as I have already stated that I don't believe a dead linear spring is anything special anyway. However I don't ever post up usable numbers online sorry, it's not in my interests to do other companies' research and development for them.

    Steve
    VorsprungSuspension.com - fully engineered suspension retuning & servicing in Whistler, BC.

  19. #69
    Save Jesus
    Reputation: beanbag's Avatar
    Join Date
    Nov 2005
    Posts
    2,731
    ok, thank you. So it seems air only forks still can't really get away from that problem of the high initial spring rate.

  20. #70
    mtbr member
    Reputation:
    Join Date
    Sep 2012
    Posts
    14
    Quote Originally Posted by tacubaya View Post
    Very linear.
    But the first , say, 1.50" is in sag anyhow. Still looks pretty progressive to me. 2.00 - 6.00".
    DR

  21. #71
    moaaar shimz
    Reputation: tacubaya's Avatar
    Join Date
    Jan 2006
    Posts
    9,097
    Quote Originally Posted by beanbag View Post
    You have an interesting way of taking the derivative where a force can increase 50 lbs in .8 inches, yet the rate is less than 50. And where the force takes 2 inches to make 50 lbs yet the rate is above 25.

    Steve: That is totally cheating LOL where you are taking only the small portion of a ridiculously large air chamber that won't fit in a fork. At least Tacubaya is using realistic volumes and still getting >2x variation in spring rate.
    Yea that image was the first one I uploaded, which I immediately noticed was incorrect. It was replaced with the correct graph but photobucket is updating their system so I guess it will take a while for the image to update.

    As Steve says, do not concentrate on the linearity of the springs, concentrate on what spring rate fits your terrain and riding style best.

  22. #72
    ban
    ban is online now
    mtbr member
    Reputation:
    Join Date
    Jul 2004
    Posts
    1,396
    I was set to install a '13 RC2 cartridge on my Fox Float 36 RLC '12 precisely to avoid the fork being too progressive but reading this thread is making me think it's not going to help???

  23. #73
    Fat-tired Roadie Moderator
    Reputation: AndrwSwitch's Avatar
    Join Date
    Nov 2007
    Posts
    17,914
    ^^^
    Do you really feel your fork is too progressive? At the risk of being cliche, for me "that's not a bug, it's a feature."

    I could still see it if the '13 models have taken care of other stuff that's irritating.
    "Don't buy upgrades; ride up grades." -Eddy Merckx

  24. #74
    mtbr member
    Reputation: ColinL's Avatar
    Join Date
    Feb 2012
    Posts
    2,944
    Quote Originally Posted by AndrwSwitch View Post
    ^^^
    Do you really feel your fork is too progressive? At the risk of being cliche, for me "that's not a bug, it's a feature."
    If you go all the way back to the original post, you can see that the thread starter is happy with his 2013 Fox fork, and was wondering what all the beef is about. 3 pages later, we've aired a lot of beef and learned a few things.

    One thing I learned here and in another older thread is that some folks have unreasonable expectations of balancing suspension travel, plushness, brake dive and bottoming out. If your trail has a wide of conditions, you are going to have to pick what you want most. Having highly adjustable components is a huge advantage, though, because you can quickly make changes to suit each trail.

  25. #75
    ban
    ban is online now
    mtbr member
    Reputation:
    Join Date
    Jul 2004
    Posts
    1,396
    In my case, I'd like to be able to use all my fork travel with the SAG I just need for my weight and my riding preferences, that's all, and I thought having the newer cartridge I could make the fork use all the travel playing with the HS adjuster...
    Last edited by ban; 11-09-2012 at 09:51 AM.

  26. #76
    Save Jesus
    Reputation: beanbag's Avatar
    Join Date
    Nov 2005
    Posts
    2,731
    Quote Originally Posted by tacubaya View Post
    As Steve says, do not concentrate on the linearity of the springs, concentrate on what spring rate fits your terrain and riding style best.
    I would not be making a big stink about this if it weren't for the fact that the real-life spring curve I plotted causes me to not get the last 3/4 inch of travel, while wallowing thru the first 3. One of the main reasons I moved away from my Reba fork towards a Minute Pro.

  27. #77
    Fat-tired Roadie Moderator
    Reputation: AndrwSwitch's Avatar
    Join Date
    Nov 2007
    Posts
    17,914
    If it's plush as it is and at its current sag, just be happy. How much are you leaving on the table anyway?
    "Don't buy upgrades; ride up grades." -Eddy Merckx

  28. #78
    ban
    ban is online now
    mtbr member
    Reputation:
    Join Date
    Jul 2004
    Posts
    1,396
    I think I have never bottomed it out using a 30% of SAG, and I normally have like 3cm that I don't use... but I do bottom out the Fox RP23 '12 so I suppose I ride "hard" enough

  29. #79
    mtbr member
    Reputation:
    Join Date
    Sep 2012
    Posts
    14
    Rather than finding out, "what spring rate fits your terrain and riding style best," It's more about what your bike was designed for. A friend has a Specialized Enduro that has progressive linkage. Now throw an air spring and the final rate is almost logrithmic. No amount of tweaking will increase the rebound capacity to slow the spring force at full compression.

    DR

  30. #80
    moaaar shimz
    Reputation: tacubaya's Avatar
    Join Date
    Jan 2006
    Posts
    9,097
    We're talking about forks.

  31. #81
    mtbr member
    Reputation:
    Join Date
    Jan 2004
    Posts
    7,966
    Quote Originally Posted by beanbag View Post
    I would not be making a big stink about this if it weren't for the fact that the real-life spring curve I plotted causes me to not get the last 3/4 inch of travel, while wallowing thru the first 3. One of the main reasons I moved away from my Reba fork towards a Minute Pro.
    I am currently running a Tower Expert (coil w/ air assist) and just Installed a Tower Pro on my second bike. The Expert is one of the best performing short travel fork's I have used. It has excellent small bump compliance w/ no wallow or dive. I added oil to the spring chamber to gain progression - adding more air degraded performance. Now the Pro hasn't hit the trails yet but from just compressing the fork down the driveway it feels like its going to be a wallower.

  32. #82
    Save Jesus
    Reputation: beanbag's Avatar
    Join Date
    Nov 2005
    Posts
    2,731
    Quote Originally Posted by keen View Post
    Now the Pro hasn't hit the trails yet but from just compressing the fork down the driveway it feels like its going to be a wallower.
    Yeah, it is a funny spring system design. I think the intent is that right as the coil spring is about to bottom out the air spring takes over. So in a way, you have to match the coil spring to your weight or intended stiffness, and the air pressure has to match that, if you want a smooth transition.

  33. #83
    mtbr member
    Reputation: Salespunk's Avatar
    Join Date
    Sep 2005
    Posts
    4,277
    Quote Originally Posted by ban View Post
    I was set to install a '13 RC2 cartridge on my Fox Float 36 RLC '12 precisely to avoid the fork being too progressive but reading this thread is making me think it's not going to help???
    Better bet would be to shorten the air rod and increase the air spring volume. Not worth the expense of purchasing the new air spring. Also be aware that a large part of the progressive nature of the '12 is the RLC damper.

  34. #84
    ban
    ban is online now
    mtbr member
    Reputation:
    Join Date
    Jul 2004
    Posts
    1,396
    I'd prefer not make any mod if possible but cheers for the advice, in any case and seeing what you say about the RLC damper, is it possible then to make the fork more linear with a RC2 cartridge?? cheers!!!!!

    Quote Originally Posted by Salespunk View Post
    Better bet would be to shorten the air rod and increase the air spring volume. Not worth the expense of purchasing the new air spring. Also be aware that a large part of the progressive nature of the '12 is the RLC damper.

  35. #85
    mtbr member
    Reputation:
    Join Date
    Jan 2004
    Posts
    7,966
    Quote Originally Posted by beanbag View Post
    Yeah, it is a funny spring system design. I think the intent is that right as the coil spring is about to bottom out the air spring takes over. So in a way, you have to match the coil spring to your weight or intended stiffness, and the air pressure has to match that, if you want a smooth transition.
    According to Manitou the sole purpose of the coil is to eliminate stichion that you would have in a full air spring fork. The coil is used used to set sag and breakaway movement after that its supposed to be on the air spring. The pictures I have seen lead me to believe that coil would move quite a bit especially if it were to bottom. I plan on adding oil to the air chamber to see if it adds progression w/o limiting travel.

  36. #86
    Save Jesus
    Reputation: beanbag's Avatar
    Join Date
    Nov 2005
    Posts
    2,731
    To be honest, I don't know how much the spring helps with the stiction. The fork seems to have plenty of that by itself, whether it is due to the bushings or seals or whatever. If the spring actually helped reduce breakaway force, you would feel the fork move a fraction of an inch first before feeling something "break away". However, what others have told me seems to be true in that the forks feels kind of sticky in the parking lot, but after a few minutes of riding, it seems to plush out a bit on the trail.

    The air piston in the fork has an area of about .9 sq inches, so if you pumped to fork to 70psi, for example, the spring is going to be doing all of the first 63 lbs. I'm not sure at what force the spring bottoms out, so you may be right that both the air and coil spring are active mid stroke. That would mean, though, that the spring rate would suddenly increase when the coil spring bottoms out. I am running the soft spring and about 55-60 psi, and I can say that I don't feel anything funny in the spring behavior, nor break-away stiction related.

  37. #87
    mtbr member
    Reputation:
    Join Date
    Sep 2012
    Posts
    14
    Quote Originally Posted by tacubaya View Post
    We're talking about forks.
    It was the quote I was referring to. A bike suspension "system" that was designed with coil in mind, might not work with an air fork. Tweak it all you want. You can't change the welded tubes with more oil volume.

    But , thanks for the clarity.

    DR

  38. #88
    moaaar shimz
    Reputation: tacubaya's Avatar
    Join Date
    Jan 2006
    Posts
    9,097
    Quote Originally Posted by dirtracer View Post
    It was the quote I was referring to. A bike suspension "system" that was designed with coil in mind, might not work with an air fork. Tweak it all you want. You can't change the welded tubes with more oil volume.

    But , thanks for the clarity.

    DR
    Ah yea, rear suspension is a whole other enchilada.
