    1x10 using Dyna Sys XT?

    Hello!
    I just purchased a new Intense Tracer Vp and ordered some sweet Shimano XT 10 speed stuff to go on it!

    But...I went for a 1x10....not really knowing if this will work...I plan on using just one 32t chainring on front and the 10 speed cassette (11-36) at the back....Will it work? Chain guide duties will be taken care of with an mrp chainguide.

    Should I use the stock 32t chainring? Or go with an aftermarket single speed DH ring, like the ones e13 or mrp make?

    I did order a 10 speed chain BTW....

    Thank you!
    My Bike: http://forums.mtbr.com/showpost.php?...3&postcount=49

    On-One Whippet 650b XC machine

  2. #2
    mtbr member
    Reputation: crank1979's Avatar
    Join Date
    Feb 2006
    Posts
    1,704
    I run 1 x 10 XT on my Firebird and it works brilliantly.

    XT rear derailleur, chain, cassette and shifter.
    Saint cranks.
    Renthal chainring
    E13 LG1+ chainguide

  3. #3
    mtbr member
    Reputation: dhbomber's Avatar
    Join Date
    Nov 2006
    Posts
    793
    Quote Originally Posted by crank1979@optusnet.com.au
    I run 1 x 10 XT on my Firebird and it works brilliantly.

    XT rear derailleur, chain, cassette and shifter.
    Saint cranks.
    Renthal chainring
    E13 LG1+ chainguide
    Ah Great!
    Thanks for responding!
    I think I'm gonna have to order a single speed chainring...or downhill chainring...Those Renthal stuff looks pretty awesome! Mini-moto!

    What size chainring do you use? And what terrain do you ride on? I mean, do you climb a lot?
    My Bike: http://forums.mtbr.com/showpost.php?...3&postcount=49

    On-One Whippet 650b XC machine

  4. #4
    Full fledged member
    Reputation: BillyWayne's Avatar
    Join Date
    Jun 2010
    Posts
    74
    I also was thinking of doing a 1x10 with XT dyna-sys. I was thinking a 32 or 34 up front with a 11-36 rear. Do I need a long rear derailer?

  5. #5
    mtbr member
    Reputation: gticlay's Avatar
    Join Date
    Dec 2007
    Posts
    6,620
    My stuff is arriving today. XT 10 speed with mid-cage, 11-36, 32t e.13 single speed front ring, Straitline silentguide... I have been running 9spd 11-34 and I just need that one extra gear for the really steep stuff. Can't wait to try it. I would have bought the Renthal but it wasn't available in the US.
    "It looks flexy"

  6. #6
    Full fledged member
    Reputation: BillyWayne's Avatar
    Join Date
    Jun 2010
    Posts
    74
    How necessary is the chain guide?

  7. #7
    mtbr member
    Reputation: gticlay's Avatar
    Join Date
    Dec 2007
    Posts
    6,620
    Quote Originally Posted by BillyWayne
    How necessary is the chain guide?
    With 1x9 you need something. There are some really nice minimal ones from e.13 and mrp for XC people but for AM or more you really need a guide/tensioner.
    "It looks flexy"

  8. #8
    Full fledged member
    Reputation: BillyWayne's Avatar
    Join Date
    Jun 2010
    Posts
    74
    Thanks. I ride XC with a 3x now and stay mostly in the 32 crank. I don't have issues with the chain falling off now so I was wondering why I would need one with a 1x setup.

  9. #9
    mtbr member
    Reputation: crank1979's Avatar
    Join Date
    Feb 2006
    Posts
    1,704
    There's a bit of climbing around my way. Mostly short, steep, technical stuff but I have a long gradual climb to get to it all. The short steep, technical stuff is a bit harder but I'll get fitter.

    I'm using a 34 tooth chainring with the 11-36 cassette and medium cage derailleur. The guide is very quiet. Initally I wasn't sure it was going to fit on the 2 ring Saint cranks, but it did. If it didn't I was going to use a Straitline Silent Guide.

    It's a pretty wide spread using one chainring across the whole cassette. I'm happy to have a little extra weight knowing the chain isn't going to come off.

  10. #10
    mtbr member
    Reputation: gticlay's Avatar
    Join Date
    Dec 2007
    Posts
    6,620
    Quote Originally Posted by BillyWayne
    Thanks. I ride XC with a 3x now and stay mostly in the 32 crank. I don't have issues with the chain falling off now so I was wondering why I would need one with a 1x setup.
    You can use your front derailleur but it doesn't have the "wall" effect the guides do - your chain can fall down on the granny tabs or on your bb shell which you don't want.
    "It looks flexy"

  11. #11
    mtbr member
    Reputation: dhbomber's Avatar
    Join Date
    Nov 2006
    Posts
    793
    Hey thanks for all your replies!

    Few things:

    Would it be rideable with just the 1.x chainguide by MRP?

    Does the 10 speed chain compatible with the single speed chainring?
    My Bike: http://forums.mtbr.com/showpost.php?...3&postcount=49

    On-One Whippet 650b XC machine

  12. #12
    mtbr member
    Reputation:
    Join Date
    Apr 2008
    Posts
    315
    1 x 10 XT setup. I ordered a Paul but it wouldn't work with my frame, so I went without a keeper. First ride and no issues. 12"-24" climb up/ drops through rock gardens and all good. I think smart shifting plays as big of a role as the step ups and drops. Nothing under heavy torque. Others may experience something different or ride hard core and need one, I don't know. I can only speak to my experience.

  13. #13
    GUIDANCE COUNSELOR
    Reputation: NoahColorado's Avatar
    Join Date
    Aug 2004
    Posts
    3,144
    Quote Originally Posted by dhbomber
    Hey thanks for all your replies!

    Few things:

    Would it be rideable with just the 1.x chainguide by MRP?

    Does the 10 speed chain compatible with the single speed chainring?
    Our 1.X is primarily aimed at shorter travel full suspension bikes and hardtails. Our new Lopes SL guide is probably your best bet. It's a brand new product and we're trying to fit it to as many bikes as possible to ensure it's compatibility, so I can't guarantee it's gonna work. We haven't tried it on the Tracer yet, but I'm 99% confident.

    We did just fit one to a Blur XC carbon (w/ Shimano 10) and had to clock it a bit counter-clockwise from ideal to clear the stay, so it doesn't provide heaps of tension, but will keep your chain on. We also used our Podium non-ramped ring on this setup.
    NOAH SEARS
    MRP
    TECH QUESTIONS HERE: INFO@MRPBIKE.COM

  14. #14
    mtbr member
    Reputation: dhbomber's Avatar
    Join Date
    Nov 2006
    Posts
    793
    Quote Originally Posted by NoahColorado
    Our 1.X is primarily aimed at shorter travel full suspension bikes and hardtails. Our new Lopes SL guide is probably your best bet. It's a brand new product and we're trying to fit it to as many bikes as possible to ensure it's compatibility, so I can't guarantee it's gonna work. We haven't tried it on the Tracer yet, but I'm 99% confident.

    We did just fit one to a Blur XC carbon (w/ Shimano 10) and had to clock it a bit counter-clockwise from ideal to clear the stay, so it doesn't provide heaps of tension, but will keep your chain on. We also used our Podium non-ramped ring on this setup.
    Wow thanks! I did ask you guys if the Lopes was gonna be available...So I will probably call my LBS and change the 1.x for the Lopes...You guys said to me in the email, that you just have the bottom bracket version...not ISCG..is this true? when will the guide with ISCG mounts be available?
    My Bike: http://forums.mtbr.com/showpost.php?...3&postcount=49

    On-One Whippet 650b XC machine

  15. #15
    GUIDANCE COUNSELOR
    Reputation: NoahColorado's Avatar
    Join Date
    Aug 2004
    Posts
    3,144
    Quote Originally Posted by dhbomber
    Wow thanks! I did ask you guys if the Lopes was gonna be available...So I will probably call my LBS and change the 1.x for the Lopes...You guys said to me in the email, that you just have the bottom bracket version...not ISCG..is this true? when will the guide with ISCG mounts be available?
    I'm not sure, I just started last week so I don't know what the availibility is on all of our new products and their various versions. I'll find out for you on Monday.
    NOAH SEARS
    MRP
    TECH QUESTIONS HERE: INFO@MRPBIKE.COM

  16. #16
    Full fledged member
    Reputation: BillyWayne's Avatar
    Join Date
    Jun 2010
    Posts
    74
    Are the XT Dyna-Sys chainrings available now? I would like to just buy a new chainring instead of buying a new crank to get the chainrings. Or can I use my existing chainring with the XT Dyna-Sys cassette?
    1.21 Gigawatts

  17. #17
    GUIDANCE COUNSELOR
    Reputation: NoahColorado's Avatar
    Join Date
    Aug 2004
    Posts
    3,144
    Quote Originally Posted by dhbomber
    Wow thanks! I did ask you guys if the Lopes was gonna be available...So I will probably call my LBS and change the 1.x for the Lopes...You guys said to me in the email, that you just have the bottom bracket version...not ISCG..is this true? when will the guide with ISCG mounts be available?
    Still about 30 days out for the ISCG Lopes guides. BB mount versions are in-stock now. Thanks
    NOAH SEARS
    MRP
    TECH QUESTIONS HERE: INFO@MRPBIKE.COM

  18. #18
    mtbr member
    Reputation: dhbomber's Avatar
    Join Date
    Nov 2006
    Posts
    793
    Quote Originally Posted by NoahColorado
    Still about 30 days out for the ISCG Lopes guides. BB mount versions are in-stock now. Thanks
    Hey man thanks a lot!
    Gonna ask my LBS today!
    Thank you!
    My Bike: http://forums.mtbr.com/showpost.php?...3&postcount=49

    On-One Whippet 650b XC machine

  19. #19
    mtbr member
    Reputation:
    Join Date
    Apr 2008
    Posts
    315
    I'm using my existing XT 770 middle ring with no problems. When it wears I think I will probably find a non ramped single speed specific ring (running 1x10 setup).

  20. #20
    mtbr member
    Reputation: dhbomber's Avatar
    Join Date
    Nov 2006
    Posts
    793
    Quote Originally Posted by Coop29
    I'm using my existing XT 770 middle ring with no problems. When it wears I think I will probably find a non ramped single speed specific ring (running 1x10 setup).
    Thats EXACTLY what I wanted to know!
    Did you use different chainring bolts?
    My Bike: http://forums.mtbr.com/showpost.php?...3&postcount=49

    On-One Whippet 650b XC machine

  21. #21
    mtbr member
    Reputation: gticlay's Avatar
    Join Date
    Dec 2007
    Posts
    6,620
    FYI, I'm using the e.13 1x chainring and it's working well with the Shimano 10 speed chain.
    "It looks flexy"

  22. #22
    mtbr member
    Reputation: crank1979's Avatar
    Join Date
    Feb 2006
    Posts
    1,704
    I'm using the Renthal SR4 chainring and it's working fine.

  23. #23
    mtbr member
    Reputation:
    Join Date
    Oct 2010
    Posts
    22
    that's great,
    i want to buy a 1x10 speed for my enduro/freeride bike, and so want to buy the new xt derailleur, so i can use as i want , any chainring, in 34t or 36 or 32t? because shimano says that you can use a 32t , but not a specific shimano chainring

  24. #24
    mtbr member
    Reputation:
    Join Date
    Jul 2007
    Posts
    428
    9-speed chainrings work fine with 10s setups.

  25. #25
    mtbr member
    Reputation:
    Join Date
    Oct 2010
    Posts
    22
    ok nice.thanks a lot

  26. #26
    mtbr member
    Reputation: dhbomber's Avatar
    Join Date
    Nov 2006
    Posts
    793

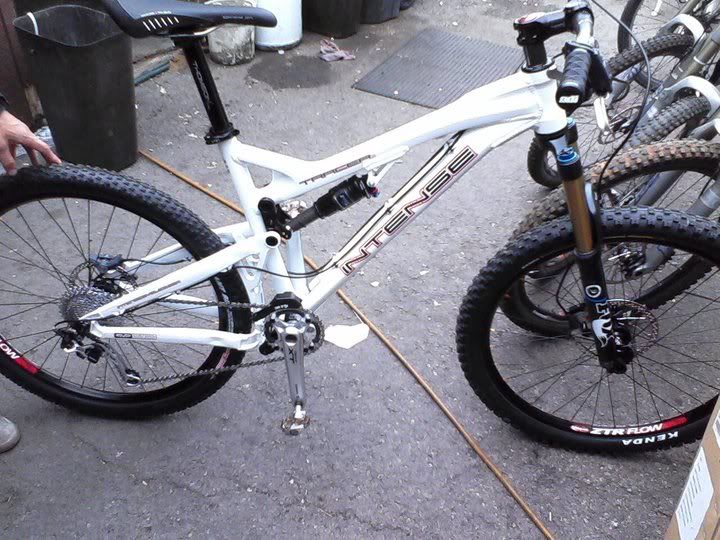

    So heres the bike with the 1x10 setup!
    I still don't have it in my hands...I'll go pick it up next week!
    When I saw it I immediately noticed the perfect chain line! No rubbing, no weird things...I rode it around the block, and it feels soooo smooth! Shifts perfectly! No regrets whatsoever!



    specs upon request...nothing fancy.
    My Bike: http://forums.mtbr.com/showpost.php?...3&postcount=49

    On-One Whippet 650b XC machine

  27. #27
    mtbr member
    Reputation: gticlay's Avatar
    Join Date
    Dec 2007
    Posts
    6,620
    Quote Originally Posted by dhbomber
    So heres the bike with the 1x10 setup!
    I still don't have it in my hands...I'll go pick it up next week!
    When I saw it I immediately noticed the perfect chain line! No rubbing, no weird things...I rode it around the block, and it feels soooo smooth! Shifts perfectly! No regrets whatsoever!



    specs upon request...nothing fancy.
    Make sure you wrap your chainstay up with some old innertube and cloth tape or it'll look like a bb-gun target in no time. Nice bike!
    "It looks flexy"

  28. #28
    mtbr member
    Reputation: dhbomber's Avatar
    Join Date
    Nov 2006
    Posts
    793
    Quote Originally Posted by gticlay
    Make sure you wrap your chainstay up with some old innertube and cloth tape or it'll look like a bb-gun target in no time. Nice bike!
    I plan on wrapping it with some clear material...I don't know what material to get yet...Something thick...
    My Bike: http://forums.mtbr.com/showpost.php?...3&postcount=49

    On-One Whippet 650b XC machine

  29. #29
    mtbr member
    Reputation:
    Join Date
    Oct 2010
    Posts
    22
    Quote Originally Posted by dhbomber
    So heres the bike with the 1x10 setup!
    I still don't have it in my hands...I'll go pick it up next week!
    When I saw it I immediately noticed the perfect chain line! No rubbing, no weird things...I rode it around the block, and it feels soooo smooth! Shifts perfectly! No regrets whatsoever!



    specs upon request...nothing fancy.
    ok fine, but it's not to hard on climbing bumps? on the hill? and how many tooth do you have? because i will put a 34 T on my new nomad carbon....tomorrow i think.
    and an other question, on the nomad it's 73mm on the bottom bracket, so is it the same with the aluminium frame, as i want to know if i keep the small black piece shimano between bottom bracket and chain ring mrp g2?or i leave it?you know the external bearings on, so wanna know if i keep the small piece or?
    thanks a lot

  30. #30
    mtbr member
    Reputation: dhbomber's Avatar
    Join Date
    Nov 2006
    Posts
    793
    Quote Originally Posted by ridebeber74
    ok fine, but it's not to hard on climbing bumps? on the hill? and how many tooth do you have? because i will put a 34 T on my new nomad carbon....tomorrow i think.
    and an other question, on the nomad it's 73mm on the bottom bracket, so is it the same with the aluminium frame, as i want to know if i keep the small black piece shimano between bottom bracket and chain ring mrp g2?or i leave it?you know the external bearings on, so wanna know if i keep the small piece or?
    thanks a lot
    Like I said, I just rode it in the parking lot....no true field testing yet...
    I'll post some info as soon as I have it.
    It has the stock 32 teeth chainring on. I don't think it'll be too tough...It's not that high or steep were I live and ride...So I think I'm gonna be ok with it until I get fit enough to get a 34t.

    I'll check later if my bike has the small black piece...
    My Bike: http://forums.mtbr.com/showpost.php?...3&postcount=49

    On-One Whippet 650b XC machine

  31. #31
    mtbr member
    Reputation:
    Join Date
    Oct 2010
    Posts
    22
    ok fine, thanks.
    yes me i live in the alps, so it's steep, but i think possible....i will see.if it's too hard, i will put on 2 chainrings.... will see.and for contests, use a single ring.

  32. #32
    mtbr member
    Reputation: gticlay's Avatar
    Join Date
    Dec 2007
    Posts
    6,620
    Quote Originally Posted by ridebeber74
    ok fine, thanks.
    yes me i live in the alps, so it's steep, but i think possible....i will see.if it's too hard, i will put on 2 chainrings.... will see.and for contests, use a single ring.
    Go with a 32t first. It's steep here to and in the mud I wish I had a 30t on there
    "It looks flexy"

  33. #33
    mtbr member
    Reputation:
    Join Date
    Jan 2007
    Posts
    182
    Hi,
    Thinking of trying 1x10.Do you get get better results using the short arm mech or long? (as in better chain tension). Just wondering as if i don't like the single the long arm mech will allow me a double ring on the front.
    Thanx Max

  34. #34
    mtbr member
    Reputation:
    Join Date
    Jul 2009
    Posts
    563
    well the shorter cage the better, but if you want flexibility to go back to 2x10 or 3x10 then yes you should stick to long.
    The mountains are calling and I must go

  35. #35
    mtbr member
    Reputation: dhbomber's Avatar
    Join Date
    Nov 2006
    Posts
    793
    Been a long time since I posted here...

    The long cage has been excellent...haven't had any problems with it...No ghost shifts, etc.
    You really feel the difference between 9 speed and 10...I've got better at pedaling, I've gotten fitter...Probably moving to a 34t in a couple of rides.

    What else...I took the little gear visor off...It just looks way cleaner without it.
    My Bike: http://forums.mtbr.com/showpost.php?...3&postcount=49

    On-One Whippet 650b XC machine

  36. #36
    mtbr member
    Reputation:
    Join Date
    Jan 2007
    Posts
    182
    Hi,
    Was also wondering if the XT 10speed shifter is much the same layout as the 9 speed? Use a Hope matchmaker where the clamp is on the 9 speed and would like to use it again? Does the 10 speed shifter have those two allen key holes where the clamp is adjustable? Thats where the Hope adaptor fits.
    Thanx Max

  37. #37
    mtbr member
    Reputation: gticlay's Avatar
    Join Date
    Dec 2007
    Posts
    6,620
    Quote Originally Posted by MAX LLOYD
    Hi,
    Was also wondering if the XT 10speed shifter is much the same layout as the 9 speed? Use a Hope matchmaker where the clamp is on the 9 speed and would like to use it again? Does the 10 speed shifter have those two allen key holes where the clamp is adjustable? Thats where the Hope adaptor fits.
    Thanx Max
    Yes, same system. Got a link? That sounds very cool.
    "It looks flexy"

  38. #38
    mtbr member
    Reputation:
    Join Date
    Jan 2007
    Posts
    182
    Hi,
    Just contact your Hope dealer.Do them for XT and XTR to fit most of their brakes.
    Thanx Max

  39. #39
    mtbr member
    Reputation: dhbomber's Avatar
    Join Date
    Nov 2006
    Posts
    793
    I haven't heard of that Hope matchmaker....cool idea!
    Bet it works just with their brakes huh?
    My Bike: http://forums.mtbr.com/showpost.php?...3&postcount=49

    On-One Whippet 650b XC machine

  40. #40
    Never Satisfied...
    Reputation:
    Join Date
    Jan 2009
    Posts
    617
    My set-up:

    2011 SC Tallboy

    * 36T Blackspire Mono ring (no ramps / pins)

    * MRP 1X chain guide

    * Shimano HG 81, 11-36 (SLX) cassette

    * Shimano HG 74 (XT) 10 speed chain

    * Shimano M773 SGS (XT) ---> Long cage

    * Shimano M660 (SLX) rear shifter



    This set-up works flawlessly.... Love it!!!

  41. #41
    mtbr member
    Reputation:
    Join Date
    Jan 2007
    Posts
    182
    Hi,
    Yeah the Hope matchmakers are designed just for their own brakes.
    Thanx Max

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
