  1. #1
    mtbr member
    Reputation: spartacus001's Avatar
    Join Date
    Aug 2011
    Posts
    76

    Review of Ebay: 1800 Lumen CREE XML T6 LED Bicycle HeadLight Lamp

    My first light review:

    Advertised Specs:
    Emitter Type: XML T6 LED Output 1800 lumens
    Modes: High / Low / Strobe (high) with no memory
    Run Time: 180 minutes on High
    Battery pack: 1 x 8.4v Li-Ion 6400mAh Battery Pack
    Battery Charger: 115v with LED indication for Charging (Red) / Full charge (Green)
    Power Warning: Red Low Power behind tail click
    Helmet Strap: O-ring mount
    Head dimension: Light 43mm DIA
    Weight: 118g (lamp head) 200gm battery pack : Total 318gm

    My lighting needs for city commuting at night has always been adequate using a cheap handlebar mounted light. However due to a change in my route I now ride about 10km on paved trials where there is no lighting whatsoever. Ebay offered many of options ranging from cheap flashers to a high end NiteRider Pro kit. I needed robust and bright enough for commuting that wasnít going to cost me a arm and a leg. So I decided to try out one of the Chinese vendors who offered a hard-to-believe 1800 Lumen kit for under $60. I believe this light is a version of the popular Magic Shine lighting system.

    I knew that an output of 1800 Lumen was impossible with the XML T6 with the advertised setup. Still, I figured if the output was half it was still worth $60. After I ordering the light I was expecting it to take at least 4 weeks to arrive from China but I was pleasantly surprised to find it in my mailbox after 7 working days. Apparently the particular vendor operated out of Hong Kong so the shipping time was cut by 1/3rd.

    Kit Contents


    The kit came in a small box which contained the lamp, battery/charge, 2-Orings, Helmet strap/adapter, battery holder. At first sight the body was machined well with matt black anodizing. I was actually surprised with the quality of the workmanship. No burs, machine marks nor blotchy finishing. The threads were smooth and fitting was tight. The Aluminium reflector had a smooth finish instead of the Orange peel texture that was pictured in the ad. The LED was mounted on the board with a large heat-sink which threaded into the body. There was plenty of room in the housing for heat dissipation. The crowned Bezel has 6-points with a nice satin brushed finish. Under the glass lens there is a GITD (Glow in the Dark) silicon O-ring and silicon rubber tail cap. The tailcap switch is a reverse clicky with a LED battery indicator behind it.

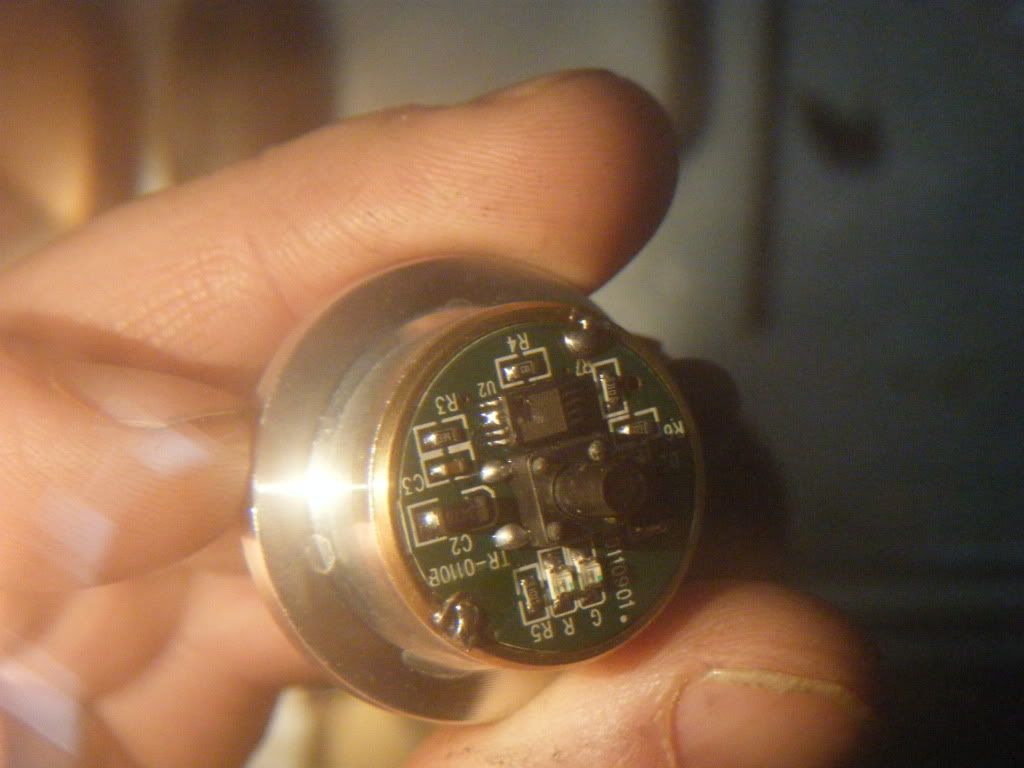

    There were no markings on the board that indicated that the emmitter was actually the newest T6 but based on the pattern of the emitter (7-bar grid pattern) and the production date of 20110901 I'm pretty certain it's a XML. I was happy to see a nice blob of thermal paste for heat transfer. On the board all the the solder joints were clean.


    The battery pack appears to be 4 x18650 linked in series and bundled in heat shrink. It's hard to tell if these are protected cells and I didn't want to take off the heat shrink. The cable and connectors pushed together snugly but they lack weather sealed caps which would have been nice. When I plugged in the light I was surprised to find the the batteries already charged. I put it on a volt meter and it measured 7.9V on the 3rd charge. Not the advertised 8.4V. Maybe it needs a break in time

    ** Update **
    Burn Time
    On the 4th full charge the battery reached 8.27V in just over 6hrs. The charger was warm but the battery remained cool the entire time.

    High: 185 mins.
    A full 3+ hours exceeded my expectations. But the lamp got hot after running for 10mins. It was hot enough that I couldn't hold on to it for more then 30seconds. The battery was at normal indoor temperature (22 degrees). I ended up placing the lamp head in between an aluminium sliding door frame to help dissipate the heat.
    The backlit switch remained green the entire time with no low battery warning light.
    ** There definitely is a Red Led but I must have missed it in the final 5 mins juice.

    Low: testing in progress
    Strobe: in progress

    Beam Shots
    The beam was very bright but I donít have a light meter to measure it. The beam is very bright with a hot center with wide spillage. There are some small artifacts in the spot but not very noticable. It has excellent throw qualities but this is not ideal for a bike light. Comparing the beam side-by-side with my EagleTac P20A2 (which pumps out about 220Lm) this light seemed at least twice as bright.

    LEFT: Comparion to an EagleTac P20A2 with Sanyo Eneloops AAs. Spot lens on High.

    Wide Angle Lens
    Definitely a wider flood pattern is need for commuting. I decided to replace the stock lens with an aftermarket wide angle lens from Ebay. The Action Light lens was shipped out very quickly. Thanks Jim. It converted the 10 degree spot beam to a 10 degree high by 30 degree wide flood light. The beam pattern is rectangular in shape.



    Light comparions: Wall light is a CFL 40W Equivalent. The Garage light is a CFL 100 W Equivalent Compared to car headlights it is easily on par with BMW or Lexus HIDs
    I like the volume of light but would have much prefered a warmer light. I find the warmer temperatures giving an more accurate depth perception i.e. better CRI (Color rendering index)

    This might be a DIY project for later (if I find the time to learn how to replace it with a Warmer T5 Emitter).


    You can see the difference between the standard and wide angle pattern.
    Road beam Pattern on High: Spot vs Wide angle


    Trail beam Pattern on High: Spot vs Wide angle

    Mount
    I didnít even bother with the standard mount. A single O-ring didnít seem like very secure system and it doesnít lend itself for quick mounting and removal. So I discarded the mount and replaced it with one from my old Cateye H-24. An spacer plate was needed so I fabricated one from a piece of plexiglass. I drilled two holes for screws and made a channel for the wire. Then I modified the body by drilling/tapping 2 holes 8-32 to which the spacer is bolted on to. I add clear silicone to all holes and gaps to ensure good water resistance.



    Conclusion

    Good: Overall Iím happy with the light. The construction is solid with more then enough output for city communting needs. It reached a full burn time of 3hrs on High. The design and construction is simple which is attractive to tinkerers who plan to modify the light. An excellent value light.

    Bad: The spot light isn't ideal for a bike light so I'd recommend a wide angle lens especially for off trail. It is falsely advertised as 1800 Lm. At best it's probably in the range of 450-550 Lm. The low battery warning is hardly a warning. The red warning goes on for maybe 5 mins and then the light dies. The O-ring friction mount seemed like an after thought. It definitely needs a better mounting system. There was no low battery warning indicator. The battery pouch is adequate but the strap is too long. It could use a second strap so to give a little more support. The option of a warmer T5 would make it almost perfect.

    Time will tell how many cycles the batter pack will last. When it dies I plan to build my own pack.

    At the time of this review the Ebay seller had 12614 feedback and 99.6% +ve
    Iíll update this thread with the Low burn time after I log more hours.
    Enjoy
    Last edited by spartacus001; 01-12-2012 at 09:03 AM.

  2. #2
    mtbr member
    Reputation:
    Join Date
    Mar 2004
    Posts
    66
    Thanks - great review!

    I am also using the wide angle lens and like the pattern that it creates. I am using a combination of two lights on my handlebar, one with the stock lens and one with the wide angle lens - a lot of light with a great pattern.

  3. #3
    mtbr member
    Reputation:
    Join Date
    Oct 2008
    Posts
    1,295
    Nice write up. thanks for sharing.

  4. #4
    mtbr member
    Reputation: spartacus001's Avatar
    Join Date
    Aug 2011
    Posts
    76
    2 lights for redundancy and ideal for the trails.

    Quote Originally Posted by juergenor View Post
    Thanks - great review!
    I am also using the wide angle lens and like the pattern that it creates. I am using a combination of two lights on my handlebar, one with the stock lens and one with the wide angle lens - a lot of light with a great pattern.
    Last edited by spartacus001; 12-29-2011 at 09:27 PM.

  5. #5
    mtbr member
    Reputation: Cat-man-do's Avatar
    Join Date
    May 2004
    Posts
    3,774
    Very Good Review...

    The only thing that bothered me was the 1800 lumen claim by the vendor. Sorry but you won't get even half that. Maybe 700 to 800 if you're lucky. I'm glad to see the Action wide lens working so well. One light with wide lens on the bars, one spot on the helmet and you're ready for action.

    Ever once in while I still remember the days riding with my 12 watt Marwi halogen on the bars and my Niterider 10watt spot on the helmet. Back then I thought I owned the night even though the total output from both was maybe 400 lumen tops. ...Ahh, those were the days.
    Now just one cheap cloned XM-L lamp beats what I had back then...and for a lot less money! Say what you will about the Chinese cloned lamps. They still have the best bang for the buck factor and give the novice bike rider the ability to safely see at night without breaking the bank.

  6. #6
    mtbr member
    Reputation:
    Join Date
    Nov 2011
    Posts
    99
    Excellent write-up.

    I picked up the same T6 XML light sytem off of eBay ($45 shipped), although that vendor (dxgame-outlet) makes a somewhat more realistic claim of 900 lumens. Actually, these are probably in the 550-600 lumen range, but they are quite impressive for the price. I run my MJ-836 on the bar of my roadie and get comments from other riders I've approached from behind that they at first thought it was a car.

    I went ahead and ordered an Action wide lens for my MJ-836 on the bars and also a Titan Replacement Reflector (orange peel- also from Action) to smooth out and widen the hot spot of the new T6 XML on the helmet. It would be sweet if they arrived in tomorrow's mail in time for the Thursday night ride here (on a tight, twisty singletrack).

    The nice thing about these and similarly-priced high-output LED light systems is that, for not much more than $100, you can get completely set up with nicely bright bar + helmet lights, wide angle lenses, better reflectors. Life is good.

  7. #7
    FAT-BIKE.COM Groupie
    Reputation: deleteyourselph's Avatar
    Join Date
    Aug 2011
    Posts
    125
    I just bought the exact same light and lens. Loving the power of the light for what it cost, but what did you guys do to keep the lens secure? On mine when I tighten the bezel down all the way the lens is able to move around. Did you use another o-ring or what? Any help would be great. Thanks!
    "You don't cross my ***** line, I don't cross your ***** line".
    - James Lahey Sunnyvale Trailer Park Supervisor

  8. #8
    mtbr member
    Reputation:
    Join Date
    Nov 2011
    Posts
    99
    If the replacement lense isn't the same thickness as the original, you can either go the o-ring route and put a layer of electrical tape just around the edge.

  9. #9
    mtbr member
    Reputation: spartacus001's Avatar
    Join Date
    Aug 2011
    Posts
    76
    Mine fits pretty snug.

    Did the original lens also fit loosely?

    Behind the reflector there should be a white plastic spacer with the lip side facing the emitter board. If this piece is missing or if it is orientated upside down then your lens' will fit loosely.



    Check this and let us know.

    Quote Originally Posted by deleteyourselph View Post
    I just bought the exact same light and lens. Loving the power of the light for what it cost, but what did you guys do to keep the lens secure? On mine when I tighten the bezel down all the way the lens is able to move around. Did you use another o-ring or what? Any help would be great. Thanks!

  10. #10
    mtbr member
    Reputation:
    Join Date
    Jun 2008
    Posts
    80
    So I've found a vendor for lights that look exactly like these, but claim only 1600lm, that ships from SF which is nice seeing as I'm in San Jose. My only question is do I find an OP reflector somewhere (not sure where to start really) for the one I'm going to mount on my head? I really like the width of the beam from that Action LED lens you added so I'll definitely be ordering one of those as well.

  11. #11
    mtbr member
    Reputation: spartacus001's Avatar
    Join Date
    Aug 2011
    Posts
    76
    Talk to Jim.
    It looks too shallow but there's a long shot that Action Lights MS 808 OP Reflector may be modified to fit.
    Last edited by spartacus001; 12-31-2011 at 07:21 PM.

  12. #12
    mtbr member
    Reputation: spartacus001's Avatar
    Join Date
    Aug 2011
    Posts
    76
    ** Edit ** I Added some burn time numbers

  13. #13
    Action LED Lights
    Reputation: Action LED Lights's Avatar
    Join Date
    Nov 2011
    Posts
    377
    I'll add a couple of comments.

    Most of these MS knock-offs use a plain glass lens that is thicker than the tempered glass lens used by MS. The Wide angle lens is made to replace the tempered glass lens so you need to take up the extra space. Wrapping the edge of the lens with electrical tape is a good solution or you can use a thicker O-ring from the hardware store or cut a gasket from a milk jug or some other waterproof material.

    Claiming 1600 or 1800 Lumens says something about the integrity of the vendors selling these. (putting it nicely)

    For just a few dollars more you can get a quality Gemini P7 Titan with a Samsung 5200mAh battery pack.

    Jim Harger
    Jim Harger
    Action LED Lights
    www.action-led-lights.com

  14. #14
    mtbr member
    Reputation: XecconLight's Avatar
    Join Date
    Dec 2011
    Posts
    35

    what brand

    what brand the torch is? The appearance is like XECCON S11. But the reviewed bike light is fiitted with T6, While XECCON S11 is fitted with ssc-p7.
    Last edited by XecconLight; 01-05-2012 at 07:20 PM.
    Xeccon: Stay Safe, Stay Ahead

  15. #15
    Bukkake Ninja
    Reputation: FueledByPBR's Avatar
    Join Date
    Feb 2009
    Posts
    24
    Can any of you guys post links of the exact light you bought off Fleabay please?

  16. #16
    mtbr member
    Reputation:
    Join Date
    Nov 2011
    Posts
    99

  17. #17
    mtbr member
    Reputation: spartacus001's Avatar
    Join Date
    Aug 2011
    Posts
    76

  18. #18
    mtbr member
    Reputation:
    Join Date
    Nov 2011
    Posts
    99
    As Jim at Action noted earlier, claiming 1800 lumens from a single T6 XM-L is more than marketing hype. It's deceptive advertising. It's the same MJ look-a-like light system the U.S. seller lists at 900 lumens (which I think is still stretching it a tad).

    Also, why order the same light from Hong Kong for $54 when you can get it at $45 shipped from California and at your door in just a few days and much less hassle returning it if you get one that's DOA?

    I ended up spending a few bucks more for the wide angle lens and orange peel reflector (both from Action LED). Both really help the illumination pattern for this light.

  19. #19
    mtbr member
    Reputation: spartacus001's Avatar
    Join Date
    Aug 2011
    Posts
    76
    Before purchasing this light I had not been active on these forums and reading up on the latest lighting trends so this is my first 'serious' lighting system.

    I was curious about this light because no one had written a comprehensive review with actual comparisons- which I think we need to see more of here so that we have informed choices. I love the comprehensive way that this guy (selfbuilt) does his review of tactical lights over on candlepowerforums.com
    Check it out. Selfbuilt's Flashlight Review Site

    Claimed Lumens really don't mean much to me until I see comparisons or numbers. Hence this was the inpetus for preparing this light review.

    Plus the cost of US Magic shine would have been on par with offshore if you add the shipping costs to Canada.

    I will make updates about this light as I ride through the winter.
    Whoo Hoo ! 5 degrees C in Toronto Today!!

  20. #20
    mtbr member
    Reputation:
    Join Date
    Nov 2011
    Posts
    99
    Quote Originally Posted by spartacus001 View Post
    Before purchasing this light I had not been active on these forums and reading up on the latest lighting trends so this is my first 'serious' lighting system.
    I really didn't mean to criticize your selection of that seller for this light. Sorry if it came across that way. The review you took the time to do was outstanding and appreciated.

    What I said was more to steer FueledByPBR towards a deal on this particular light from a U.S.-based seller (vs. Hong Kong) that was more realistic in their lumen claims.

    One and only time I bought anything from a Hong Kong eBay seller was a 59cm steel roadie frame. When it arrived, it was obvious they had stored it w/o treatment in a humid environment. There was significant surface rust and even a small bit of pitting on the inside of the seat tube and BB. No way I was going to build that one up. I eventually got my money back, but it was not as simple and straightforward as it should have been.

  21. #21
    mtbr member
    Reputation:
    Join Date
    Oct 2010
    Posts
    641
    Quote Originally Posted by PinkFloyd View Post
    As Jim at Action noted earlier, claiming 1800 lumens from a single T6 XM-L is more than marketing hype. It's deceptive advertising. It's the same MJ look-a-like light system the U.S. seller lists at 900 lumens (which I think is still stretching it a tad).

    Also, why order the same light from Hong Kong for $54 when you can get it at $45 shipped from California and at your door in just a few days and much less hassle returning it if you get one that's DOA?

    I ended up spending a few bucks more for the wide angle lens and orange peel reflector (both from Action LED). Both really help the illumination pattern for this light.
    i am looking at going the shipped from us ebay route for a few of these lights, probably 2 on the bars, 1 on my helmet.
    my question is are you using the orange peel reflector AND the wide angle lens in the same light? i am thinking i would leave the helmet light alone, and go with either the lens, OR the reflector for the 2 bar lights, but both? is that necessary?

  22. #22
    mtbr member
    Reputation:
    Join Date
    Nov 2011
    Posts
    99
    Quote Originally Posted by Der Juicen View Post
    i am looking at going the shipped from us ebay route for a few of these lights, probably 2 on the bars, 1 on my helmet.
    my question is are you using the orange peel reflector AND the wide angle lens in the same light? i am thinking i would leave the helmet light alone, and go with either the lens, OR the reflector for the 2 bar lights, but both? is that necessary?
    My bar light (MJ-836) already had the orange peel reflector, so I just added the Action wide-angle lens. My helmet light is the eBay T-6 XML to which I only added the MJ-808 replacement reflector to soften the spot and make it a little larger. I'm quite happy with the wide/spot combo.

  23. #23
    mtbr member
    Reputation: spartacus001's Avatar
    Join Date
    Aug 2011
    Posts
    76
    No offense taken PinkFloyd. The Cree XML has really allowed for affordable high output lights. I can't wait to see this technology develop in the next couple of years.

    Having 3 lights will give you around 1500 Lm -plently of light on the trail.
    This is what I'd do:

    Helmet: Throw light softened with an OP reflector
    Bar1: Flood light with Wide angle lens
    Bar2: Stock Throw light

  24. #24
    mtbr member
    Reputation:
    Join Date
    Nov 2004
    Posts
    1,994
    Is the T6 really better than P7?
    Dxgames has both for the same price....

  25. #25
    mtbr member
    Reputation: spartacus001's Avatar
    Join Date
    Aug 2011
    Posts
    76
    ....well it depends what you mean by better.
    The light beam and output will be affected by parameters such as battery type, the logic board, lens and reflector. Given all things equal the T6 is the newest emmiter and is more efficient LED with better output.

    From what I read, the P7 gives you typically 700 lm at 10W, while the XM-L is typically over 910 lm at 10W
    This difference will be noticable if you put them side by side, but not if you look at one, then an hour later look at the other.

    The LED technology is advancing very quickly so I'm sure the T series will probably be obsolete in a couple of years.
