Thread: Ituo WIZ XP2

  1. #1
    RAKC
    Reputation: tigris99's Avatar
    Join Date
    Aug 2012
    Posts
    7,124

    Ituo WIZ XP2 1500 Lumen Mountain Bike Light

    Yes guys, here it is, the Ituo WIZ XP2!!!

    We spoke, Ituo listened. Other lights have some catching up to do.

    https://www.ituolights.com/collectio...bike-light-kit



    Will be in stock (including US) mid-late June.

    Ok here's the details:

    It's really nice quality, very much in line with what we see from Ituo. But I think this one is a tad better. Very clean look.

    -Dual Cree XM-L2 U3 Neutral White emitters.
    - rated at 1500lumens, 1559 actual @ 30 seconds
    -removable wired remote
    -uses same optics as wiz20 so easily available and changeable to any pattern you want.
    - fins are cut to proper depth on the front half, back half of the sides is cut really deep to increase thermal behidn emitters and @ driver
    -gopro mount is STANDARD. Works like the WIZ1 and WIZ2 mount. QR slide lock gopro adapter then their QR style gopro handlebar mount.
    -top button with standard 2 color battery level indication (but not very bright which is good)
    -fully programmable driver. Hidden flash modes, press and hold for off, etc
    - 18awg battery cable (yes your reading that right!)
    -weight: 88g
    -includes a good gopro style helmet mount that uses Velcro straps (forgot a pic will do that tonight)
    -run time is 3hrs on Ituo battery pack. Pack is 8.4v 4 x NCR18650Bf 3350mah Panasonic cells. Total 6700mah capacity, full protection circuit, neoprene pouch.





    Now here's a wrench in the mix. They used the threaded style connectors. BUT DONT LOOSE FAITH JUST YET:

    I decided to test it with a normal MS connector. Ok it plugs in. Now the NUT is rather large. Largest I've ever seen in this application. So I decided to try and thread it onto a MS style female connector and...

    IT WORKS AND HOLDS NICELY. Plenty secure. SO YOU CAN USE YOUR OWN PACKS THAT USE MS STYLE CONNECTORS. Does take a bit of effort the first time threading the nut over a MS connector but it DOES NOT damage anything. And works perfectly. Also since there is an oring on the connector, it seals just fine into the MS style connector.

    Summary, the light head only is very much an option as long as you have ROUND MS style connectors on your existing battery pack.

    Picture of Ituo connector on ms style:


    Here is the last " first impression " thing I had to post:

    All lights we see producing anywhere close to these lumens (even X2 and Duo) have a current draw OVER 2A. The XP2....1.8-1.9A current draw on high (1559 lumens). Only drivers I know that can do that are my custom prototypes from Mtnelectronics and the taskled drivers. Ituo did a "one up" on the other brands, they increased driver efficiency by a substantial percentage!!! Didn't expect that.

    Only gripe I have is the button on the remote is almost flush. I did let them know to use a bigger silicone button so it's easy to feel through gloves.

    Update:

    Thermal protection details: FULL, RAPIDLY RESPONDING, ACTIVE THERMAL MANAGEMENT! Does have a "hard" step down with no air flow if temp continues to increase beyond the active control. Drops to 50% (about 800 lumens) but I kick the fan on and within 3-4 seconds output rapidly starts climbing again. During active control it's litterally 1 second before lux readings start increasing when I turn the fan on.

    Thermally stable on the sphere system (which airflow isn't great, just even around the entire head).



    Beam Shots (sorry the medium one looked like crap, i must have moved when trying to take the picture)

    Beam shot high:



    Beam Shot low:





    Sent from my XT1565 using Tapatalk
    Last edited by tigris99; 05-29-2016 at 01:13 PM.

  2. #2
    RAKC
    Reputation: tigris99's Avatar
    Join Date
    Aug 2012
    Posts
    7,124
    Bar mounted with remote:







    Then better pictures on the helmet:





    Run time/lumen output graphs using 3 different packs:

    2 cell 3500mah Panasonic NCR18650GA pack:



    4 cell 5200mah Samsung 1865026F (same style pack used by Xeccon, Gemini, and Gloworm):


    4 cell 6400mah Panasonic NCR18650BE (pack included with light kit):


    Pictures of everything included:







    Sent from my XT1565 using Tapatalk
    Last edited by tigris99; 06-14-2016 at 12:00 PM.

  3. #3
    mtbr member
    Reputation:
    Join Date
    Feb 2016
    Posts
    435
    Nice teaser! Subscribed.

  4. #4
    mtbr member
    Reputation: MRMOLE's Avatar
    Join Date
    May 2011
    Posts
    1,194
    Price? Battery pack with quality batteries as with the Wiz20? Looks good and can't wait to test it myself so when can I get one? I need my next light fix!
    Mole

  5. #5
    RAKC
    Reputation: tigris99's Avatar
    Join Date
    Aug 2012
    Posts
    7,124
    Price will be ~$160 for full kit as best guess ATM.

    I gave the green light on it so will be early June (maybe sooner maybe not???) Before they have the first batch ready and to the US location.

    Battery pack uses EXACT same cells as WIZ20, so Panasonic NCR18650BF 3200mah. 4 cell pack they are considering also making a 2 cell.

    Sent from my XT1565 using Tapatalk

  6. #6
    RAKC
    Reputation: tigris99's Avatar
    Join Date
    Aug 2012
    Posts
    7,124
    Ok quick update:

    I pulled the front cover off and was seriously confused by what I was looking at.

    Now for the sake of protecting Ituos design, I won't explain in detail (and ask those that will understand my clues NOT POST IT, and do not ask cause I won't answer) but what I'm seeing is part of the thermal management control. Explains the insanely rapid response time to air flow changes. Took me a while to figure it out but it's really smart and different idea. Driver literally sees the emitter temperatures in real time instead of delay for driver to sense and respond to temperature changes itself.

    Really nice design idea. And it responds so much faster than gloworm or Gemini thermal management.

    Sent from my XT1565 using Tapatalk

  7. #7
    mtbr member
    Reputation:
    Join Date
    Apr 2012
    Posts
    13
    will it be available as light head only ?

  8. #8
    RAKC
    Reputation: tigris99's Avatar
    Join Date
    Aug 2012
    Posts
    7,124
    It was posted in the OP about light head only option.

    But yes it will be available.

    Sent from my XT1565 using Tapatalk
    Last edited by tigris99; 05-18-2016 at 05:30 PM.

  9. #9
    mtbr member
    Reputation:
    Join Date
    Nov 2012
    Posts
    979
    It looks pretty good from what you have shown so far. Removable remote is a big plus for me. This has most of the options we asked for in the custom build: go pro mount compatible, programmable driver, wired remote etc. I don't understand why they have to use that stupid threaded connector on the wire.

    You have me a bit worried about the internal design with your last post. Is there a solid wall conducting heat to the outside or not?

    When you get a chance could please post picture of a top and side view of the light head. I want to get an idea of the depth of the fins.

  10. #10
    RAKC
    Reputation: tigris99's Avatar
    Join Date
    Aug 2012
    Posts
    7,124
    I should have been a bit more clear, my last post was referring to an electronic matter. Nothing to do with case machining.

    Yes it has a full, solid wall and such. It's correctly designed internally.

    I'll get this pics posted soon.

    Sent from my XT1565 using Tapatalk

  11. #11
    RAKC
    Reputation: tigris99's Avatar
    Join Date
    Aug 2012
    Posts
    7,124

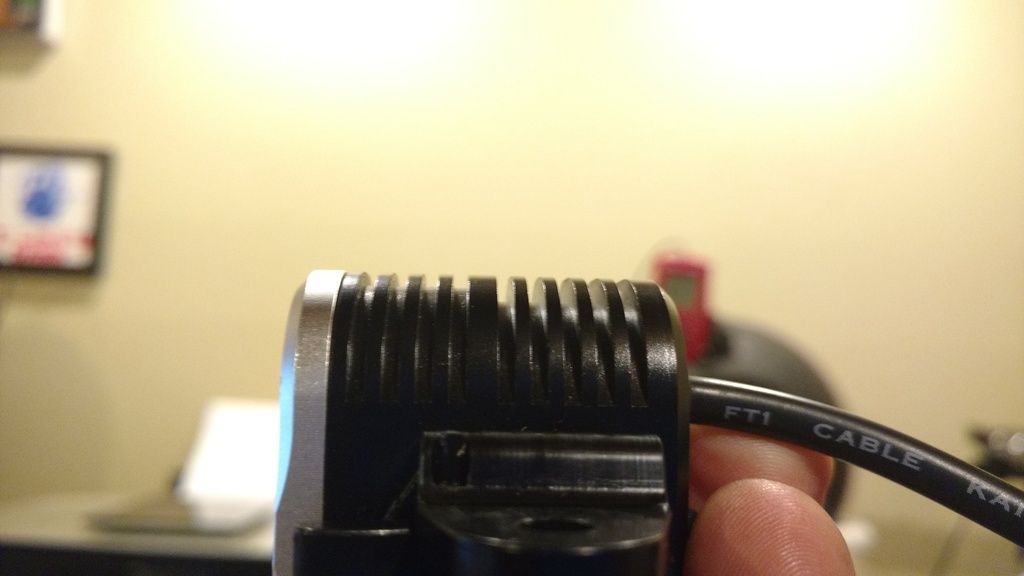

    Just for you Varider



    And beam shots added above.

  12. #12
    mtbr member
    Reputation:
    Join Date
    Nov 2012
    Posts
    979
    Quote Originally Posted by tigris99 View Post
    Just for you Varider
    Thanks

    That looks good to me. What do you think?

    Is that some sort of quick release slide on the buttom of the light (between the gopro adapter and the light)? That's a nice touch. Hopefully it's as sturdy as it looks.

  13. #13
    mtbr member
    Reputation: garrybunk's Avatar
    Join Date
    Feb 2014
    Posts
    1,340
    Looks & sounds very nice. Any idea of lighthead only price?

    -Garry

  14. #14
    RAKC
    Reputation: tigris99's Avatar
    Join Date
    Aug 2012
    Posts
    7,124
    Nothing on that yet, kit price was just a guess from our Ituo rep, should have prices next week

    Sent from my XT1565 using Tapatalk

  15. #15
    mtbr member
    Reputation: MRMOLE's Avatar
    Join Date
    May 2011
    Posts
    1,194
    Quote Originally Posted by tigris99 View Post
    Nothing on that yet, kit price was just a guess from our Ituo rep, should have prices next week

    Sent from my XT1565 using Tapatalk
    Showing $154.99 on the website, is that not a valid price?
    Mole

  16. #16
    RAKC
    Reputation: tigris99's Avatar
    Join Date
    Aug 2012
    Posts
    7,124
    They told me that price was current "thoughts" but nothing is finalized yet. My understanding is the current price is as high as it will be (the $160 I posted earlier), could be lower, won't know anything for sure till they make a final decision and pass the info on.

    Their still working on their product pictures and such so mine is what there is ATM.

    Remember, mine is a production sample so they are probably still doing a cost assessment for actual production runs in quantity. That's my guess on it. Just know nothing is finalized.

    Sent from my XT1565 using Tapatalk

  17. #17
    RAKC
    Reputation: tigris99's Avatar
    Join Date
    Aug 2012
    Posts
    7,124
    OK price info cam to me early and i was wrong, expected numbers i was given to be the highest. No they are "pre-order" sale price.

    Kit price is 175.99 normally ($154.95 pre-order sale)

    Light head only is that includes everything except battery pack and charger is $119.95 ($99.95 or 104.95 pre-order price, he wasnt sure exactly)

    And for reference the XP3 will be $209.95 regular price.

    Im not surprised though. Still cheaper that GW, around gemini pricing BUT:
    Panasonic 3200mah cells used in the packs (packs will be $64.99 iirc), fully reactive, real time thermal management, removable remote, gopro style mounting system, programmable and so on. So a few marks above GW, many above gemini, quality is there. And I can definitely say the lights hold up. Wiz20 has been through hell and back, still perfect.

    Ya I know, we were hoping for a little lower priced. But I just got a reality check as to why all these options get pricey when put together, so we dont see them. Especially panasonic cells used at this price range.

  18. #18
    mtbr member
    Reputation: Ofroad'bent's Avatar
    Join Date
    Jul 2010
    Posts
    1,360
    Excellent. Any info on "Fully programmable" driver?

    Is it this:

    "User programmable: 2 or 3 steady modes,
    programmable brightness at 10% intervals.
    Hidden mode options include multiple flash options and 5% steady mode"

  19. #19
    mtbr member
    Reputation:
    Join Date
    Feb 2016
    Posts
    435
    Looks like Ituo is not messing around. My wiz20 is a very good self contained light. I've emailed Keith at Ituo and received fast replies to my questions about my wiz20. Support is there. Now this xp2 looks like a contender for sure. Even with a gw x2 I'm still considering buying this light.

  20. #20
    RAKC
    Reputation: tigris99's Avatar
    Join Date
    Aug 2012
    Posts
    7,124
    Figured I'd throw in a quick update, Ituo said these will be in stock in the US almost a month exactly. Week of June 20-24th.

    Dirt's right. Seems Ituo is not messing around.

    Sent from my XT1565 using Tapatalk

  21. #21
    mtbr member
    Reputation: MRMOLE's Avatar
    Join Date
    May 2011
    Posts
    1,194
    Quote Originally Posted by tigris99 View Post
    Figured I'd throw in a quick update, Ituo said these will be in stock in the US almost a month exactly. Week of June 20-24th.

    Dirt's right. Seems Ituo is not messing around.

    Sent from my XT1565 using Tapatalk
    Well I guess I won't have one by next weekend, Dang!

    Any impression yet on how this light works in regards to operating temperature? Is it cool running like the Wiz20 or "not so cool running" like the X2 and Duo?
    Mole

  22. #22
    RAKC
    Reputation: tigris99's Avatar
    Join Date
    Aug 2012
    Posts
    7,124
    Well the WIZ20 doesn't need or use thermal step down, and I was able to test the thermal management on this.

    It's literally impossible to have a small dual emitter head push decent lumens and not get hot.

    But I haven't done a comparison test against the duo or x2 to see exactly how it does yet.

    Sent from my XT1565 using Tapatalk

  23. #23
    mtbr member
    Reputation:
    Join Date
    Nov 2012
    Posts
    979
    Can you show pictures of the remote plug? I am interested in knowing what type of connector it uses and where it plugs in. Is this a possible point where water can leak in? In the future I may want to know if I can make my own remote or at least an extension wire.

    Did you get a chance to take pictures of the internals while you took it apart? How thick is the wall behind the leds.

  24. #24
    mtbr member
    Reputation: MRMOLE's Avatar
    Join Date
    May 2011
    Posts
    1,194
    Quote Originally Posted by tigris99 View Post
    Well the WIZ20 doesn't need or use thermal step down, and I was able to test the thermal management on this.

    It's literally impossible to have a small dual emitter head push decent lumens and not get hot.

    But I haven't done a comparison test against the duo or x2 to see exactly how it does yet.

    Sent from my XT1565 using Tapatalk
    Not super important, I'll run tests when I get mine. While I understood the lower (compared to the X2 and Duo) output numbers on the Wiz20 as a "self-contained" compromise of output vs. run-time I was surprised the XP2 output while improved over the Wiz20 still trailed the other 2 lights slightly (considering this light is marketed to us lumen whores).
    Knowing the hot running nature of the X2 and my older Duo (new model sounds worse) and how both of those lights experience noticeable dimming when hot I was thinking if the XP2 is anything like my Wiz20 it should run cooler and loose less output to heat evening up its small power deficit @ 30 sec. at a more real-world operating temperature @ 15 min. (fan cooled).

    % lux loss from 30 sec. to 15 min.: X2 - 5.5%.....Duo 8.6%.....Wiz20 - 1.6%

    Multiply the percentage of power loss to the lumen #'s you got on your sphere and the XP2 would have the highest output! (I'm fairly comfortable using the older Duo as a substitute for the new model but using the Wiz20 as substitute for the XP2 is stretching a bit - why I'm questioning about how the XP2 handles the heat). Of course you have all the correct lights and a sphere (hint, hint), so if you could test this it would be ideal.
    Mole

  25. #25
    mtbr member
    Reputation:
    Join Date
    Feb 2016
    Posts
    435
    I just wonder the real world performance of the wiz20 (great) vs the xp2? I'm not an az nm rider. Upstate NY. I understand there's a temp control by the LED. Why should someone buy this vs a gloworm x2 or a duo? I'm loving my wiz20 but I don't think I can realize any performance difference? Tell me I'm wrong...

  26. #26
    RAKC
    Reputation: tigris99's Avatar
    Join Date
    Aug 2012
    Posts
    7,124
    The output thing, I didn't test with fan cooling. Was just a quick test. But it's output was literally within several lumens of the others.

    But comparisons are coming in time, got alot on my plate ATM, let me finish up base reviews then ill move onto my new project.

    Varider, I'll get pics when I can but modifications aren't really an option. The plug is custom molded around a male headphone plug. Button housing is also custom made and mods are going to damage the crap outta it. Expanded the diameter and oring to seal and lock the plug into the head. In line extension cutting existing wire and making it longer may be possible but I won't recommend it if your worried about water.

    Cant submerge it but I poured water over it and no issues for water getting in. I'm not sure how long you want that thing but it's insanely long in its own.

    And sorry not taking pictures of internals (I won't for new release brand name models to protect their designs) or disassembling to try and measure internal wall. It's plenty thick for heat transfer to the case based on what I see with the internal machining.

    Not trying to be a pain, but I've got 3 reviews going right now and a 4 on its way next week.

    Dirt. Besides a tad more lumens it's not meant to be a performance upgrade at all. Lumens are only about 100-150 more. But it's 1/3 the weight because it's not self contained. Allows for different sized packs based on user needs. Thus making helmet use more possible. Has remote. Beyond that there isn't some huge difference. But making all that happen and work well in something 1/3 the size is what causes the much higher price. Especially a removable remote, having it in hand, wasn't an easy task making that happen.

    It's a "everything we want in a standard (not self contained) light system" but if a wiz20 does the job and you don't need a remote, gopro mount, light that is low weight for helmet use, then the wiz20 has it all covered.

    So it has gopro mount set up, including bar mount. Uses Panasonic cells standard. Removable wired remote. Top button. Widely available and inexpensive optics in many varieties. Real time (instead of delayed) active thermal management. And lower cost.

    Gloworm: remote not removable. No on head button. Good thermal management but its based on driver only so there is a delay in response to temperature changes. No direct gopro mount compatibility (I'll have to double check). Very much the most expensive option. May have the most surface area (though much of it goes unused due to head layout). Spot optics are great but beyond that it's very lacking on optics choices.

    Gemini: No active thermal management, only hard step down to rather low output level. Uses band mounts only. Heads are a bit small to deal with output levels. On head button of duo is a pain in the rear (like the beloved yinding) both being on the rear and hard to find even with thin gloves Plus side is they have a good wireless system. Similar in price to XP2 but lacking in thermal performance and mounting design/options.



    Sent from my XT1565 using Tapatalk
    Last edited by tigris99; 05-22-2016 at 07:09 PM.

  27. #27
    RAKC
    Reputation: tigris99's Avatar
    Join Date
    Aug 2012
    Posts
    7,124
    Varider, Ill get a picture posted of the plug itself and the rear view of the light tomorrow (have them on my phone, best camera I got now by a mile lol)

    Wall thickness is calculated guess as there is 2 thicknesses. one where the mcpcb is mounted into the head then the surrounding material. 1.5mm thick behind the mcpcb directly, 2.8mm thick everywhere else. 1mm is all thats needed since it solid wall, so all good there. I knew it was PLENTY thick, but since I was changing optics, figured Id go ahead and check it with the caliper.

    Mole: If I understand you correctly, you wanted to know the percentage of lux lost from initial start to 30 second reading. X2 and XP2 were neck and neck. 0.4% better on the XP2. Duo wasnt too far behind at 30 second reading, only 0.6% behind X2. XP2 was a 4.8% lux loss at 30 seconds.

    I matched optics in all 3 to make it as much "all else being equal" as possible. Surpisingly lumen ratings on this test at 30 seconds were within a few lumens of each other.

    At one minute, the gap had grown a lot. Duo was at 10%, X2 was at 8.3%........XP2 was at 6.1%. XP2 was much more steady than the other 2 with the Duo leading the way in lux lost for the 5 minute test time.

    XP2 current draw on high is 1.8A. 1.5mm thick fins with 1.6mm gaps 1.71 to 3.35mm depth (depending on location). Top sides and bottom

    X2 is 2.1A most surface area but fins are skinny and tightest spaced. .8mm thick with 1.5mm gaps, top and bottom only 3.4mm depth

    Duo is 2.5A and least surface area. 2.2mm thick, 1.9mm spacing and 1.35mm depth. All around head.

    XP2 is the most efficient wich is mainly why it handles the lumens the best. The driver is producing less heat than X2 or DUO (DUO would be the worst by far at 2.5A to get 1500 lumens), similar in surface area to the X2 but went with slightly thicker fins (which can be better since the tip which is exposed to direct air flow is wider).

    Duo basically though still a nice light, has lost this "competition". Only up side to it is the wireless remote system.

    XP2 and X2 are neck and neck for weight. XP2 has less voltage sag (.17v) under load than X2. Attribute that to the larger wire and less current draw, more so the current draw as x2 has 20awg wire. Duo is still 22awg.

    Ituo has one hell of an engineer. I love my gloworm lights but my equipment doesn't lie. Bang for buck XP2 wins by a good margin. My X2 is now shelved (well barred, new home is my handlebar display on my work table).

    Now if ituo would come out with an offset mounting system so my OCD for lights being centered doesnt both me when i mount it (ill fix that myself for now) we would have THE PERFECT light IMHO.

  28. #28
    mtbr member
    Reputation:
    Join Date
    Nov 2012
    Posts
    979
    Ok thanks.

    So you put the same optics in all three lights (Glowworm, Duo, Ituo)? What's the lumen output of the three lights. You quote the amp draw, is that all using the same battery.

    You say that the Glowworm has the most surface area. That's the most important part of the heat transfer. I think to work out which lighthead is better, i.e. lower thermal resistance, you would actually have to model both lights in a CFD program. With the results you are getting I'm sure that both are good.

    Quote Originally Posted by tigris99 View Post
    Wall thickness is calculated guess as there is 2 thicknesses. one where the mcpcb is mounted into the head then the surrounding material. 1.5mm thick behind the mcpcb directly, 2.8mm thick everywhere else. 1mm is all thats needed since it solid wall, so all good there. I knew it was PLENTY thick, but since I was changing optics, figured Id go ahead and check it with the caliper.
    I appreciate you going to the effort to measure the thickness of that surface. That thickness act as a thermal resistance. It's analogous to the resistance in an electric circuit. The thicker the surface, the less thermal resistance it has in the same way than making a wire in an electric circuit thicker makes it less resistant to current. The only downside to making it thicker is to makes the light heavier. So it's probably much better to have 2 mm thick wall than a 1 mm wall.

    Have you thought about leaving the light in the sphere for the entire run time of the battery? The mtbr light shootout used to do that with some surprising results.

  29. #29
    RAKC
    Reputation: tigris99's Avatar
    Join Date
    Aug 2012
    Posts
    7,124
    They all came out just below 1600 lumens.

    Not that it made a single bit of difference but I did test on matching packs (I check current draw/outputs via 3 different packs. All came up the same with just a tiny change in voltage sag).

    One thing I've learned with messing with these lights, it's NOT just about surface area, has to be used correctly as well. That's why a bt21 is the best light for heat dissipation above all other dual emitter lights that exist.

    As we know there is a massive science involved in it.

    Could compare head designs if all had identical drivers as well, but with such a gap in driver efficiency, hard to say who did better on case design.

    The wall thickness thing: yes thicker is better to a point. But it's also a function of the amount of area it's being dispersed to.

    Go from the size of an emitter, heat transfered through the solder joints. That heat is rapidly spread all around the PCB for the emitter. Then transferred to the case.

    At this point you have a 1mm thick wall (in the case of this xp2, 20mm diameter ) that transfers the heat to the outer case.

    In this case (Wiz xp2 which again. Has 20mm diameter emitter housings), that translates to 62.83 square mm of material transfering heat to the outer case PER EMITTER. So 125.66 square mm of thermal transfer space to the outer case.

    That coming from 16 square mm of space that is the unit generating the heat.


    As for the leaving a light on the sphere for full run time, seems you didn't make it to checking out wiz20 or xeccon z11 review threads . I do a full runtime/output graph. Just haven't gotten the time to do it yet.

    Sent from my XT1565 using Tapatalk

  30. #30
    mtbr member
    Reputation:
    Join Date
    Nov 2012
    Posts
    979
    I was talking about the heat conducting wall thermal resistance, not the resistance of the mounting point. The leds are mounted on a vertical surface on star. The material underneath the star to the outer wall creates the thermal resistance. It's the cross sectional area of this plate, as well as the distance to the outer wall that determine the thermal resistance. Here thicker is better, no matter what, because it's less resistance.

    One to two mm of thickness doesn't sound like a lot to me, but maybe it's enough for this particular light running at this particular current. I sure hope they make it thicker for the triple.

    I'm not trying to argue with you, I'm just remembering principles from the heat transfer class and decided to pass it on.

    Looking forward to your further tests. No, I hadn't seen your long term tests, or maybe I just forgot.

  31. #31
    RAKC
    Reputation: tigris99's Avatar
    Join Date
    Aug 2012
    Posts
    7,124
    Ya thicker is better, your very right there.

    What I am trying to explain is have to take the heat dissipation needs versus weight and size restrictions of the light into account. Keeping down near limits where performance would be negatively effected is the way we have light weight but high output lights.

    You would be surprised how much beyond 1-2mm wall thickness would be needed to see more than a 1-2% gain in performance. Youd add 25-50g to a light before the added thickness provided any boost in performance. Surface area on the outside and how it transfers heat to the air would be much more worth it and much less of a weight penalty (if any).

    Just look at computer heat sinks. Rather thin. But go after surface area that has access to direct air flow.

    So ya your right, just over thinking the requirements of a couple LEDs.

    Sent from my XT1565 using Tapatalk

  32. #32
    mtbr member
    Reputation: MRMOLE's Avatar
    Join Date
    May 2011
    Posts
    1,194
    Quote Originally Posted by tigris99 View Post
    Mole: If I understand you correctly, you wanted to know the percentage of lux lost from initial start to 30 second reading. X2 and XP2 were neck and neck. 0.4% better on the XP2. Duo wasnt too far behind at 30 second reading, only 0.6% behind X2. XP2 was a 4.8% lux loss at 30 seconds.

    I matched optics in all 3 to make it as much "all else being equal" as possible. Surpisingly lumen ratings on this test at 30 seconds were within a few lumens of each other.

    At one minute, the gap had grown a lot. Duo was at 10%, X2 was at 8.3%........XP2 was at 6.1%. XP2 was much more steady than the other 2 with the Duo leading the way in lux lost for the 5 minute test time.
    Sorry if I wasn't clear on this. Looks like we got out wires crossed a little. What I was interested in was the difference in lumens between your 30 sec. posted results and what the lights had @ 15 min. Was interested in what their actual output was at normal operating temperatures and I figured 15 min. was more than enough time to fully warm up and stabilize. Luckily you checked the lights again @ 1 min. and I found those results far more telling that as I suspected the XP2 will compare far more favorably @ normal operating temps. or higher. Thanks for taking the time to run these tests and the driver info. Which optics did you use? Think I'm going to go ahead and place my order for one of these even though it may be a while till they get in.
    Mole

  33. #33
    RAKC
    Reputation: tigris99's Avatar
    Join Date
    Aug 2012
    Posts
    7,124
    Mole, the only optics I had enough to do all the same, ituo/leddna optics.

    If I go stop optics set up the duo would drop overall a bit more start to finish below the other 2 and x2 would as well do to 1 frosted optic. But I wanted them even.

    Sent from my XT1565 using Tapatalk

  34. #34
    mtbr member
    Reputation: MRMOLE's Avatar
    Join Date
    May 2011
    Posts
    1,194
    Quote Originally Posted by tigris99 View Post
    Mole, the only optics I had enough to do all the same, ituo/leddna optics.

    If I go stop optics set up the duo would drop overall a bit more start to finish below the other 2 and x2 would as well do to 1 frosted optic. But I wanted them even.

    Sent from my XT1565 using Tapatalk
    You still run a frosted optic in you X2, I thought I taught you better than that! Ha Ha!
    Mole

  35. #35
    mtbr member
    Reputation:
    Join Date
    Feb 2016
    Posts
    435
    Serious good review Tigress! With a more efficient output, should that translate into better run times for the xp2? One other thing, optics change for Ituo is really inexpensive comparatively....

  36. #36
    RAKC
    Reputation: tigris99's Avatar
    Join Date
    Aug 2012
    Posts
    7,124
    Mole, I said "if" I ran stock optics, which x2 is a spot and a frosted. But I actually don't mind the frosted compared to other options because spill is more useable. But the only spot optics are good in my opinion. Not a fan of the wide angle except for road use.

    Dirt:. Other lights come with a 5200mah pack for the base kit and price. Xp2 is a 6400mah pack. So higher run time there too start. Then added a 0.3A lower draw vs X2 or 0.7A lower draw vs Duo on top of that.

    If we went to full protection (which I have 6800mah pack to run test) cut off, I'd bet it'll push 4hrs run time. 2.5-3hrs before we would see noticeable loss in output (deregulation of the driver) where as duo and x2 on stock packs would be far less.

    Other lights rate run time from fresh charge to protection cut off (ANSI FL-1 is from full charge start till output is down to only 10% of 30second output rating. Protection cuts off before 10% is ever reached). We dont have a "run time" spec for this light. They are waiting for my tests to confirm.

    Sent from my XT1565 using Tapatalk

  37. #37
    RAKC
    Reputation: tigris99's Avatar
    Join Date
    Aug 2012
    Posts
    7,124
    Oh forgot something:

    Varider: heres the testing I was talking about that I do on lights. A lot havent been done beyond initial lumen tests (those graphs take a lot of time to do so right now just trying to do it for review brand name lights only till i have more free time). Have more data I want to add and the graphs I plan on adding the current draw to the graph as well. Allow people to see a graph version of how a light behaves over the course of its run time.

    https://docs.google.com/spreadsheets...Xv4/edit#gid=0

  38. #38
    mtbr member
    Reputation: MRMOLE's Avatar
    Join Date
    May 2011
    Posts
    1,194
    OK, I ordered mine yesterday. Review looks very positive + stunned by the overall performance/intelligent design of my Wiz20 (this light makes me feel like I got a whole lot more than what I paid for!!!) knew I'd eventually order one, so why wait.
    Mole

  39. #39
    mtbr member
    Reputation:
    Join Date
    Feb 2016
    Posts
    435
    100% good value in the wiz20. Now the xp2, gotta pay for technology. I'm waiting on the lighthead price b4 considering purchase.... Look forward to more info on the xp2 when ya get it mrmole!

  40. #40
    mtbr member
    Reputation: MRMOLE's Avatar
    Join Date
    May 2011
    Posts
    1,194
    Quote Originally Posted by Dirt Road View Post
    100% good value in the wiz20. Now the xp2, gotta pay for technology. I'm waiting on the lighthead price b4 considering purchase.... Look forward to more info on the xp2 when ya get it mrmole!
    Knew you'd be able to relate being one of the few others who own a Wiz20. Hard to generate a lot of excitement with a commuter light. Just look at the number of pages on other commuter oriented light threads (Gloworm CX, Fenix, or any of the light related threads in the "commuter section") and the Wiz20 thread is about 4x their size so it will be interesting to see how well the XP2 and XP3 do in sales and overall interest here. It should be a while before I get the light and will be hot here by then so you'll definitely get my 100° ride temp report.
    Mole

  41. #41
    RAKC
    Reputation: tigris99's Avatar
    Join Date
    Aug 2012
    Posts
    7,124
    Quote Originally Posted by tigris99 View Post
    OK price info cam to me early and i was wrong, expected numbers i was given to be the highest. No they are "pre-order" sale price.

    Kit price is 175.99 normally ($154.95 pre-order sale)

    Light head only is that includes everything except battery pack and charger is $119.95 ($99.95 or 104.95 pre-order price, he wasnt sure exactly)

    And for reference the XP3 will be $209.95 regular price.

    Im not surprised though. Still cheaper that GW, around gemini pricing BUT:
    Panasonic 3200mah cells used in the packs (packs will be $64.99 iirc), fully reactive, real time thermal management, removable remote, gopro style mounting system, programmable and so on. So a few marks above GW, many above gemini, quality is there. And I can definitely say the lights hold up. Wiz20 has been through hell and back, still perfect.

    Ya I know, we were hoping for a little lower priced. But I just got a reality check as to why all these options get pricey when put together, so we dont see them. Especially panasonic cells used at this price range.
    Dirt, the light pricing was listed earlier in the thread, $119.95 normal, pre-order will be $99.95.

    xp2 light head

    Varider, here's a pic of the back of the light head with the remote plugged in



    Sent from my XT1565 using Tapatalk
    Last edited by tigris99; 05-27-2016 at 12:03 AM.

  42. #42
    mtbr member
    Reputation:
    Join Date
    Feb 2016
    Posts
    435
    Well, if I cancel my Yinding order from Gearbest, there's $25. I'm going to need a go pro mount $20, sh1t I'm halfway to an xp2 by my calculations. Red Yinding or for $50 more an xp2.....decisions/decisions!

  43. #43
    RAKC
    Reputation: tigris99's Avatar
    Join Date
    Aug 2012
    Posts
    7,124
    Well I own 2 yindings and this isnt quite as light weight. I do like my yindings, but they are what they are, cheap Chinese lights.

    Xp2 puts out close to 600 more lumens than the yinding if that helps

    Sent from my XT1565 using Tapatalk

  44. #44
    mtbr member
    Reputation: MRMOLE's Avatar
    Join Date
    May 2011
    Posts
    1,194
    Quote Originally Posted by Dirt Road View Post
    Well, if I cancel my Yinding order from Gearbest, there's $25. I'm going to need a go pro mount $20, sh1t I'm halfway to an xp2 by my calculations. Red Yinding or for $50 more an xp2.....decisions/decisions!
    Good plan canceling the Yinding order. Definitely worth $25 but you've been spoiled by the top mode button (that happens to be the best I've ever used) of your current Ituo light and I'm sure you would have hated the back positioned one on the Yinding (tied with the Duo for the worst I've ever used). I'm betting (since I haven't gotten mine yet) that in the long run if you get a XP2 you'll be much happier with it over the Yinding. Ituo light = "Wow, this is a really nice light. How did they make this for such a reasonable price". Yinding = "Meh".
    Mole

  45. #45
    mtbr member
    Reputation:
    Join Date
    Feb 2016
    Posts
    435
    I keep looking at how freakin thick the wiring is on the xp2. They could have used a lesser gauge, like everybody else, and still had a good light. It's really hard for me to ignore the quality of their products. Happy wiz20 owner/ trying not to be a xp2 owner!!! Preorder is imminent.....

  46. #46
    RAKC
    Reputation: tigris99's Avatar
    Join Date
    Aug 2012
    Posts
    7,124
    Ya they could have gone 20awg instead and still been perfect. A lot of lights are still stuck on 22awg, GW is the first I've had using 20awg.

    The 18AWG will be good for triple/quad versions that have a higher current draw.

    Only thing bugging me is i don't have a pack using 18awg wire to really test the voltage sag difference. Guess I'll have to wait till packs are ready for these.

    Sent from my XT1565 using Tapatalk

  47. #47
    RAKC
    Reputation: tigris99's Avatar
    Join Date
    Aug 2012
    Posts
    7,124
    Ok, gonna let this run while.i go to bed, should be done by the time I wake up

    This is what I go through to make the runtime output graphs. Let this sit and run, go through the camera (on time lapse photo mode) and manually enter in each data point.



    Can't wait till I can afford a lux meter (and find one that's got an idiot proof set up) that I can just plug into my desktop and it enters/plots everything for me.

    Sent from my XT1565 using Tapatalk

  48. #48
    mtbr member
    Reputation:
    Join Date
    Apr 2012
    Posts
    1,452
    Quote Originally Posted by tigris99 View Post
    Ya they could have gone 20awg instead and still been perfect. A lot of lights are still stuck on 22awg, GW is the first I've had using 20awg.

    The 18AWG will be good for triple/quad versions that have a higher current draw.

    Only thing bugging me is i don't have a pack using 18awg wire to really test the voltage sag difference. Guess I'll have to wait till packs are ready for these.
    This can be calculated if you know the lenght and current used at the moment. If the length is not to long then I would say 20AWG should be sufficient There is far less difference in voltage sag between 20 and 18AWG than between 22 and 20AWG.

    The connectors is next problem we should deal with at more powerfull lights. But this is problem when you have several lights and you want compatibility. At some point we should make a break and start with better connectors if we want to do step forward. It is essential to make something like XT30 or XT60 connectors on battery side and then use adapter for backward compatibility.

  49. #49
    RAKC
    Reputation: tigris99's Avatar
    Join Date
    Aug 2012
    Posts
    7,124
    I have 2 pin connectors that use a very similar threaded nut design (may be the same just different plug style). Did pretty well in my first day project that was a 12.6v system pulling 3.5-4A.

    The problem isn't just the connectors. DC style is what EVERYONE uses in one for or another. Which needs to change.

    The big problem is that companies and people alike can't seem to get it through their head that the connector that connectors the battery to the light DOES NOT NEED TO BE WATER PROOF.

    Not a single reason for it. It doesn't effect anything ever. The pack itself and the light head itself can't have water get inside, that's it.

    Get the world to see the truth on that point and suddenly we can move forward to the best connectors for heavy abuse but exceptionally low resistance. What we know in the states as "Dean's Connectors". Not water proof at all. But probably the lowest resistance connector in this small of a form factor there is.

    And the funny part. Their used for all forms of RC. As well as tamiya, and traxxas has their own version of a Dean's connector that's larger. None are waterproof, but as long as pack and Electronics are waterproof. They can be submerged. I know because I have an older YouTube video I did of doing just that to a very expensive RC I used to own. Litterally drove it fully submerged through a creek.

    If I ever decide to build a light using more than 4A, I plan to use them (I still have a bunch laying around from those days).

    So there is a lot of options, just that the change has to be made to use better. But being better costs more, which is difficult these days.

    Sent from my XT1565 using Tapatalk

  50. #50
    RAKC
    Reputation: tigris99's Avatar
    Join Date
    Aug 2012
    Posts
    7,124
    Here's the lumen/run time graph for the xp2 using just a 5200mah pack (same pack as gloworm, Gemini, and Xeccon use)



    Sent from my XT1565 using Tapatalk

Page 1 of 6 12345 ... LastLast

Similar Threads

  1. User Review: ITUO Wiz20
    By tigris99 in forum Lights and Night Riding
    Replies: 502
    Last Post: 04-10-2017, 08:59 PM
  2. ITUO Wiz-XP2
    By ITUO Manufacturer in forum Lights and Night Riding
    Replies: 50
    Last Post: 12-13-2016, 12:39 PM
  3. ITUO WIZ XP3 Triple XM- L2 U3 bike light
    By Skyraider59 in forum Lights and Night Riding
    Replies: 121
    Last Post: 09-01-2016, 07:49 AM
  4. ituo wiz 1 & 2 video review
    By spankone in forum Lights and Night Riding
    Replies: 2
    Last Post: 11-30-2015, 12:01 AM
  5. ITUO Wiz1/Wiz2, which 3 color do you like?
    By ITUO Manufacturer in forum Lights and Night Riding
    Replies: 28
    Last Post: 06-05-2015, 03:29 AM

Members who have read this thread: 197

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
