    Time for a new light build

    thought it was time for a new light now the nights are drawing in








  2. #2
    mtbr member
    Reputation:
    Join Date
    Oct 2008
    Posts
    1,310
    Nice,

    Looks Regina sized.

    Can't wait to see it locked and loaded.

  3. #3
    mtbr member
    Reputation: bumphumper's Avatar
    Join Date
    Jan 2009
    Posts
    136
    That swarf sure does get evey where!!!
    Thought you had been a bit quiet recently.....obviously busy in the shed planning your next creation!


    Beamshots????????

  4. #4
    mtbr member
    Reputation: troutie-mtb's Avatar
    Join Date
    Sep 2007
    Posts
    3,060
    Quote Originally Posted by bumphumper
    That swarf sure does get evey where!!!
    Thought you had been a bit quiet recently.....obviously busy in the shed planning your next creation!


    Beamshots????????

    beam shots could be a while away .
    but it will be a bit bright

  5. #5
    mtbr member
    Reputation: bumphumper's Avatar
    Join Date
    Jan 2009
    Posts
    136
    To the untrained eye, that looks like four regina with enough space to cram in six carclo squares!!!! wtf????????

    Welding goggles at the ready...

  6. #6
    A waste of time it is is
    Reputation: emu26's Avatar
    Join Date
    Jun 2008
    Posts
    3,283
    Will be watching this one!

    BTW that garage is looking very clean / uncluttered

  7. #7
    mtbr member
    Reputation: BrianMc's Avatar
    Join Date
    Jan 2010
    Posts
    4,215
    Got bored?

  8. #8
    mtbr member
    Reputation: troutie-mtb's Avatar
    Join Date
    Sep 2007
    Posts
    3,060
    Quote Originally Posted by bumphumper
    To the untrained eye, that looks like four regina with enough space to cram in six carclo squares!!!! wtf????????
    .


    Nope though there are a couple of reggies going in

    Quote Originally Posted by Brianmc
    Got bored?
    Yep just a little .

    Quote Originally Posted by Emu26
    BTW that garage is looking very clean / uncluttered
    Yep very Tidy at the moment


  9. #9
    mtbr member
    Reputation: troutie-mtb's Avatar
    Join Date
    Sep 2007
    Posts
    3,060






    thats one combination but I am drawn to 6 Reginas and 2 triples or quads all XPGs
    st the triples for flood and the regies for throw .

  10. #10
    Drinkin' the 29er KoolAid
    Reputation: kwarwick's Avatar
    Join Date
    Jun 2004
    Posts
    1,441

    Handlebar heatsink

    Looks like it will use a handlebar as part of the heatsink with a cutout for the stem in the middle?

  11. #11
    mtbr member
    Reputation:
    Join Date
    Oct 2008
    Posts
    1,310
    That's going to be one nasty bit of business when running full out.

  12. #12
    Bigger is better!
    Reputation:
    Join Date
    May 2005
    Posts
    699
    Quote Originally Posted by odtexas
    That's going to be one nasty bit of business when running full out.
    ..and have a quite nice beam pattern methinks

  13. #13
    mtbr member
    Reputation: troutie-mtb's Avatar
    Join Date
    Sep 2007
    Posts
    3,060
    Ha ha this is going to be funny

    I have made the call for it to be 6 XPGs and Regina`s along the top
    and 2 triple XPGs at the bottom .

    Have gone finless as trying to keep it low profile
    And there seems to be a fair amount of surface area .

    Battery could need to be a monster if full power was ever used . Just need to get some
    Reginas ordered from Bram .

    One of those lights that will be totaly overkill I am guessing .

    12 XPGs @ 1 amp 350 lmns each so 4200 lumens











  14. #14
    mtbr member
    Reputation:
    Join Date
    Oct 2008
    Posts
    1,310
    Sweet looking cover there. You could always make a cover with finning if needed. That is a nice thing about having the cover, it allows for easy access and design changes on the fly.
    Really is looking good. Thanks for sharing.

  15. #15
    A waste of time it is is
    Reputation: emu26's Avatar
    Join Date
    Jun 2008
    Posts
    3,283
    Have you found any stars that suit the regina pins yet?

  16. #16
    mtbr member
    Reputation:
    Join Date
    Jul 2005
    Posts
    1,879
    Okay troutie...so the light is nice...don't let me steer this thread too far off course...but how bout a few more pic's of the Ragley?!! Loving that!

  17. #17
    mtbr member
    Reputation: troutie-mtb's Avatar
    Join Date
    Sep 2007
    Posts
    3,060
    Quote Originally Posted by odtexas
    Sweet looking cover there. You could always make a cover with finning if needed. That is a nice thing about having the cover, it allows for easy access and design changes on the fly.
    Really is looking good. Thanks for sharing.

    Cheers odtexas had quite a bit of fun designing it on the fly and filling the garage with chips .
    I think it is looking a bit like a grand piano

    Stu nope I will be using leds I have in stock on 10 mm square boards
    and there may be a bit of carefull aiming of each regina to spread the hotspot a littile .

    Chelboed

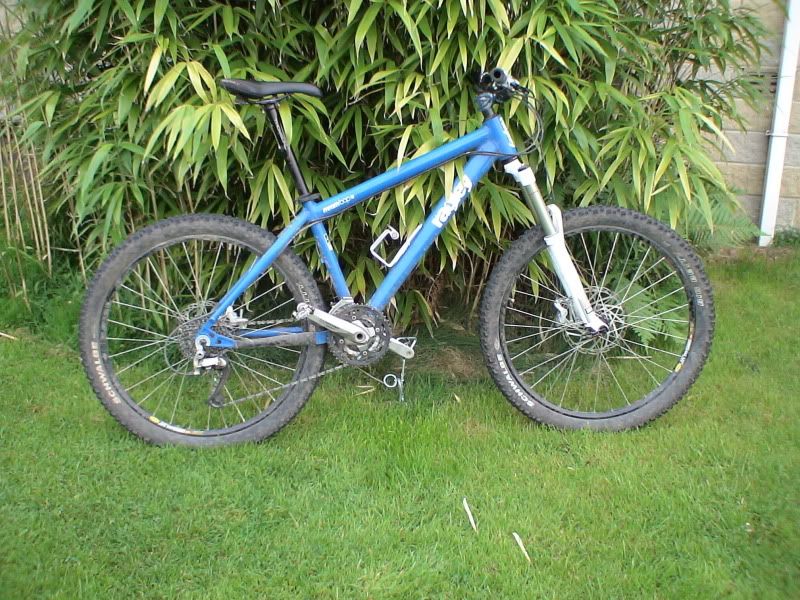

    Loving riding the mmmBop heres a pic though a bit muddy .



    the frames are on special offer at chainreaction 150 ish
    insane price for a great frame even with my fat tyres it is only 27.5 lbs

  18. #18
    mtbr member
    Reputation: Goldigger's Avatar
    Join Date
    Nov 2009
    Posts
    1,669
    Hi Troutie..
    How much would one of those lathes set me back?

    Did you cut the this light head only with this lathe?

  19. #19
    mtbr member
    Reputation: troutie-mtb's Avatar
    Join Date
    Sep 2007
    Posts
    3,060
    Quote Originally Posted by Goldigger
    Hi Troutie..
    How much would one of those lathes set me back?

    Did you cut the this light head only with this lathe?

    Got it from here http://www.rdgtools.co.uk/acatalog/M..._Machines.html

    Yes it was all hacked out on this mill

    but what makes a real difference to how easy it is is to get good Carbide cutters .
    and these can cost a fair bit

  20. #20
    mtbr member
    Reputation: troutie-mtb's Avatar
    Join Date
    Sep 2007
    Posts
    3,060

    Think I may have cocked up

    I have had a blond moment and for some reason had it in my mind thay it was going to be six reginas but its only five




    now a maxflex runs the 2 triples and it was going to be another maxflex for the six but now 5 reginas .

    just checked the voltages and the 2 triples are 19.6 @ 1 amp .

    the 5 others are 15.8 @ 1 amp .

    is this going to cause me any issues using a maxflex for the 5 leds from the same 15 volt pack which will be 16.8 new off the charger .

    or should I just wait till some juice has gone before switching on the 5 leds .

    or should I use my 18 volt pack from my drill which is just over 20 volts freshly charged . and use a buck for the 5


    also using 2 differing drivers connected to the same battery but drawing a different current will that be OK


    or another option as there is room would be to split the 2 triples and us a buck driver each and a buck for the 5 .
    and then use the 18 volt drill pack

    sorry for the ramble

  21. #21
    mtbr member
    Reputation:
    Join Date
    Jan 2007
    Posts
    752
    Quote Originally Posted by troutie-mtb
    is this going to cause me any issues using a maxflex for the 5 leds from the same 15 volt pack which will be 16.8 new off the charger .
    Yes, that could be a problem. When the input voltage is higher than the output voltage on a boost regulator, then current will feed straight through unregulated and could damage the LEDs. You can get away with a tiny bit over because of the voltage drops in the reverse protection fet, the inductor, and the feed foward diode, so 1V over may be ok but it's a little bit of a gamble. If you're going to try that, use your variable power supply and very slowly turn up the voltage while watching the current. If it settles out less than the 1.5A limit for the XPGs you may get away with it.

    but, if someone accidentally plugs in a battery with a little higher voltage, like your 18v drill pack, it'll pretty much instantly fry the 5 led string.

    Quote Originally Posted by troutie-mtb
    or should I just wait till some juice has gone before switching on the 5 leds .
    You could do that, but it'll be tricky to know when it's "safe"

    Quote Originally Posted by troutie-mtb
    also using 2 differing drivers connected to the same battery but drawing a different current will that be OK
    Completely safe.

    Quote Originally Posted by troutie-mtb
    or another option as there is room would be to split the 2 triples and us a buck driver each and a buck for the 5 .
    and then use the 18 volt drill pack
    I really like the characteristics of a buck over a boost regulator, so I think this is the best option.

    Edit: misread the voltage so corrected the first answer.

  22. #22
    mtbr member
    Reputation: Cat-man-do's Avatar
    Join Date
    May 2004
    Posts
    5,483
    ...A great idea here! Make sure the top is covered with non-stick Teflon...Make your own grilled cheese sandwich while on the ride. ... ...

  23. #23
    mtbr member
    Reputation: troutie-mtb's Avatar
    Join Date
    Sep 2007
    Posts
    3,060
    Cheers MtbMacgyver

    Yes may go with the three cheap buck and save the 2 Maxflexs at the expense of no dimming apart from switching off some leds via the 2 switches .

    another question

    on the bucks I have they can be dimmed by switching in a resistor
    can I use 1 switch and resistor to dim 2 of the drivers
    it switches a control with the negative on each driver

    Cat Have you been drinking

  24. #24
    mtbr member
    Reputation: bumphumper's Avatar
    Join Date
    Jan 2009
    Posts
    136
    If you use a DPST (double pole single throw) switch and two resistors, then there shouldnt be a problem.

    Looks like the beamshots wont be long now!!!!

    edit: might have my singles and doubles the wrong way round! (sorted thanks to Wiki)

  25. #25
    mtbr member
    Reputation: troutie-mtb's Avatar
    Join Date
    Sep 2007
    Posts
    3,060
    Quote Originally Posted by bumphumper
    If you use a DPST (double pole single throw) switch and two resistors, then there shouldnt be a problem.

    Looks like the beamshots wont be long now!!!!

    edit: might have my singles and doubles the wrong way round! (sorted thanks to Wiki)


    Ta Bumpy I never thought of that , But anyhow it is a project useing bits in stock so reluctant to buy anything except the Reginas which should be here soon I hope .

    OK went with the 3 cheap Bucks and no dimming as yet but put the link wires in just in case there the white ones . .

    it is also a right mix of cold white xpgs and natural white xpes so dont know what the end result will be
    plugged in a 15 volt battery and the triples were great but the 5 was a bit dim so will need the drill battery
    draw on the bench power supply at 18 volts is

    2 triples 1.18 amps
    the 5 870 ma

    both together 2.07 amps





    and sat as is on the desk it warms up fast with them all on .

    will see when the piano lid goes on
    Last edited by troutie-mtb; 08-23-2010 at 03:18 PM.

  26. #26
    mtbr member
    Reputation:
    Join Date
    Dec 2007
    Posts
    145
    Troutie ... emails sent via forum and website.

  27. #27
    mtbr member
    Reputation: troutie-mtb's Avatar
    Join Date
    Sep 2007
    Posts
    3,060
    Quote Originally Posted by Bobblehat
    Troutie ... emails sent via forum and website.

    Thanks Bobblehat point taken on board and job done I think

  28. #28
    mtbr member
    Reputation:
    Join Date
    Dec 2007
    Posts
    145
    No prob mate

  29. #29
    mtbr member
    Reputation:
    Join Date
    Jul 2005
    Posts
    1,879
    This is inspiring.

  30. #30
    mtbr member
    Reputation:
    Join Date
    Jul 2005
    Posts
    1,879
    Quote Originally Posted by troutie-mtb



    the frames are on special offer at chainreaction 150 ish
    insane price for a great frame even with my fat tyres it is only 27.5 lbs

    Very nice...here I thought you were "path rider". Is the mmmBop a "trail bike" / XC style frame versus the gnarlier Pig? I'm really digging the Blue Pig design. I'd like to run one with a Lyrik and 2.5" Excavators.

  31. #31
    A waste of time it is is
    Reputation: emu26's Avatar
    Join Date
    Jun 2008
    Posts
    3,283
    Change a triple to a quad then run 2 regina's and the quad from one maxflex and 3 reginas and the triple from the other. The multi boards are for fill light anyway so the crappy optics on the quad won't hurt, you'll have two fairly closely balanced strings with a maxflex and 6 xpg on each and best of all, you'll get more light which I can already see you're going to need with this build

    Edit: BTW next time can you measure twice and cut once

  32. #32
    mtbr member
    Reputation: troutie-mtb's Avatar
    Join Date
    Sep 2007
    Posts
    3,060
    Quote Originally Posted by emu26
    Change a triple to a quad then run 2 regina's and the quad from one maxflex and 3 reginas and the triple from the other. The multi boards are for fill light anyway so the crappy optics on the quad won't hurt, you'll have two fairly closely balanced strings with a maxflex and 6 xpg on each and best of all, you'll get more light which I can already see you're going to need with this build

    Edit: BTW next time can you measure twice and cut once

    Whats this measureing you talk about

    Nope that is basically it just the Reginas to install and the rest of the mounts to make .
    then I will be able to see the dog poo and puddles on the paths .

    Chelboed

    Whilst I am no big air specialist we do have gnarly trails over here in the UK and where I live is the Yorkshire Dales which has plenty of limestone "paths"
    The Bop and Pig have the same geometry just one is Aluminium and the other Steel .

    I like it it does everything I want it to and would do more if my abilities were better .

  33. #33
    MUFC - Champions!!!
    Reputation:
    Join Date
    Jul 2008
    Posts
    38
    looking good Chris - I hate seeing your new builds as it always makes me depressed seeing mine hahaha

    can't wait to see the finished light

  34. #34
    mtbr member
    Reputation: troutie-mtb's Avatar
    Join Date
    Sep 2007
    Posts
    3,060
    Temporary optics in place till the vaginas arrive .



    some untried by me untill now Kathod samples I found in the box of bits
    I dont even remember them arriving .
    put them in as I am an impatient git and wanted to take it out for a walk .

    update on the dimming did not want to spoil the lines of this beauty with a toggle switch
    so wired the 5 top leds to come on when the power is plugged in and used the now spar switch to dim them .
    as I figured for road and easy riding I would use the top five and for fast stuff switch in the 6 bottom leds and full power to the top 5 .


    so when the 5 dim they are drawing 390 ma from the battery so a reasonable runtime will be possible .

    put the lid on with some paste and the 10.5 extra inches of area dont half make a difference .

    make a nice little drinks warmer on the desk

  35. #35
    mtbr member
    Reputation: crazychimpjimbo's Avatar
    Join Date
    Dec 2007
    Posts
    126
    Looking good Troutie!
    Custom Giant OCR T-Mobile Edition
    On-One Scandal 29'er Project on the go

  36. #36
    Rep Power Infinity +2
    Reputation: brad72's Avatar
    Join Date
    Jun 2009
    Posts
    1,538
    Quote Originally Posted by troutie-mtb
    Temporary optics in place till the vaginas arrive

    Beautiful looking light troutie. Makes me want to take my small lathe home so I can tinker in the evenings, but tell me more about these "vaginas" optics. Do they give more pleasure when riding with the light or make you feel warm and fuzzy inside

    I must of started a trend with the polished hoods on my lights but they do work wonderfully when standing and pedaling, especially with the light output your light deliver.
    Last edited by brad72; 08-25-2010 at 02:16 AM.

  37. #37
    mtbr member
    Reputation: troutie-mtb's Avatar
    Join Date
    Sep 2007
    Posts
    3,060
    Quote Originally Posted by brad72
    Beautiful looking light troutie. Makes me want to take my small lathe home so I can tinker in the evenings, but tell me more about these "vaginas" optics. To they give more pleasure when riding with the light or make you feel warm and fuzzy inside

    I must of started a trend with the polished hoods on my lights but they do work wonderfully when standing and pedaling, especially with the light output your light deliver.

    Well I was all warm and fuzzy half an hour ago when taking some preliminary beam shots but now I am all crazy and angry

    Got a new computer a while ago and just found out Windows 7 does not like my old but faithfull canon Powershot S40 and I cant get at the bloody photos .

    Tried all sorts of things to no avail .

    so will have to wait till the morning and borrow my daughters laptop .

  38. #38
    mtbr member
    Reputation: Goldigger's Avatar
    Join Date
    Nov 2009
    Posts
    1,669
    Can you not install the driver in compatibility mode?

  39. #39
    mtbr member
    Reputation: troutie-mtb's Avatar
    Join Date
    Sep 2007
    Posts
    3,060
    Quote Originally Posted by Goldigger
    Can you not install the driver in compatibility mode?

    Been trying that for the last hour
    camera installed device manager says it is happy and working correctly
    just the Bastid wont let me download the damn pics or even look at them .

  40. #40
    mtbr member
    Reputation: Goldigger's Avatar
    Join Date
    Nov 2009
    Posts
    1,669
    Quote Originally Posted by troutie-mtb
    Been trying that for the last hour
    camera installed device manager says it is happy and working correctly
    just the Bastid wont let me download the damn pics or even look at them .
    I looked on the canon site and there is a raw codec for the s40 for windows 7.. lets you import raw images from the camera,
    may let you see the rest of the images..
    dont know if this will help
    http://software.canon-europe.com/sof...095.asp?model=

    You also need to install this for the codec to work..
    http://www.microsoft.com/downloads/d...displaylang=en

    edit..ignore the microsoft WIC, looks like windows 7 already has it..

  41. #41
    Rep Power Infinity +2
    Reputation: brad72's Avatar
    Join Date
    Jun 2009
    Posts
    1,538
    On my windows 7 I run xp virtual machine (Windows XP mode) for all those programs that do not like windows 7. You can also try right clicking on the program icon and click Run in Administrator mode. Sometimes this works.

    Another option is just load the card into your card reader and forget the cannon software. This is what I do with my camera to save the hassels

  42. #42
    Rep Power Infinity +2
    Reputation: brad72's Avatar
    Join Date
    Jun 2009
    Posts
    1,538
    Just be careful when you do get the images downloaded that you don't burn out your screen as I'm sure they will be bloody bright.

  43. #43
    mtbr member
    Reputation:
    Join Date
    Oct 2008
    Posts
    1,310
    Quote Originally Posted by brad72
    Just be careful when you do get the images downloaded that you don't burn out your screen as I'm sure they will be bloody bright.
    Now that's funny.

  44. #44
    mtbr member
    Reputation: BrianMc's Avatar
    Join Date
    Jan 2010
    Posts
    4,215
    You may want a welder's mask to view them!

  45. #45
    mtbr member
    Reputation:
    Join Date
    Feb 2009
    Posts
    119
    "Vaginas" Hahahahahaha! Flamethrower for sure, this next project of yours! However, i do believe that it'd be better to have two separate light housing than cramping all this firepower in one unit......

    BTW , i own a Ragley Ti myself, upgrading from a Blue Pig, after parting with my Giant Trance X and been messing around with FS bikes the last 6 years......
    Brarnt rules, i hope i get to meet him @ Eurobike next week!

  46. #46
    mtbr member
    Reputation: troutie-mtb's Avatar
    Join Date
    Sep 2007
    Posts
    3,060
    Quote Originally Posted by Giant-Lander
    "Vaginas" Hahahahahaha! Flamethrower for sure, this next project of yours! However, i do believe that it'd be better to have two separate light housing than cramping all this firepower in one unit......

    BTW , i own a Ragley Ti myself, upgrading from a Blue Pig, after parting with my Giant Trance X and been messing around with FS bikes the last 6 years......
    Brarnt rules, i hope i get to meet him @ Eurobike next week!




    yeah I could just clamp two 7ups to the bars but then I would not have had the fun of building a 4000lumen light. And what is life with a bit of fun

    yeah Brant is a nice guy. , Helped me out with the Bop when my Pace frame broke
    Say hello from me

  47. #47
    mtbr member
    Reputation: Goldigger's Avatar
    Join Date
    Nov 2009
    Posts
    1,669
    Quote Originally Posted by troutie-mtb
    yeah I could just clamp two 7ups to the bars but then I would not have had the fun of building a 4000lumen light. And what is life with a bit of fun

    yeah Brant is a nice guy. , Helped me out with the Bop when my Pace frame broke
    Say hello from me
    How did you brake your Pace frame? I thought they were bullet proof
    I still have some Pace RC36 forks on my 12 year old orange frame that the mrs uses..

    Had them forks serviced by a guy who used to work for pace, he took all the old parts and setup his own company called fork english..
    He said my forks were still mint inside

    He's up your part of the world.. pickering yorkshire

  48. #48
    mtbr member
    Reputation: troutie-mtb's Avatar
    Join Date
    Sep 2007
    Posts
    3,060
    Quote Originally Posted by Goldigger
    How did you brake your Pace frame? I thought they were bullet proof
    I still have some Pace RC36 forks on my 12 year old orange frame that the mrs uses..

    Had them forks serviced by a guy who used to work for pace, he took all the old parts and setup his own company called fork english..
    He said my forks were still mint inside

    He's up your part of the world.. pickering yorkshire


    http://www.singletrackworld.com/foru...-frames-busted

    See thread

    Pace are now my least favourite co

  49. #49
    mtbr member
    Reputation: troutie-mtb's Avatar
    Join Date
    Sep 2007
    Posts
    3,060
    Well I finally got those pesky early beam shots into a computer and on to the internet .
    just to recap this is with the temporary optics as the reginas have not got here yet.


    this shot is top 5 leds on medium



    top 5 leds on high


    top 5 leds on high and bottom 6 leds on high as they only have high



    and this one was just for a laff

  50. #50
    mtbr member
    Reputation: Goldigger's Avatar
    Join Date
    Nov 2009
    Posts
    1,669
    Troutie...
    What did you use for the last pic?

  51. #51
    mtbr member
    Reputation: troutie-mtb's Avatar
    Join Date
    Sep 2007
    Posts
    3,060
    Quote Originally Posted by Goldigger
    Troutie...
    What did you use for the last pic?

    ONE OF THESE BEASTIES

  52. #52
    mtbr member
    Reputation: Goldigger's Avatar
    Join Date
    Nov 2009
    Posts
    1,669
    Quote Originally Posted by troutie-mtb
    Is that just one XRE in the DEFT?

  53. #53
    mtbr member
    Reputation: troutie-mtb's Avatar
    Join Date
    Sep 2007
    Posts
    3,060
    Quote Originally Posted by Goldigger
    Is that just one XRE in the DEFT?

    It is just the one

    but look at the size of the lens


  54. #54
    mtbr member
    Reputation: Goldigger's Avatar
    Join Date
    Nov 2009
    Posts
    1,669
    Thats interesting..
    I have a dive light that uses a aspheric fresnel lens and a SST-50 led..its also focusable..
    http://www.candlepowerforums.com/vb/...d.php?t=276298

    I thought for a moment the DEFT was one of your creations, which would make a good dive light...just needs more lumens i think

    Anyway sorry detracting from your light here..

  55. #55
    mtbr member
    Reputation: troutie-mtb's Avatar
    Join Date
    Sep 2007
    Posts
    3,060

    What a difference some reflectors make

    Quote Originally Posted by Goldigger
    Thats interesting..
    I have a dive light that uses a aspheric fresnel lens and a SST-50 led..its also focusable..
    http://www.candlepowerforums.com/vb/...d.php?t=276298

    I thought for a moment the DEFT was one of your creations, which would make a good dive light...just needs more lumens i think

    Anyway sorry detracting from your light here..

    Might have to pick your brains Goldigger I have promised a dive light to a mate .
    like which cable gland and switching on and off also canister for battery .
    leds drivers and optics no problem .






    And back to the daft light on the thread .
    the Reginas arrived today and were glued in so that at pooch walking time we could have a comparison

    and wow these reflectors rock well 5 certainly do


    5 Reginas with 3 xpgs and 2 xpes on low



    the same but high


    and all guns blazing




    its one hell of a bike light

  56. #56
    mtbr member
    Reputation:
    Join Date
    Jul 2009
    Posts
    281
    where are you finding reginas in stock? Is cutter the only place with them in stock? I'd rather not pay $6 a reflector and have to wait 3 weeks if possible.

  57. #57
    mtbr member
    Reputation: troutie-mtb's Avatar
    Join Date
    Sep 2007
    Posts
    3,060
    Quote Originally Posted by BKruahnndon
    where are you finding reginas in stock? Is cutter the only place with them in stock? I'd rather not pay $6 a reflector and have to wait 3 weeks if possible.

    Try Bram off CPF

    He is very reliable and quick

  58. #58
    mtbr member
    Reputation: brant's Avatar
    Join Date
    Jan 2004
    Posts
    2,842
    Quote Originally Posted by Giant-Lander
    i hope i get to meet him @ Eurobike next week!
    I'm there until Friday lunchtime. Not there for public day.

  59. #59
    mtbr member
    Reputation: Goldigger's Avatar
    Join Date
    Nov 2009
    Posts
    1,669
    Can also get them here
    http://www.led-tech.de/en/High-Power...8_106_146.html
    1.99 euros each..
    Postage to the US might kill the deal though 5.90 euros

  60. #60
    mtbr member
    Reputation: Goldigger's Avatar
    Join Date
    Nov 2009
    Posts
    1,669
    Quote Originally Posted by troutie-mtb
    thought it was time for a new light now the nights are drawing in
    Troutie,
    Any pics of how you bored out the channel where the leds are going?

    I'm looking at buying a milling machine, any words of advice? what do i need to look for? etc

    What can i do on a mill that i cant on a lathe?
    I'm thinking this looks alright.. http://www.axminster.co.uk/axminster...9/?src=froogle
    Cheers
    Last edited by Goldigger; 09-17-2010 at 06:02 AM.

  61. #61
    Rep Power Infinity +2
    Reputation: brad72's Avatar
    Join Date
    Jun 2009
    Posts
    1,538
    Lathe is good for anything that needs to be round, mill is good for anything that isn't. In saying that i use my lathe to prep bar stock ready for the mill to speed things up. The mill you are looking at is pretty good. It's tooling capacity is fine and will make any light you can throw at it. Cast iron and hardened and ground slide ways is a must for accuracy and longevity. Having a variable speed is very handy as it saves time changing speed via belts and pulleys when you change cutter sizes

    I have a manual mill with 3 axis DRO which is a great too to speed up your work and improve accuracy, especially if you use cad to design your lights and can run off drawings with measurements. I bought a Hafco Metalmaster mill that I use mostly for work projects but it also makes my lights. The heavier the mill the better as it eliminates flex meaning you can take bigger cuts or use larger diameter tools, but also increase accuracy. Obviously you'll need to buy a vice and a clamp kit a collet set and some end mills




    Another handy tool for the mill is a rotary table like this one ::

    The rotary table enabled me to cut the o ring groove in the picture below, plus I bored out the body of the light using it. Using the DRO enabled fast and accurate drill and tapping of the screw holes in both the body and end caps. .
    Last edited by brad72; 09-17-2010 at 06:34 AM.

  62. #62
    mtbr member
    Reputation: Goldigger's Avatar
    Join Date
    Nov 2009
    Posts
    1,669
    Cheers Brad,
    It seems that i can spend the same value of the mill on just the attachments and cutters..
    Is your set up hooked up to the laptop for CNC?

  63. #63
    Rep Power Infinity +2
    Reputation: brad72's Avatar
    Join Date
    Jun 2009
    Posts
    1,538
    No. I just draw everything up in cad, print out the drawings, have a point of reference on the part being machined matching to the drawing then wind the table x-y-z to get the correct position to cut. It is really fast once you know your machine

    You right about the tooling. Starting out you could happily get away with a collet set, HSS 4, 5, 6 & 8mm 4 flute end mills, and a good solid vice. You can also pick up a good set 4 flute end mills for quite a reasonable price, like these http://www.parkertools.co.uk/Product...arkson+6+Piece
    Last edited by brad72; 09-17-2010 at 03:15 PM.

  64. #64
    mtbr member
    Reputation: troutie-mtb's Avatar
    Join Date
    Sep 2007
    Posts
    3,060
    GD
    cant improve on Brads posts .

    the axminster is a good machine .

    I do have a little mill that needs a bit of repairing .
    a new drive cog for the fast speed max 20 to fix

    if you are interested 100 I can send you some pics tomorrow .

    best tools I have was some carbide mills I was given they are the best for Ali cutting .

  65. #65
    Rep Power Infinity +2
    Reputation: brad72's Avatar
    Join Date
    Jun 2009
    Posts
    1,538
    GD, you can diy your mill digital read out (DRO) and save a heap of money. Have a look at this link for how to do it http://www.homemodelenginemachinist....p?topic=1298.0 .You can pick up cheap verniers for next to nothing.

    Brad

  66. #66
    mtbr member
    Reputation:
    Join Date
    Jul 2005
    Posts
    1,879
    So Troutie...do you by chance have a beamshot with this monster in the woods at your normal shooting place?

    What about your mini-7up that you were working on with Quaz'z boards?

    Will you ever be offering a single housing that will hold two Regina's with XP-G's? I'd really like to come up with another double Regina light at some point, but I'm trying to steer clear the whole "Double-Barrel" design. I'd like one single housing.

  67. #67
    mtbr member
    Reputation: troutie-mtb's Avatar
    Join Date
    Sep 2007
    Posts
    3,060
    Hi Chelboed -Lots of questions

    yes I did some the other day but never got round to posting them so thanks for the nudge


    OK first up is the 5 Reginas on low drive current about 450 ma



    the 5 reginas on hi 960 ma




    I think I need a bigger woods for that light its a beast .


    not had much time lately as been working on a tweaked liberator with extra cooling so as to be able to push the XPGs to the maxflex max if needed .

    Otherwise nothing new happening in Troutland lots of ideas but not enough time to try any out .




    and finally 5 reginas Hi and the 2 triples on hi also.


  68. #68
    mtbr member
    Reputation: Goldigger's Avatar
    Join Date
    Nov 2009
    Posts
    1,669
    Troutie, out of interest what is the dimensions of your new light?
    I'm trying to get an idea of how small i need to go for 2 tripples or even 2 quads xpg's..

    On the other hand i was also curious how small i could get away with for a single xpg..

  69. #69
    Rep Power Infinity +2
    Reputation: brad72's Avatar
    Join Date
    Jun 2009
    Posts
    1,538
    GD, for additional sizing info, my 2 up triple xpg's dimensions are 60mm (w) x 40mm(h) x 40mm(d). this includes a bFlex diver and polycarbonate lens.


  70. #70
    Im a Cowboy
    Reputation: CrustyOne's Avatar
    Join Date
    Oct 2007
    Posts
    792
    A helicopter with a nightsun?
    DON'T TELL ME I'M STILL ON THAT FECKIN' ISLAND! ....

  71. #71
    mtbr member
    Reputation: Goldigger's Avatar
    Join Date
    Nov 2009
    Posts
    1,669
    Quote Originally Posted by brad72
    GD, for additional sizing info, my 2 up triple xpg's dimensions are 60mm (w) x 40mm(h) x 40mm(d). this includes a bFlex diver and polycarbonate lens.


    Cheers brad, thanks for the reference photo to.
    Do you think you could go much smaller? Or does the temp cut off already kick in?

  72. #72
    Rep Power Infinity +2
    Reputation: brad72's Avatar
    Join Date
    Jun 2009
    Posts
    1,538
    I'll sent a pdf of the cad drawing when I get back to work. There was not much more I could take off unless I removed the o'ring groove. That might save 5mm from the width and height without reducing the finned area. Summer is coming here in Australia so the cooling will be put to the test when night riding in 30c weather.

    brad

  73. #73
    mtbr member
    Reputation: Goldigger's Avatar
    Join Date
    Nov 2009
    Posts
    1,669
    Troutie,
    Where do you get your cobalt hole saw's from?
    Do they fit in a normal 13mm chuck? The Bosch's ones dont!

  74. #74
    mtbr member
    Reputation: troutie-mtb's Avatar
    Join Date
    Sep 2007
    Posts
    3,060
    Goldigger
    Got the hole saw from a local tool store
    30 mm but it wobbles so when finished the cut it is only a light job with some emery paper wrapped round a tube to get it to handlebar size.

    no it is in a 16 mm chuck

  75. #75
    mtbr member
    Reputation: Goldigger's Avatar
    Join Date
    Nov 2009
    Posts
    1,669
    I've just picked up a axminster sx2 mill.. upgraded version with a 500w brushless motor,
    this mill is quiter than my misses hair dryer!
    http://www.axminster.co.uk/axminster...ll-prod809899/
    I got 5% off as it was the one on display..
    At present its in the boot of my car as it's a bit heavy to get out on my own..
    Got to wait for the collet to be delievered next week as they didnt have one in stock..
    I didnt get a rotary table as i spent enough already.!
    Got a couple of end mills and slot cutters..and a vice..

    Any tips Chris and brad before i start making a mess?

  76. #76
    Rep Power Infinity +2
    Reputation: brad72's Avatar
    Join Date
    Jun 2009
    Posts
    1,538
    Nice little mill. What did your wife get?

    Just to do a search of recommended speed and feed for each cutter you have. When you get this right the speed and quality of your machining will be greatly increase. The sound that the cutter makes and feel through handles the will let you know when the planets have aligned.

    Also as a side note never use Emory paper to buff parts on your new toy, it really wrecks your beds as the dust formed is so abrasive

    Oh and did I mention we expect at least 1 new housing design each week

  77. #77
    mtbr member
    Reputation: Goldigger's Avatar
    Join Date
    Nov 2009
    Posts
    1,669
    The misses got her diamond ring replaced as she lost one of the diamonds out of it, great thing was it didn't cost me a penny..
    With the designs spinning round my head that will use up the bits in my box like p7's and boom reflectors, I could really do with that 100mm rotary table.
    Then there's those dro's and how to mount them.
    IS there an art to centering your work?

    Cheers

  78. #78
    mtbr member
    Reputation: yetibetty's Avatar
    Join Date
    Dec 2007
    Posts
    1,781
    Goldigger, I learnt quite a lot from this bloke on youtube http://www.youtube.com/profile?user=...42/VY2crpjhL3E

    He is an ex teacher and has loads of vids, you just have to shrink everything he does down to mini mill size

  79. #79
    Rep Power Infinity +2
    Reputation: brad72's Avatar
    Join Date
    Jun 2009
    Posts
    1,538
    centering the work piece is dead easy. Get yourself a center/edge finder like one of these http://littlemachineshop.com/product...ProductID=1240. These are great as the pointed end is great for finding the centers of holes or a line scribed on your workpiece and the cylindrical end is great for finding the edge or a work piece.

    The other thing to do is do the home brew D.R.O using cheap verniers. If you can't do this just write down what the scales indicated on you x,y slides when the part is entered.

    As for the rotary table just center the rotary table 1st, then center your part to the rotary table. Again a DRO makes this much easier but still not hard using your scales.

    If you stuff up just start again. The hours put in before the stuff up are usually motivation enough not to do it again

  80. #80
    Rep Power Infinity +2
    Reputation: brad72's Avatar
    Join Date
    Jun 2009
    Posts
    1,538
    here a video on how to use the edge finder http://www.youtube.com/watch?v=f0od-cp_9dg

    I just checked the link that I posted above for the edge finder and he also has video's if you click on Chris's tips next to the description
    Last edited by brad72; 10-04-2010 at 03:21 AM.

  81. #81
    mtbr member
    Reputation: Goldigger's Avatar
    Join Date
    Nov 2009
    Posts
    1,669
    Quote Originally Posted by brad72
    here a video on how to use the edge finder http://www.youtube.com/watch?v=f0od-cp_9dg

    I just checked te link that I posted above for the edge finder and he also has video's if you click on Chris's tips next to the description
    Cheers Brad..your now officially my tutor

    When do we learn how do this?
    http://www.youtube.com/watch?v=8OZNi...eature=related

    This CNC stuff is mental!!

    Thanks..

  82. #82
    Rep Power Infinity +2
    Reputation: brad72's Avatar
    Join Date
    Jun 2009
    Posts
    1,538
    Too easy, you can do the same thing with that little edge finder and a calculator. Just a bit more fiddly, although his electronic thingeemigingee was pretty cool.

    To find the center of a circle, eyeball the edge finder to the middle, then turn on the spindle, move the edge finder to one side of the hole (z axis) and when it deflects make a note of the measurement on the z axis scale, move the edge finder to the other side of the hole and when it deflects make a note of it's measurement, then halve the 2 measurements. This is the center of that axis. Repeat for the x axis an theres your center.

  83. #83
    mtbr member
    Reputation: Goldigger's Avatar
    Join Date
    Nov 2009
    Posts
    1,669
    What does the fine feed adjustment wheel do?
    Im guessing it lets me set the hight of the cutter finely.. but ive just been turning that knob and cant see any movement..
    silver knob just to the right and above the chuck

    edit.. I've worked it out, had to the Push the handle in that adjusts the depth..


    Cheers
    Last edited by Goldigger; 10-04-2010 at 11:53 AM.

  84. #84
    mtbr member
    Reputation:
    Join Date
    May 2010
    Posts
    333
    Where are you going to get your stock from?

  85. #85
    mtbr member
    Reputation: Goldigger's Avatar
    Join Date
    Nov 2009
    Posts
    1,669
    Quote Originally Posted by MrLee
    Where are you going to get your stock from?
    I picked up a load of these from sainsburys

  86. #86
    mtbr member
    Reputation:
    Join Date
    May 2010
    Posts
    333
    ;-)

  87. #87
    mtbr member
    Reputation: BrianMc's Avatar
    Join Date
    Jan 2010
    Posts
    4,215
    Good idea. A lot less mess and bother than Bovines on the hoof. I ride by a stockyard and like fenders a lot..

    ..so about the other stock, you know: 'the lights in the rough', as it were, where are you sourcing that.?

  88. #88
    mtbr member
    Reputation: Goldigger's Avatar
    Join Date
    Nov 2009
    Posts
    1,669
    Quote Originally Posted by BrianMc
    Good idea. A lot less mess and bother than Bovines on the hoof. I ride by a stockyard and like fenders a lot..

    ..so about the other stock, you know: 'the lights in the rough', as it were, where are you sourcing that.?
    I'm assuming you mean my aluminium?

  89. #89
    mtbr member
    Reputation:
    Join Date
    May 2010
    Posts
    333
    Yup

  90. #90

  91. #91
    mtbr member
    Reputation:
    Join Date
    May 2010
    Posts
    333
    troutie - done any more on your light? wondered how the bar mount was working out.

    Goldigger - you going to post any sketches up of the new light or waiting to see what wonders you can create on the new mill before you commit? ;-)

  92. #92
    Rep Power Infinity +2
    Reputation: brad72's Avatar
    Join Date
    Jun 2009
    Posts
    1,538
    Aren't I the lucky one. My metal merchant with stocks of machinable alloys is 5 minutes away, same with all the consumables and electronics is overnight. Australia might be a big country but everything is close.

  93. #93
    mtbr member
    Reputation: Goldigger's Avatar
    Join Date
    Nov 2009
    Posts
    1,669
    Quote Originally Posted by MrLee
    troutie - done any more on your light? wondered how the bar mount was working out.

    Goldigger - you going to post any sketches up of the new light or waiting to see what wonders you can create on the new mill before you commit? ;-)
    I've got a few plans drawn out already.. I'm just going to get going on the mill and see what i can do.. watch this space..
    I'm also looking at knocking up some reels for diving..

  94. #94
    mtbr member
    Reputation: troutie-mtb's Avatar
    Join Date
    Sep 2007
    Posts
    3,060
    Quote Originally Posted by MrLee
    troutie - done any more on your light? wondered how the bar mount was working out.

    Goldigger - you going to post any sketches up of the new light or waiting to see what wonders you can create on the new mill before you commit? ;-)


    No not done anything since been too busy with other things but have a quiet week so may get it finished .


    Quite enjoying the discussion on here though

  95. #95
    Rep Power Infinity +2
    Reputation: brad72's Avatar
    Join Date
    Jun 2009
    Posts
    1,538
    Quote Originally Posted by troutie-mtb
    No not done anything since been too busy with other things but have a quiet week so may get it finished .


    Quite enjoying the discussion on here though

    Got to admit this thread has become diverse, from your build, to mills, to tutorials, to beef OXO cubes.........what tangent can we go off onto next
    Last edited by brad72; 10-05-2010 at 02:09 PM.

  96. #96
    mtbr member
    Reputation:
    Join Date
    Dec 2007
    Posts
    145
    Quote Originally Posted by brad72
    .........what tangent tan we go off onto next
    I always enjoy any diversion that features "Round bottomed Fins"!

    p.s. Mr Postman brought 4 xp-g R5 and 4 Reginas today ........ Hmmmmmmm...... I got a Hammond I can chop in two , but only one Teapot 970mA ........ better get busy eh?

  97. #97
    A waste of time it is is
    Reputation: emu26's Avatar
    Join Date
    Jun 2008
    Posts
    3,283
    Don't cut the Teapot in two

  98. #98
    mtbr member
    Reputation:
    Join Date
    Dec 2007
    Posts
    145


    I'm hoping Teapot will build enough to supply all the Troutie STW builders and have one left over to get me a 2nd! Teapot hasn't replied to my request yet .... he's probably still recovering from all the solder fumes and solderer's elbow!

  99. #99
    mtbr member
    Reputation: troutie-mtb's Avatar
    Join Date
    Sep 2007
    Posts
    3,060
    Quote Originally Posted by Bobblehat
    I always enjoy any diversion that features "Round bottomed Fins"!

    p.s. Mr Postman brought 4 xp-g R5 and 4 Reginas today ........ Hmmmmmmm...... I got a Hammond I can chop in two , but only one Teapot 970mA ........ better get busy eh?

    Chop the hammond in 2 and bolt them together and make a quad
    only 1 driver needed then

  100. #100
    mtbr member
    Reputation:
    Join Date
    Dec 2007
    Posts
    145
    That could be "Plan B", Troutie!

    I'd better start a new thread with my proposed build ..... don't want to hog this one!

    It'll be nothing spectacularly new ..... but might be worth a look for some members.

Page 1 of 2 12 LastLast

Members who have read this thread: 0

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
