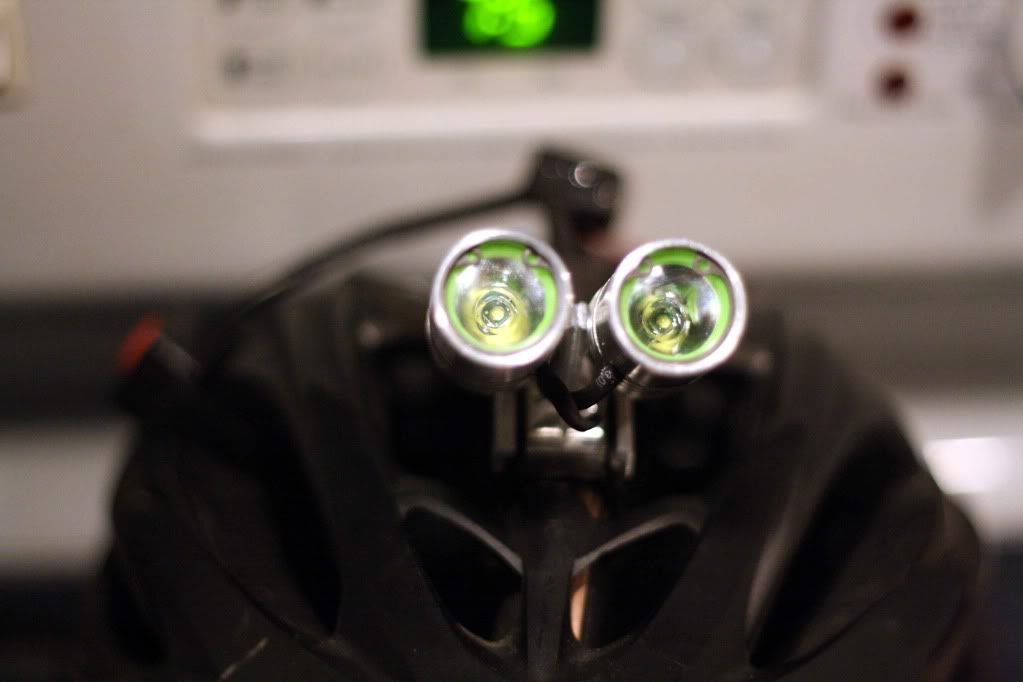

    Second Double Barrel Regina...revised...

    I'm doing a double Regina XP-G for a friend of mine and decided that mine runs so dang cool...I may as well lose some mass. Similar diameter, shorter barrels, a little more bored out tail end. Gonna round the top of the mount off for aesthetics.

    Much lighter...a few cosmetic touches to sort out, but I'm happy with it so far.






  2. #2
    mtbr member
    Reputation:
    Join Date
    Nov 2005
    Posts
    787
    Quote Originally Posted by chelboed
    Where did you get this switch?
    I'm looking to make something similar for my 332MC build, but I would rather buy one if I found one I liked. Yours seems very close to what I'm looking for, not too big, not too small, and has the loops to fasten it to my camelback strap.

  3. #3
    mtbr member
    Reputation:
    Join Date
    Jul 2005
    Posts
    1,681

  4. #4
    mtbr member
    Reputation:
    Join Date
    Nov 2005
    Posts
    787
    Is it a momentary switch? By the on/off description I'm guessing it isn't.
    Is it possible to open the case, so I can put a different switch in?
    If not I'll be making my own housing...

  5. #5
    mtbr member
    Reputation:
    Join Date
    Jul 2005
    Posts
    1,681
    I believe it's a sealed unit. I'll check when I get home. Anything can be altered though, right? Heck man...it's only $5. You could always try to open it with a hot knife and epoxy it back together. Machine or sand it flat again...and you're good to go.

  6. #6
    mtbr member
    Reputation: bravellir's Avatar
    Join Date
    Nov 2008
    Posts
    203



    I'm also building a double regina.

    That switch looks nice, but shipping costs to Europe are just "#$$% ....

    You are using snap rings to close the light, how do you make it water resistant?

  7. #7
    mtbr member
    Reputation:
    Join Date
    Jul 2005
    Posts
    1,681
    LOL! I only run one pair at a time, hahaha.


    No more snap rings. The first double barrel Regina traded snap rings for O-Rings. On that one, I have an O-ring on top of the reflector with some silicone around it sealing it. Then I have the lens. Then I squirted some more silicone in the snap ring groove and mashed an O-Ring in there. The pressure from the guts pushes the O-ring harder into the groove...but the Silicone is a "fail safe" just in case.


    This second build will be done the same way I think. It looks much better IMO...and the extra seal with 1 more O-ring + the silicone just gives me a little peace of mind.


    See this picture...O-rings and silicone retain the guts:




    Originally though...I did plan to use a snap ring.


    Either way it was sealed b/c the pressure from the snap ring pushed against the O-ring which caused it to spread out against the lens and housing making it water resistant.

    I also use silicone around the wire exit holes.

  8. #8
    mtbr member
    Reputation: bravellir's Avatar
    Join Date
    Nov 2008
    Posts
    203
    So it's a o-ring behind the snap ring or just the o-ring with the silicone... that means that I must be very precise with the snap ring grove placement... humm..

    tks chelboed

  9. #9
    mtbr member
    Reputation:
    Join Date
    Jul 2005
    Posts
    1,681
    There is no snap ring...snap ring go bye-bye. Now it's an O-ring before and after the lens. Please read the captions and don't just look at the pictures.

  10. #10
    mtbr member
    Reputation: bravellir's Avatar
    Join Date
    Nov 2008
    Posts
    203
    I did read the captions, was just mentioning my options based on what you did and mumbling about how precise the placement of the grove must be.

    tks again

  11. #11
    mtbr member
    Reputation:
    Join Date
    Jul 2005
    Posts
    1,681
    Quote Originally Posted by bravellir
    I did read the captions, was just mentioning my options based on what you did and mumbling about how precise the placement of the grove must be.

    tks again

    Ahhh...I get it.

    It doesn't need to be "that" precise. I think if you get within .25-.5mm...you can rely on the compression of the O-ring to pick up some slack.

  12. #12
    mtbr member
    Reputation:
    Join Date
    Dec 2007
    Posts
    151
    Very nice revision Chelboed. It just keeps getting betterer and betterer!

    Can I ask what the OD is on this new version and if you don't mind, what wall thickness do you have in the LED board/reflector area of the light ... ignoring any groves you've cut for O-rings.

    Where these dimensions derived from the LED board diameter and also the availability of a suitable cover glass and O-rings? Or did you set the dimensions from the diameter of the Regina and then found suitable glass and rings? Only asking to understand what's important in designing such a neat housing.

    Cheers, Bobblehat.

  13. #13
    mtbr member
    Reputation:
    Join Date
    Jul 2005
    Posts
    1,681
    OD is approx 24mm...I may try to go smaller. Wall thickness between 1-2mm. I started with the diameter of the Regina...19mm. I got the Xp-G's on 20mm stars, so I machined the star down to 19mm.

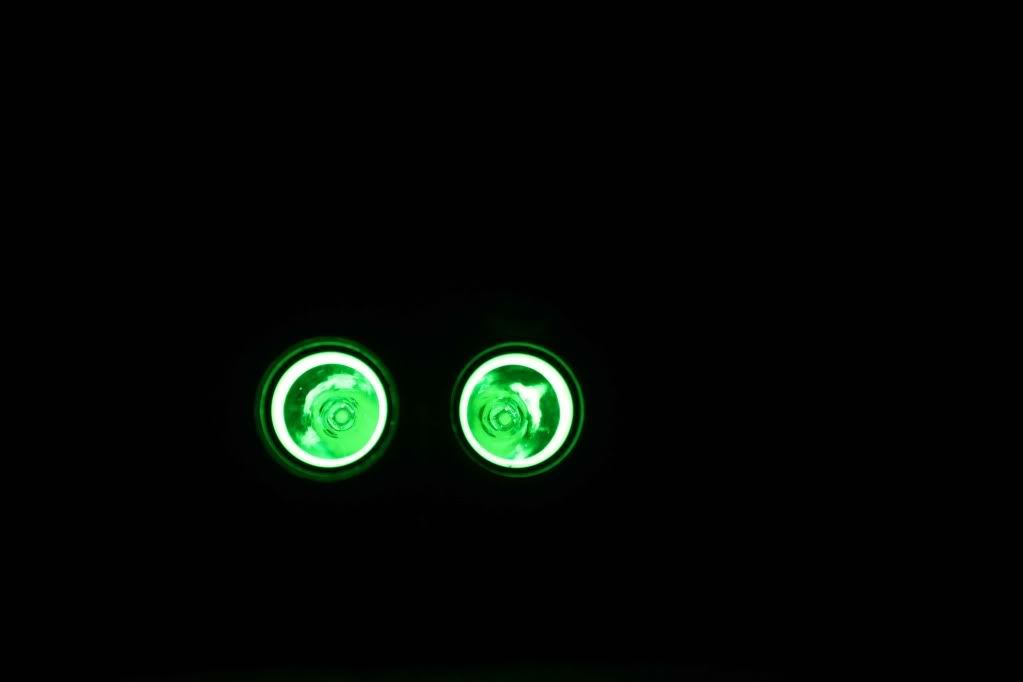

    Glass is 20mm watch crystal. O-rigs are 20mm GITD inners and 21mm black outers.

  14. #14
    mtbr member
    Reputation:
    Join Date
    Dec 2007
    Posts
    151
    Great info Thanks.

  15. #15
    mtbr member
    Reputation:
    Join Date
    Nov 2005
    Posts
    787
    Quote Originally Posted by chelboed
    Anything can be altered though, right? Heck man...it's only $5.
    Plus $9 shipping!!! I'll be making my own switch housing.
