  1. #1
    sapienti sat est
    Reputation: BikeBert's Avatar
    Join Date
    Mar 2008
    Posts
    191

    Caution;  Merge;  Workers Ahead! R.I.P. Knolly Endorphin | Vivat Knolly Chilcotin [Specs, Weights, Photos]






    Chapter One: End of Life


    My beloved Knolly Endorphin that faithfully served me for 3 seasons [2010-2013] was finally subjected to euthanasia ...



    Fortunately, modern transbikepartology allowed saving some organs and implanting them into the new body.
    This way a new bike being was created - Knolly Chilcotin.

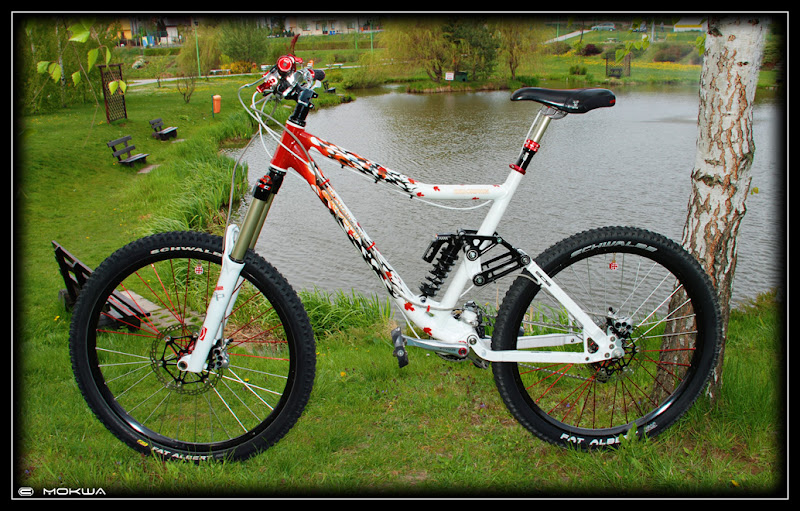

    Below you'll find the specification and some photos of the deceased Knolly Endorphin.

    Frame:- Knolly Endorphin, Custom Powder Coating: Spectrum Powderworks
    Rear Shock:- Cane Creek Double Barrel
    Fork:- Fox 36 Talas RC2 [obecnie: BOS Deville 160]
    Head Set:- Cane Creek 110
    Stem:- FSA Gravity Light 50mm
    Bar:- FSA Gravity Carbon HiRise 31.8mm
    Bar Ends:- ODI
    Grips:- ODI Rogue + Custom Laser Etched Clamps
    Brakes:- Hope Mono 6 203mm / 183mm [obecnie: Avid Custom Brakes]
    Brake Pads :- Hope Sintered HH Compound
    Shifters:- SRAM X-0
    Seat Post:- Kind Shock i900-R 31.6mm [obecnie: Blacx Jewel AM+ AIR]
    Seat Post QR:- Mortop Ti 34.9mm
    Saddle:- WTB Laser V Team Black
    Crankset:- Middleburn + Blackspire 22/36
    Bottom Bracket:- SKF Double Roller
    Chainguide:- Heim Single Roller
    Bash Guard:- Dark Cycles
    Front Derailleur:- Shimano XT [obecnie: Shimano XTR FD-M970]
    Rear Derailleur:- SRAM X-9 Medium Cage [obecnie: SRAM XO]
    Cassette:- SRAM PG-990 11-34
    Chain:- SRAM PC991 [obecnie: KMC X9 SL Ti Gold]
    Pedals:- Shimano DX PD-M647
    Hubs:- Industry Nine Enduro - Custom Red/Silver Spokes and Hubs
    Rims:- DT Swiss EX 5.1 D
    Rear Skewer:- Hadley 10mm Thru Axle
    Front Tire:- Schwalbe Fat Albert 2.25 / Kenda Nevegal K1010 Tomac DTC 2.35
    Rear Tire:- Schwalbe Fat Albert 2.25 / Kenda Nevegal K1010 Tomac DTC 2.35



    v. 1.0



    v. 2.0



    v. 3.0



    v. 4.0

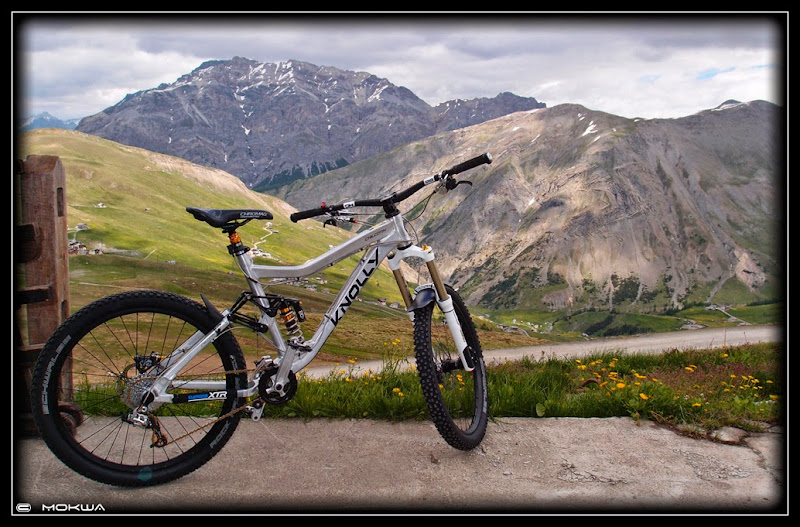

    Tremalzo, Lago di Garda




    Chapter Two: A New Life Begins


    Here's my PDA [Public Displays of Affection] after the package with the frame and few parts finally arrived.

    Many thanks to guys at Knolly [especially Dusty Bottoms] for making this possible!!!
    Thank you tiSS'er for your words of wisdom and patience while answering my questions.






    ___



    ___



    ___



















    ___



























    Chilcotin frame preparation





































    Last edited by BikeBert; 01-10-2014 at 04:35 AM.
    ____________________
    | Picasa | YouTube | Pinkbike |

  2. #2
    sapienti sat est
    Reputation: BikeBert's Avatar
    Join Date
    Mar 2008
    Posts
    191

    Smile Something for Weight Weenies

    Chapter Three: To Weigh or Not to Weigh



    Knolly Chilcotin size L + CCDB 200x57 + NukeProof 550x2.25 Ti spring





    Industry Nine Enduro Front Wheel

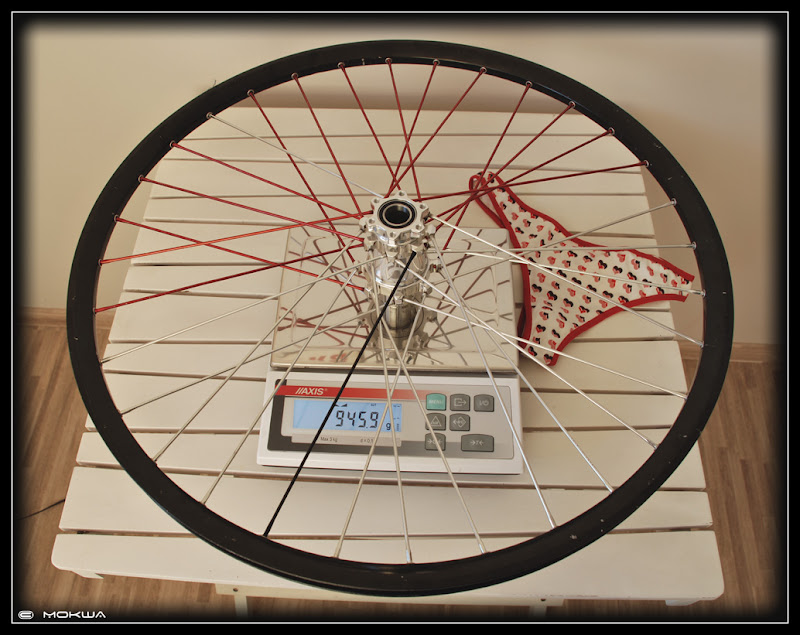

    Industry Nine Enduro Rear Wheel




    Rock Shox Lyrik 160 mm U-Turn 1.5" + Avalanche Cartridge




    BOS Deville TRC 160 mm 1 1/8"





    Cane Creek Double Barrel 200x57 + NukeProof 550x2.25 Ti spring

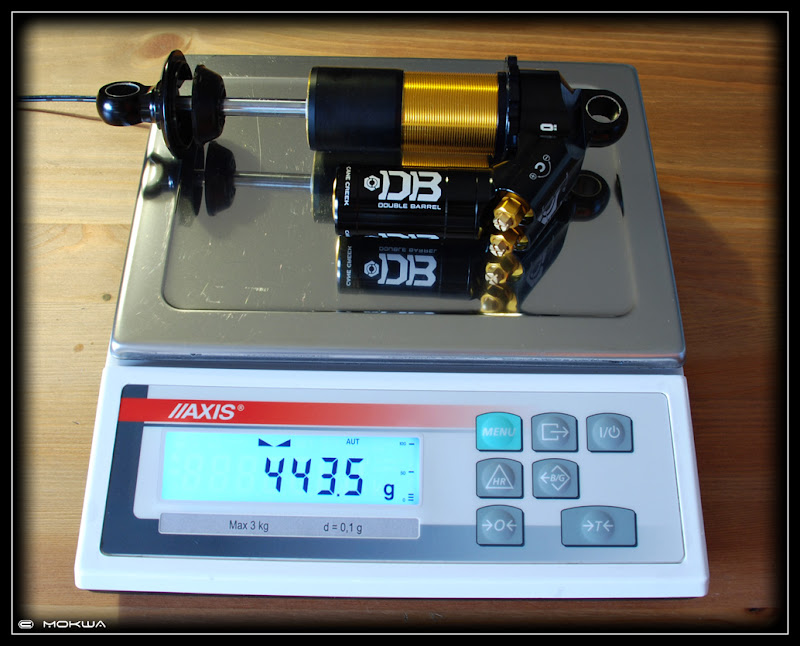

    Cane Creek Double Barrel 200x57

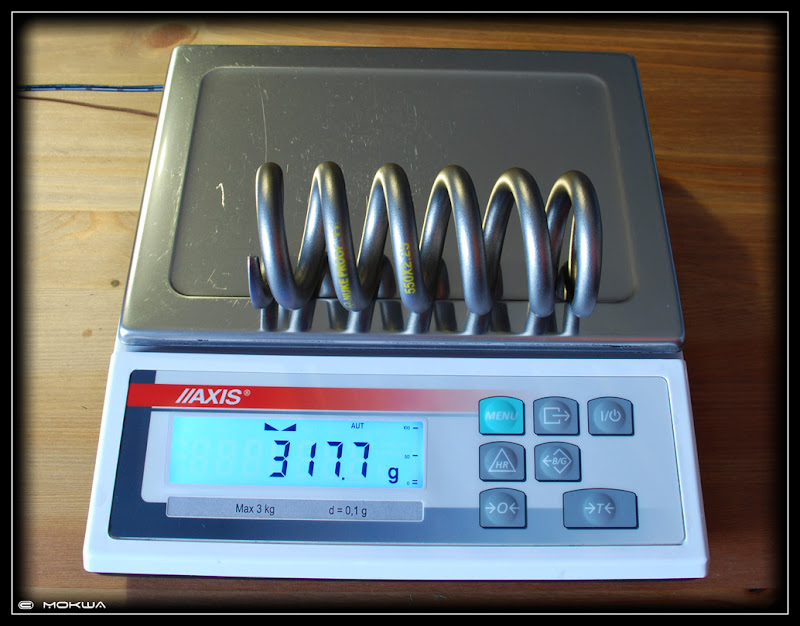

    NukeProof 550x2.25 Ti spring





    Cane Creek Double Barrel Mounting Hardware





    Cane Creek 110 External Cup 1.5" EC49/38.1|EC49/40 Headset

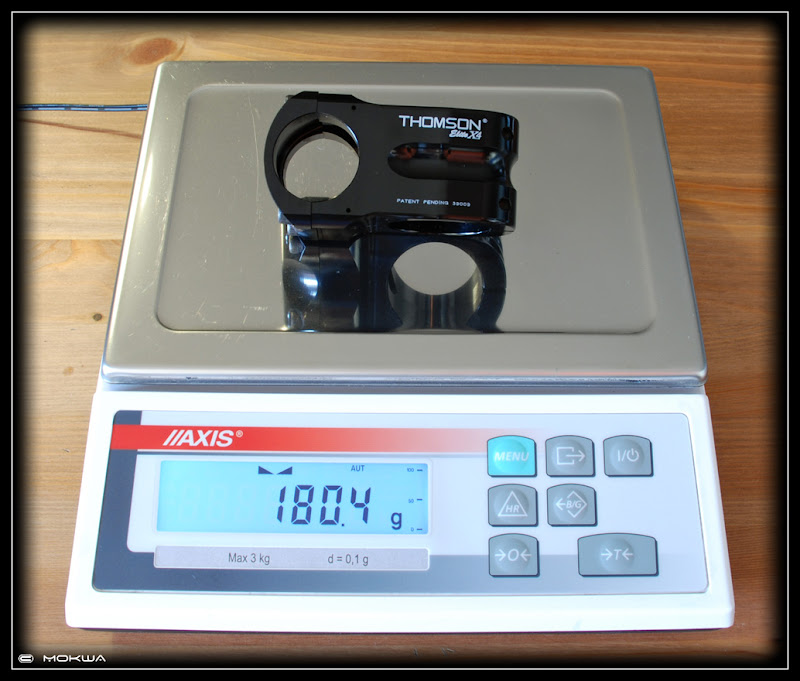

    Thomson X4 1.5" 0 degrees 31.8mm 45mm Stem





    SKF BXC-600 ISIS Bottom Bracket





    Middleburn Crankset + Blackspire 22/36 Chainrings





    SRAM PG-990 11-34 Cassette





    Shimano Deore XT PD-M785 Pedals





    SRAM X0 Rear Derailleur

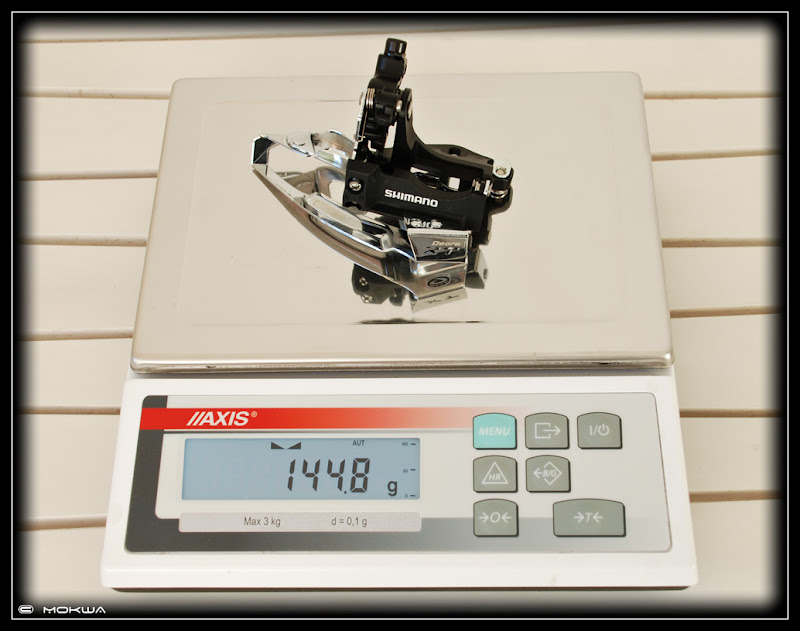

    Shimano XT FD-M770-E Front Derailleur





    KMC X9 SL Ti Gold Chain




    Hope Tech V2 - Front Brake




    Hope Tech V2 - Rear Brake




    Hope Moto 6 - Front Brake




    Hope Moto 6 - Rear Brake

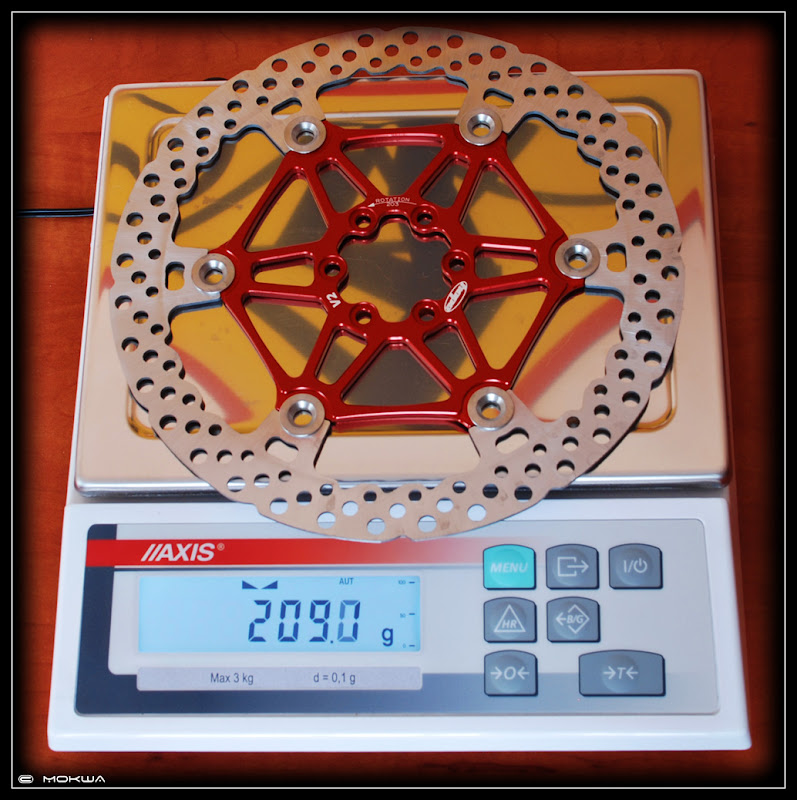

    Hope V2 Rotor - 183mm




    Hope V2 Rotor - 203mm




    Hope Mono6 Rotor - 183mm




    Hope Mono6 Rotor - 203mm





    Avid HS1 Rotor 180mm Rotor





    Avid HS1 Rotor 200mm Rotor





    Avid Juicy Seven 2008 Lever

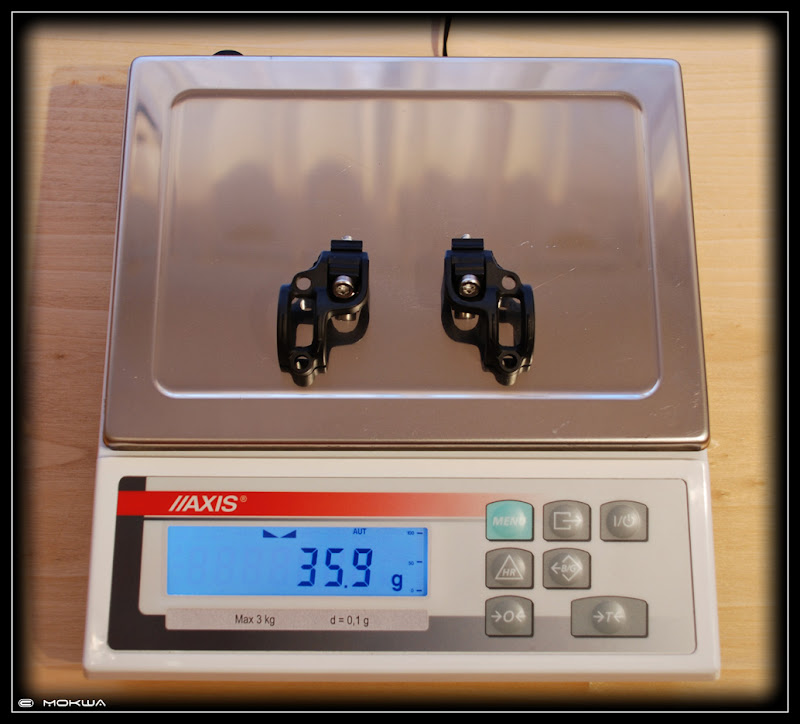

    SRAM Matchmaker

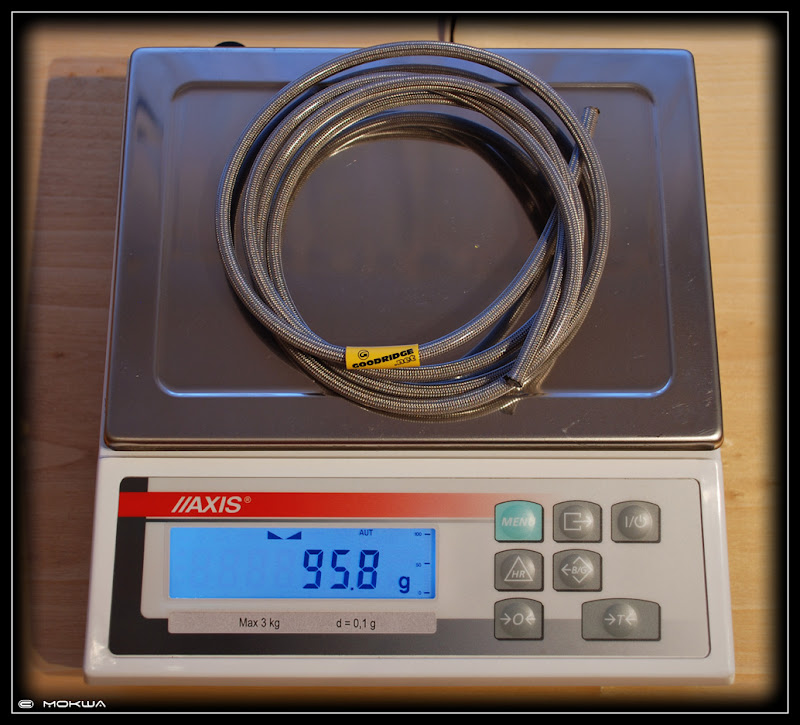

    Goodridge Brake Hose 900mm





    Goodridge Brake Hose 1650mm

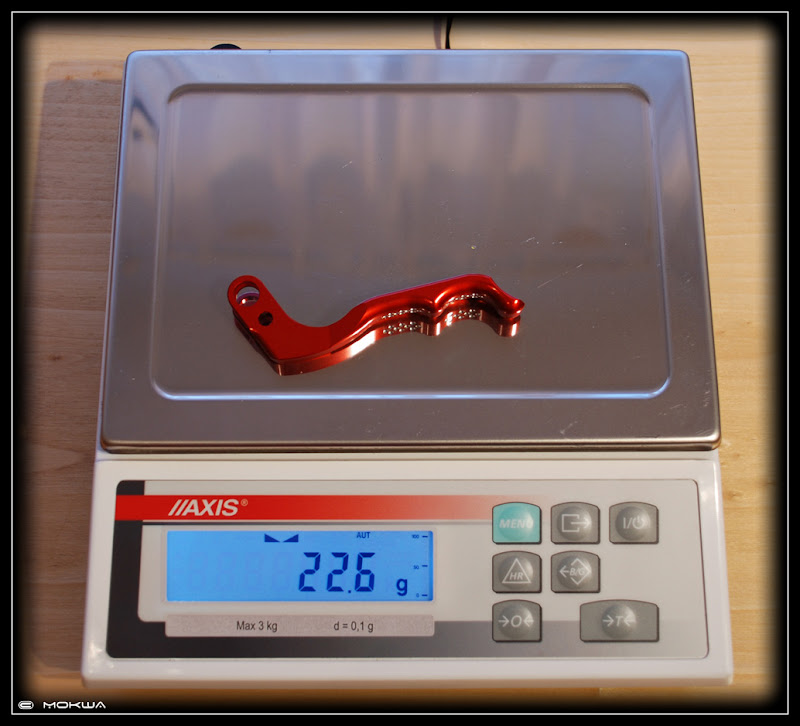

    Straitline Lever
    Last edited by BikeBert; 01-28-2013 at 12:23 AM.
    ____________________
    | Picasa | YouTube | Pinkbike |

  3. #3
    sapienti sat est
    Reputation: BikeBert's Avatar
    Join Date
    Mar 2008
    Posts
    191

    Wink Knolly Chilcotin Porn

    Chapter Four: Final Emanation





    Frame:- Knolly Chilcotin
    Rear Shock:- Cane Creek Double Barrel
    Fork:- Rock Shox Lyric U-Turn + Avalanche Cartridge
    Head Set:- Cane Creek 110 External Cup 1.5" EC49/38.1|EC49/40
    Stem:- Thomson X4 Stem 1.5" 0 degrees 31.8mm 45mm
    Handlebar:- FSA Gravity Carbon HiRise 31.8mm
    Bar Ends:- ODI
    Grips:- ODI Rogue + Custom Laser Etched Clamps
    Brakes:- Avid Custom Brakes
    Shifters:- SRAM X0
    Seat Post:- Blacx Jewel AM+ AIR
    Seat Post QR:- Chromag
    Saddle:- WTB Laser V Team Black
    Crankset:- Middleburn + Blackspire 22/36
    Bottom Bracket:- SKF BXC-600 ISIS
    Chainguide:- mozartt Forte
    Bash Guard:- Dark Cycles
    Front Derailleur:- Shimano XT FD-M770
    Rear Derailleur:- SRAM X0
    Cassette:- SRAM PG-990 11-34
    Chain:- KMC X9 SL Ti Gold
    Pedals:- Shimano Deore XT PD-M785
    Hubs:- Industry Nine Enduro - Custom Red/Silver Spokes and Hubs
    Rims:- DT Swiss EX 5.1 D
    Front Tire:- Kenda Nevegal K1010 Tomac DTC 2.35
    Rear Tire:- Schwalbe Hans Dampf 2.35





































































































































































































    ____________________
    | Picasa | YouTube | Pinkbike |

  4. #4
    Go faster!
    Reputation: RoweVelo's Avatar
    Join Date
    Jul 2011
    Posts
    144
    Beautiful.

  5. #5
    mtbr member
    Reputation:
    Join Date
    Jan 2013
    Posts
    3
    Beautiful bike - congrats on the build up - you clearly thought it out well.

    Any chance you happen to recall the BB size on the endorphin? Just picked up a 2010 endorphin and looking at cranks but don't know the BB size and can't find it here or on the knolly site.

    Regards,
    AndrewT

  6. #6
    sapienti sat est
    Reputation: BikeBert's Avatar
    Join Date
    Mar 2008
    Posts
    191
    Quote Originally Posted by atdfndr110 View Post
    Beautiful bike - congrats on the build up - you clearly thought it out well.

    Any chance you happen to recall the BB size on the endorphin? Just picked up a 2010 endorphin and looking at cranks but don't know the BB size and can't find it here or on the knolly site.

    Regards,
    AndrewT
    Thank you.

    The BB size on the Endorhin is the same as on Chilcotin:
    73mm shell width and 113 mm spindle length (External BB or ISIS).
    Hope it helps.
    ____________________
    | Picasa | YouTube | Pinkbike |

  7. #7
    Nothing can stop me now
    Reputation:
    Join Date
    Dec 2006
    Posts
    905
    Excellent! Exactly what I needed on a second morning of rain in Phoenix... I did cringe when I saw the Juicy 7 brake lever assembly. The rest was drool causing and captured the joy of opening the box and assembling a new bike. The red zip ties are brilliant.

    The pics are good if one is interested in raw frames. I was but now maybe not. Paint covers up a lot of stuff.

    A Chili is too much bike for me, but this might be the best build post I have ever seen.

    Bobo

  8. #8
    mtbr member
    Reputation: Dominator13's Avatar
    Join Date
    Aug 2006
    Posts
    1,428
    Amazing! You should post this on all the sites. Truly beautiful photography. Art at it's finest.
    [SIZE="2"]"You don't stop playing because you get old, you get old because you stop playing!" - Unigeezer [/SIZE]

  9. #9
    TSC
    TSC is offline
    Buehliever
    Reputation: TSC's Avatar
    Join Date
    Jan 2012
    Posts
    865
    Great photography; amazing photo documentation; and a beautiful bike!!!
    "sounds like you need to find a better mechanic..." -- Calhoun

  10. #10
    mtbr member
    Reputation:
    Join Date
    Sep 2006
    Posts
    2,773
    Well done Bert, and thanks again for leaving out any photos of you wearing a speedo .
    Nice KOM, sorry about your penis.

  11. #11
    sapienti sat est
    Reputation: BikeBert's Avatar
    Join Date
    Mar 2008
    Posts
    191

    Smile speedo ride

    Quote Originally Posted by Mrwhlr View Post
    Well done Bert, and thanks again for leaving out any photos of you wearing a speedo .
    Now that you mentioned it... There you go, from yesterday's ride @ -15 C [5 F]

    ____________________
    | Picasa | YouTube | Pinkbike |

  12. #12
    mtbr member
    Reputation:
    Join Date
    Sep 2006
    Posts
    2,773
    Quote Originally Posted by BikeBert View Post
    Now that you mentioned it... There you go, from yesterday's ride @ -15 C [5 F]

    Can't really tell, that could be a thong.......
    Nice KOM, sorry about your penis.

  13. #13
    mtbr member
    Reputation: Sleevem1's Avatar
    Join Date
    Aug 2012
    Posts
    226
    Bikebart, nice build man. I like the red and silver. Can I dare ask you what the cost of your services are as I have new build I would like to post in a week. I even have a new thong that would compliment the photo shoot.
    [IMG][/IMG]

  14. #14
    mtbr member
    Reputation:
    Join Date
    Oct 2006
    Posts
    1,416
    Hey Bert, some great shots of a very cool bike. What camera are you using?

  15. #15
    sapienti sat est
    Reputation: BikeBert's Avatar
    Join Date
    Mar 2008
    Posts
    191
    Quote Originally Posted by Sleevem1 View Post
    Bikebart, nice build man. I like the red and silver. Can I dare ask you what the cost of your services are as I have new build I would like to post in a week. I even have a new thong that would compliment the photo shoot.
    [IMG][/IMG]
    As for the cost of my photo services; you'll get me those thongs in XXL size and we'll be even



    Quote Originally Posted by loamranger View Post
    Hey Bert, some great shots of a very cool bike. What camera are you using?
    I use my old Nikon D80 at home and Olympus XZ-1 idiot camera on trail.
    ____________________
    | Picasa | YouTube | Pinkbike |

  16. #16
    mtbr member
    Reputation: qbert2000's Avatar
    Join Date
    Jul 2008
    Posts
    3,181
    Quote Originally Posted by BikeBert View Post
    As for the cost of my photo services; you'll get me those thongs in XXL size and we'll be even





    I use my old Nikon D80 at home and Olympus XZ-1 idiot camera on trail.
    please use a camera with much poorer resolution in the future for speedo shots

  17. #17
    mtbr member
    Reputation:
    Join Date
    Jan 2013
    Posts
    3
    Quote Originally Posted by BikeBert View Post
    Thank you.

    The BB size on the Endorhin is the same as on Chilcotin:
    73mm shell width and 113 mm spindle length (External BB or ISIS).
    Hope it helps.
    Great - Thx a lot!. Any chance you recall if the 2010 Endorphin frame has ISCG tabs on the BB? I assume not but wanted to check.

  18. #18
    mtbr member
    Reputation: qbert2000's Avatar
    Join Date
    Jul 2008
    Posts
    3,181
    Quote Originally Posted by atdfndr110 View Post
    Great - Thx a lot!. Any chance you recall if the 2010 Endorphin frame has ISCG tabs on the BB? I assume not but wanted to check.
    don't think any endo had iscg tabs if i recall correctly

  19. #19
    mtbr member
    Reputation:
    Join Date
    Jan 2013
    Posts
    3
    The new one has ISCG-05 tabs according to the Knolly site. So was wondering when they added them.

    from Knolly site: Chain Guide ISCG05 (replaceable)

  20. #20
    mtbr member
    Reputation: qbert2000's Avatar
    Join Date
    Jul 2008
    Posts
    3,181
    Quote Originally Posted by atdfndr110 View Post
    The new one has ISCG-05 tabs according to the Knolly site. So was wondering when they added them.

    from Knolly site: Chain Guide ISCG05 (replaceable)
    believe it was on the redesign, not the older model

  21. #21
    sapienti sat est
    Reputation: BikeBert's Avatar
    Join Date
    Mar 2008
    Posts
    191

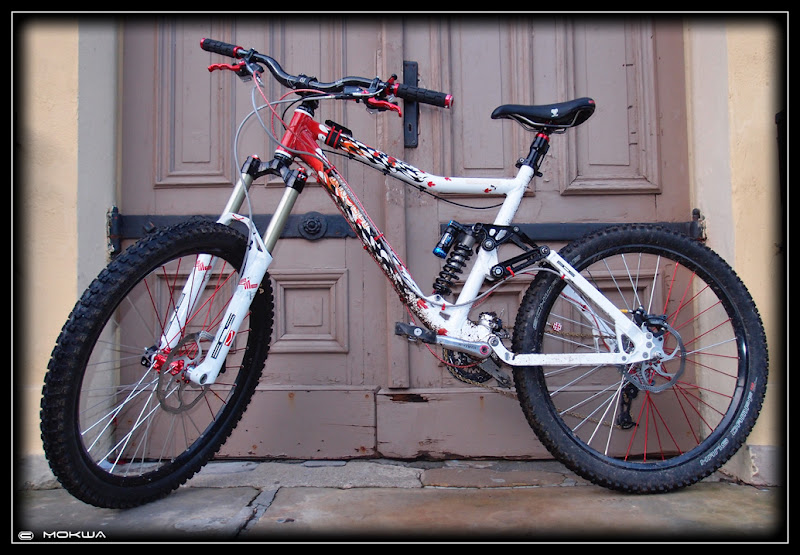

    Smile Swamp monster





    ____________________
    | Picasa | YouTube | Pinkbike |

  22. #22
    mtbr member
    Reputation:
    Join Date
    Jan 2011
    Posts
    53
    hi, im going to move also from Endo[MY2010] to Chilcotin...give me your feedback please???...pedaling position...traction...stifness...handling...thanks alot

  23. #23
    sapienti sat est
    Reputation: BikeBert's Avatar
    Join Date
    Mar 2008
    Posts
    191
    Quote Originally Posted by pescecane View Post
    hi, im going to move also from Endo[MY2010] to Chilcotin...give me your feedback please???...pedaling position...traction...stifness...handling...thanks alot
    Everything, and I mean everything, is in plus with the Chilcotin compared to my old Endo.
    I like big butts, I mean big bikes long travel, spring shocks, tough and burly parts, so I couldn't be happier with Chili.
    Everyone is different though and looks for something different in a bike.
    So my opinion is very subjective since you could be looking in a light bike that is great uphill bike.
    Anyways, please read this thread. TiSS'er has a very nice write up comparing Endo and Chili.
    ____________________
    | Picasa | YouTube | Pinkbike |

  24. #24
    mtbr member
    Reputation:
    Join Date
    Mar 2007
    Posts
    85
    Quote Originally Posted by BikeBert View Post

    [/CENTER]

    Vienna?

  25. #25
    sapienti sat est
    Reputation: BikeBert's Avatar
    Join Date
    Mar 2008
    Posts
    191
    Quote Originally Posted by kark View Post
    Vienna?
    Nope! Sopot, Poland.
    ____________________
    | Picasa | YouTube | Pinkbike |
