    Rohloff mounting option

    If you are designing a bike from scratch to accomodate Rohloff hubs for hardtail MTB, what would you use? I am working with a framebuilder to build a bike that would optimize the use of Rohloff, but also want to keep the option of adding rear derailers in the future if needed to convert back to regular. What is the best option? Thanks.

  2. #2
    mtbr member
    Reputation: vikb's Avatar
    Join Date
    Sep 2008
    Posts
    5,810
    Quote Originally Posted by sevencyclist View Post
    If you are designing a bike from scratch to accomodate Rohloff hubs for hardtail MTB, what would you use? I am working with a framebuilder to build a bike that would optimize the use of Rohloff, but also want to keep the option of adding rear derailers in the future if needed to convert back to regular. What is the best option? Thanks.
    Look at the Surly frame designed to work with the OEM2 axle plate. Their designs are simple and work well - ie. Big Dummy & Ogre/Troll. They can be used with a Rohloff or derailleur as well as SS/FG.

    The other way to go is having sliding rear dropouts which can be Rohloff specific as well as derailleur specific.

    The only other element you need to consider is braze ons for both Rohloff cable outing and a rear derailleur.
    Last edited by vikb; 01-28-2012 at 01:20 PM.
    Safe riding,

    Vik
    www.vikapproved.com

  3. #3
    mtbr member
    Reputation:
    Join Date
    Aug 2009
    Posts
    32
    Great idea. I had not thought about making sure the cable wiring option need to be build in for the rear derailer. Thanks.

    I will check out the Surly set up.

    Quote Originally Posted by vikb View Post
    Look at the Surly frame designed to work with the OEM2 axle plate. Their designs are simple and work well - ie. Big Dummy & Ogre/Troll. They can be used with a Rohloff or derailleur as well as SS/FG.

    The other way to go is having sliding rear dropouts which can be Rohloff specific as well as derailleur specific.

    The only other element you need to consider is braze ons for both Rohloff cable outing and a rear derailleur.

  4. #4
    N+1
    Reputation: MichiganClydesdale's Avatar
    Join Date
    Mar 2004
    Posts
    704

    Paragon Sliders?

    Why not Paragon Sliders - you get the chain tension from the slider, and Paragon makes a Rohloff OEM dropout. If you ever went back to standard drivetrain, just switch the paragon on the drive side to the derailleur hanger version? It's what I did on my waltworks hard tail.

    On my roholoff tandem, the builder actually fabbed a steel OEM dropout and welded it in, so I use an EBB.

    GET Bret Weir, I said.

  5. #5
    mtbr member
    Reputation: itsdoable's Avatar
    Join Date
    Jan 2004
    Posts
    1,878
    My preference for a custom Rohloff-able frame is an OEM1 dropout, with derailleur hanger, and an eBB.


    This is what one of our frames looks like with the Rohloff installed, it has a derailleur hanger on the drive side, which has never seen a derailleur. The dropout was fab'ed from a Sub-11 (Surly) track mount.


    Here is a close up of a more recent one, in Single-Speed mode.

    You should find out if your frame builder likes using am eBB or sliders. eBB shell tolerances need to be tight for creak free performance, which requires the correct tools. If you go with sliders, I prefer the Rohloff versions, although you can make the Paragons work with better hardware.

  6. #6
    Music & Bikes
    Reputation: fokof's Avatar
    Join Date
    Apr 2006
    Posts
    924
    I really like the options Kocmo is offering:
    (my next frame , for sure)

    - Sliding dropouts
    - BB30
    - Lefty headtube
    - dual cable guide
    - frame opening for Gate belt

    KOCMO - Products
    "There is a big difference between kneeling down and bending over" -FZ

  7. #7
    mtbr member
    Reputation:
    Join Date
    Aug 2009
    Posts
    32
    The paragon sliders seems like a good choice if it is solid. Does it ever loosen up or creak at the interface with the sliding dropout?

    Quote Originally Posted by MichiganClydesdale View Post
    Why not Paragon Sliders - you get the chain tension from the slider, and Paragon makes a Rohloff OEM dropout. If you ever went back to standard drivetrain, just switch the paragon on the drive side to the derailleur hanger version? It's what I did on my waltworks hard tail.

  8. #8
    1*14*29*2.1 & 1*1*29*2.4
    Reputation:
    Join Date
    Nov 2009
    Posts
    1,235


    I have had two frames with paragon sliders for Rohloff. Both worked well, the Ti ones a littel better. The steel ones needed to be cranked on tight with loctite, but they had the older style bolt set. the newer Ti ones have been perfect. The option to just replace the entire sliding part is great if you want to change inthe future, but as mentioned, just make provision for the stops, or use full housing and cable ties etc.

  9. #9
    mtbr member
    Reputation:
    Join Date
    May 2008
    Posts
    55

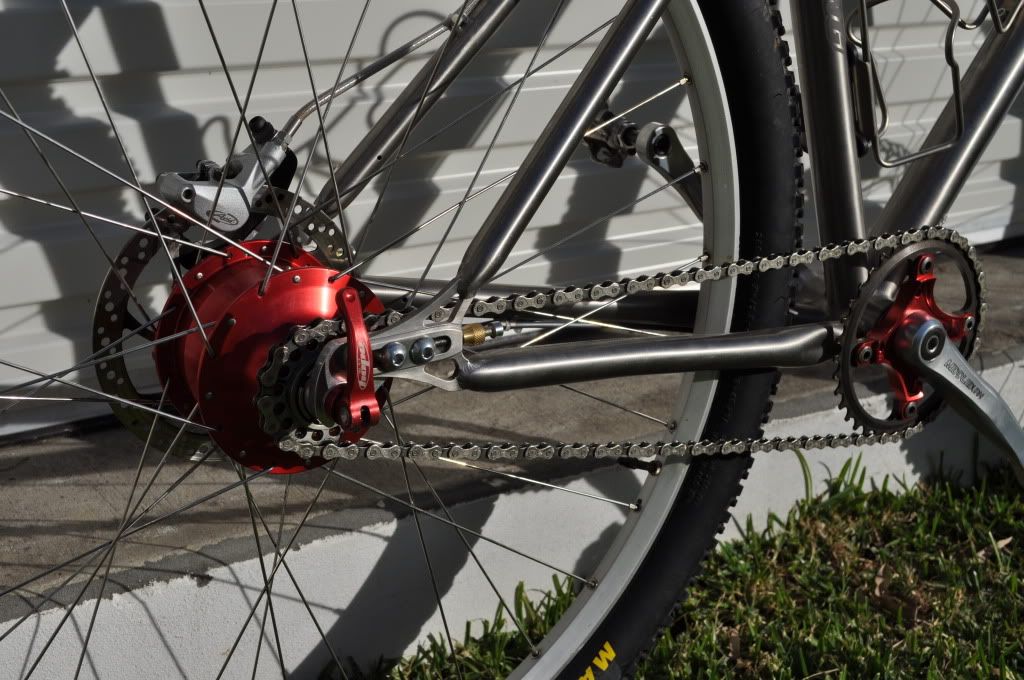

    This is what I did.

    Then you can have a gear hanger on the other side if you want. Chain is tensioned by an EBB.

  10. #10
    mtbr member
    Reputation:
    Join Date
    Mar 2012
    Posts
    1
    Quote Originally Posted by itsdoable View Post
    My preference for a custom Rohloff-able frame is an OEM1 dropout, with derailleur hanger, and an eBB.


    This is what one of our frames looks like with the Rohloff installed, it has a derailleur hanger on the drive side, which has never seen a derailleur. The dropout was fab'ed from a Sub-11 (Surly) track mount.


    Here is a close up of a more recent one, in Single-Speed mode.

    You should find out if your frame builder likes using am eBB or sliders. eBB shell tolerances need to be tight for creak free performance, which requires the correct tools. If you go with sliders, I prefer the Rohloff versions, although you can make the Paragons work with better hardware.

    What's the name of the company that produced the red bike frame above? I love that design with the ext gear mech on top of the frame, safe from rocks and tree stumps.

    My first post so i cant IM or post links or pictures.

    Thanks

    Rob

  11. #11
    mtbr member
    Reputation: itsdoable's Avatar
    Join Date
    Jan 2004
    Posts
    1,878
    Quote Originally Posted by nosivad_bor View Post
    What's the name of the company that produced the red bike frame above? I love that design with the ext gear mech on top of the frame, safe from rocks and tree stumps.

    My first post so i cant IM or post links or pictures.

    Thanks

    Rob
    "byStickel" custom frame from Steve Stickel.
