  1. #151
    mtbr member
    Reputation:
    Join Date
    Oct 2008
    Posts
    36

    Rohloff Raleigh

    Bought a used Rohloff hub this past winter, had Cyclemonkey in Albany CA do some work on it and build up the wheel. The bike is finally coming together, though I am looking at possibly changing out the 38t chain ring to a 40t. Before the IGH, had added the carbon fork, Thomson seat post and BB7s. So far great fun, though still need to do some trail test rides.






  2. #152
    mtbr member
    Reputation:
    Join Date
    Sep 2008
    Posts
    141
    Ended up turning my Gary Fisher Rig (pictured earlier in this thread) into an On One Inbred 29er in the end... Found the Rig a bit too long, and a bit too Aluminium for my tastes, so bought a Purple Inbred frame... And since I built it up, it's been my most ridden bike for sure. I absolutely love it!





    Since the photos were taken, I have serviced the forks and upped them to 100mm of travel, which has made the bike handle even better and means it can now be ridden down things like you would a 26" wheeled DH bike, it's that confidence inspiring!

  3. #153
    stumpyexpert
    Reputation:
    Join Date
    Jan 2008
    Posts
    55
    Wow markyboy1980 thats a great on one very nice!

  4. #154
    mtbr member
    Reputation:
    Join Date
    Apr 2006
    Posts
    61
    New frame same Rohloff.

  5. #155
    mtbr member
    Reputation:
    Join Date
    Jan 2004
    Posts
    485

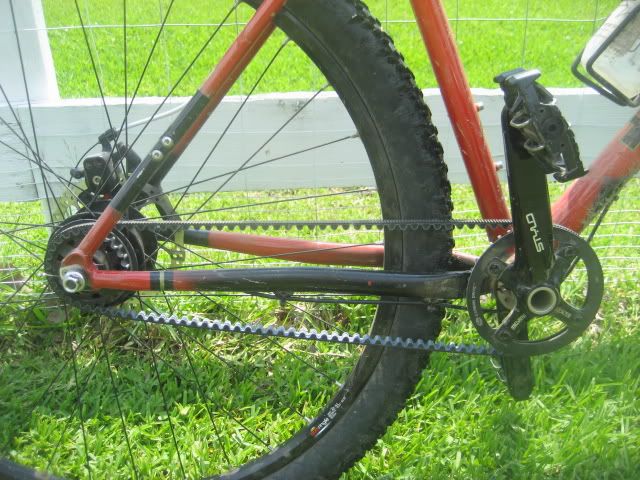

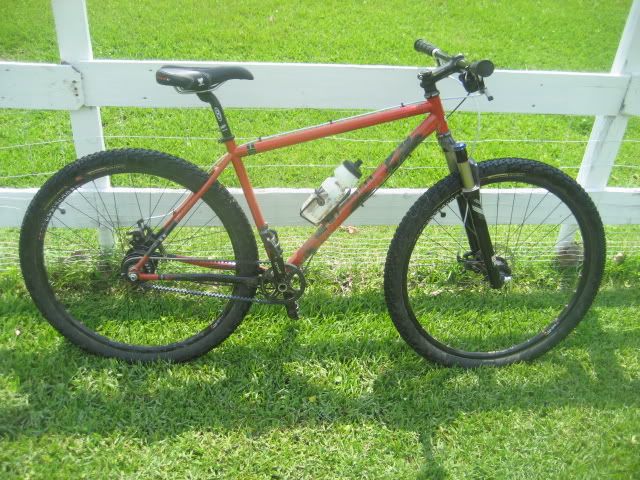

    Its in the works. Started off as a Raleigh XXIX. With some extensive mods its now a Alfine 8 with a belt drive.



    Build thread here Alfine ,belt drive, 29er project

    After I get back from vacation in a couple of weeks I'm getting it painted. And its going on a diet.

    Tim

  6. #156
    Master of the Face Plant
    Reputation:
    Join Date
    Feb 2004
    Posts
    2,872
    I think my bike is the oldest with an internal hub. 1936 Ohio built Mercury with a Nexus 8/rollerbrake rear and a Sturmey drum up front.



    http://www.nbbikes.com/
    ^^^Best Bike Shop of MTBR 2008^^^

  7. #157
    mtbr member
    Reputation:
    Join Date
    Oct 2008
    Posts
    36

    Wow...

    Tim, read through your build thread, amazing, you are one capable/prepared guy. I didn't buy my XXIX with the thought of putting an IGH on it, though I had been checking out Rohloff hubs for a while. Took the plunge, bought a used one, knowing the XXIX with the EBB would allow the set up to be strait forward. The back end is definitely heavy... looking forward to seeing your painted build.

  8. #158
    1*14*29*2.1 & 1*1*29*2.4
    Reputation:
    Join Date
    Nov 2009
    Posts
    1,269
    sandmag....lots of nice details on that frame. great to see it up and running.

  9. #159
    mtbr member
    Reputation: LukeSPOOK's Avatar
    Join Date
    Aug 2007
    Posts
    219
    Nice frame/bike - well done.
    Only thing I might like different are the pedals.

  10. #160
    mtbr member
    Reputation:
    Join Date
    Oct 2008
    Posts
    36
    +3 on the sweet build sandman... it's cool to see an example of a vintage frame build, helps me see where some contemporary designers are drawing inspiration from.

  11. #161
    mtbr member
    Reputation:
    Join Date
    Jan 2004
    Posts
    485
    Everett
    Oh how i want a Speed Hub.... but no money . Maybe I can sell one of the kids...I'm not recomending a belt drive/ Alfine combo for MTB use unless you really like pain. Don't get me wrong the bike rides great its just with such a narrow chain line and the pain of getting it to work right. I hope the Alfine 11 is better.

    Sandmangts
    I so like that bike. That rear wish bone and chain tensioners are so rad.

    Tim

  12. #162
    mtbr member
    Reputation:
    Join Date
    Oct 2008
    Posts
    36
    I liked the idea of using a carbon belt drive in conjunction with the Rohloff, but never seriously considered it as an option. If I was going that route, my route would have been to get a carbon belt drive compatible frame, I don't have the metal working knowledge/tools/access to tools that you have. Also, the Rohloff purchase and then disc brake conversion/wheel build already cost enough money. I see the Rohloff as a long term investment, the Raleigh edition is the first of hopefully a few builds.

    FWIW, I bought the hub off of eBay, seems to be fine. There was a speedhub that recently sold on eBay for ~$900, disc brake ready, built into a (touring) wheel, though it had a bolt on axle. If you don't mind buying used, might be something to look at.

  13. #163
    mtbr member
    Reputation:
    Join Date
    Sep 2009
    Posts
    504

    Here's Mine....

    From new to recent in it's various forms...

    Enjoy,

    Al
    Attached Thumbnails Attached Thumbnails Internal Hub MTBs, post yours here!-alans-brand-new-bike-trailer-img03422-cropped.jpg

    Internal Hub MTBs, post yours here!-bike-trailer-goode-bch-p1010071-cropped.jpg

    Internal Hub MTBs, post yours here!-al-laying-track-day-4-img_7196-cropped.jpg

    Internal Hub MTBs, post yours here!-al-holland-track-hyden-norseman-rd-day-6-img_7233-cropped.jpg

    Internal Hub MTBs, post yours here!-maverick-fork-guy-p5260493-cropped.jpg

    Internal Hub MTBs, post yours here!-holland-track-start-day-3-p1010103.jpg

    Internal Hub MTBs, post yours here!-epic-trailer-p1010062.jpg

    Internal Hub MTBs, post yours here!-munda-biddi-p1010012-rev1.jpg

    Internal Hub MTBs, post yours here!-warroora-beach-ride-19-11-2009-img02740.jpg


  14. #164
    MONKEYMAN
    Reputation: finger51's Avatar
    Join Date
    Jul 2006
    Posts
    792
    Quote Originally Posted by alanm
    From new to recent in it's various forms...

    Enjoy,

    Al
    wow. looks like you're in for some epic trips with that rig. jealous.

    /not jealous for the reason you wear that hat though. I hate flies.
    “I don't like jail, they got the wrong kind of bars in there”

  15. #165
    mtbr member
    Reputation: rdhfreethought's Avatar
    Join Date
    Aug 2006
    Posts
    1,468
    Sweet solar setup you've got there. Any details?
    Regional Race Manager, Knolly Bikes
    Washington State, Australia, New Zealand, South Africa

  16. #166
    mtbr member
    Reputation:
    Join Date
    Sep 2009
    Posts
    504
    Quote Originally Posted by rdhfreethought
    Sweet solar setup you've got there. Any details?
    Mate,

    It's a 20W panel that feeds into a 12 AH PS series Century deep cycle sealed lead acid battery. I don't bother with a regulator as I have a Panasonic Tough Book coupled to it 90% of the time. I also charge the satellite phone and camera batteries off it.

    It all works well in high solar radiation situations but in our lower South West it sucks because the useful radiation is very low and sun hours per day drop off drastically. Not to mention alternating between shadow and sunlight in the forest.

    For the above reason I'm now discussing having a brushless 100W generator made, I'm going to turn it into a front hub, the catching point is how to disconnect it when going uphill. ie I only want it generating when going downhill or on a flat with a tail wind as 100Watts is quite a resistance.

    I have a manufacture in Melbourne who is quite prepared to give it a go for $750 AU.

    Al

  17. #167
    mtbr member
    Reputation:
    Join Date
    Sep 2007
    Posts
    12
    What a setup! How do you hang the panniers off your front fork?

  18. #168
    mtbr member
    Reputation:
    Join Date
    Sep 2009
    Posts
    504
    Quote Originally Posted by airspeed
    What a setup! How do you hang the panniers off your front fork?

    Mate, simple really, because they're Maverick SC32's I have just used a pipe 'U' bolt type clamp. It's a bit close on the LHS looking from the front 'cuse the wheel has a minor offset....must fix it one day.....

    EDIT.... Don't over tighten the 'U' clamps because it'll distort the fork housing.

    Some pics for you.

    By using the Mavericks it means the weight of the pannier load is not 'unsprung' weight. This means the suspension isn't having to pick up that weight on every bump it works on.

    Al
    Attached Thumbnails Attached Thumbnails Internal Hub MTBs, post yours here!-front-rack-mavericks-p1014830.jpg

    Internal Hub MTBs, post yours here!-front-rack-mavericks-p1014831.jpg

    Last edited by alanm; 06-07-2010 at 10:53 PM.

  19. #169
    mtbr member
    Reputation:
    Join Date
    Aug 2004
    Posts
    22

    Weight Weenie Rohloff

    Here is my new weight weenie build around the Rohloff. Currently the bike complete weighs 22lbs which after I change the fork, seat post, saddle and pedals will be closer to 20-21lbs. I decided to circumvent the cable box(external shift mech) by glueing on some cables stops. The bike as a whole is very quick and responsive, an excellent race bike.
    Attached Thumbnails Attached Thumbnails Internal Hub MTBs, post yours here!-dscf0819.jpg

    Internal Hub MTBs, post yours here!-dscf0820.jpg

    Internal Hub MTBs, post yours here!-dscf0821.jpg

    Internal Hub MTBs, post yours here!-dscf0822.jpg

    Internal Hub MTBs, post yours here!-dscf0823.jpg


  20. #170
    mtbr member
    Reputation:
    Join Date
    Oct 2008
    Posts
    87
    Long time coming, but here it is built.

    2009 anodized Chameleon with Rohloff




  21. #171
    mtbr member
    Reputation:
    Join Date
    Aug 2008
    Posts
    47
    Greetings from Germany, 2010 Gary Fisher Paragon, Custom build






  22. #172
    1*14*29*2.1 & 1*1*29*2.4
    Reputation:
    Join Date
    Nov 2009
    Posts
    1,269
    Quote Originally Posted by justilew
    Here is my new weight weenie build around the Rohloff. Currently the bike complete weighs 22lbs which after I change the fork, seat post, saddle and pedals will be closer to 20-21lbs. I decided to circumvent the cable box(external shift mech) by glueing on some cables stops. The bike as a whole is very quick and responsive, an excellent race bike.
    I can't see how you tension the chain...do you have a EBB?

  23. #173
    mtbr member
    Reputation:
    Join Date
    Jan 2009
    Posts
    389

    1939 Schwinn DX Retro-mod with Sturmey Archer 8-speed

    Finished the build today. Very happy with the results
    ----------

    Frame: 1939 Schwinn DX "Schwinn Ace", S/N: B21178
    Fork: NOS Tange TX-1200
    Headset: NOS Tange MX-2
    Stem: Ashtabula (1978)
    Handlebar: 90's BMX cruiser Answer Alumilite 7075
    Grips: Ritchey True Grips (contemporary)
    Brake Levers: NOS/NIB 1987 Dia Compe AD 290 4-finger levers in grey
    Chain: KMC BMX Z-chain in silver
    Cranks: 175mm TA ProVis 5 anniversary edition with retro stickers
    Chainring: TA 30T
    Bottom Bracket: Tange 68x122.5 with TruVativ bottom bracket adapter (both contemporary)
    Pedals: NOS MKS BMX-7
    Rims: Araya 7C 26x1.75. NOS silver, stripped and re-anodized red
    Hubs: Sturmey Archer X-RD8(W) rear; X-FD front
    Tires: Cheng Shin C693 26x2.125
    Saddle: Brooks B-72 w/ chrome rails
    Seatpost: Custom turned solid 6061, clear anodized
    Seatpost Binder: Campy

    Weight: 38 lbs of klunker fun

    ----------





































    Last edited by J_Westy; 06-27-2010 at 07:43 PM.

  24. #174
    mtbr member
    Reputation:
    Join Date
    Oct 2008
    Posts
    87
    That is seriously cool, thanks for posting!

  25. #175
    mtbr member
    Reputation: RipRoar's Avatar
    Join Date
    Sep 2008
    Posts
    1,359
    Quote Originally Posted by J_Westy
    Awesome build! well done.

    Can you tell me about the torque arm clamp, is it a Sturmey Archer part?
