• 06-25-2013
    mdg3d
    edit- Sold. Thanks.

    I have a set of offset bushings from ProShox for a Force or Sanction for a Rock Shox shock if anyone is interested in trying them out. I bought them for my Force 2.0 and never installed them and have since bought a Force LE and am happy with the head angle. Message me and I will cut you a deal.
  • 06-25-2013
    ricky916
    anyone selling or know where i can get my hands on a force swingarm?
  • 06-26-2013
    dmitrygtforce
    1 Attachment(s)
    GT Force with all offset bashings and angleset
    Hi everybody
    I see some people asking if offset bushings and angleset fork on GT Force
    I have both
    Angleset is from Workcomponents
    As You can see the bike is really different now from the stock
    Its way better now when You go down
    Only i have to change my 140 mm revelation to smth 150 or 160 as i feel the front is too low now
    Most probaly i take 150 mm revelation. I look at Forces with 160 mm forks and they look.....strange or awkward? like old school bikes with MZ Monster

    Attachment 811193
  • 06-26-2013
    dmitrygtforce
    test
  • 06-26-2013
    bryan_d
    Quote:

    Originally Posted by juancho142 View Post
    Got any pics?

    Hey man,

    My brother and I found out that the his XTR wheel-set is convertible so it's going to him. Sorry man.

    Bryan
  • 07-04-2013
    Max Gurvits
    Hey guys,

    Just picked up a 2010 Sanction 1.0 Frame off eBay. Was looking for something a bit more pedal friendly than my Diablo 2.0. This may be a silly question, but I'm having a hard time finding the info. What BB do I get? Any recommendations? Can I use the RaceFace Evolve DH crankset I already have on my Diablo 2.0, or will I also need a new crankset as well?

    Thanks in advance!
  • 07-04-2013
    MrSpecialK
    Quote:

    Originally Posted by Max Gurvits View Post
    Hey guys,

    Just picked up a 2010 Sanction 1.0 Frame off eBay. Was looking for something a bit more pedal friendly than my Diablo 2.0. This may be a silly question, but I'm having a hard time finding the info. What BB do I get? Any recommendations? Can I use the RaceFace Evolve DH crankset I already have on my Diablo 2.0, or will I also need a new crankset as well?

    Thanks in advance!

    I'm FAR from an expert here, but I know the sanction is pretty similar to the force (which I have) and mine came stock with a shimano hallowtech II BB. I installed a SRAM XX1 set and installed a GXP BB with it, both work fine. beyond that, I'm not much help.
  • 07-04-2013
    Max Gurvits
    Thanks for your reply MrSpecialK!

    I was wondering what size (mm) the BB was, but think I may have figured it out. The Diablo 2.0 has 83mm BB. The Sanction has a 68mm. In order for me to use the RaceFace Evolve DH crankset I have on the Diablo, I needed to buy the Raceface 83mm to 68mm Retrokit. It has spacers that I can use in order to create the correct chainline.

    Hope someone will chime in if I'm wrong.
  • 07-07-2013
    stimpy13

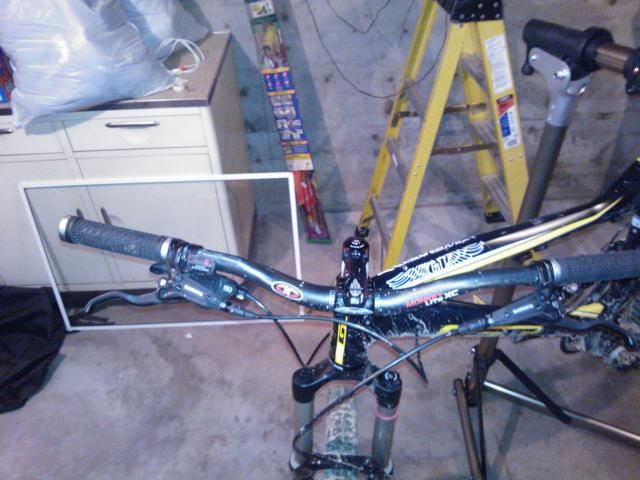

    Did a 1x10 (32T Renthal sprocket) on my 2012 GT Force 3.0.



    Less stuff on the bars


    Also got a new Rockshox Monarch for the rear.

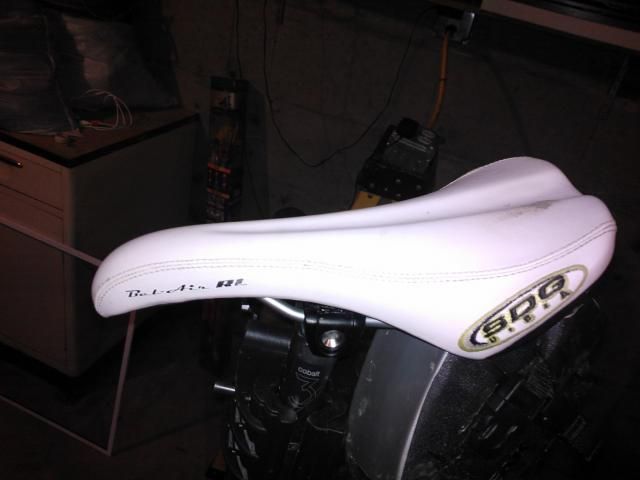

    New seat a while ago.



    Next is new Shamino ZEE brakes and it will be the way I want it.
  • 08-12-2013
    Icarus Sam
    3 Attachment(s)
    GT Sanction and Force reference thread
  • 08-12-2013
    juancho142
    Guys I just got this frame:



    Now I can't wait to build it! But i'm on a tigt budget so I'm planning to swap all the parts from this avalanche frame:



    Only thing i'd need is a shock. However apparently there's a lack of 7.5x2.0 shocks out there and the ones I've seen are not cheap. I'm looking for a budget shock, just to build it, at least for now, don't care if coil or air. Any of you guys have a spare?
  • 08-12-2013
    juancho142
    Of course I could remove the shock from my other force but I want to build both of them.

  • 08-12-2013
    ricky916
    Re: GT Sanction and Force reference thread
    Quote:

    Originally Posted by juancho142 View Post
    Guys I just got this frame:



    Now I can't wait to build it! But i'm on a tigt budget so I'm planning to swap all the parts from this avalanche frame:



    Only thing i'd need is a shock. However apparently there's a lack of 7.5x2.0 shocks out there and the ones I've seen are not cheap. I'm looking for a budget shock, just to build it, at least for now, don't care if coil or air. Any of you guys have a spare?

    Theres a local guy by me selling one, fox float r $100. Let me know and I can contact him. Or I have a xfusion o2 PVA for $130

    Sent from my HTC EVO LTE
  • 08-12-2013
    ricky916
    Re: GT Sanction and Force reference thread
    Anyone selling or know where I can get a force/sanction rear swingarm? Any color. Thanks!

    Sent from my HTC EVO LTE
  • 08-12-2013
    Icarus Sam
    GT Sanction and Force reference thread


    .....
  • 08-13-2013
    mdg3d
    Have you tried contacting GT? I would like to know if they have them available and how much they charge for a replacement.
  • 08-13-2013
    Icarus Sam
    GT Sanction and Force reference thread
    Yes, by the german importer. But i'm still waiting for an answer. The frame is only 20 months ols, it should be replaced under warranty..... I hope...
  • 08-13-2013
    mdg3d
    Did you hit something or case a jump. Or was it the result of normal riding?
  • 08-13-2013
    Icarus Sam
    Usually I do not do jumps with this frame is mounted AM aggressive, but no jump if not some little drop of 40 cm. I never noticed anything, only when I removed the cranks to replace a bearing bottom bracket I noticed a small crack. Looking good then I noticed that almost made ​​the rounds around the chainstay shortly after welding. The only thing I do is spend a little strong in the paths with rock, but not as a rock garden. I'm sorry for my English but I am standing on google.
  • 08-13-2013
    mdg3d
    No worries, I understand you just fine. All good to know. I also just emailed GT to ask about getting a replacement. If I hear back I will let you know what they said.

    Just got this response from GT:
    "This is something that your local dealer can help you with. We would ask that your dealer contact our warranty/tech department for potential availability and replacement. Our tech center will help with availability and price on replacement.

    Thank you and have a great day"
    Not much help I am afraid.
  • 08-13-2013
    Icarus Sam
    Well thank you! I hope that I do know something soon. Why could soon set up a Nomad frame.
  • 08-13-2013
    Icarus Sam
    Today I also saw the new price list for 2014 GT. The Carbon Force base (expert?), It costs a lot of money. Prices range from 4999. - In 7599. - (Sfr) Euro 4040 - Euro 6140, 3468GBP - 5270GBP.
  • 08-13-2013
    juancho142
    Hi, I just saw these on ebay, these were from an electric wheelchair. However these are Fox ProPedal Vanilla R shocks! And apparently the measures are 7.5in. long. Any ideas if they'll fit??

    ¨



    Will they fit my force frame???

    Thanks guys.
  • 08-13-2013
    juancho142
  • 08-14-2013
    MrSpecialK
    Might need different mounting hardware, but I don't see why they wouldn't.
  • 08-21-2013
    ricky916
    Quick question;
    I dont see why it would not work/fit but please if you know it won't let me know.
    I have a 2007 idrive 5 (with the new link not the flimsy thin piece of metal) and I want to put a newer force swingarm on it, it will work/bolt up right? everything looks exactly the same. I found a deal on one and want to know before i drop money on it. the swingarm is from a 2011
  • 08-21-2013
    Buggyr333
  • 08-21-2013
    ricky916
    sweet! then im going to get it thanks!
  • 08-21-2013
    ricky916
    are the carbon force swingarms pretty stout? or should I go for alum?
  • 08-23-2013
    hang10jeff
    I have seen a couple of 2010 carbon gt force rear swing arms floating around on ebay and was wondering if anyone has tried putting them on there aluminum force? Also anyone know if the 2010 swing arms are the same as the 2011s?
  • 08-30-2013
    bigdook
    Someone asked earlier but didn't get an answer............


    Has anyone mounted a 7.875x2.0 (200x51mm) shock with offset bushings? Any issues encountered?

    If not, can anyone give me any reasons why it would be a bad idea?
  • 08-30-2013
    Icarus Sam
    GT Sanction and Force reference thread
    yes I l I did, I still have to create an axis passing through the diameter from 6mm so you can use a bushing decentralized 3mm.
  • 08-30-2013
    Icarus Sam
    GT Sanction and Force reference thread
    front axle
  • 08-30-2013
    Icarus Sam
    5 Attachment(s)
    GT Sanction and Force reference thread
  • 08-30-2013
    bigdook
    Did you only make a 6mm bolt for the front mounting point? If so, how much offset do you get on the rear with the standard 8mm bolt?

    Did you find any problems with using the bigger shock?
    Did you have to compress it when bolting it in?

    How much clearance is there between your seat tube and the back end of the shock? I just checked mine and in standard form there is only about 5mm gap between the seat tube and shock.
  • 08-31-2013
    Icarus Sam
    GT Sanction and Force reference thread
    6mm front axle - 3mm offset
    8mm normal axle - 2 mm offset
    0.5 mm of clearance measured with a feeler gauge . I've never heard impacts with the tube . this one is very close . it would take a 6mm shaft to the rear .
    no problem with 200x57 . 171mm to the wheel. only problem is the high bottom bracket and head tube angle closed. in more than 21 mm of travel are all in extension and in compression, then starts to depreciate before. the ride is excellent provided you have a shock with high compression and maximum braking in the extension.
  • 09-13-2013
    natzx7
    Hey guys, haven't been on here in a while but I thought I'd let you know that Price Point has a great sale on the FSA 36 x 45 headset bearing. The Forces that have the pivot design like my '08 use this bearing for the suspension pivots. They use 4. I don't ride the bike much these days but couldn't pass up the deal.
    FSA Headset Bearing MR054 36x45 degree | FSA | Brand | www.PricePoint.com
  • 09-13-2013
    MrSpecialK
    great find! looks like these are at least good through the 2013 model year, correct?
  • 09-14-2013
    snodrift
    2 Attachment(s)
    GT Sanction and Force reference thread
    Dogbone bushings were totally shot.

    Attachment 831883

    GT dealer (excellent customer service, btw: atownbikes.net) called GT for pricing, felt the cost was over the top: $70 for the set! and instead pointed me to buying them from igus. Picked up three sets for around $25. The dogbone runs two bushings per end. Light tap with rubber mallet / wood drift to seat the new ones. About a 10 minute job, no more clacking...

    Attachment 831884

    I greased these- looked like the originals were installed dry (like my pivot bearings were). We'll see how they hold up.
  • 09-15-2013
    gt jorgito
    Great find Snodrift. I looked into Igus a few years ago looking for LTS bushings. Those bushings are actually meant to be dry, believe it or not. The material they are made of are supposed to have some kind of internally embedded lube. I don't think greasing them hurts them, plus it quiets your Force a bit more. I also lube mine since our bikes are bit noisy. Needless to say, they never contacted me on those LTS bushings I was looking for.
  • 09-21-2013
    juancho142




  • 09-21-2013
    ricky916
    Re: GT Sanction and Force reference thread
    Quote:

    Originally Posted by snodrift View Post
    Dogbone bushings were totally shot.


    GT dealer (excellent customer service, btw: atownbikes.net) called GT for pricing, felt the cost was over the top: $70 for the set! and instead pointed me to buying them from igus. Picked up three sets for around $25. .

    Right on man! I've been to atown a couple times, the owner and staff were friendly and very helpful too, most shops I go to are a hit and miss(roseville).
    I'm going to have to stop by atown this week.

    Sent from my HTC EVO LTE
  • 09-21-2013
    juancho142
    Ok, today I built up the carbon frame:







    My 2 babies:





  • 09-29-2013
    D3NN15M
    Anyone ever setup a stealth adjustable seatpost on an '09 (or similar MY) GT Force carbon?
  • 09-29-2013
    juancho142
    Quote:

    Originally Posted by mtngt View Post
    Anyone ever setup a stealth adjustable seatpost on an '09 (or similar MY) GT Force carbon?

    I guess you could try "fishing" the cable through the inner routing with a spoke. I had to do that with the FD routing.
  • 10-13-2013
    Spykr
    Does anyone know the dimensions for the dogbone bushings for a sanction? I can tell mine are shot and am going to order some new ones from IGUS, but don't know the size I need! Thanks!
  • 10-24-2013
    kevin1911
    Hey all. I've recently picked up an ex-hire 2013 Force 2.0, and am planning to get it powdercoated as the paint work is looking a bit shabby (and also because I don't really like the new GT 'Wings' graphics - looks like it's been scribbled by a 2-year-old :-))

    Just wondering if anyone knows where I might source some older (traditional!) GT Force decals from?
  • 10-24-2013
    mdg3d
    Have you looked on ebay yet? Not sure what logos you are after but there are a bunch there.
  • 10-24-2013
    kevin1911
    Yeah, all I can see is the standard GT logos, which will do bits of it, but can't see any Force-specific decals. Used to be able to get EVERYTHING on ebay :-)
  • 10-25-2013
    deckard2
    Noticed that all the online dealers are starting to blowout 2013 GTs
    Is there a frameset that is more desirable than the other? In terms of performance and or reliability?
    I am considering either the force or distortion as featured in the "hot deals" sections of this site
    I know MSRP really doesn't represent true out the door pricing but are these new season-end pricing really as good as they appear?
  • 10-29-2013
    petriedav
    Quote:

    Originally Posted by hang10jeff View Post
    I have seen a couple of 2010 carbon gt force rear swing arms floating around on ebay and was wondering if anyone has tried putting them on there aluminum force? Also anyone know if the 2010 swing arms are the same as the 2011s?

    Just got the pieces together to build up a Force for my wife.

    Will be using a 2010 GT Force 1.0 front triangle and a 2012 Carbon Force rear triangle.

    They fit, no problem. Though BB linkage is different, luckily they came with the rear triangle.
  • 10-31-2013
    juancho142
    Cool! Post a pic

    Quote:

    Originally Posted by petriedav View Post
    Just got the pieces together to build up a Force for my wife.

    Will be using a 2010 GT Force 1.0 front triangle and a 2012 Carbon Force rear triangle.

    They fit, no problem. Though BB linkage is different, luckily they came with the rear triangle.

  • 10-31-2013
    petriedav
    1 Attachment(s)
    Quote:

    Originally Posted by juancho142 View Post
    Cool! Post a pic

    Here you go.
    Attachment 843158

    Will post more once built up

    Here is the build
    Frame: GT Force
    Fork: Maverick DUC32
    Wheels: Mavic 819
    Crankset: Custom Jones Mod XTR 960 (2x)
    Shifters: SRAM X7 2 x 10
    RD: SRAM X9
    FD: Shimano LX
    Brakes: Avid Elixir 5s or Shimano SLX (Depends on Mrs preference)

    Everything is currently lying in a box in the garage
  • 10-31-2013
    juancho142
    So these 2 models really are compatible?!? Hmm interesting!
  • 12-03-2013
    J0hnnie
    Very helpful
  • 12-11-2013
    norcalchico
    That rear triangle sure looks familiar... Glad this worked out.

    Tim

    Quote:

    Originally Posted by petriedav View Post
    Here you go.
    Attachment 843158

    Will post more once built up

    Here is the build
    Frame: GT Force
    Fork: Maverick DUC32
    Wheels: Mavic 819
    Crankset: Custom Jones Mod XTR 960 (2x)
    Shifters: SRAM X7 2 x 10
    RD: SRAM X9
    FD: Shimano LX
    Brakes: Avid Elixir 5s or Shimano SLX (Depends on Mrs preference)

    Everything is currently lying in a box in the garage

  • 12-30-2013
    J0hnnie
    GT Sanction and Force reference thread
    What is the size of the seatpost to be use with 2011 GT Force Carbon Ultimate? Does anyone has website for this frame specification.


    Sent from my iPhone5 using Tapatalk
  • 12-30-2013
    MrSpecialK
    Quote:

    Originally Posted by J0hnnie View Post
    What is the size of the seatpost to be use with 2011 GT Force Carbon Ultimate? Does anyone has website for this frame specification.


    Sent from my iPhone5 using Tapatalk

    31.6mm is the size you're looking for. BikePedia will often have this type of information and most seatposts will actually list their size on them somewhere.
  • 03-15-2014
    gt jorgito
    Natz, I just saw this. This is cool. Great idea.
  • 03-16-2014
    J0hnnie
    I have completed built 2011 "S" size GT Force Carbon for my wife.

    However, it seems very large for her. To be honest, it's looks like larger than or qualvalent to my "M" size santa cruz Blur LTc. My wife is only 163CM is there any solution on these? Or anyone with the same height has a similar problem?
  • 03-22-2014
    bryan_d
    3 Attachment(s)
    Internal Routing with pre-650b Force
    Hi all,

    Just installed a Specialized Command Post IR (internal routing). No drilling needed.

    :)

    Attachment 878823
    <br>
    Attachment 878824
    <br>
    Attachment 878825
  • 03-22-2014
    StumpyandhisBike
    Looks good. I like how it looks cleaner than how I routed my reverb stealth. I'm running a 1x now so got rid of the FD and used those cable guides and looped it up in front of the rear tire. Internally routed dropper post are sweet!
  • 04-02-2014
    cevet87
    Ok so i have been lurking around the ol' interwebs for a new frame and came across the gt force 1 and sanction frames, but don't like the QR drop outs and saw the conversion part for the 12mm thru (hence coming here):D.

    Though my question is viability of gt frames from asia. Has anyone had good/bad experiences?

    Cheers.
  • 04-20-2014
    hitechredneck
    the sanction frames have a 12mm drop out on them. You should still be able to order the sanction drop outs from a GT dealer from GT.My buddy did this on his force I think it cost around 80 bucks.
  • 04-20-2014
    bryan_d
    Quote:

    Originally Posted by cevet87 View Post
    Ok so i have been lurking around the ol' interwebs for a new frame and came across the gt force 1 and sanction frames, but don't like the QR drop outs and saw the conversion part for the 12mm thru (hence coming here):D.

    Though my question is viability of gt frames from asia. Has anyone had good/bad experiences?

    Cheers.

    Quote:

    Originally Posted by hitechredneck View Post
    the sanction frames have a 12mm drop out on them. You should still be able to order the sanction drop outs from a GT dealer from GT.My buddy did this on his force I think it cost around 80 bucks.

    It cost me $100 USD for the dropouts along with another $35 for the 12mm Maxle. I received the 135mm instead of the 142mm dropouts if that information is useful to you. Hopefully, I will be installing them when I get some coin collected for a new wheel-set next month.

    Good luck,

    Bryan
  • 04-21-2014
    MrSpecialK
    Quote:

    Originally Posted by bryan_d View Post
    It cost me $100 USD for the dropouts along with another $35 for the 12mm Maxle. I received the 135mm instead of the 142mm dropouts if that information is useful to you. Hopefully, I will be installing them when I get some coin collected for a new wheel-set next month.

    Good luck,

    Bryan

    I did the same upgrade last summer. works great, absolutely no complaints, but shortly after I developed that GT creak. when you do the swap it's a good time to do the lubing of the dropouts.
  • 05-02-2014
    Spykr
    Does anyone know the recommended base compression and rebound tunes for an air shock for the 2009 Sanction? I think it's medium comp, low rebound, but I'm not sure. Anybody know 100%?
  • 05-10-2014
    153stars
    There is no official i drive 5 thread anywhere but I looks like there are alot of similarities to sanction or force. So i hope someone can give me some insight. There are two holes top and bottom in frame so 4 possible locations for dog bone. Does this give more rear travel , different levels of progression in travel. GT has dropped all older archives. I can find a tons of info, owner & service manuals and even original GT videos on my 97 LTS and only a couple repair vids or threads on 2007 I drive 5. I have googled it to death.
  • 05-26-2014
    Reelchef67
    1 Attachment(s)
    Here is my ride since there is no distortion thread but sanction and force so similar.
    Its a full custom build on a 2011 medium distortion team frame with a 650b front end.
    2x9 Xo foxfloat 36 140mm, rp23 custom tuned
    Attachment 896181
  • 05-27-2014
    bryan_d
    Quote:

    Originally Posted by Reelchef67 View Post
    Here is my ride since there is no distortion thread but sanction and force so similar.
    Its a full custom build on a 2011 medium distortion team frame with a 650b front end.
    2x9 Xo foxfloat 36 140mm, rp23 custom tuned
    Attachment 896181


    That looks like lots of fun. I have a soft spot for the distortion. Thanks for sharing.


    Sent from my Venue 8 Pro 5830 using Tapatalk
  • 05-28-2014
    Reelchef67
    Thanks it is such great frame. So much fun.. Finally doing some black diamond shore trails and this bike just soaked it up.
  • 06-06-2014
    juancho142
    Wow! Love the distortion! I'd love to try one of those.
    Now I'm planning to turn my carbon Force into a 1x9 setup (right now it's 3x9 and 2x9 on the alu force) + short stem/wider bar combo (35x35mm + 760mm bars). This is in order to achieve a more "modern" Enduro geo on my L sized Force, which with a 600mm Top Tube lenght is an "M" by today's standards, only it has a longer seat tube but has loadas of clearance so that shouldn`t be an issue.

    I'm planning the 1x9 combo by disassembling the cassette and adding a 40T E13 cog in there. Will post when I do it, should be sick.
    Any weight numbers on carbon Forces? Both my forces are around 15kg
  • 06-06-2014
    Reelchef67
    I love my Disto slack head angle steep seat tube make it a great all round bike. All my riding is "enduro style" ..
    I'm just switching to ½ inch rise atlas 785 bars(cut to 761) so far with a 6deg 60mm turbine stem. Not sure but I might go down to 150 or maybe swap a 50mm stem in there.. Not sure yet..
    What a carbon force weigh ? Sounds like a fast bike. Distos have a heavier gusseted frame like the sanction so they are Portly:)
    Im waiting for a rear wheel i ordered to complete my bike.
    Im using wtb i23 rim 650bfront and 26er rear with hope pro2evo hubs and dbl dt comp spokes.
    Should be tough and and not too heavy.
    Lets see that build up!

    Cheers


    "I Don't Ride Park"
  • 06-21-2014
    siis
    1 Attachment(s)
    So I snapped one of my Sanction's dog bone screws today.
    Attachment 902724

    Does anyone know how to get another one of these? I went to a couple hardware stores today, with no luck.
  • 06-21-2014
    153stars
    By looking at those the threaded end is smaller than shank to get one non OEM best bet to get one much longer shank and have machined and threaded, the socket head is shorter normal as well. OEM or machine shop , machinist or BETD in UK probably only option. Good luck get spares.Find dealer
    Store Locator Fury looks same they will know GT Fury Spares : Mountain bikes and componets by BETD Goldtec
    in black steel Metric shoulder bolts, Allen, Class 12.9 steel black oil finish - Bolt Depot They are called shoulder bolts http://www.mscdirect.com/browse/tn/F...828+4287834418 I think they are M6 x M5 .80 pitch then you need the shank length I am sure you can get them get it all measured up and start google
  • 06-21-2014
    siis
    I think my next step is to contact a GT dealer tomorrow and hope that they can order the part for me. I'm in Roanoke, VA, and they have a dealer in Lewisburg, WV, which is more or less on the way to Snowshoe, where my son is racing downhill next weekend.
  • 06-22-2014
    hishalls
    You can also try McMaster Carr- they have a huge assortment of fasteners and are reasonably priced. We use them for a supplier where I work.

    McMaster-Carr
  • 06-25-2014
    siis
    Quote:

    Originally Posted by 153stars View Post
    By looking at those the threaded end is smaller than shank to get one non OEM best bet to get one much longer shank and have machined and threaded, the socket head is shorter normal as well. OEM or machine shop , machinist or BETD in UK probably only option. Good luck get spares.Find dealer
    Store Locator Fury looks same they will know GT Fury Spares : Mountain bikes and componets by BETD Goldtec
    in black steel Metric shoulder bolts, Allen, Class 12.9 steel black oil finish - Bolt Depot They are called shoulder bolts Shoulder Screws & Stripper Bolts | MSCDirect.com I think they are M6 x M5 .80 pitch then you need the shank length I am sure you can get them get it all measured up and start google

    Thanks for the links! Those Bolt Depot bolts and the GT Fury Bolts look like they would work.
  • 06-25-2014
    siis
    1 Attachment(s)
    Quote:

    Originally Posted by hishalls View Post
    You can also try McMaster Carr- they have a huge assortment of fasteners and are reasonably priced. We use them for a supplier where I work.

    McMaster-Carr

    I ended up going with McMaster:

    McMaster-Carr

    Here are the original and new shoulder screws (which are black and silver):
    Attachment 903737

    Just got them in the mail today and they fit! The hex wrench size is 3mm instead of 4mm, which is fine.

    They were $1.37 each (I ordered 4) and 2 day shipping was $7.39, from Georgia to Virginia.

    Thanks hishalls!
  • 06-25-2014
    siis
    1 Attachment(s)
    Here is the gif from McMaster, with dimensions:

    Attachment 903738
  • 08-15-2014
    mdg3d
    I am having a very hard time getting the bolts out from the dog bone and was wondering if anyone had any tips. Just soaked them in PB Blaster.

    Edit-After repeated soakings in PB Blaster I put the heat gun to it and was able to break it free. No cross threads, just some very effective loctite.
  • 03-09-2015
    srbecker58
    1 Attachment(s)
    Crack in rear triangle
    I have noticed a crack in my 2009 Force frame that was purchased in 2010. Has anyone had any good/bad experiences with GT? Should I be optimistic or am I SOL???
  • 03-09-2015
    ehansen007
    I haven't had any major issues with my 2008 and it's got over 4000mi on it. I would just take that over to a welder and he'll patch it up good as new. They are still some of the best bikes for the money. Frames are made overseas though so that's the thing we have to accept when paying less. Still love my bike though!
  • 03-16-2015
    Ferhat Kaya
    Yes, it is a common problem, I had similar cracking problem, and some other GT Sanction owners as well. Try to get a new one from the GT through your LBS, or try to contact Taiwanese Ebay sellers, if you are lucky enough you may get a new triangle with a low price.
  • 04-21-2016
    EugenM
    Hi Guys,

    Sorry for posting in such an old thread but I have a problem that I can't resolve(and GT's customer service does not reply);

    The problem is: I have a GT Sanction 2.0(2012 model) which I purchased new(stock unsold) last year. Tremendous bike!, I have done everything I can done with it on the mountains. I liked it so much that I've sold all the components from it, currently reassembling it with Pike, Tune Hubs laced on Sapim CX-Ray spokes and Stan's Flow Ex wheels, carbon bars and the list can continue.

    Before I can finish the reassembling, I took out the pivots for cleaning(they accumulate a lot of dirt, it seems) but, in the user manual, there is not a single notice about the torque I need to use in putting them back.

    I have send 2 messages already to GT customer support but no answer so far(they have a contact form on their web-site).

    The question was, does anyone has the original manual(I have a general GT user manual from the bike-shop, not a specific Sanction one) and can tell me how much I should torque back the pivots? - maybe even send me a picture or something, in order to not forget it in the future -

    I have tried finding it on the big and wide web but, it seems that only .pdf with Sensor from 2012 are available, not Sanction.

    Any reply could be useful and I am thanking you in anticipation.

    With best regards,
    Eugen
  • 04-21-2016
    mdg3d
    Hey Eugen,
    You mean the actual pivot and not the pinch bolts right? If so, the only thing GT ever said about those is hand tight. I have a 2013 GT Force LE which is pretty similar to your Sanction and that has always worked well for me.
  • 04-21-2016
    EugenM
    1 Attachment(s)
    Attachment 1065331

    Hi and thank you for your reply. I am referring to the large, red ones.
  • 04-21-2016
    mdg3d
    Yes. With the pinch bolts loosened insert your allen keys into each size and tighten until they are snug but do not over tighten. Then tighten your pinchbolts to what I think is 70 inch pounds but I can't be sure until I check my bike at home. The torque for the pinch bolts is painted directly on my frame not sure if they did that for the Sanctions.
  • 04-21-2016
    ehansen007
    Best best is to call the local performance bike shop and talk to a mechanic. They will know. I want to say it's around 30-40ft/lbs but can't remember
  • 04-21-2016
    srbecker
    1 Attachment(s)
    Attachment 1065350

    I would assume yours is similar to my force. My force asks for 70 in lb or 80 cm kg. I attached a picture for your reference. Sorry I cant help any more.
  • 04-21-2016
    deckard2
  • 04-25-2016
    EugenM
    thank you guys for your help.

    regards,
    Eugen
  • 04-27-2016
    Reelchef67
    @eugeneM
    Think of the frame pivots as being like your headset. They are they identical bearings and need the same firm pressure. So just tighten them firmly like you would your headset and torque the pinch bolts to 70 inch/ lbs

    If you look at pics on google you can see it is printed on the newer frames :)
  • 10-11-2016
    DarKmaN
    Hello. Does anybody know the exact specs of the 2015/2016 Sanction rear shock mounting hardware? I cannot seem to fina any information about it.

    Thank you
  • 10-21-2016
    Reelchef67
    GT Sanction and Force reference thread
    Hi here is bit of Chiba on dog bone hardware
    I am just refurbishing my linkage right now as I had some play in it.

    I ordered the bushings From IGUS and bolt from McMaster Carr.
