    Reign X Chain Guide Replacements

    Hey all,

    (apologies if this has been posted before; but a few searches yielded limited results)

    I have a 2010 Reign X1 and I've demolished the Race Face Atlas chain guide - specifically speaking the lower bracket that holds the roller - its completely snapped off.

    In searching for a replacement, lots of searching over the last two days tells me that I can't get a replacement bracket (which seems unbelievably idiotic as it's a 2-part guide), and lots of options for "2-ring chain guides" appear as if their upper guides will interfere with my front derailleur :\

    Have any of you tried, say, this MRP offering: MRP LRP Chain Guide > Components > Drivetrain > Chain Tensioners and Guides | Jenson USA Online Bike Shop on your 2010 Reign X's?

    I'd rather not spend the $120, but I need a chain guide, and that one is the only one I can find that MIGHT work... any suggestions/experiences will be truly appreciated.

    cheers.

  2. #2
    GUIDANCE COUNSELOR
    Reputation: NoahColorado's Avatar
    Join Date
    Aug 2004
    Posts
    3,330
    We make a special version of the 2x guide to work on the Reign X (same as OE guide on the 2013 models). I think we have limited inventory here - give us a ring. Depending on your crankset and chainring combo, this could be an option for you.
    NOAH SEARS
    MRP - Brand Manager
    Pivot Cycles - Team Rider

  3. #3
    mtbr member
    Reputation:
    Join Date
    Apr 2009
    Posts
    20
    Thanks Noah,

    I've managed to locally source a Blackspire stinger unit which I think was the lowest cost option, however It sounds like I might need to find some BB spacers to replace the gap left behind by the OEM Race Face unit.

  4. #4
    mtbr member
    Reputation:
    Join Date
    Nov 2007
    Posts
    12
    Quote Originally Posted by NoahColorado View Post
    We make a special version of the 2x guide to work on the Reign X (same as OE guide on the 2013 models). I think we have limited inventory here - give us a ring. Depending on your crankset and chainring combo, this could be an option for you.
    Is it different than the normal 2x chain guide you sell?

  5. #5
    GUIDANCE COUNSELOR
    Reputation: NoahColorado's Avatar
    Join Date
    Aug 2004
    Posts
    3,330
    Quote Originally Posted by hetfield99 View Post
    Is it different than the normal 2x chain guide you sell?
    Yes.

    NOAH SEARS
    MRP - Brand Manager
    Pivot Cycles - Team Rider

  6. #6
    mtbr member
    Reputation:
    Join Date
    Nov 2007
    Posts
    12
    Thanks, Noah. I would have bought one of the wrong ones! I have a 2013 Reign X frame. So much to learn!

  7. #7
    mtbr member
    Reputation:
    Join Date
    Nov 2007
    Posts
    12
    Noah, do you have a Giant 2x chain guide that would work with 39-42 teeth?

  8. #8
    GUIDANCE COUNSELOR
    Reputation: NoahColorado's Avatar
    Join Date
    Aug 2004
    Posts
    3,330
    Quote Originally Posted by hetfield99 View Post
    Noah, do you have a Giant 2x chain guide that would work with 39-42 teeth?
    Negative.
    NOAH SEARS
    MRP - Brand Manager
    Pivot Cycles - Team Rider

  9. #9
    mtbr member
    Reputation:
    Join Date
    Apr 2009
    Posts
    20
    I shouldda called you, Noah. Can you PM me a price on that unit?

    ***Update***
    The Blackspire Stinger ISCG Guide will NOT fir the 2010 Reign X's - not enough clearance for a two-ring setup.

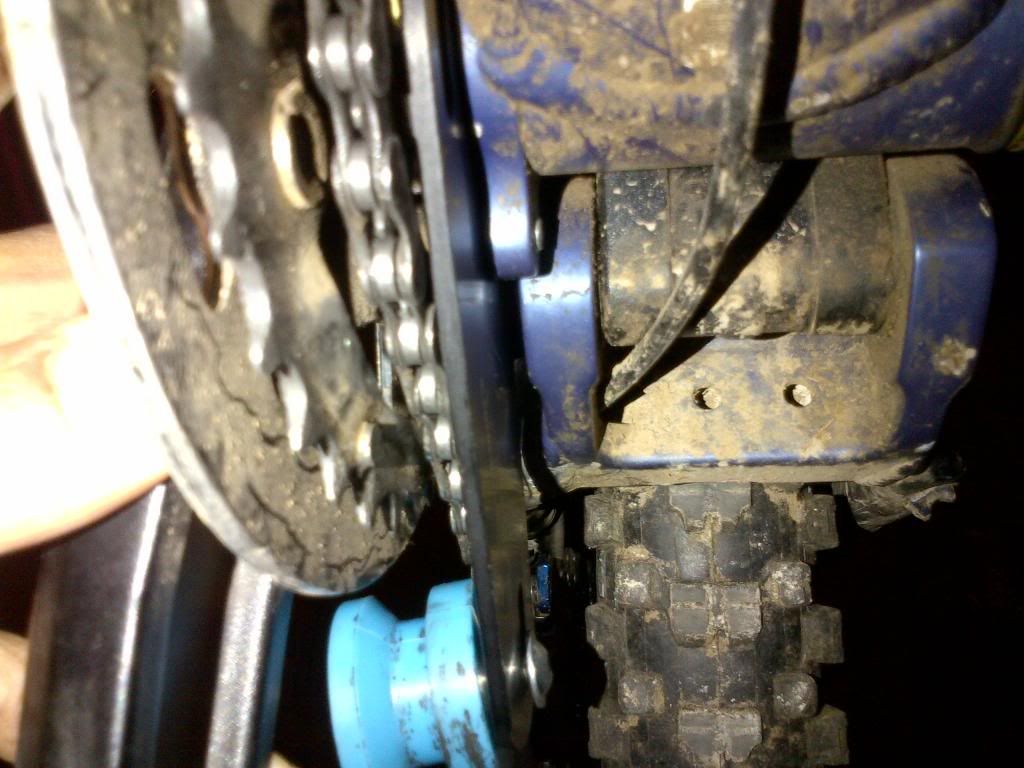

    Here's what happened to my OEM Race Face Atlas Guide (which was awesome, btw):
    Lost the roller, too

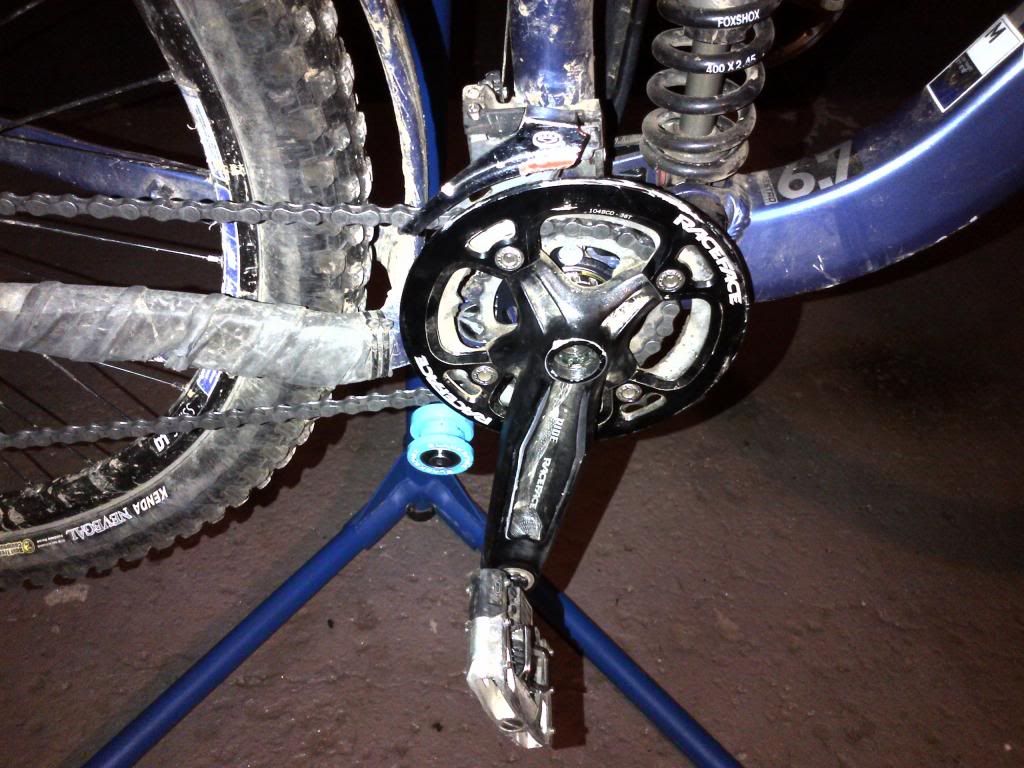

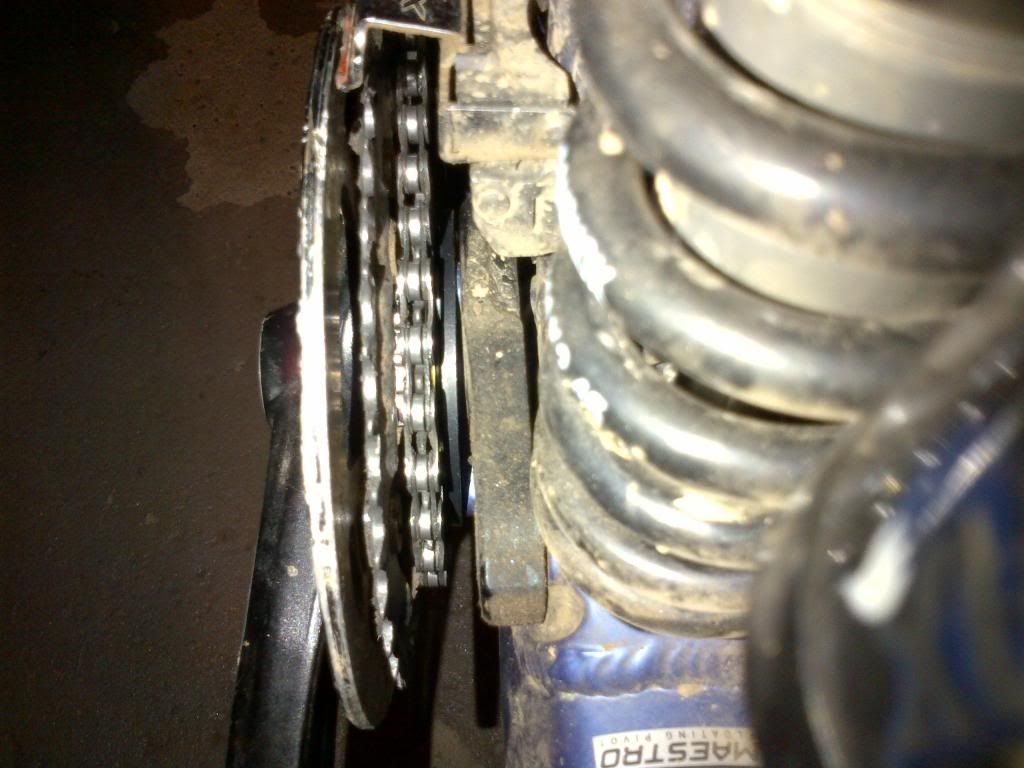

    I replaced the sandwiched unit with a 2.5mm BB spacer, and fitted the Blackspire Stinger - just by measuring the setup, I had a feeling there'd be interference...and assembly confirmed those thoughts. Hard to tell from the pics, but the bish won't even crank.



    Wouldda looked great:


    Anyway, then I got a new idear.... to put the Blackspire roller on the Raceface bracket:


    But since the slot in the bracket is busted, I'm going to explore the option of making a new one myself. Depending on the cost of it, and the lead time, I might go for it, or let NoahColorado hook me up. we'll see.

    If I get a design done this weekend, I'll update this thread, and perhaps get 5 made... if anyone's interested, let me know.

  10. #10
    mtbr member
    Reputation:
    Join Date
    Mar 2007
    Posts
    17
    So I heard that most chain guides will not work with the 2011 Giant Reign X ISCG 05 mounts because the threaded holes are "clocked" in a strange fashion, true? Can somebody please recommend a single ring, chain guide bash guard for me. I wanted to put on an ISCG E13 LG1 or Truvative XO or Blackspire DER Chainguide. Of those three options I think only the Truvative XO comes in a bottom bracket mount which I know will work because my bike currently has a MRP Lopes minimalist single ring guide with bottom bracket mount. However with the taco bashguard I wanted to keep forces off of the bottom bracket and would rather use the ISCG tabs... Any suggestions?! Thanks.
