  1. #1
    banned
    Reputation: marpilli's Avatar
    Join Date
    Feb 2011
    Posts
    3,993

    Acid Etching Custom Head Badges

    I wasn’t sure if I should post this thread in here (Frame Building) or in the General forum. There really isn’t an obvious choice for DIY head badges. In the end, I thought it might appeal more to the DIY folks in here rather than those in the General forum. Moderators, if you feel this thread should be in General (or some other forum) please feel free to move it accordingly…


    I wanted to create custom made head badges for a couple of my mountain bikes. There were a lot of good examples when searching MTBR and the internet; but, nothing really stuck me as what I wanted (or that I had the skills to create). I knew I wanted the design to be my MTBR avatar. I decided against a sticker. And I don’t think I have the skill to engrave or cut out something with that much detail.

    A few days later I was chatting with a friend and our conversation migrated over to PC board etching. PC board etching has been around for awhile (I’ve etched boards well over 20 years ago) and widely practiced by electronics hobbyists. I then did some research and found examples of people using modern day etching chemicals (muriatic acid) to etch aluminum. That’s how I was going to do it…

  2. #2
    banned
    Reputation: marpilli's Avatar
    Join Date
    Feb 2011
    Posts
    3,993
    Preparing the Badges & Toner Transfer

    Google Search: “toner transfer”


    I found a suitable logo and did some basic manipulation in a photo editing software. I flipped the image (so it’s a reverse image – you’ll see why in a bit) and inverted the image.

    The piece of aluminum stock was purchased at the local building supply store and was 48” L x 3/4” W x 1/16” D. I cut out four pieces of stock about 1” long.

    Acid Etching Custom Head Badges-img_8677.jpg

    Instead of using specialized toner transfer paper, I grabbed an old sheet of labels and peeled them all off. This left the silicone slick backing. I printed a sheet of my images onto the slick backing using a laser printer set to print on “overhead” sheets.

    Acid Etching Custom Head Badges-img_8698.jpg

    Using a fine grade steel wool, I brushed one side of each badge until it became nice and bright. Afterwards, I brushed the surface with a paper towel to remove any loose bits. Be sure not to touch the brushed surface with bare hands as it will prevent the toner from sticking.

    Acid Etching Custom Head Badges-img_8699.jpg

    Disclaimer: I’ll spare you the long details of trial and error and provide what worked best for me. However, I will mention when I had to do something more than once and what I think I had done wrong on the previous attempts. Hopefully this will help someone learn from my mistakes.

    To successfully transfer the image from the paper to the aluminum badges took some practice. I cut out an image and placed it over the badge (toner side towards the badge) and then taped it (using painters tape) on the back.

    Acid Etching Custom Head Badges-img_8700-001.jpg

    Acid Etching Custom Head Badges-img_8701.jpg

    I put down a hard, flat, surface on my workbench (brass plate in my case) and the put a folded piece of cotton cloth on top of the surface. The aluminum badge was placed on top of the folded cloth (with the image side down – tape side up) and the hot iron (no steam settings) on top of the badge.

    Acid Etching Custom Head Badges-img_8702.jpg

    The idea is to heat up the aluminum so the toner will dislodge from the paper and adhere to the aluminum. After letting it heat up for awhile (60-90 seconds), I would give the iron a gentle push down onto the plate and the remove the iron. Then flip the badge over onto the bench to cool down (use gloves, it’ll be darn hot).

    While one was cooling I’d prep and work the next plate. As it starts to cool you might notice the image will become very “light”. This is good as it indicates the toner has adhered to the aluminum and isn’t on the paper any longer. Here’s an example of one that has cooled (left) and one that just came off the hot plate (right).

    Acid Etching Custom Head Badges-img_8704.jpg

    Using this method I was able to successfully produce the transfers I wanted. There was a lot of do-over, though.

    Acid Etching Custom Head Badges-img_8705.jpg

    If the image didn’t transfer properly, just grab that piece of steel wool and erase it right off. Tape a new image on and go at it again. Be patient and take your time. You’ll eventually get what you’re after.

    Acid Etching Custom Head Badges-img_8707.jpg

  3. #3
    banned
    Reputation: marpilli's Avatar
    Join Date
    Feb 2011
    Posts
    3,993
    Chemically Etching the Aluminum Badges

    Google Search: “hydrochloric acid etching aluminum”

    Google Search: “neutralize and dispose of muriatic acid”

    WARNING: This can be a very dangerous process if you’re not careful. My description herein is not to be taken as a complete step-by-step process.



    The basic ingredients you’ll need are 31% muriatic acid (hydrochloric acid), 3% hydrogen peroxide and baking soda (to neutralize the acid when done). Protective gear such as nitrile chemical resistant gloves, face shield, and an apron are highly recommended. You’ll also need a measuring cup and bowl for the etchant.

    Acid Etching Custom Head Badges-img_8684.jpg

    The above photo was taken before I started the first batch. I ended up repeating the process two additional times and I learned a few things. Buy a larger box of baking soda than I have in the photo and have a 5-gallon bucket standing by for neutralizing the acid later.

    Most of what I found for PC board etching (etching copper) recommended using 2 parts of hydrogen peroxide and 1 part of muriatic acid. What worked best for me was using 3 parts hydrogen peroxide and 1 part muriatic acid. The 2/1 solution was just too strong and would react violently enough to generate heat, lift the toner right off of the badges and ruin them. None of the badges in the first batch survived.

    The 3/1 solution produced a much slower reaction and gave me the results I was after. It did take longer (about 30 minutes) to etch each badge down to the level I wanted. You don’t have to use a lot. I measured out 6 ounces of peroxide and 2 ounces of muriatic acid and it was plenty enough to etch a badge.

    It was interesting to watch the reaction. The initial acid solution is primarily clear (first photo). Once the badge is put in it turns to a dark grey (second photo) and eventually changes to a champagne color (third photo).

    Acid Etching Custom Head Badges-img_8754.jpg Acid Etching Custom Head Badges-img_8757.jpg Acid Etching Custom Head Badges-img_8759.jpg

    On the floor beside the workbench I had a five gallon bucket with about 1-1/2 gallons of water and I dissolved a large amount of baking soda into the water. When the badge was done etching, I would remove it from the acid (using a plastic fork) and submerse it into the baking soda water. I then used an old tooth brush to scrub the submerged badge to neutralize any acid remaining on it.

    When finished, I slowly poured the acid mixture into the baking soda water (mind the reaction). Once it settled down, I continued to add baking soda (slowly) until there was no further reaction. When neutralized, the mixture can be poured down the kitchen sink.

    What I learned in the first batch was my mixture contained too much muriatic acid. I mixed the second batch at a lesser strength and successfully etched one plate. I then became all excited and put in the remaining three plates. The mixture heated up (due to the volume of the reaction) and it lifted the toner right off of the aluminum and ruined the remaining three plates. The final third time worked because I (A) used the weaker acid mixture and (B) only etched one badge at a time. I also disposed of the etchant and mixed new etchant for each subsequent badge.

    Here are a couple of the better results.

    Acid Etching Custom Head Badges-img_8762.jpg Acid Etching Custom Head Badges-img_2151.jpg

    Be sure to save any of the ruined badges. You can use them for practice when trying to bend them to the shape of the head tube….

  4. #4
    mtbr member
    Reputation: davesauvageau's Avatar
    Join Date
    Jan 2010
    Posts
    1,048
    In Printmaking, artists etch copper plates for intaglio printing. This might work for you and there is information on it that is easy to find. Maybe check that out?

    Intaglio (printmaking) - Wikipedia, the free encyclopedia
    My motorcycle runs on infant blood

  5. #5
    banned
    Reputation: marpilli's Avatar
    Join Date
    Feb 2011
    Posts
    3,993
    Bending and Painting

    I now need to bend one of them to fit the head tube. I cut a piece of 2x3 at a 45* angle and attached the two pieces together like this.

    Acid Etching Custom Head Badges-img_8764.jpg Acid Etching Custom Head Badges-img_8765.jpg

    I taped the badge into the V and also taped up the head tube to prevent it from being scratched.

    Acid Etching Custom Head Badges-img_8766.jpg Acid Etching Custom Head Badges-img_8763.jpg

    I placed the block against the head tube and gently (but firmly) tapped the block with a mallet until the aluminum started to bend. I had to reposition the badge and the block a few times to get the desired result. Again, be patient and work with the badges you ruined during the etching process. I also used a different bike to test just so I could be sure I wouldn’t be denting the frame.

    Acid Etching Custom Head Badges-img_8767.jpg Acid Etching Custom Head Badges-img_8769.jpg

    After the badge is in the proper shape, I washed it down using TSP and a brush, thoroughly rinsed, and let it dry completely. I taped off the back and gave it a single good coat of black appliance epoxy. I used the same black appliance epoxy to paint my fork lowers.

    Acid Etching Custom Head Badges-img_8772.jpg Acid Etching Custom Head Badges-img_2165.jpg
    Last edited by marpilli; 05-18-2012 at 09:34 AM.

  6. #6
    banned
    Reputation: marpilli's Avatar
    Join Date
    Feb 2011
    Posts
    3,993
    Brushing and Application

    After letting the painted badge dry for 24 hours, it was now time to remove the paint from the raised areas. I used a brass wire wheel attached to a dremel on the lowest speed setting. I very gently touched the spinning wheel to the raised ridges and the paint came right off.

    Acid Etching Custom Head Badges-img_8781.jpg Acid Etching Custom Head Badges-img_8783.jpg

    To apply the badge I used some E-6000 adhesive (the same adhesive I used to hold in some cable guides here). Clamp the badge to the head tube for 10-15 minutes and we’re all done…

    Acid Etching Custom Head Badges-img_8785.jpg

    Here are some images of a completed badge on my 1994 GT Karakoram.

    Acid Etching Custom Head Badges-img_8800.jpg Acid Etching Custom Head Badges-img_8802.jpg Acid Etching Custom Head Badges-img_8805.jpg

    I’ll be using one of the remaining badges on my 1995 GT Aggressor next weekend.

    Let me know if you have any questions, I’ll do my best to answer them.

  7. #7
    mtbr member
    Reputation:
    Join Date
    Aug 2008
    Posts
    4,699
    That is pretty cool.

  8. #8
    mtbr member
    Reputation: vulture's Avatar
    Join Date
    Jan 2004
    Posts
    249
    Awesome Post! I dig it when people show what they are doing. Way to figure it out yourself!

  9. #9
    banned
    Reputation: marpilli's Avatar
    Join Date
    Feb 2011
    Posts
    3,993
    Quote Originally Posted by davesauvageau View Post
    In Printmaking, artists etch copper plates for intaglio printing. This might work for you and there is information on it that is easy to find. Maybe check that out?

    Intaglio (printmaking) - Wikipedia, the free encyclopedia
    Very neat, I didn't know about that. Thank you.

  10. #10
    banned
    Reputation: marpilli's Avatar
    Join Date
    Feb 2011
    Posts
    3,993
    Quote Originally Posted by the-one1 View Post
    Edit: typed too slow to see new posts.


    I tried to post it all up as quickly as possible. You guys still beat me to the punch.

  11. #11
    banned
    Reputation: marpilli's Avatar
    Join Date
    Feb 2011
    Posts
    3,993
    Quote Originally Posted by vulture View Post
    Awesome Post! I dig it when people show what they are doing. Way to figure it out yourself!
    Thank you! Half the fun is the trip getting there.

  12. #12
    mtbr member
    Reputation: Clockwork Bikes's Avatar
    Join Date
    Jun 2006
    Posts
    667
    Great post! I started looking into making head badges like this with copper and brass but never got past watching Youtube videos.

    Here's two I bookmarked:

    Copper Etching on Copper with Sherri Haab - YouTube

    Brass How to Etch a Brass Name Plate Part 1 - YouTube
    and
    How to Etch a Brass Name Plate Part 2 - YouTube

    -Joel
    NOTHING WORKS LIKE CLOCKWORK

    www.clockworkbikes.com

  13. #13
    conjoinicorned
    Reputation: ferday's Avatar
    Join Date
    Jan 2004
    Posts
    3,527
    Really great post, thanks!
    what would rainbow unicorn do?

  14. #14
    Most Delicious
    Reputation: dr.welby's Avatar
    Join Date
    Jan 2004
    Posts
    1,110
    <img src="http://farm3.staticflickr.com/2010/2333669688_d05f214fdc_m.jpg">

    I etch copper and brass, using the toner transfer trick, but I just print it on to glossy magazine paper and then soak it off once it cools.

    To etch the metal, I use PCB etchant with a little citric acid which gives a deeper etch.

  15. #15
    Is not amused
    Reputation: Hutch3637's Avatar
    Join Date
    Jul 2011
    Posts
    3,205
    Great write up and even better results with your quest to make your custom head badge.
    Yip yip yip nope nope nope

  16. #16
    Fat & Single
    Reputation: ozzybmx's Avatar
    Join Date
    Jun 2008
    Posts
    4,074
    Nice job !!! Looks awesome
    Trek 9.9 Superfly SL
    FM190 Fatty
    Indy Fab Deluxe 29
    Pivot Vault CX
    Cervelo R3 Disc

  17. #17
    Randomhead
    Reputation:
    Join Date
    Sep 2008
    Posts
    1,167
    that's a really nice job. Last time I looked into this there were a ton of people doing it, which really surprised me.

  18. #18
    banned
    Reputation: marpilli's Avatar
    Join Date
    Feb 2011
    Posts
    3,993
    Thank you all for the kind words!

    Quote Originally Posted by dr.welby View Post
    <img src="http://farm3.staticflickr.com/2010/2333669688_d05f214fdc_m.jpg">

    I etch copper and brass, using the toner transfer trick, but I just print it on to glossy magazine paper and then soak it off once it cools.

    To etch the metal, I use PCB etchant with a little citric acid which gives a deeper etch.
    That looks fantastic and I'm very interested in what you used to etch it. The last PCB etchant I used (a long time ago) was from Radio Shack. Are you using something different?

    Searching for PCB etchant and citric acid turns up the phrase "Edinburg Etch". Am I headed down the correct path?

    Quote Originally Posted by unterhausen View Post
    that's a really nice job. Last time I looked into this there were a ton of people doing it, which really surprised me.
    I don't doubt there are. I'm mediocre at best with my search abilities. I'll be taking note of anyone else on here that etches so I can pepper them with questions and make my next batch look a little less "utilitarian".

  19. #19
    Most Delicious
    Reputation: dr.welby's Avatar
    Join Date
    Jan 2004
    Posts
    1,110
    Quote Originally Posted by marpilli View Post

    That looks fantastic and I'm very interested in what you used to etch it. The last PCB etchant I used (a long time ago) was from Radio Shack. Are you using something different?

    Searching for PCB etchant and citric acid turns up the phrase "Edinburg Etch". Am I headed down the correct path?
    That's the stuff. It's just RatShack PCB solution (ferric chloride?) and some citric acid powder from the homebrew store.

  20. #20
    mtbr member
    Reputation:
    Join Date
    Aug 2011
    Posts
    4
    Awesome stuff! I was laying out a design to cut my copper headtube badge using a jewelers saw, but after this thread, I'll have to look at etching as another option.
    Thanks for sharing!

  21. #21
    banned
    Reputation: marpilli's Avatar
    Join Date
    Feb 2011
    Posts
    3,993
    Quote Originally Posted by dr.welby View Post
    That's the stuff. It's just RatShack PCB solution (ferric chloride?) and some citric acid powder from the homebrew store.
    What's the ratio (or quantity) of citric acid powder to PCB solution? I'll definitely be giving it a try. Time to make some custom head badges for my kid's bikes.

  22. #22
    banned
    Reputation: marpilli's Avatar
    Join Date
    Feb 2011
    Posts
    3,993
    Quote Originally Posted by red dog bikes View Post
    Awesome stuff! I was laying out a design to cut my copper headtube badge using a jewelers saw, but after this thread, I'll have to look at etching as another option.
    Thanks for sharing!
    Thank you. I read through a post where someone made a great head tube badge using a jewelers saw (a bulldog design?). I just didn't think I had the skills to cut it out by hand. Iron-on and acid seemed like more fun, anyway.

  23. #23
    Belltown Brazer
    Reputation: MDEnvEngr's Avatar
    Join Date
    Mar 2004
    Posts
    685
    Wicked Cool! Thanks for sharing! B
    Departing from East Hampton, CT

  24. #24
    mtbr member
    Reputation: jay_ntwr's Avatar
    Join Date
    Feb 2008
    Posts
    709
    Wow, great thread, Marpilli! What part of Dallas are you in? I'm up in Richardson.

  25. #25
    banned
    Reputation: marpilli's Avatar
    Join Date
    Feb 2011
    Posts
    3,993
    Quote Originally Posted by MDEnvEngr View Post
    Wicked Cool! Thanks for sharing! B
    Thank you!

    Quote Originally Posted by jay_ntwr View Post
    Wow, great thread, Marpilli! What part of Dallas are you in? I'm up in Richardson.
    Thanks! I'm up in the Frisco area. I've seen your avatar on the DORBA site. It's always nice to meet a 'neighbor' here on MTBR.

  26. #26
    mtbr member
    Reputation: Feldybikes's Avatar
    Join Date
    Feb 2004
    Posts
    721
    This thread has to be my all time winner for going in with low expectations and coming away super impressed. I thought it was going to be some questions about maybe kinda sorta having an idea to do something and wondering if it would work, but then I see step-by-step instructions and a rad finished result. Very nice work!

  27. #27
    WIGGLER
    Reputation: todwil's Avatar
    Join Date
    Feb 2007
    Posts
    907
    Thanks for sharing cool thread
    PAYASO 36er.....Live the Circus

    MR. 36er TROLL

    I'm sorry what part of "BIGLY" didn't you understand?

  28. #28
    mtbr member
    Reputation: jay_ntwr's Avatar
    Join Date
    Feb 2008
    Posts
    709
    Quote Originally Posted by marpilli View Post
    Thanks! I'm up in the Frisco area. I've seen your avatar on the DORBA site. It's always nice to meet a 'neighbor' here on MTBR.
    Next time we have open shop night, I'll be sure to ping you. It's typically just off of 190 so it wouldn't be too far of a drive if you were interested.

  29. #29
    mtbr member
    Reputation: whydomylegshurt?'s Avatar
    Join Date
    Jul 2004
    Posts
    165

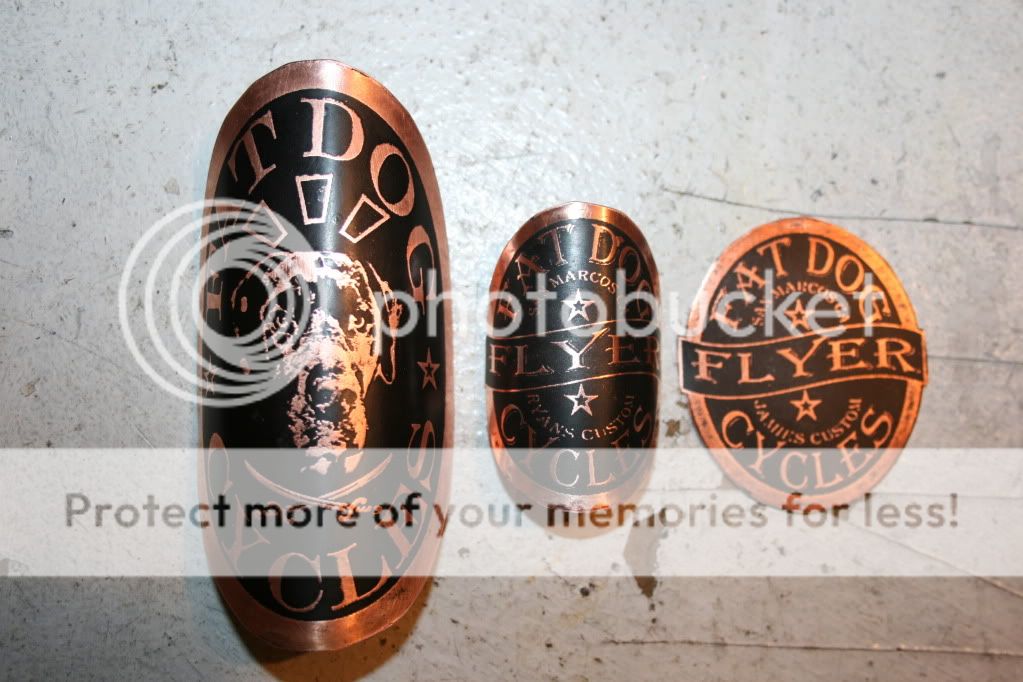

    I've done a very similar process to making head badges. I personally found it easier to remove the paint off the high spots before bending the head badge. That way I can just use sand paper on a flat surface.

  30. #30
    banned
    Reputation: marpilli's Avatar
    Join Date
    Feb 2011
    Posts
    3,993
    Quote Originally Posted by jay_ntwr View Post
    Next time we have open shop night, I'll be sure to ping you. It's typically just off of 190 so it wouldn't be too far of a drive if you were interested.
    Yes, please do let me know. I'll drive out if my schedule permits.


    Quote Originally Posted by whydomylegshurt? View Post
    I've done a very similar process to making head badges. I personally found it easier to remove the paint off the high spots before bending the head badge. That way I can just use sand paper on a flat surface.
    I wondered about this. I feared the paint would chip and/or crack during the bending process. I guess this wasn't an issue? What method did you use to bend the badge?

  31. #31
    mtbr member
    Reputation: sasquatch rides a SS's Avatar
    Join Date
    Dec 2010
    Posts
    4,559
    Holy Sh*t! You're always doing something awesome!

  32. #32
    banned
    Reputation: marpilli's Avatar
    Join Date
    Feb 2011
    Posts
    3,993
    Quote Originally Posted by sasquatch rides a SS View Post
    Holy Sh*t! You're always doing something awesome!
    Aw, you make me blush. Seriously, thank you.

    Also, thank you to those that left me +rep on this thread. Next time please sign your name and I'll keep an eye out for your helpful posts and return the favor.

    Here's the second (and last for now) I put on my other MTB.

    Acid Etching Custom Head Badges-img_8842-001.jpg Acid Etching Custom Head Badges-img_8843-001.jpg

    If anyone creates something using these ideas, let me know how it turned out (post up a photo or two). And, be sure to let me know if you figured out a better way of doing some part of the process.

  33. #33
    Single Speed Junkie
    Reputation: crux's Avatar
    Join Date
    Jan 2004
    Posts
    3,108
    Quote Originally Posted by marpilli View Post
    Here's the second (and last for now) I put on my other MTB.
    Both look great. Wonder if one could make a metal part using this process? Thinking that if I could add something custom for people with the inlayed top caps.... Parts would need to be small, but looks like the process gives you quite a bit of detail.

    http://forums.mtbr.com/members/crux/...om-components/

  34. #34
    banned
    Reputation: marpilli's Avatar
    Join Date
    Feb 2011
    Posts
    3,993
    Quote Originally Posted by crux View Post
    Both look great. Wonder if one could make a metal part using this process? Thinking that if I could add something custom for people with the inlayed top caps.... Parts would need to be small, but looks like the process gives you quite a bit of detail.

    http://forums.mtbr.com/members/crux/...om-components/
    Thank you. Those top caps in your photo gallery look wonderful! I've always said I do "paint grade" work. That stuff you're doing is "stain grade".

    The width of the badge is 3/4" and I think the image can be fairly detailed. I'm happy with the end result; but, I do kind of wish the lines were cleaner. The badges match my bikes well (the bikes are rough around the edges). If I were going to try and make one for someone else I'd want it to be near perfect.

    A few posts up you'll find a photo showing the copper etching done by dr.welby. If/when I try to etch aluminum again, I'll give his etching solution a try and see if the aluminum badge comes out any better than using the muriatic acid.

  35. #35
    Most Delicious
    Reputation: dr.welby's Avatar
    Join Date
    Jan 2004
    Posts
    1,110
    Quote Originally Posted by marpilli View Post

    The width of the badge is 3/4" and I think the image can be fairly detailed ..... If/when I try to etch aluminum again, I'll give his etching solution a try and see if the aluminum badge comes out any better than using the muriatic acid.
    The biker guy on my badge is actually a half-toned image. If you think of how detailed PCB traces are you can see how detailed you can get.

    Also, with etching solution you can touch up missing spots in the toner with a paint or sharpie pen. You can also do the work freehand, either by drawing the positive with a pen or exposing the negative with a pin or scribe.

  36. #36
    banned
    Reputation: marpilli's Avatar
    Join Date
    Feb 2011
    Posts
    3,993
    Quote Originally Posted by dr.welby View Post
    The biker guy on my badge is actually a half-toned image. If you think of how detailed PCB traces are you can see how detailed you can get.

    Also, with etching solution you can touch up missing spots in the toner with a paint or sharpie pen. You can also do the work freehand, either by drawing the positive with a pen or exposing the negative with a pin or scribe.
    On my first attempt, one of the head badges didn't have complete toner coverage and I did use a sharpie to fill in the lines a bit. The muriatic acid ate right through the sharpie spots. I believe I had the initial concentration too strong. Nonetheless, I suspect the combination I used (muriatic acid and aluminum stock) probably isn't well suited for fine detail work.

    I noticed you masked a large area and left the wording and image exposed. I did the opposite. It's possible that using a large masked area with the muriatic/aluminum combination might have yielded better results.

    I have a couple of other bike and home projects I need to tend to over the next few months. But, I'm already making a list of etchant/metal stock combinations to try out when I have some free time.


    Regarding the head badge you posted. Did you use anything to darken the etched areas? Or, is that color a natural consequence of the etchant?

  37. #37
    Most Delicious
    Reputation: dr.welby's Avatar
    Join Date
    Jan 2004
    Posts
    1,110
    Quote Originally Posted by marpilli View Post

    Regarding the head badge you posted. Did you use anything to darken the etched areas? Or, is that color a natural consequence of the etchant?
    In that photo it's black sharpie pen. But over the years I've let a patina develop instead and periodically buff the top area to make it lighter.

  38. #38
    mtbr member
    Reputation:
    Join Date
    Jan 2011
    Posts
    24
    Nice work!!!

    Hopefully I will get to use this info one day to make my own.

    Thanks for the info!

  39. #39
    MTB B'dos
    Reputation: LyNx's Avatar
    Join Date
    Oct 2004
    Posts
    20,688
    You're always doing very cool stuff Marpilli and sharing it with others I'd + rep ya, but seems I don't spread enough love around to hit ya again Might ask you do do a badge or two for me maybe in the future, but first I'll see if I can find the ingredients down here to try it myself.
    One day your life will flash before your eyes, will it be worth watching??
    MTB Barbados
    My Phantom pics

  40. #40
    DIY all the way
    Reputation: Mr.Magura's Avatar
    Join Date
    Aug 2010
    Posts
    2,111
    This thread has for some reason escaped my attention till now

    Anyhow, great work there Marp!

    I have done this as well, using copper instead though.

    What I did, was the opposite of you, and filled the etched part with colored epoxy.

    A few years back i also did some CNC machined batches, but to be honest I liked the etched versions better.

    Watch out if you do the aluminum etching indoors, as it will corrode anything in the room!

    If I could figure how to etch titanium, I'd have a few great ideas, as anodizing titanium in all kinds of hefty colors, is real easy, and if bead blasted before anodizing, it looks like silk.


    Magura

  41. #41
    mtbr member
    Reputation:
    Join Date
    Aug 2008
    Posts
    4,699
    Mr Magura: Is there anything you CAN'T do?

  42. #42
    DIY all the way
    Reputation: Mr.Magura's Avatar
    Join Date
    Aug 2010
    Posts
    2,111
    Quote Originally Posted by the-one1 View Post
    Mr Magura: Is there anything you CAN'T do?
    According to the Mrs., yes quite a lot!


    Magura

  43. #43
    banned
    Reputation: marpilli's Avatar
    Join Date
    Feb 2011
    Posts
    3,993
    Quote Originally Posted by Mr.Magura View Post
    ...
    Anyhow, great work there Marp!
    ...
    Watch out if you do the aluminum etching indoors, as it will corrode anything in the room!
    ...
    Thank you. You're absolutely correct regarding the caustic fumes from the muriatic acid. There were quite a few warnings I read about how it would corrode any steel in the area quickly. I didn't say this in the write up but I did have the garage door open and a fan going while the acid was exposed.

    I'll definitely be experimenting with copper and/or the PCB etchant at some point in the future. I might make some head badges for the kid's bikes using an image of their choice.

  44. #44
    Registered text offender
    Reputation:
    Join Date
    Dec 2011
    Posts
    1,137
    Marpili, thanks for posting this. I am building a table top mill for engraving and was considering an etch-O-matic to compliment items with a kind of mixed media look. Permanently Mark or Etch Anything Metal in Seconds for Pennies- Etch-O-Matic.

    Plus, for a time I was interested in PCB's for a fused headlight relay board I wanted to make for an old '62 Falcon I'm restoring so you really peaked my interest. +rep coming your way when I can.

    crux, those are some very nice top caps

    And dr. webly, I just can't seem to find the bowing down emoticon to express how impressive that badge is.

  45. #45
    mtbr member
    Reputation:
    Join Date
    Jan 2009
    Posts
    24
    Fantastic post! thanks for the inspiration, off to the local Depot now...
    Everybody needs to believe in something...
    I believe I'll have another B E E R !!!!!

    FEAR

  46. #46
    mtbr member
    Reputation: Feldybikes's Avatar
    Join Date
    Feb 2004
    Posts
    721
    Quote Originally Posted by Mr.Magura View Post
    If I could figure how to etch titanium, I'd have a few great ideas, as anodizing titanium in all kinds of hefty colors, is real easy, and if bead blasted before anodizing, it looks like silk.
    I think if you used a photo resist to pattern the titanium (such things can be purchased from t-shirt screen printing suppliers), I think you could then anodize the unprotected areas to get the pattern.

    For those who don't know what I'm talking about, here's a place to start:
    Photoresist - Wikipedia, the free encyclopedia

  47. #47
    see me rollin, they hatin
    Reputation: NicoleB's Avatar
    Join Date
    Jul 2011
    Posts
    4,618
    just saw this. nice job Marp!

  48. #48
    fresh fish in stock...... SuperModerator
    Reputation: CHUM's Avatar
    Join Date
    Aug 2004
    Posts
    8,618
    Super Cool post!
    Click Here for Forum Rules

  49. #49
    mtbr member
    Reputation:
    Join Date
    May 2011
    Posts
    32
    The problem with etching titanium is that it's extremely nonreactive--that's why it gets used for artificial joints and dental implants. The only thing I know of that etches titanium reliably is hydrofluoric acid, which is so freakin' dangerous that playing with rattlesnakes looks sane in comparison.

    What you can do is get an "air eraser", a tiny little sandblaster that looks like an airbrush. Mask with standard sign vinyl and blast away. It gives a nice etched look on a polished surface.

  50. #50
    DIY all the way
    Reputation: Mr.Magura's Avatar
    Join Date
    Aug 2010
    Posts
    2,111
    Quote Originally Posted by BigHank53 View Post
    The problem with etching titanium is that it's extremely nonreactive--that's why it gets used for artificial joints and dental implants. The only thing I know of that etches titanium reliably is hydrofluoric acid, which is so freakin' dangerous that playing with rattlesnakes looks sane in comparison.

    What you can do is get an "air eraser", a tiny little sandblaster that looks like an airbrush. Mask with standard sign vinyl and blast away. It gives a nice etched look on a polished surface.
    I just had a similar notion today. I have access to a bead blaster.

    With some patience, this could do the trick, if as you proposed, some relatively heavy vinyl film is used for masking.

    Gotta try that sometime soon.


    Magura

Page 1 of 3 123 LastLast

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
