Pics of YOUR Moments?

Printable View

  • 01-17-2010
    bajaracer1501
    Pics of YOUR Moments?
    Hey guys, I'm considering a Moment and would like to see some pics and set-ups. THANKS in advance to any/all replies!!!
  • 01-18-2010
    primefocus
    woot!


    funfunfun!
  • 01-18-2010
    dbmnk
  • 01-18-2010
    bajaracer1501
    Quote:

    THANKS! That's exactly what I was looking for
  • 01-18-2010
    meneone
    I'll post better pictures. Shooting some this week hopefully.

  • 01-19-2010
    meneone

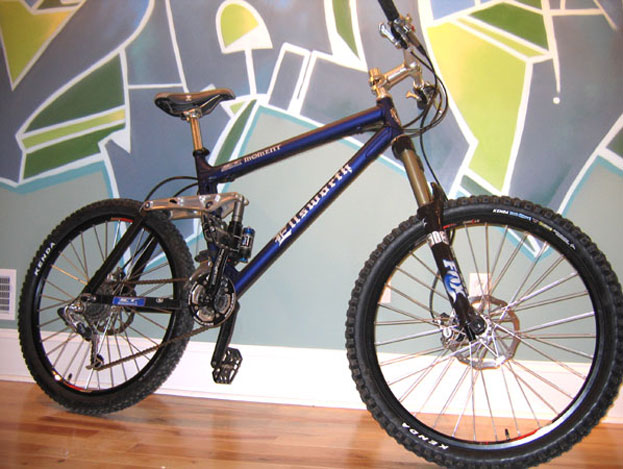

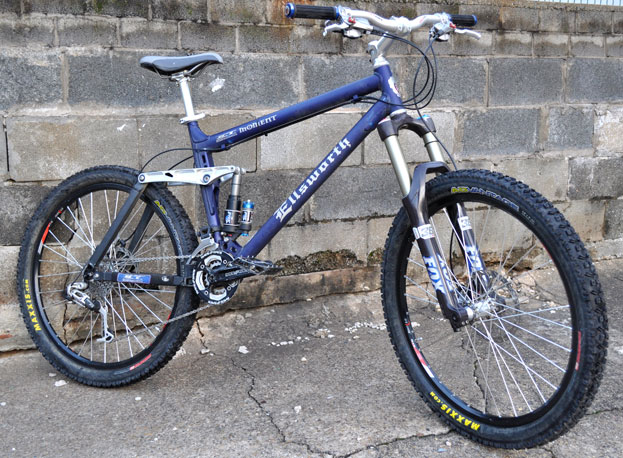

    Here you go man. Better pics of my 2006 Moment build......as well as details....

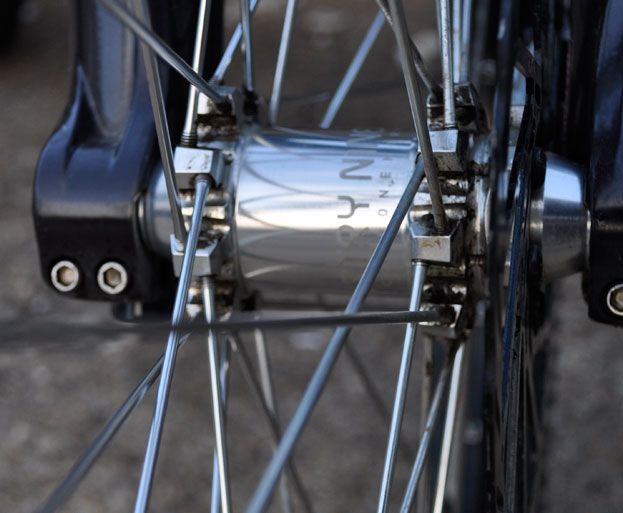

    Wheels I9 Freeride Hubs (silver), DT Swiss 4.1 Rims
    Saddle WTB Laser V, Grey
    Post Thompson Elite

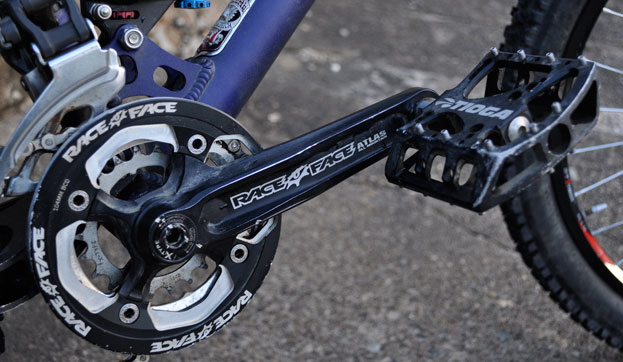

    Cranks Raceface Atlas
    Bottom Bracket Chris King

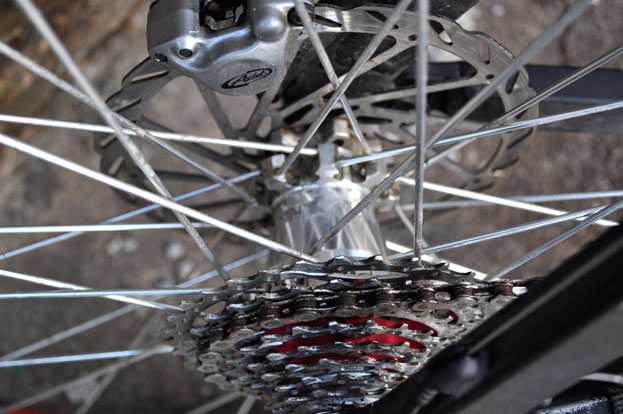

    Cassette Sram PG-990

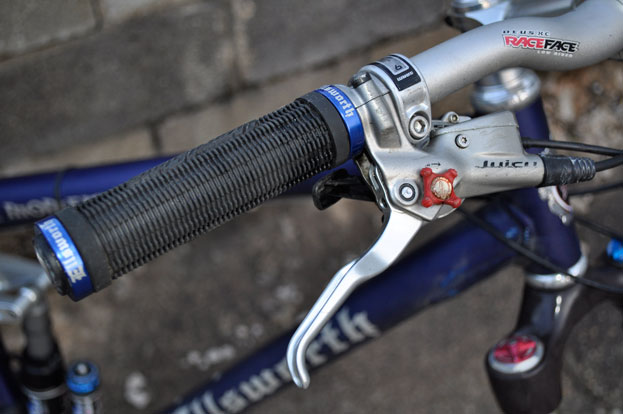

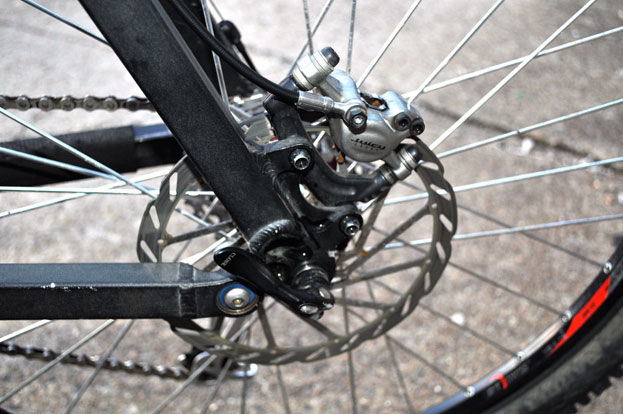

    Brakes -Avid Juicy Seven
    Tires Maxxis ADvantage 2.5″
    Bars Raceface Deus XC
    Stem Tompson Elite, 110 mm, 20 Degree Rise
    Headset Chris King

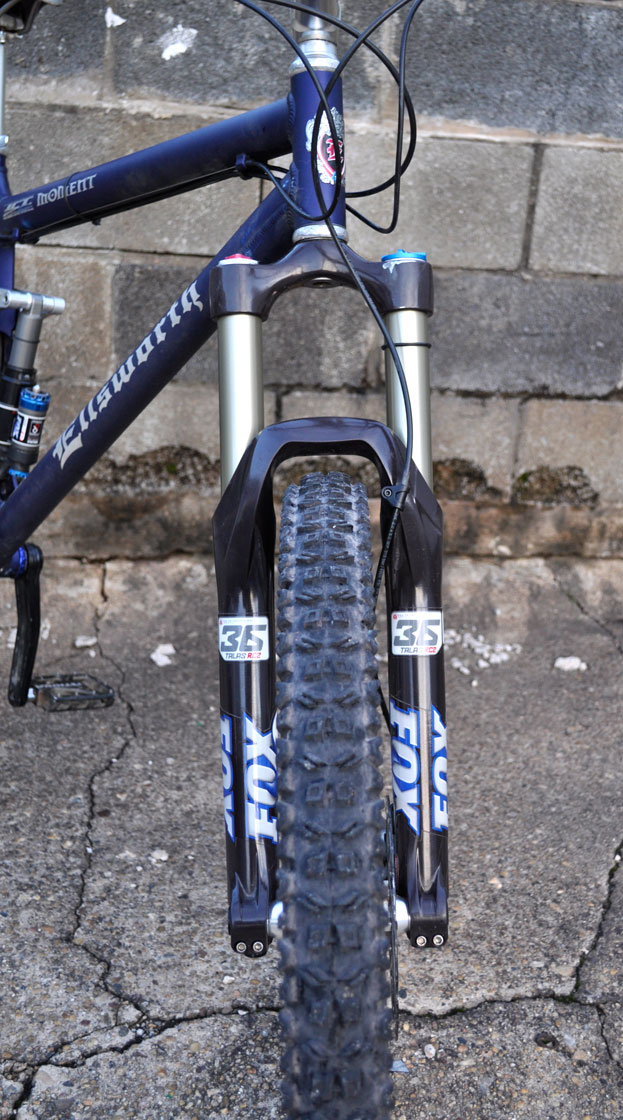

    Fork Fox Talas 36 RC2

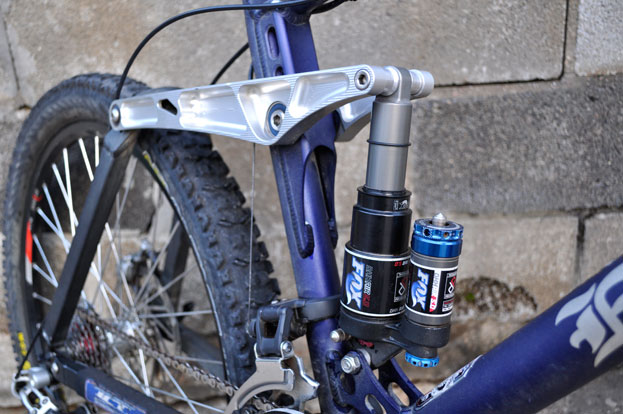

    Shock Fox DHX Air 5.0
    Shifters Sram X9
    Derailuers Sram X9


















  • 01-20-2010
    yangpei
    1 Attachment(s)
    Here's my 08 Moment with 36 TALAS fork. I'm running X0 shifters / derailleur and XTR crankset. The wheels are King / Mavic. I think it weighs about 31.5 lbs, if I remember correctly.
  • 01-21-2010
    meneone
    nice pinky man
  • 01-21-2010
    primefocus
    you should see his brownie
  • 01-21-2010
    bpnic


    My old Moment (v 1.5) here, I'll post the newer Moment later (v 1.0)

  • 02-04-2010
    stash77
    3 Attachment(s)
    Well, here's my Moment. 31.5 lbs. The only thing I might change on it is the rear shock. I might go coil....
  • 02-17-2010
    Duncan2W1
    Does this help?

  • 02-18-2010
    mishkoln
    2 Attachment(s)
    My buddy:

    2009 Medium Smoke Anodized.
    Wheels Hope Pro2 Hubs (silver), Mavic 819 Rims
    Saddle Syncros AM
    Post Gravity Dropper
    Cranks & BB Shimano XT
    Cassette Sram PG-980
    Brakes - Formula Oro K24, 180 mm (front), 160 mm (rear) rotors
    Tires Continental Mountain King UST 2.4
    Bars Syncros Bulk
    Stem Tompson Elite, 70 mm, 0 Degree Rise
    Headset FSA Xtreme Pro
    Fork Fox Talas 36 RC2
    Shock Fox DHX Air 4.0
    Shifters Sram X9
    Derailleurs Sram X9 (rear), Shimano XT (front)
    Weight - 32 lbs
  • 02-18-2010
    F.N.G
    Nice!!!
    Looks good! Good luck with those Formulas. I had the same ones on mine and ended up switching to Saints. They screamed like mother!
  • 02-21-2010
    dbmnk
  • 03-05-2010
    Jimba
  • 03-08-2010
    Gemini73
    Hey all, I've been diggin' the Moment for a while and have recently been seriously considering one to replace my Chumba XCL. It's a nice bike that I'm not totally dissatisfied with, but I've broken the seat stay once already... guess I'm looking for a bit more.

    I have a quick question for all you running 36s out there. What's the BB height when equipped with this fork? I may end up running a coil shock matched to a new Manitou Travis 150 that I have, but I'm a little concerned because of the geometry numbers listed on the website with what I would imagine is a 32? Let me know, thanks!
  • 03-09-2010
    Nsynk
    The website states 14.2 inches with a 150mm fork. The extra 20mm axle crown height of the 36 raises it another .2inch.

    On paper 14.4 inch is really high for this amount of travel but in reality it does not seem to be detromental to the cornering of the Moment.

    Of course the height/profile of the tyres makes a difference and the amount of sag makes a big difference too. I tend to run a lot of sag on my bikes (30% on My Moment), I like the way the rear tracks the ground when set up that way. In the corners the bike compresses for loads of grip and stability.
  • 03-11-2010
    Gemini73
    Thanks for the quick response Nsynk! It's interesting that you say the geo numbers are measured with a 150mm fork because what I see on the website is a static fork length of 520.7mm A2C. The A2C length on my Travis is the same as most 160mm forks at 545mm which is what causes my concern.

    Seems to me that increasing the fork length by nearly an inch would raise the bottom bracket by a good half inch with changes in the head & seat tube angles of about 1 degree. You raised a good point about sag and tire profile, but with my considerations I think any other changes to these numbers would be negligible.

    So with a presumed static BB height of ~14.7" and running roughly 28-30% sag, I should get a sagged BB height of about 13.7"... does that sound about right? This would be just under an inch higher than my XCL, and while not all bad, it would take some getting used to. I'll tell you one thing, pedal smacks on technical climbs would NOT be missed for sure!:thumbsup:
  • 03-11-2010
    perttime
    Wouldn't 30% sag amount to around 2", at both ends of the bike, dropping the BB 2" and not just one?
  • 03-11-2010
    Gemini73
    After calculating it I came up with about 1.8", so yeah you're right. Two tenths would be splitting hairs, and BTW Manitou for whatever reason measures their shock stroke at 56mm. Sounds even better yet!
  • 03-11-2010
    dbmnk
    don't worry about bb height with our travis. 1 inch up front doesn't translate into 1 inch increased bb height, more likely less than 1/2 inch, which shouldn't cause any concern.
  • 03-11-2010
    Nsynk
    I don't think the BB would be raised by as much as 1/2 inch probably 1/4 to 1/3 inch. If you think that the pivot point for rasing the front is actually the rear axle you could work it out using trigonmetry. With the points being the rear axle and the original top of the crown and the new top of the crown. The crown top points are only an inch apart and a long way from the point at the axle. Creating a long very thin triangle. The height of the triangle as it passes the bb will be the increased height of the BB. I recon the BB height is more like 14.4 , Which is still 1/2 inch to 3/4 inch higher than most AM bikes with 6'sh inches of travel.

    Sagged would be about 13.5, pretty ball park I think

    As an aside. I have considered running a 190 x 57 mm shock. They used to be quite common (Orange Patriot fro example). That would lower the BB by 3/4 inch and slacken the angles by 1 1/2 degrees. I doubt the warranty would remain valid but it might be worth it for the excellent geometry.
  • 03-11-2010
    perttime
    Quote:

    Originally Posted by Nsynk
    I have considered running a 190 x 57 mm shock.

    Is there rear tyre to seat tube clearance for that?
  • 03-11-2010
    Nsynk
    I dont know and also how about the shock to frame clearance. Especially with a piggy back shock?
  • 03-11-2010
    perttime
    I see that some have mounted piggy back shocks the other way. Don't know if it would help enough, or if there's good reasons not to do it.
  • 03-11-2010
    Nsynk
    Don't know, it is tempting though.
  • 04-07-2010
    bpnic
    2 Attachment(s)
    Quote:

    Originally Posted by bpnic


    My old Moment (v 1.5) here, I'll post the newer Moment later (v 1.0)



    V1, Lyrik coil u-turn, Rp23, Crosslines, XT, 31 pounds
  • 04-23-2010
    justbuster69
    here is my Moment,dont know how much it weighs.i havent weighed it yet.still having a hard time climbing up hills,but i gives me confidence going down!its the best
  • 04-24-2010
    stash77
    I love everybodys' Moments.... Such a wide variety of set-ups. For the OP; I don't think you'll be disappointed in getting a Moment
  • 04-26-2010
    meneone








  • 09-05-2010
    labistour
    7 Attachment(s)
    Ellsworth Moment REDRUM
    Here are some more images of a Ellsworth Moment; and sorry guys, hate to do this to all of you, but this is by far the sickest build I have yet to see! Nicknamed the REDRUM by Ellsworth, and tattooed as such on the underside of the down tube, this bike is officially not being built by Ellsworth. This according to a friends friend that grouped up with our weekly ride yesterday. The pictures were snapped by me on the sly while the bike was still on the roof rack with my handle little canon. I also managed to get a couple pics when it was off-loaded. Nonetheless, I thought I would share these images. From the looks of it it is complete XO with Loaded wheels, hubs, bars, and seat post.

    Enjoy
  • 09-05-2010
    bridgestone14
    Any chance that is a 30.9 seatpost on redrum there?
  • 09-05-2010
    F.N.G
    1 Attachment(s)
    Quote:

    Originally Posted by labistour
    Here are some more images of a Ellsworth Moment; and sorry guys, hate to do this to all of you, but this is by far the sickest build I have yet to see! Nicknamed the REDRUM by Ellsworth, and tattooed as such on the underside of the down tube, this bike is officially not being built by Ellsworth. This according to a friends friend that grouped up with our weekly ride yesterday. The pictures were snapped by me on the sly while the bike was still on the roof rack with my handle little canon. I also managed to get a couple pics when it was off-loaded. Nonetheless, I thought I would share these images. From the looks of it it is complete XO with Loaded wheels, hubs, bars, and seat post.

    Enjoy

    Isn't this just a Black Ano Moment with kit upgrades? With a little stitch work of Redrum on the down tube?
    Looks awesome but I don't understand how this is "not being built" by Ells????

    Attachment 566914
  • 09-05-2010
    labistour
    Seat Post on Ellsworth Moment REDRUM
    You think, dude ended up using a seat post and seat from another bike for the session; that seat post needs to see the business end of a hacksaw!
  • 09-05-2010
    meneone
    That redrum is not even close to the "sickest ever." First, it's standard anno finish. I thought the redrums were supposed to be "murdered out" flat black. This one looks glossy in the pic. MAYBE if it was flat, it'd be cooler. A great build? Yes. Sickest ever? Na. I still think the toughest part of building a clean Ellsworth anything starts with the chain and seat stays. All ellsworth stays are black so any color triangle you pick outside of black automatically makes the bike two toned. Black is an easy out cause the bike is uniform by default. Show me a great build using the hard to work with two toned scheme. Or better yet, custom pain it to match.
  • 09-05-2010
    ALEV8
    That is by far, the CLEANEST Moment, I have ever seen.
  • 09-07-2010
    justbuster69
    were can i get those ellsworth bar ends?
  • 09-08-2010
    utarch00
    My new frame built up.









  • 09-09-2010
    Nsynk
    Quote:

    Originally Posted by justbuster69
    were can i get those ellsworth bar ends?


    bar ends? do you mean the locking rings on the grips?
  • 09-09-2010
    justbuster69
    Quote:

    Originally Posted by Nsynk
    bar ends? do you mean the locking rings on the grips?

    yup,the one with the "E"logo of ellsworth
  • 09-09-2010
    meneone
    Quote:

    Originally Posted by justbuster69
    were can i get those ellsworth bar ends?

    Call Ellsworth. They will sell them to you directly.
  • 09-15-2010
    drlaboole
    Here's mine :

    Next update will be a matching CK BB, a beefier front tyre (2.5 instead of 2.3), and maybe a Chromag stem and bar later on









  • 09-16-2010
    TNT-Spot
    Quote:

    Originally Posted by drlaboole
    Here's mine :

    Next update will be a matching CK BB, a beefier front tyre (2.5 instead of 2.3), and maybe a Chromag stem and bar later on










    Nice Moment!!! Just want to ask if you had an issue with the Floating Rotors rubbing the lower part of the Fox 36 Fork. Specifically on the Caliper mount.

    Thanks!
  • 09-16-2010
    drlaboole
    Indeed. Had to remove some paint from the fork to accomodate it.
    The CK hubs are a bit too wide ( same issue with i9 hubs)
  • 09-16-2010
    hampstead bandit
    this is my buddy John's EW Moment Mk3 custom build



    said its the best all-mtn / trail bike he's had yet ( he has had many others from big and small brands so far..)

    at Regional DH race finals last weekend

  • 11-08-2010
    Reedly
    Loving the 2010 Moment!!





















  • 02-05-2013
    labistour
    Misread your question, i think its 27.2 but the SST.2 is different, think that is 30.9
