  1. #1
    mtbr member
    Reputation:
    Join Date
    Feb 2009
    Posts
    876

    Single Speeded Dh bikes

    Toying with the idea of single speeding my DHR. Not necessarily permanently, I imagine some lift and shuttle riding, I would need more range. But for the majority of riding I do, i think it has the potential of being quite nice. I don't imagine it would cost very much for the parts needed, and can be swapped back and forth fairly easily. Just wondering what tensioner you guys are using, and what gear ratios. I'm running a 36t front chain ring and would like to keep that, so what would be a could cog size? Thanks in advance

  2. #2
    Shred...it's the new drug
    Reputation: latedropbob's Avatar
    Join Date
    Aug 2007
    Posts
    3,846
    I ran my shocker for 6 months SS after the 2011 Bootleg single speed race. Loved it. Minimal adjustments after the derailur mod. I ran a 36 16 with no probs.

    Shift...what shift?

  3. #3
    meh... whatever
    Reputation: monogod's Avatar
    Join Date
    Feb 2006
    Posts
    5,385
    need a yess etr-d tensioner designed for full suspension bikes:



    17-21 cog depending on how much (and how steep) climbing you'll be doing. more climbing bigger cog. less climbing (i.e. lift/shuttle) smaller cog.
    "The meaning of life is to find your gift. The purpose of life is to give it away."

  4. #4
    mtbr member
    Reputation:
    Join Date
    Jul 2009
    Posts
    1,110
    I was thinking about converting my old transition preston (130mm) into a cheapo slopestyle bike, an that might do the trick.

  5. #5
    Airborne Flight Crew
    Reputation: jhazard's Avatar
    Join Date
    Aug 2004
    Posts
    1,974
    My buddy ran his Azonic Eiminator with one for a while, worked fine... About $25...

    Shimano Alfine CT-S500 Chain Tensioner


    • Chain Tensioner
    • 20 tooth max rear sprocket
    • 16 tooth chainwrap capacity
    • 41.8mm chainline
    • Uses washers on on the mounting bolt for 5mm of chainline adjustability
    • Compatible chain - 3/32"

    Airborne Flight Crew

    Jerry Hazard website

  6. #6
    mtbr member
    Reputation:
    Join Date
    Feb 2009
    Posts
    876
    Does any body know if there would be any compatibility issues with either od those, on a dw link DHR?

  7. #7
    Airborne Flight Crew
    Reputation: jhazard's Avatar
    Join Date
    Aug 2004
    Posts
    1,974
    Quote Originally Posted by csermonet View Post
    Does any body know if there would be any compatibility issues with either od those, on a dw link DHR?
    Only concern I can think of would be if the DHR has a huge amount of chain growth that would stretch the tensioner past its limits. Doubt you'd have an issue...
    Airborne Flight Crew

    Jerry Hazard website

  8. #8
    mtbr member
    Reputation:
    Join Date
    Jul 2009
    Posts
    1,110
    Yeah, I think i'll go with the Afline, much more cost effective (as long as it works!)

  9. #9
    If you think you can
    Reputation: 62kona's Avatar
    Join Date
    Mar 2008
    Posts
    1,040
    I'm runnin my round tube dhr single speed and love it. I just used an old xo deraileur that I fixed so it doesn't move. I'm running 34/15 I think. Woks great for everything under 30mph and any faster I figure I don't need to pedal for anyways.
    Attached Thumbnails Attached Thumbnails Single Speeded Dh bikes-image.jpg


  10. #10
    mtbr member
    Reputation:
    Join Date
    Aug 2007
    Posts
    36
    I'm gonna be running my 02' RM7 single speed. I only do lift service riding so I won't need anymore than one gear for how I ride. I'm either going to be using the YESS ETR-V or the Alfine. I like the way the ETR-V is bolted solidly to the dropout in 2 places. Seems a bit more sturdy and solid should it ever get hit on anything.

  11. #11
    mtbr member
    Reputation:
    Join Date
    Jul 2009
    Posts
    1,110
    Keep in mind, it's also 2.5x expensive..

    PLUS if you hit anything, I'd rather have a bent derailluer+hanger, than a bent dropout. I'd go with the Alfine.

  12. #12
    bike rider
    Reputation: mattkock's Avatar
    Join Date
    Mar 2009
    Posts
    1,029
    I'm building mine up right now with the same Tensioner that Kevin Aiello (Team KHS DH Pro) runs on his bike. My build thread is on here.

    I got some pretty decent Niners!

  13. #13
    mtbr member
    Reputation:
    Join Date
    Aug 2007
    Posts
    36
    arkon11, you have a good point there. I guess I keep pulling towards the ETR-V because it has adjustable spring tension and you can swap the spring with a 990 style brake spring for different rates. It also seems to be a little stronger than the alfine but then again there are plenty of people that swear by the alfine on here. I just don't want it to be some floppy contraption that is slapping around worse than a derailleur.

    mattkock, I'm following your build thread! Your bike is going to be amazingly beautiful!!! Please don't be shy on the detail pics when your mounting up your drivetrain!

  14. #14
    mtbr member
    Reputation:
    Join Date
    Jul 2009
    Posts
    1,110
    Hows this suby drift, Try out the Alfine for 25$, and if you don't like it, I'll buy it from you haha.

    I do like the idea of adjustable spring tension of the ETR, but I ride some pretty big stuff, and happen to dump my bike alot. Needless to say I've bent a few hangers in my day, and I'd much rather bend a hanger + the alfine, than the dropout on my bike.

  15. #15
    Professional Troll
    Reputation: Gemini2k05's Avatar
    Join Date
    Apr 2005
    Posts
    1,919
    I've run the YESS and Afline tensioner before. As long as your frame doesn't have a ton of chain growth you will be fine. For some reason the Afline didn't get a long with my derailleur hanger well and would slowly bend over time from the chain tension. I rocked the YESS for about 2-3 years before going back to gears.

  16. #16
    meh... whatever
    Reputation: monogod's Avatar
    Join Date
    Feb 2006
    Posts
    5,385
    Quote Originally Posted by arkon11 View Post
    Keep in mind, it's also 2.5x expensive..
    as with most things you get what you pay for. the etr-d is more sturdy and controls chain slap through the gnar-gnar much better than the alfine does.

    Quote Originally Posted by arkon11
    I do like the idea of adjustable spring tension of the ETR, but I ride some pretty big stuff, and happen to dump my bike alot. Needless to say I've bent a few hangers in my day, and I'd much rather bend a hanger + the alfine, than the dropout on my bike.

    PLUS if you hit anything, I'd rather have a bent derailluer+hanger, than a bent dropout. I'd go with the Alfine
    the yess hanger will not bend the dropout any more than the alfine will. it attaches to the hanger as well.

    "The meaning of life is to find your gift. The purpose of life is to give it away."

  17. #17
    mtbr member
    Reputation:
    Join Date
    Jul 2009
    Posts
    1,110
    oh, I hadn't really looking into the Yess hanger. I was just taking Subydrifts word for it, as he said it bolted into the dropout, not only the hanger.

    Good to know though!

  18. #18
    mtbr member
    Reputation: rdhfreethought's Avatar
    Join Date
    Aug 2006
    Posts
    1,455
    I used the Surly Singulator, Yess, and Alfine. This was a 6" bike (Titus SuMo), and the Singulator barely worked at all. The Yess was ok, and the Alfine was flawless. I was running the Alfine, with the hub, on my Knolly Delerium T. With the Hammerschmidt up front, it gave me 2x8 and no derailleurs. Great in the snow. I eventually went 1x10 and never looked back.
    Attached Thumbnails Attached Thumbnails Single Speeded Dh bikes-knolly_dt-2010_002b.jpg

    Single Speeded Dh bikes-003b.jpg

    Regional Race Manager, Knolly Bikes
    Washington State, Australia, New Zealand, South Africa

  19. #19
    Moose Member
    Reputation: Moosey's Avatar
    Join Date
    May 2010
    Posts
    2,198
    If I can learn barspins or tailwhips at Woodward while I'm home, I'll almost for sure single speed my RM Slayer SS. I just got my fist Single Speed hardtail dirtjumper, and love the simplicity of a single speed. I might Single Speed my slayer anyways...

  20. #20
    mtbr member
    Reputation:
    Join Date
    Aug 2007
    Posts
    36
    I ended up buying the ETR-V from a member on PinkBike. For $40 shipped the cost difference wasn't very much. I'll give it a try and see how it works. If all else fails I'll sell it and go with the Alfine.

    *The mounted pic is not mine. Found it on PB.
    Attached Thumbnails Attached Thumbnails Single Speeded Dh bikes-img_0560.jpg

    Single Speeded Dh bikes-p4pb6015598.jpg


  21. #21
    mtbr member
    Reputation: GTscoob's Avatar
    Join Date
    Apr 2009
    Posts
    2,149
    I've never really understood the need for an Alfine tensioner. Get a short cage road derailleur and put a longer high-limit screw in it in order to lock the jockey pulley up underneath your cog. Really anything from the last 25-30 years will work and be free plus a quarter or so for the new limit screw.

    On a FS design, particularly with more travel, I'd definitely be looking for something with two pulley wheels in order to take up all of the chain growth.

  22. #22
    mtbr member
    Reputation:
    Join Date
    Jan 2009
    Posts
    129

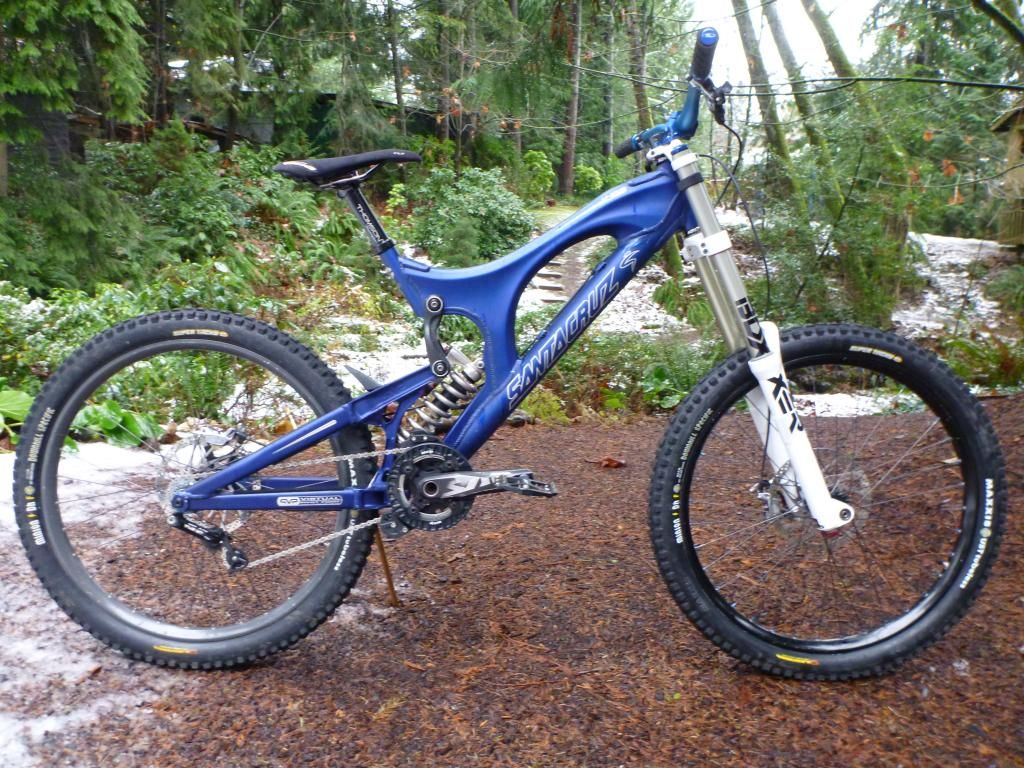

    My V-10 ss set up,35-18 for my local trails,and 36-16 for whistler bike park.




  23. #23
    mtbr member
    Reputation:
    Join Date
    Aug 2007
    Posts
    36
    Brother Lu, what tensioner are you using?

    I'm gonna start with 32-16 and then go from there. I'll take a couple cogs up with me and swap them out once I figure a good ratio for our LBP.

  24. #24
    mtbr member
    Reputation: GTscoob's Avatar
    Join Date
    Apr 2009
    Posts
    2,149
    Looks like he's on the Alfine.

    You're probably going to want a taller ratio than 32/16 if you're gravity riding.

    2:1 (32/16)is a very common ratio for 26" singlespeed XC bikes that need to pedal uphill.
    2.1:1 (32/15) is pretty standard for 26" dirt jumpers (~55 gear inches, same as most BMX bikes)

    I think I'd want at least 2.2-2.3:1 on a SS DH rig and thats just based on the gearing I'm in most days on my slalom rig. 32/14 is my favorite gearing but on smoother trails that carry more speed 32/13 or 32/12 work well.

  25. #25
    mtbr member
    Reputation:
    Join Date
    Jan 2009
    Posts
    129
    Quote Originally Posted by Subydrift View Post
    Brother Lu, what tensioner are you using?

    I'm gonna start with 32-16 and then go from there. I'll take a couple cogs up with me and swap them out once I figure a good ratio for our LBP.
    Its a Alfine.Cheap and it works.
