    On One Dirty Disco Frame - problem with cable housing stop

    Hi Guys,


    I have a problem with a new dirty disco frame... After installing the front derailleur and swichting the chainring for the first time I noticed a problem with the cablehousing stop on the seat tube. If you have a look on the inside of the seat tube it seems like you can only see the lower "rivet". Is that as it is supposed to be?.
    Is there a way to place a new cable stop or should I just fix it with a cable tie or does the frame has to be replaced?


    Cheers!





  2. #2
    The Brutally Handsome
    Reputation: Sizzler's Avatar
    Join Date
    Sep 2009
    Posts
    1,136
    Quote Originally Posted by CaptainHenriMorgan View Post
    Is that as it is supposed to be?.

    Is there a way to place a new cable stop or should I just fix it with a cable tie or does the frame has to be replaced?
    This sucks, it appears the upper rivet is broken or missing and the other will eventually break, leaving you without a cable stop for the front derailleur.

    I do not recommend a band-aid fix like a zip tie, nor do I think the frame needs to be replaced. I think it could be repaired, but the first thing to do is contact On-One and see what they have to say.

    Good luck, keep us updated!

  3. #3
    mtbr member
    Reputation:
    Join Date
    Apr 2013
    Posts
    2
    Hi Guys,

    here the response from on one:

    Hello Henri

    Thank you for bringing this to our attention.

    I have spoken to my mechanic who tells me the following.

    "rivets can be drilled and it can be re-riveted on with a bit of araldite on it to help make it a stronger bond"

    If you have a local bike shop nearby that would be able to perform this i will credit your account for the workshop time.

    Kind regards

    Will

    Customer Service Advisor

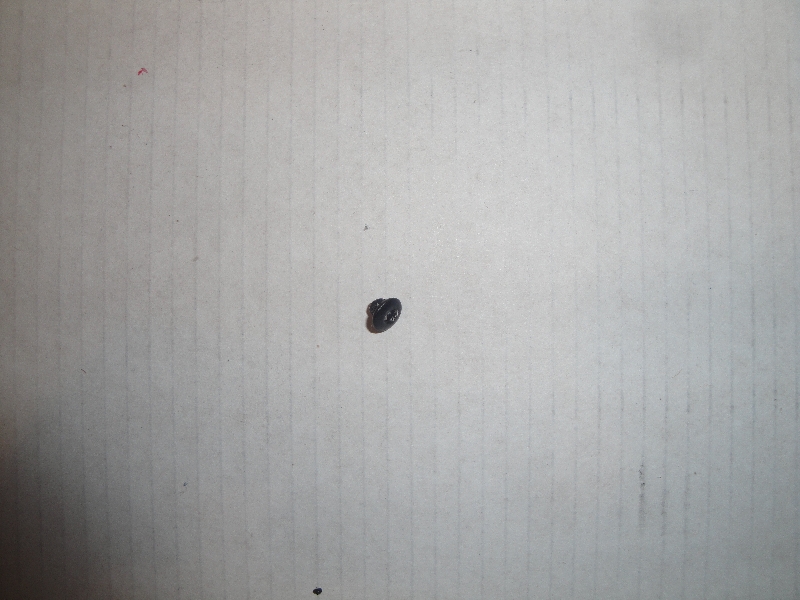

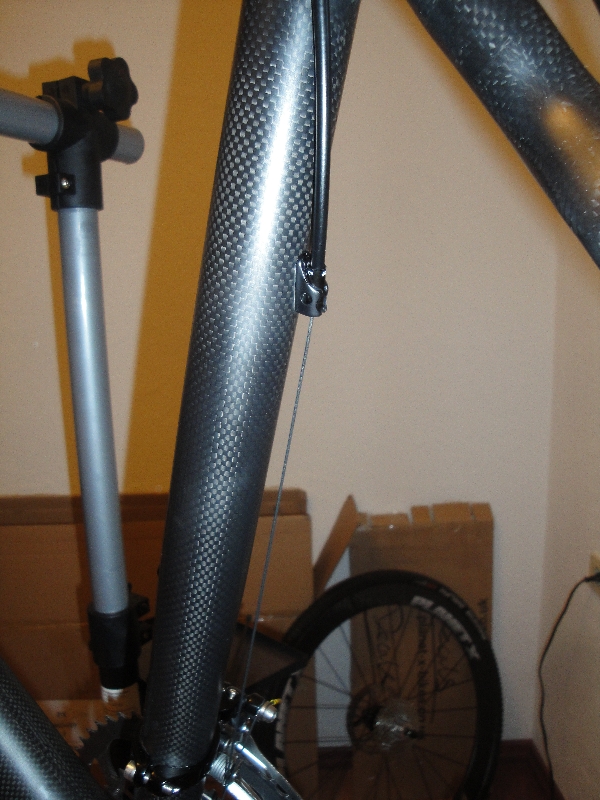

    I checked the rivet and it was broken in the middle. So there was no need to drill it out because you could get it easily out with a tweezer. I bought a rivet tang for 14 and did it by myself -> see the pictures below








    Cheers

  4. #4
    mtbr member
    Reputation:
    Join Date
    Dec 2009
    Posts
    244
    Good job. Keep that tool handy. Cable stops are riveted on all but the highest-priced carbon frames. I've got a DD and i'm happy with the quality.
