Thread: HX2 Questions?

  1. #1
    Stayin' Puft
    Reputation: canyonrat's Avatar
    Join Date
    Oct 2006
    Posts
    1,232

    HX2 Questions?

    Hey Chumba,

    I liked the look of the new HX2 29er frames, but there are a few lingering questions I don't see answered on your site or in forums. Anyone know?

    - The marketing states it was designed around a 5-inch fork, but the geometry lists that it was measured using a 100mm fork. If you instead publish the axle-to-crown measurement that the frame is designed around with the geometry, it would be easier to understand how it might ride with various forks. If the "100mm fork" is a Reba and it was measured without accounting for sag that could mean 510mm, then the real geometry would be radically different from the specs if you put on say a Fox F29 100mm fork with an actual riding axle-to-crown of around 480.

    - Most 29er frame specs I see list "BB drop" as opposed to height...so, how much lower the plane of the bottom bracket is, relative to the line of the hub-axles. This takes the tires out of the question, and if it is based off of a fork axle-to-crown spec then it is clear how high/low the BB really will ride with a given setup. What is the BB drop?

    - What type of EBB is it? It looks Bushnell-ish but not quite, is it your own design? If so, is it an expanding wedge, or set-screw, other?

    - Approximate frame weight?

  2. #2
    mtbr member
    Reputation:
    Join Date
    Nov 2006
    Posts
    57
    Canyonrat, 2009 Reba 100 mm axle-to-crow is 506 mm.

    In comparaison, Minute 100 mm is 510 mm, Fox 100 mm is 501 mm and WB 110 mm is 510 mm.

    I think that the measurement of the head tube angle, for example, is without SAG (like a lot of other brands).

    To have the same geometry of your actual bike you can change your headset. There is a big difference between a Cane Creek ZS-6 short with a 14 mm stack height and a NC17 Imperator Pro with a 32.3 mm stack height.

    For the BB height, I'll give you mine (with type of tires) when my bike will be build.

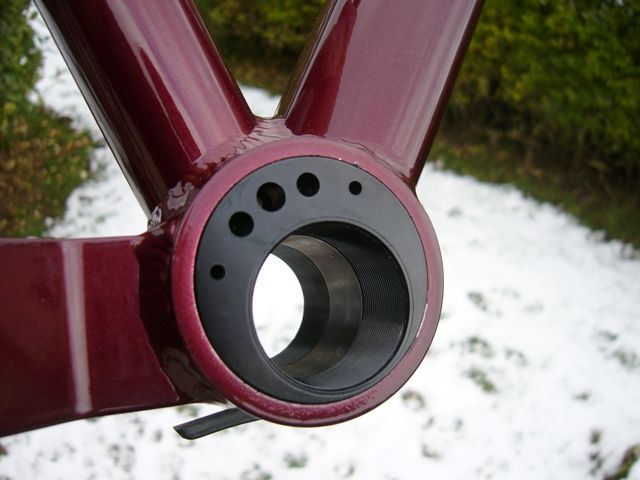

    For the EBB type looks this picture :



    The frame weight is approximatively 4.2 lbs in L size.

  3. #3
    The White Jeff W
    Reputation: jeffw-13's Avatar
    Join Date
    Apr 2008
    Posts
    4,824
    Never mind
    No moss...

  4. #4
    AUGER-N
    Reputation:
    Join Date
    Dec 2005
    Posts
    177
    Well? More info? ----Mike
