    home made rotors...(well sorta)

    being an AutoCAD operator, and having a 1.5 million dollar Trumpf laser machine at my disposal, a shortage of brake rotors will be something I hope to never encounter.

    this is a quick design I mocked up today out of some .080 stainless scrap. I see areas where I can shave some weight, so next week will be round 2


    2012 Trek Marlin BB7's / SD-7's, G3's, and Kenda Nevegals


    My website: www.n2ovette.com

  2. #2
    ride more
    Reputation:
    Join Date
    Mar 2007
    Posts
    2,658
    Nice design, looks good.

  3. #3
    mtbr member
    Reputation:
    Join Date
    Aug 2011
    Posts
    194
    Damn fine.. Id be interested if you sell

  4. #4
    mtbr member
    Reputation:
    Join Date
    Apr 2007
    Posts
    159
    Great project. They look good. Have you ridden them yet? I am curious to know if they are quiet under braking. I think rotors are generally ground radially after cutting/stamping but judging by the noise that some of my rotors/brakes make this extra step doesn't do much to make them run quietly.

  5. #5
    inexperienced at large
    Reputation:
    Join Date
    Apr 2011
    Posts
    1,794
    very cool dude. you don't see this very often

  6. #6
    mtbr member
    Reputation: Limey Johnson's Avatar
    Join Date
    Oct 2007
    Posts
    84
    Quote Originally Posted by erlau View Post
    Great project. They look good. Have you ridden them yet? I am curious to know if they are quiet under braking. I think rotors are generally ground radially after cutting/stamping but judging by the noise that some of my rotors/brakes make this extra step doesn't do much to make them run quietly.
    No rides yet.

    I'm planning on a new wheelset to mount some road-friendly tires on, so I will also mount my own rotors as well.

    I'll keep you all posted.
    2012 Trek Marlin BB7's / SD-7's, G3's, and Kenda Nevegals


    My website: www.n2ovette.com

  7. #7
    Class Clown
    Reputation: dundundata's Avatar
    Join Date
    May 2009
    Posts
    1,511
    wow you made those cool!

  8. #8
    mtbr member
    Reputation:
    Join Date
    Jun 2008
    Posts
    1,194
    Can you make those in CenterLock?

  9. #9
    mtbr member
    Reputation: Limey Johnson's Avatar
    Join Date
    Oct 2007
    Posts
    84
    Quote Originally Posted by Yogii View Post
    Can you make those in CenterLock?
    explain centerlock...
    2012 Trek Marlin BB7's / SD-7's, G3's, and Kenda Nevegals


    My website: www.n2ovette.com

  10. #10
    mtbr member
    Reputation:
    Join Date
    Aug 2010
    Posts
    1,080
    Quote Originally Posted by limey johnson View Post
    explain centerlock...

  11. #11
    mtbr member
    Reputation:
    Join Date
    Jul 2003
    Posts
    6,661
    Quote Originally Posted by Limey Johnson View Post
    explain centerlock...
    "Center Lock" = a proprietary Shimano design hub/rotor interface. The hub and rotor have a toothed flange interface. The rotor slides onto the hub flange and is held in place with a lock ring as opposed to 6 rotor bolts. The below image is of a Shimano Center Lock rotor. They are usually two piece, an aluminum carrier with a stainless braking ring attached to the carrier. The reason for the two piece design is the thickness that is required for the interface. Making one completely out of stainless would make the rotor quite heavy. Kind of a complicated design for the carrier as well.

    I would also caution you very strongly AGAINST making a center lock rotor for anything but you own use! Shimano holds a very strong patent on the center lock design. Any manufacturer of a center lock rotor without proper license from Shimano would be patent infringement. And like any large corporation, Shimano pursues patent infringement vigorously!

    Anyway, cool design. A little polish, smoothing and refining and I'd say it'd be ready for market.

    Good Dirt
    Attached Images Attached Images
    "I do whatever my Rice Cripsies tell me to!"

  12. #12
    mtbr member
    Reputation:
    Join Date
    Jun 2008
    Posts
    1,194
    CenterLock=The standard that Shimano uses on their hubs.

  13. #13
    ~Disc~Golf~
    Reputation: highdelll's Avatar
    Join Date
    Oct 2008
    Posts
    17,174
    Nice work limey - What'd really be cool, is if you could do custom designs like DirtyDog and cut into their market - they're expensive!!
    (but so cool)

    Honestly, you just take a deep breath and say Fuck it.

  14. #14
    mtbr member
    Reputation: Shalom's Avatar
    Join Date
    Nov 2008
    Posts
    1,994
    Sharp looking design. Well done. Please let us know how the work out for you.

  15. #15
    mtbr member
    Reputation: Limey Johnson's Avatar
    Join Date
    Oct 2007
    Posts
    84
    Quote Originally Posted by Squash View Post
    "Center Lock" = a proprietary Shimano design hub/rotor interface. The hub and rotor have a toothed flange interface. The rotor slides onto the hub flange and is held in place with a lock ring as opposed to 6 rotor bolts. The below image is of a Shimano Center Lock rotor. They are usually two piece, an aluminum carrier with a stainless braking ring attached to the carrier. The reason for the two piece design is the thickness that is required for the interface. Making one completely out of stainless would make the rotor quite heavy. Kind of a complicated design for the carrier as well.

    I would also caution you very strongly AGAINST making a center lock rotor for anything but you own use! Shimano holds a very strong patent on the center lock design. Any manufacturer of a center lock rotor without proper license from Shimano would be patent infringement. And like any large corporation, Shimano pursues patent infringement vigorously!

    Anyway, cool design. A little polish, smoothing and refining and I'd say it'd be ready for market.

    Good Dirt
    I could make that. I would need the bolt centers...diameter...braking surface dimension...etc.

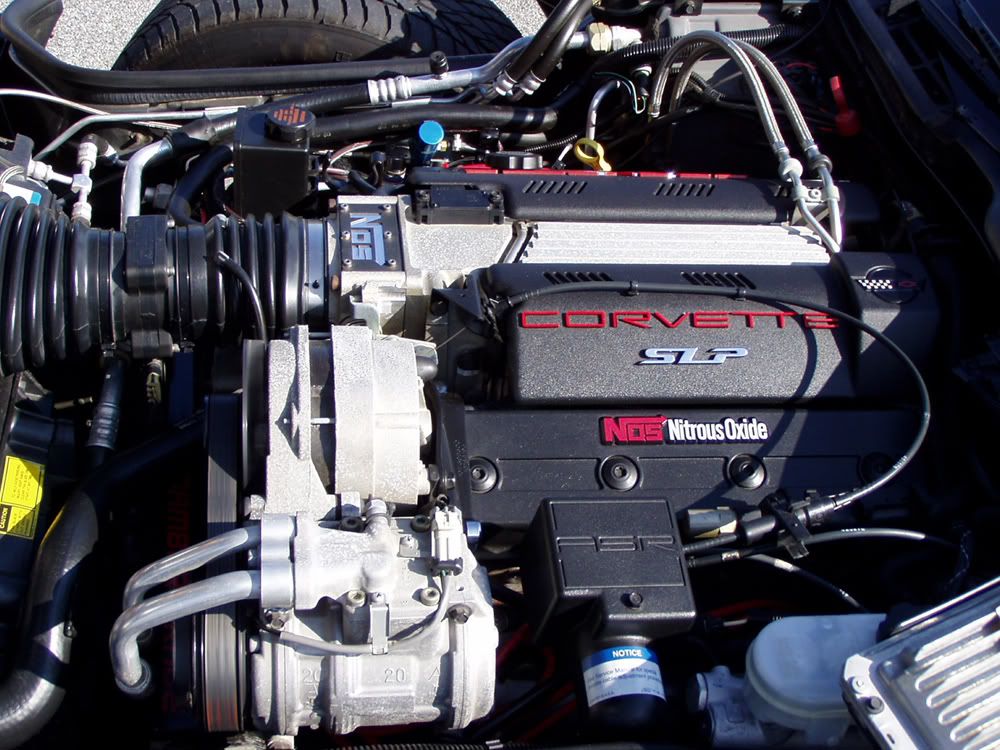

    I would never fabricate anything to sell. I learned my lesson many years ago when an attorney for Nitrous Oxide Systems contacted me about selling throttle body plates with their logo on them for corvette owners with using their product. I made one for myself, and they saw it on my car at a national event. It wasn't but a couple weeks later I received a letter, advising me not to manufacture any for sale. They did not waste much time.You can see it here:

    2012 Trek Marlin BB7's / SD-7's, G3's, and Kenda Nevegals


    My website: www.n2ovette.com

  16. #16
    ~Disc~Golf~
    Reputation: highdelll's Avatar
    Join Date
    Oct 2008
    Posts
    17,174
    Why not make your own logo?
    I can help w/ that BTW
    Honestly, you just take a deep breath and say Fuck it.

  17. #17
    mtbr member
    Reputation: mtbnozpikr's Avatar
    Join Date
    Sep 2008
    Posts
    1,684
    That would be nice to have free reign on cutting laser. Great looking rotors. I too am interested in hearing how the performance is.
    2012 Intense M9
    2012 Pivot Mach 5.7 Carbon
    2008 Look 595
    2007 Custom Litespeed Sewanee

  18. #18
    Master of None
    Reputation: presslab's Avatar
    Join Date
    Jan 2007
    Posts
    1,462
    That's really cool. I like the design too, simple but unique.

    What alloy did you use? Most rotors seem to have a lot of iron content, maybe something like 4130.

  19. #19
    mtbr member
    Reputation: henry9419's Avatar
    Join Date
    Nov 2010
    Posts
    460
    Quote Originally Posted by Limey Johnson View Post
    I could make that. I would need the bolt centers...diameter...braking surface dimension...etc.

    I would never fabricate anything to sell. I learned my lesson many years ago when an attorney for Nitrous Oxide Systems contacted me about selling throttle body plates with their logo on them for corvette owners with using their product. I made one for myself, and they saw it on my car at a national event. It wasn't but a couple weeks later I received a letter, advising me not to manufacture any for sale. They did not waste much time.You can see it here:

    im not sure after that post but did you actually sell any or were they just as you said advising you not to without knowledge as to if you had or not?
    2009 Jamis Trail X2
    2002 Raleigh Mountain Scout
    2008 Trek fuel ex7

  20. #20
    mtbr member
    Reputation: Limey Johnson's Avatar
    Join Date
    Oct 2007
    Posts
    84
    Quote Originally Posted by henry9419 View Post
    im not sure after that post but did you actually sell any or were they just as you said advising you not to without knowledge as to if you had or not?
    No...I never sold any. I had a slew of people on a car forum that wanted them, but NOS seemed pretty serious about coming after me.

    As it was, to get my info in the first place, they needed to kleehawk it from my event sigh-up sheet.

    It probably didn't help that they were a participating sponsor of the show.
    2012 Trek Marlin BB7's / SD-7's, G3's, and Kenda Nevegals


    My website: www.n2ovette.com

  21. #21
    Nuts
    Reputation: bdundee's Avatar
    Join Date
    Feb 2008
    Posts
    3,729
    A bunch of us on the Fat Bike forum are always looking for a way to space our rotors out about 5mm. A machine like this would do a real nice job of making a one peice spacer. Hmmmmm
    And I love beer!!

  22. #22
    Rub it............
    Reputation: frdfandc's Avatar
    Join Date
    Sep 2007
    Posts
    3,710
    Have you figured out a way to heat treat them for longevity?

  23. #23
    nothing to see here
    Reputation: Stevob's Avatar
    Join Date
    Feb 2009
    Posts
    2,950
    Quote Originally Posted by bdundee View Post
    A bunch of us on the Fat Bike forum are always looking for a way to space our rotors out about 5mm. A machine like this would do a real nice job of making a one peice spacer. Hmmmmm
    I take it that you currently grind down old rotors?
    I see hills.

    I want to climb them.

  24. #24
    ~Disc~Golf~
    Reputation: highdelll's Avatar
    Join Date
    Oct 2008
    Posts
    17,174
    ^^^ I don't get any of that..., why not just use 6 round 5mm spacers?
    ala fat 'washers'
    Honestly, you just take a deep breath and say Fuck it.

  25. #25
    Huckin' trails
    Reputation: David C's Avatar
    Join Date
    May 2011
    Posts
    6,053
    Quote Originally Posted by highdelll View Post
    ^^^ I don't get any of that..., why not just use 6 round 5mm spacers?
    ala fat 'washers'
    Cause they won't be 100% the same stack height... Which cause some pretty problems.

    And a nice flat out 5mm alu round plate with holes should do the job. Only need a normal workshop tool set for it.

    David
    Quote Originally Posted by NicoleB28 View Post
    topless. that's what all mtb girls do. we go ride, get topless, have pillow fights in the woods, scissor, then ride home!
