    New question here. Formula The One and Goodridge hose

    hi

    does anybody know which connectors will work?
    http://www.chainreactioncycles.com/B...spx?BrandID=60

    would it be possible to use the Avid connectors?

    thanks a lot!

    cheers
    hball
    Sokrates is dead, Galilei is dead, Newton is dead, Einstein is dead, Pantani is dead and i am feeling sick too.

  2. #2
    'All over it!'
    Reputation: lornibear's Avatar
    Join Date
    Aug 2006
    Posts
    1,105
    The Avid sets are kit 108 & 109 and will not work with Formula as far as I know. I have just purchased goodridge hoses for my formula brakes and ordered kit 101.
    If it's just the connector kits you are interested in, then you would require connector kit 101.

    If you look at the connectors for both formula and avid, you will see that they differ as formula use the banjo connector. Maybe somebody else could add more or even correct me If I am talking bollocks.....Hope this helps

  3. #3
    Feeding your addiction
    Reputation: Ventanarama's Avatar
    Join Date
    Dec 2001
    Posts
    2,667
    Quote Originally Posted by hball
    hi

    does anybody know which connectors will work?
    http://www.chainreactioncycles.com/B...spx?BrandID=60

    would it be possible to use the Avid connectors?

    thanks a lot!

    cheers
    hball
    ONE's use the #109 kit, Oro series uses 107/101.

    Larry
    Mountain High Cyclery
    larry@mtnhighcyclery.com
    "It is inhumane, in my opinion, to force people who have a genuine medical need for coffee to wait in line behind people who apparently view it as some kind of recreational activity". - Dave Barry

  4. #4
    mtbr member
    Reputation:
    Join Date
    Sep 2008
    Posts
    1,964
    Quote Originally Posted by Ventanarama
    ONE's use the #109 kit, Oro series uses 107/101.

    Larry
    Mountain High Cyclery
    larry@mtnhighcyclery.com

    Thanks for that.Are you definetely sure they are? I have been looking at what kits i need for my ones and the kit i found pictured didnt look right for the lever end.
    Would the front and rear kit be the same but with different length hoses?
    Thanks

  5. #5
    the refurbished one
    Reputation: hball's Avatar
    Join Date
    May 2004
    Posts
    605
    thanks Larry!
    Sokrates is dead, Galilei is dead, Newton is dead, Einstein is dead, Pantani is dead and i am feeling sick too.

  6. #6
    mtbr member
    Reputation:
    Join Date
    Jan 2007
    Posts
    63
    I ordered the 109 kit for the formula the ones awhile back but ended up sending it back as after much head scratching and an email or two to the goodridge supplier I found you still need to use the original formula fittings for the lever end and the formula olive was proving to be a pain in the a*s to fit over the goodridge hose and I wasn't convinced on how good a seal would be made.
    Things may have changed since as it was a little while ago, but if your gonna do it, you'd be better off just ordering up one of the fitting kits for the oro as I'm fairly sure this will give you the two banjos you'll need for both calipers.
    hope this helps.
    cheers

  7. #7
    Feeding your addiction
    Reputation: Ventanarama's Avatar
    Join Date
    Dec 2001
    Posts
    2,667
    Quote Originally Posted by travo
    I ordered the 109 kit for the formula the ones awhile back but ended up sending it back as after much head scratching and an email or two to the goodridge supplier I found you still need to use the original formula fittings for the lever end and the formula olive was proving to be a pain in the a*s to fit over the goodridge hose and I wasn't convinced on how good a seal would be made.
    Things may have changed since as it was a little while ago, but if your gonna do it, you'd be better off just ordering up one of the fitting kits for the oro as I'm fairly sure this will give you the two banjos you'll need for both calipers.
    hope this helps.
    cheers
    Hmmm, what part of the lever end fittings was not working for you? I've installed #109 kits on ONE's with no problems. The #107/101 kit for Oro's won't work on the ONE as the thread pitch on the lever body is different.

    Larry
    Mountain High Cyclery
    larry@mtnhighcyclery.com
    "It is inhumane, in my opinion, to force people who have a genuine medical need for coffee to wait in line behind people who apparently view it as some kind of recreational activity". - Dave Barry

  8. #8
    mtbr member
    Reputation: blurman's Avatar
    Join Date
    Nov 2005
    Posts
    83
    Yes, Larry is right...I have the 109 kit on my One's. You don't use the Formula olive with Goodridge lines, just screw the male fitting into the lever and attach the line with the female fitting and tighten them up.

    Larry did you get any of the R1`s in?

  9. #9
    Feeding your addiction
    Reputation: Ventanarama's Avatar
    Join Date
    Dec 2001
    Posts
    2,667
    Quote Originally Posted by blurman
    Yes, Larry is right...I have the 109 kit on my One's. You don't use the Formula olive with Goodridge lines, just screw the male fitting into the lever and attach the line with the female fitting and tighten them up.

    Larry did you get any of the R1`s in?
    Haven't seen any R1's available yet, hopefully soon though.

    Larry
    "It is inhumane, in my opinion, to force people who have a genuine medical need for coffee to wait in line behind people who apparently view it as some kind of recreational activity". - Dave Barry

  10. #10
    mtbr member
    Reputation: ScottW's Avatar
    Join Date
    Jan 2004
    Posts
    1,158
    Also using a 109 kit on mine. Fit perfect, they came off my older Avid Juicys.

  11. #11
    mtbr member
    Reputation:
    Join Date
    Jan 2007
    Posts
    63
    Quote Originally Posted by Ventanarama
    Hmmm, what part of the lever end fittings was not working for you? I've installed #109 kits on ONE's with no problems. The #107/101 kit for Oro's won't work on the ONE as the thread pitch on the lever body is different.

    Larry
    Mountain High Cyclery
    larry@mtnhighcyclery.com
    Hi Larry, it's quite possible I was supplied with the wrong parts then as the kit I recieved didn't have any parts for the lever end other than the threaded collars that screw into the lever body, there was no insert for the hose or anything, after a few emails to the suppliers I was told I need to use the formula lever parts, maybe I'll order some up from elsewhere and have another go.
    cheers

  12. #12
    mtbr member
    Reputation:
    Join Date
    Sep 2008
    Posts
    1,964
    I Might buy 2 of these then at less than half price .Clear hose

    http://www.chainreactioncycles.com/M...?ModelID=10505

    The only difference between the front and rear kit is hose length.I always put heatshrink over goodridge hose because the braiding is quite rough so it also dosent matter what colour the hose is because i can just buy coloured heatshrink.

  13. #13
    mtbr member
    Reputation:
    Join Date
    Jun 2005
    Posts
    15
    Quote Originally Posted by Ventanarama
    I've installed #109 kits on ONE's with no problems.

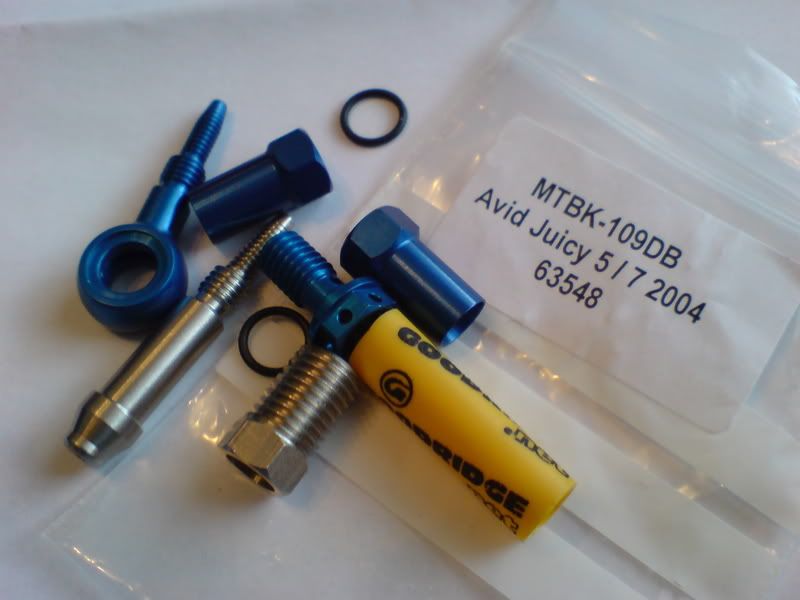

    Did You get this set:


    Do I have the correct lever-end connector? Seems to be coarse pitch thread.

    The reason I'm asking is because I previously ordered the same 109 kit from CRC and got diffferent lever end connector (fine pitch lever end) as seen here:



    Thanks!

  14. #14
    the refurbished one
    Reputation: hball's Avatar
    Join Date
    May 2004
    Posts
    605
    you do have the right connectors.
    Sokrates is dead, Galilei is dead, Newton is dead, Einstein is dead, Pantani is dead and i am feeling sick too.

  15. #15
    mtbr member
    Reputation:
    Join Date
    Oct 2007
    Posts
    315
    One thing to look out for is that there are pre 2005 Juicy 109 kits and 2005+ Juicy 109 kits.

    From looking at the threads on the lever body fitting, I'd say the pre 2005 kits are the right ones for The Ones. 2005+ Juicy's have a finer thread on that fitting.

    Right?

    Edit: It seems that there may be some mis-labeling in Goodridge land. I have a kit that says 'MTB109-1FCB-BK” on it and “Avid Juicy 5/Juicy 7 (2005)”….the kit for 2005 Juicy's with the fine pitch thread are supposed to be MTB110s.
    Last edited by Fogerson; 04-01-2009 at 02:26 PM.

  16. #16
    mtbr member
    Reputation:
    Join Date
    Jan 2004
    Posts
    15

    109 kit on Formula RX

    Hey,

    This thread is a bit old, but I'll resurrect it for lack of info on this 109 kit otherwise.

    I've transferred my Goodridge lines from Hopes to the Formla RXs using the pictured 109 kit from CRC. Things have gone pretty well, until I slid the longer tapered end down into the lever reservoir. There is NO o-ring that's meant to go on there as I can tell, and it's weirding me out. It fits snug, and everything's tightened up nicely.

    I'll be testing it out tonight, but just wanted to hear back about whether this is meant to be attached to the lever with no o-ring in sight.

    Thanks,
    Mike

  17. #17
    mtbr member
    Reputation:
    Join Date
    Jan 2004
    Posts
    15
    Got this from the Goodridge guy:

    Mike,
    That fitting has a flare seat that should match up with the seat in the lever, so no o-ring is required.

  18. #18
    3D guy
    Reputation: gstahl's Avatar
    Join Date
    Dec 2003
    Posts
    329
    I have to really tighten my lever end (tighter than I thought I should to prevent leaks). That was last year and no leaks and no problems. Also be very careful getting the cylinder to screw on to the end of the hose (e.g., do not mess up the cone end it is required to seat well).
    Geoff Stahl
    San Jose

    BLTc, Chameleon Single Speed, Speedvagen Road

  19. #19
    Legend
    Reputation:
    Join Date
    Nov 2004
    Posts
    1,287
    I have e-mailed Goodridge a few times over the last few weeks as I find differing info on the Internet. From what most people say, my "The Ones" require the 109 kit, but Goodridge has told me 101 twice, and 109 once. This thread is pretty old, and I heard that Formula possible changed the thread pitch at some point which might be confusing things. This is exacerbated by the fact that I bought The Ones as old NIB stock (so I am not sure what year I even have).

    I worry I am going to buy the wrong kit, as my luck is horrendous with these things and a mistake is pretty pricey (and time consuming). I should probably just pull my lines and see if I have fine or coarse threads ... would probably get me pretty close to a definitive answer..

  20. #20
    mtbr member
    Reputation:
    Join Date
    Jan 2004
    Posts
    15
    Here's some more info from Karl ( karl.kramberger@goodridge.net ) :

    Thanks Karl for taking time to answer these questions. One last one! The threaded collar that holds that flared fitting into the lever is pretty long, and there are several threads exposed. The other side is even a bit longer. Any issues?

    Mike

    Mike,
    Shouldn't be a problem.

    Karl

    I think I'll answer my own recent thread and put together a Formula RX and Goodridge lines list of facts Formula RX and Goodridge lines Thanks for everyone's help so far.
