    Bottom bracket confusion

    Hey all,

    This is probably a stupid question but even after doing a lot of research i am still confused and really need some help!

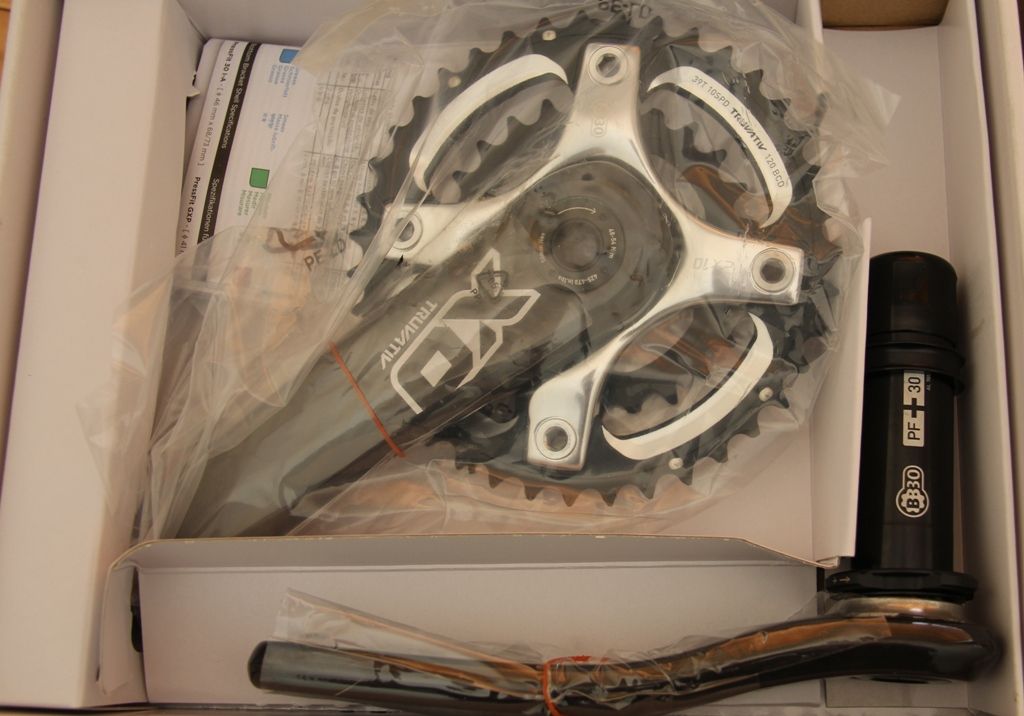

    I purchased a SRAM XO crankset as part of a build kit for a new bike.

    See below:



    I thought at the time that the bb30 was the normal threaded version where the PF30 was the press in one. I'm now not so sure that the BB30 is suitable.

    The new bike in question has a normal threaded frame for the bottom bracket.

    Does that mean I can get away with running a SRAM GXP type bottom bracket on this chainset? or do I need to sell this and buy a different one!

    I found the below link, but the cranksett has a 'GXP' logo on it where as mine doesn't

    Tech Tuesday: Install a SRAM X.0 Two-By-Ten Crankset - Pinkbike

    Help!

    Rgds
    Pete

  2. #2
    banned
    Reputation:
    Join Date
    Sep 2012
    Posts
    1,510
    No I don't think you can. The standard "english thread" GXP bottom bracket does not use the same shaft as the BB30 or PF30 version. The shaft on a "standard" GXP has a 24mm diameter (vs 30mm on the BB30/PF30) and is actually installed on the drive side (right side) while the fastening bolt is on the non-drive crank (left side), opposite to what you have.

    In addition, you have an extra preload ring on the crank shaft (that black ring on the non-drive side). You should try to return it and see if the seller will exchange it for a standard GXP one.

    BTW, if you're looking for a deal, Jenson has the "correct" X.0 crankset on sale but you're limited to blue:
    Sram X.0 GXP 2X10 Crankset > Components > Drivetrain > Cranksets | Jenson USA Online Bike Shop

    -S

    P.S. Just installed my own X0 crankset (from Jenson) with GXP BB so it's still fresh in my head.
    Last edited by shibiwan; 12-11-2012 at 01:06 PM.

  3. #3
    mtbr member
    Reputation:
    Join Date
    Nov 2012
    Posts
    43
    Thanks very much! That is frustrating!

    I wonder if the axle is available seperately.

    That is a good buy. Will have to grab one of those then I guess!

    Rgds
    Pete

  4. #4
    Fat-tired Roadie
    Reputation: AndrwSwitch's Avatar
    Join Date
    Nov 2007
    Posts
    14,287
    Quote Originally Posted by PSimpson7 View Post
    I wonder if the axle is available seperately.
    The arms are different too. Look at how the axle sits in the arm. Now consider an axle with a 6 mm smaller diameter. You probably saved enough doing a parts kit vs. piecemeal to still come out ahead even after this, though.
    "Don't buy upgrades; ride up grades." -Eddy Merckx

  5. #5
    Nouveau Retrogrouch SuperModerator
    Reputation: shiggy's Avatar
    Join Date
    Dec 1998
    Posts
    48,312
    Quote Originally Posted by PSimpson7 View Post
    Thanks very much! That is frustrating!

    I wonder if the axle is available seperately.

    That is a good buy. Will have to grab one of those then I guess!

    Rgds
    Pete
    Nope, the BB30 and GXP cranks are totally different designs, and the spindles are permanently attached to one of the arms.
    mtbtires.com
    The trouble with common sense is it is no longer common

  6. #6
    mtbr member
    Reputation:
    Join Date
    Nov 2012
    Posts
    43
    Thanks guys, appreciate the accurate answers!

    Learnt my lesson there!

    Rgds
    Pete

  7. #7
    banned
    Reputation:
    Join Date
    Sep 2012
    Posts
    1,510
    Quote Originally Posted by PSimpson7 View Post
    Thanks very much! That is frustrating!

    I wonder if the axle is available seperately.

    That is a good buy. Will have to grab one of those then I guess!

    Rgds
    Pete
    You gotta also remember to buy the GXP BB with that set because it doesn't come with one. The standard Team GXP BB runs around $35-$40.

    -S

    Sent from my Kindle Fire using Tapatalk 2

  8. #8
    mtbr member
    Reputation:
    Join Date
    Nov 2012
    Posts
    43
    cheers.

    Just sold it on ebay for only about $25 less than I paid for it so it wasnt the end of the world! sold in under 30 minutes!

    Will order the correct one shortly

    Thanks again
    Pete

  9. #9
    mtbr member
    Reputation:
    Join Date
    Dec 2012
    Posts
    15
    That is a good buy. Will have to grab one of those then I guess!

  10. #10
    mtbr member
    Reputation:
    Join Date
    Nov 2012
    Posts
    43
    I've just grabbed one of the GXP ones from Jenson aswell.

    Thanks for the heads up on that shibiwan

    Cheers
    Pete
