    Niner RDO Axle to Crown - Potential Issues?

    Was contemplating trying a Niner RDO CF fork but concerned about potential handling changes due to the difference in the axle to crown length for my suspension fork vs. the Niner fork. My Fox Float 32 100mm fork is roughly 500mm axle to crown and deducting 10% of travel length for sag puts it roughly at 490mm adjusted axle to crown. The Niner RDO fork is 470mm axle to crown triggering a 20mm difference which seems like a lot. Concerned that dropping my front end 20mm will have a significant impact on my bikes handling. Seems like the Niner fork is suspension corrected for a 80mm travel fork rather than 100mm (although most XC frame geometries these days are spec. for 100mm). Has anybody gone from a 100mm suspension fork to a Niner RDO and if so what was the impact on the handling of your 29er?

  2. #2
    mtbr member
    Reputation:
    Join Date
    Aug 2011
    Posts
    268
    Okay so I just checked my sag and it's more like 20% which gets me down to 480mm adjusted axle to crown on my suspension fork so now my difference is only 10mm. I'm guessing that won't make a huge difference?

  3. #3
    mtbr member
    Reputation: SlowPokePete's Avatar
    Join Date
    Mar 2006
    Posts
    1,504

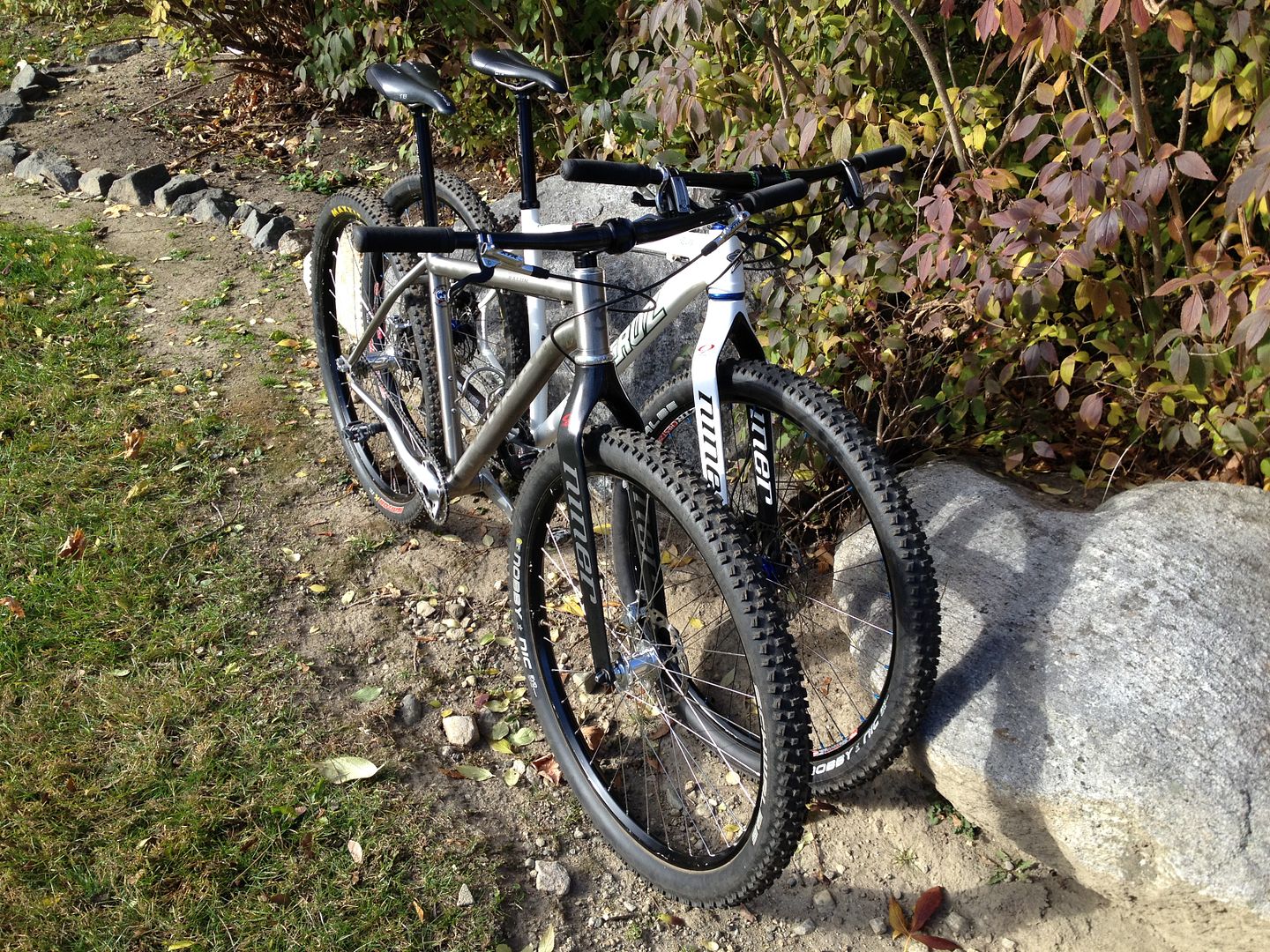

    I am running a Niner carbon tapered fork on both my mountain bikes, a Kona Raijin and a SC Highball.

    No problems for me, although have not ridden either bike with a 100 mm fork.



    SPP
    Rigid.

  4. #4
    1*14*29*2.1 & 1*1*29*2.4
    Reputation:
    Join Date
    Nov 2009
    Posts
    1,235
    I think 10mm won't be a problem. Once out of the saddle too, you'll have more compression on your sus fork

  5. #5
    transmitter~receiver
    Reputation: meltingfeather's Avatar
    Join Date
    May 2007
    Posts
    7,794
    Depending on your current set-up you may be able to gain effective A-C by using an external cup headset.
    Quote Originally Posted by pvd
    Time to stop believing the hype and start doing some science.
    29er Tire Weight Database

  6. #6
    SCRUBDUNKER
    Reputation: razardica's Avatar
    Join Date
    Sep 2010
    Posts
    250
    It's highly unlikely you will notice a difference. If it worries you, there are 485mm A-C carbon forks out there.
