  1. #1
    This place needs an enema
    Reputation: mikesee's Avatar
    Join Date
    Aug 2003
    Posts
    6,895

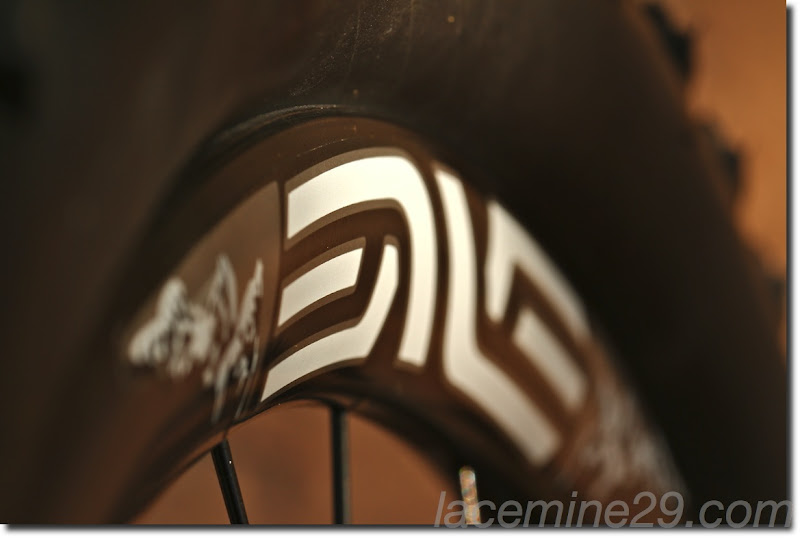

    ENVE 29" XC UST rims.

    By now everyone knows that these rims are available. Widths, weights, pricing, etc... are all on the ENVE site.

    I wanted to start a thread to share some info that is quite pertinent to the ENVE rims, but that you won't find on their site.

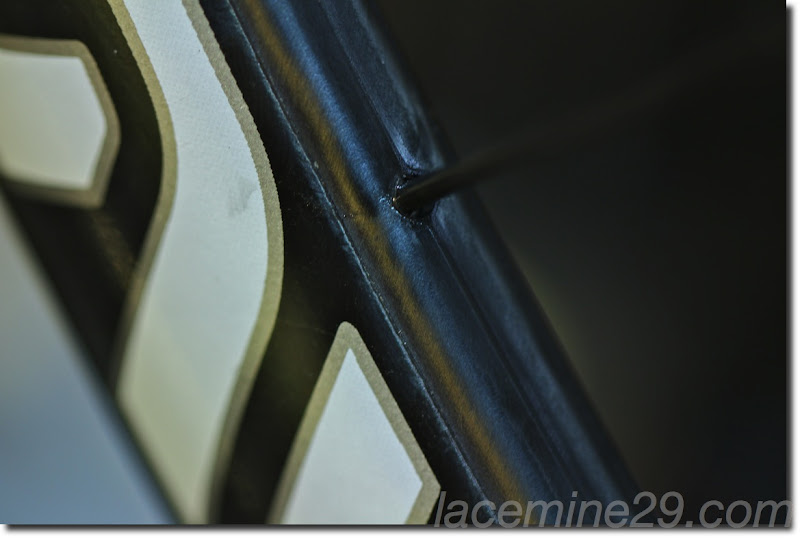

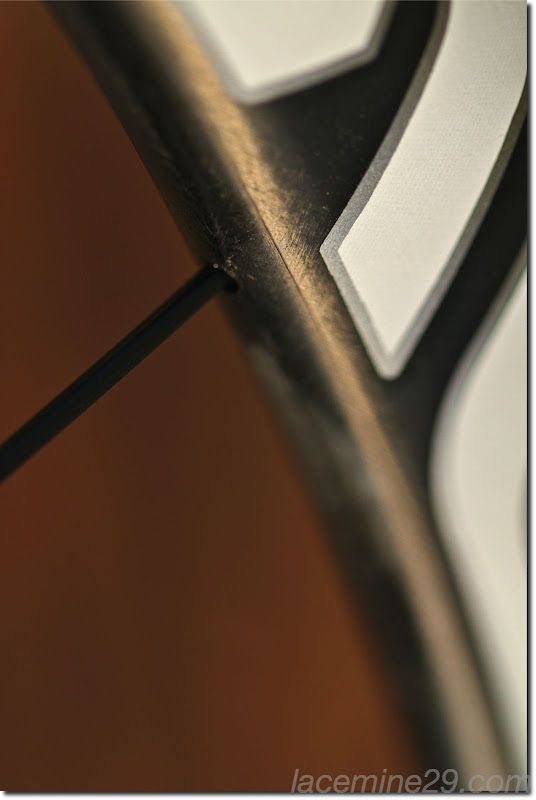

    For starters, I built 4 of these wheels today. Most noticeable and most impressive: The tension balances are as good as can be gotten with human hands and eyes—really, really nice.


    Next, I wanted to know how well these rims aired up tubeless. Essentially, I installed and attempted to inflate each of these tires using only a floor pump.
    Maxxis Ardent 2.4 EXO
    Maxxis Ikon 2.2 EXO
    Bontrager FR-3 TLR Team
    Bontrager 29-3 TLR Team
    Bontrager 29-4 TLR Expert
    Specialized Purgatory 2.4 Control
    Schwalbe Racing Ralph 2.4 Tubeless


    All of them went on easily without a tire lever. They all also came off easily without a lever.

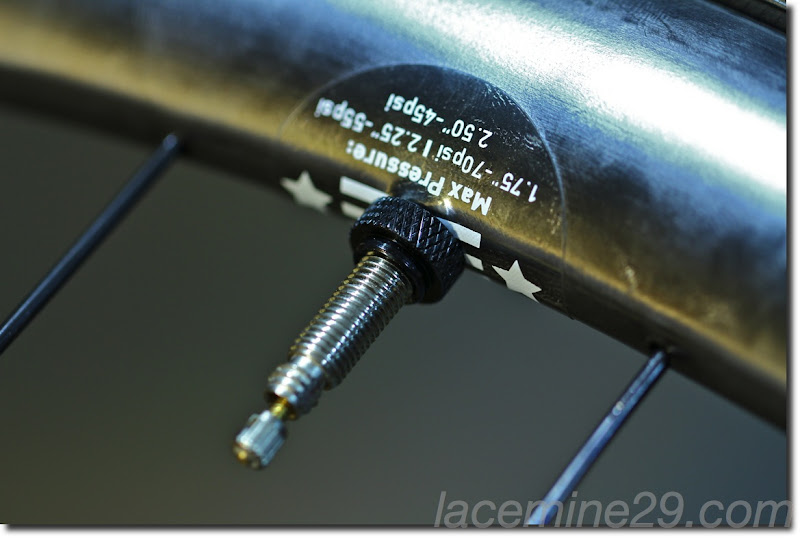

    I used no suds, no sealant, no voodoo--just the supplied tape and valve. My reasoning for doing it this way is simple: If a rim/tire combo needs a compressor in order to seal up tubeless, then it is very likely (almost a guarantee) that I’ll be able to burp air out of it or completely peel it off the rim at some point. This experience was learned early on and has been reinforced over the last ~8 years. If I can inflate it with only a floor pump, the chance of burping or peeling drops drastically.




    On the first go-round I was only able to get the Racing Ralph to inflate and seal up. Nothing else. That was kind of surprising. I noted that some of the tires were coming close to getting the beads to ‘pop out’ into the hooks, but with a floor pump it just wasn’t happening. This is fairly common with many of the other tubeless-ready rim/tire combos on the market, and is easily ‘fixed’ by adding a second layer of tape to tighten up the tire fit. I do this on my own personal tubeless wheels as it also substantially decreases the chance of a tire burping or peeling off.


    So I added a second layer of tape, spent a few minutes evenly mooshing it down into the rim cavity, then started again with the tires.

    On the second go ‘round, The Maxxis Ikon was tight going on—not so much that I needed a tire lever, but close. I needed a lever to get the Ikon back off. Everything else went on and off by hand.


    Also on the second go ‘round, neither of the Maxxis tires would inflate. Not even close. But *everything* else went right up to pressure and stayed there without audible leaks. Pretty sweet.


    No doubt sealant will be needed to keep these tires inflated week after week, but that was beyond the scope of my ‘bench test’ today.

    So there you have it.

    Questions? Your own experiences? Feel free.

    Cheers,

    MC

  2. #2
    mtbr member
    Reputation: 1-bar's Avatar
    Join Date
    Jun 2004
    Posts
    1,458
    Great info! What were the builds and weights of each wheelset? Do you plan on trying a UST tire like the Python? And it sounds like with a 2nd layer of tape you would be confident in all the tires setting up tubeless except for the maxxis.
    C-DALE FLASH 29 Carbon 2 (19.6 lbs)
    C-DALE BB1

  3. #3
    mtbr member
    Reputation:
    Join Date
    Oct 2009
    Posts
    463
    that is interesting. My expierences have been seemingly the opposite.
    My WTB Nano's aired up easily on my Crests, then mid-race, my front rolled off slightly in a hard corner and then totally flatted. (pressure was about 28psi)
    My Schwalbe RR's needed a compressor to air up and seat, but I haven't had a single problem since.

  4. #4
    transmitter~receiver
    Reputation: meltingfeather's Avatar
    Join Date
    May 2007
    Posts
    7,794
    really nice write-up, nice photos (as usual), and great info.
    i'm also surprised the TLR tires wouldn't air up when the schwalbes did.
    not surprised about the tubetype tires not airing up on UST rims easily. that's my experience too.

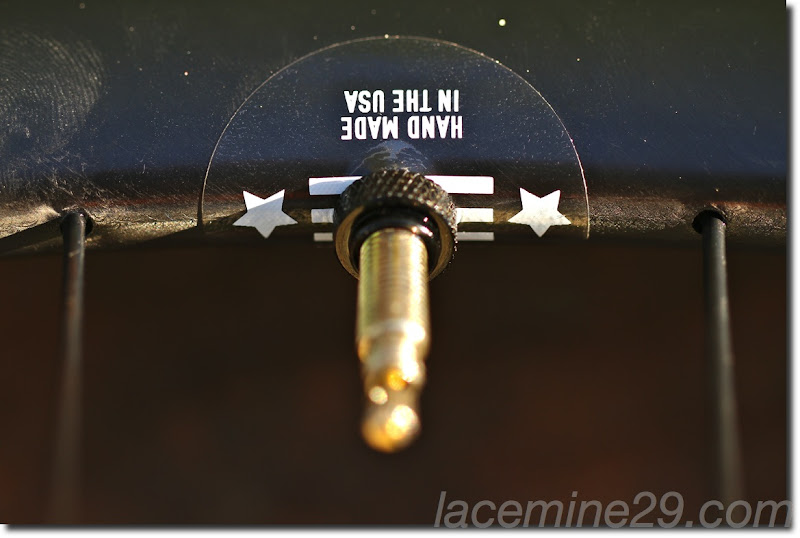

    love that sticker around the valve stem hole.
    Quote Originally Posted by pvd
    Time to stop believing the hype and start doing some science.
    29er Tire Weight Database

  5. #5
    mtbr member
    Reputation:
    Join Date
    Jun 2007
    Posts
    510
    No such luck with one layer of Gorrila tap and maxxis ingnitor exo or aspens. I was a little disapointed but coming from the original edges the difference was not all that exciting. I had to throw my stans rubber strip on. And pop pop done. I do really want to try a TNT tire without the strip and see how easy they pop on but with my tire set up stans and strip I'm still well under any UST tire set up. I would love to see maxxis make all tires with a tubeless talon bead but that's wishful thinking.
    High Ho Sultan, Lets GO

  6. #6
    transmitter~receiver
    Reputation: meltingfeather's Avatar
    Join Date
    May 2007
    Posts
    7,794
    Quote Originally Posted by 29or6to4
    I would love to see maxxis make all tires with a tubeless talon bead but that's wishful thinking.
    X2... i think they're missing the boat on the tubeless ready front.
    Quote Originally Posted by pvd
    Time to stop believing the hype and start doing some science.
    29er Tire Weight Database

  7. #7
    mtbr member
    Reputation: 1-bar's Avatar
    Join Date
    Jun 2004
    Posts
    1,458
    It seems that ENVE should have licensed Stan's bead socket technology instead of UST for better tubeless compatibility. I was really considering these and I don't suspect the new Easton XC EC90s will be any different from a tubeless perspective.
    C-DALE FLASH 29 Carbon 2 (19.6 lbs)
    C-DALE BB1

  8. #8
    This place needs an enema
    Reputation: mikesee's Avatar
    Join Date
    Aug 2003
    Posts
    6,895
    Quote Originally Posted by 1-bar
    What were the builds and weights of each wheelset?
    All of the new/UST rims I've held and built thus far have been ~383g to 385g.

  9. #9
    Harmonius Wrench
    Reputation: Guitar Ted's Avatar
    Join Date
    Jan 2004
    Posts
    8,081
    I think it has more to do with the UST spec of the rim, not so much the tires. We've had "issues" with UST spec 29"er rims, and the only tires that seat up with a satisfying "pop" on UST rims we've tried, (Mavic, Easton), are Geax's AKA and Saguaro.

    I'm not a big fan of the fit of UST rims with anything other than Geax tires at this point considering what is available for tires.

  10. #10
    bog
    bog is offline
    mtbr member
    Reputation: bog's Avatar
    Join Date
    Jun 2004
    Posts
    1,064
    Quote Originally Posted by mikesee
    By now everyone knows that these rims are available. Widths, weights, pricing, etc... are all on the ENVE site.

    I wanted to start a thread to share some info that is quite pertinent to the ENVE rims, but that you won't find on their site.

    For starters, I built 4 of these wheels today. Most noticeable and most impressive: The tension balances are as good as can be gotten with human hands and eyes—really, really nice.

    Next, I wanted to know how well these rims aired up tubeless. Essentially, I installed and attempted to inflate each of these tires using only a floor pump.
    Maxxis Ardent 2.4 EXO
    Maxxis Ikon 2.2 EXO
    Bontrager FR-3 TLR Team
    Bontrager 29-3 TLR Team
    Bontrager 29-4 TLR Expert
    Specialized Purgatory 2.4 Control
    Schwalbe Racing Ralph 2.4 Tubeless

    All of them went on easily without a tire lever. They all also came off easily without a lever.

    I used no suds, no sealant, no voodoo--just the supplied tape and valve. My reasoning for doing it this way is simple: If a rim/tire combo needs a compressor in order to seal up tubeless, then it is very likely (almost a guarantee) that I’ll be able to burp air out of it or completely peel it off the rim at some point. This experience was learned early on and has been reinforced over the last ~8 years. If I can inflate it with only a floor pump, the chance of burping or peeling drops drastically.

    On the first go-round I was only able to get the Racing Ralph to inflate and seal up. Nothing else. That was kind of surprising. I noted that some of the tires were coming close to getting the beads to ‘pop out’ into the hooks, but with a floor pump it just wasn’t happening. This is fairly common with many of the other tubeless-ready rim/tire combos on the market, and is easily ‘fixed’ by adding a second layer of tape to tighten up the tire fit. I do this on my own personal tubeless wheels as it also substantially decreases the chance of a tire burping or peeling off.

    So I added a second layer of tape, spent a few minutes evenly mooshing it down into the rim cavity, then started again with the tires.

    On the second go ‘round, The Maxxis Ikon was tight going on—not so much that I needed a tire lever, but close. I needed a lever to get the Ikon back off. Everything else went on and off by hand.

    Also on the second go ‘round, neither of the Maxxis tires would inflate. Not even close. But *everything* else went right up to pressure and stayed there without audible leaks. Pretty sweet.

    No doubt sealant will be needed to keep these tires inflated week after week, but that was beyond the scope of my ‘bench test’ today.

    So there you have it.

    Questions? Your own experiences? Feel free.

    Cheers,

    MC
    Sweet Mike! I wish I had the coin to spend on some of these hoops for my Tallboy. They'd make a superfast, superlight combo with my Maxxis Beavers to fly through out mud. When is it going to dry up around here?!
    SC Tallboy C : Giant TCX SLR : Giant Propel Adv SL DA9070

  11. #11
    Powered by ice cream.
    Reputation: Enel's Avatar
    Join Date
    Mar 2004
    Posts
    6,263
    This pertains to my interests...

    Edit...never mind, can't get over the sticker shock for the loss of 200 gms, superior stiffness and durability.
    Quote Originally Posted by buddhak
    And I thought I had a bike obsession. You are at once tragic and awesome.

  12. #12
    Cassoulet forever !
    Reputation: 20.100 FR's Avatar
    Join Date
    Jan 2004
    Posts
    2,026
    my experience is also the opposite, tight fit are more secure because they do not release air by burping.

    I think the UST design with the bead hook is much safer than stan's, providing a better support with a lateral load toward the center.

    I have several hutchinson tires (python and toro), and the do get in place with a floor pump on shimano XT or mavic c29ssmax tires.

    Mike, i don't see the point of doing your test without using soapy water to lubricate the bead to help them get in place.

    Thanks fot the tip on the double turn of tape, i will try this on my notbues rims
    Frenchspeaking 29"ers community site http://VingtNeuf.org

  13. #13
    banned
    Reputation: Spinning Lizard's Avatar
    Join Date
    Nov 2009
    Posts
    1,487
    Quote Originally Posted by 1-bar
    It seems that ENVE should have licensed Stan's bead socket technology instead of UST for better tubeless compatibility. I was really considering these and I don't suspect the new Easton XC EC90s will be any different from a tubeless perspective.
    I have the Easton XC EC90's, used Stans yellow tape once around and the Maxxis Ikons went on no issue. Popped right in and have been on for a month now at 22-25 psi with no burping.

  14. #14
    mtbr member
    Reputation: Adim_X's Avatar
    Join Date
    Mar 2010
    Posts
    664
    My experience with Ikons was that I had to use a couple layers of electrical tape outside the tire to squish it in the center and hold down the bead. I then had to remove the valve core and hit with a compressor and it quickly took air and set the bead. This was on an MTX33 wheel with stans tape and valve.

  15. #15
    MTB B'dos
    Reputation: LyNx's Avatar
    Join Date
    Oct 2004
    Posts
    17,438
    Cool, thanks for the pics and write up. Your conclusions on the Maxxis tyres however also does not jive with my results on Stans Flows. I've aired An Ardent, 2 Ignitors and 2 Crossmarks very easily using a floor pump and soapy water as recommended, never had an issue with them coming off the rim while riding - BTW, non tubeless ready, normal sidewall versions. Will note I sliced the sidewall on a Crossmark very quickly and they came off and were replaced, Ignitors worked fine, sidewalls held up fine, even though they'd already been scuffed to death with tubes in them - did add glitter to the sealant as a precaution.
    One day your life will flash before your eyes, will it be worth watching??
    MTB Barbados
    My Phantom pics

  16. #16
    Harmonius Wrench
    Reputation: Guitar Ted's Avatar
    Join Date
    Jan 2004
    Posts
    8,081
    Quote Originally Posted by LyNx
    Cool, thanks for the pics and write up. Your conclusions on the Maxxis tyres however also does not jive with my results on Stans Flows. I've aired An Ardent, 2 Ignitors and 2 Crossmarks very easily using a floor pump and soapy water as recommended, never had an issue with them coming off the rim while riding - BTW, non tubeless ready, normal sidewall versions. Will note I sliced the sidewall on a Crossmark very quickly and they came off and were replaced, Ignitors worked fine, sidewalls held up fine, even though they'd already been scuffed to death with tubes in them - did add glitter to the sealant as a precaution.
    But Mike is using a UST spec rim, not a Stan's. That's my point. Stan's will fit tighter with most tires and require less fuss to set the beads.

    The UST spec rims are not supposed to require rim tape either, no? These folks saying they are using rim tape/Stan's tape on UST rims is an indication to me that something isn't quite right here. YMMV

  17. #17
    MTB B'dos
    Reputation: LyNx's Avatar
    Join Date
    Oct 2004
    Posts
    17,438
    Never used UST, don't know anything about the standard, hefted a friends early on when I started riding and was like WTF, these things are tanks and have stuck to Stans and thicker casing normal tyres or TLR. Most all tyres have gone on and off the Flows easy as pie, only one that took some good effort was the Bonti MudX and Michelin XC A/T and both those tyres hold air like nobody's business, rest actually I would say went on too damn easy. Maybe Enve should license the Stans bead lock.
    Quote Originally Posted by Guitar Ted
    But Mike is using a UST spec rim, not a Stan's. That's my point. Stan's will fit tighter with most tires and require less fuss to set the beads.

    The UST spec rims are not supposed to require rim tape either, no? These folks saying they are using rim tape/Stan's tape on UST rims is an indication to me that something isn't quite right here. YMMV
    One day your life will flash before your eyes, will it be worth watching??
    MTB Barbados
    My Phantom pics

  18. #18
    mtbr member
    Reputation: bholwell's Avatar
    Join Date
    Oct 2007
    Posts
    2,085
    The ease of mounting and inflation is most directly related to the geometry of the drop channel, and has little influence on whether or not a tire will "burp" during use. For instance, if the center drop channel was made extremely wide and deep, any tire will mount extremely easy, but there will be so much space between the beads of the unseated tire and the rim that the tire will never inflate.

    I do not find it remarkable that only the Racing Ralph was able to be inflated using a floor pump- it was the only UST tire tested. While Tubeless Ready tires (usually) have a UST spec bead, they do not share the same sidewall. A thin sidewall will not excert the same force against the inner wall of the drop channel during initial inflation. Instead, they'll sit "loose" inside, leaving gaps between the beads and the rim through which air will escape during attempts to inflate the tire.

    Bead retention (or the rim's ability to reduce the likelihood of "burping") is mostly influenced by the interference fit between the tire's bead and bead seat shelf of the rim. This includes the diameter of the bead shelf, the inside diameter of the bead, the elasticity of the bead, and the rubber coating on the bead. The geometry of the bead and the inner retaining lip of the rim also play some role.

    Mavic's UST spec calls out precise dimensions for the inner rim profile, including the drop channel. There's not much leeway given to play with, so I suspect this new Enve rim will perform much like any other UST rim in regards to tire mounting, inflation, and bead retention.
    Last edited by bholwell; 05-06-2011 at 06:37 AM.
    Tire Design & Development Engineer. The opinions expressed in this forum are solely my own.

  19. #19
    mtbr member
    Reputation: bholwell's Avatar
    Join Date
    Oct 2007
    Posts
    2,085
    Quote Originally Posted by Guitar Ted
    The UST spec rims are not supposed to require rim tape either, no? These folks saying they are using rim tape/Stan's tape on UST rims is an indication to me that something isn't quite right here. YMMV
    There is nothing in the UST specification that precludes the use of rim tape in the rim.
    Tire Design & Development Engineer. The opinions expressed in this forum are solely my own.

  20. #20
    mtbr member
    Reputation:
    Join Date
    Jun 2006
    Posts
    1,104
    Quote Originally Posted by 20.100 FR
    Mike, i don't see the point of doing your test without using soapy water to lubricate the bead to help them get in place.
    I've never used soapy water to get my tires to seat up. And I use a floor pump.

    Maybe they were customer's wheels and he didnt want to get soapy residue on them.

  21. #21
    mtbr member
    Reputation:
    Join Date
    Jan 2004
    Posts
    339

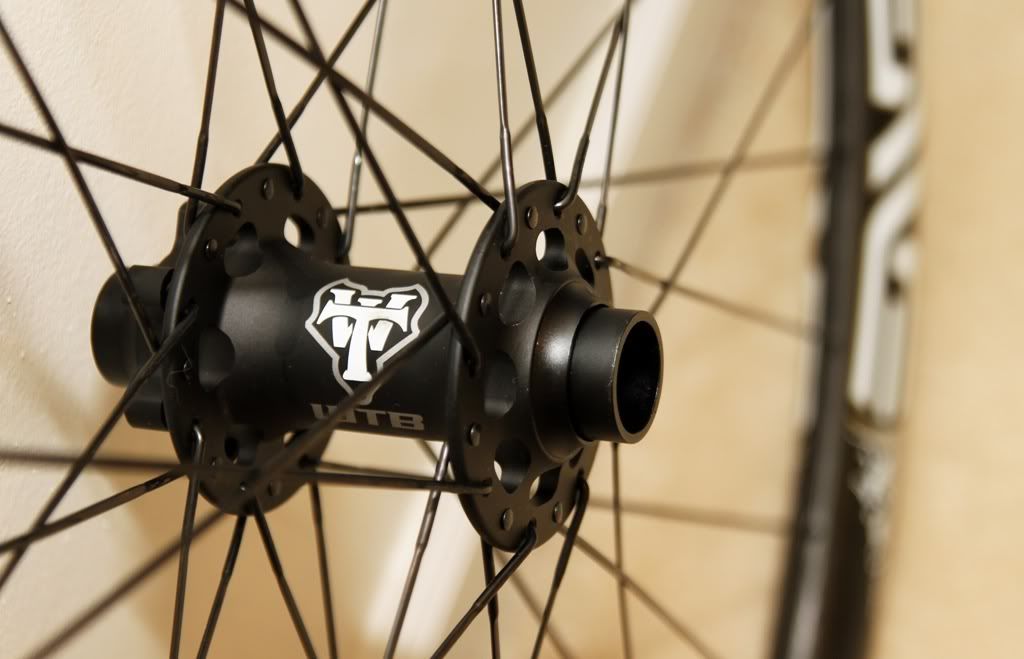

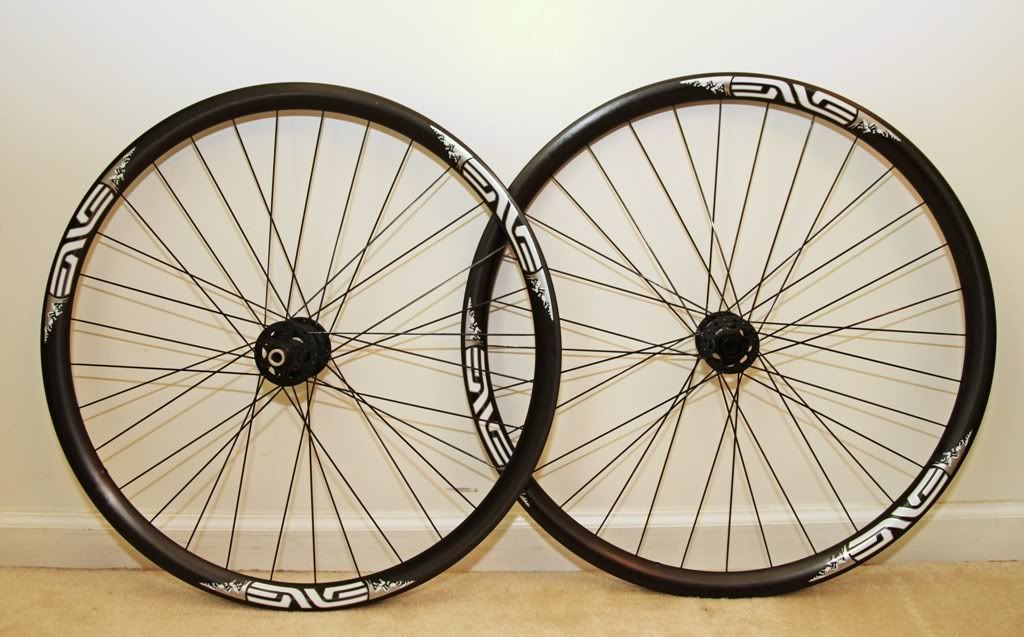

    Just had a set of these Enve 29XC UST wheels built up. My shop builder who is very experienced and respected, said they were one of the best rims he has ever built up from a even tension perspective.

    If you're going to double tape, why don't you just use the Stan's rubber rim strip?

  22. #22
    banned
    Reputation: Spinning Lizard's Avatar
    Join Date
    Nov 2009
    Posts
    1,487
    Quote Originally Posted by Guitar Ted
    But Mike is using a UST spec rim, not a Stan's. That's my point. Stan's will fit tighter with most tires and require less fuss to set the beads.

    The UST spec rims are not supposed to require rim tape either, no? These folks saying they are using rim tape/Stan's tape on UST rims is an indication to me that something isn't quite right here. YMMV
    You do not need to run the rim tape with the UST, but on certain tires you cannot get them to bead. The UST rim is designed for UST tires which are much heavier and do not lose shape when mounting. A regular tire on some UST rims will drop into the center channel and you cannot add enough air pressure to seat them. If you put a small layer of tape on the channel you can force the bead into the sidewall very easily because it cannot drop in.

  23. #23
    transmitter~receiver
    Reputation: meltingfeather's Avatar
    Join Date
    May 2007
    Posts
    7,794
    Quote Originally Posted by 1-bar
    It seems that ENVE should have licensed Stan's bead socket technology instead of UST for better tubeless compatibility. I was really considering these and I don't suspect the new Easton XC EC90s will be any different from a tubeless perspective.
    i think they tried to work something out, actually, and the folks at ENVE didn't see the geometry of stan's BST working well with their material. probably being as small as it.
    Quote Originally Posted by pvd
    Time to stop believing the hype and start doing some science.
    29er Tire Weight Database

  24. #24
    transmitter~receiver
    Reputation: meltingfeather's Avatar
    Join Date
    May 2007
    Posts
    7,794
    Quote Originally Posted by Spinning Lizard
    You do not need to run the rim tape with the UST, but on certain tires you cannot get them to bead. The UST rim is designed for UST tires which are much heavier and do not lose shape when mounting. A regular tire on some UST rims will drop into the center channel and you cannot add enough air pressure to seat them. If you put a small layer of tape on the channel you can force the bead into the sidewall very easily because it cannot drop in.
    The ENVE UST rims have holes in the rim bed to install and access the nipples like almost any other rim. Tape is absolutely required.
    Quote Originally Posted by pvd
    Time to stop believing the hype and start doing some science.
    29er Tire Weight Database

  25. #25
    mtbr member
    Reputation: 1-bar's Avatar
    Join Date
    Jun 2004
    Posts
    1,458
    Quote Originally Posted by Spinning Lizard
    You do not need to run the rim tape with the UST, but on certain tires you cannot get them to bead. The UST rim is designed for UST tires which are much heavier and do not lose shape when mounting. A regular tire on some UST rims will drop into the center channel and you cannot add enough air pressure to seat them. If you put a small layer of tape on the channel you can force the bead into the sidewall very easily because it cannot drop in.
    When you apply the tape, are you putting it in the channel or leaving it flat? What width tape id you use? It seems one layer of yellow tape in the channel is so thin that it would not do enough to make any difference.
    C-DALE FLASH 29 Carbon 2 (19.6 lbs)
    C-DALE BB1
