  1. #301
    AOK
    AOK is offline
    mtbr member
    Reputation: AOK's Avatar
    Join Date
    Jan 2004
    Posts
    1,891

    Krampus with Front Suspension!

    Quote Originally Posted by Steve5S View Post
    Would be keen to see some photographs of the MRP Stage shown with a Rabbit Hole/Knard for visual reference. As AOK stated earlier, there is 3mm-5mm clearance with his setup. This does not seem like much clearance to me for real world all conditions trails. A MRP Stage in the UK costs circa $1150
    I posted some pics here: MRP Stage

    Not rabbit holes, but Nextie jungle fox rims with Knards in the photos. I recently switched to the innova 29+ tire up front which is marginally narrower so I have a little more clearance on the sidewalls now. ( no issues with clearance on the Knards, I just wanted a knobbier tire).

  2. #302
    AOK
    AOK is offline
    mtbr member
    Reputation: AOK's Avatar
    Join Date
    Jan 2004
    Posts
    1,891

    Krampus with Front Suspension!

    Quote Originally Posted by Steve5S View Post
    Would be keen to see some photographs of the MRP Stage shown with a Rabbit Hole/Knard for visual reference. As AOK stated earlier, there is 3mm-5mm clearance with his setup. This does not seem like much clearance to me for real world all conditions trails. A MRP Stage in the UK costs circa $1150
    Not my bike but there are some pics of Stage + Knard linked here as well.
    MRP Stage fork 29+ ??

  3. #303
    mtbr member
    Reputation: vice grips's Avatar
    Join Date
    Dec 2012
    Posts
    1,236
    Quote Originally Posted by motoloco View Post
    Formula 35 29er fork with 50mm wide carbon rim and a bontrager chupacabra 29x3"
    sweet!
    Once you go slack, you never go back!

  4. #304
    mtbr member
    Reputation:
    Join Date
    Sep 2009
    Posts
    318
    Krampus with Front Suspension!-foxfork.jpg

    Will this fork work?

  5. #305
    mtbr member
    Reputation:
    Join Date
    Jun 2004
    Posts
    86
    AOK thanks for the links, sadly I still don't believe the Stage will give sufficient arch clearance for my needs
    Krampus with Front Suspension!-957427d1421874907-mrp-stage-img_3872.jpg

    I guess Ill see how recovery progresses and take advice from my surgeon. May consider a carbon rigid fork or trade the Krampus for something else

  6. #306
    mtbr member
    Reputation:
    Join Date
    Sep 2009
    Posts
    318
    Found a 100mm fox put my chronicle and hugo setup on. Not much clearance. Has anyone endoed from a rock rolling up and jamming the cross member?

  7. #307
    mtbr member
    Reputation:
    Join Date
    Jul 2004
    Posts
    164
    Quote Originally Posted by bigdog100 View Post
    Found a 100mm fox put my chronicle and hugo setup on. Not much clearance. Has anyone endoed from a rock rolling up and jamming the cross member?
    If I were to place a bet on that happening, versus a stick going through your spokes and causing an endo, my money is on the stick.

    If the clearance is tight, and by tight I'm talking like what you see in the post from Steve55 above yours, whets going to slow you down is mud caking to the tire. It won't send you over the bars, but it will make for a frustrating ride.

  8. #308
    mtbr member
    Reputation: vikb's Avatar
    Join Date
    Sep 2008
    Posts
    9,713
    Quote Originally Posted by bigdog100 View Post
    Found a 100mm fox put my chronicle and hugo setup on. Not much clearance. Has anyone endoed from a rock rolling up and jamming the cross member?


    Fox Float 34 - 130mm...15 mins with a dremel tool.

    There is lots of material there so you can create more clearance if you want.



    If Fox/RS come out with a real 29+ fork I'll probably buy one, but these Floats are out there and available cheap.



    ^^^ stock tire clearance without removing any material.
    Safe riding,

    Vik
    www.vikapproved.com

  9. #309
    mtbr member
    Reputation:
    Join Date
    Mar 2015
    Posts
    15
    hi. currently considering putting a 120mm pike on my krampus. do i want the 51mm offset version or the 44mm offset version. on the internet, the 51mm seems more popular. what is the difference? my guess is the 51mm makes it a bit more slack out, (like a DH bike) versus the 44mm being more responsive/nimble (like an XC race bike) but what do i know.

    your help is seriously appreciated. thank you.

  10. #310
    mtbr member
    Reputation:
    Join Date
    Apr 2007
    Posts
    762
    Go 51. The longer the travel , the more offset you want. It will improve the handling. Make sure you will have clearance. Rabbit holes won't work with Pike.

  11. #311
    mtbr member
    Reputation:
    Join Date
    Apr 2008
    Posts
    24
    FWIW, the Bontrager Chupacabra on a Hugo rim rubs the bridge on a 2013 Fox Float 32 100mm.
    Last edited by 0wen0; 03-15-2015 at 08:54 AM.

  12. #312
    mtbr member
    Reputation: bubba13's Avatar
    Join Date
    Nov 2009
    Posts
    954
    Would it be possible to move this thread to the 27.5+ / 29+ forum...?
    Portland Off Road Navagators

  13. #313
    mtbr member
    Reputation:
    Join Date
    Sep 2006
    Posts
    622

    Krampus with Front Suspension!

    Accidental post


    Sent from my iPhone using Tapatalk

  14. #314
    mtbr member
    Reputation: bubba13's Avatar
    Join Date
    Nov 2009
    Posts
    954

    More MRP Stage

    MRP Stage 130 with some light dremel work to round the sharp edge at the bottom of the arch. The Maxxis Chronicle fits with 4-5mm of clearance. Decided I wasn't comfortable with the clearance on the Chronicle and got a Surly Dirt Wizard. As you can see the DW has plenty of clearance and is an excellent front tire.

    Krampus with Front Suspension!-001.jpgKrampus with Front Suspension!-003.jpg
    Portland Off Road Navagators

  15. #315
    mtbr member
    Reputation: neilether's Avatar
    Join Date
    Sep 2007
    Posts
    508
    I finally got my Mutant Dirty!Krampus with Front Suspension!-mutant1.jpg

    First ride was quite good. The picture shows the seat being lowered a bit for the downhill back to my car.

    I do wish the front end was a bit lower. Even with the stem reversed and no spacers underneath, my hands a bit higher than I would like them. Of course, I do have a 140mm travel fork on there........

  16. #316
    mtbr member
    Reputation: crankpuller's Avatar
    Join Date
    Feb 2004
    Posts
    538
    That headtube is extra long - what size is your mutant?

    My wifes small appears to be half the length

  17. #317
    mtbr member
    Reputation: neilether's Avatar
    Join Date
    Sep 2007
    Posts
    508
    Quote Originally Posted by crankpuller View Post
    That headtube is extra long - what size is your mutant?

    My wifes small appears to be half the length
    My frame is a large, and yes, it is a very long head tube. I may drop the fork to 120 mm

  18. #318
    mtbr member
    Reputation: ya29er's Avatar
    Join Date
    Aug 2013
    Posts
    85
    Here's my little mod of 2013 Fox 32 CTD fork to prevent a tire touching a crown.

    Stock travel was 120mm, I increased it to around 140 by putting the pin in left chamber to the top position (the rod inside has 110, 120 and ~140mm positions).

    Then I inserted ~75mm piece of water hose (~27mm OD, bought in a DIY store in garden dept.) into air chamber.
    The hose serves two purposes:
    1. It limits max compression travel by 17-18mm. So I have a real 120mm travel.
    1. It acts a air volume spacer and alters compression curve.

    The plastic material is flexible but still doesn't change its length much at full compression. Tried w/o air.

    Conclusion: this fork was never better before. Everything is better. The only downside is that the 'C' mode is 'locking' slightly less then before. Probably because of a lower pressure.

    After a 75km ride with some hard sections the travel was used to up to 100-110mm. I.e. the hose haven't been used as a bumper.

    Krampus with Front Suspension!-air-spacer.jpg

  19. #319
    mtbr member
    Reputation:
    Join Date
    Aug 2014
    Posts
    14
    Good morning! My first post on MTBR...

    I am looking for front suspension options for my green Krampus. Sufficient tire clearance is a must - lots of mud here in fall and spring.

    The Manitou Magnum Pro 29+ 100mm has an AC height of 530mm. Taking 20% sag into account this will still raise the front by 25mm, correct? I wonder if this would turn the Krampus into a Chopper and ruin the perfect handling?! I don't understand why the Krampus is said to be "suspension corrected for 120mm"?! Or is this valid for the new, black model with MDS dropouts? What are your thoughts and experiences regarding AC of a suspension fork?

    Thanks!
    Marc

  20. #320
    All Lefty's, all the time Moderator
    Reputation: MendonCycleSmith's Avatar
    Join Date
    Feb 2005
    Posts
    15,254
    Having a2c close is semi important if you are sensitive to handling changes (which some are not, and yes, going too long is also potentially bad for the frame).

    But remember, once you sag in, you change your HTA by at least a degree, ( as sag is generally at least 20 mm).

    Add to that the ever changing nature of a suspension fork, and your a2c is never in the same spot whilst riding.

    Just food for thought.

    As for forks? Lefty is going to have clearance in spades for mud, better so than any fork with an arch over the tire......
    This is a Pugs not some carbon wannabee pretzel wagon!!

    - FrostyStruthers



    www.mendoncyclesmith.com

  21. #321
    mtbr member
    Reputation: vikb's Avatar
    Join Date
    Sep 2008
    Posts
    9,713
    I put a 130mm Fox Float on my Krampus. It's significantly slacker with the suspension fork on it. It rides great. No issues at all.

    A2C is ~545mm sagged to 25% = 513mm so it's ~30mm taller than the stock fork.

    My other MTBs have HTA's of 66 and 67 deg so the Krampus seems just fine at around 68.5 deg.
    Safe riding,

    Vik
    www.vikapproved.com

  22. #322
    mtbr member
    Reputation:
    Join Date
    Aug 2014
    Posts
    14
    Thanks, guys! I guess I am one of these sensitive guys. Upgraded my Karate Monkey with a 100mm Reba and didn't like it at all. Traveled the Reba to 80mm - fantastic ride.

    I am currently looking at the German:A Flame. Definitely wide enough. A2C only 519mm. Overall wheel diameter might be am issue - will call the company next week and discuss the details.

    Cheers,
    Marc

  23. #323
    mtbr member
    Reputation:
    Join Date
    May 2010
    Posts
    72
    I've now upgraded from the barely fitting Fox Float 32 to a Manitou Magnum:





    Lots and lots of clearance, did need to rebuild the front wheel for a 110mm Boost hub though.

    I should note that I changed to the Chronicles before the fork change and found there was a actually little more clearance with them than with the Knards - not sure if the Chornicles are actually smaller or if the old Knards had stretched a bit.

  24. #324
    mtbr member
    Reputation: ya29er's Avatar
    Join Date
    Aug 2013
    Posts
    85
    Quote Originally Posted by bubba13 View Post
    MRP Stage 130 with some light dremel work to round the sharp edge at the bottom of the arch. The Maxxis Chronicle fits with 4-5mm of clearance.
    The clearance looks exactly like Fox 32. However the Stage fork is advertised as a 29+ fork.
    What pressure do you use?

  25. #325
    mtbr member
    Reputation:
    Join Date
    Aug 2014
    Posts
    14
    Quote Originally Posted by Alex.C View Post
    I've now upgraded from the barely fitting Fox Float 32 to a Manitou Magnum:





    Lots and lots of clearance, did need to rebuild the front wheel for a 110mm Boost hub though.

    I should note that I changed to the Chronicles before the fork change and found there was a actually little more clearance with them than with the Knards - not sure if the Chornicles are actually smaller or if the old Knards had stretched a bit.
    100mm Magnum? Looks good!

  26. #326
    mtbr member
    Reputation: ELECTRIC_YETI's Avatar
    Join Date
    Dec 2013
    Posts
    56
    any other pics of dirt wizards in sus forks?

  27. #327
    mtbr member
    Reputation:
    Join Date
    Jun 2008
    Posts
    40

    Dirt Wizard 29x3.0 in a RS Reba

    I just hope it won't stretch to much but no problems the first 5 rides.Krampus with Front Suspension!-dirtwizardreba.jpg

  28. #328
    WNC Native
    Reputation: nitrousjunky's Avatar
    Join Date
    May 2006
    Posts
    3,224
    Quote Originally Posted by sjaakoo View Post
    I just hope it won't stretch to much but no problems the first 5 rides.Click image for larger version.

Name:	DirtWizardReba.jpg
Views:	262
Size:	110.4 KB
ID:	1002562
    What rim?
    "I ride to clear my head, my head is clearer when I'm riding SS. Therefore, I choose to ride SS."~ Fullrange Drew

  29. #329
    mtbr member
    Reputation:
    Join Date
    Jun 2008
    Posts
    40
    30mm internal Light-Bicycle carbon rim @1.14bar/16.6PSI
    Knobs 72 mm , casing 64 mm

    In my RS Reba: 3mm space at the knobs on the side, 4mm at the top

  30. #330
    74 & 29 pilot
    Reputation: MTB Pilot's Avatar
    Join Date
    Oct 2010
    Posts
    2,263
    DW on 50mm Nextie JF rims in a 2016 Fox 34/130 Float.
    Attached Thumbnails Attached Thumbnails Krampus with Front Suspension!-img_2683.jpg

    Krampus with Front Suspension!-img_2686.jpg

    Krampus with Front Suspension!-img_2685.jpg

    Krampus with Front Suspension!-img_2682.jpg

    MTBP
    "GIVE ME LIBERTY OR GIVE ME DEATH!"
    Turn on the truth: http://www.ronpaulchannel.com/

  31. #331
    mtbr member
    Reputation: vikb's Avatar
    Join Date
    Sep 2008
    Posts
    9,713
    Quote Originally Posted by MTB Pilot View Post
    DW on 50mm Nextie JF rims in a 2016 Fox 34/130 Float.
    You've got clearance for days!
    Safe riding,

    Vik
    www.vikapproved.com

  32. #332
    mtbr member
    Reputation: ELECTRIC_YETI's Avatar
    Join Date
    Dec 2013
    Posts
    56
    ffreakin awesome! thats what im lookin for. not alittle guy. plus 45 yo looking to soften the blow in the heavy stuff. plus i keep running out of knards. (grip)

  33. #333
    mtbr member
    Reputation: ELECTRIC_YETI's Avatar
    Join Date
    Dec 2013
    Posts
    56
    was pretty excited about the reba but might be tight with rabbits

  34. #334
    mtbr member
    Reputation:
    Join Date
    Sep 2009
    Posts
    190
    Quote Originally Posted by Alex.C View Post
    I've now upgraded from the barely fitting Fox Float 32 to a Manitou Magnum:





    Lots and lots of clearance, did need to rebuild the front wheel for a 110mm Boost hub though.

    I should note that I changed to the Chronicles before the fork change and found there was a actually little more clearance with them than with the Knards - not sure if the Chornicles are actually smaller or if the old Knards had stretched a bit.
    you could do us a favour and measure the height from the ground to the top of your head tube? thanks

  35. #335
    mtbr member
    Reputation:
    Join Date
    May 2010
    Posts
    72
    Quote Originally Posted by danridesbikes View Post
    you could do us a favour and measure the height from the ground to the top of your head tube? thanks
    As close I can determine is appears to be about 96cm (38 inches).

  36. #336
    mtbr member
    Reputation:
    Join Date
    Sep 2009
    Posts
    190
    cheers

  37. #337
    mtbr member
    Reputation:
    Join Date
    May 2010
    Posts
    72
    Oh I should note, its a small frame.

  38. #338
    mtbr member
    Reputation:
    Join Date
    Apr 2010
    Posts
    97
    Quote Originally Posted by MTB Pilot View Post
    DW on 50mm Nextie JF rims in a 2016 Fox 34/130 Float.
    Awesome, and this is a non Boost fork, right?

  39. #339
    74 & 29 pilot
    Reputation: MTB Pilot's Avatar
    Join Date
    Oct 2010
    Posts
    2,263
    Quote Originally Posted by newportl View Post
    Awesome, and this is a non Boost fork, right?
    Right.
    MTBP
    "GIVE ME LIBERTY OR GIVE ME DEATH!"
    Turn on the truth: http://www.ronpaulchannel.com/

  40. #340
    mtbr member
    Reputation: jdcatnau's Avatar
    Join Date
    Feb 2007
    Posts
    738
    Quote Originally Posted by MTB Pilot View Post
    Right.
    Sorry if this a stupid question since we are in the 29er forum, but is that the regular Fox 29er fork?

  41. #341
    74 & 29 pilot
    Reputation: MTB Pilot's Avatar
    Join Date
    Oct 2010
    Posts
    2,263
    Quote Originally Posted by jdcatnau View Post
    Sorry if this a stupid question since we are in the 29er forum, but is that the regular Fox 29er fork?
    Yes, 2016 Fox 34/130mm 29er. The Dirt Wizard will fit in most previous year models if not all Fox 29 forks.
    MTBP
    "GIVE ME LIBERTY OR GIVE ME DEATH!"
    Turn on the truth: http://www.ronpaulchannel.com/

  42. #342
    mtbr member
    Reputation:
    Join Date
    Oct 2015
    Posts
    4
    Hello,
    This thread has been awesome for my inquiries of krampus front suspension.
    I'm now deciding between the 100mm and 120mm fox.
    My question is which one will leave the geometry closest to stock. I love the climbing ability of my krampus and do not want to lose that.
    So 100mm or 120mm?
    Last edited by Cmahaff; 10-26-2015 at 01:29 PM. Reason: Typo

  43. #343
    mtbr member
    Reputation:
    Join Date
    Oct 2015
    Posts
    4
    Quote Originally Posted by fleanutz View Post

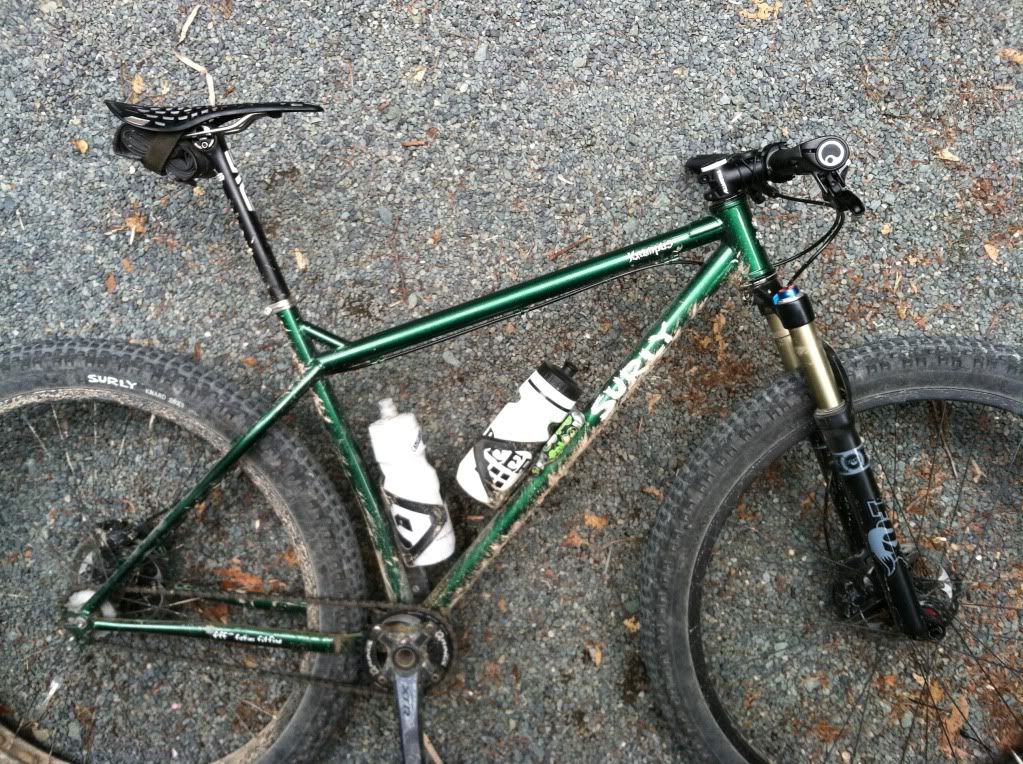

    Riding mine at 100mm, likely will try it with 120mm also.

    I see this is an old post, but looks like you have the 100mm and planned on trying the 120mm. Any info on which is best to maintain the krampus' stellar climbing

  44. #344
    mtbr member
    Reputation:
    Join Date
    Oct 2015
    Posts
    2
    When we test fit multiple forks at the shop the Fox 34 looked to be the best in the clearance category. Slightly better than the 32.

  45. #345
    mtbr member
    Reputation:
    Join Date
    Oct 2015
    Posts
    4
    Nice. Thats good to know.
    I'm mostly curious if the 120mm will raise the front of the bike more than I'd like it too

  46. #346
    mtbr member
    Reputation: crankpuller's Avatar
    Join Date
    Feb 2004
    Posts
    538
    Quote Originally Posted by Cmahaff View Post
    I see this is an old post, but looks like you have the 100mm and planned on trying the 120mm. Any info on which is best to maintain the krampus' stellar climbing
    Go 120.

  47. #347
    turtles make me hot
    Reputation: NYrr496's Avatar
    Join Date
    Sep 2008
    Posts
    8,291
    I like turtles

  48. #348
    mtbr member
    Reputation:
    Join Date
    Oct 2015
    Posts
    4
    I ordered the FOX 120mm. I'm pretty excited. I'm gonna go dirt wizard up front and will post some pics.
    https://youtu.be/VbkGuCozc9M
    Christopher Waltz explains Krampus to Jimmy Fallon
    Get in my Bag!

  49. #349
    mtbr member
    Reputation: sasquatch rides a SS's Avatar
    Join Date
    Dec 2010
    Posts
    4,559
    Does anyone know if the new 2016 Fox Float 34 (part# 910-01-924) would fit on the Krampus and clear Chronicles on Dually rims? Seriously looking for suspension, but don't want to build another wheel to accommodate a boost 110mm interface.

  50. #350
    mtbr member
    Reputation:
    Join Date
    Sep 2007
    Posts
    632
    Quote Originally Posted by Alex.C View Post
    I've now upgraded from the barely fitting Fox Float 32 to a Manitou Magnum:





    Lots and lots of clearance, did need to rebuild the front wheel for a 110mm Boost hub though.

    I should note that I changed to the Chronicles before the fork change and found there was a actually little more clearance with them than with the Knards - not sure if the Chornicles are actually smaller or if the old Knards had stretched a bit.
    Can you tell me if the crown on the Magnum clears the Krampus downtube?

  51. #351
    mtbr member
    Reputation:
    Join Date
    May 2010
    Posts
    72
    Quote Originally Posted by pulsepro View Post
    Can you tell me if the crown on the Magnum clears the Krampus downtube?
    Yeah it clears it on my frame (small).

  52. #352
    mtbr member
    Reputation:
    Join Date
    Oct 2014
    Posts
    11
    Interesting thread. Thanks for the info so far.

    Has anybody tried the Fox 34 (2016) with the Chupacabra or the Knard on a Stan's Hugo or WTB Scraper rim (about 50 mm)? Heard that although the DW is 3.0 it turns out to be a little smaller than a Chupa or Knard.

    Getting a steel 29+ bike (custom frame/Krampus style). Frame will be designed around 120 mm. suspension. Was thinking about the Magnum but a Fox would be even better.

    Thanks
    Last edited by the old fart; 11-11-2015 at 02:26 AM.

  53. #353
    mtbr member
    Reputation:
    Join Date
    Oct 2014
    Posts
    11

  54. #354
    mtbr member
    Reputation:
    Join Date
    Sep 2015
    Posts
    1
    Where did you put chase the Manitou Magnum?
    And is that 1 1/8 steer tube?

  55. #355
    wanna ride bikes?
    Reputation: *OneSpeed*'s Avatar
    Join Date
    Oct 2013
    Posts
    3,547
    why is this not in 29+?
    Rigid SS 29er
    Fat Lefty
    29+

    SS cyclocross
    all steel

    "Fully rigid" isn't a thing.

  56. #356
    mtbr member
    Reputation:
    Join Date
    May 2010
    Posts
    72
    Quote Originally Posted by *OneSpeed* View Post
    why is this not in 29+?
    Probably because the subcategory didn't exist when the thread was created.

  57. #357
    mtbr member
    Reputation:
    Join Date
    Feb 2016
    Posts
    32
    bigger is better

  58. #358
    mtbr member
    Reputation: ak greeff's Avatar
    Join Date
    May 2008
    Posts
    481
    Hello, what size is the Dirt Wizard? Is it the 29plus version? Im wondering if a knard 29plus will fit in this fork. It looks like the Knard casing may be wider. Thanks!
    litespeed's break

  59. #359
    mtbr member
    Reputation:
    Join Date
    Jun 2013
    Posts
    119
    Quote Originally Posted by the old fart View Post
    Interesting thread. Thanks for the info so far.

    Has anybody tried the Fox 34 (2016) with the Chupacabra or the Knard on a Stan's Hugo or WTB Scraper rim (about 50 mm)? Heard that although the DW is 3.0 it turns out to be a little smaller than a Chupa or Knard.

    Getting a steel 29+ bike (custom frame/Krampus style). Frame will be designed around 120 mm. suspension. Was thinking about the Magnum but a Fox would be even better.

    Thanks
    I'm also curious about this. Anyone use a non-boosted fork with a Chupa?

  60. #360
    mtbr member
    Reputation:
    Join Date
    Mar 2012
    Posts
    23

    Current list 29+ Krampus reasonable?

    15mm 100
    Fox 34 non boost DW fits 120
    Lefty's 100/120
    Bluto 80/100/120
    Carver 120
    MRP Stage 120
    RS1 100/120
    Boost 15mm 110:
    Fox 34 27.5+ 110(custom only)/120/130
    Manitou Magnum Pro 100/110(stache OEM)/120
    Manitou Machete 120
    Pike 27.5+ 120
    Yari 27.5+ 120
    Reba 27.5+ 100/120
    SID 27.5? 100
    Lauf AC 485 60 2.8?
    Wren Sports 120

  61. #361
    mtbr member
    Reputation:
    Join Date
    Mar 2012
    Posts
    23
    I am a Clydesdale I ride a L. Mix of all Mt. and XC. Riding a 2011 Fox 32 Talas. Need something stronger. I am an beg-intermediate rider. Do you think I am a match for the Yari or do you think I need/want the Magnum/34/Pike?

  62. #362
    mtbr member
    Reputation:
    Join Date
    Oct 2011
    Posts
    332
    Yari has 35mm stantions, so stiffness should be ok. It does not have as sophisticated of a damping system, so that might make you want to spend more.

  63. #363
    mtbr member
    Reputation:
    Join Date
    Mar 2012
    Posts
    23
    Yeah but what are we really talking about here? I mean how will a 2016 Yari compare to my 2011 fox 32 which seems significantly over tasked with my riding. Plus it seems like the Yari is actually stiffer then a Pike and you can upgrade the internals to a Pike or better.

    If someone could help me understand if the difference between a Yari and Magnum Pro is significant. Seems like the Yari is stronger.

Page 4 of 4 FirstFirst 1234
