    29er Build Advice

    I'm finally taking the plunge into 29er territory. At 6'4" I probably should have done this earlier, all my riding buddies have been crapping on about them for years. Anyway, it's given me more time to save up and buy some nice things:

    Frame is a Lynskey Pro 29 which I bought used (but looks pretty much untouched):





    Fork is DT Swiss:





    Wheelset is Mavic CrossMax SLR:





    Most of the rest of the build will be moved over from my old 26 inch hardtail:






    Some questions:

    1. I'm not sure what type of headset I need. I'm new to the tapered steerer thing, and am struggling to understand all the terminology.

    Is this Chris King here the right one?

    Chris King I3 44/49 ZS Tapered Headset > Components > Headsets and Spacers > Headsets | Jenson USA Online Bike Shop

    They have a 44/49ZS and a 44/56ZS as well as a I5 49 Mixed Tapered - I'm not sure what the difference is. From what I've read about 29ers it seems keeping the front end as low as possible is important - does that mean these inset headset designs are the way to go?


    2. Further to the keeping the front end low thing - do I need to run a zero rise stem, or even reverse a stem? I will experiment with the ones I have before buying anything if it doesn't feel right, but advice is welcome.


    3. Gearing. I want to use the 1x9 setup I have on the 26er (Chainring 32t, Cassette 11-34t). My main complaint of this gearing on the 26 is that I spin out too easily on the flats. Would I be right in thinking these ratios will feel a bit better on a 29er?


    Any other advice welcome too.

  2. #2
    mtbr member
    Reputation: Nubster's Avatar
    Join Date
    May 2009
    Posts
    5,438
    1. Yes. That's the correct headset.

    2. That's personal preference but if your goal is to lower the handle bars then yeah, try flipping the current stem and if that doesn't work, start trying different rise angles and/or place with the spacers to move the stem up and down on the steerer tube.

    3. There's more moving mass (bigger heavier wheels/tires) so you may feel a little better on the 29er. Otherwise, a gear change may be in order either with a larger chainring or smaller cassette cog.

  3. #3
    mtbr member
    Reputation: Tubbsy's Avatar
    Join Date
    Jul 2008
    Posts
    93
    Quote Originally Posted by Nubster View Post
    1. Yes. That's the correct headset.
    Thanks Nubster.

    Out of curiosity, what do the numbers mean (44/56 44/49, I5 I3 etc)? There weren't so many variations when I last bought a regular headset.

  4. #4
    Norđwegr
    Reputation: Vegard's Avatar
    Join Date
    Jul 2009
    Posts
    1,446
    It refers to the angle of the bearings, there's a myriad of confusing standards for this these days. Inner width and height of the cups also differ.

  5. #5
    mtbr member
    Reputation:
    Join Date
    Jul 2013
    Posts
    50
    The closes up pic of the headtube looks like it takes a 1 1/8 headset not a tapered one. According to the Lynskey website the 2014 frame is tapered any thing 2013 or older is 1 1/8. you may want to check into that before ordering parts.

  6. #6
    mtbr member
    Reputation: Tubbsy's Avatar
    Join Date
    Jul 2008
    Posts
    93
    Quote Originally Posted by Phinox View Post
    The closes up pic of the headtube looks like it takes a 1 1/8 headset not a tapered one. According to the Lynskey website the 2014 frame is tapered any thing 2013 or older is 1 1/8. you may want to check into that before ordering parts.
    It is an older frame. But surely I can fit a tapered fork in here?

    The headtube is huge.


    Edit:

    Found this on a 2011 review of the frame here on MTBR:

    Had to source a Cane Creek lower XX44 headset cup to suit the 44mm internal diameter headtube and tapered fork steerer.

    Does this mean I need something specific?

  7. #7
    mtbr member
    Reputation: Nubster's Avatar
    Join Date
    May 2009
    Posts
    5,438
    If there's a serial number on the frame maybe contact Lynskey and they can give you the specs on the frame. Good people to talk to.

    Do you have the fork already or is that just the fork you are looking at? If you have it, does it fit in the headtube? If so, you should be ok. The fat part is 1 1/2" and the skinny part is 1 1/8". If the headtube is a 1 1/8" straight you should not be able to fit the fat part of the tapered steerer into the headtube.

  8. #8
    mtbr member
    Reputation:
    Join Date
    Nov 2011
    Posts
    3,504
    I'd contact Lynskey. Everything I see looks like a 1 1/8 setup. Measure the internal diameters of the headtube. The CaneCreek headset finder seems to think it is a traditional 1 1/8 headset.
    Take a look at http://www.canecreek.com/resources/p...tion-guide.pdf

  9. #9
    mtbr member
    Reputation: Tubbsy's Avatar
    Join Date
    Jul 2008
    Posts
    93
    Hmm, I have the fork already. It easily fits in the headtube. Hope I haven't screwed this up.

    Will email Lynskey and find out.

  10. #10
    mtbr member
    Reputation:
    Join Date
    Jul 2013
    Posts
    301

    29er Build Advice

    If you have calipers measure your headtube. If it's 44mm then you will want an inset 7 Chris king headset, and your fork will work.


    Sent from my iPad using Tapatalk
    Vassago Verhauen SS
    Niner RIP 9 RDO
    2014 Tarmac Elite

  11. #11
    mtbr member
    Reputation: elcaro1101's Avatar
    Join Date
    Sep 2011
    Posts
    506
    That looks like a 44mm head tube to me.

    When you slide a tapered fork into a 1 1/8" frame, it will get stuck on the tapered part of the steer tube. If you can get the fork all the way to the crown, then you will be fine. It will be blatantly obvious if it is not going to work.
    Intense Spider29 / Motobecane FlyTi29

  12. #12
    mtbr member
    Reputation: Tubbsy's Avatar
    Join Date
    Jul 2008
    Posts
    93
    Yep, the fork definitely fits in the whole way.

  13. #13
    mtbr member
    Reputation:
    Join Date
    Jul 2013
    Posts
    301

    29er Build Advice

    Quote Originally Posted by Tubbsy View Post
    Yep, the fork definitely fits in the whole way.
    Then you want the Chris king inset 7
    Or this cane creek
    http://www.competitivecyclist.com/ca...apered-headset


    Sent from my iPhone using Tapatalk
    Vassago Verhauen SS
    Niner RIP 9 RDO
    2014 Tarmac Elite

  14. #14
    mtbr member
    Reputation: Tubbsy's Avatar
    Join Date
    Jul 2008
    Posts
    93
    So this is the word from Lynskey:

    sure, that is just our standard oversized 44mm head tube. Any headset that provides a zero stack 44 for the top and external cup 44 for the bottom will work with a tapered steerer tube'd fork. we provide the cane creek 110 ZS44/EC44 to our customers who purchase a headset with their frame order.
    https://www.lynskeyperformance.com/s...d-headset.html


    I must say I still find the tapered standard confusing. So much jargon.

  15. #15
    mtbr member
    Reputation: Nubster's Avatar
    Join Date
    May 2009
    Posts
    5,438
    zero stack (ZS) means that very little of the head set will come up and out of the top of the head tube. The bearing will be inside of the head tube making a smaller opening to fit the 1 1/8" steerer tube.

    The external cup (EC) is opposite. Most of it will be outside of the head tube as well as the bearing. This allows for a larger opening to fit the 1 1/2" section of the steerer tube.

    An of course 44 denotes the size of the head tube.

  16. #16
    mtbr member
    Reputation: Tubbsy's Avatar
    Join Date
    Jul 2008
    Posts
    93
    Thanks Nubster, it's getting clearer.

    So what is I2/I3/I5 etc?

    Fastblack says I need an I7.

    Jenson only have I3's in 44 with the thin top and fat bottom...

    Chris King I3 44/49 ZS Headset SP Order > Components > Headsets and Spacers > Headsets | Jenson USA
    Chris King I3 44/49 ZS Tapered Headset > Components > Headsets and Spacers > Headsets | Jenson USA

  17. #17
    mtbr member
    Reputation:
    Join Date
    Jul 2013
    Posts
    301

    29er Build Advice

    Your tube is 44mm all the way through. The i3 is for 44 at the top 49 at the bottom and is zero stack as nubster said. Meaning even the bottom bearing is inside the headset.

    You need zs/ec
    If you want chris king, buy this http://www.backcountry.com/chris-kin...7-BOLBK-TAPINS

    Here is the best picture I can find of my bike, which has a 44mm head tube.


    Sent from my iPhone using Tapatalk
    Vassago Verhauen SS
    Niner RIP 9 RDO
    2014 Tarmac Elite

  18. #18
    mtbr member
    Reputation: Tubbsy's Avatar
    Join Date
    Jul 2008
    Posts
    93
    Got it. So I3 is a Chris King model name, not another measurement.

    I was planning on ordering some other stuff from Jenson, hence I was only looking at their site, but perhaps I'll have to look elsewhere for the whole order.

    And really was looking at CK as I was after a silver headset, not black. Brand isn't super important.

  19. #19
    mtbr member
    Reputation: Nubster's Avatar
    Join Date
    May 2009
    Posts
    5,438
    Personally I use the Cane Creek 110 on my bikes. You can get it in silver and they are top notch. 110 year warranty says a lot about it.

  20. #20
    mtbr member
    Reputation: RS VR6's Avatar
    Join Date
    Mar 2007
    Posts
    3,102

  21. #21
    mtbr member
    Reputation:
    Join Date
    Jul 2013
    Posts
    301
    Quote Originally Posted by RS VR6 View Post
    That would work, but only comes in black.
    Vassago Verhauen SS
    Niner RIP 9 RDO
    2014 Tarmac Elite

  22. #22
    mtbr member
    Reputation:
    Join Date
    Jun 2004
    Posts
    868
    Yes, Chris King uses that designation to differentiate their different size options. I3(or Inset 3), I2(Inset 2), I7, are just different King headset models depending on what you need for your headtube. You'd have to read the detailed descriptions or contact King to see which is the right one for your frame.

  23. #23
    mtbr member
    Reputation: Tubbsy's Avatar
    Join Date
    Jul 2008
    Posts
    93
    OK, ended up ordering a Chris King I7 through CRC. A lot more expensive than Jenson, but saved a fair bit on the other things I ordered plus free shipping.

  24. #24
    mtbr member
    Reputation:
    Join Date
    Jul 2013
    Posts
    301

    29er Build Advice

    Why not just order from jenson or backcountry separately? Free shipping over 50 dollars from them anyway. I ordered from 4 or 5 different sites when building my bike depending on the best price. And anything jenson had that crc had for less I had jenson price match.


    Sent from my iPhone using Tapatalk
    Vassago Verhauen SS
    Niner RIP 9 RDO
    2014 Tarmac Elite

  25. #25
    mtbr member
    Reputation: Tubbsy's Avatar
    Join Date
    Jul 2008
    Posts
    93
    I'm not in the USA, unfortunately Jenson don't offer free international shipping like CRC and Wiggle do.

  26. #26
    Short-Change-Hero
    Reputation: gregnash's Avatar
    Join Date
    Jul 2010
    Posts
    4,353
    Did you ask them to price match? While they may not do free shipping internationally, do they do shipping internationally at all?

  27. #27
    mtbr member
    Reputation: Tubbsy's Avatar
    Join Date
    Jul 2008
    Posts
    93
    Jenson do ship internationally, of course. They were substantially cheaper on the headset, but not so much the rest of my order. CRC don't price match I believe. If they do, I've just wasted $50, but hey whatever.

    How's your On-One? Mine is the parts donor for this build!

    [/URL]

    [/URL]

  28. #28
    Short-Change-Hero
    Reputation: gregnash's Avatar
    Join Date
    Jul 2010
    Posts
    4,353
    Absolutely love the Purple People Eater (my Inbred)... Can't have asked for a better bike and it will still be my XC race machine and commuter. I may look at going with a carbon fork for it while she is in commuter duty and then moving the Tower Pro back over when I have someone that wants to borrow it or I don't feel like taking the FS bike with me. But for now she is pulling double duty and I will always enjoy riding her.

  29. #29
    mtbr member
    Reputation: Nubster's Avatar
    Join Date
    May 2009
    Posts
    5,438
    Quote Originally Posted by Tubbsy View Post
    CRC don't price match I believe. If they do, I've just wasted $50, but hey whatever.
    But Jenson will price match CRC. I just ordered a set of XT brakes from Jenson and they price matched CRC. Depending on shipping, you may or may not have saved some money. I guess it's too late now but for future reference.
    Cannondale F29 carbon
    Jamis Renegade Elite
    Kona Big Unit SS/full rigid
    Kona Private Jake SSCX (build in progress)

  30. #30
    Short-Change-Hero
    Reputation: gregnash's Avatar
    Join Date
    Jul 2010
    Posts
    4,353
    He is on the other side of the pond from us, so CRC is local for him.

  31. #31
    mtbr member
    Reputation: Nubster's Avatar
    Join Date
    May 2009
    Posts
    5,438
    Quote Originally Posted by gregnash View Post
    He is on the other side of the pond from us, so CRC is local for him.
    Right, but we buy from CRC to save money here in the US...if Jenson or anyone else can match or beat his local prices, depending on shipping, he may save some pounds by ordering from our side. Always worth a few minutes of browsing if it'll save some cash.
    Cannondale F29 carbon
    Jamis Renegade Elite
    Kona Big Unit SS/full rigid
    Kona Private Jake SSCX (build in progress)

  32. #32
    mtbr member
    Reputation: Tubbsy's Avatar
    Join Date
    Jul 2008
    Posts
    93
    What I'm saying is that Jenson were substantially cheaper on the headset than CRC. So no point getting a price match. But CRC ship to Australia for free, whereas the American options don't as far as I know, and the shipping is of the expensive couriered variety. Have used Jenson before though, great service.

  33. #33
    mtbr member
    Reputation:
    Join Date
    Oct 2012
    Posts
    60
    Just my .02, and I know this will require a new group. But I'd at least go to a 10 speed setup if you can.

    Sent from my GS5.

  34. #34
    mtbr member
    Reputation: Tubbsy's Avatar
    Join Date
    Jul 2008
    Posts
    93
    L

    Quote Originally Posted by itskohler View Post
    Just my .02, and I know this will require a new group. But I'd at least go to a 10 speed setup if you can.

    Sent from my GS5.

    Why do you think I'll need a new group? I was hoping that the 1x9 setup would be sufficient.

  35. #35
    mtbr member
    Reputation:
    Join Date
    Oct 2012
    Posts
    60
    If you went to a 10 speed you'd need new stuff. But if you're content with 9 than by all means keep it.

    Sent from my GS5.

  36. #36
    mtbr member
    Reputation: Tubbsy's Avatar
    Join Date
    Jul 2008
    Posts
    93
    I won't know if I'm happy 'til I ride it, but it's worth the risk. Don't hugely want to blow another $500 on drive train when I have all the bits already.

    The thing I've been assuming about 10speed and 11speed is that it's just a way to prise more money from my pocket. If I replace my 1x9 with a 1x10/11 drivetrain, I only get more gears to choose within broadly the same range?

    Or am I wrong?

    I'm a stand and mash kind of rider, so a robust chain is something I appreciate.

  37. #37
    mtbr member
    Reputation: Tubbsy's Avatar
    Join Date
    Jul 2008
    Posts
    93

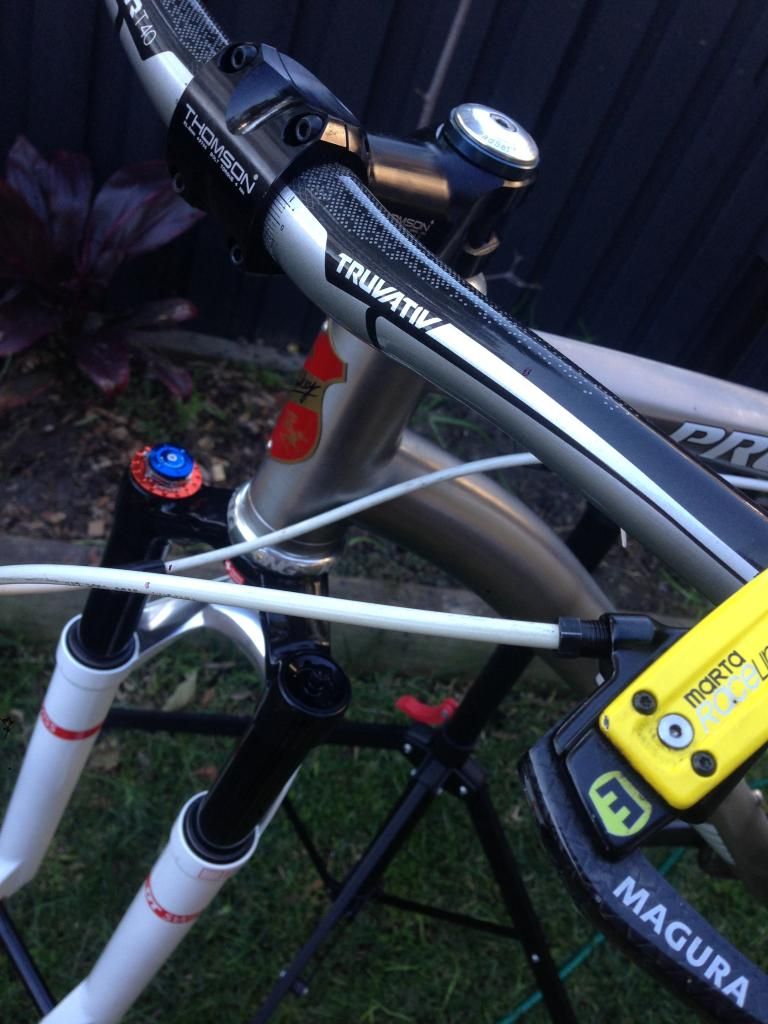

    Thanks all for the advice. Progress is being made:





    I think silver was the right way to go, and CK was the only option I could find online. I've found them a bit too 'bling' for my taste in the past, but with the top inset I think it looks good.

  38. #38
    mtbr member
    Reputation: elcaro1101's Avatar
    Join Date
    Sep 2011
    Posts
    506
    Looking really nice!

    I like the silver as well. When I built my ti 29er up, I chose the pewter colored thinking it would match better than the silver but was wrong. What wheelset is going on the bike?
    Intense Spider29 / Motobecane FlyTi29

  39. #39
    mtbr member
    Reputation: Tubbsy's Avatar
    Join Date
    Jul 2008
    Posts
    93
    Quote Originally Posted by elcaro1101 View Post
    Looking really nice!

    I like the silver as well. When I built my ti 29er up, I chose the pewter colored thinking it would match better than the silver but was wrong. What wheelset is going on the bike?
    Mavic Crossmax. There's a pic in my first post.

    Currently struggling to seat Schwalbe tyres on them. In the past I've used UST tyres with the big fat beads. Seems 'tubeless ready', while lighter, is a whole lot harder to use.

  40. #40
    mtbr member
    Reputation: Tubbsy's Avatar
    Join Date
    Jul 2008
    Posts
    93
    Nearly there:
